Ray Tracing Depth Maps Using Precomputed Edge Tables

Ray Tracing Depth Maps Using Precomputed Edge Tables Kevin Egan Rhythm & Hues Studios

Overview • Shadowing • Ray tracing depth maps • Our new technique • Analysis and future work

Shadowing • Shadows provide realism and a sense of depth area light • We will focus on opaque objects casting shadows from an area light occluder – Ray traced shadows – Depth maps penumbra

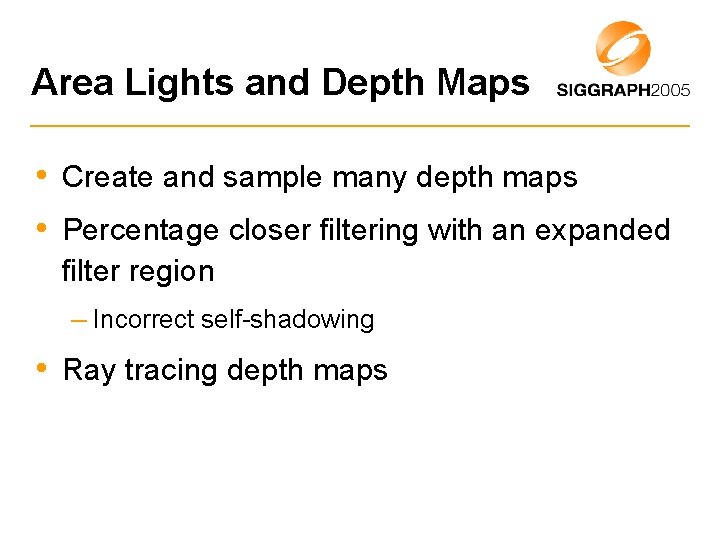

Area Lights and Depth Maps • Create and sample many depth maps • Percentage closer filtering with an expanded filter region – Incorrect self-shadowing • Ray tracing depth maps

Ray Tracing Depth Maps • Agrawala et al. introduced techniques for ray tracing through depth maps (SIGGRAPH 2000) – Correctly cast rays from shading point to area light – Hierarchical depth map – Caching shadow rays – Trace one ray at a time

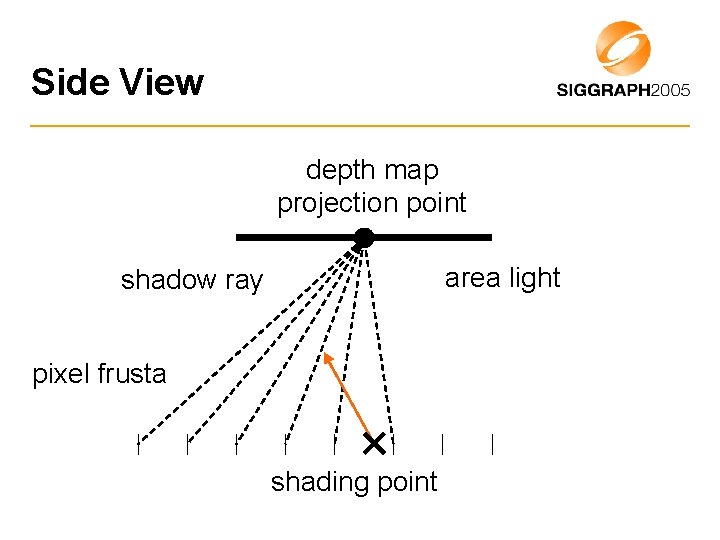

Side View depth map projection point area light shadow ray pixel frusta shading point

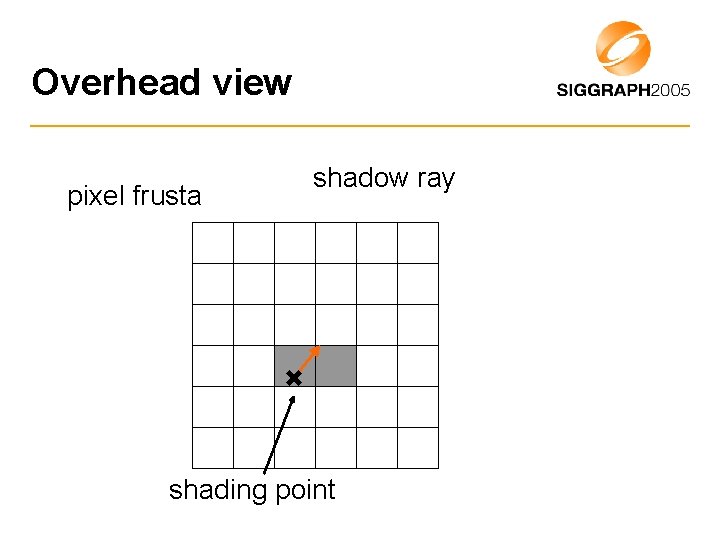

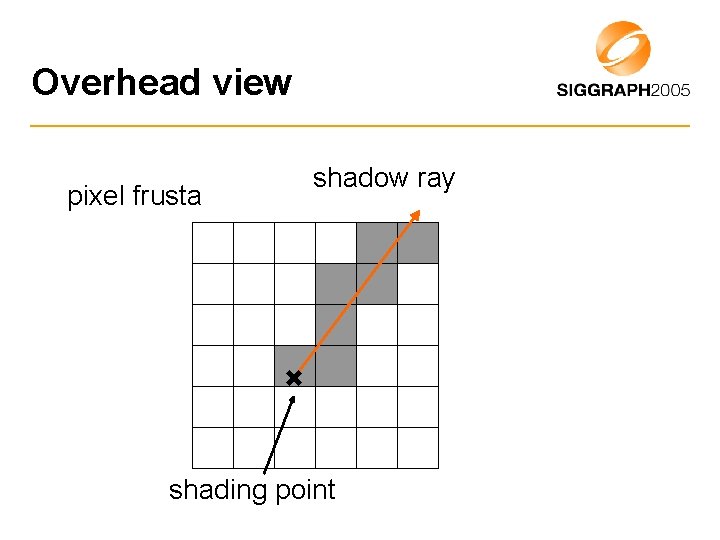

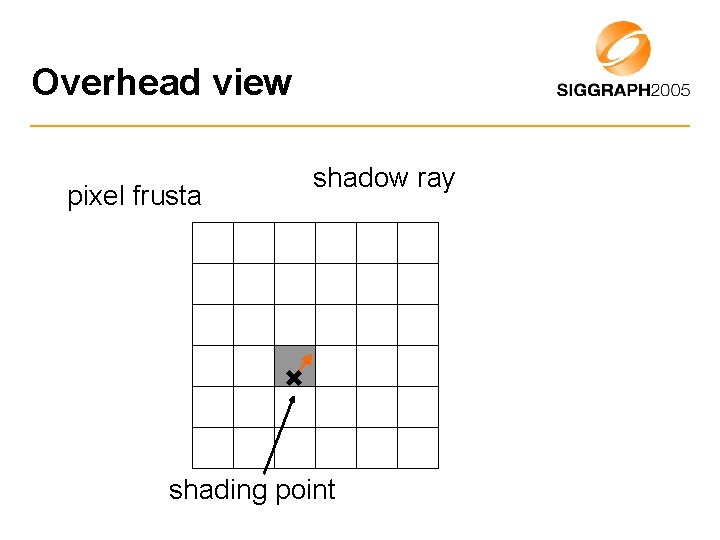

Overhead view pixel frusta shadow ray shading point

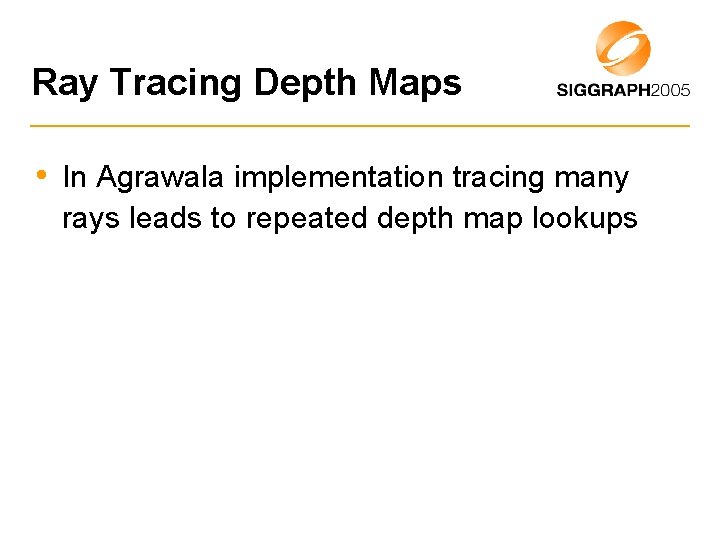

Ray Tracing Depth Maps • In Agrawala implementation tracing many rays leads to repeated depth map lookups

Overhead view pixel frusta shadow rays shading point

Our Work • Same basic idea as Agrawala et al. – Correctly cast rays from shading point to area light • New datastructure for tracing many shadow ray segments in parallel

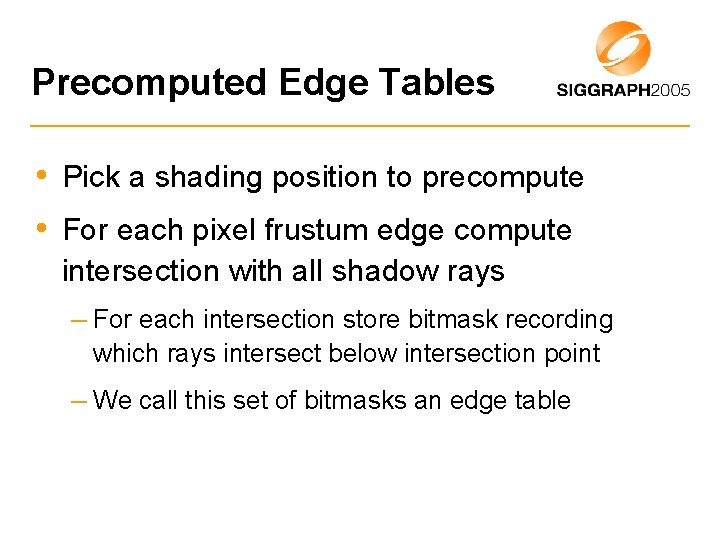

Precomputed Edge Tables • Pick a shading position to precompute • For each pixel frustum edge compute intersection with all shadow rays – For each intersection store bitmask recording which rays intersect below intersection point – We call this set of bitmasks an edge table

Side View depth map projection point shadow ray pixel frusta area light occluder shading position

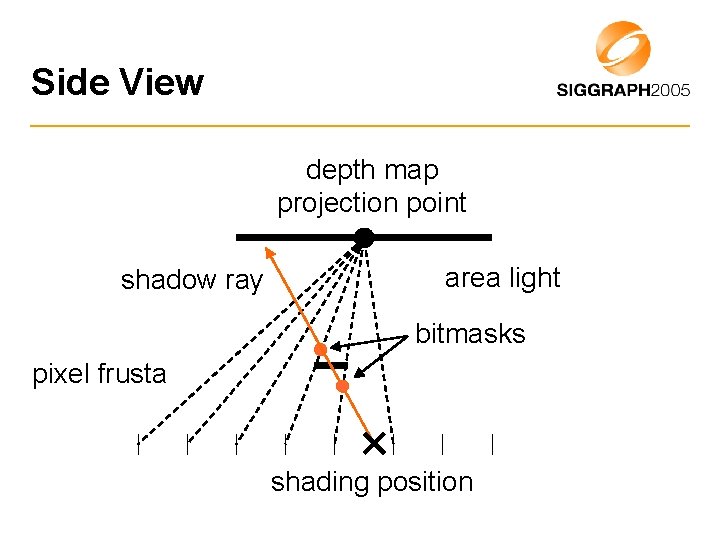

Side View depth map projection point shadow ray area light bitmasks pixel frusta shading position

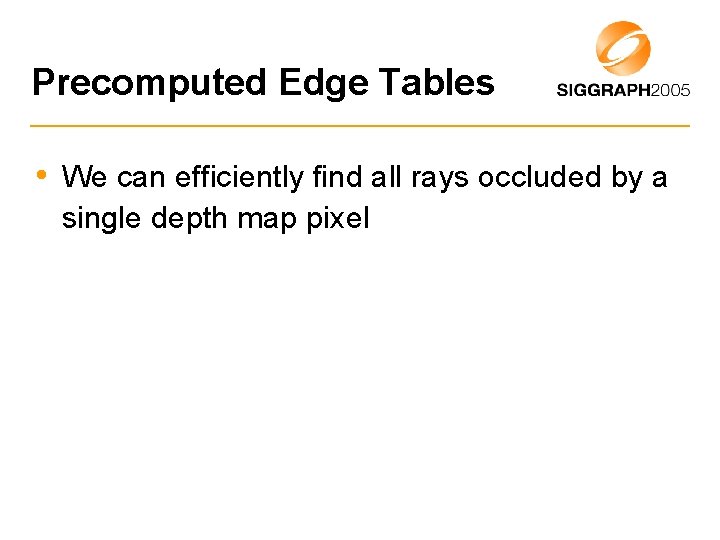

Precomputed Edge Tables • We can efficiently find all rays occluded by a single depth map pixel

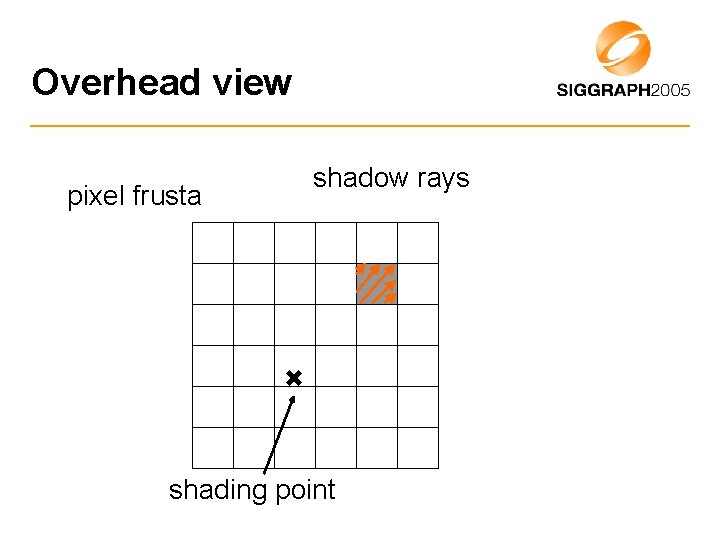

Overhead view pixel frusta shadow rays shading point

Precomputed Edge Tables For each pixel in filter region Lookup depth from depth map Find nearest bitmasks for all edges XOR bitmasks for incoming edges with outgoing edges Mark all occluded rays Record percentage of occluded rays

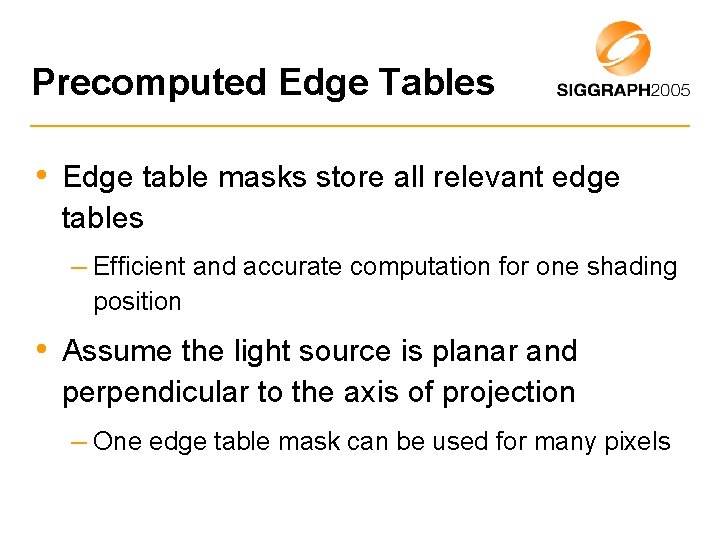

Precomputed Edge Tables • Edge table masks store all relevant edge tables – Efficient and accurate computation for one shading position • Assume the light source is planar and perpendicular to the axis of projection – One edge table mask can be used for many pixels

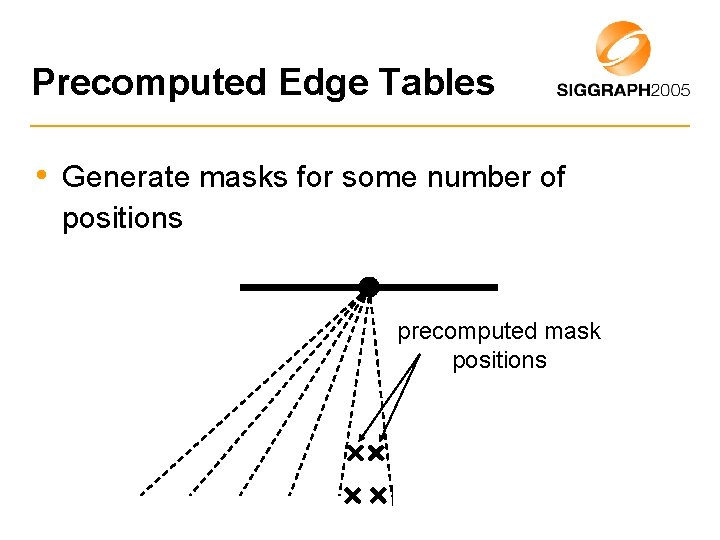

Precomputed Edge Tables • Generate masks for some number of positions precomputed mask positions

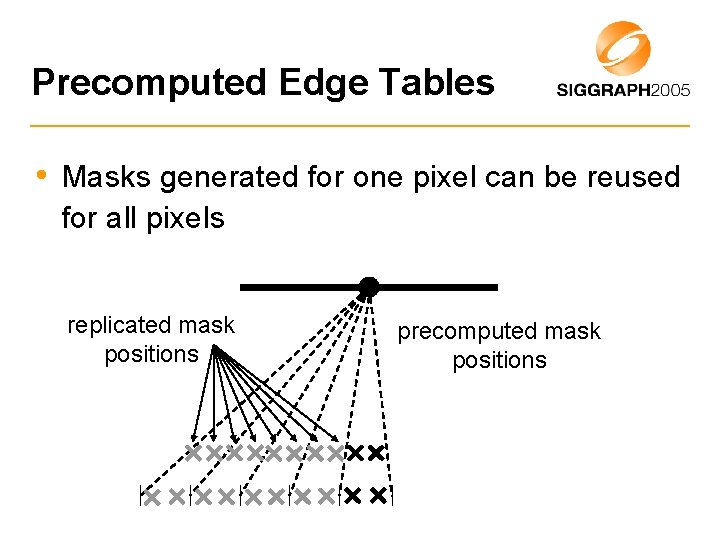

Precomputed Edge Tables • Masks generated for one pixel can be reused for all pixels replicated mask positions precomputed mask positions

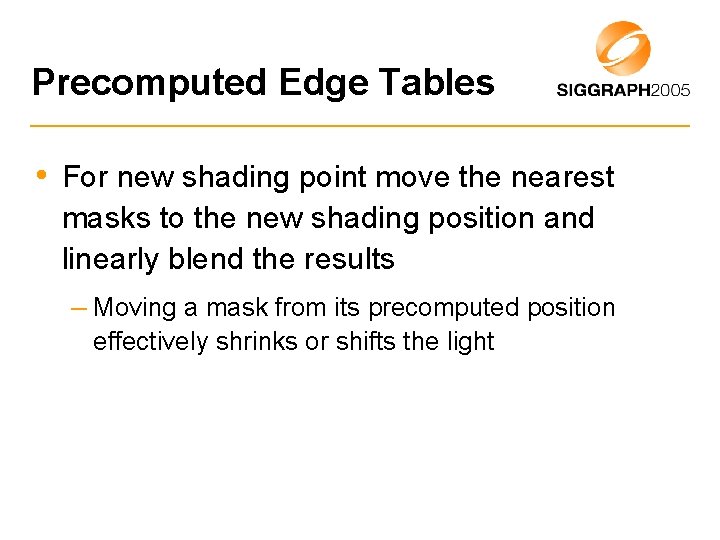

Precomputed Edge Tables • For new shading point move the nearest masks to the new shading position and linearly blend the results – Moving a mask from its precomputed position effectively shrinks or shifts the light

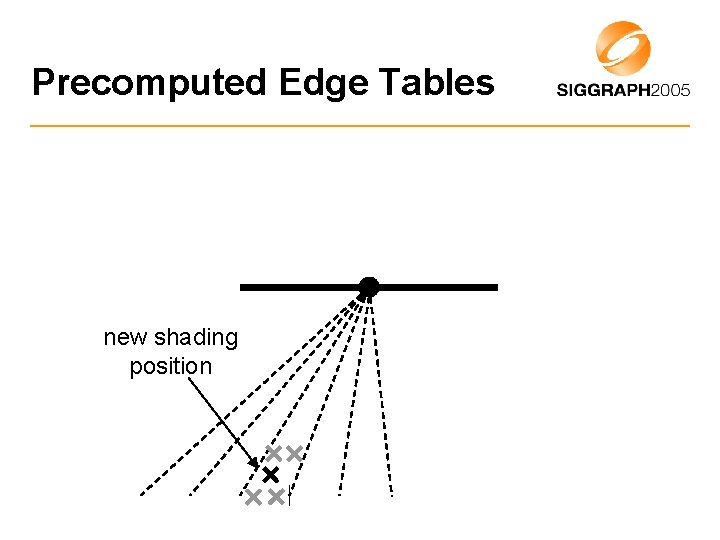

Precomputed Edge Tables new shading position

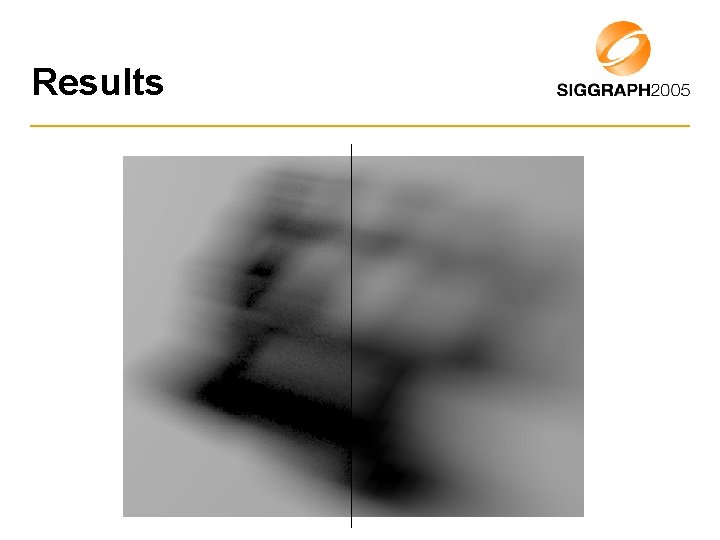

Results

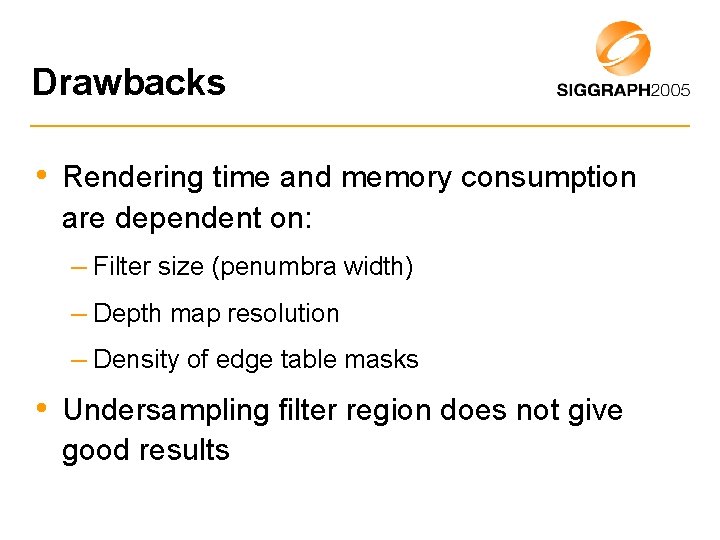

Drawbacks • Rendering time and memory consumption are dependent on: – Filter size (penumbra width) – Depth map resolution – Density of edge table masks • Undersampling filter region does not give good results

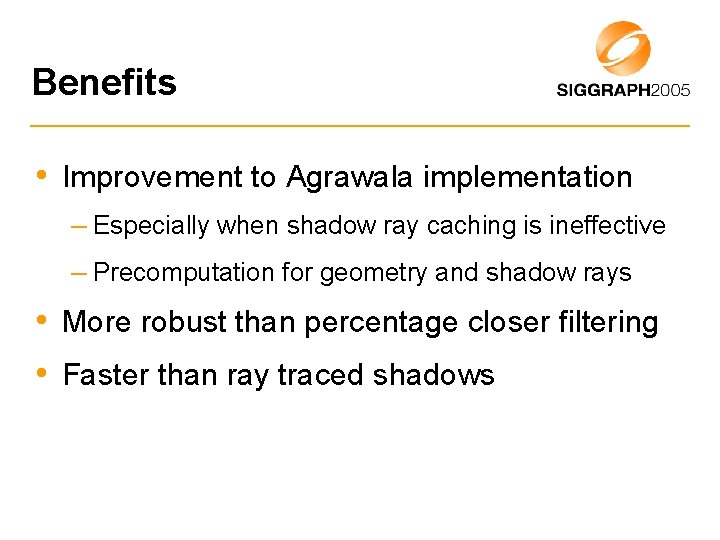

Benefits • Improvement to Agrawala implementation – Especially when shadow ray caching is ineffective – Precomputation for geometry and shadow rays • More robust than percentage closer filtering • Faster than ray traced shadows

Future Work • Mixing ray tracing and precomputed depth maps – Accuracy along silhouette edges – Efficiency for other areas • Multi-resolution depth map • GPU implementation

Thanks! • Ivan Neulander • Rhythm & Hues Studios
