Rational Unified Process Fundamentals Module 2 RUP Structure

Objectives: Rational Unified Process Structure w Explain the role of process in software development.

A Development Process Should: w Define the steps that lead to deliverables and who

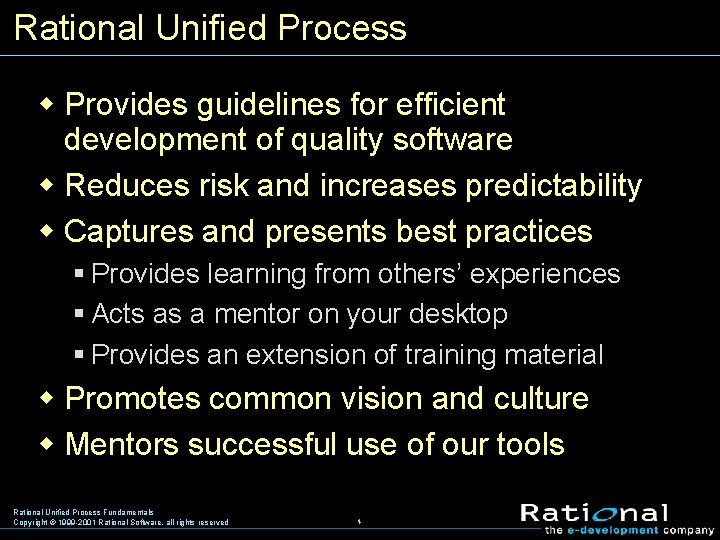

Rational Unified Process w Provides guidelines for efficient development of quality software w Reduces

Role of UML in RUP w Rational Unified Process was developed hand-in-hand with the

RUP Structure w Organization along time § Lifecycle structure: phases, iterations § Process enactment:

Organization Along Time Organization by phases helps minimize the risks of resource allocation. Rational

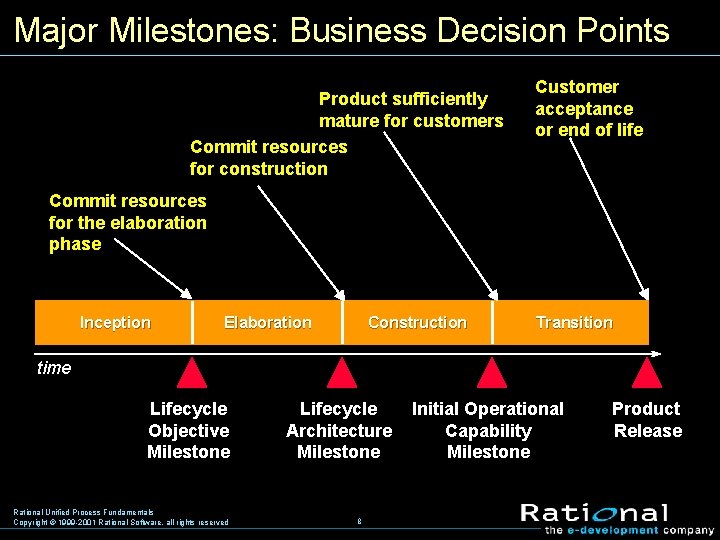

Major Milestones: Business Decision Points Product sufficiently mature for customers Commit resources for construction

Inception Phase The overriding goal of the inception phase is to achieve concurrence among

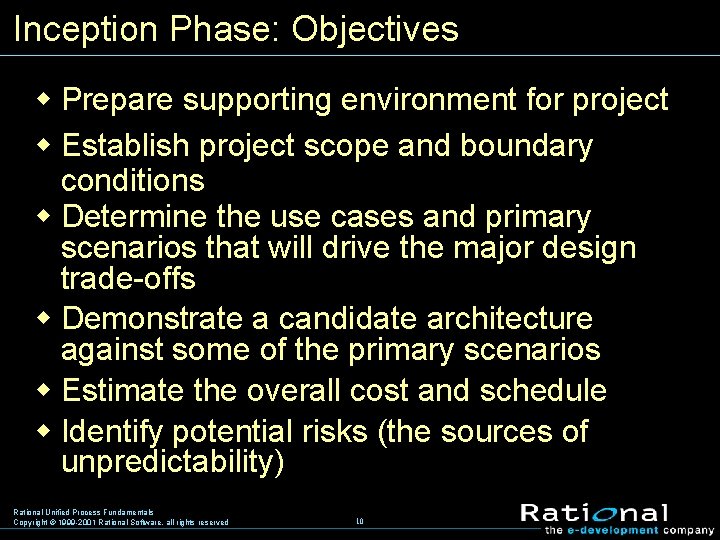

Inception Phase: Objectives w Prepare supporting environment for project w Establish project scope and

Inception Phase: Artifacts The outcome of the inception phase is the creation of these

Inception Phase: Evaluation Criteria § Stakeholder concurrence on scope definition and cost/schedule estimates §

Elaboration Phase The overriding goal of the elaboration phase is to analyze the problem

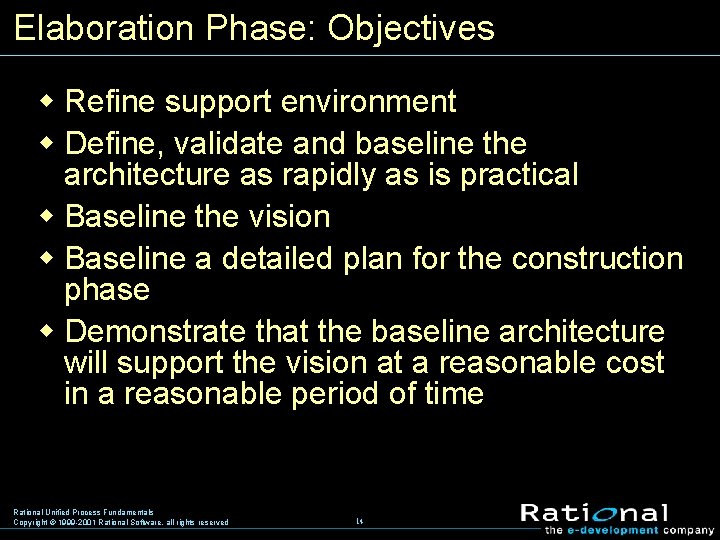

Elaboration Phase: Objectives w Refine support environment w Define, validate and baseline the architecture

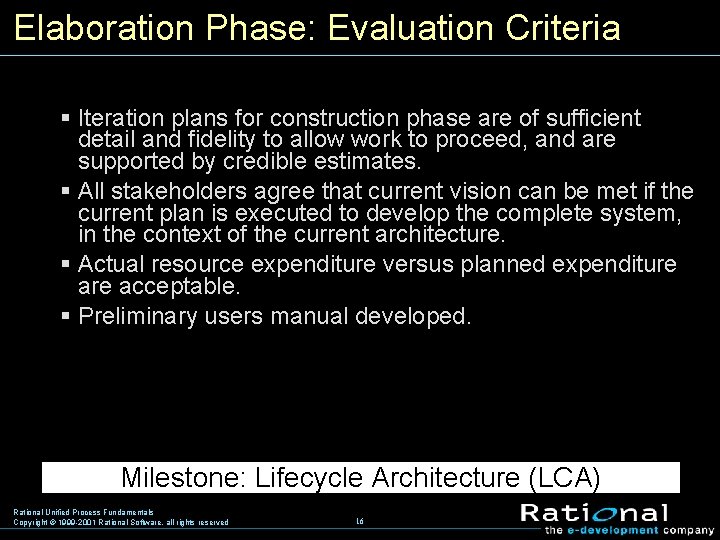

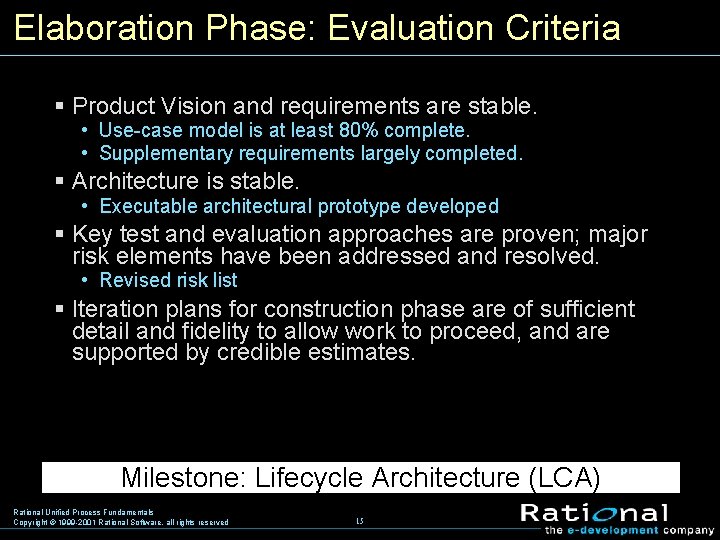

Elaboration Phase: Evaluation Criteria § Product Vision and requirements are stable. • Use-case model

Elaboration Phase: Evaluation Criteria § Iteration plans for construction phase are of sufficient detail

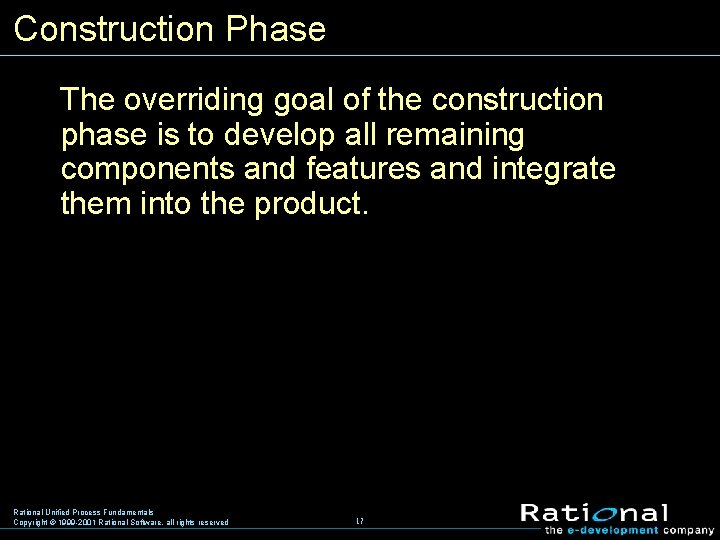

Construction Phase The overriding goal of the construction phase is to develop all remaining

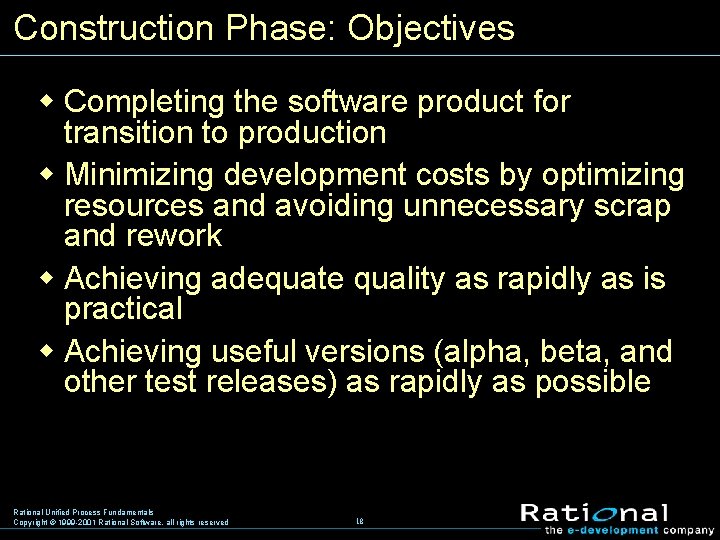

Construction Phase: Objectives w Completing the software product for transition to production w Minimizing

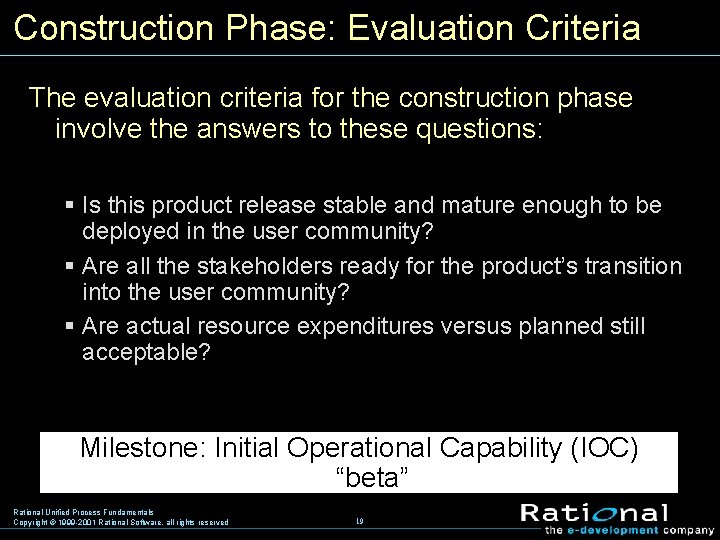

Construction Phase: Evaluation Criteria The evaluation criteria for the construction phase involve the answers

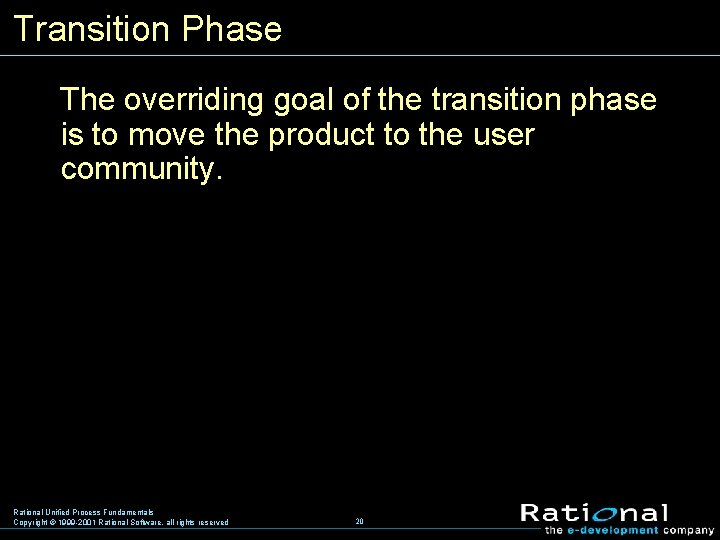

Transition Phase The overriding goal of the transition phase is to move the product

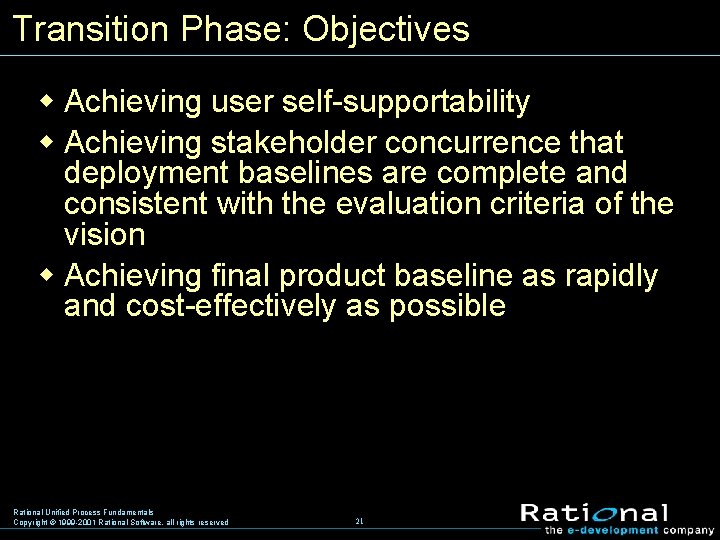

Transition Phase: Objectives w Achieving user self-supportability w Achieving stakeholder concurrence that deployment baselines

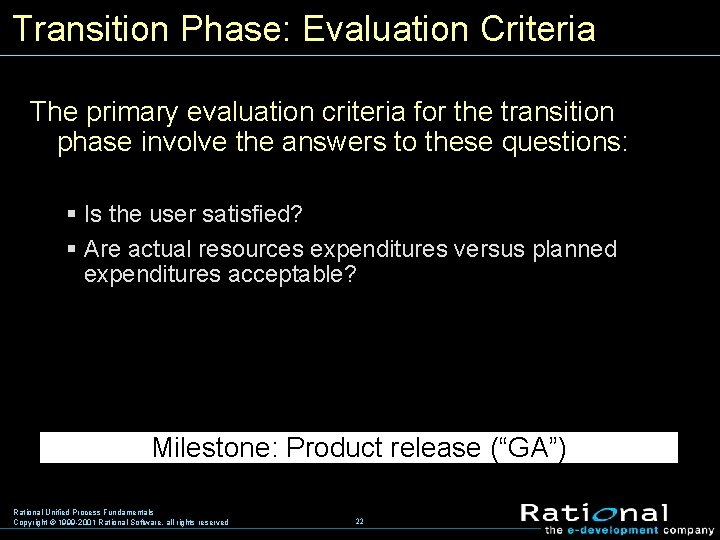

Transition Phase: Evaluation Criteria The primary evaluation criteria for the transition phase involve the

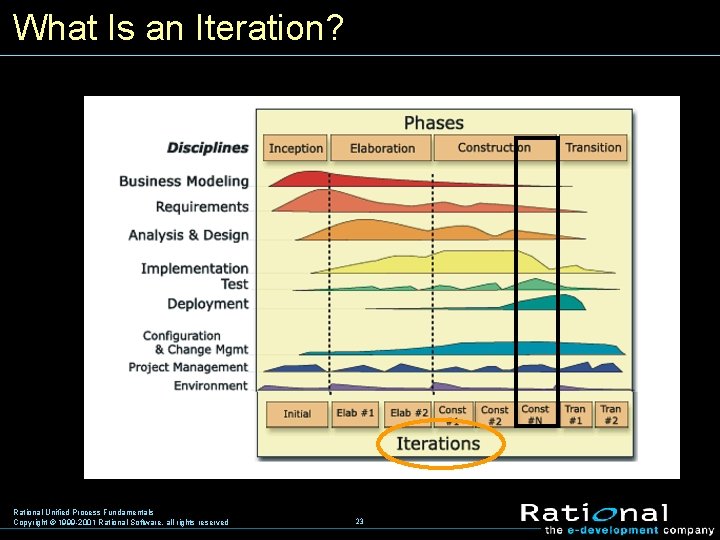

What Is an Iteration? Rational Unified Process Fundamentals Copyright © 1999 -2001 Rational Software,

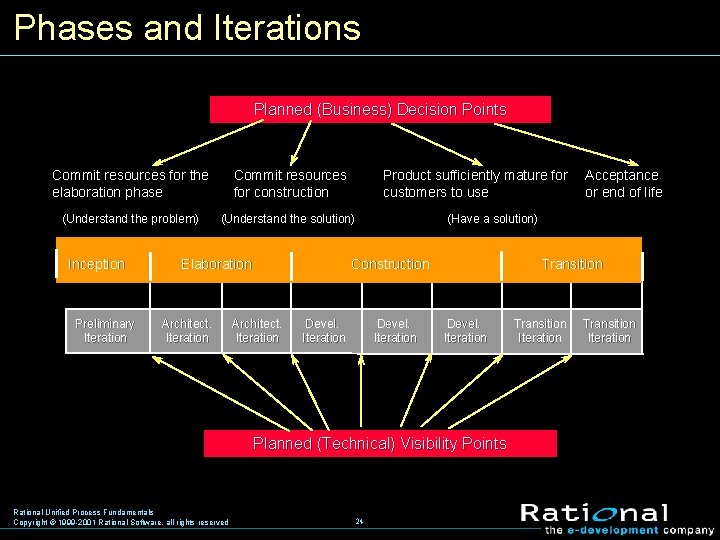

Phases and Iterations Planned (Business) Decision Points Commit resources for the elaboration phase Commit

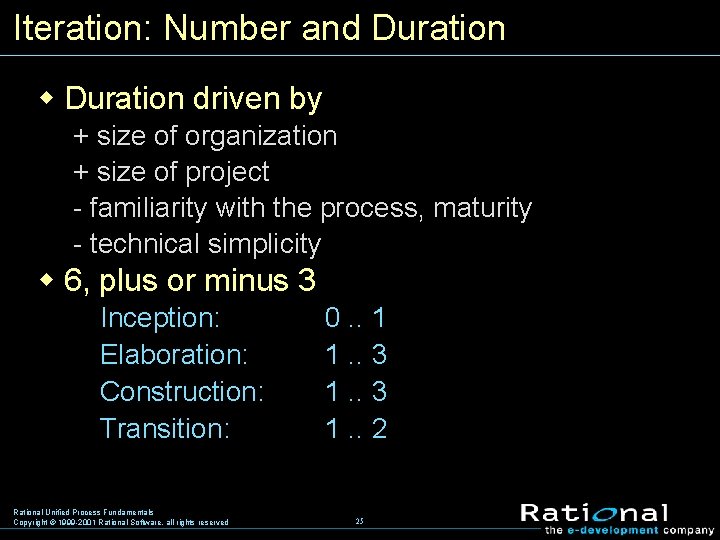

Iteration: Number and Duration w Duration driven by + size of organization + size

One Iteration In an iteration, you walk through all disciplines. Rational Unified Process Fundamentals

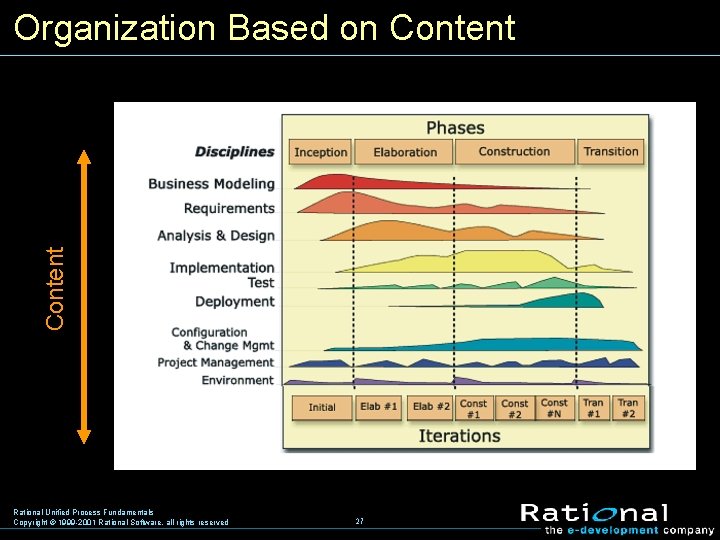

Content Organization Based on Content Rational Unified Process Fundamentals Copyright © 1999 -2001 Rational

Key RUP Elements: Roles, Activities, Artifacts performs Role Activity responsible for Artifact Rational Unified

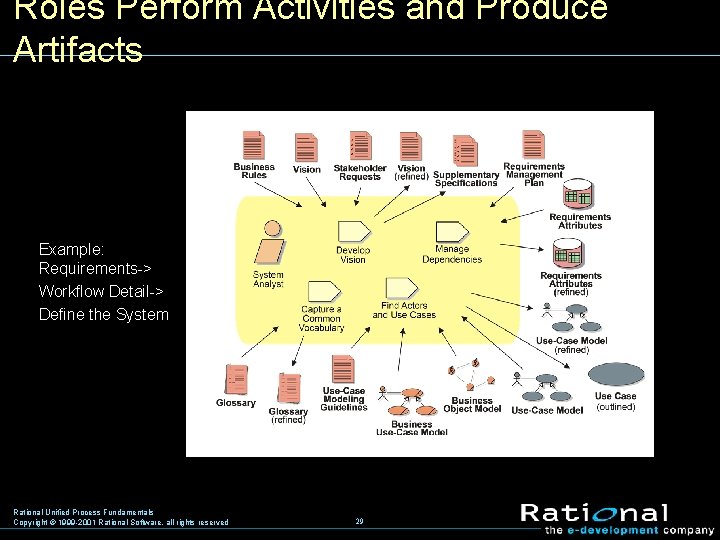

Roles Perform Activities and Produce Artifacts Example: Requirements-> Workflow Detail-> Define the System Rational

Key RUP Element: Role w A Role defines the behavior and responsibilities of an

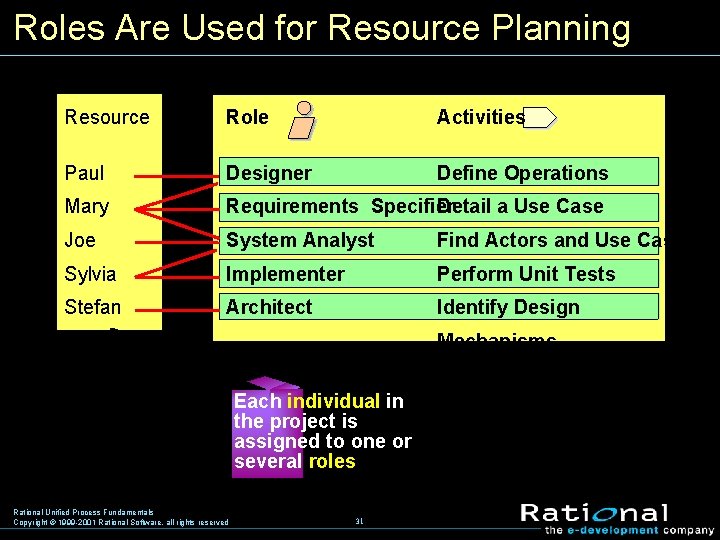

Roles Are Used for Resource Planning Resource Role Activities Paul Designer Define Operations Mary

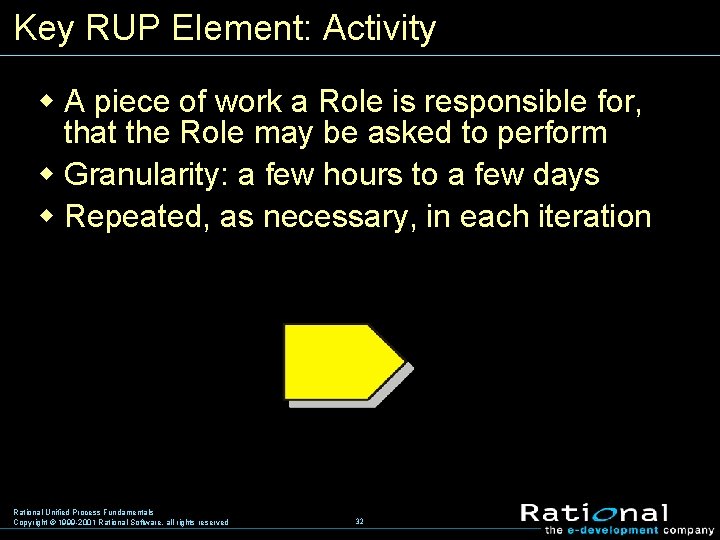

Key RUP Element: Activity w A piece of work a Role is responsible for,

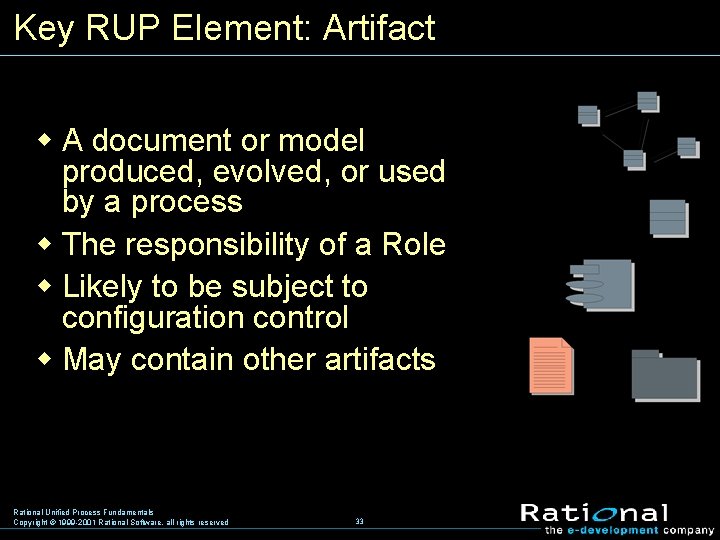

Key RUP Element: Artifact w A document or model produced, evolved, or used by

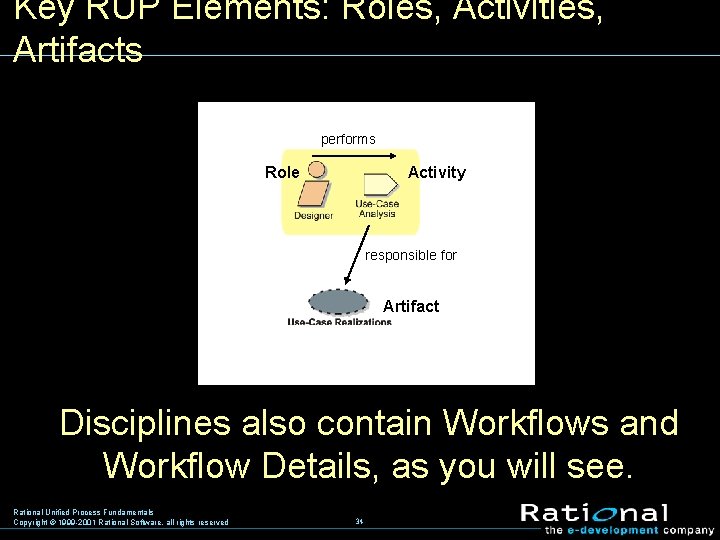

Key RUP Elements: Roles, Activities, Artifacts performs Role Activity responsible for Artifact Disciplines also

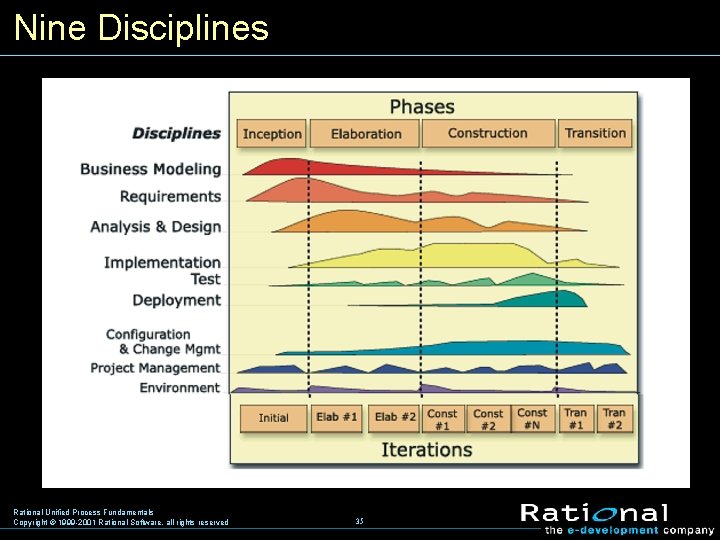

Nine Disciplines Rational Unified Process Fundamentals Copyright © 1999 -2001 Rational Software, all rights

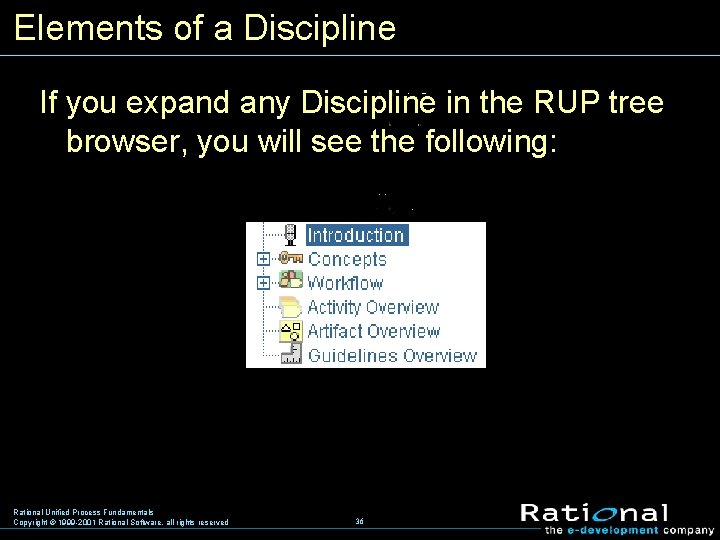

Elements of a Discipline If you expand any Discipline in the RUP tree browser,

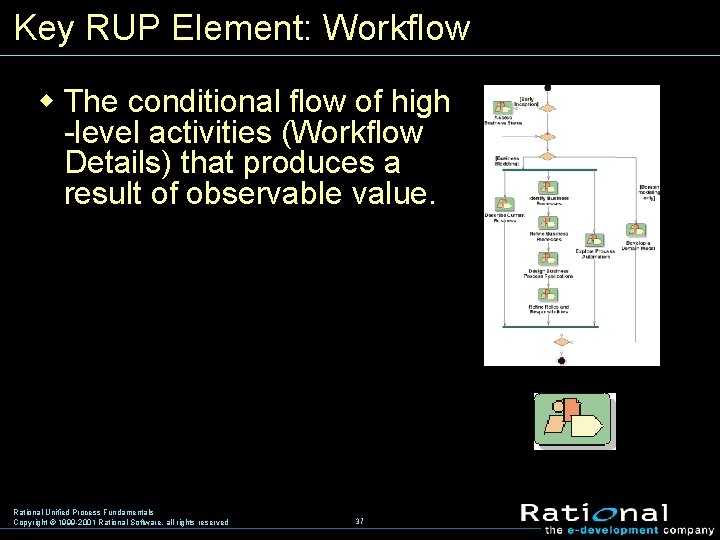

Key RUP Element: Workflow w The conditional flow of high -level activities (Workflow Details)

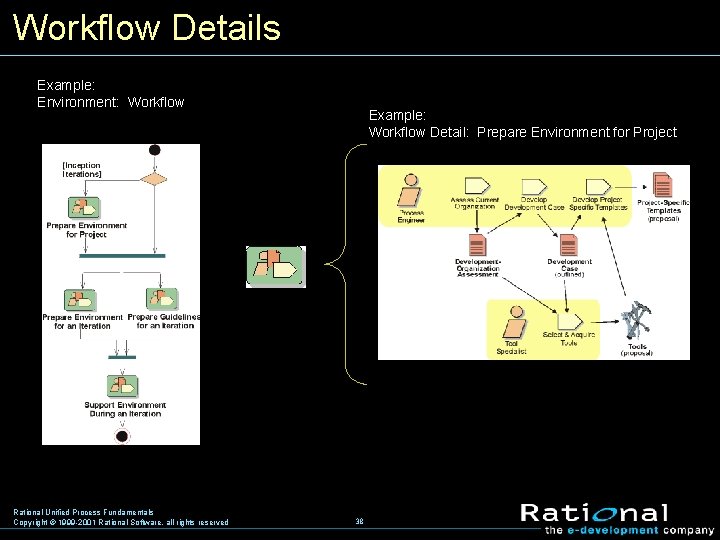

Workflow Details Example: Environment: Workflow Rational Unified Process Fundamentals Copyright © 1999 -2001 Rational

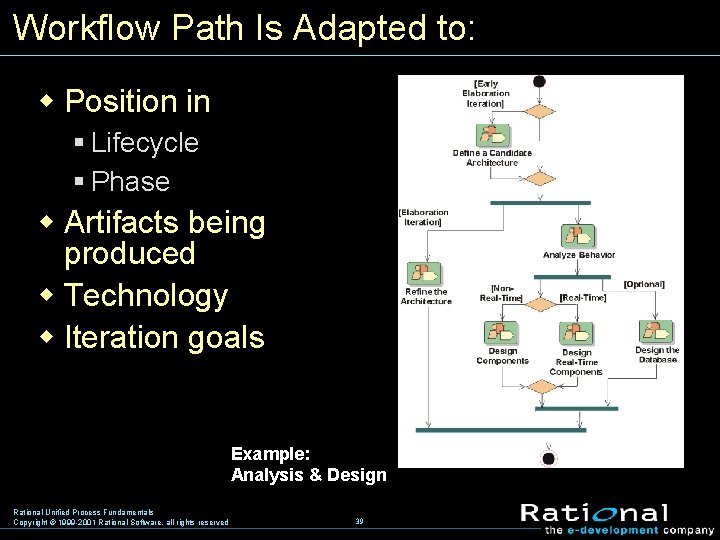

Workflow Path Is Adapted to: w Position in § Lifecycle § Phase w Artifacts

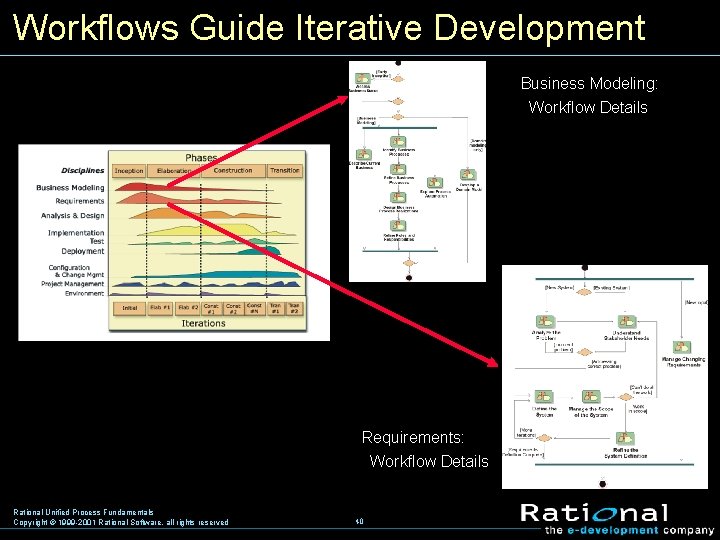

Workflows Guide Iterative Development Business Modeling: Workflow Details Requirements: Workflow Details Rational Unified Process

Iteration Plan Includes relevant portions of Discipline for a particular iteration Rational Unified Process

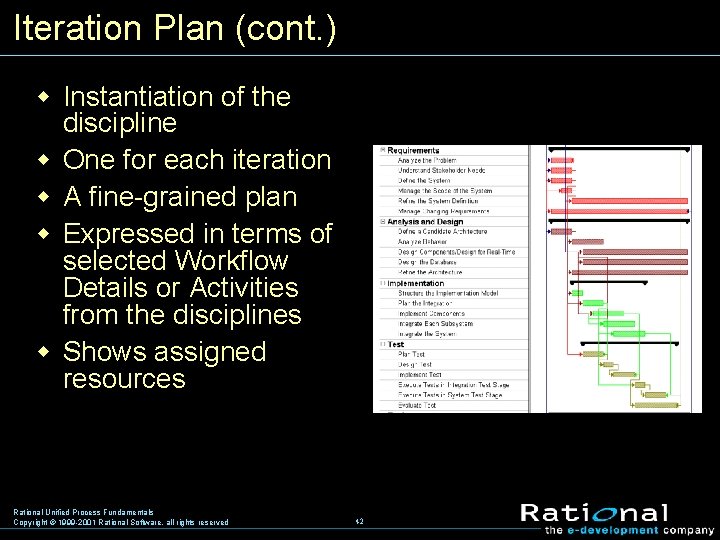

Iteration Plan (cont. ) w Instantiation of the discipline w One for each iteration

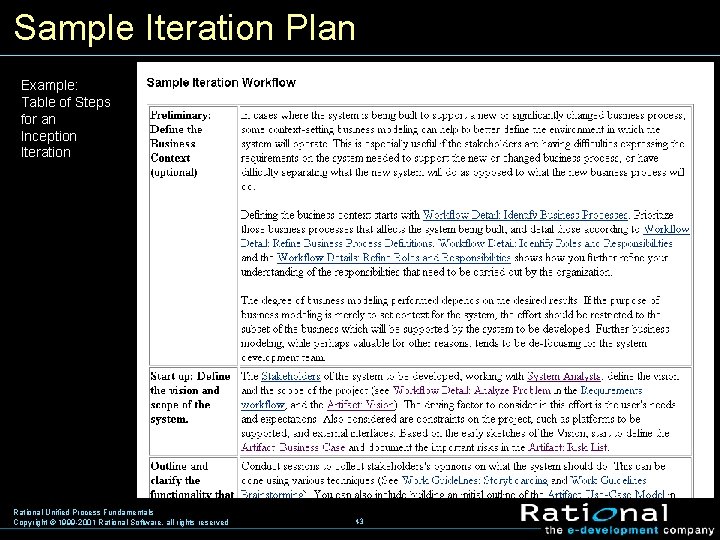

Sample Iteration Plan Example: Table of Steps for an Inception Iteration Rational Unified Process

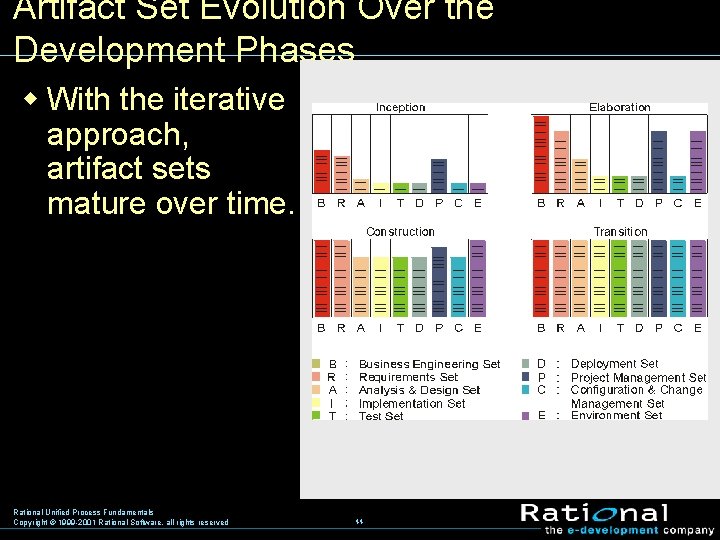

Artifact Set Evolution Over the Development Phases w With the iterative approach, artifact sets

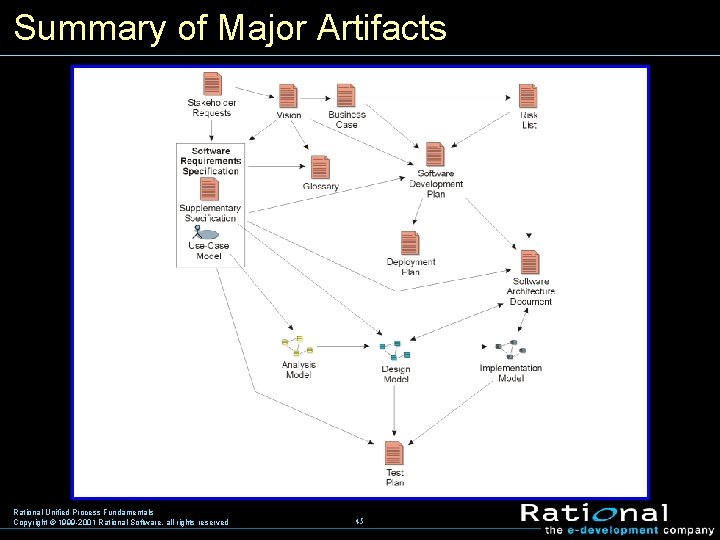

Summary of Major Artifacts Rational Unified Process Fundamentals Copyright © 1999 -2001 Rational Software,

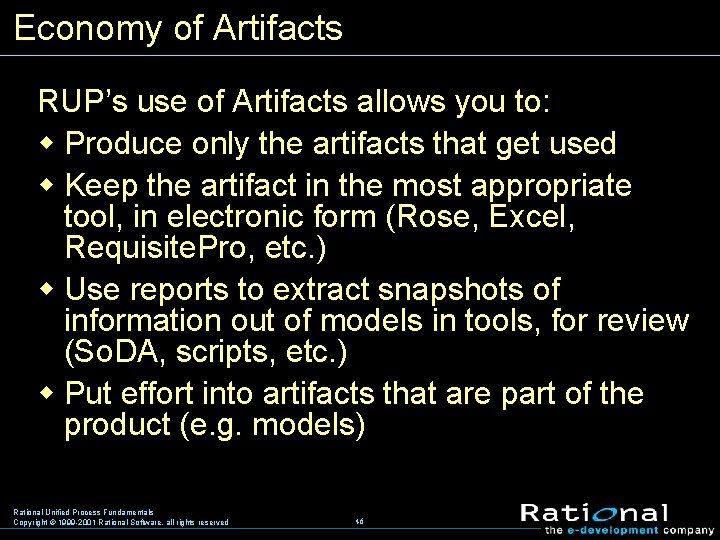

Economy of Artifacts RUP’s use of Artifacts allows you to: w Produce only the

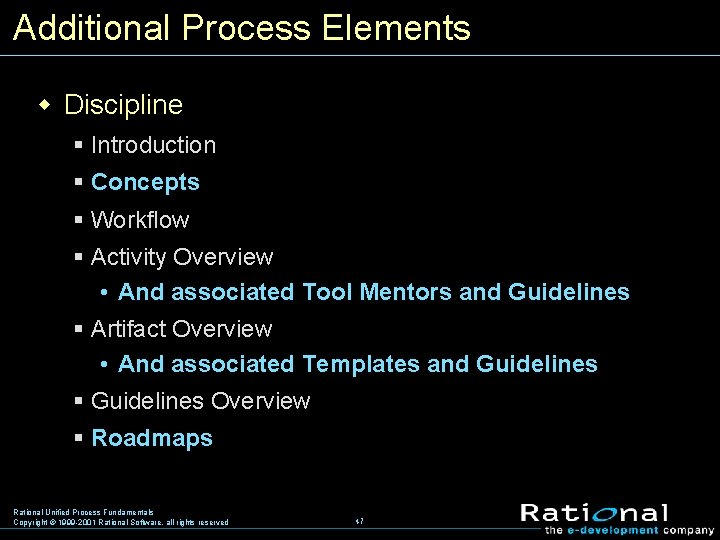

Additional Process Elements w Discipline § Introduction § Concepts § Workflow § Activity Overview

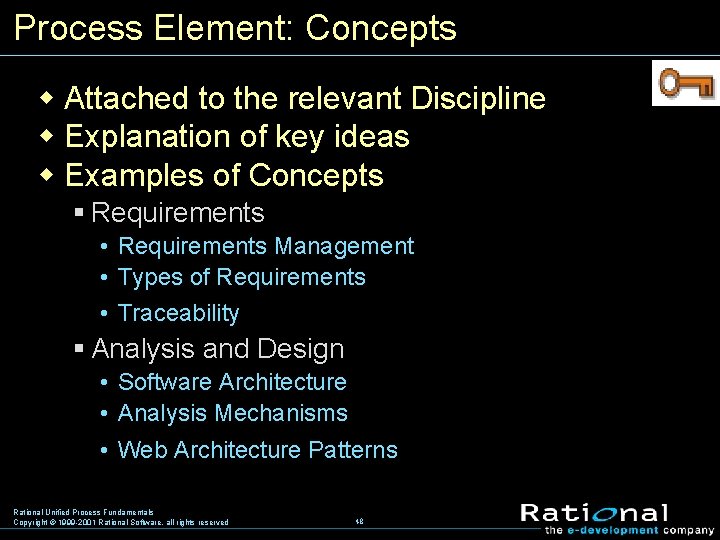

Process Element: Concepts w Attached to the relevant Discipline w Explanation of key ideas

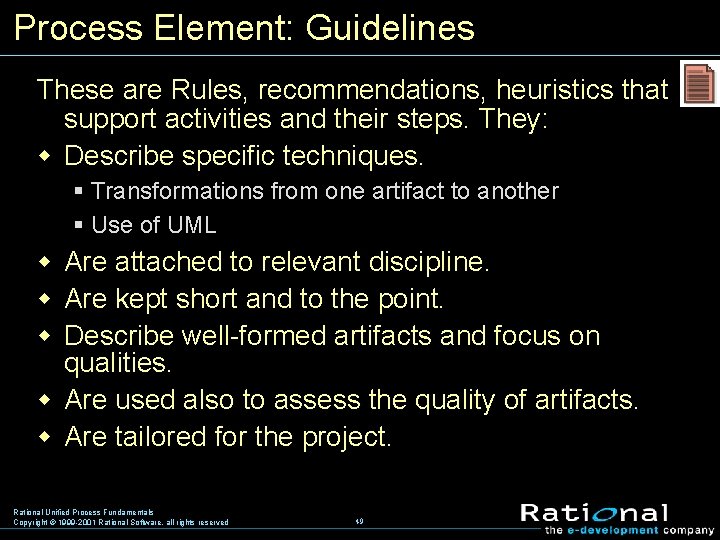

Process Element: Guidelines These are Rules, recommendations, heuristics that support activities and their steps.

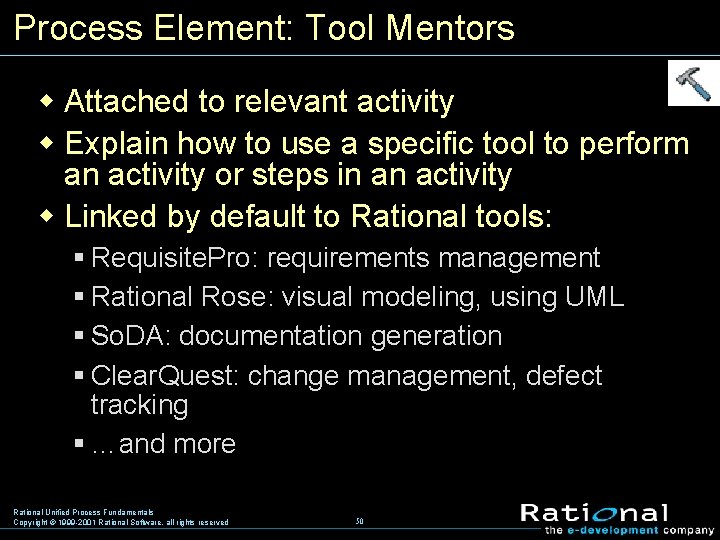

Process Element: Tool Mentors w Attached to relevant activity w Explain how to use

Process Element: Templates w Attached to relevant document type w Predefined artifacts, prototypes: §

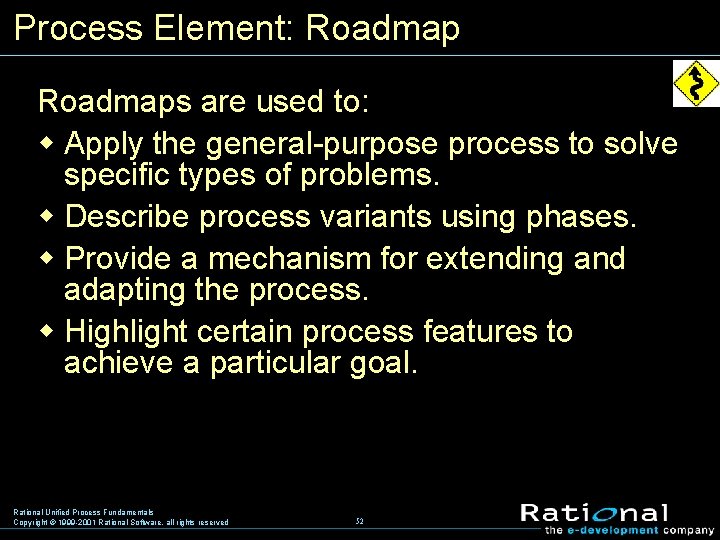

Process Element: Roadmaps are used to: w Apply the general-purpose process to solve specific
