Raspberry Pi Outline Introduction to Raspberry Pi Comparisons
Raspberry Pi
Outline Introduction to Raspberry Pi. Comparisons. Hardware Requirements. Pin Diagram and its Description. Programming Language. Features & Specifications. Setup. OS Support. Applications.
What is a Raspberry Pi? ØUniversity of Cambridge’s Computer Laboratory ØDecline in skill level ØDesigned for education ØA credit card sized PC ØPlugs into a TV or monitor ØInexpensive(ish) ~$35 each ØCapability: §Programming §Electronic Projects §Office §Play HD Videos
Raspberry Models:
Hardware Requirements: Essential: v. Raspberry Pi board v. Prepared Operating System SD Card v. USB keyboard v. Display (with HDMI, DVI, or Composite input) v. Power Supply Highly suggested extras include: v. USB mouse v. Internet connectivity - LAN cable v. Heat sink for Processor v. Case
Power supply (SV, 2. 5 A) Class 10 micro SD card, 8 GB or more USB keyboard USB mouse HDMI cable HDMI screen
Pin Diagram & its Description :
Programming Languages: v The Raspberry Pi Foundation recommends Python v Any language which will compile for ARMv 6 can be used Installed by default on the Raspberry Pi: §C §C++ §Java §Scratch §R
Features: v. CPU: Quad-core 64 -bit ARM Cortex A 53 clocked at 1. 2 GHz v. GPU: 400 MHz Video Core IV multimedia v. Memory: 1 GB LPDDR 2 -900 SDRAM (i. e. 900 MHz) v. USB ports: 4 v. Video outputs: HDMI, composite video (PAL and NTSC) via mm jack v. Network: 10/100 Mbps Ethernet and 802. 11 n Wireless LAN v. Peripherals: 17 GPIO plus specific functions, and HAT ID bus v. Bluetooth: 4. 1 v. Power source: 5 V via Micro USB or GPIO header v. Size: 85. 60 mm × 56. 5 mm v. Weight: 45 g 3. 5
Specifications:

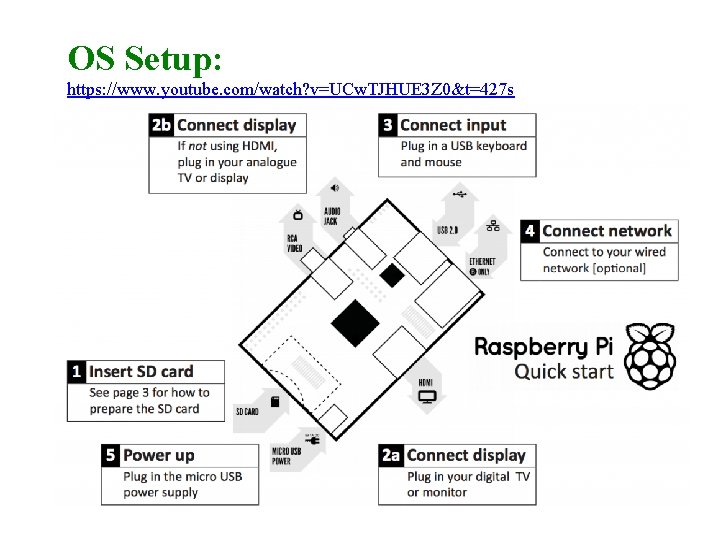

OS Setup: https: //www. youtube. com/watch? v=UCw. TJHUE 3 Z 0&t=427 s
Operating System(OS) Support: Pi Supports All operating systems: v. Linux v. Windows v. Android v. Custom OS v. Screen v. Open. HAB
MAJOR APPLICATIONS OF RASPBERRY PI

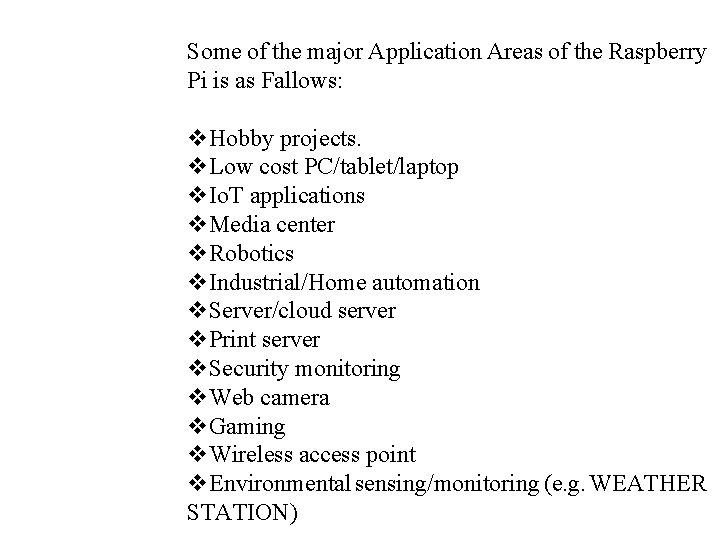

Some of the major Application Areas of the Raspberry Pi is as Fallows: v. Hobby projects. v. Low cost PC/tablet/laptop v. Io. T applications v. Media center v. Robotics v. Industrial/Home automation v. Server/cloud server v. Print server v. Security monitoring v. Web camera v. Gaming v. Wireless access point v. Environmental sensing/monitoring (e. g. WEATHER STATION)
QUERIES. . ?
