Raspberry Pi Arquitectura Rogelio Ferreira Escutia Tarjeta Raspberry
“Raspberry Pi - Arquitectura” Rogelio Ferreira Escutia
Tarjeta

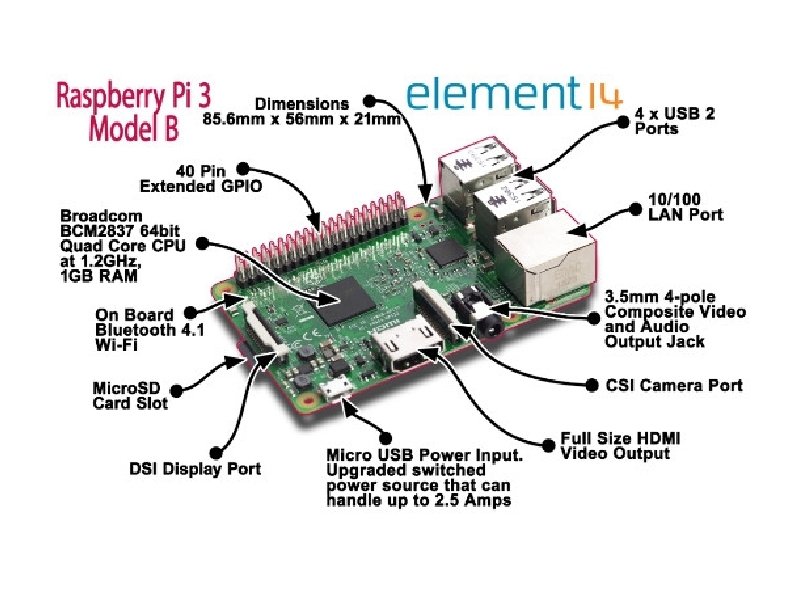

Raspberry Pi 3 B+ Placa: "Raspberry Pi 3 Model B+ Technical Datasheet", http: //www. farnell. com/datasheets/2609094. pdf? _ga=2. 67468436. 405064749. 1537836912 -2044607258. 1537836912, septiembre 2018 4
Raspberry Pi 3 B+ Dimensiones: "Raspberry Pi 3 Model B+ Technical Datasheet", http: //www. farnell. com/datasheets/2609094. pdf? _ga=2. 67468436. 405064749. 1537836912 -2044607258. 1537836912, septiembre 2018 5

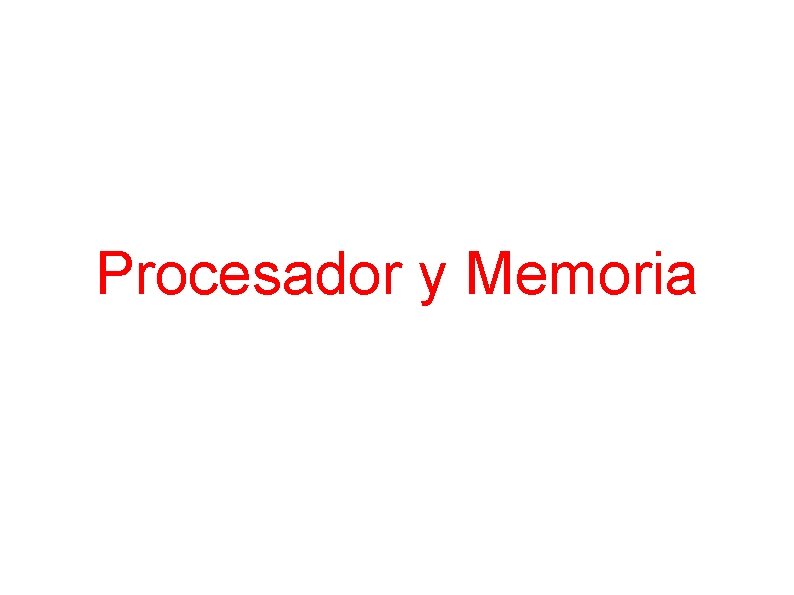

Procesador y Memoria
Raspberry Pi 3 B+ Procesador: So. C (System on Chip): Broadcom BCM 2837 B 0, Cortex. A 53 64 -bit So. C @ 1. 4 GHz "Raspberry Pi 3 Model B+ Technical Datasheet", http: //www. farnell. com/datasheets/2609094. pdf? _ga=2. 67468436. 405064749. 1537836912 -2044607258. 1537836912, septiembre 2018 7

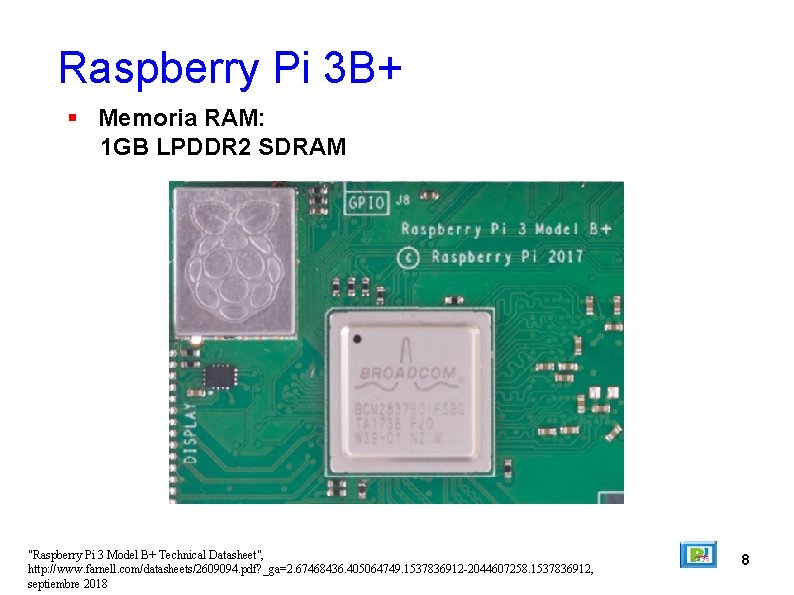

Raspberry Pi 3 B+ Memoria RAM: 1 GB LPDDR 2 SDRAM "Raspberry Pi 3 Model B+ Technical Datasheet", http: //www. farnell. com/datasheets/2609094. pdf? _ga=2. 67468436. 405064749. 1537836912 -2044607258. 1537836912, septiembre 2018 8
Conectividad
Raspberry Pi 3 B+ Ethernet y USB: "Learning Computer Architecture with Raspberry Pi", Even Upton, John Wiley & Sons, Inc. USA 2016 10
Raspberry Pi 3 B+ Ethernet: – Gigabit Ethernet over USB 2. 0 (maximum throughput 300 Mbps). USB: – 4 × USB 2. 0 ports. Wi. Fi: 2. 4 GHz y 5 GHz IEEE 802. 1. b/g/n/ac "Raspberry Pi 3 Model B+ Technical Datasheet", http: //www. farnell. com/datasheets/2609094. pdf? _ga=2. 67468436. 405064749. 1537836912 -2044607258. 1537836912, septiembre 2018 11
Acceso I/O
Raspberry Pi 3 B+ GPIO: "The Pi 4 J Project", http: //pi 4 j. com/pins/model-3 b-plus-rev 1. html, septiembre 2018 13

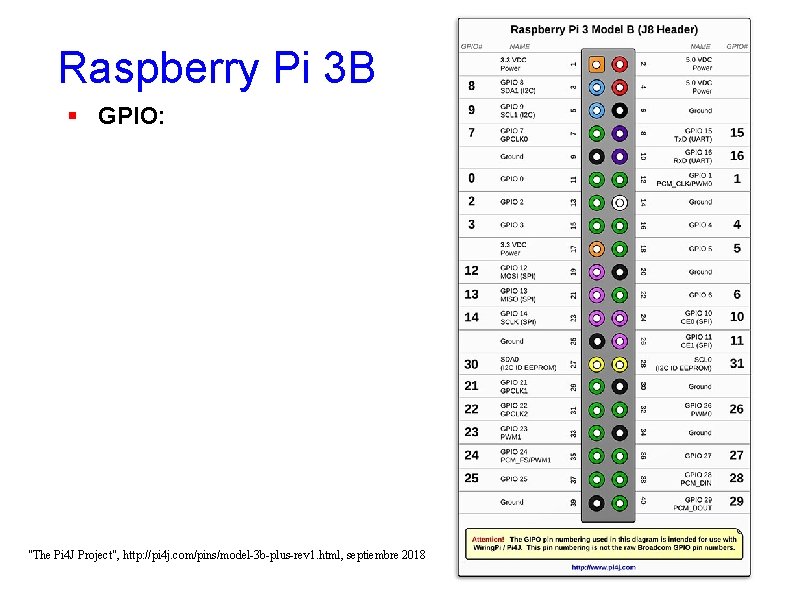

Raspberry Pi 3 B GPIO: "The Pi 4 J Project", http: //pi 4 j. com/pins/model-3 b-plus-rev 1. html, septiembre 2018 14

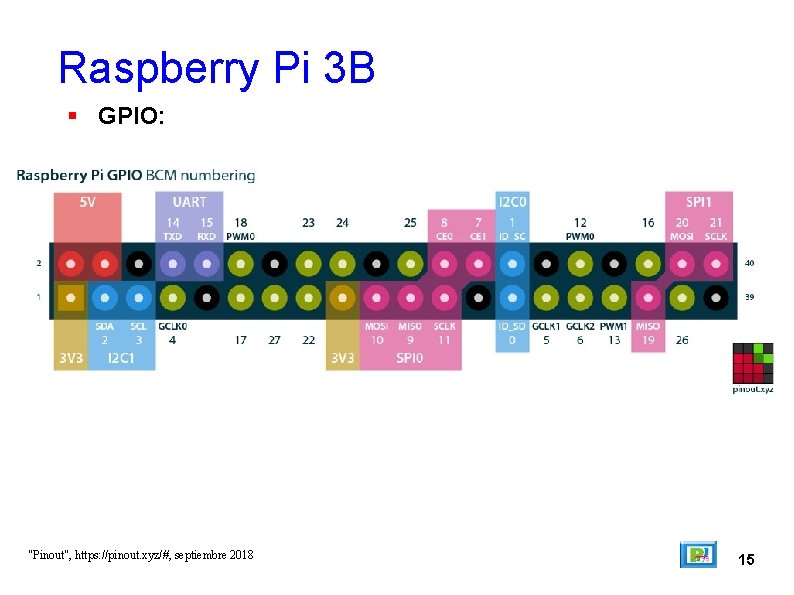

Raspberry Pi 3 B GPIO: "Pinout", https: //pinout. xyz/#, septiembre 2018 15
Video y Sonido

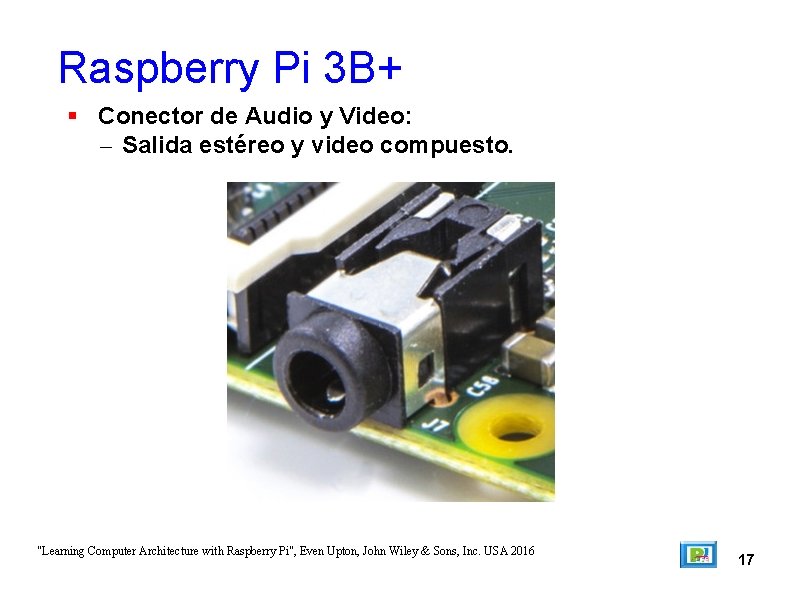

Raspberry Pi 3 B+ Conector de Audio y Video: – Salida estéreo y video compuesto. "Learning Computer Architecture with Raspberry Pi", Even Upton, John Wiley & Sons, Inc. USA 2016 17

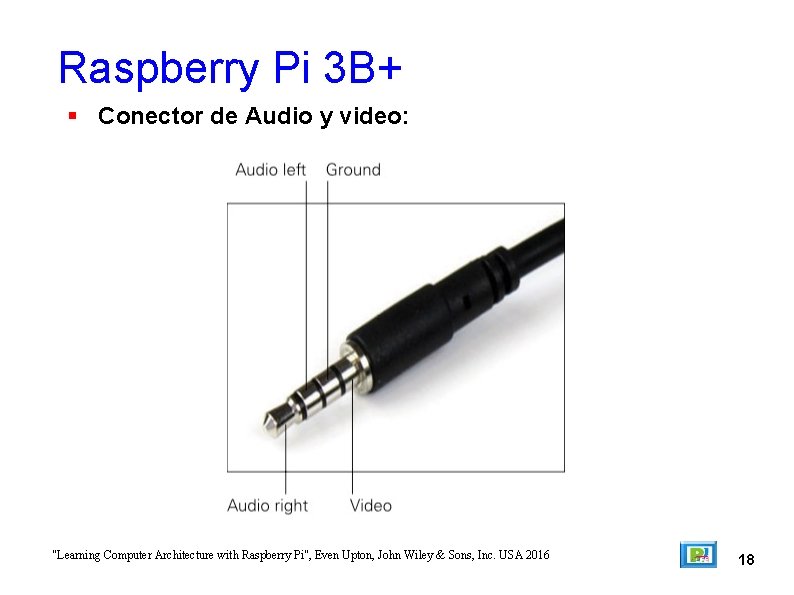

Raspberry Pi 3 B+ Conector de Audio y video: "Learning Computer Architecture with Raspberry Pi", Even Upton, John Wiley & Sons, Inc. USA 2016 18

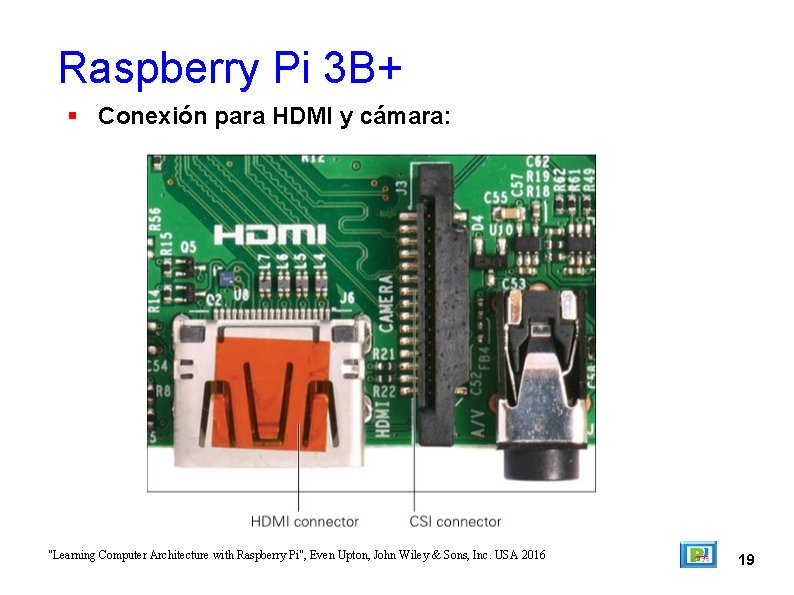

Raspberry Pi 3 B+ Conexión para HDMI y cámara: "Learning Computer Architecture with Raspberry Pi", Even Upton, John Wiley & Sons, Inc. USA 2016 19
Raspberry Pi 3 B+ DSI (Display Serial Interface) para conectar pantallas: "Learning Computer Architecture with Raspberry Pi", Even Upton, John Wiley & Sons, Inc. USA 2016 20
Multimedia

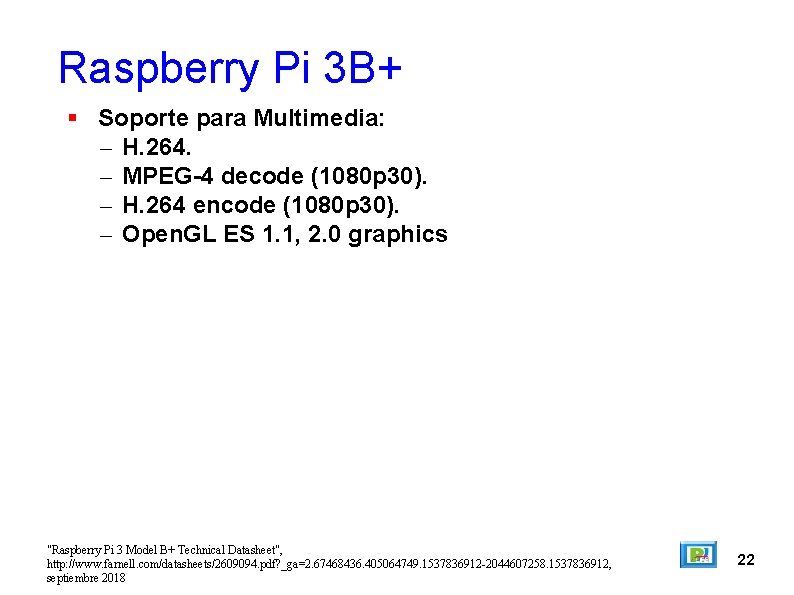

Raspberry Pi 3 B+ Soporte para Multimedia: – H. 264. – MPEG-4 decode (1080 p 30). – H. 264 encode (1080 p 30). – Open. GL ES 1. 1, 2. 0 graphics "Raspberry Pi 3 Model B+ Technical Datasheet", http: //www. farnell. com/datasheets/2609094. pdf? _ga=2. 67468436. 405064749. 1537836912 -2044607258. 1537836912, septiembre 2018 22
Almacenamiento

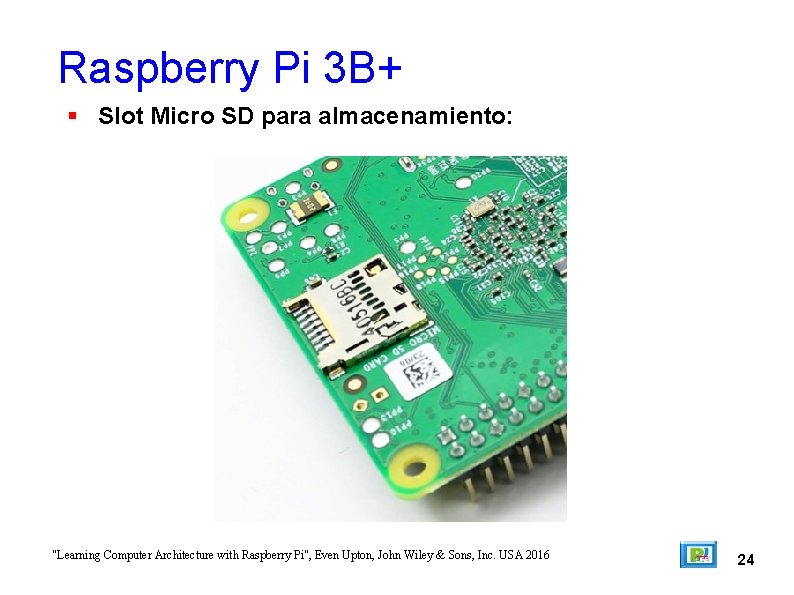

Raspberry Pi 3 B+ Slot Micro SD para almacenamiento: "Learning Computer Architecture with Raspberry Pi", Even Upton, John Wiley & Sons, Inc. USA 2016 24
Energía

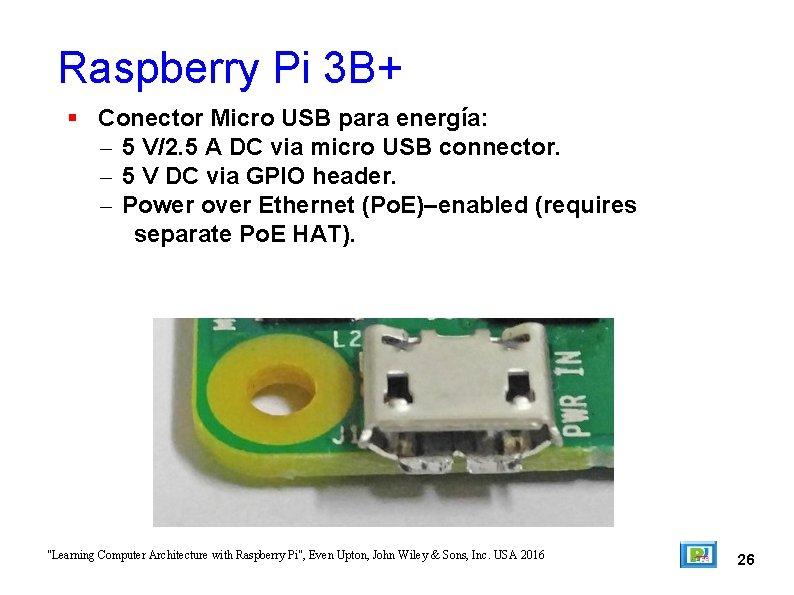

Raspberry Pi 3 B+ Conector Micro USB para energía: – 5 V/2. 5 A DC via micro USB connector. – 5 V DC via GPIO header. – Power over Ethernet (Po. E)–enabled (requires separate Po. E HAT). "Learning Computer Architecture with Raspberry Pi", Even Upton, John Wiley & Sons, Inc. USA 2016 26
Temperatura de Operación

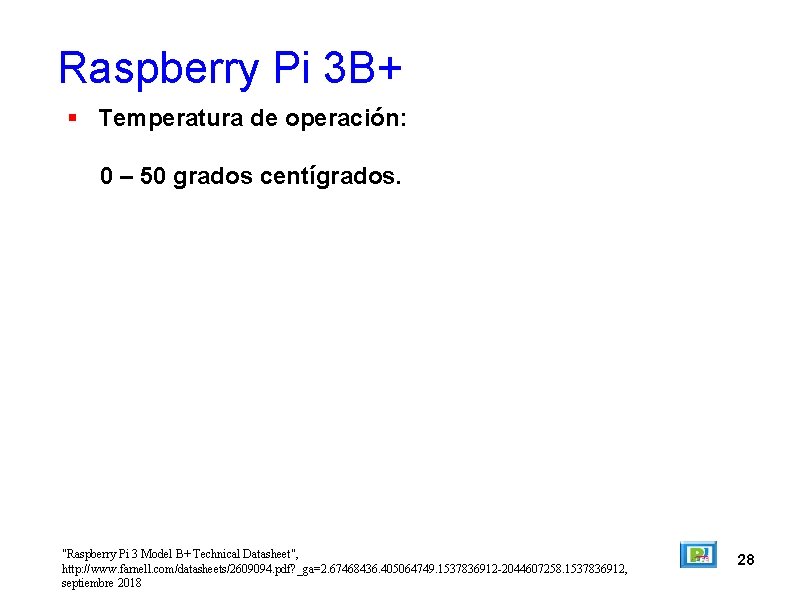

Raspberry Pi 3 B+ Temperatura de operación: 0 – 50 grados centígrados. "Raspberry Pi 3 Model B+ Technical Datasheet", http: //www. farnell. com/datasheets/2609094. pdf? _ga=2. 67468436. 405064749. 1537836912 -2044607258. 1537836912, septiembre 2018 28
Monitoreo del funcionamiento
Raspberry Pi 3 B+ Status Leds: "Raspberry Pi Hacks", https: //www. oreilly. com/library/view/raspberry-pi-hacks/9781449362737/ch 01. html, septiembre 2018 30

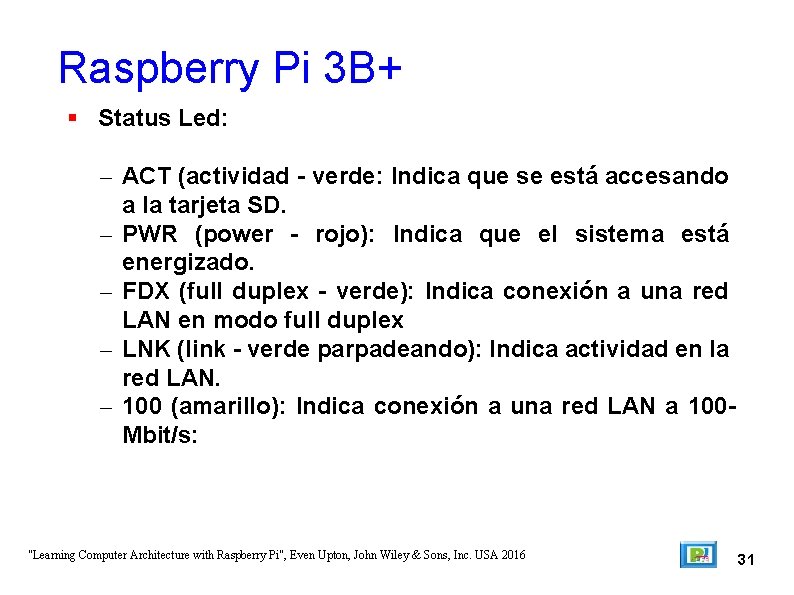

Raspberry Pi 3 B+ Status Led: – ACT (actividad - verde: Indica que se está accesando a la tarjeta SD. – PWR (power - rojo): Indica que el sistema está energizado. – FDX (full duplex - verde): Indica conexión a una red LAN en modo full duplex – LNK (link - verde parpadeando): Indica actividad en la red LAN. – 100 (amarillo): Indica conexión a una red LAN a 100 Mbit/s: "Learning Computer Architecture with Raspberry Pi", Even Upton, John Wiley & Sons, Inc. USA 2016 31
