Rapidly deployable SHOOTING RANGE Rubezh Full deployment under

Rapidly deployable SHOOTING RANGE «Rubezh» Full deployment under 30 minutes.

«Dialex» LLC is an Engineering Design Bureau whose endeavor is to develop modern and high technology shooting range systems. The products manufactured by our company have a high degree of quality and reliability. Our shooting range systems are mobile and rapidly deployable. We developed a shooting range software with user friendly interface so it can be used by non qualified pc user. Highly qualified personnel of our company will carry out installation, commissioning, warranty, post-warranty and after-sales service of the delivered product.

SHOOTING RANGE SOFTWARE ü Target placement at any distance. ü Saving and loading shooting profiles. ü Setting parameters for each target (time, movement, range, etc. ). ü Setting different shooting conditions (terrain, climatic conditions, time of day). ü Climatic conditions affect the trajectory of the bullet. ü Rifle and bullet type selection. ü Each type of bullet has its own ballistic characteristics. ü Interface language selection (Eng, Rus)

DIFFERENT SHOOTING RANGE MAPS

VISUAL ANALYSIS OF SHOOTING • Visual demonstration of mistakes when shooting. • Visual demonstration of climatic conditions impact on projectile trajectory. • Visual demonstration of each projectile path. • Assess the impact of the aiming point depending on the distance to the target.

SHOOTING RANGE COMPOSITION Name Count A set of technical tools: tent 6 m x 4 m 1 shooting barrier 1 stand for shooting manager 1 case for storing and transporting rifles 1 A set of rifles for shooting with blank cartridges (contains gunpowder but not projectile): M 16 training rifle 1 M 60 training machine gun 1 M 9 Beretta training pistol 1 muzzle device for laser shooting DTK-ML IR 3 range kit (shooting glasses and ears protection headphones) 4 A set of visualization: projector screen 3. 2 m x 2. 5 m 1 plasma display 1 cointainer with projector and laser tracking system 1 Hardware and software system: PC 2 display monitor 1 computer mouse 2 keyboard 2 software: "Constructor v 1. 4. 0" 1 laser tracking software: "Sys. Cord v 5. 0+" 1

RAPIDLY DEPLOYABLE TENT

SHOOTING BARRIER AND STAND • Mobile stand for shooting manager with two PCs in one case and also built in audio system • Mobile barrier with built in container which contains of projector and laser tracking system • Stand barrier could be connected between themselves. Connected stand barrier form one shooting barrier

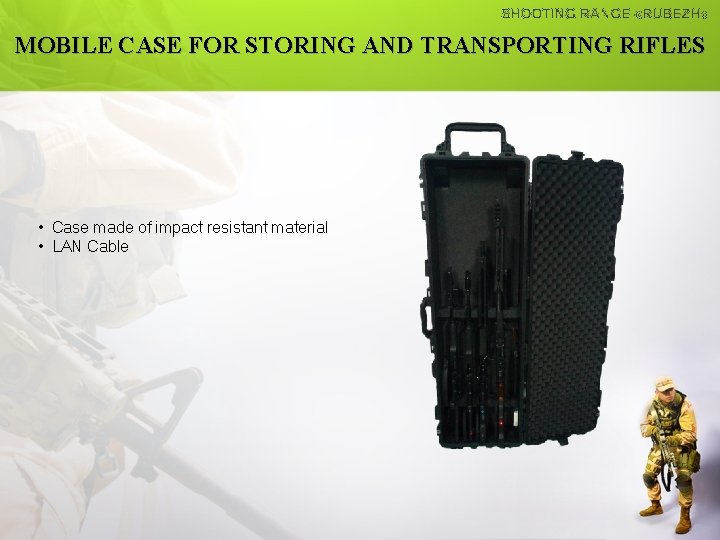

MOBILE CASE FOR STORING AND TRANSPORTING RIFLES • Case made of impact resistant material • LAN Cable

BERETTA М 9

М 16 ASSAULT RIFLE

М 60 MACHINE GUN

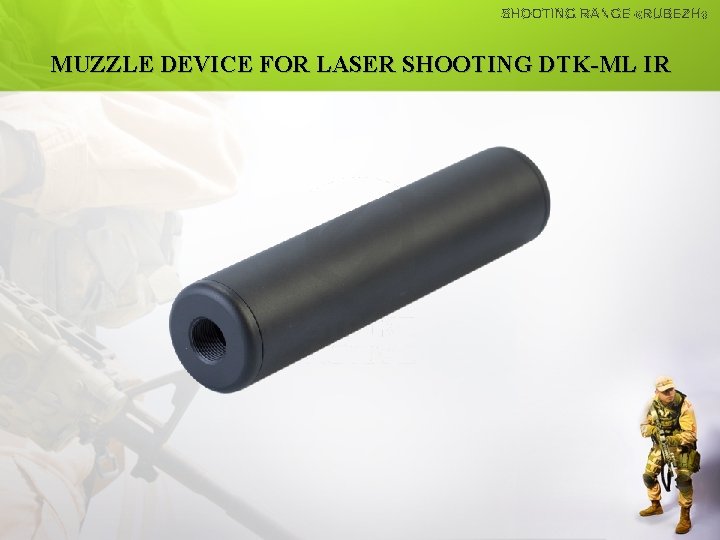

MUZZLE DEVICE FOR LASER SHOOTING DTK-ML IR

WARRANTY LLC, Engineering Design Bureau «Dialex» guarantees the correct operation of the mobile shooting range complex «Rubezh» within a year from the moment of commissioning. The term of operation is 7 years with post warranty service.
