Rapid Manufacturing for Research Andrey Shur When you
- Slides: 23
Rapid Manufacturing for Research Andrey Shur
When you do research, you might need to build something.
When you do research, you might need to build something.
Cost of manufacturing Thor labs 3 D printing hours $ Plastics 20 cm^3 . 2 -. 5 mm 6
Design work flow White board (MAD) Choose manufacturing method Test Prototype Actual Design (CAD) Manufacture
Computer Aided Design Software (CAD) Complexity
Basic terminology in CAD Reference plane Body Feature Origin Sketch Dimension Constraint Construction line
Parametric design
Parametric design case study
Sketch constraints Sketch tools Most useful Also good Line/Curve Offset Rectangle Sketch mirror Circle Sketch pattern Trim Dimension Project Vertical/ Horizontal Parallel Midpoint Perpendicular Concentric Tangent Coincident Equal

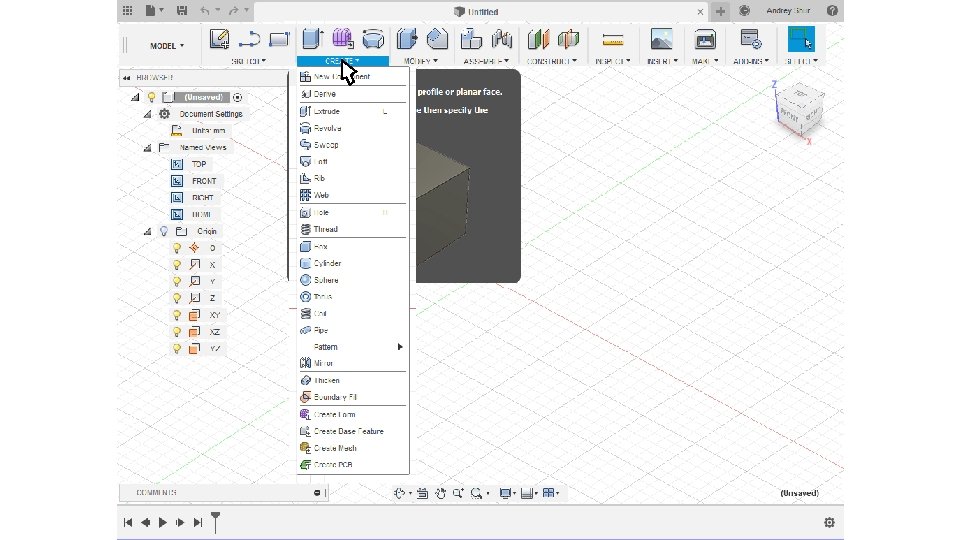

Feature types Most useful Also good Honorable Mention Extrude Pattern Offset Construction Plane Hole Circular Pattern Midplane Revolve Fillet Mirror Shell Chamfer

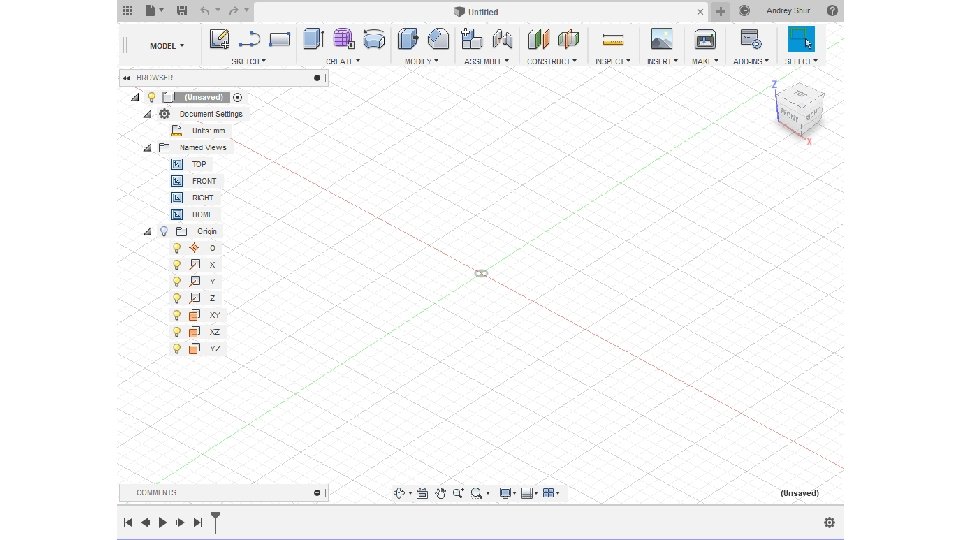

Component list Camera Control Origin Reference Planes View commands Feature list
There a lot of free tutorials online • https: //help. autodesk. com/view/fusion 360/ENU/ • Their own help has a bunch of videos you can watch • https: //www. youtube. com/watch? v=VVm. Ot. M 60 VWw • This is a really cool video about how to make a box. • https: //www. youtube. com/watch? v=Fn. Ep. Jv. Mh. Cu 8 • Another cool tutorial for a useful item • Lots of youtube videos and other online resources
Additive Manufacturing Techniques Fused Deposition Modeling (FDM) Fused Filament Fabrication (FFF) Stereolithography (SLA) Resin printing 0. 05 mm layers Selective Laser Sintering (SLS) Powder printing Metal printing
3 d printing workflow Export CAD. STEP, proprietary formats • • • Features Design history Parametric Ideal geometry Can be edited easily Print Slice Mesh . stl. amf (metadata) • 3 D shape only • Approximated geometry • Made of triangles Gcode. g • Specific for your 3 D printer
Design considerations for FDM Overhangs Print Orientation Feature Size Filament Feeder Cold End Hot End Extruder

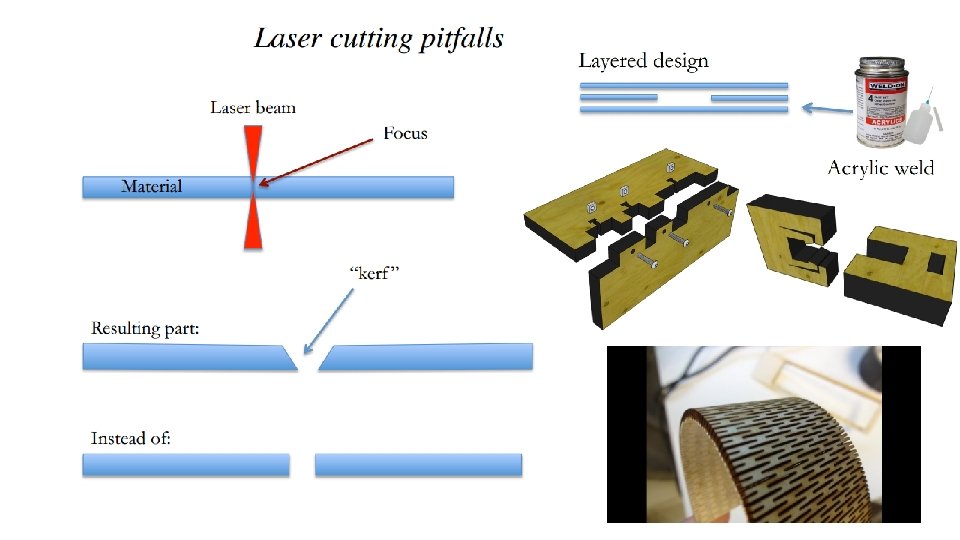

Laser Cutting
Questions?
Design work flow White board Choose manufacturing method Test Prototype Actual Design (CAD) Manufacture
