Range Top mounted agitators Type ALT Top mounted
- Slides: 26
Range Top mounted agitators ……………. Type : ALT Top mounted agitators with Bottom Support…Type : ALTB Bottom mounted agitators……………Type : ALB Side mounted agitators……………. Type : ALS ALTB ALS
Duties • Maintain homogeneous media • Mixing • Solutions (dissolve) • Solids Dispersion • Suspension • Heat Transmission • Dairy Fermentation Often an application is a mix of the mentioned duties
Mixing Agitation Intensity • High to Very High Typical Application • Fluid + fluid mixing, i. e. : Drinking yoghurt and fruit mix tanks flavored milk mix tanks, syrup mix tanks, etc.
Agitator Build The agitator consist of the following elements • Drive unit with bearing frame (shaft support) • Lantern (spacer) • Shaft seal arrangement • Shaft • Propellers • Welding flange (not shown)
<< BACK En. Sa. Foil Propellers • Surface Finish Ø Polished (standard Ra<0, 8µm) Ø Electro polished (standard Ra<0, 8µm) Ø Shot peened • Diameter Ø 125 mm to 1900 mm • Mounting on Shaft Ø Threaded shaft and propeller hub with open seal O-ring (standard for type ALT with one propeller, ALS, ALB) Ø Bored propeller hub with set screws countersunk into shaft (standard for type ALT with more than one propeller and ALTB) Ø Propeller prepared for welding onto the shaft
Low level impeller (LLI) Low level agitation • Stirring during emptying • Expensive products
<< BACK Bottom Support Bottom steady bearing with PTFE bushing, bushing with helical grooves for effective cleaning and lubrication Surface Finish Ø Polished (standard Ra<0, 8µm) Ø Shot peened Type : BS 1 Sanitary bottom steady bearing with PVDF bushings. The most sanitary bottom steady bearing. Surface Finish Ø Polished (Standard Ra<0, 8µm) Type : BS 2
En. Sa. Ferm
Modular design The Alfa Laval range of propeller agitators • is designed to meet almost every customer requirement and applications. • to be tailored to product composition and the geometry of the tank. The modular construction is designed with the aim to meet both European and American standards and regulations for the sanitary industry, such as EHEDG, USDA, FDA, 3 A etc.
Modular Design • All agitators are built using the same basic modules in various sizes • All elements in the modular construction are designed with the aim to meet both European and American standards and regulations, such as EHEDG, USDA, FDA, 3 A etc. • High level of flexibility i. e. easy change of design on existing agitators e. g. shaft seal
Modular design Alfa Laval agitators are equipped with Energy Saving Foil (En. Sa. Foil or En. Sa. Ferm) with low energy consumption. With a diameter of 125 mm to 1900 mm depending on the configuration, these impeller achieve • gentle agitation • a high flow rate • with minimal energy input from the drive unit.
Low energy consumption Compared En. Sa. Foil with pitch blade impeller, their efficiency is 400% better – which means lower operating costs. • less shear stress and shear rate in the product • less friction = less heat • less power input energy to the system • less temperature increase
Low energy consumption 6000 m 3 Sun flower Oil tank Tank Diameter Height : 22 m : 18 m Keep media homogeneous 3 Agitators type ALS at 1, 5 k. W
Easy cleaning Outside the tank • All joints installed with outer seal-o-rings • Bearing frame and lantern in stainless • steel with smooth surfaces Easy to clean Approx 1 m
Easy cleaning Inside the tank • • No surfaces where the media can accumulate No interior shadow sides between the blades and smooth surfaces. No interior shadow sides Internal connections with outer seal o-ring Detachable shaft with or without a flange coupling inside the tank Smooth surfaces Easy to clean Approx 0, 7 -0, 5 m

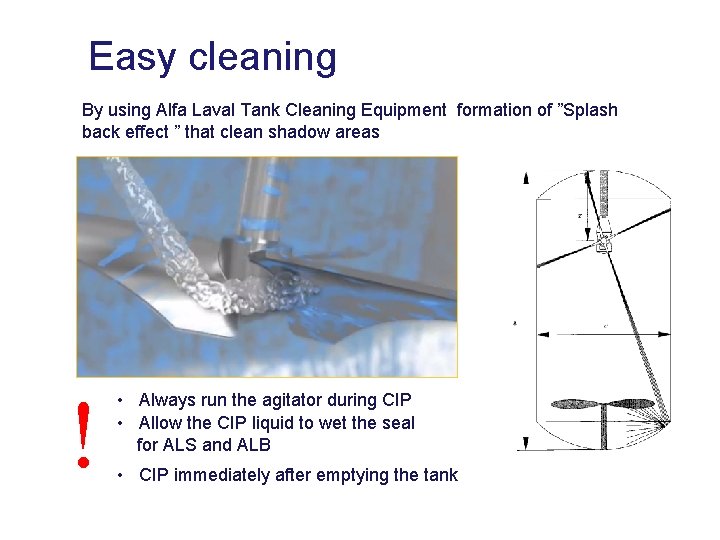

Easy cleaning By using Alfa Laval Tank Cleaning Equipment formation of ”Splash back effect ” that clean shadow areas ! • Always run the agitator during CIP • Allow the CIP liquid to wet the seal for ALS and ALB • CIP immediately after emptying the tank
Sealing R • Radial seal • ALT/ALTB, ATM tank, up to 0, 1 barg acceptable. V • V seal • ALT, ATM tank, Only for direct drive, cheaper solution S 1 • Single mechanical seal • ALS/ALB, -0, 5 to 6 barg, ** S 2 • Single mechanical seal • ALS/ALB, -1 to 6 barg, ** S 3 • Single mechanical seal, dry running seal(1 m/s) • ALS/ALB , -0, 5 to 6 barg, ** ALT/ALTB, -0, 5 to 1, 5 barg S • Single mechanical seal John Crane dry running seal • ATEX approved, ALT/ALTB, -1 to 6 barg, need lantern DT • Double mechanical seal, flushed seal, S 1 to S 1 • ALT/ALTB/ALS/ALB, ATM to 1 barg, need lantern D • Double mechanical seal, flushed seal, S 2 to S 2 • ALT/ALTB/ALS/ALB, -1 to 6 barg, ** , need lantern DC • Double mechanical seal, cartridge seal, ATEX or Aseptic • ALT/ALTB/ALS, -1 to 10 barg, ** , need lantern
Bearing frame Motor shaft Cloe Coupling Ball bearing Shaft drive Screw Ball bearing Radial seal Agitator shaft
Simple maintenance All service on Alfa Laval agitators can be performed from the tank exterior. Low maintenance costs due to • a very long seal service life • greater productivity because of reduced downtime. This includes the replacement of wear parts, such as shaft seals and bearings, And thanks to a removable shaft that can be detached without entering the tank.
Installation Top mounted Off set recommended = Øtank* 1/6 to 1/4 Clearancemin = Øimpeller * 1/2 smax is from top of welding flange Y-dim = s + clearancemin wmin = s * 1/15
Installation Side mounted in angle 20° according to horizontal and E=5 -7° or E=C x tan (5 -7°) off centre Distance from propeller tip to tank bottom minimum 100 mm. Minimum agitation level above the propeller = Dpropeller x 0, 5
Installation
Installation Bottom mounted Distance from propeller tip to tank bottom minimum 100 mm. Minimum agitation level above the propeller = Øpropeller x 0, 5
Installation
End
