Rajasthan’s initiative for Enhancing Water Use Efficiency and promoting Pressure Irrigation especially in Desert Areas

State Water profile Area w. r. t. India Surface water w. r. t. India Ground Water w. r. t. India Av. Annual Monsoon rainfall Av. rainfall 13 western districts Available Surface Water Resources (BCM) Mean Annual Dependable Economically Usable water Interstate water share 17. 88 Total Surface water 43. 26 10. 45% 1. 16 % 1. 72% 531 mm 150 -450 mm 25. 38 16. 05 State highly dependent on Interstate water share: Against economically usable 52. 69 %

Interstate & Groundwater Ø Ravi-Beas-Sutlej Ø Chambal Ø Mahi Ø Narmada Ø Yamuna Total Interstate water 13. 71 BCM 1. 97 BCM 0. 46 BCM 0. 62 BCM 1. 12 BCM 17. 88 BCM Ground Water Resources Fresh dynamic ground water resources available Gross draft for all uses % Stage of ground water utilization 11. 693 BCM 16. 48 BCM 140. 94 % ( Over exploited) Block wise ground water status Total block – 295 (3 Saline) Safe – 45, Semi Critical – 29, Critical- 33, Over exploited -185

Irrigation Potential & WR Infrastructure Agriculture Scenario � Total Culturable land � Land under Command � Irrigated by Ground Water 257. 0 Lac Ha 42. 34 Lac Ha (16. 47%) 68. 74 Lac Ha (26. 67%) Irrigation projects Completed � Major (CCA above 10000 Ha � Medium (CCA between 2000 -10000 Ha) � Minor (up to CCA 2000 Ha) � Tanks transferred to Panchyat Raj Department � Total 22 No 84 No 729 No 3236 No 3971 No

Indira Gandhi Nahar Project • • • IGNP is a grand endeavour to bring the Himalayan water to the desert terrain of Western Rajasthan. Lifeline of western Rajasthan Offtakes from Harike Barrage from Punjab & total allocation of water is 7. 59 MAF Main Canal & Feeder : 649 Km Distribution system : 8758 Km. CCA 16. 17 lac Ha, it caters 17. 5 million population of 10 districts of Western Rajasthan. Land holding converted into Murabba (square) in command area of IGNP and equitable water is distributed by Barawandi Most of the area is under conventional flood irrigation practices. Water allowance in IGNP Stage I ranges from 5. 23 cusecs/1000 Acre to 3 cusecs /1000 Acre whereas in Stage II-Lift, it is only 2 cusecs/1000 Acre which is insufficient to irrigate area using flow techniques.

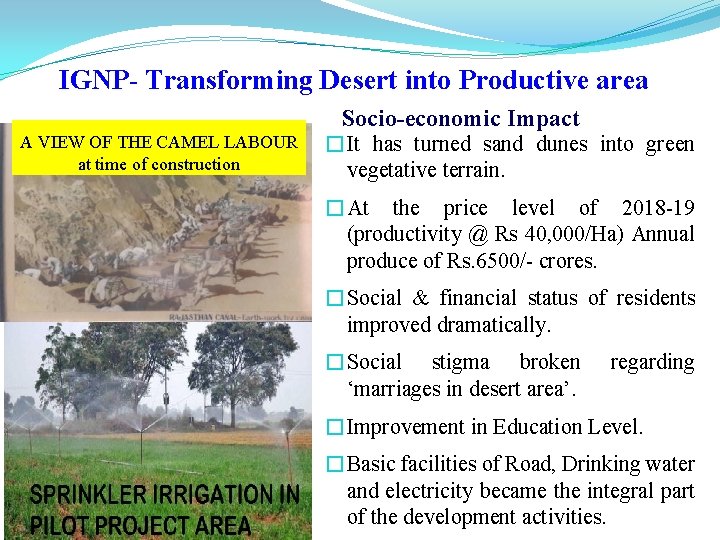

IGNP- Transforming Desert into Productive area Socio-economic Impact A VIEW OF THE CAMEL LABOUR at time of construction �It has turned sand dunes into green vegetative terrain. �At the price level of 2018 -19 (productivity @ Rs 40, 000/Ha) Annual produce of Rs. 6500/- crores. �Social & financial status of residents improved dramatically. �Social stigma broken ‘marriages in desert area’. regarding �Improvement in Education Level. �Basic facilities of Road, Drinking water and electricity became the integral part of the development activities.

Supervisory Control and Data acquisition (SCADA) at IGNP For transparent measurement, management and monitoring of water in IGNP, SCADA system was installed in system at important locations, comprising 53 out stations, 11 field stations & 2 master stations. The SCADA is web enabled and provides opportunity to every citizen to know the status of water flowing in system. www. ignp. co. in 1. Measuring and Monitoring of 66 open channel flows more than 50 cusecs. 2. Online display of Real Time Flow Data at Web Site 3. Automatic control system at 6 cross regulators 4. Solar power supplies with battery backup 5. SCADA software for Canal Management 6. Periodic canal profiling at defined measurement locations (viz siltation level and erosion etc)

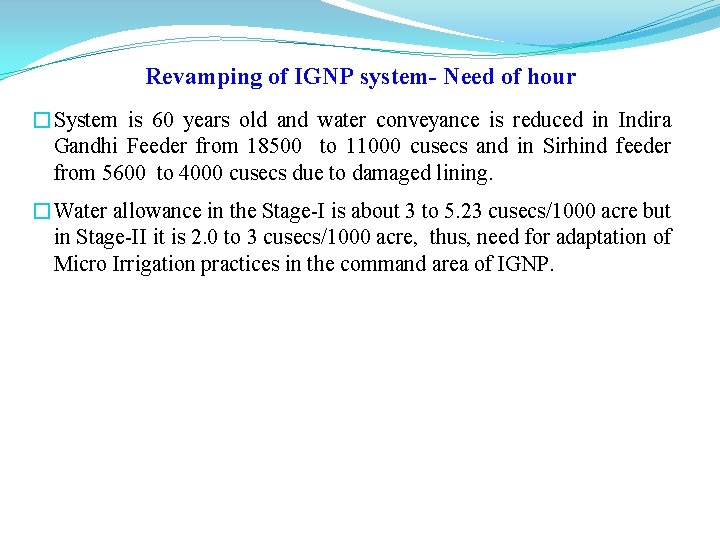

Revamping of IGNP system- Need of hour �System is 60 years old and water conveyance is reduced in Indira Gandhi Feeder from 18500 to 11000 cusecs and in Sirhind feeder from 5600 to 4000 cusecs due to damaged lining. �Water allowance in the Stage-I is about 3 to 5. 23 cusecs/1000 acre but in Stage-II it is 2. 0 to 3 cusecs/1000 acre, thus, need for adaptation of Micro Irrigation practices in the command area of IGNP.

Rajasthan’s Initiative for Irrigation efficiency Enhancement in IGNP • Relining of Rajasthan Feeder and Sirhind feeder in Punjab portion: A Mo. U among Rajasthan, Punjab & Go. I has been entered on 23. 1. 2019 for the aforesaid work. The estimated cost of the project is Rs 1976 Cr. Relining of 96. 65 Km in Rajasthan Feeder & 100. 07 km of Sirhind feeder in Punjab state is proposed for reducing seepage losses, reclamation of water logged area & to restore original designed canal capacities. • Rajasthan Water Sector Restructuring Project for Desert Area (Funded by NDB) : A project amounting to Rs 3291. 63 Cr is under progress for rehabilitating the deteriorated conditions of canal system in the desert areas of Rajasthan. The project aims to relining main canals of IGNP system and rehabilitation irrigation network in 4. 46 Lakh Ha area.

Relining of Sirhind Feeder and IGF (Punjab portion) � � � MOU signed among Punjab, Rajasthan & Go. I on 23 -01 -2019 for relining of IGF from RD 179 to RD 496 and Relining of Sirhind feeder from RD 119. 7 to RD 447. 93 Central assistance for Rajasthan is 60% Time frame: 3 years (during 70 days closure (March to June) (with one year extension) Sirhind Feeder Indira Gandhi Feeder Time Frame (SF) (IGF) 18. 78 Km 41. 81 Km June 2019 42. 22 Km 25. 81 Km June 2020 39. 07 Km 29. 03 Km June 2021 Physical status � During closure 2019 - Rajasthan did 23. 7 Km relining of IGF & IGMN � � Nov. 2019: - 20 Km length of SF is proposed to be relined by Punjab in one month closure March-June 2020: - 10 Km of SF & 30 Km of IGF is planned to be relined by Punjab and 43. 43 Km of IGF & IGMN.

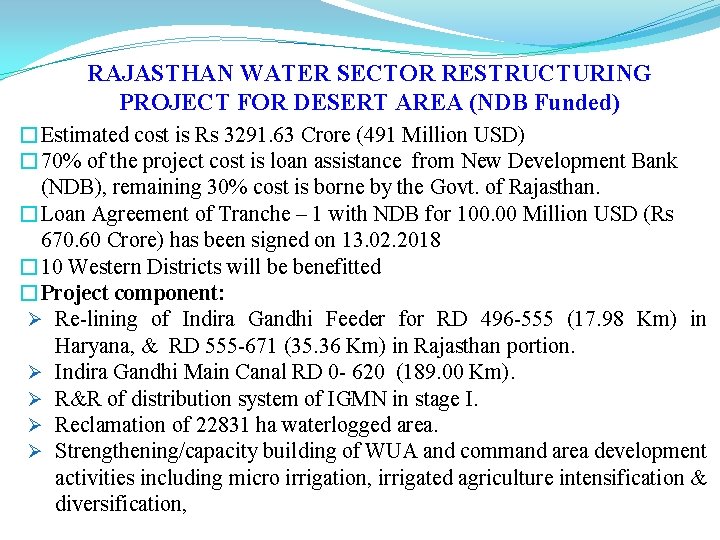

RAJASTHAN WATER SECTOR RESTRUCTURING PROJECT FOR DESERT AREA (NDB Funded) �Estimated cost is Rs 3291. 63 Crore (491 Million USD) � 70% of the project cost is loan assistance from New Development Bank (NDB), remaining 30% cost is borne by the Govt. of Rajasthan. �Loan Agreement of Tranche – 1 with NDB for 100. 00 Million USD (Rs 670. 60 Crore) has been signed on 13. 02. 2018 � 10 Western Districts will be benefitted �Project component: Ø Re-lining of Indira Gandhi Feeder for RD 496 -555 (17. 98 Km) in Haryana, & RD 555 -671 (35. 36 Km) in Rajasthan portion. Ø Indira Gandhi Main Canal RD 0 - 620 (189. 00 Km). Ø R&R of distribution system of IGMN in stage I. Ø Reclamation of 22831 ha waterlogged area. Ø Strengthening/capacity building of WUA and command area development activities including micro irrigation, irrigated agriculture intensification & diversification,

Status of Works of IGF & IGMN Rajasthan and Haryana Portion � Relining of Main canal Closure Relining Remarks Period work in Km 2018 -19 7. 3 IGF 2019 -20 23. 62 IGF & IGMN 2020 -21 43. 43 Proposed 2021 -22 & 61 Proposed 2022 -23 � Rehabilitation of Rawatsar Branch, Suratgarh Branch, Annopgarh Branch and their system are in progress � Reclamation of waterlogged area. 22831 ha Relining work in Km 100 50 0 7. 3 2018 -19 23. 62 2019 -20 43. 43 2020 -21 61 2021 -22 & 2022 -23 IGNP - Re lining through paver

Funding under pipeline from NABARD & ERM Two Projects submitted to NABARD for funding : � Shaheed Birbal Shakha amounting to Rs 58. 42 Crore on 26 June 2018. � Dattor Nachna, Awai, Sakariya amounting to Rs 121. 00 Crore on 14 July 2018. ERM proposals for IGNP stage II: � DPR of ERM works in 11 volumes amounting to about Rs 1800 Crore submitted to CWC on 29. 12. 2017 which is under consideration.

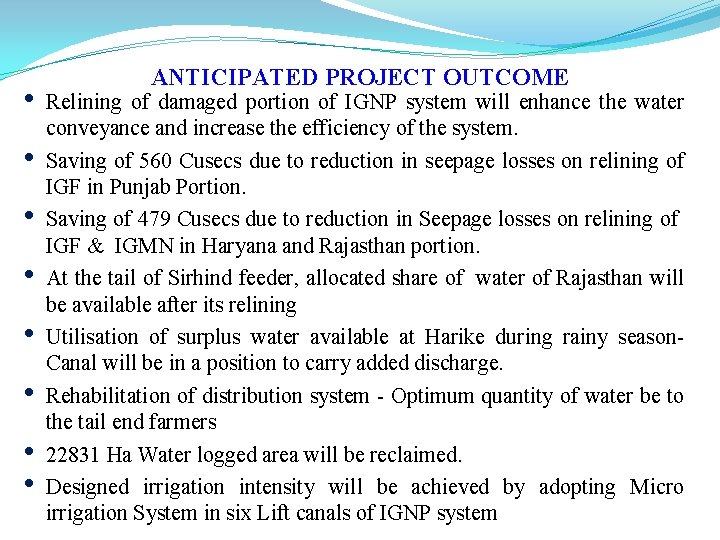

• • ANTICIPATED PROJECT OUTCOME Relining of damaged portion of IGNP system will enhance the water conveyance and increase the efficiency of the system. Saving of 560 Cusecs due to reduction in seepage losses on relining of IGF in Punjab Portion. Saving of 479 Cusecs due to reduction in Seepage losses on relining of IGF & IGMN in Haryana and Rajasthan portion. At the tail of Sirhind feeder, allocated share of water of Rajasthan will be available after its relining Utilisation of surplus water available at Harike during rainy season- Canal will be in a position to carry added discharge. Rehabilitation of distribution system - Optimum quantity of water be to the tail end farmers 22831 Ha Water logged area will be reclaimed. Designed irrigation intensity will be achieved by adopting Micro irrigation System in six Lift canals of IGNP system

Rajasthan’s Initiative for Irrigation efficiency Enhancement in non IGNP area • Rajasthan Water Sector Livelihood Improvement Project (Funded by JICA): A project amounting to Rs 2348. 87 Cr is under progress for improving livelihood by improving irrigation efficiency of existing 137 medium/minor irrigation projects in 27 districts of state rehabilitating 4. 7 Lakh Ha of existing command. Under this project, out of existing 4. 7 Lakh Ha CCA, 47000 Ha CCA is to be converted into Micro Irrigation system. • Dovetailing & Topup subsidy under RWSLIP. For promoting Micro Irrigation system among cultivators, existing Subsidy/Assistance by Government for adoption of efficient Micro Irrigation system viz Farm Pond, Diggies Solar Pumps, Drip & Sprinkler set, pipe lines are proposed to be topped up in project area by another 10 – 25%. With this, available subsidy on these components will be upto 75% to 85% on each component.

Rajasthan’s achievement under MI in Major Projects already on MI : CCA 2. 73 Lakh Ha Narmada Canal Project- 2. 46 Lakh Ha IGNP Stage II Lift (27000 Ha) Major Projects under construction on MI : CCA 2. 41 Lakh Ha Dholput Lift (40, 000 Ha) Parwan Project (2. 01 Lakh Ha)

Experiences so far Projects commissioned on Micro Irrigation A. Narmada Canal Project B. Pilot area under IGNP Stage II Narmada Canal Project • Single largest/ first Major project in India based on MI system • CCA of 2. 46 Lac Ha area in Thar Desert & Luni river Delta in Rajasthan by 0. 5 MAF water. • MI techniques enabled state in increasing CCA from originally anticipated 1. 35 Lac HA to 2. 46 Lac Ha. • Entire project is operated on participatory approach (elected WUAs) • Besides irrigation in CCA of 2. 46 Lac Ha area, project supplies drinking water to 1541 villages & 3 towns of Jalore & Barmer.

Conservation/ Saving & Productivity: Narmada Canal Project S N. Component Original proposal of Innovations with Micro irrigation Gravity Irrigation techniques 1 Water allowance 0. 0518 cumec/ 100 ha 0. 0149 cumec/100 ha 2 Intensity of 55% (only Rabi) Ned Area 40% (25% Rabi + 15% Kharif) Irrigation Gravity Area 70% (50% Rabi+20% Kharif) Lift Area 60% (40% Rabi + 20% Kharif) 3 Area benefitted 4 Gross production 5 Food Produce on market value for the year 2014 1. 35 lakh ha. 2. 28 Lac Tonnes 534 cr. 2. 46 lakh ha. 3. 14 Lac Tonnes 1480 cr.

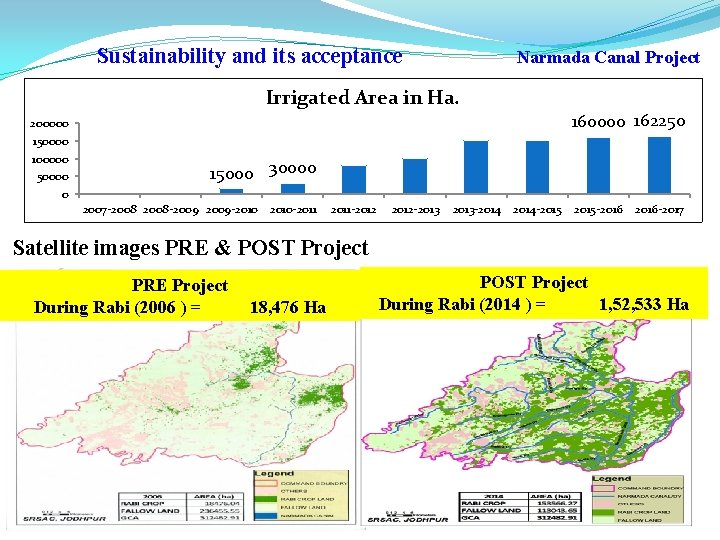

Sustainability and its acceptance Narmada Canal Project Irrigated Area in Ha. 200000 150000 100000 50000 0 160000 162250 15000 30000 2007 -2008 -2009 -2010 -2011 -2012 -2013 -2014 -2015 -2016 -2017 Satellite images PRE & POST Project PRE Project During Rabi (2006 ) = 18, 476 Ha POST Project During Rabi (2014 ) = 1, 52, 533 Ha

Experiences so far B. Pilot area under IGNP Stage II- Case Study Tejpur Minor Works executed under pilot project Technical Details of study area 1. Name of Canal 2. Offtaking from 3. CCA 4. Length 5. Discharge 6. Design Intensity of Irrigation : - Tejpur Minor : - Km 8. 47 of Kolayat Lift Canal : - 1857. 26 Ha. : - 13. 2 Km : - 10 cusecs : - 60% (Kharif 25% & Rabi 35%) Data Collection: - Project implementation (2007 -08 to 2012 -13) Pre Data : last 5 years pre 2007 -08 Post Data : Irrigation data of 5 years post 2012 -13 Work Completion Civil works MI works : : Feb 2009 Dec 2011

Tejpur Mr- IGNP II Pre & Post Scenario of Adoption of MI Techniques SN Particular 1 2 3 4 5 Command area Cropped area Irrigation intensity Water usage Water use efficiency Unit Ha Ha % Mcft Ha/ MCM Pre Post Scenario Av. of 5 years data 1857 144. 03 1111. 2 7. 76% 59. 84% 111. 76 145. 3 45. 51 270. 08 Change No change 671. 51% more 30. 01% more 493. 42% more Cost aspects of conversion of traditional irrigation system Total cost of the M. I work Increase in cropped area after MI Av. Productivity Increase in productivity (@Rs 40, 000/Ha) Recovery of capital cost Rs 483 Lacs (2011 -12 price level) 967 Ha Rs 0. 40 Lacs/Ha 967 X 0. 40 = Rs 386. 8 Lacs p. a. Within 2 years

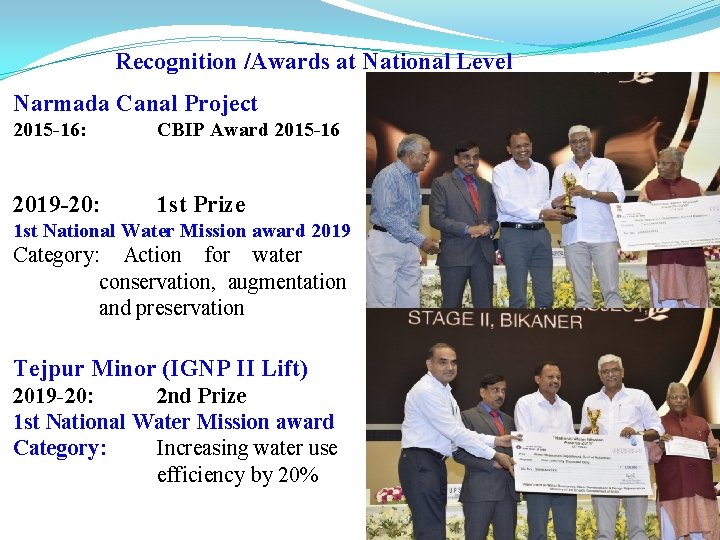

Recognition /Awards at National Level Narmada Canal Project 2015 -16: CBIP Award 2015 -16 2019 -20: 1 st Prize 1 st National Water Mission award 2019 Category: Action for water conservation, augmentation and preservation Tejpur Minor (IGNP II Lift) 2019 -20: 2 nd Prize 1 st National Water Mission award Category: Increasing water use efficiency by 20%

Way Forward • MI works in 4. 4 Lac Ha area CCA are under progress and will be completed by 2022. • Conversion of minimum 10% area under conventional irrigation to MI irrigation has been kept under RWSLIP works (JICA). • In IGNP Stage II- Lift irrigation, wherein water allowance of 2. 0 cusecs/1000 Acre has been kept, effective irrigation is not possible through conventional irrigation system. The balance area of 1. 52 Lac Ha to be shifted to MI system in phases in future.
