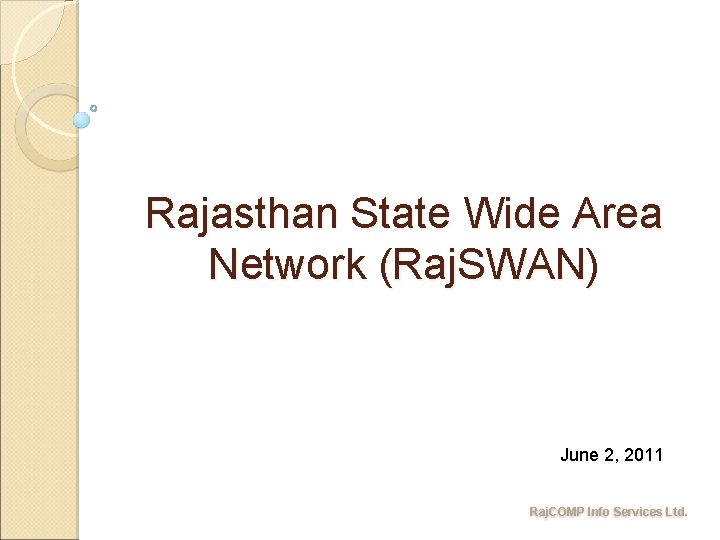

Rajasthan State Wide Area Network (Raj. SWAN) June 2, 2011 Raj. COMP Info Services Ltd.

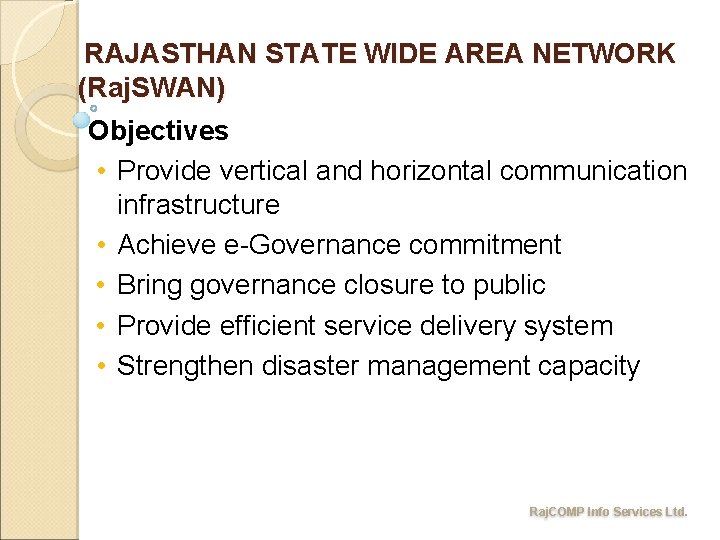

RAJASTHAN STATE WIDE AREA NETWORK (Raj. SWAN) Objectives • Provide vertical and horizontal communication infrastructure • Achieve e-Governance commitment • Bring governance closure to public • Provide efficient service delivery system • Strengthen disaster management capacity Raj. COMP Info Services Ltd.

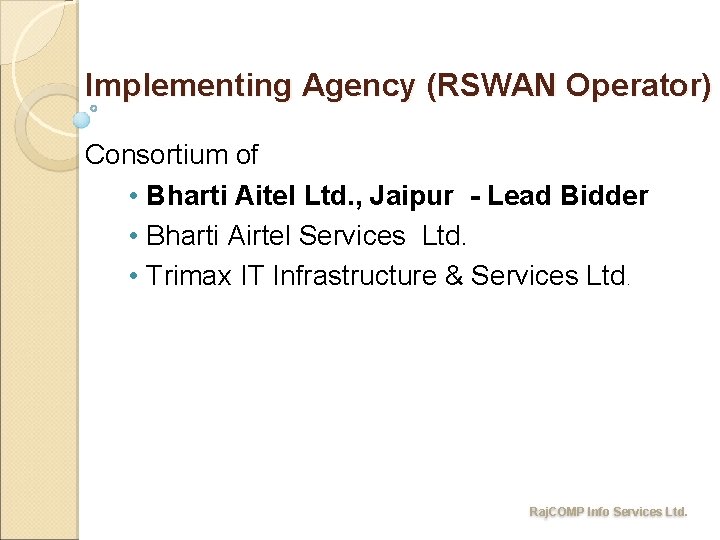

Implementing Agency (RSWAN Operator) Consortium of • Bharti Aitel Ltd. , Jaipur - Lead Bidder • Bharti Airtel Services Ltd. • Trimax IT Infrastructure & Services Ltd. Raj. COMP Info Services Ltd.

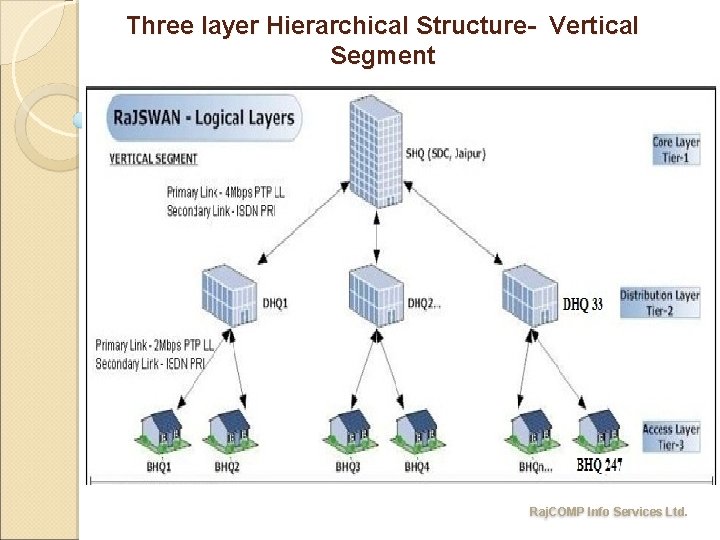

Three layer Hierarchical Structure- Vertical Segment Three layer hierarchical architecture Raj. COMP Info Services Ltd.

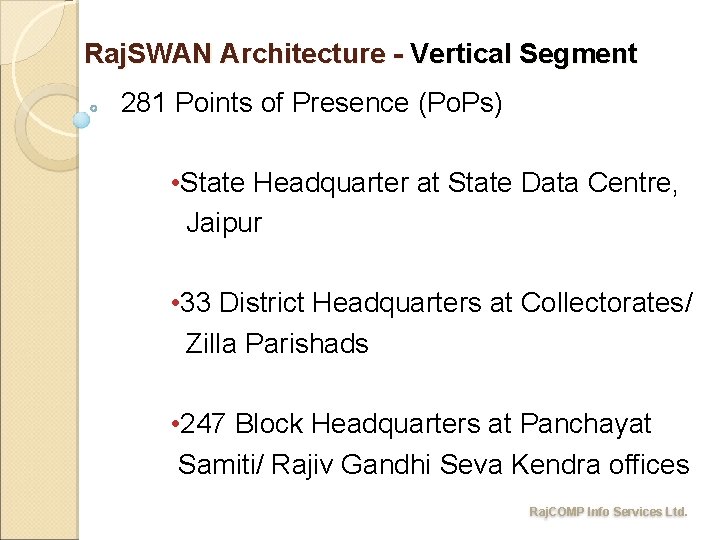

Raj. SWAN Architecture - Vertical Segment 281 Points of Presence (Po. Ps) • State Headquarter at State Data Centre, Jaipur • 33 District Headquarters at Collectorates/ Zilla Parishads • 247 Block Headquarters at Panchayat Samiti/ Rajiv Gandhi Seva Kendra offices Raj. COMP Info Services Ltd.

Horizontal Segment

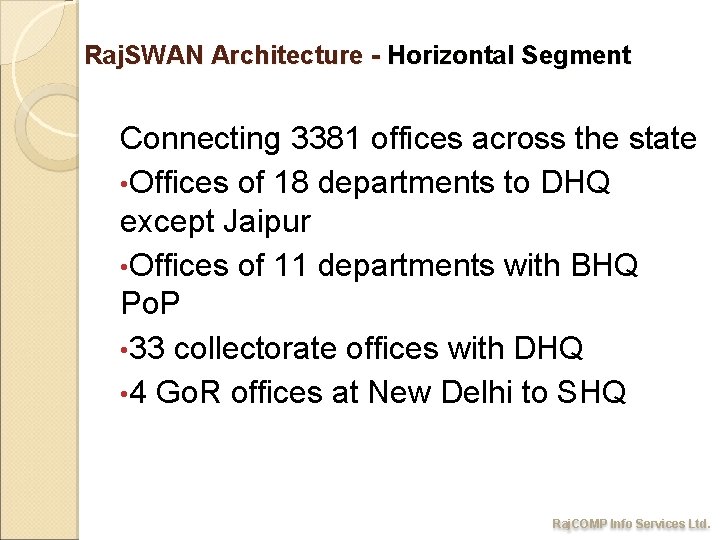

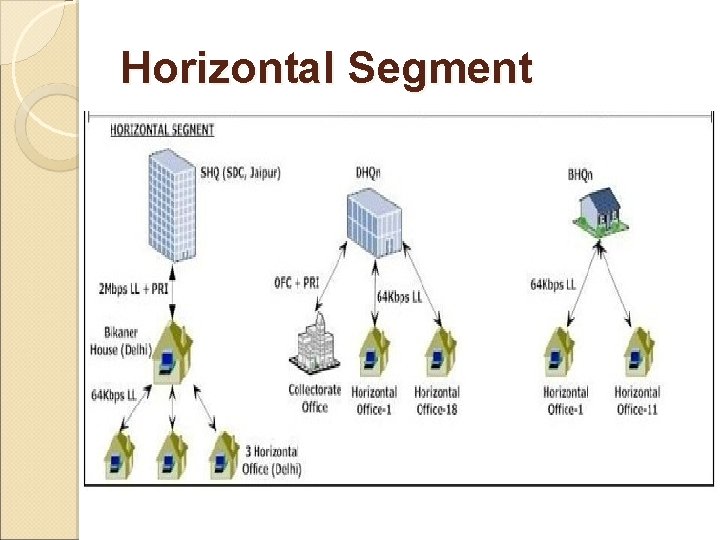

Raj. SWAN Architecture - Horizontal Segment Connecting 3381 offices across the state • Offices of 18 departments to DHQ except Jaipur • Offices of 11 departments with BHQ Po. P • 33 collectorate offices with DHQ • 4 Go. R offices at New Delhi to SHQ Raj. COMP Info Services Ltd.

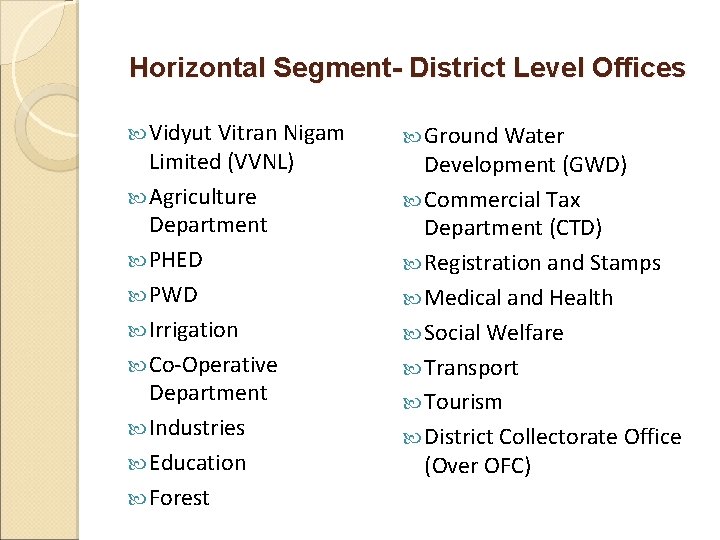

Horizontal Segment- District Level Offices Vidyut Vitran Nigam Limited (VVNL) Agriculture Department PHED PWD Irrigation Co-Operative Department Industries Education Forest Ground Water Development (GWD) Commercial Tax Department (CTD) Registration and Stamps Medical and Health Social Welfare Transport Tourism District Collectorate Office (Over OFC)

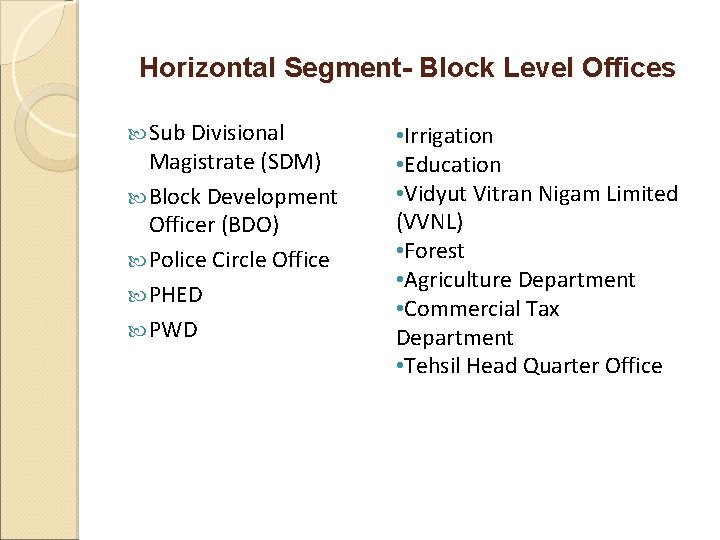

Horizontal Segment- Block Level Offices Sub Divisional Magistrate (SDM) Block Development Officer (BDO) Police Circle Office PHED PWD • Irrigation • Education • Vidyut Vitran Nigam Limited (VVNL) • Forest • Agriculture Department • Commercial Tax Department • Tehsil Head Quarter Office

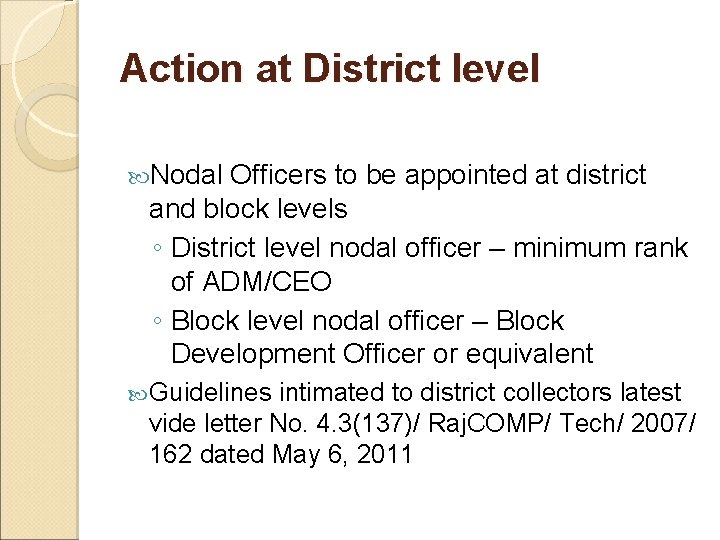

Action at District level Nodal Officers to be appointed at district and block levels ◦ District level nodal officer – minimum rank of ADM/CEO ◦ Block level nodal officer – Block Development Officer or equivalent Guidelines intimated to district collectors latest vide letter No. 4. 3(137)/ Raj. COMP/ Tech/ 2007/ 162 dated May 6, 2011

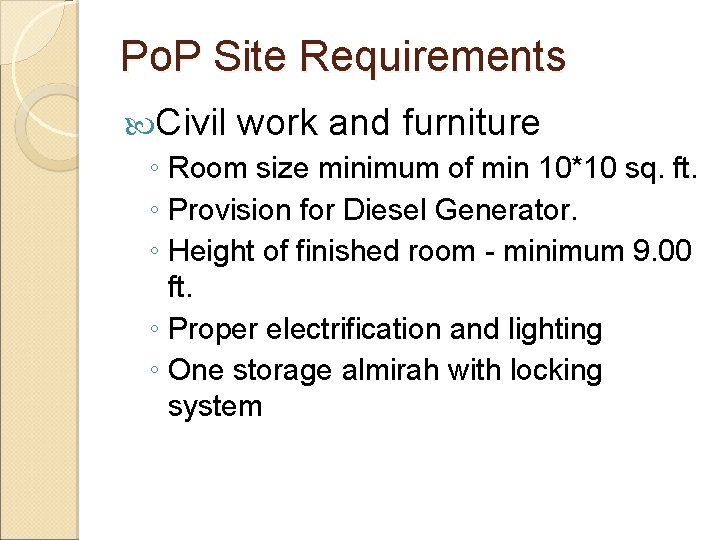

Po. P Site Requirements Civil work and furniture ◦ Room size minimum of min 10*10 sq. ft. ◦ Provision for Diesel Generator. ◦ Height of finished room - minimum 9. 00 ft. ◦ Proper electrification and lighting ◦ One storage almirah with locking system

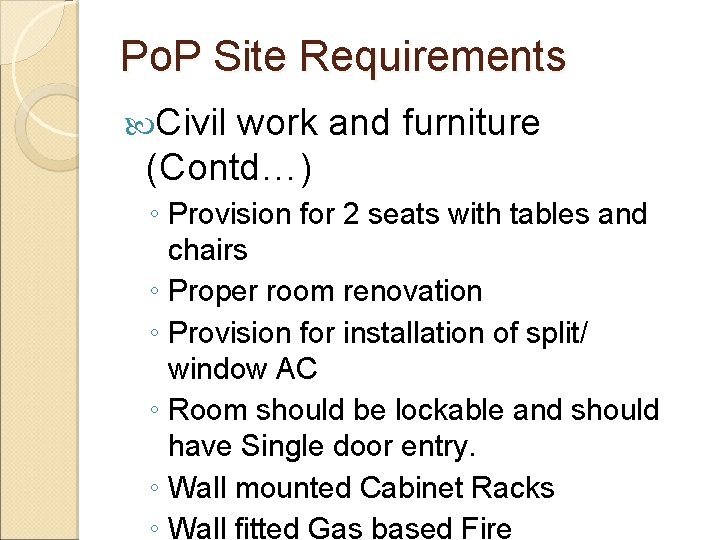

Po. P Site Requirements Civil work and furniture (Contd…) ◦ Provision for 2 seats with tables and chairs ◦ Proper room renovation ◦ Provision for installation of split/ window AC ◦ Room should be lockable and should have Single door entry. ◦ Wall mounted Cabinet Racks ◦ Wall fitted Gas based Fire

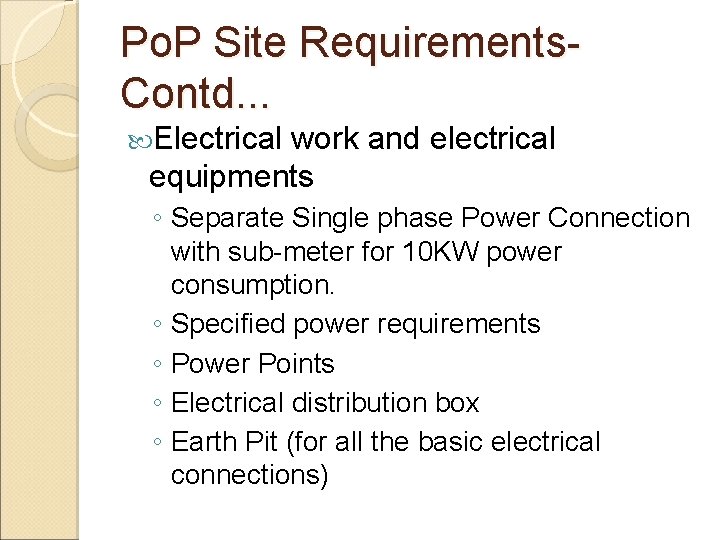

Po. P Site Requirements. Contd. . . Electrical work and electrical equipments ◦ Separate Single phase Power Connection with sub-meter for 10 KW power consumption. ◦ Specified power requirements ◦ Power Points ◦ Electrical distribution box ◦ Earth Pit (for all the basic electrical connections)

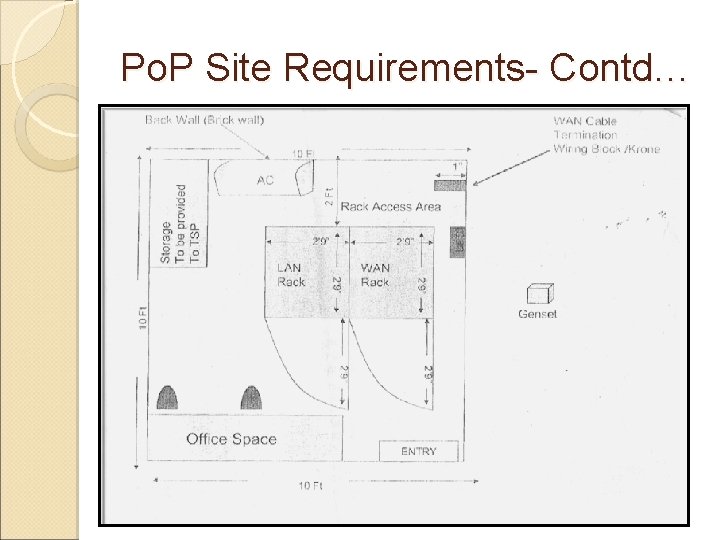

Po. P Site Requirements- Contd…

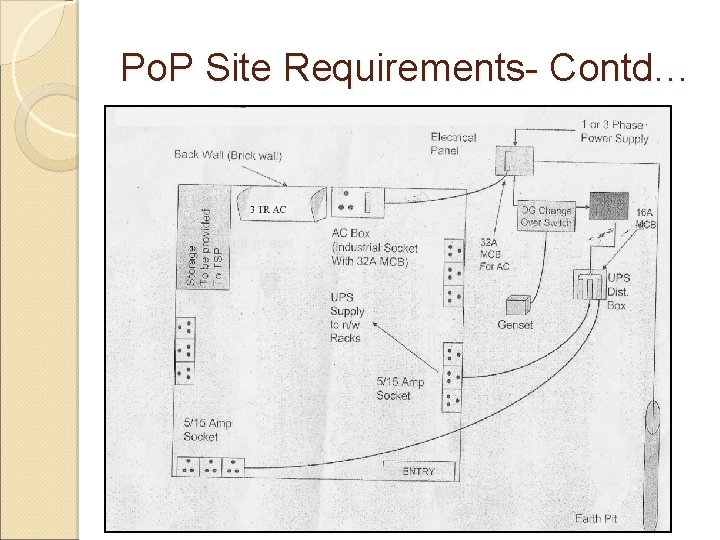

Po. P Site Requirements- Contd…

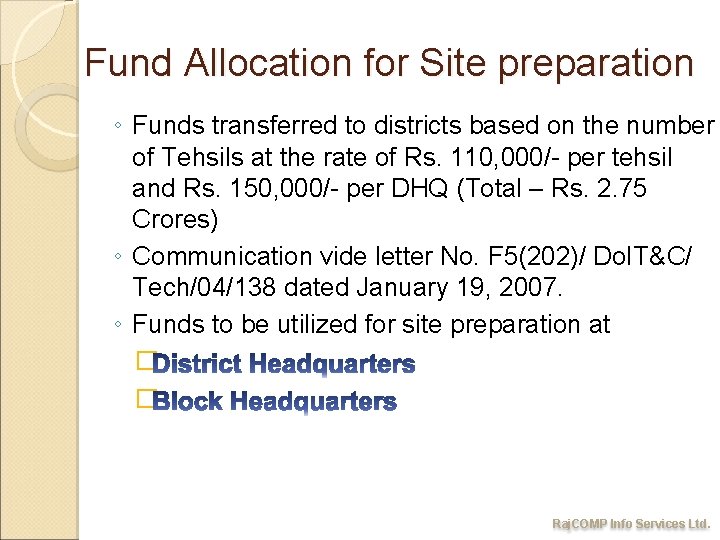

Fund Allocation for Site preparation ◦ Funds transferred to districts based on the number of Tehsils at the rate of Rs. 110, 000/- per tehsil and Rs. 150, 000/- per DHQ (Total – Rs. 2. 75 Crores) ◦ Communication vide letter No. F 5(202)/ Do. IT&C/ Tech/04/138 dated January 19, 2007. ◦ Funds to be utilized for site preparation at � � Raj. COMP Info Services Ltd.

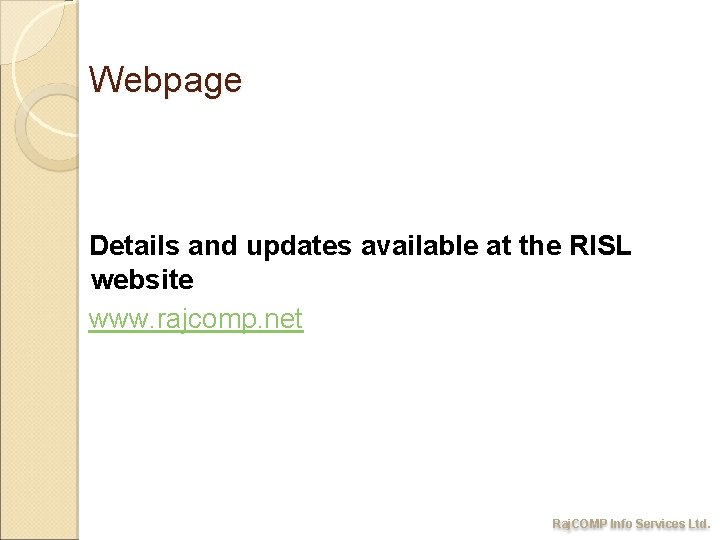

Webpage Details and updates available at the RISL website www. rajcomp. net Raj. COMP Info Services Ltd.

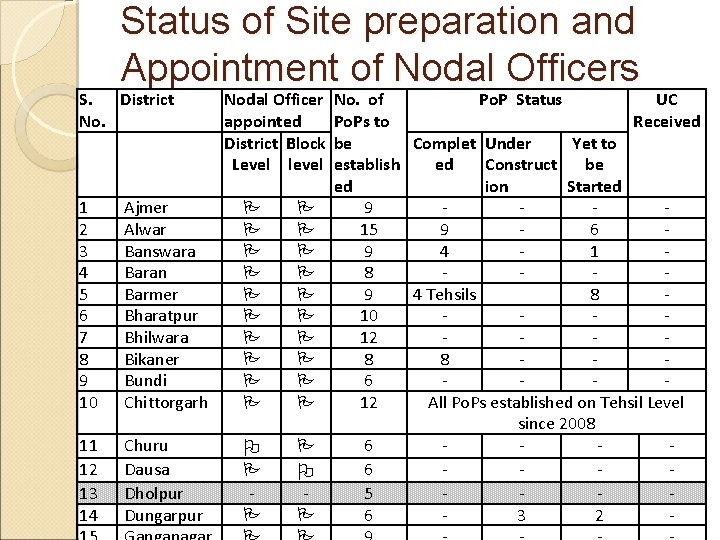

Status of Site preparation and Appointment of Nodal Officers S. District No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 Nodal Officer No. of Po. P Status UC appointed Po. Ps to Received District Block be Complet Under Yet to Level level establish ed Construct be ion Started ed Ajmer 9 Alwar 15 9 6 Banswara 9 4 1 Baran 8 Barmer 9 4 Tehsils 8 Bharatpur 10 Bhilwara 12 Bikaner 8 8 Bundi 6 Chittorgarh 12 All Po. Ps established on Tehsil Level since 2008 Churu 6 Dausa 6 Dholpur 5 Dungarpur 6 3 2

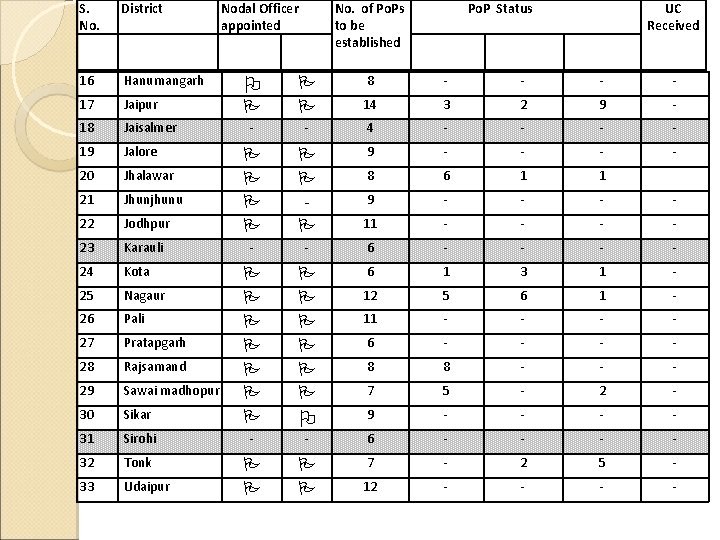

S. No. District Nodal Officer appointed 16 Hanumangarh 17 Jaipur 18 Jaisalmer 19 Jalore 20 Jhalawar 21 Jhunjhunu 22 No. of Po. Ps Po. P Status to be established UC Received 8 - - 14 3 2 9 - - - 4 - - 9 - - 8 6 1 1 9 - - Jodhpur 11 - - 23 Karauli - - 6 - - 24 Kota 1 3 1 - Nagaur 12 5 6 1 - 26 Pali 11 - - 27 Pratapgarh 6 - - 28 Rajsamand 8 8 - - - 29 Sawai madhopur 6 25 7 5 - 2 - 30 Sikar 9 - - 31 Sirohi - - 6 - - 32 Tonk - 2 5 - Udaipur 7 33 12 - -
