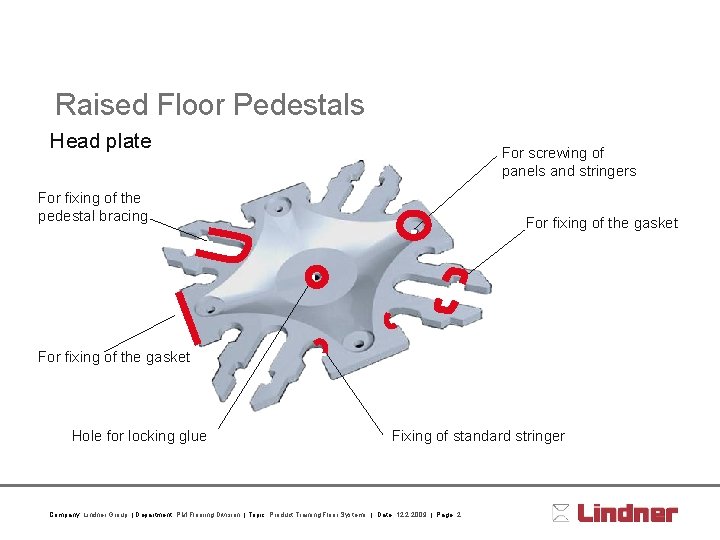

Raised Floor Pedestals Head plate For screwing of panels and stringers For fixing of the pedestal bracing For fixing of the gasket Hole for locking glue Fixing of standard stringer Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 2

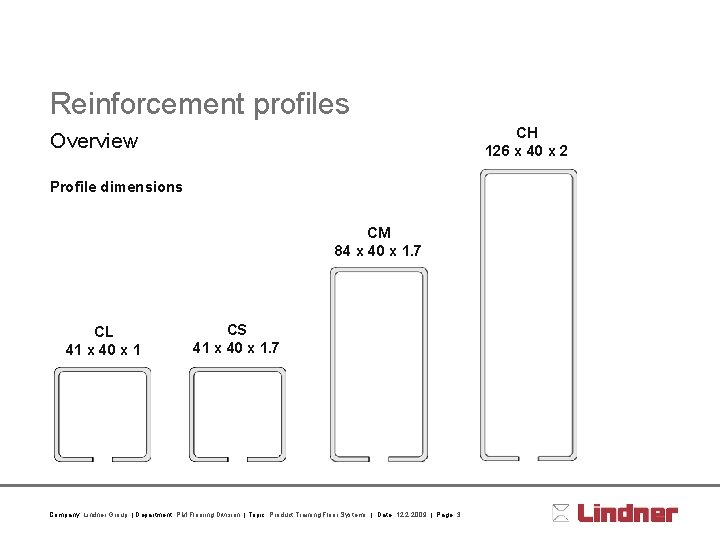

Reinforcement profiles CH 126 x 40 x 2 Overview Profile dimensions CM 84 x 40 x 1. 7 CL 41 x 40 x 1 CS 41 x 40 x 1. 7 Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 3

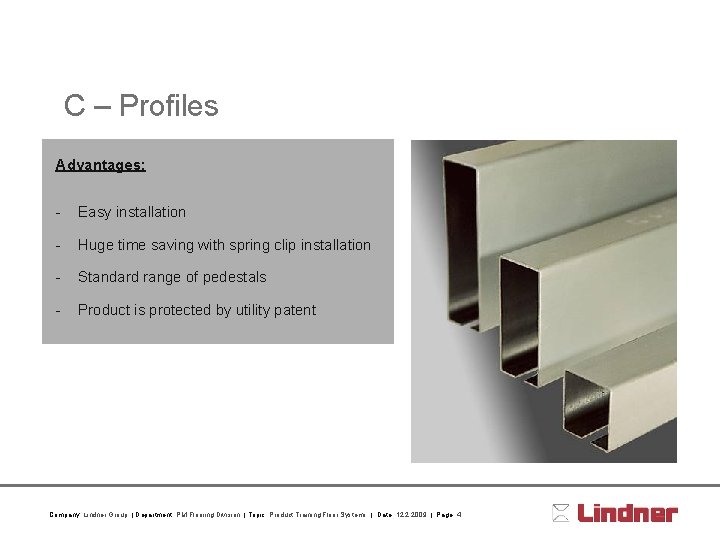

C – Profiles Advantages: - Easy installation - Huge time saving with spring clip installation - Standard range of pedestals - Product is protected by utility patent Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 4

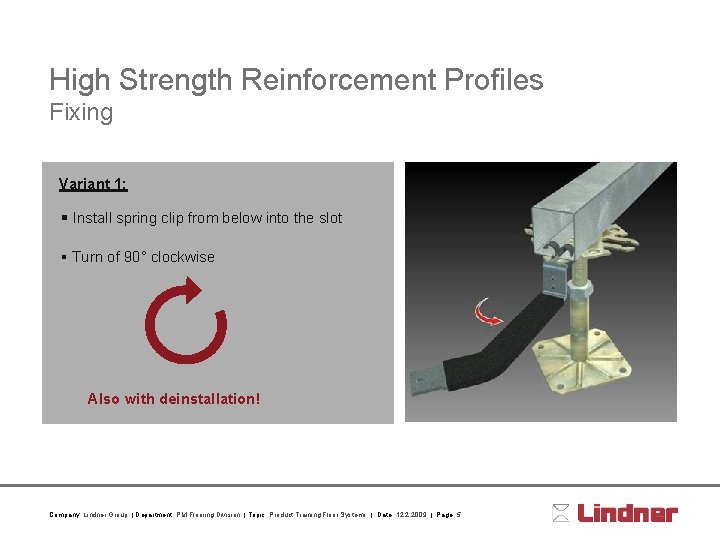

High Strength Reinforcement Profiles Fixing Variant 1: § Install spring clip from below into the slot § Turn of 90° clockwise Also with deinstallation! Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 5

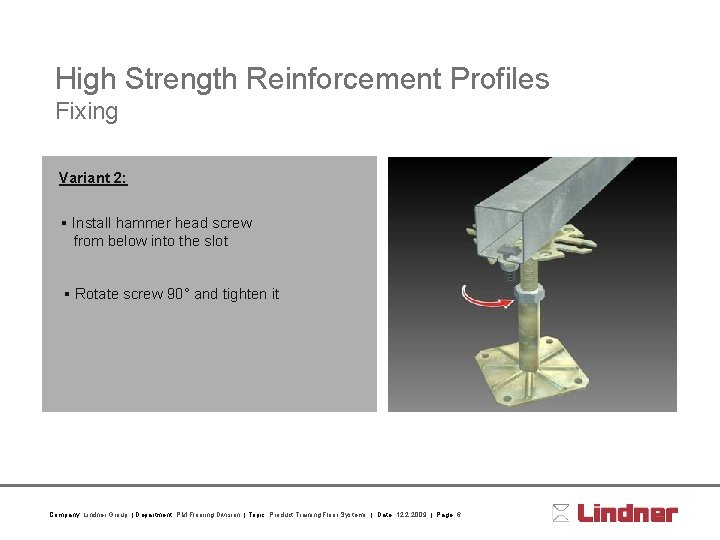

High Strength Reinforcement Profiles Fixing Variant 2: § Install hammer head screw from below into the slot § Rotate screw 90° and tighten it Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 6

High Strength Reinforcement Profiles Panel support Fixing gasket: § Support of the raised floor panels § Fixing gasket with four noppes for supporting the corners of the panel Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 7

High Strength Reinforcement Profiles Parallel and cross connectors Connection of reinforcement profiles: § Cross connector: - Connection on the reinforcement profile with drilling screws - Connection of the crossing reinforcement profile with drilling screws Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 8

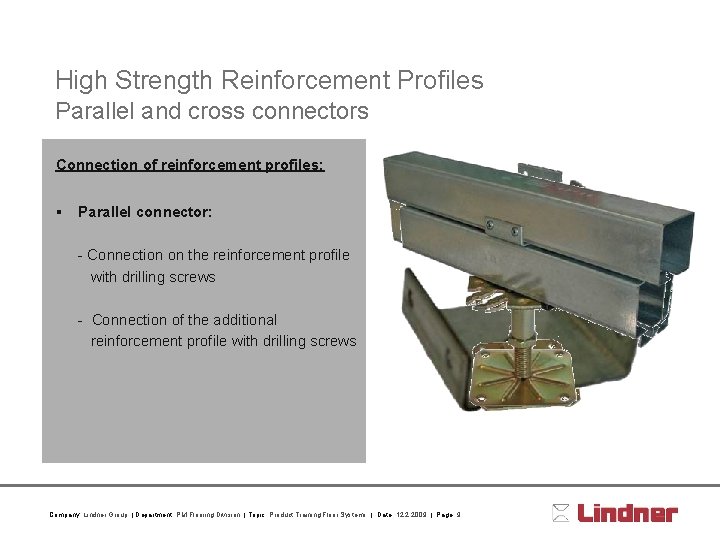

High Strength Reinforcement Profiles Parallel and cross connectors Connection of reinforcement profiles: § Parallel connector: - Connection on the reinforcement profile with drilling screws - Connection of the additional reinforcement profile with drilling screws Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 9

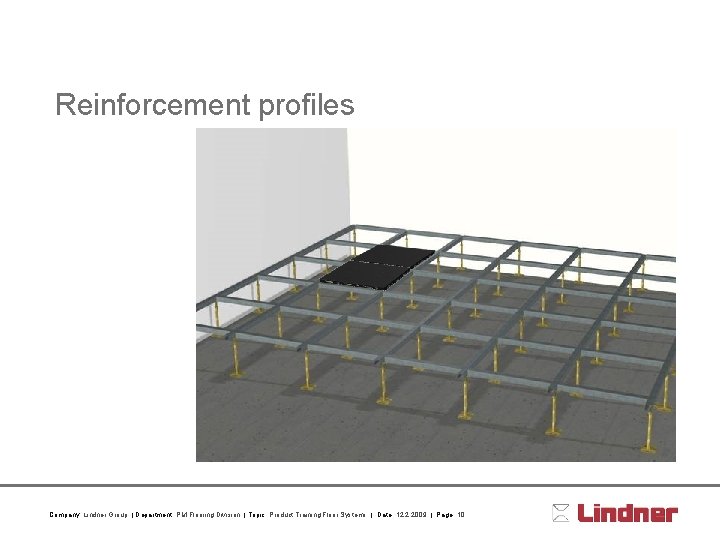

Reinforcement profiles Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 10

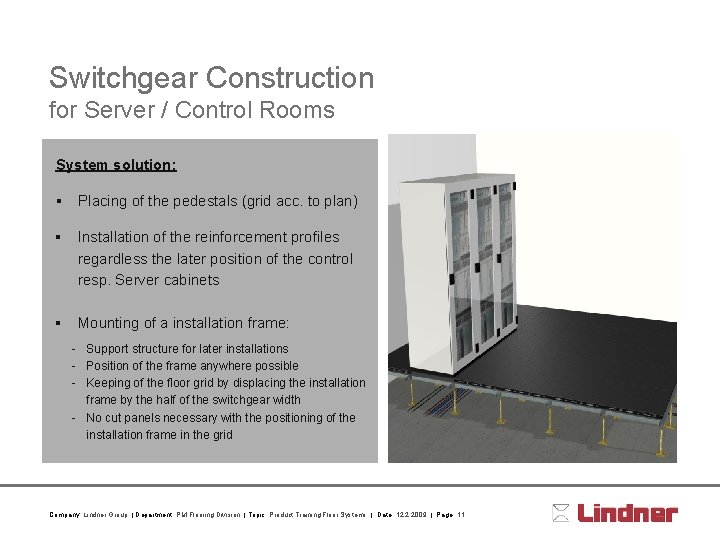

Switchgear Construction for Server / Control Rooms Installation frame System solution: § Placing of the pedestals (grid acc. to plan) § Installation of the reinforcement profiles regardless the later position of the control resp. Server cabinets § Mounting of a installation frame: - Support structure for later installations - Position of the frame anywhere possible - Keeping of the floor grid by displacing the installation frame by the half of the switchgear width - No cut panels necessary with the positioning of the installation frame in the grid Panel Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 11 Reinforcement profile

Switchgear construction Later conversion Flexibility with change of use: § Replacing of switchgear cabinet / server is easily possible § Replacing of the installations in the panel grid: - Replacing of the installation frame in a different grid field - Closing of the previous opening with the panel which were taken out of the new opening - Replacing and cabling of the equipment Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 12

Switchgear construction Later conversion Flexibility with change of use: - Replacing of the installation frame in any desired position regardless the panel grid - Fixing of the installation frame with cross resp. longitudinal connectors - Closing of the previous opening with the panel which were taken out of the new opening - If necessary, cut panels have to be supported with additional reinforcement profiles - Replacing and cabling of the equipment Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 13

Switch Room Construction for server rooms / switch rooms Application area: - With high loads - With dynamic loads - In computer centres or switch rooms - With high construction heights of the system floors Company: Lindner Group | Department: PM Flooring Division | Topic: Product Training Floor Systems | Date: 12. 2. 2009 | Page: 14
