Rainwater Harvesting Training Products Rainwater Management Solutions How
- Slides: 25
Rainwater Harvesting Training Products Rainwater Management Solutions
How to use Harvested Rainwater? Nonpotable Potable • • • • Building washing Cooling towers Fire suppression Household cleaning Irrigation Laundry washing Pool/pond filling Toilet flushing Vehicle washing Drinking water Cooking Bathing Dish washing

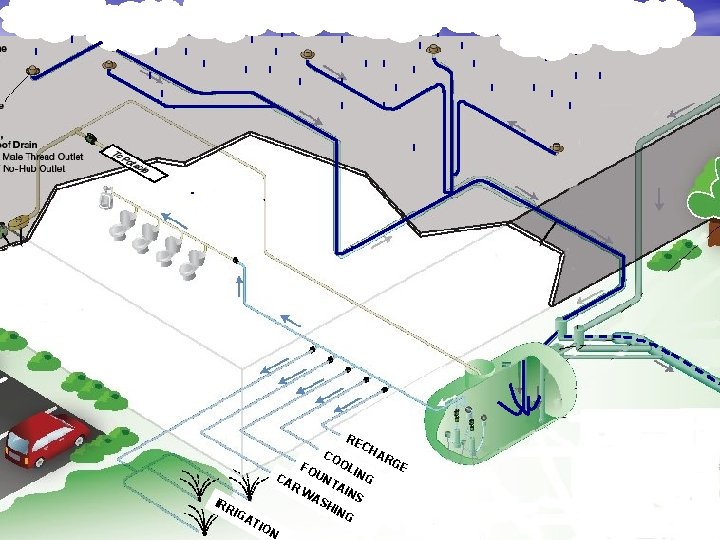

Large Commercial/Industrial IG AT IO CH AR GE OL ING U CA NT RW AIN S AS HIN G FO IRR RE N CO
IG AT IO CH AR GE OL ING U CA NT RW AIN S AS HIN G FO IRR RE N CO

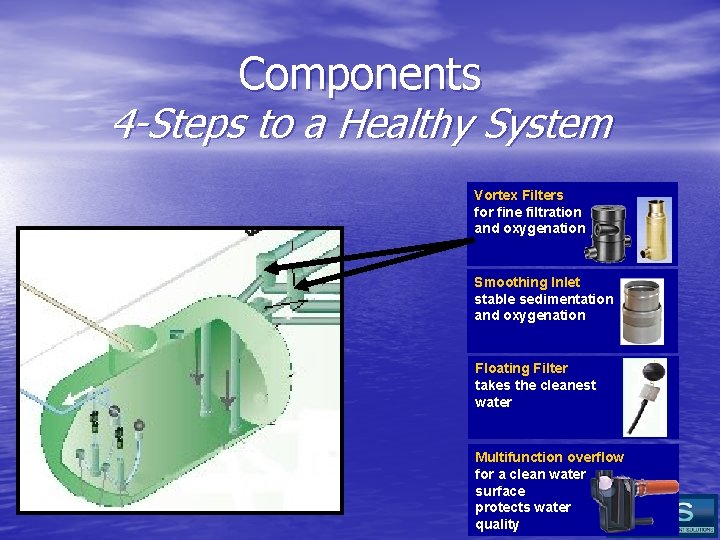

Components 4 -Steps to a Healthy System Vortex Filters for fine filtration and oxygenation Smoothing Inlet stable sedimentation and oxygenation Floating Filter takes the cleanest water Multifunction overflow for a clean water surface protects water quality

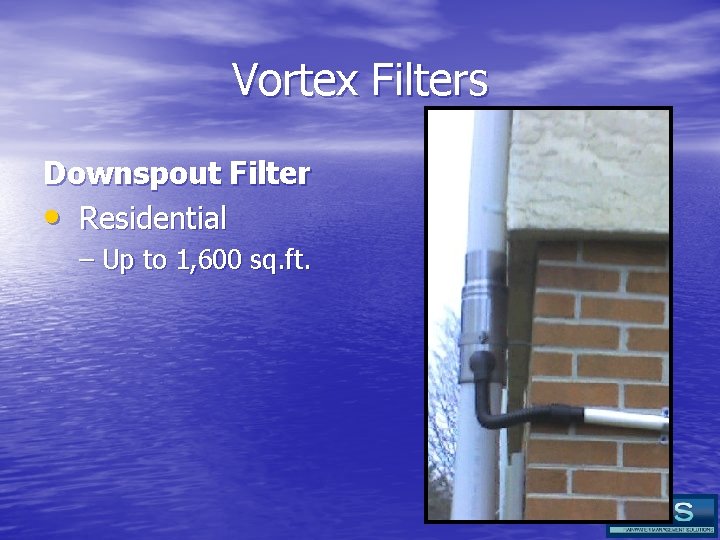

Vortex Filters Downspout Filter • Residential – Up to 1, 600 sq. ft.
Vortex Filters WFF 150 • Residential • Small Commercial – Up to 5, 500 sq. ft.

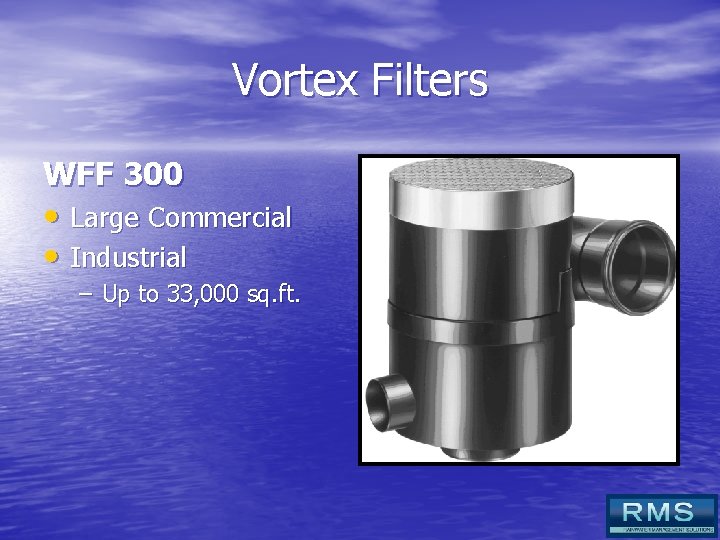

Vortex Filters WFF 300 • Large Commercial • Industrial – Up to 33, 000 sq. ft.
Components 4 -Steps to a Healthy System Vortex Filters for fine filtration and oxygenation Smoothing Inlet stable sedimentation and oxygenation Floating Filter takes the cleanest water Multifunction overflow for a clean water surface protects water quality
Tanks Choices • Above or Below • • • ground Polyethylene Fiberglass Metal
Tanks Manufacturers • Polyethylene NORWESCO
Tanks Manufacturers • Polyethylene NORWESCO ROTH / FRALO
Tanks Manufacturers • Polyethylene NORWESCO ROTH / FRALO • Fiberglass CONTAINMENT SOLUTIONS
Tanks Manufacturers • Polyethylene NORWESCO ROTH / FRALO • Fiberglass CONTAINMENT SOLUTIONS XERXES
Tanks Manufacturers • Polyethylene NORWESCO ROTH / FRALO • Fiberglass CONTAINMENT SOLUTIONS • Metal XERXES CORGAL
Tanks Manufacturers • Polyethylene NORWESCO ROTH / FRALO • Fiberglass CONTAINMENT SOLUTIONS • Metal XERXES CORGAL • Modular ACF
Potable Water Needs • UV light treatment • Ozonation • Drinking water not available
Questions?
Irrigation Scheduling Quick calculation Demand: 1 acre inch of water per week # acres x 27, 154 x 4 in/month 1. 5 x 27, 154 x 4 in/month = 162, 924 gallons
Irrigation Scheduling Supply vs. Demand: 1. 5 x 27, 154 x 4 inches = 162, 924 gallons Supply? roof area x rainfall (monthly inches) x 0. 62 x 0. 95 conversion collection factor efficiency
Irrigation Scheduling Supply? roof area x rainfall (monthly inches) x 0. 62 x 0. 95 Example 80, 000 sq. ft. building 3 inches = summer monthly rainfall conversion collection factor efficiency 80, 000 sq. ft. x 3 in. x 0. 62 x 0. 95 = 141, 360 gallons Supply: 141, 360 gallons Demand: 162, 924 gallons -21, 564 gallons

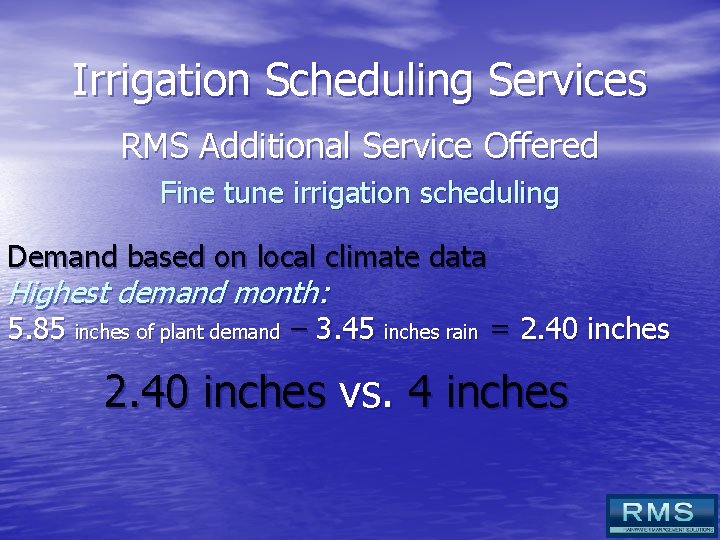

Irrigation Scheduling Services RMS Additional Service Offered Fine tune irrigation scheduling Demand based on local climate data Highest demand month: 5. 85 inches of plant demand – 3. 45 inches rain = 2. 40 inches vs. 4 inches
Irrigation Scheduling Services Supply: 80, 000 sq. ft. x 3 in. x 0. 62 x 0. 95 = 141, 360 gallons Demand: 1. 5 x 27, 154 x 2. 4 inches = 97, 754 gallons , s g n i v a Supply: 141, 360 gallons s = tank size , g n i t s a w Demand: 97, 754 gallons er t a w t n e v e e pr c i v r e s r e h +43, 606 gallons fer clients anot of
