RAINFALL ESTIMATION FROM SATELLITE OBSERVATIONS

PRECIPITATION All liquid or solid phase aqueous particles that originate in the atmosphere and fall to the earth's surface. The amount, usually expressed in millimeters or inches of liquid water depth, of the water substance that has fallen at a given point over a specified period of time.

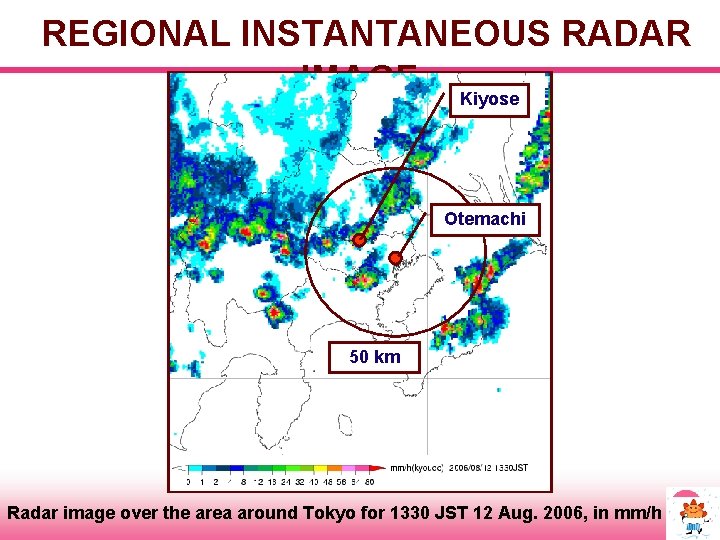

REGIONAL INSTANTANEOUS RADAR IMAGE Kiyose Otemachi 50 km Radar image over the area around Tokyo for 1330 JST 12 Aug. 2006, in mm/h

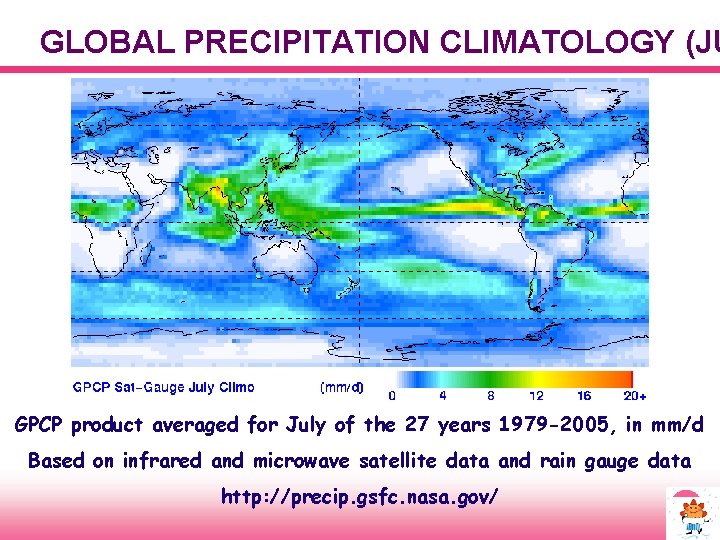

GLOBAL PRECIPITATION CLIMATOLOGY (JU GPCP product averaged for July of the 27 years 1979 -2005, in mm/d Based on infrared and microwave satellite data and rain gauge data http: //precip. gsfc. nasa. gov/

PRECIPITATION IN NATURE • Highly variable spatially and temporally • Drive large-scale atmospheric dynamics by latent heat release in the tropics • Cause devastating natural disasters – Flood – Drought

USES OF PRECIPITATION OBSERVATIONS Many applications require the spatial pattern of precipitation in global and regional scale • Short-term – – Nowcasting of severe storms Weather forecasting Flood control River management • Medium-term – Crop forecasting • Long-term – Climate monitoring

PRECIPITATION MEASUREMENT SYSTEMS Satellite How does it measure rain from space? Radar Rain gauge

RAIN GAUGES Advantages Accurate; ‘truth’ Disadvantages Not representative of area Too sparse coverage over oceans

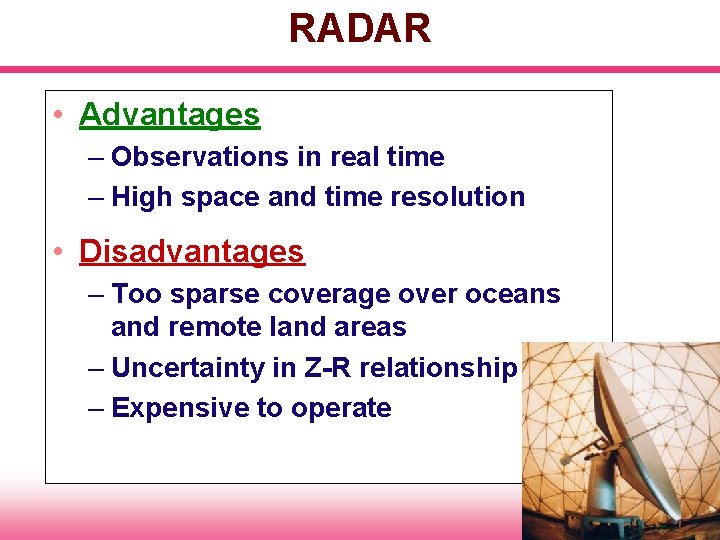

RADAR • Advantages – Observations in real time – High space and time resolution • Disadvantages – Too sparse coverage over oceans and remote land areas – Uncertainty in Z-R relationship – Expensive to operate

GLOBAL SATELLITE CONSTELLATION

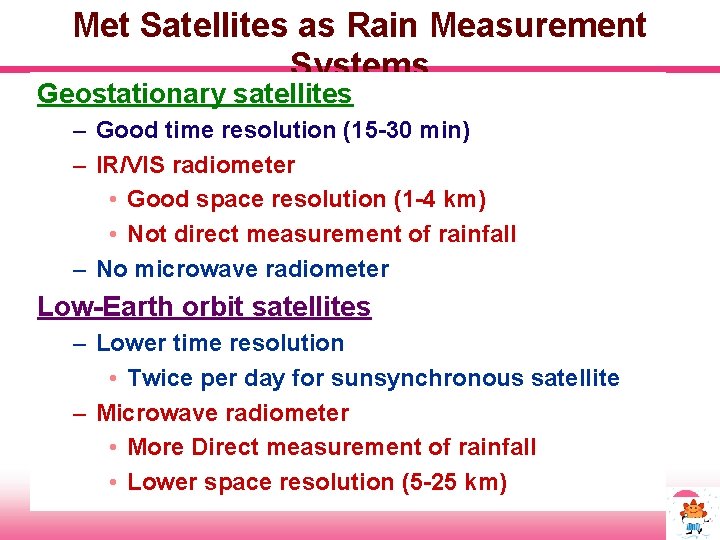

Met Satellites as Rain Measurement Systems Geostationary satellites – Good time resolution (15 -30 min) – IR/VIS radiometer • Good space resolution (1 -4 km) • Not direct measurement of rainfall – No microwave radiometer Low-Earth orbit satellites – Lower time resolution • Twice per day for sunsynchronous satellite – Microwave radiometer • More Direct measurement of rainfall • Lower space resolution (5 -25 km)

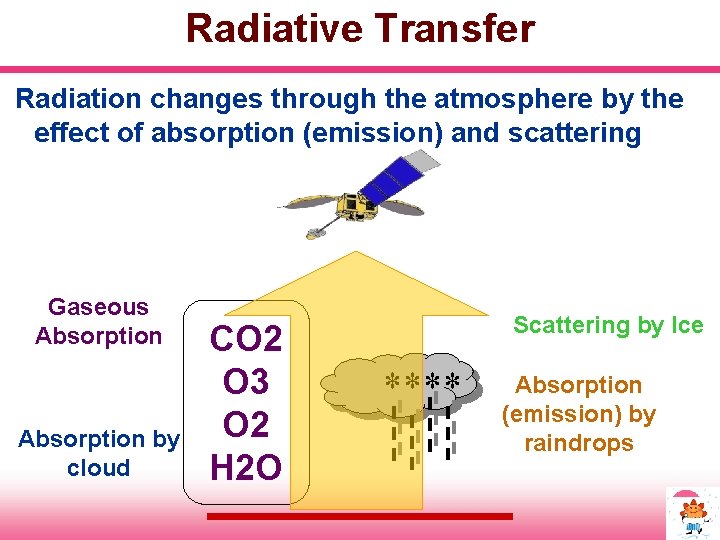

Radiative Transfer Radiation changes through the atmosphere by the effect of absorption (emission) and scattering Gaseous Absorption by cloud CO 2 O 3 O 2 H 2 O Scattering by Ice **** Absorption (emission) by raindrops

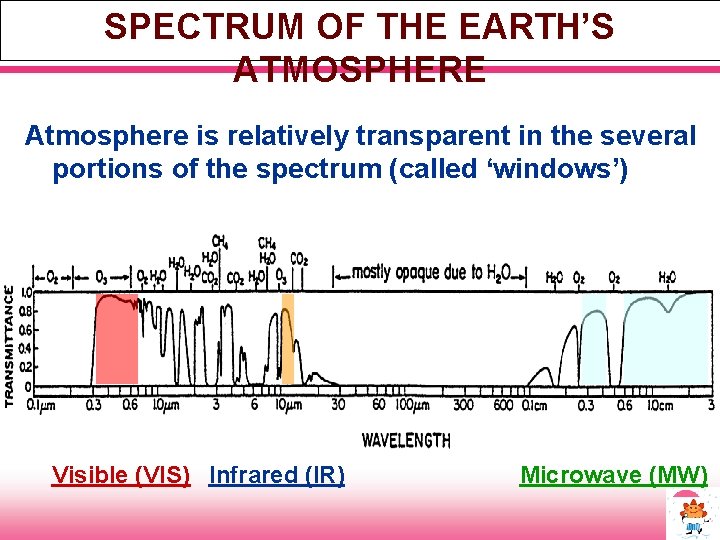

SPECTRUM OF THE EARTH’S ATMOSPHERE Atmosphere is relatively transparent in the several portions of the spectrum (called ‘windows’) Visible (VIS) Infrared (IR) Microwave (MW)

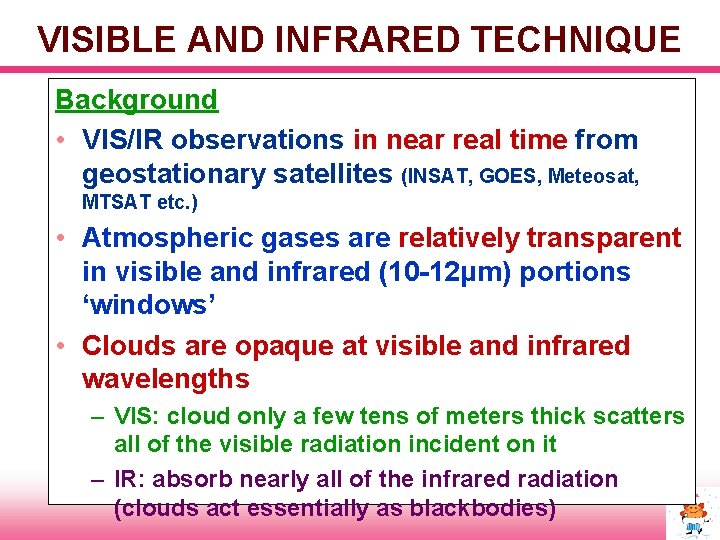

VISIBLE AND INFRARED TECHNIQUE Background • VIS/IR observations in near real time from geostationary satellites (INSAT, GOES, Meteosat, MTSAT etc. ) • Atmospheric gases are relatively transparent in visible and infrared (10 -12μm) portions ‘windows’ • Clouds are opaque at visible and infrared wavelengths – VIS: cloud only a few tens of meters thick scatters all of the visible radiation incident on it – IR: absorb nearly all of the infrared radiation (clouds act essentially as blackbodies)

VISIBLE AND INFRARED IMAGERY MTSAT VIS channel (0. 55 - 0. 90μm) MTSAT IR 1 channel (10. 3 - 11. 3μm) 27/Sep/2006 at 03: 30 UTC

VISIBLE AND INFRARED TECHNIQUE Principle: Rainfall at the surface is related to cloud properties observed from space VIS IR reflected sunlight from cloud top temperature B(Tc) Tc ? ? VIS/IR radiometer measures cloud-top properties instead of rain

VISIBLE AND INFRARED TECHNIQUE VIS → Reflectivity Brighter – thicker clouds – likely heavier rainfall Dark – no rain IR → Brightness Temperature Colder – deeper clouds – likely heavier rainfall Warm – no rain

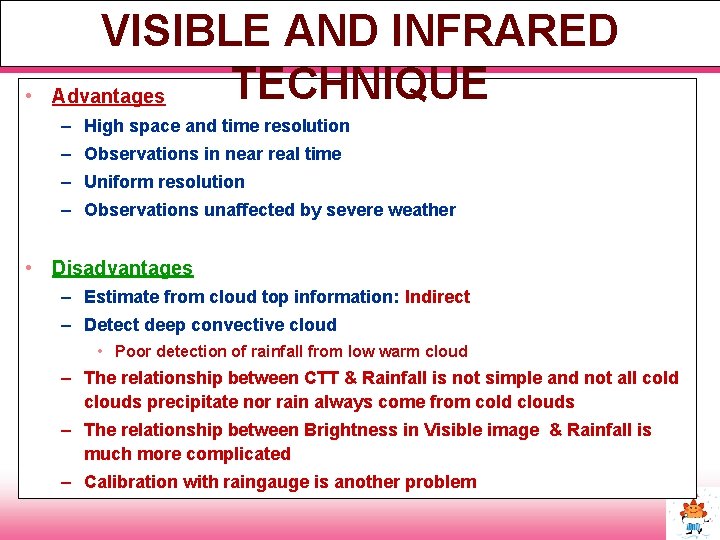

• VISIBLE AND INFRARED TECHNIQUE Advantages – High space and time resolution – Observations in near real time – Uniform resolution – Observations unaffected by severe weather • Disadvantages – Estimate from cloud top information: Indirect – Detect deep convective cloud • Poor detection of rainfall from low warm cloud – The relationship between CTT & Rainfall is not simple and not all cold clouds precipitate nor rain always come from cold clouds – The relationship between Brightness in Visible image & Rainfall is much more complicated – Calibration with raingauge is another problem

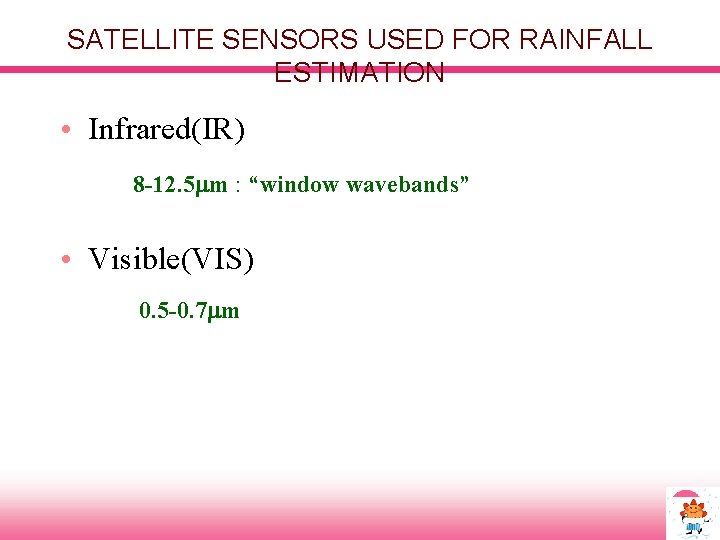

SATELLITE SENSORS USED FOR RAINFALL ESTIMATION • Infrared(IR) 8 -12. 5 mm : “window wavebands” • Visible(VIS) 0. 5 -0. 7 mm

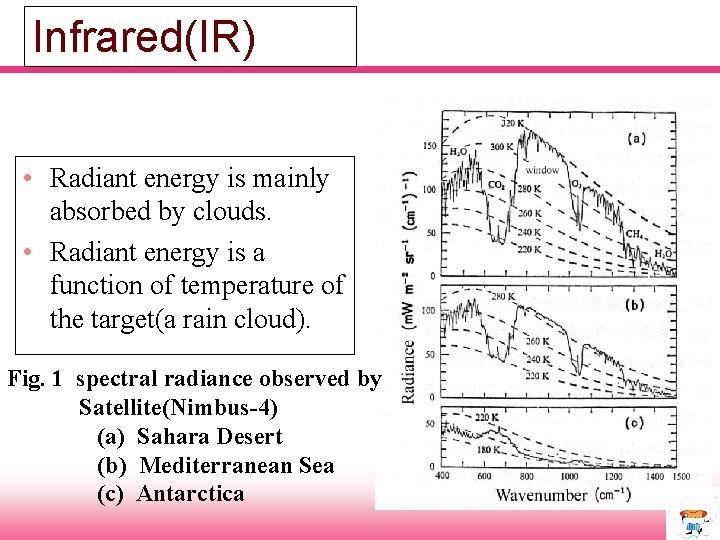

Infrared(IR) • Radiant energy is mainly absorbed by clouds. • Radiant energy is a function of temperature of the target(a rain cloud). Fig. 1 spectral radiance observed by Satellite(Nimbus-4) (a) Sahara Desert (b) Mediterranean Sea (c) Antarctica

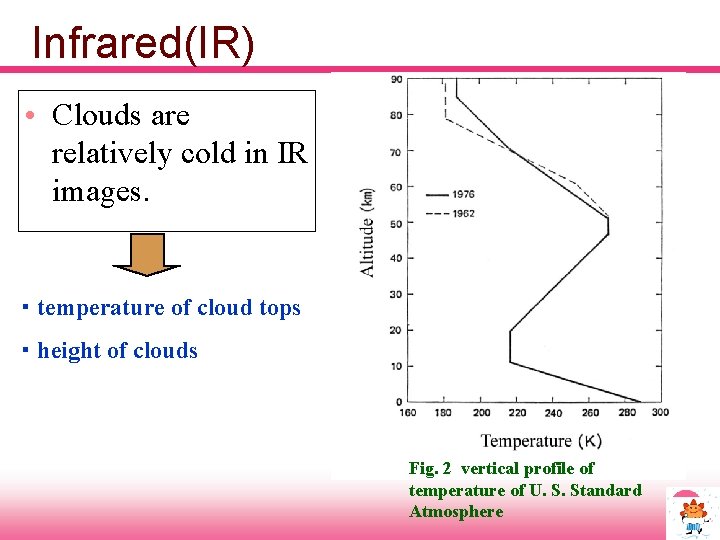

Infrared(IR) • Clouds are relatively cold in IR images. ・ temperature of cloud tops ・ height of clouds Fig. 2 vertical profile of temperature of U. S. Standard Atmosphere

Geostationary Satellite (GMS, 2000/10/13 0300 UTC) IR VIS

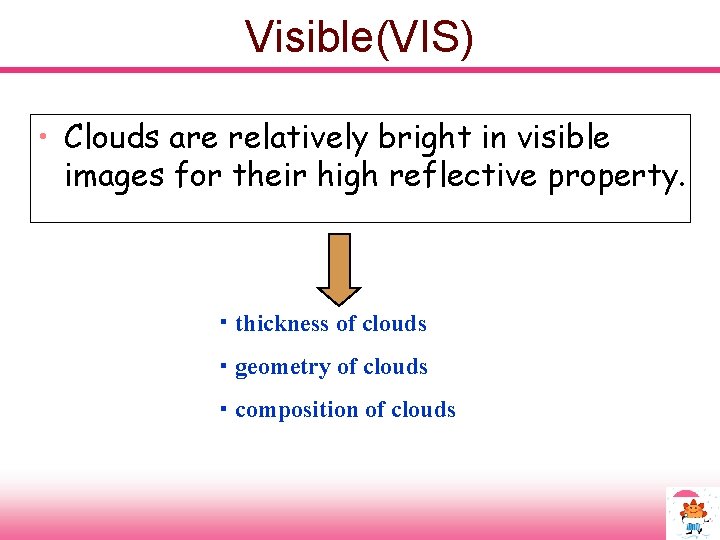

Visible(VIS) • Clouds are relatively bright in visible images for their high reflective property. ・ thickness of clouds ・ geometry of clouds ・ composition of clouds

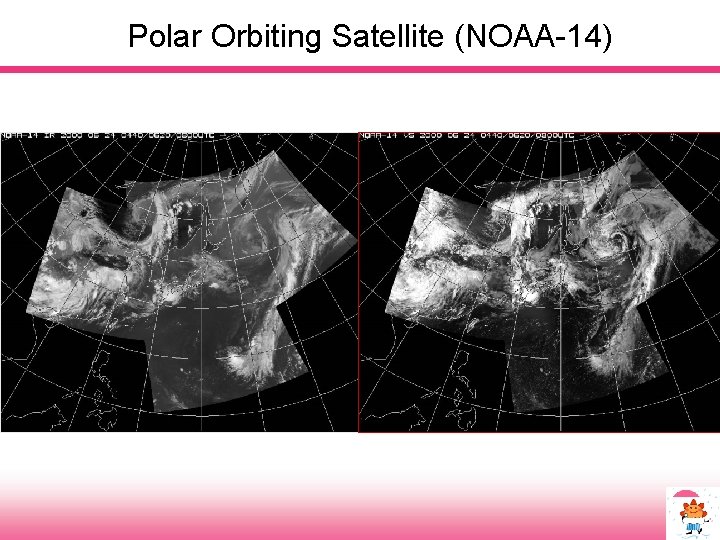

Polar Orbiting Satellite (NOAA-14)

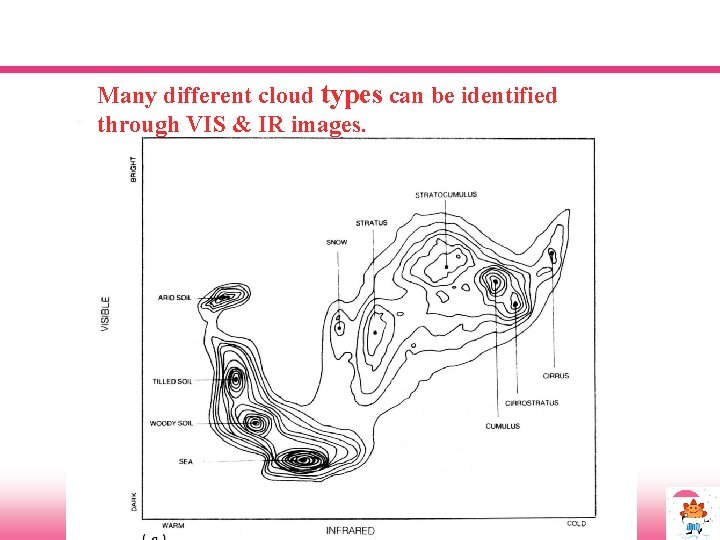

Many different cloud types can be identified through VIS & IR images.

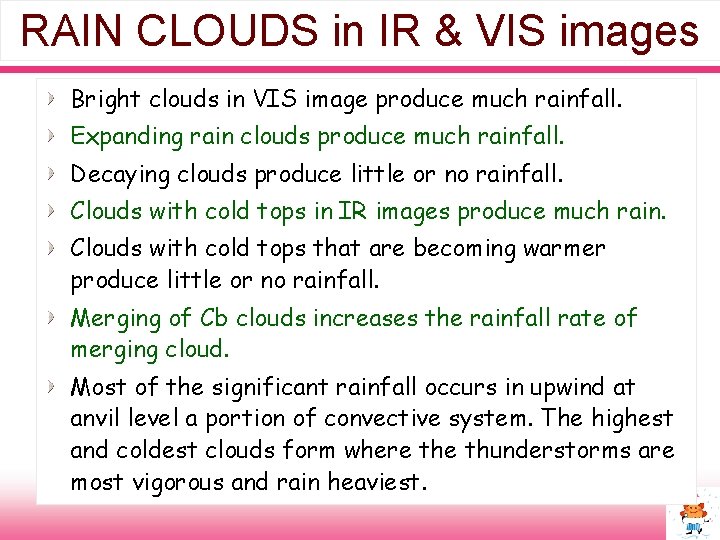

RAIN CLOUDS in IR & VIS images Bright clouds in VIS image produce much rainfall. Expanding rain clouds produce much rainfall. Decaying clouds produce little or no rainfall. Clouds with cold tops in IR images produce much rain. Clouds with cold tops that are becoming warmer produce little or no rainfall. Merging of Cb clouds increases the rainfall rate of merging cloud. Most of the significant rainfall occurs in upwind at anvil level a portion of convective system. The highest and coldest clouds form where thunderstorms are most vigorous and rain heaviest.

VARIOUS METHODS OF RAINFALL ESTIMATION • Visible & Infrared Techniques – Cloud indexing – Bispectral Techniques – Life-History Techniques – Cloud Model Techniques

CLOUD INDEXING TECHNIQUES • Barret(1970) was the pioneer. He used nephanalysis of ESSA(Environment Science Service Administration) to estimate monthly rainfall. • Follansbee(1970) used after noon visible images and visually assigned fraction of areas coverd by CB (r =1 inch/day), NS(r =0. 25 inch/day) and Cu congestus (r =0. 02 inch/day) • Follansbee and Oliver (1975) estimated cool precipitation. Cool season in Extra-trpoics is dominated by eastward moving systems which produce rain with variable intensities. They used two images that are separated by 12 h and demarcated the clouds that are expected to rain and forecast the movement of the system. Thereby they found the no. of hours a place is likely to rain They used the monthly normal PN to correct the variable state of rain. The equation used is: • P 12 = 0. 0075 * D * PN where D is duration in hours

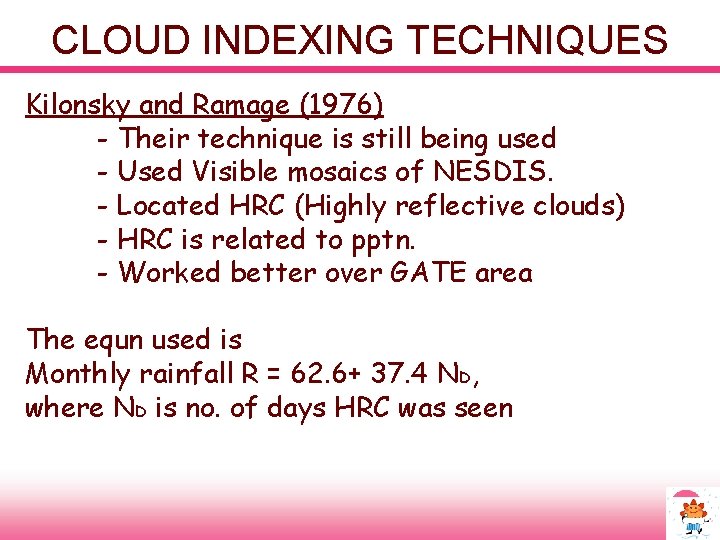

CLOUD INDEXING TECHNIQUES Kilonsky and Ramage (1976) - Their technique is still being used - Used Visible mosaics of NESDIS. - Located HRC (Highly reflective clouds) - HRC is related to pptn. - Worked better over GATE area The equn used is Monthly rainfall R = 62. 6+ 37. 4 ND, where ND is no. of days HRC was seen

CLOUD INDEXING TECHNIQUES GOES Precipitation Index, Arkin(1979). To estimate tropical rainfall for climatological purose Over GATE area the radar estimate was highly correlated (0. 86) to the fraction of area covered by pixels colder than 235 K Ø Richards & Arkin tested it over area 0. 5 x 0. 5 deg and 2. 5 x 2. 5 and found the correllations increase with averaging area and time Ø Used rain rate of 3 mm Ø The precise equation is GPI = 3 f Δt Where f is fraction of area colder than 235 K i. e f = No. of pixels with temp < 235 K/ Total No. of pixels & Δt is time in hours ( if images are collexcted each 3 hrs, the t = 3) Ø Ø the rain rate rr = 3. 0 (mm/hr)

GOES Precipitation Index, Arkin(1979). ・Exercise (a) and (b) are 0. 5 × 0. 5 deg. boxes, and the numbers are temperature(K) of each pixel in the boxes, respectively. What is the rainfall(rate(mm/hr)) for each box ? RR = ( 4 / 16 ) × 3. 0 = 0. 75 (mm/hr) RR = ( 10 / 25 ) × 3. 0 = 1. 2 (mm/hr)

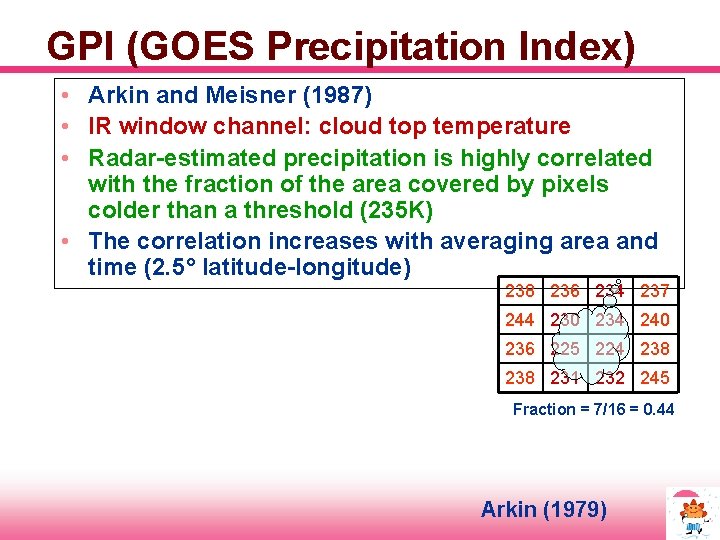

GPI (GOES Precipitation Index) • Arkin and Meisner (1987) • IR window channel: cloud top temperature • Radar-estimated precipitation is highly correlated with the fraction of the area covered by pixels colder than a threshold (235 K) • The correlation increases with averaging area and time (2. 5° latitude-longitude) 238 236 234 237 244 230 234 240 236 225 224 238 231 232 245 Fraction = 7/16 = 0. 44 Arkin (1979)

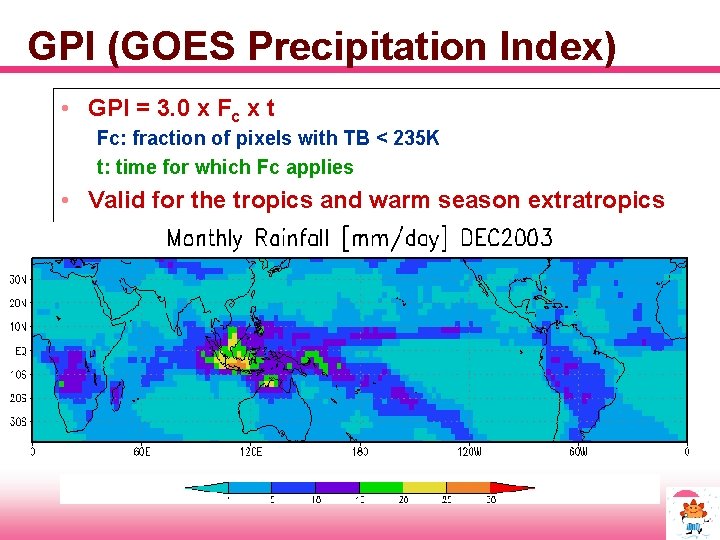

GPI (GOES Precipitation Index) • GPI = 3. 0 x Fc x t Fc: fraction of pixels with TB < 235 K t: time for which Fc applies • Valid for the tropics and warm season extratropics

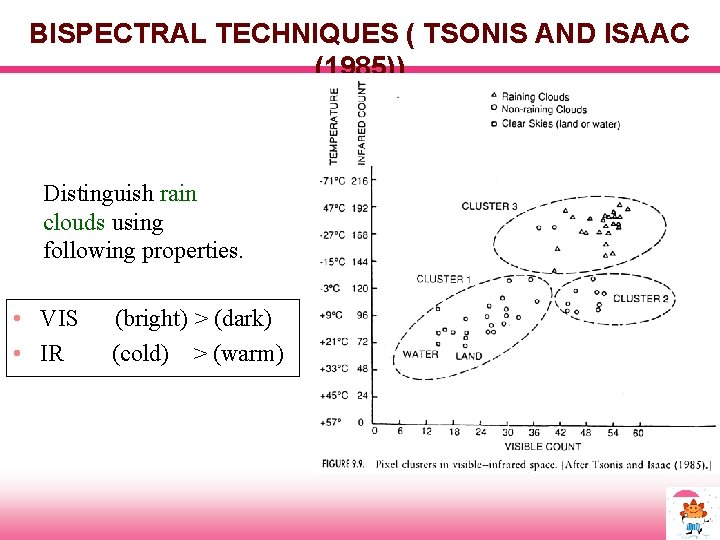

BISPECTRAL TECHNIQUES ( TSONIS AND ISAAC (1985)) Distinguish rain clouds using following properties. • VIS • IR (bright) > (dark) (cold) > (warm)

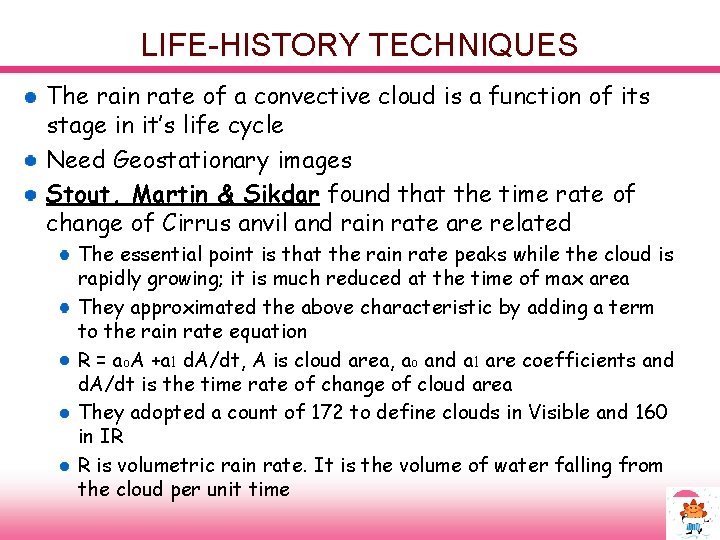

LIFE-HISTORY TECHNIQUES The rain rate of a convective cloud is a function of its stage in it’s life cycle Need Geostationary images Stout, Martin & Sikdar found that the time rate of change of Cirrus anvil and rain rate are related The essential point is that the rain rate peaks while the cloud is rapidly growing; it is much reduced at the time of max area They approximated the above characteristic by adding a term to the rain rate equation R = ao. A +a 1 d. A/dt, A is cloud area, ao and a 1 are coefficients and d. A/dt is the time rate of change of cloud area They adopted a count of 172 to define clouds in Visible and 160 in IR R is volumetric rain rate. It is the volume of water falling from the cloud per unit time

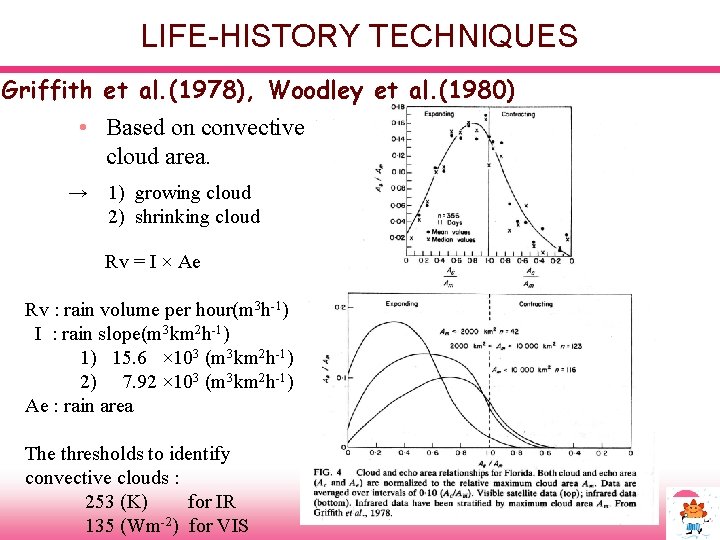

LIFE-HISTORY TECHNIQUES Griffith et al. (1978), Woodley et al. (1980) • Based on convective cloud area. → 1) growing cloud 2) shrinking cloud Rv = I × Ae Rv : rain volume per hour(m 3 h-1) I : rain slope(m 3 km 2 h-1) 1) 15. 6 × 103 (m 3 km 2 h-1) 2) 7. 92 × 103 (m 3 km 2 h-1) Ae : rain area The thresholds to identify convective clouds : 253 (K) for IR 135 (Wm-2) for VIS

LIFE-HISTORY TECHNIQUES ・Exercise What is the rain volume(m 3 h-1) on each condition ? (a) Sensor type : IR Ae : 10 (km 2) Ac : 40 (km 2) Am : 70 (km 2) Rv = 15. 6 × 103 × 10 = 1. 56 × 105 (m 3 h-1) (b) Sensor type : VIS Ae : 1 (km 2) Ac : 12 (km 2) Am : 20 (km 2) Rv = 7. 92 × 103 × 1 = 7. 92 × 103 (m 3 h-1)

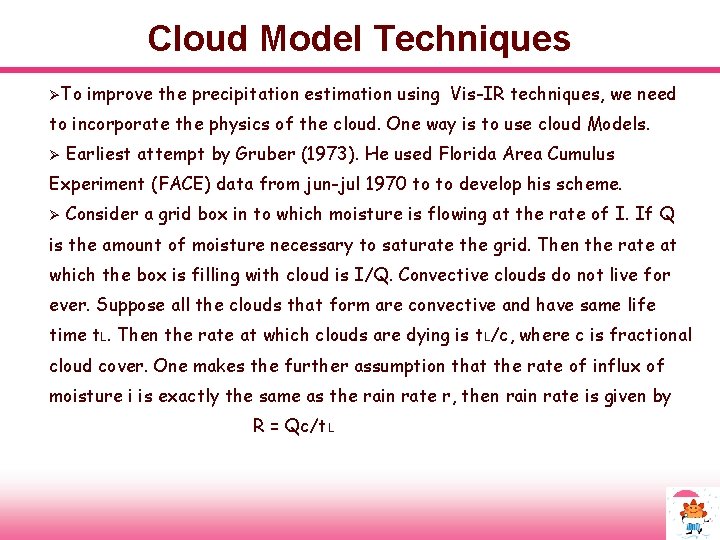

Cloud Model Techniques ØTo improve the precipitation estimation using Vis-IR techniques, we need to incorporate the physics of the cloud. One way is to use cloud Models. Ø Earliest attempt by Gruber (1973). He used Florida Area Cumulus Experiment (FACE) data from jun-jul 1970 to to develop his scheme. Ø Consider a grid box in to which moisture is flowing at the rate of I. If Q is the amount of moisture necessary to saturate the grid. Then the rate at which the box is filling with cloud is I/Q. Convective clouds do not live for ever. Suppose all the clouds that form are convective and have same life time t. L. Then the rate at which clouds are dying is t. L/c, where c is fractional cloud cover. One makes the further assumption that the rate of influx of moisture i is exactly the same as the rain rate r, then rain rate is given by R = Qc/t L

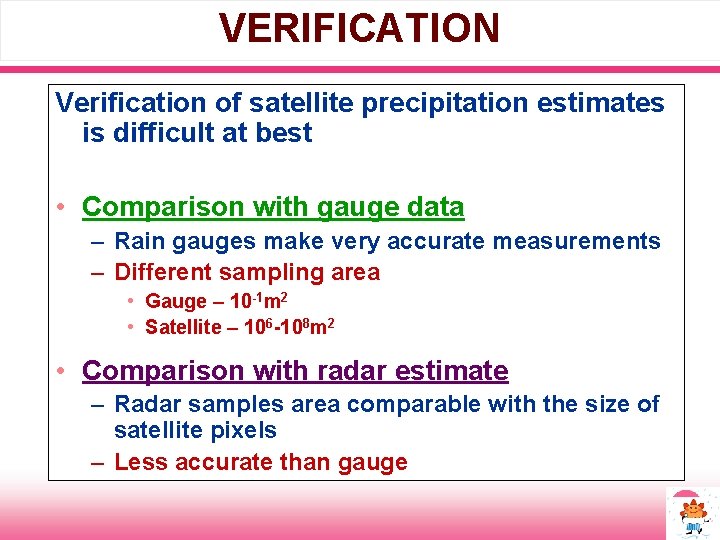

VERIFICATION Verification of satellite precipitation estimates is difficult at best • Comparison with gauge data – Rain gauges make very accurate measurements – Different sampling area • Gauge – 10 -1 m 2 • Satellite – 106 -108 m 2 • Comparison with radar estimate – Radar samples area comparable with the size of satellite pixels – Less accurate than gauge

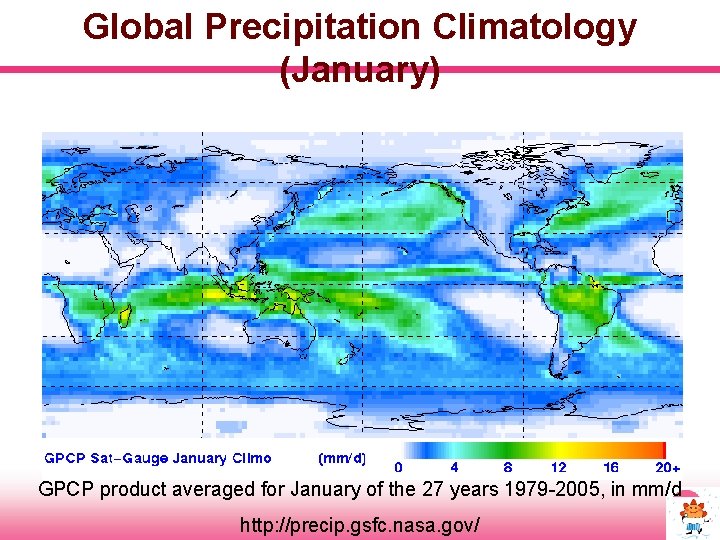

Global Precipitation Climatology (January) GPCP product averaged for January of the 27 years 1979 -2005, in mm/d http: //precip. gsfc. nasa. gov/
