RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The challenge of the freight transport by Rail Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

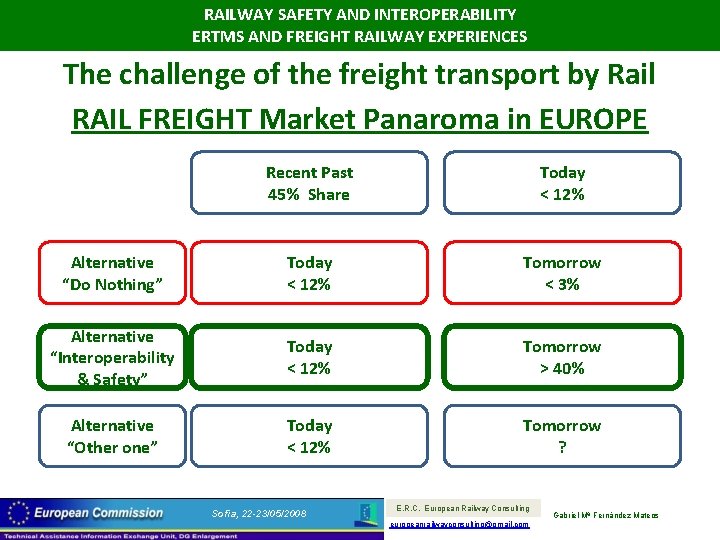

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The challenge of the freight transport by Rail RAIL FREIGHT Market Panaroma in EUROPE Recent Past 45% Share Today < 12% Alternative “Do Nothing” Today < 12% Tomorrow < 3% Alternative “Interoperability & Safety” Today < 12% Tomorrow > 40% Alternative “Other one” Today < 12% Tomorrow ? Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The challenge of the freight transport by Rail Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The challenge of the freight transport by Rail Problems and Solution for the freight transport by Rail “Thousand” Problems A A B One Solution = Uninterrupted traffic 100 km/h? B But…custom oriented transport eficiency and cost effectiveness is mandatory Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The challenge of the freight transport by Rail MAIN PROBLEMS AREAS ] Technical ] Management ERTMS + Telematics ] Commercial ] Organizational ] Funding National Governments + EU ] Political ]… Partial solutions don´t have money returns! (critical mass is necessary) Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The challenge of the freight transport by Rail Beside EU Directives, The freight transport by Rail is a “must” because of: ] ] Negative external efects of the Road mode Main international Roads axes congested Free rail capacity is still available Dangereous goods transport more safe Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The challenge of the freight transport by Rail Comparison road and rail freight transport: cost per tkm in €ct/tkm Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Safety and Interoperability Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Safety and Interoperability 1. 2. 3. 4. 5. 6. 7. Interoperability for common technical language Interoperability to improve safety Interoperability to improve quality Interoperability to reduce transport costs Interoperability to avoid external costs (Road) Interoperability to increase the Freight traffic Interoperability to satisfy real customers demand Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Safety and Interoperability Engineering Babel Tower Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES ERTMS is the new signaling and management system for Europe, enabling interoperability throughout the European Rail Network Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES ERTMS European Strategy Designed by EU Railways and Supply Industry Supported by EC ERTMS ETCS (Speed control) Sofia, 22 -23/05/2008 GSM-R (exchange voice & data info between track and train E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES ERTMS European Strategy Benefits of ERTMS 1. Long term cost reduction (life cycle cost management) 2. Highest level of Safety 3. More train frequency 4. Interoperability through: • Standardization • Reduction of technical barriers • Easier cross-borders operations • Fair competition possible Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

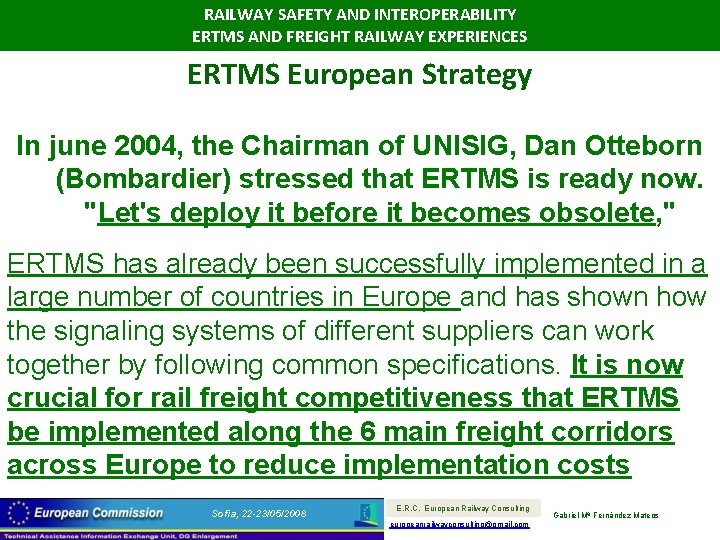

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES ERTMS European Strategy In june 2004, the Chairman of UNISIG, Dan Otteborn (Bombardier) stressed that ERTMS is ready now. "Let's deploy it before it becomes obsolete, " ERTMS has already been successfully implemented in a large number of countries in Europe and has shown how the signaling systems of different suppliers can work together by following common specifications. It is now crucial for rail freight competitiveness that ERTMS be implemented along the 6 main freight corridors across Europe to reduce implementation costs Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Telematic Application for Freights TAF TELEMATICS The use of both communications and information technology to assist management and control of (transport) companies Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Telematic Application for Freights TAF = interoperability of information The TAF TSI is a European regulation that requires the railway industry to develop and implement common standards to increase the interoperability of information required for rail freight Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

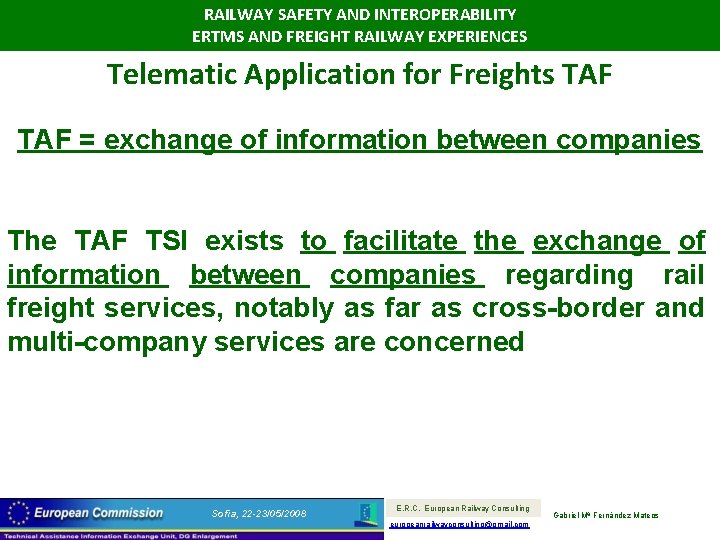

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Telematic Application for Freights TAF = exchange of information between companies The TAF TSI exists to facilitate the exchange of information between companies regarding rail freight services, notably as far as cross-border and multi-company services are concerned Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

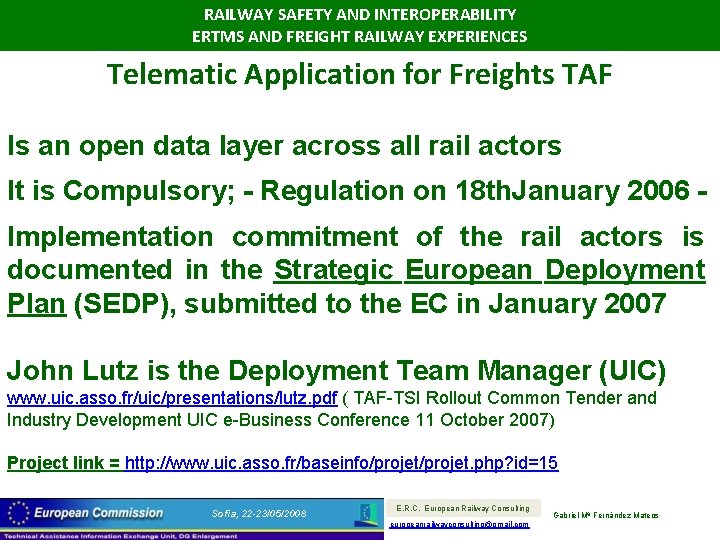

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Telematic Application for Freights TAF Is an open data layer across all rail actors It is Compulsory; - Regulation on 18 th. January 2006 Implementation commitment of the rail actors is documented in the Strategic European Deployment Plan (SEDP), submitted to the EC in January 2007 John Lutz is the Deployment Team Manager (UIC) www. uic. asso. fr/uic/presentations/lutz. pdf ( TAF-TSI Rollout Common Tender and Industry Development UIC e-Business Conference 11 October 2007) Project link = http: //www. uic. asso. fr/baseinfo/projet. php? id=15 Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Telematic Application for Freights TAF Steering Board is chaired by a committee and experienced person of CEO status (Jan Sundling, Chairman) Committee formed of a specific number of nominated representatives from the Stakeholders and Associations (UIC, CER, EIM, ERFA, CIT, etc. ) Membership is still open to those who wish to participate. Responsibilities of the Steering Board cover the following: –To Steer and prioritise implementation programme –To Support the Deployment Manager, who will act as the overall Programme Manager on a day to day basis. –To Provide formal liaison with the European Commission on compliance, through the Chairman. Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

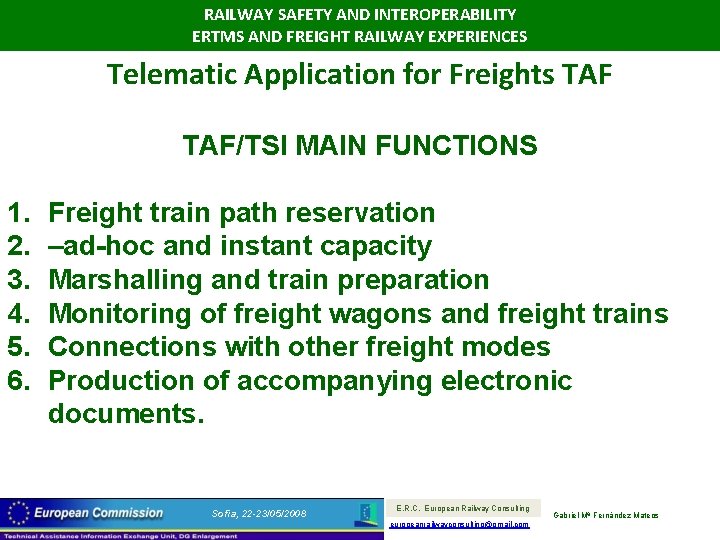

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Telematic Application for Freights TAF/TSI MAIN FUNCTIONS 1. 2. 3. 4. 5. 6. Freight train path reservation –ad-hoc and instant capacity Marshalling and train preparation Monitoring of freight wagons and freight trains Connections with other freight modes Production of accompanying electronic documents. Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

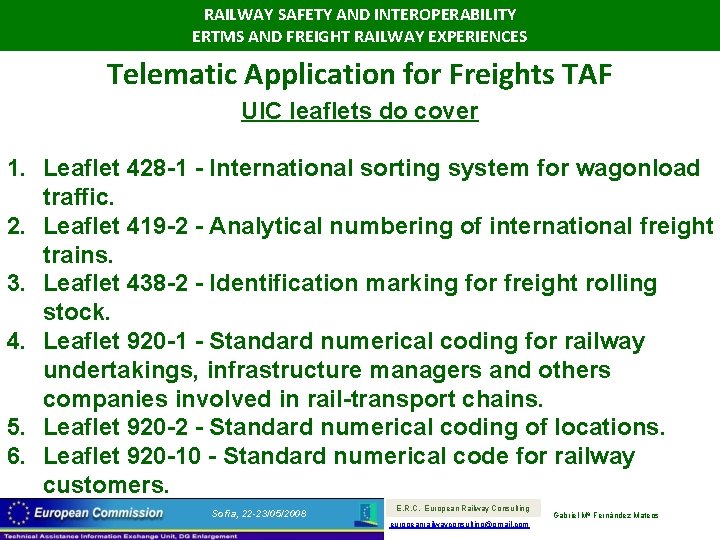

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Telematic Application for Freights TAF UIC leaflets do cover 1. Leaflet 428 -1 - International sorting system for wagonload traffic. 2. Leaflet 419 -2 - Analytical numbering of international freight trains. 3. Leaflet 438 -2 - Identification marking for freight rolling stock. 4. Leaflet 920 -1 - Standard numerical coding for railway undertakings, infrastructure managers and others companies involved in rail-transport chains. 5. Leaflet 920 -2 - Standard numerical coding of locations. 6. Leaflet 920 -10 - Standard numerical code for railway customers. Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Telematic Application for Freights TAF Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Telematic Application for Freights TAF The political intention behind the regulation is to boost the quality and productivity of rail freight in Europe, in the context of an increasing road competition. Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The Spanish experience II Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The Spanish experience II Situation of Renfe in 1986 Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The Spanish experience II Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

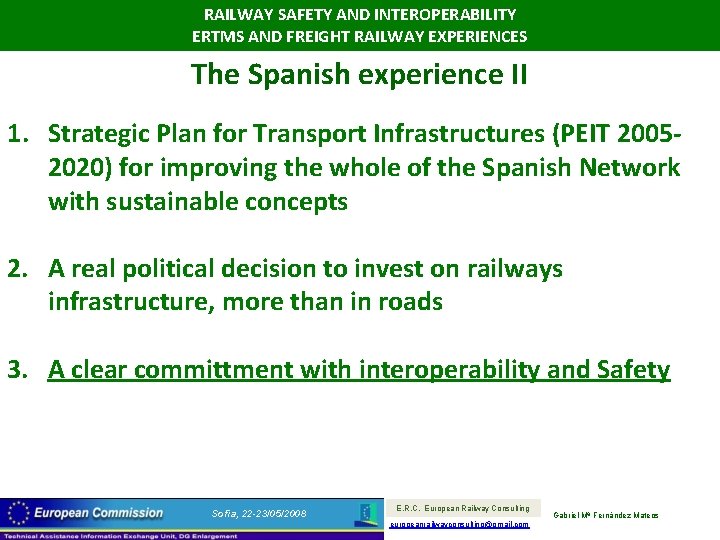

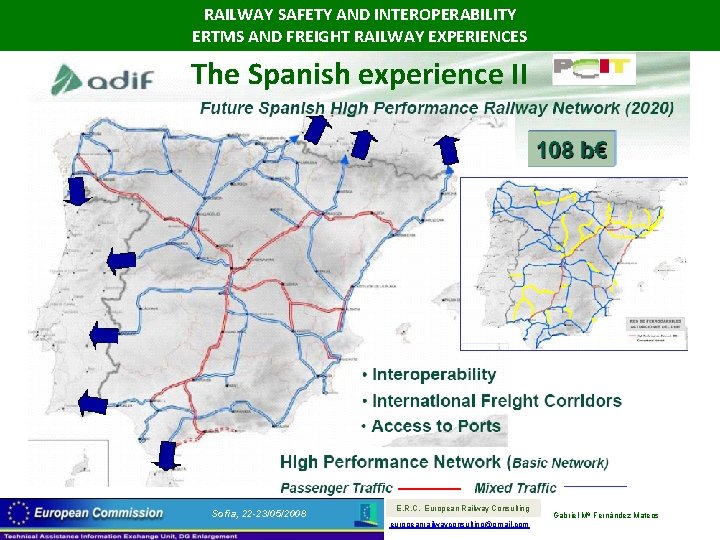

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The Spanish experience II 1. Strategic Plan for Transport Infrastructures (PEIT 20052020) for improving the whole of the Spanish Network with sustainable concepts 2. A real political decision to invest on railways infrastructure, more than in roads 3. A clear committment with interoperability and Safety Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

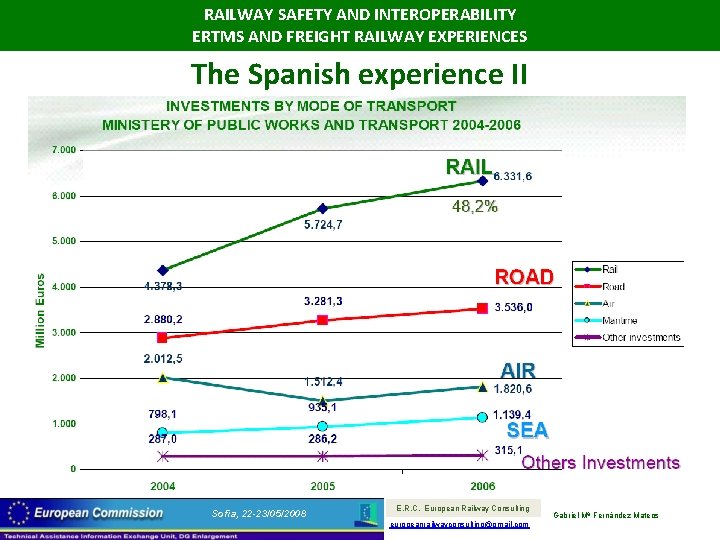

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The Spanish experience II Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The Spanish experience II Environmental advantage RAIL/ROAD for 10 years Traffic 19. 930. 000 € Savings to the State amounting to 13. 760. 000 € generated with 10 years Rail Traffic Difference between External costs RAIL/ROAD 6. 170. 000 € Subsidies from State Sofia, 22 -23/05/2008 Average saving per Year = 1. 376. 000 € E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES ERTMS Corridors and freight experiences Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

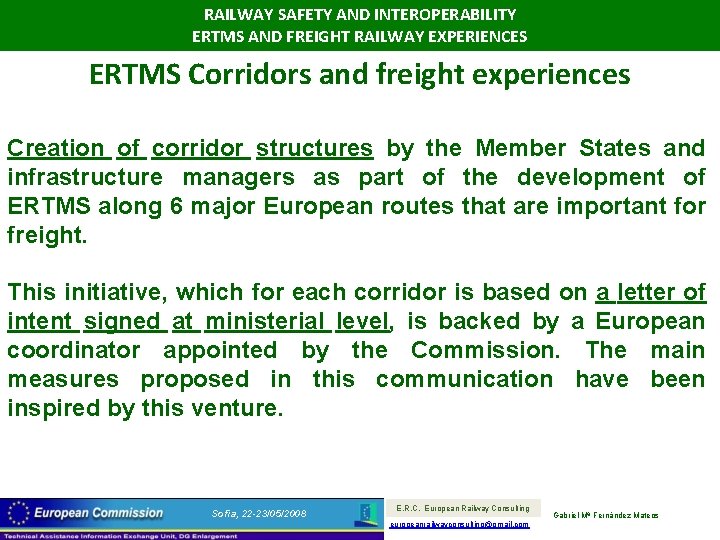

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES ERTMS Corridors and freight experiences Creation of corridor structures by the Member States and infrastructure managers as part of the development of ERTMS along 6 major European routes that are important for freight. This initiative, which for each corridor is based on a letter of intent signed at ministerial level, is backed by a European coordinator appointed by the Commission. The main measures proposed in this communication have been inspired by this venture. Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

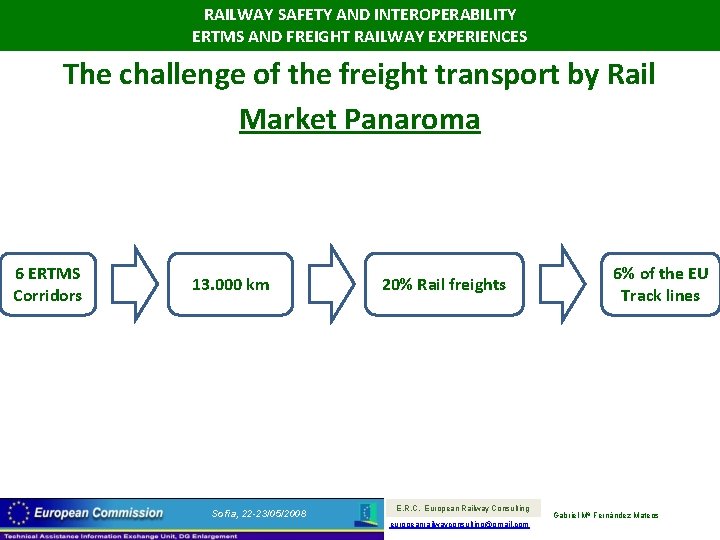

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES The challenge of the freight transport by Rail Market Panaroma 6 ERTMS Corridors 13. 000 km Sofia, 22 -23/05/2008 20% Rail freights E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com 6% of the EU Track lines Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES ERTMS Corridors and freight experiences Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES ERTMS Corridors and freight experiences Telematics Initiatives of the Players: – Development of interoperability, in particular by way of the Technical Specification for Interoperability relating to Traffic Operations and Management (TOM TSI) and the deployment of the Technical Specification for Interoperability relating to Telematics Applications for Freight (TAF TSI) – Introduction of Europtirails, which informs its users in real time on train positions and possible delays in a number of Member States – Creation of Rail. Net. Europe (RNE), which, in particular, offers its customers international train paths and is a useful coordination tool for most infrastructure managers Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Situation in ERTMS Corridor D; Valencia-Budapest • • 3 Electrification systems 10 Signaling systems 21 Intermodal sites 6 main ports 5 loading gauges 6 maximum speeds 25% not GSM-R (100% 2015) Similar variety in the rolling stock Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES ERTMS in EU Corridors and freight experiences TRAVEL TIME FOR CORRIDOR D MAX TRAVEL TIME NOW > 40 -70 hours ONCE ERTMS FULL DEPLOYED AND TAF WORKING, TRAVEL TIME HORIZON 2012 -2015 CAN BE REDUCED TO: MAX TRAVEL TIME Sofia, 22 -23/05/2008 < 30 hours E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

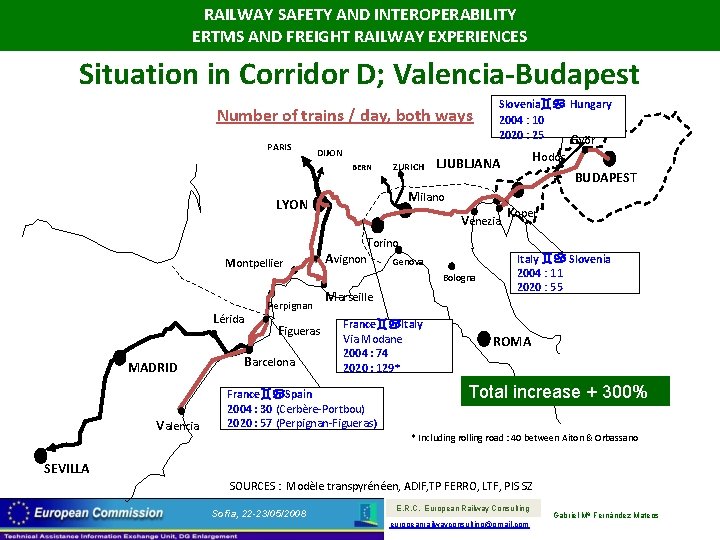

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Situation in Corridor D; Valencia-Budapest Number of trains / day, both ways PARIS DIJON BERN ZURICH Slovenia Hungary 2004 : 10 2020 : 25 Györ Hodos LJUBLJANA Milano LYON Venezia BUDAPEST Koper Torino Montpellier Avignon Genova Bologna Lérida MADRID Valencia Perpignan Figueras Barcelona Marseille France Italy Via Modane 2004 : 74 2020 : 129* France Spain 2004 : 30 (Cerbère-Portbou) 2020 : 57 (Perpignan-Figueras) Italy Slovenia 2004 : 11 2020 : 55 ROMA Total increase + 300% * Including rolling road : 40 between Aiton & Orbassano SEVILLA SOURCES : Modèle transpyrénéen, ADIF, TP FERRO, LTF, PIS SZ Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Conclusions and Recomendations 1. The Member States should be required to equip ERTMS with first priority on the European freight corridors 2. Besides other Telematics applications, TAF is the second (compulsory) challenge to meet for full customer orientation and fair competition for freights 3. The Commission should (will) support for a consistent European Master Plan for ERTMS 4. UIC to continue with the TAF Task force (John Lutz) 5. One stop shop orientation is (always) mandatory Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

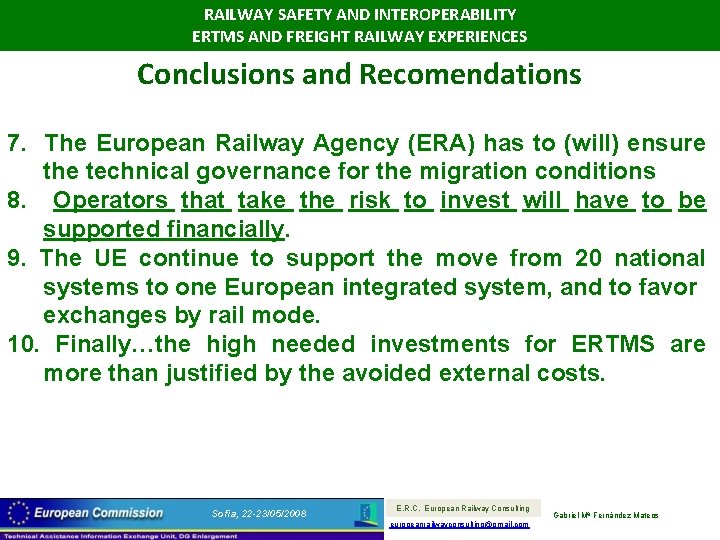

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES Conclusions and Recomendations 7. The European Railway Agency (ERA) has to (will) ensure the technical governance for the migration conditions 8. Operators that take the risk to invest will have to be supported financially. 9. The UE continue to support the move from 20 national systems to one European integrated system, and to favor exchanges by rail mode. 10. Finally…the high needed investments for ERTMS are more than justified by the avoided external costs. Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES List of the key documents used Handbook on estimation of external cost in the transport sector (12/2007) from iww/Infra Spanish experience in the modernization of the railway system (07/2007) from ADIF Consultation on ERTMS, UNIFE position paper (15/01/2008) Commission facilitates Interoperability for Europe´s trains, Press Release (23/04/2008) Strategy and implementation plan for the ERTMS migration for corridor D, Yves Gompel – GEODE (2006), with the participation of Adif, Renfe, RFF, SNCF, Trenitalia, RFI, azp, Slovenske zeleznice, MAV and MAV Cargo TAF-TSI Rollout Common Tender and Industry Development UIC, e-Business Conference of 11 October 2007 (John Lutz) EU Policy and its impact on the rail system from the Directorate of Energy and Transport (9/2006) Managing the Railway Infrastructure for the future from ADIF (04/2008) The Rail interoperability and ERTMS from ADIF (10/2007) Rail Safety & Standards Board ”Europe-does it matters from Anson Jack Acting Director (05/2004) Strategy and Experiences of the ERTMS Deployment in Spain from ADIF (02/2003) The Railway Strategic Safety Plan 2008 -2010 from Rail Safety and Standards Board (01/2008) The successive ERTMS Progress Reports of the ERTMS Programme Team from the Rail Safety & Standards Board ERTMS implementation: getting a European corridor solution from Karel Wink European Coordinator (05/2006) Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos

RAILWAY SAFETY AND INTEROPERABILITY ERTMS AND FREIGHT RAILWAY EXPERIENCES THANK YOU VERY MUCH FOR YOUR ATTENTION Sofia, 22 -23/05/2008 E. R. C. European Railway Consulting E. R. C. europeanrailwayconsulting@gmail. com Gabriel Mª Fernández Mateos
