RAILROAD COMMISSION OF TEXAS PSA Wells, Allocation Wells and Stacked Laterals Permitting and Completion

RAILROAD COMMISSION OF TEXAS PSA Wells, Allocation Wells and Stacked Laterals Permitting and Completion Lorenzo Garza & Joe Stasulli

Presentation Overview • How to qualify for Stacked Lateral status • Requirements for PSA

Presentation Overview • How to qualify for Stacked Lateral status • Requirements for PSA and Allocation wells • Filing completions for these types of applications 2

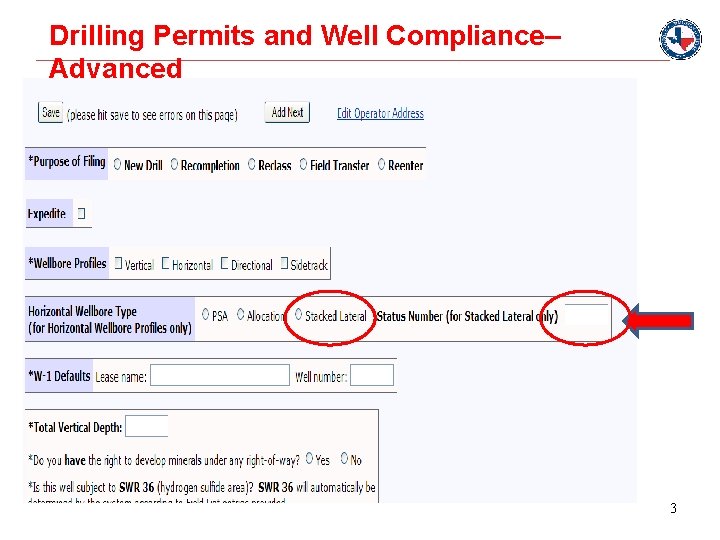

Drilling Permits and Well Compliance– Advanced 3

Drilling Permits and Well Compliance– Advanced 3

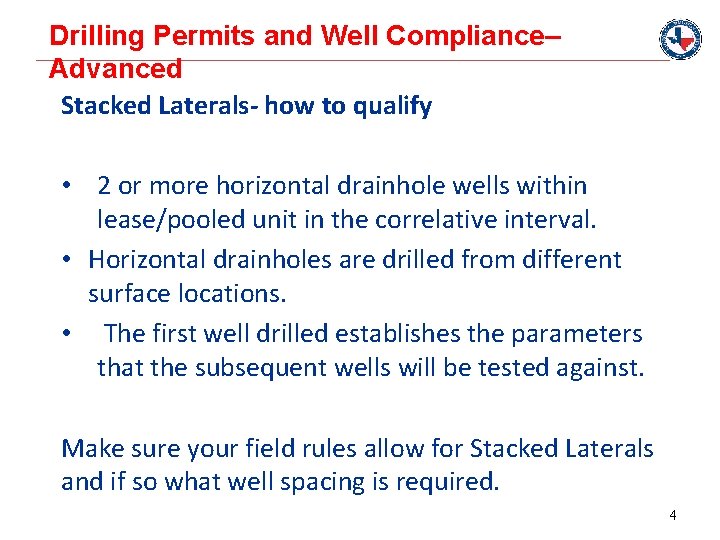

Drilling Permits and Well Compliance– Advanced Stacked Laterals- how to qualify • 2 or

Drilling Permits and Well Compliance– Advanced Stacked Laterals- how to qualify • 2 or more horizontal drainhole wells within lease/pooled unit in the correlative interval. • Horizontal drainholes are drilled from different surface locations. • The first well drilled establishes the parameters that the subsequent wells will be tested against. Make sure your field rules allow for Stacked Laterals and if so what well spacing is required. 4

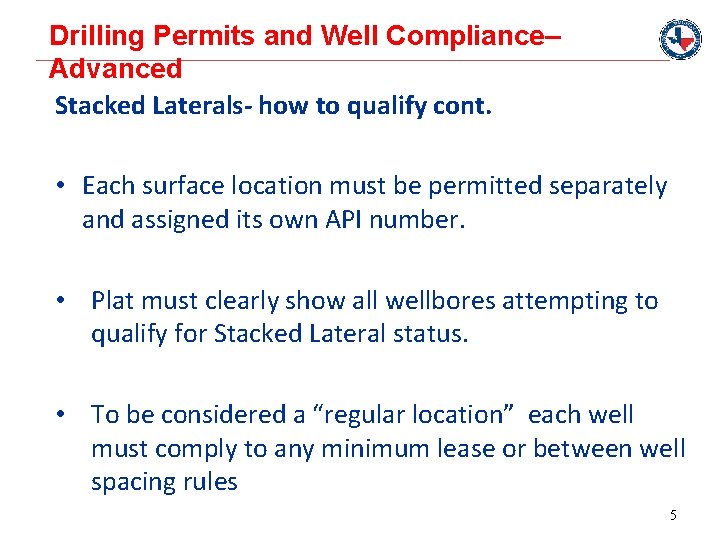

Drilling Permits and Well Compliance– Advanced Stacked Laterals- how to qualify cont. • Each

Drilling Permits and Well Compliance– Advanced Stacked Laterals- how to qualify cont. • Each surface location must be permitted separately and assigned its own API number. • Plat must clearly show all wellbores attempting to qualify for Stacked Lateral status. • To be considered a “regular location” each well must comply to any minimum lease or between well spacing rules 5

Drilling Permits and Well Compliance– Advanced Stacked Laterals why all the fuss? • For

Drilling Permits and Well Compliance– Advanced Stacked Laterals why all the fuss? • For each well that qualifies as a Stacked Lateral well your overall well count will not increase when the RRC tests your lease for density exceptions. • Remember that the wells must be completed in the same regulatory field to qualify as a stacked lateral. 6

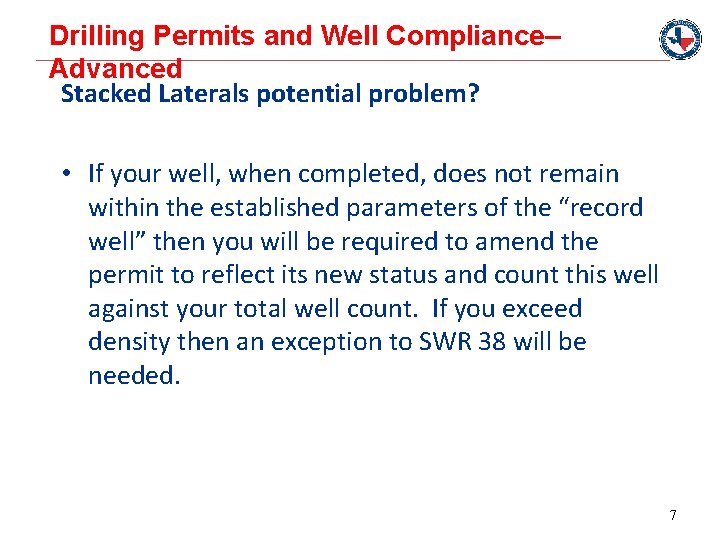

Drilling Permits and Well Compliance– Advanced Stacked Laterals potential problem? • If your well,

Drilling Permits and Well Compliance– Advanced Stacked Laterals potential problem? • If your well, when completed, does not remain within the established parameters of the “record well” then you will be required to amend the permit to reflect its new status and count this well against your total well count. If you exceed density then an exception to SWR 38 will be needed. 7

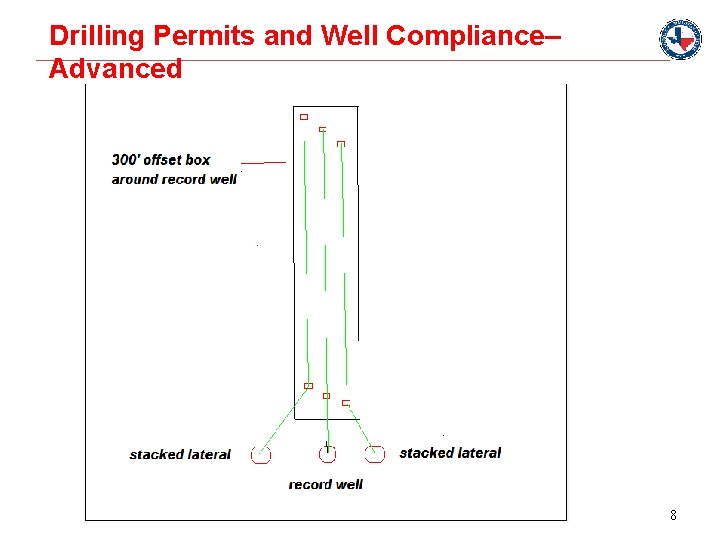

Drilling Permits and Well Compliance– Advanced 8

Drilling Permits and Well Compliance– Advanced 8

Drilling Permits and Well Compliance– Advanced 9

Drilling Permits and Well Compliance– Advanced 9

Drilling Permits and Well Compliance– Advanced PRODUCTION SHARING AGREEMENTS Supporting Documentation: • Authorization letter

Drilling Permits and Well Compliance– Advanced PRODUCTION SHARING AGREEMENTS Supporting Documentation: • Authorization letter to include % of participation • PSA-12 form showing acreage to be assigned to proposed well • Plat showing the external boundary of all tracts contributing acreage to the proposed well • Well allocation worksheet 10

Drilling Permits and Well Compliance– Advanced PRODUCTION SHARING AGREEMENTS Supporting Documentation: Authorization letter •

Drilling Permits and Well Compliance– Advanced PRODUCTION SHARING AGREEMENTS Supporting Documentation: Authorization letter • Contractual right to develop all proposed tracts • To be approved administratively minimum of 65% of mineral and working interest owners must be signed to agreement • If less than 65% sign-up then request to set up application for hearing 11

PSA/ALLOCATION AUTHORITY LETTER 12

PSA/ALLOCATION AUTHORITY LETTER 12

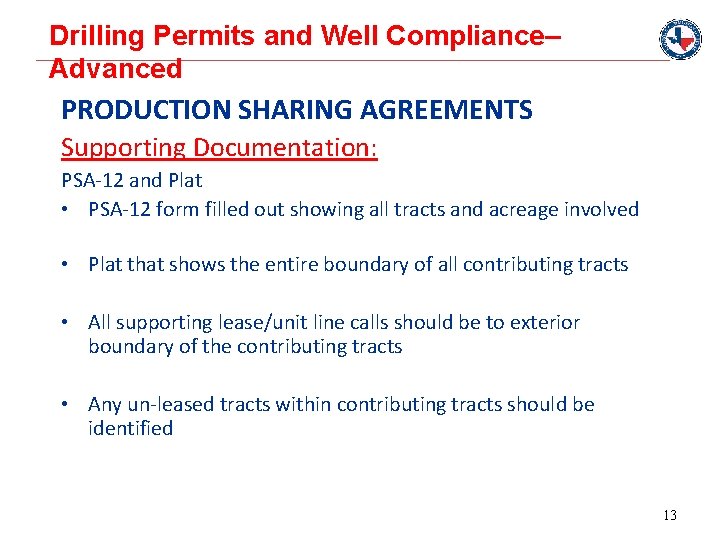

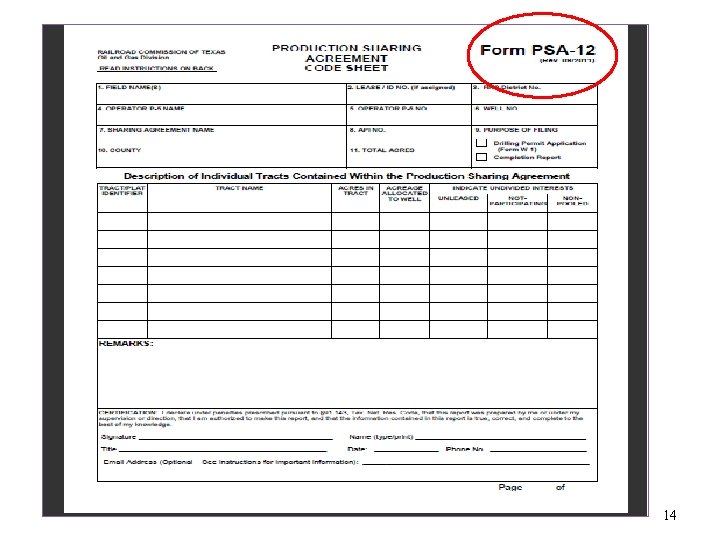

Drilling Permits and Well Compliance– Advanced PRODUCTION SHARING AGREEMENTS Supporting Documentation: PSA-12 and Plat

Drilling Permits and Well Compliance– Advanced PRODUCTION SHARING AGREEMENTS Supporting Documentation: PSA-12 and Plat • PSA-12 form filled out showing all tracts and acreage involved • Plat that shows the entire boundary of all contributing tracts • All supporting lease/unit line calls should be to exterior boundary of the contributing tracts • Any un-leased tracts within contributing tracts should be identified 13

14

14

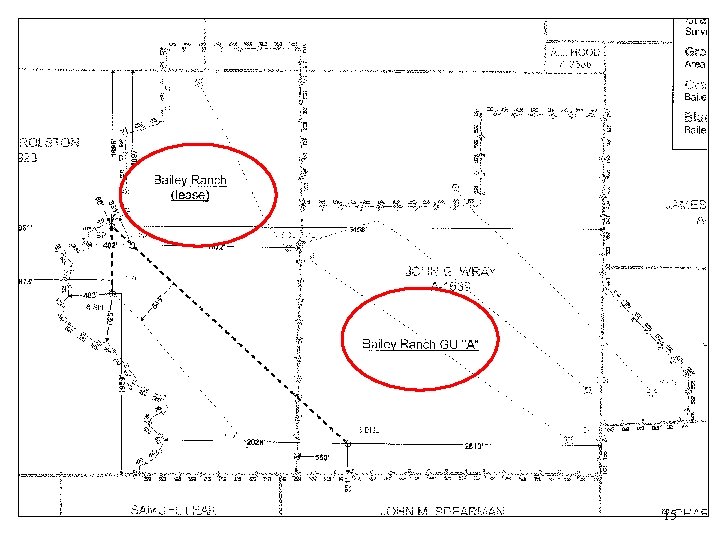

Drilling Permits and Online Filing - Advanced 15

Drilling Permits and Online Filing - Advanced 15

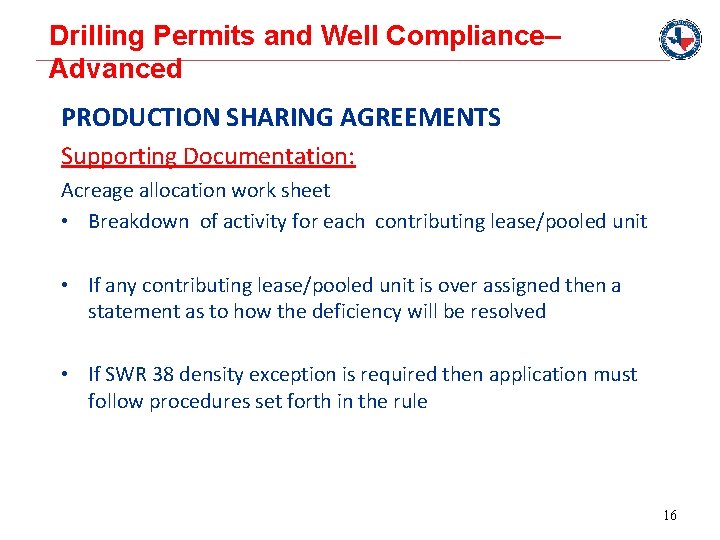

Drilling Permits and Well Compliance– Advanced PRODUCTION SHARING AGREEMENTS Supporting Documentation: Acreage allocation work

Drilling Permits and Well Compliance– Advanced PRODUCTION SHARING AGREEMENTS Supporting Documentation: Acreage allocation work sheet • Breakdown of activity for each contributing lease/pooled unit • If any contributing lease/pooled unit is over assigned then a statement as to how the deficiency will be resolved • If SWR 38 density exception is required then application must follow procedures set forth in the rule 16

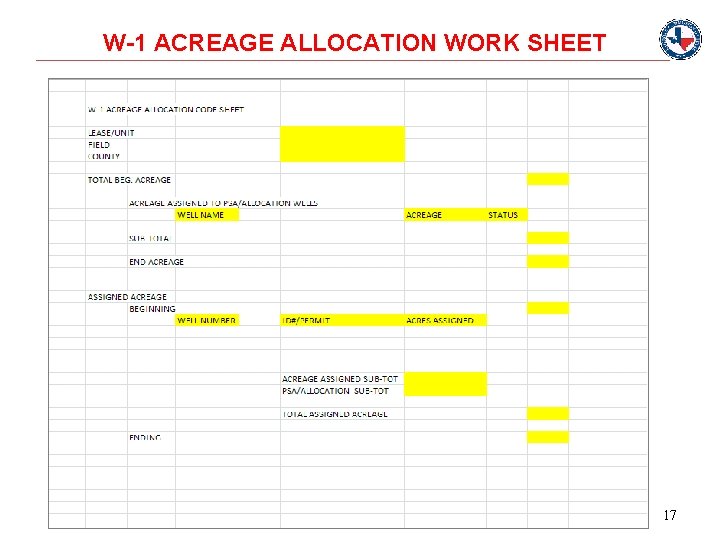

W-1 ACREAGE ALLOCATION WORK SHEET 17

W-1 ACREAGE ALLOCATION WORK SHEET 17

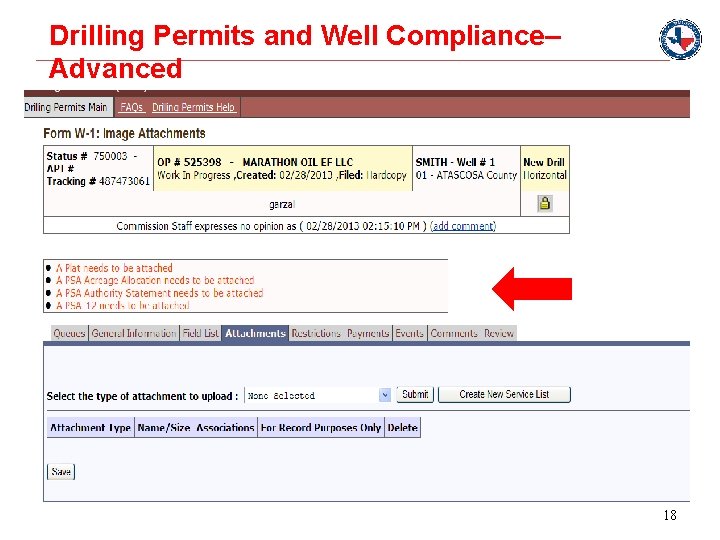

Drilling Permits and Well Compliance– Advanced 18

Drilling Permits and Well Compliance– Advanced 18

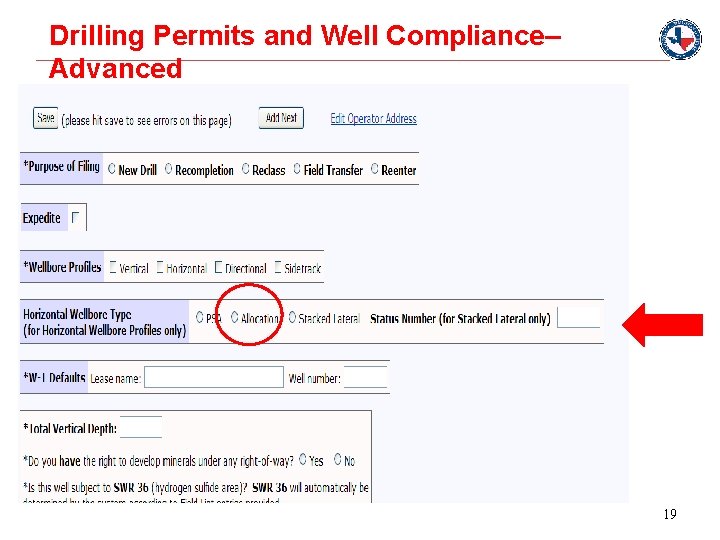

Drilling Permits and Well Compliance– Advanced 19

Drilling Permits and Well Compliance– Advanced 19

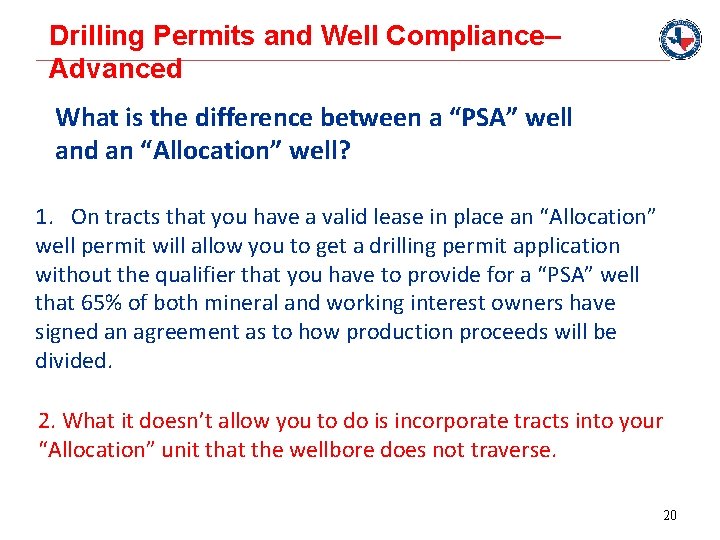

Drilling Permits and Well Compliance– Advanced What is the difference between a “PSA” well

Drilling Permits and Well Compliance– Advanced What is the difference between a “PSA” well and an “Allocation” well? 1. On tracts that you have a valid lease in place an “Allocation” well permit will allow you to get a drilling permit application without the qualifier that you have to provide for a “PSA” well that 65% of both mineral and working interest owners have signed an agreement as to how production proceeds will be divided. 2. What it doesn’t allow you to do is incorporate tracts into your “Allocation” unit that the wellbore does not traverse. 20

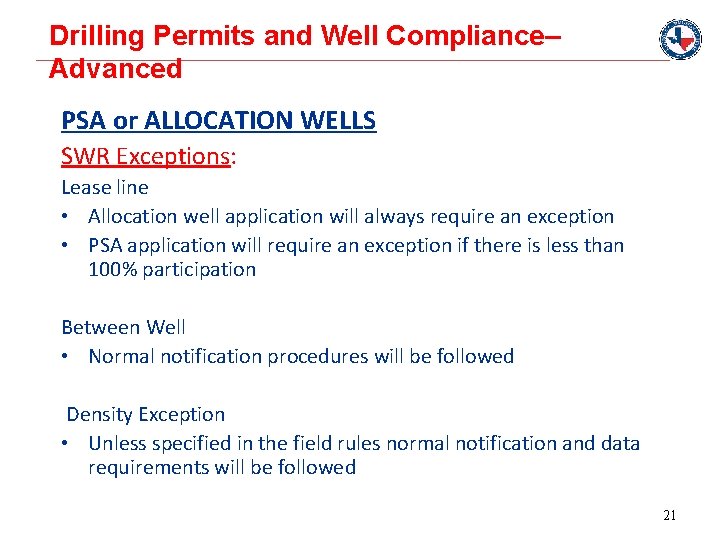

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS SWR Exceptions: Lease line

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS SWR Exceptions: Lease line • Allocation well application will always require an exception • PSA application will require an exception if there is less than 100% participation Between Well • Normal notification procedures will be followed Density Exception • Unless specified in the field rules normal notification and data requirements will be followed 21

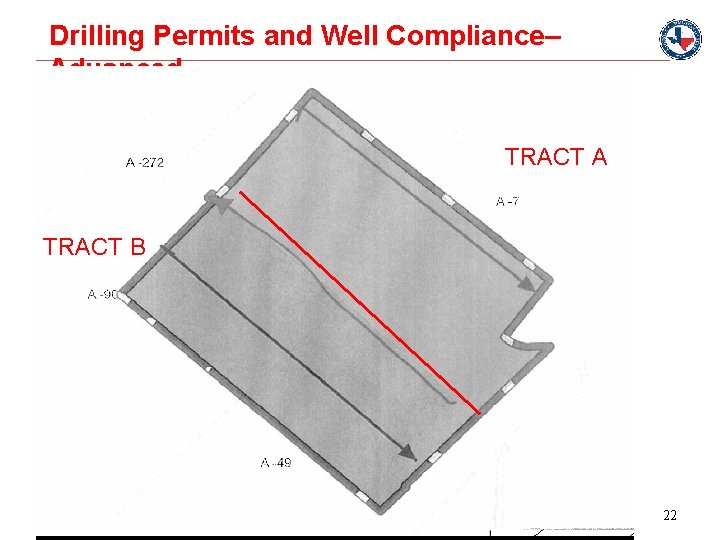

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example TRACT A TRACT

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example TRACT A TRACT B 22

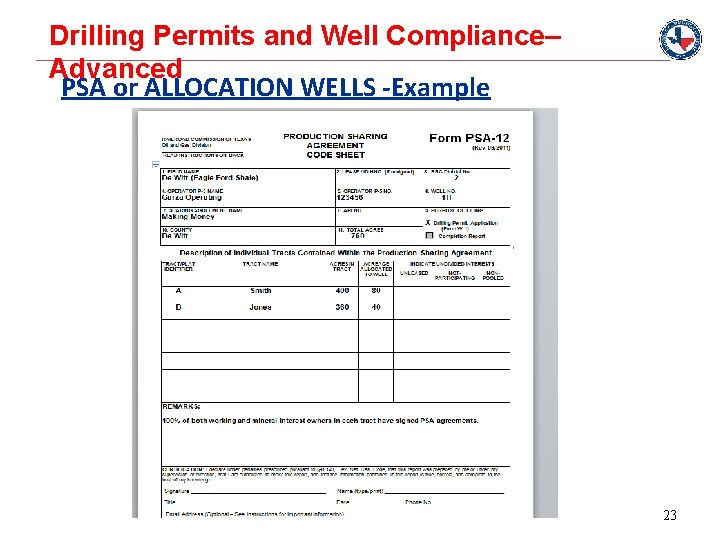

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 23

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 23

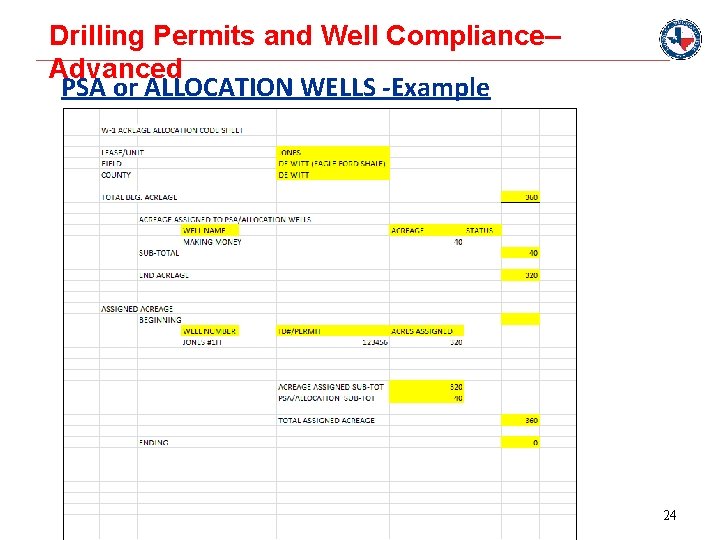

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 24

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 24

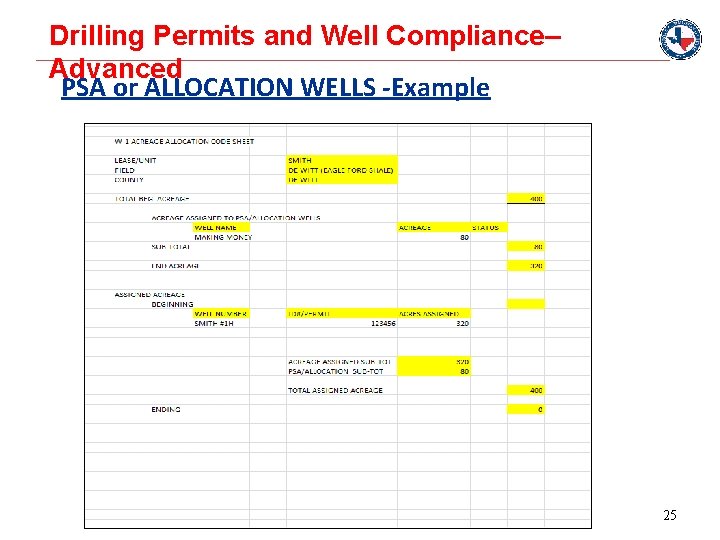

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 25

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 25

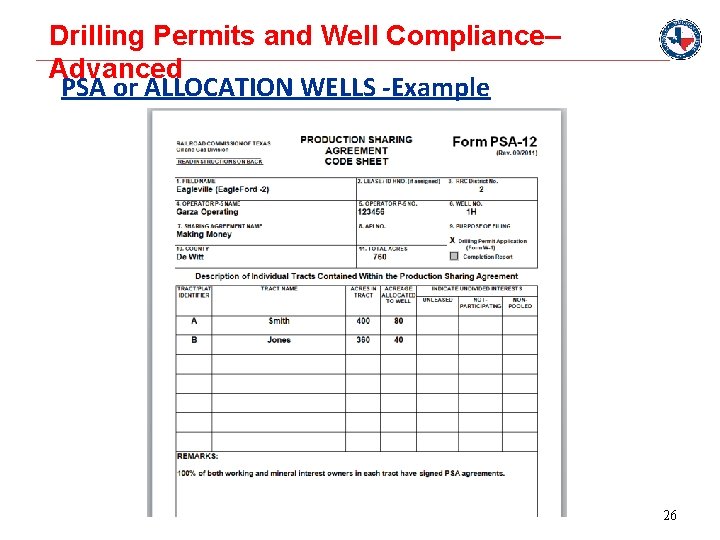

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 26

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 26

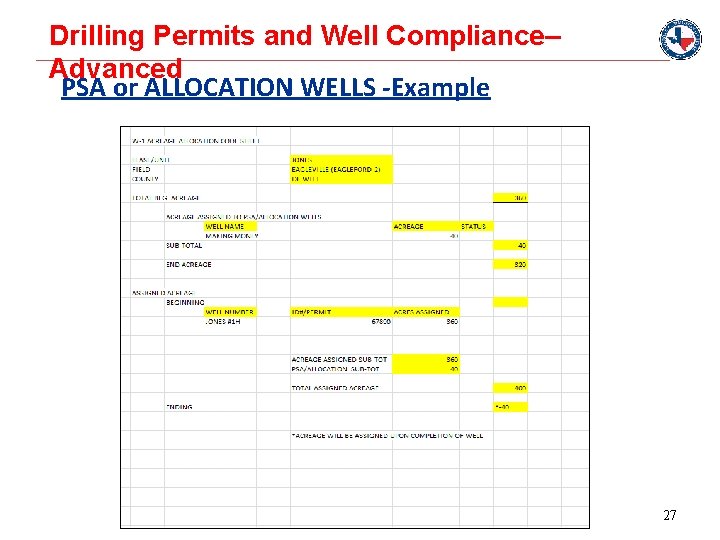

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 27

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 27

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 28

Drilling Permits and Well Compliance– Advanced PSA or ALLOCATION WELLS -Example 28

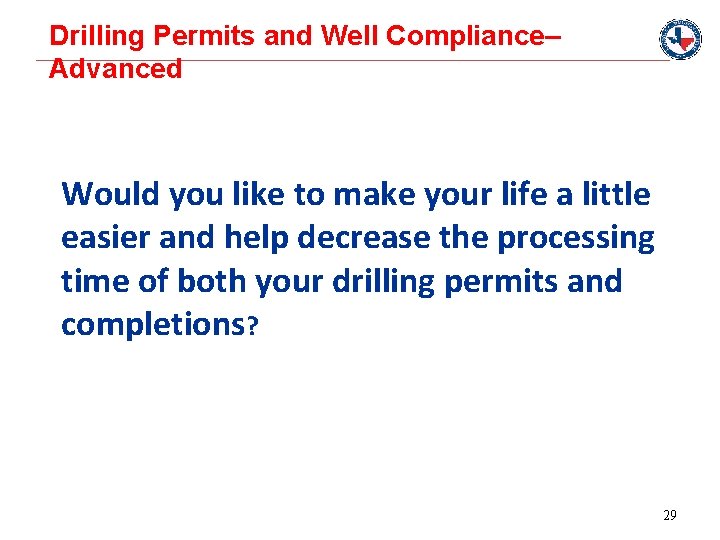

Drilling Permits and Well Compliance– Advanced Would you like to make your life a

Drilling Permits and Well Compliance– Advanced Would you like to make your life a little easier and help decrease the processing time of both your drilling permits and completions? 29

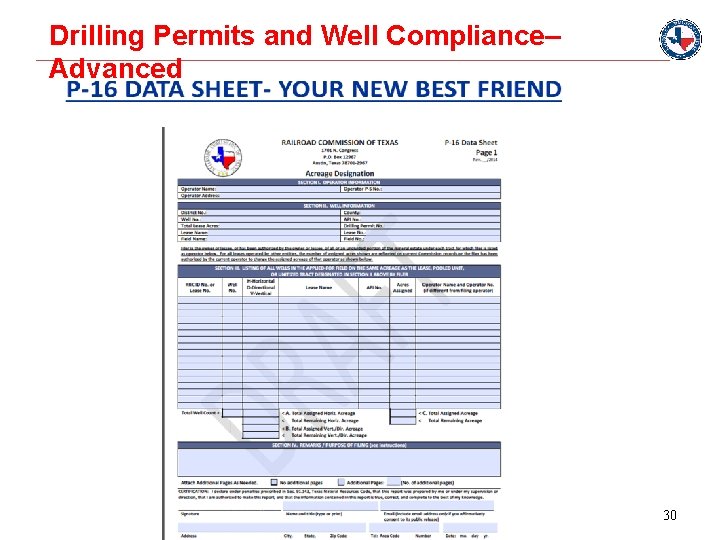

Drilling Permits and Well Compliance– Advanced 30

Drilling Permits and Well Compliance– Advanced 30

Contact Information For further questions concerning Drilling Permits please contact: Lorenzo Garza Phone: 512

Contact Information For further questions concerning Drilling Permits please contact: Lorenzo Garza Phone: 512 -463 -2184 Email: Lorenzo. Garza@rrc. state. tx. us Valerie Atkins Phone: 512 -463 -6979 Email: Valerie. Atkins@rrc. state. tx. us 31

Drilling Permits and Well Compliance– Advanced Now Presenting Mr. Joe Stasulli 32

Drilling Permits and Well Compliance– Advanced Now Presenting Mr. Joe Stasulli 32

Railroad Commission of Texas Operator Procedures for PSA and Allocation Wells 33

Railroad Commission of Texas Operator Procedures for PSA and Allocation Wells 33

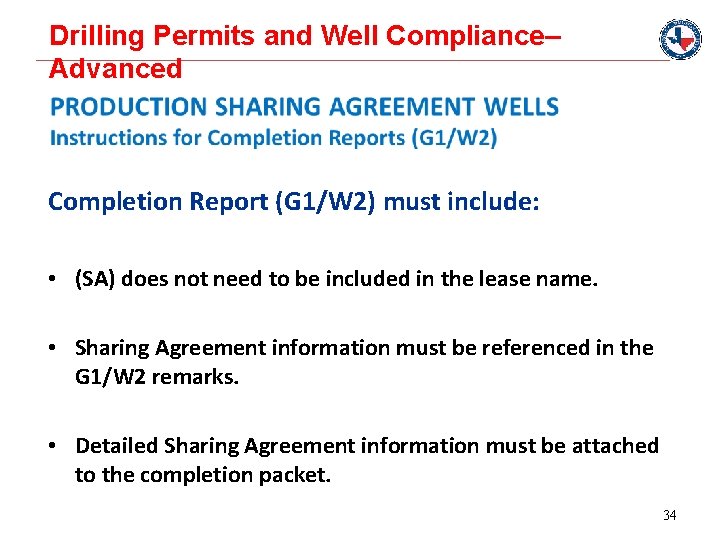

Drilling Permits and Well Compliance– Advanced Completion Report (G 1/W 2) must include: •

Drilling Permits and Well Compliance– Advanced Completion Report (G 1/W 2) must include: • (SA) does not need to be included in the lease name. • Sharing Agreement information must be referenced in the G 1/W 2 remarks. • Detailed Sharing Agreement information must be attached to the completion packet. 34

Drilling Permits and Well Compliance– Advanced 35

Drilling Permits and Well Compliance– Advanced 35

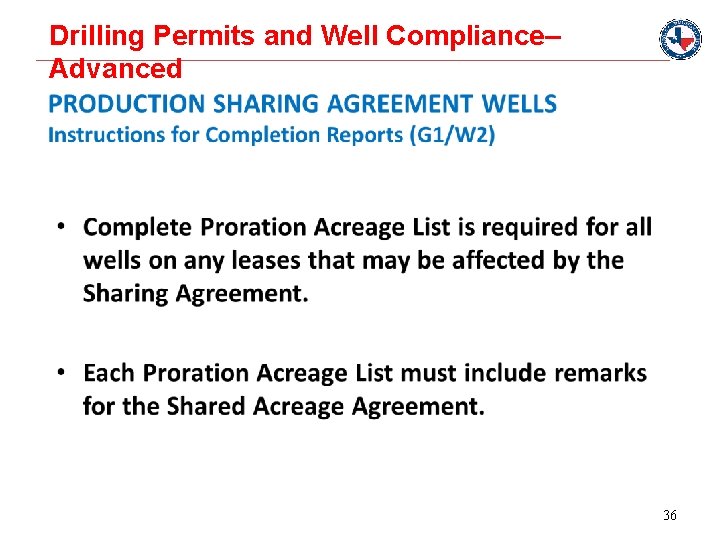

Drilling Permits and Well Compliance– Advanced 36

Drilling Permits and Well Compliance– Advanced 36

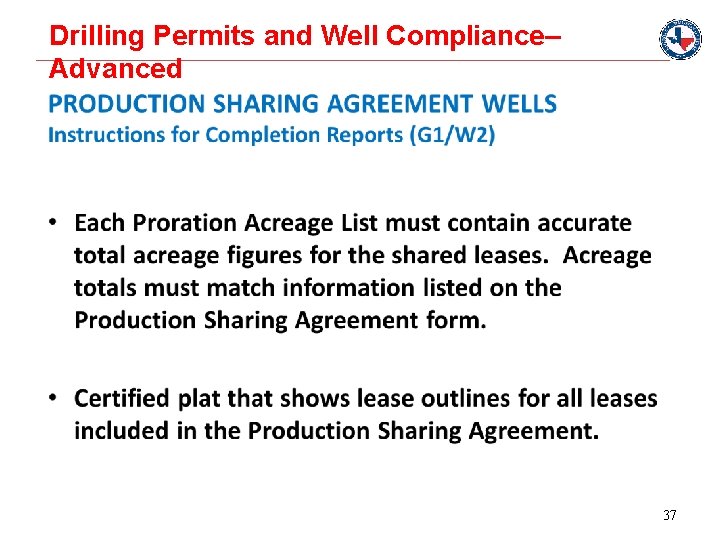

Drilling Permits and Well Compliance– Advanced 37

Drilling Permits and Well Compliance– Advanced 37

Drilling Permits and Well Compliance– Advanced 38

Drilling Permits and Well Compliance– Advanced 38

Railroad Commission of Texas Operator Procedures for Stacked Laterals 39

Railroad Commission of Texas Operator Procedures for Stacked Laterals 39

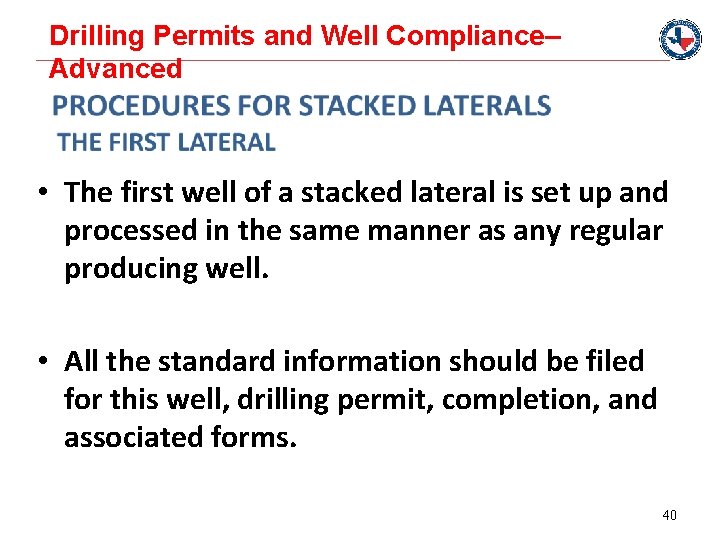

Drilling Permits and Well Compliance– Advanced • The first well of a stacked lateral

Drilling Permits and Well Compliance– Advanced • The first well of a stacked lateral is set up and processed in the same manner as any regular producing well. • All the standard information should be filed for this well, drilling permit, completion, and associated forms. 40

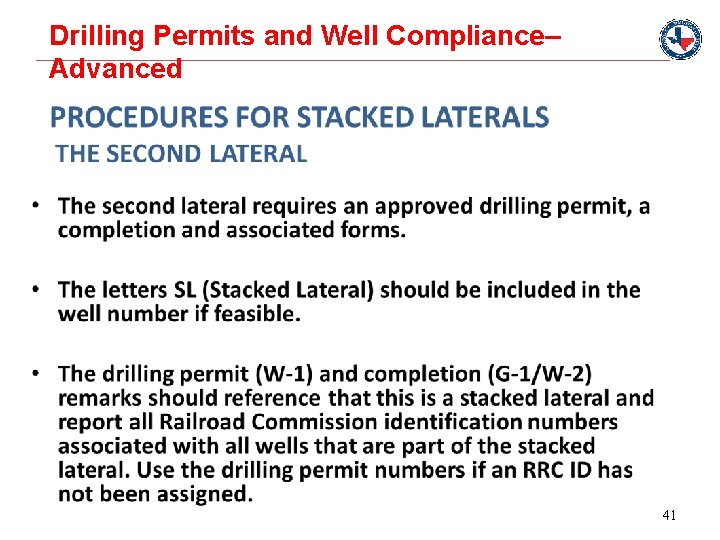

Drilling Permits and Well Compliance– Advanced 41

Drilling Permits and Well Compliance– Advanced 41

Drilling Permits and Well Compliance– Advanced • Any additional lateral wells (2 nd, 3

Drilling Permits and Well Compliance– Advanced • Any additional lateral wells (2 nd, 3 rd, 4 th) must have an approved drilling permit and completions filed. • The letters SL (Stacked Lateral) should NOT be included in the well number if feasible. • The drilling permit (W-1) and completion (G-1/W-2) remarks should reference that this is a stacked lateral and report all Railroad Commission identification numbers associated with all wells that are part of the stacked lateral. Use the drilling permit numbers if an RRC ID has not been assigned. 42

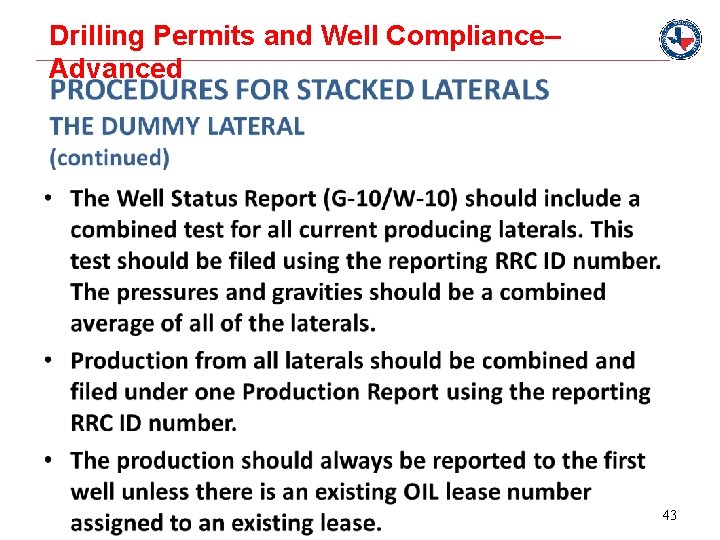

Drilling Permits and Well Compliance– Advanced 43

Drilling Permits and Well Compliance– Advanced 43

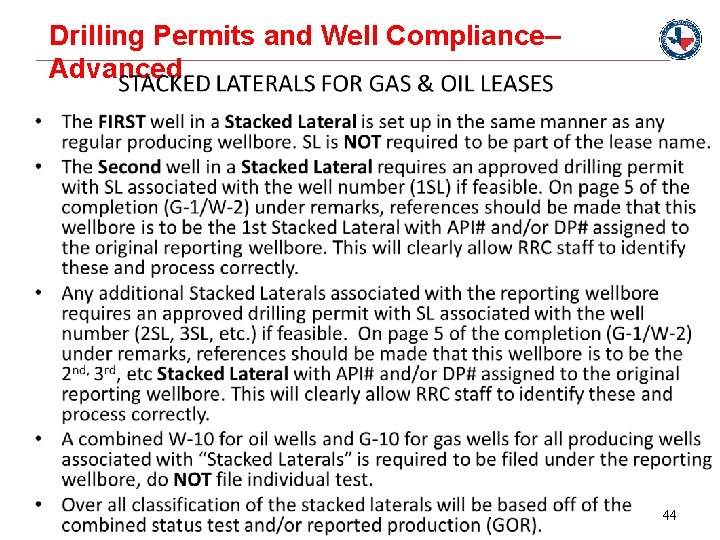

Drilling Permits and Well Compliance– Advanced 44

Drilling Permits and Well Compliance– Advanced 44

Drilling Permits and Well Compliance– Advanced 45

Drilling Permits and Well Compliance– Advanced 45
