RAD’s Point-to-Multipoint Offering: Airmux-5000 RAD Point-to-Multipoint Offering – 2011 Slide 1

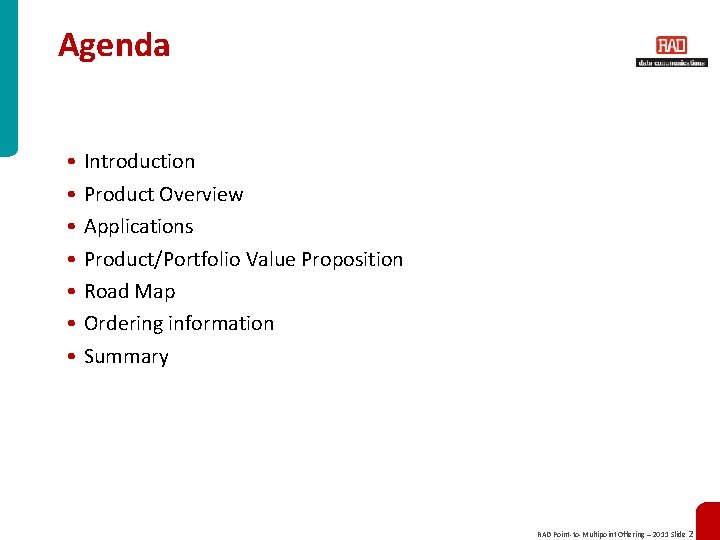

Agenda • Introduction • Product Overview • Applications • Product/Portfolio Value Proposition • Road Map • Ordering information • Summary RAD Point-to-Multipoint Offering – 2011 Slide 2

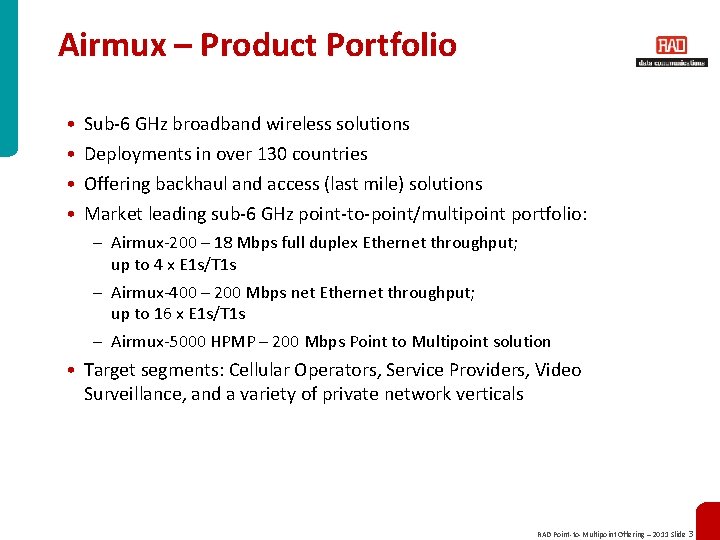

Airmux – Product Portfolio • • Sub-6 GHz broadband wireless solutions Deployments in over 130 countries Offering backhaul and access (last mile) solutions Market leading sub-6 GHz point-to-point/multipoint portfolio: – Airmux-200 – 18 Mbps full duplex Ethernet throughput; up to 4 x E 1 s/T 1 s – Airmux-400 – 200 Mbps net Ethernet throughput; up to 16 x E 1 s/T 1 s – Airmux-5000 HPMP – 200 Mbps Point to Multipoint solution • Target segments: Cellular Operators, Service Providers, Video Surveillance, and a variety of private network verticals RAD Point-to-Multipoint Offering – 2011 Slide 3

Solutions Segmentation Capacity (Mbps) 200 § § § Native 802. 11 n § Nor Qo. S neither guaranteed SLA (Air interface is not scheduled ) § Available only in unlicensed 2. 4, 5. x band § Address low end residnetial 802. 11. n § Low cost BS & CPE but unstable performance as technology is for indoor 40 § § § Built for residential mass market Requires Licensed band only (3. x, 2. x) 35 Mbps / sector, limited to 10 MHz Mostly downlink capacity complex Netwotk (ASN, AAA) No Roadmap Residential § § § § For Business and High end applications Mi. MO / Diversity Secure SLA 200 Mbps / sector Airmux 5000 Built for business / high end residential Includes basic Qo. S Available in licensed & unlicensed band 5. x , 3. x Low cost BS Up to ~40 Mbps / sector Lack of Mi. MO/ Diversity No guaranteed SLA Proprietary Pre Wi. MAX Pt. MP Enterprise End user RAD Point-to-Multipoint Offering – 2011 Slide 4

Airmux-5000 HPMP RAD Point-to-Multipoint Offering – 2011 Slide 5

Airmux-5000 HPMP Solution Highlights • High capacity per sector – 200 Mbps aggregate throughput • Ethernet connectivity • High capacity end user equipment – 10, 20, 50 Mbps • Up to 16 SUs per sector • Guaranteed SLA and capacity per subscriber unit • Small and constant latency – 4 to 10 msec typical under full sector load • Wide range of frequency bands – 4. 8 to 6 GHz, 3. 3 to 3. 8 GHz High capacity Pt. MP for bandwidth demanding applications and guaranteed SLA RAD Point-to-Multipoint Offering – 2011 Slide 6

Market Segments Airmux-5000 HPMP is a high capacity OFDM/MIMO Point-to-Multipoint solution suitable for: • Carriers and ISPs targeting the Last Mile enterprise connectivity • Wireless connectivity solution for private networks looking to deploy broadband mission critical applications. RAD Point-to-Multipoint Offering – 2011 Slide 7

Airmux-5000 – High Capacity Base Station Single sector base station • Fully outdoor • Small form factor ODU • Low power consumption Sector Antenna • High TX power for long range 60°, 90° • MIMO/diversity • Multifrequency bands at 5. x GHz • Connectorized for external antenna ODU Po. E Device Base Station Radio Connected for external antenna (2 x N-type), supporting multifrequency bands at 5. x GHz RAD Point-to-Multipoint Offering – 2011 Slide 8

Airmux-5000 – High Capacity Subscriber Unit HSU 10 Mbps aggregate Small form factor antenna with optional external antenna HSU 20 Mbps aggregate High gain integrated antenna Small form factor antenna with optional external antenna Connectorized High gain integrated antenna HSU 50 Mbps aggregate Embedded HSU Integrated External RAD Point-to-Multipoint Offering – 2011 Slide 9

Airmux-5000 HPMP – Main Features Service • • Configurable maximum information rate (MIR) per SU Enhanced Qo. S – 4 -level queue per SU Networking features – VLAN, Qin. Q per SU Long range – 40 km @ 20 Mbps Radio Performance • • Advanced OFDM & Mi. MO 2 x 2 / Diversity for n. LOS performance Enhanced interference mitigation capability Inter- and intra- site synchronization to reduce self interference Dedicated traffic bandwidth allocation to ensure SLA and latency Low latency, min < 3 msec, typical 4 to 10 msec Channel bandwidth – 10, 20, 40 MHz Regulation – FCC/ETSI/WPC/UNI /MII RAD Point-to-Multipoint Offering – 2011 Slide 10

Airmux-5000 HPMP – Main Features Operational • Multiband base stations and SUs • Simple to deploy • Fully integrated with Airmux-legacy solutions: – Coexists with Airmux-200 / Airmux-400 – Single NMS – RADview platform RAD Point-to-Multipoint Offering – 2011 Slide 11

Airmux-5000 HPMP – Key Selling Points • Highest base station capacity for the best user experience – 200 Mbps • Highest spectrum efficiency for greater ROI – ~5 bps/Hz • Secured service level agreement for demanding applications • Low latency • Compact subscriber units (SUs) with low visual impact • Coexists with Airmux – Point-to-Point • Long range – 40 km • Carrier grade solution RAD Point-to-Multipoint Offering – 2011 Slide 12

Airmux-5000 HPMP Value Proposition High capacity connectivity to high-end and BW-demanding applications in urban to rural deployments: • Service Providers – Access business users with demand for high capacity and SLA – Rural and remote broadband connectivity – Backhaul of access solutions; e. g. , wireless Pt. MP and landline DSLAM • Government & Enterprise Networks – – HQ-branches broadband connectivity Utilities connectivity Government networks connectivity; e. g. , education, health-care Access for high-capacity video surveillance cameras RAD Point-to-Multipoint Offering – 2011 Slide 13

Urban – High Capacity SLA Corporate Access • SUs range 2 km @20 MHz Channel BW • Sector capacity – 92 Mbps – 7 clients @ 6 Mbps – 3 clients @ 10 Mbps – 1 client @ 20 Mbps • SUs range 6 km @20 MHz Channel BW • Sector capacity – 75 Mbps HBS – 7 clients @ 5 Mbps 5200 – 2 clients @ 10 Mbps – 1 client @ 20 Mbps Service Provider Application HSUxx RAD Point-to-Multipoint Offering – 2011 Slide 14

Service Providers Application for Urban – High Capacity Corporate Access • Multiple sectors can be backhauled with Airmux-400 HBS Airmux-400 Service Provider Premises Service Provider Network RAD Point-to-Multipoint Offering – 2011 Slide 15

Service Provider Application for Medium Capacity Corporate Access – Self Backhaul • Built-in backhaul from BS site to the service provider premises • Assumes the provider premises are located within the served sector Service Provider Premises Corporate 10 Mbps Service Provider Network BS Corporate 20 MPs RAD Point-to-Multipoint Offering – 2011 Slide 16

Service Provider Application for Sub Urban – Medium Capacity Corporate Access • Single ODU covers 2 sectors using 2 uni-polarized antennas (SIMO), one per sector • Capacity: up to 25 Mbps per sector Single HBS Airmux-400 Service Provider Network Service Provider Premises RAD Point-to-Multipoint Offering – 2011 Slide 17

Rural Broadband – Connecting Communities BS Broadband connection to remote communities • SUs range 20 km @20 MHz Channel BW SU – Sector capacity – 48 Mbps – 8 villages @ 6 Mbps SU SU • SUs range 30 km @20 MHz Channel BW – Sector capacity – 30 Mbps BS – 5 villages @ 6 Mbps Airmux-400 BS SU SU Service Provider Network Service Provider Premises RAD Point-to-Multipoint Offering – 2011 Slide 18

Private Network Application for Safe City – Video Surveillance • Access to high capacity cameras, collocated cameras • Backhaul of mesh Wi. Fi cloud, carrying video surveillance Customer needs: – – – Dedicated high-capacity BW per camera Robust and high quality radio link Flexible and scalable architecture Simple to install and maintain Affordable Airmux-400 Service Provider Network High Resolution Camera BS Collocated Cameras Service Provider Premises RAD Point-to-Multipoint Offering – 2011 Slide 19

Private Network Application for High Capacity Inter-Office Connectivity • Two modes of operations: – WLAN – Traffic from branch to branch is switched back by the BS – “Access” – Higher network hierarchy switches the traffic HSUxx HBS HQ RAD Point-to-Multipoint Offering – 2011 Slide 20

Dedicated Bandwidth § The HBS utilizes 16 Time Slots to handle up to 16 HSUs HSU #15 HSU #16 HSU #1 HSU #2 HSU #14 HSU #3 HSU #4 HSU #13 13 HSU #12 HSU #5 11 HSU #6 HSU #10 HSU #9 HSU #8 HSU #7 RAD Point-to-Multipoint Offering – 2011 Slide 21

Dedicated Bandwidth § To gain the maximum capacity for a single HSU – we assign 8 Time Slots per HSU In this example we can see 2 HSUs handled by the HBS: HSU #1 HSU #2 RAD Point-to-Multipoint Offering – 2011 Slide 22

Airmux-5000 HPMP – 2011 Roadmap Airmux-5000 Release 3. 1 GA – May - Sector Capacity: 100 Mbps agreggated, symetric - SUs: 50 Mbps (only with CBW 40 MHz), 20 Mbps, 10 Mbps - Mi. MO - Frequency: 4. 9– 6 GHz FCC/ETSI/WPC/UNII) - Up to 16 users per sector - Channel BW: 20 MHz Release 3. 15 GA – June - VLAN – layer 2 VPN - Spectrum view - Diversity Radio Planner Release 3. 2 GA – September Software modification - Sector capacity: 200 Mbps aggregate - Channel BW: 10/20/40 MHz - Asymmetric - Qo. S (4 Q) Hardware modification - New frequency: 3. 3– 3. 8 GHz - Adaptive Modulation - Intra& Inter site TDD Sync (HSS & GPS) - DFS for ETSI & FCC - RNMS & Airmux – Manager - LBC - Gb. E interface RAD Point-to-Multipoint Offering – 2011 Slide 23

Ordering Information… 1 Airmux 5000’s Base Station • Support up to 200 Mbps net aggregate throughput. • At this phase, the product support up to 50 Mbps symmetric net throughput. • All units can be upgradeable to 200 Mbps net aggregate throughput via SW upgrade once supported in September 2011. • Airmux 5000’s BS is operated with Po. E devices (Airmux-Po. E/a Series). Ordering Option Description Airmux-5000/BS/F 58 F/200 M/EXT Airmux 5000 HBS 5200 -Series, Base Station Radio Connectorized for external antenna (2 x N-type), supporting multi frequency bands at 5. x GHz, factory default 5. 8 GHz FCC/IC Airmux-5000/BS/F 54 E/200 M/EXT Airmux 5000 HBS 5200 -Series, Base Station Radio Connectorized for external antenna (2 x N-type), supporting multi frequency bands at 5. x GHz, factory default 5. 4 GHz ETSI Airmux-5000/BS/F 54 U/200 M/EXT Airmux 5000 HBS 5200 -Series, Base Station Radio Connectorized for external antenna (2 x N-type), supporting multi frequency bands at 5. x GHz, factory default 5. 4 GHz Universal RAD Point-to-Multipoint Offering – 2011 Slide 24

Ordering Information… 2 Airmux 5000’s Subscriber unit • Support up to 50 Mbps net aggregate throughput. • Airmux 5000’s SU operated with Po. E devices (Airmux-Po. E/a Series). Ordering Option Airmux-5000/SU/F 58 F/50 M/EXT Airmux-5000/SU/F 58 F/50 M/INT Airmux-5000/SU/F 54 E/50 M/EXT Airmux-5000/SU/F 54 E/50 M/INT Airmux-5000/SU/F 54 U/50 M/INT Description Airmux 5000 HSU 550 -Series, SU Radio Connectorized for external antenna (2 x Ntype), supporting multi frequency bands at 5. x GHz, factory default 5. 8 GHz FCC/IC Airmux 5000 HSU 550 -Series, SU Radio with integrated antenna, supporting multi frequency bands at 5. x GHz, factory default 5. 8 GHz FCC/IC Airmux 5000 HSU 550 -Series, SU Radio Connectorized for external antenna (2 x Ntype), supporting multi frequency bands at 5. x GHz, factory default 5. 4 GHz ETSI Airmux 5000 HSU 550 -Series, SU with integrated antenna, supporting multi frequency bands at 5. x GHz, factory default 5. 4 GHz Universal RAD Point-to-Multipoint Offering – 2011 Slide 25

Ordering Information… 3 Airmux 5000’s Subscriber unit • Support up to 20 Mbps net aggregate throughput. • Airmux 5000’s SU operated with Po. E devices (Airmux-Po. E/a Series). Ordering Option Airmux-5000/SU/F 58 F/20 M/EMB Airmux-5000/SU/F 58 F/20 M/INT Airmux-5000/SU/F 54 E/20 M/EMB Airmux-5000/SU/F 54 E/20 M/INT Airmux-5000/SU/F 54 U/20 M/INT Description Airmux 5000 HSU 520 -Series, SU Radio with embedded integrated antenna and Connectorized for external antenna (2 x N-type), supporting multi frequency bands at 5. x GHz, factory default 5. 8 GHz FCC/IC Airmux 5000 HSU 520 -Series, SU Radio with integrated antenna, supporting multi frequency bands at 5. x GHz, factory default 5. 8 GHz FCC/IC Airmux 5000 HSU 520 -Series, SU Radio with embedded antenna and Connectorized for external antenna (2 x N-type), supporting multi frequency bands at 5. x GHz, factory default 5. 4 GHz ETSI Airmux 5000 HSU 520 -Series, SU Radio with integrated antenna, supporting multi frequency bands at 5. x GHz, factory default 5. 4 GHz Universal RAD Point-to-Multipoint Offering – 2011 Slide 26

Ordering Information… 4 Airmux 5000’s Subscriber unit • Support up to 10 Mbps net aggregate throughput. • Airmux 5000’s SU operated with Po. E devices (Airmux-Po. E/a Series). Ordering Option Description Airmux 5000 HSU 510 -Series, SU Radio with embedded integrated antenna and Connectorized for external antenna (2 x N-type), supporting multi frequency bands at 5. x Airmux-5000/SU/F 58 F/10 M/EMB GHz, factory default 5. 8 GHz FCC/IC Airmux 5000 HSU 510 -Series, SU Radio with embedded antenna and Connectorized for external antenna (2 x N-type), supporting multi frequency bands at 5. x GHz, factory default Airmux-5000/SU/F 54 E/10 M/EMB 5. 4 GHz ETSI Airmux 5000 HSU 510 -Series, SU Radio with embedded antenna and Connectorized for external antenna (2 x N-type), supporting multi frequency bands at 5. x GHz, factory default Airmux-5000/SU/F 54 U/10 M/EMB 5. 4 GHz Universal RAD Point-to-Multipoint Offering – 2011 Slide 27

Airmux-5000 – Summary Reliable & Robust High Capacity Long Ranges Flexible & Scalable Cost Effective Simple • OFDM / MIMO based technology enables n. LOS / NLOS deployment scenario • Field proven interference mitigation RAD Point-to-Multipoint Offering – 2011 Slide 28

Airmux-5000 – Summary Reliable & Robust • • High Capacity Long Ranges Flexible & Scalable Cost Effective Simple High capacity per sector – 200 Mbps aggregate throughput Up to 50 Mbps per user RAD Point-to-Multipoint Offering – 2011 Slide 29

Airmux-5000 – Summary Reliable & Robust • High Capacity Long Ranges Flexible & Scalable Cost Effective Simple Long range – 40 km @ 20 Mbps RAD Point-to-Multipoint Offering – 2011 Slide 30

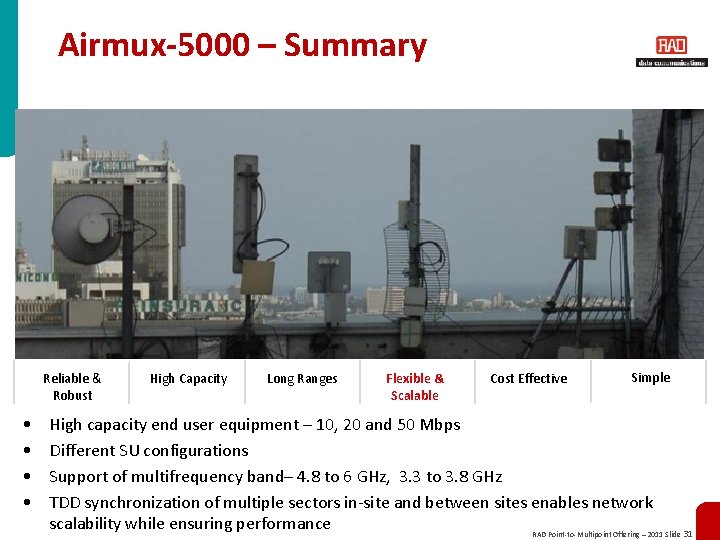

Airmux-5000 – Summary Reliable & Robust • • High Capacity Long Ranges Flexible & Scalable Cost Effective Simple High capacity end user equipment – 10, 20 and 50 Mbps Different SU configurations Support of multifrequency band– 4. 8 to 6 GHz, 3. 3 to 3. 8 GHz TDD synchronization of multiple sectors in-site and between sites enables network scalability while ensuring performance RAD Point-to-Multipoint Offering – 2011 Slide 31

Airmux-5000 – Summary Reliable & Robust High Capacity Long Ranges Flexible & Scalable Cost Effective Simple • Competitive cost structure • High capacity base station reduce the tower space needed • High spectrum efficiency – reduces spectrum fee and increase flexibility of frequency selection RAD Point-to-Multipoint Offering – 2011 Slide 32

Airmux-5000 – Summary Reliable & Robust High Capacity Long Ranges Flexible & Scalable Cost Effective Simple • Simple radio planning, training, installation and maintenance RAD Point-to-Multipoint Offering – 2011 Slide 33

Airmux-5000 HPMP – Summary • Delivers high capacity with secured SLA performance. • Best fit for sub-6 GHz broadband connectivity of high-end applications Superb performance Highest capacity Harmonized Airmux-5000 Compact SU All in one Multiband Spectrum efficiency Secured SLA RAD Point-to-Multipoint Offering – 2011 Slide 34

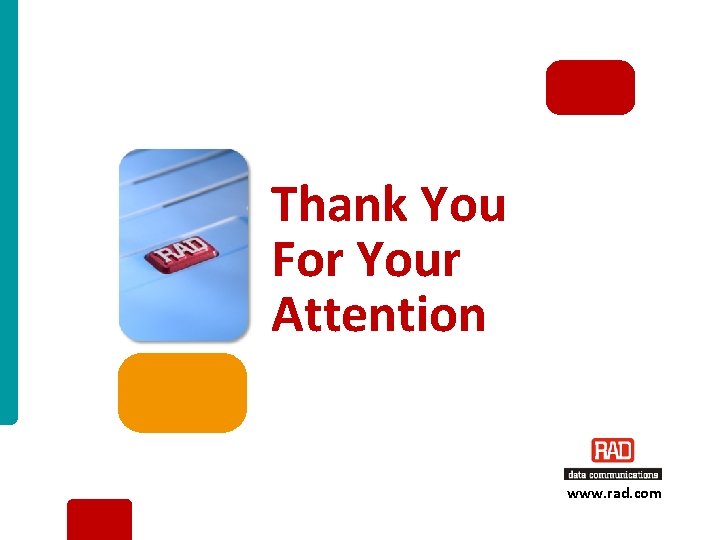

Thank You For Your Attention www. rad. com RAD Point-to-Multipoint Offering – 2011 Slide 35
