Carrier Ethernet is a Service Carrier Ethernet Defined Carrier Ethernet • Carrier Ethernet is a standardized, carrier-class SERVICE defined by five attributes that distinguish Carrier Ethernet from familiar LAN based Ethernet • It brings the compelling business benefit of the Ethernet cost model to achieve significant savings • Standardized Services Carrier Ethernet Attributes • Scalability • Service Management • Reliability • Quality of Service Ether Access Technical Overview for CIS TS 2013 Slide 3

RAD “Service Assured Access” solution Access Network • Demarcation and Aggregation solutions Metro/ Core Access Aggregation Mi. NID FE/Gb. E ETX-2 xx. A • Same service look and feel over: 1/10 Gb. E – Fiber and Copper • E-LINE and E-LAN services ETX-203 AM ETX-5300 A – Native Ethernet, SHDSL, PDH, SDH • Linear, Dual-hommed and Ring topologies First Mile SDH/ SONET PDH ETX-5300 A IP / MPLS 10 Gb. E Ring ETX-203 AM DSL Gb. E MSAN ETX-5300 A Cell. Site ETX-2 xx. A 1/10 Gb. E Ring • Synchronization over Packet Customer Premises Service Assured Access Complete Access solution Ether Access Technical Overview for CIS TS 2013 Slide 4

Ether. Access Feature-set Ether. Access – Enhanced L 2 Ethernet capabilities over any access infrastructure • Connectivity Options – EPL/EVPL services (MEF certified) – Flow based • Traffic classification and mapping – CE VLAN ID, P-bit, DSCP, IP Precedence • Enhanced Qo. S – Policing per service – Dual leaky bucket supporting CIR+CBS, EIR+EBS – Scheduling – Queues according to Strict priority or WFQ – Rate limit on the egress port - Conforms egress traffic to specific rate • Enhanced service creation & assurance OA&M – – IEEE 802. 3 -2005 (Link OAM) IEEE 802. 1 ag/Y 1731 End-to-End (CFM/PM) Powerful L 2/L 3 loopback Allow multiple independent SLA monitoring instances Integrated RFC-2544 Generator • Resiliency: – Linear protection based on G. 8031 – Ethernet Ring protection based on G. 8032 • Synchronization over Packet – Mature Sync-E and 1588 -2008 Ether Access Technical Overview for CIS TS 2013 Slide 5

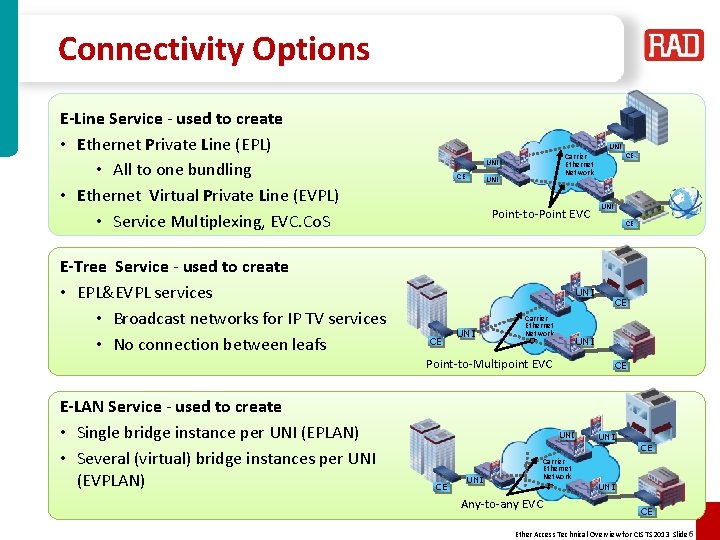

Connectivity Options E-Line Service - used to create • Ethernet Private Line (EPL) • All to one bundling • Ethernet Virtual Private Line (EVPL) • Service Multiplexing, EVC. Co. S E-Tree Service - used to create • EPL&EVPL services • Broadcast networks for IP TV services • No connection between leafs UNI Carrier Ethernet Network UNI CE UNI Point-to-Point EVC UNI CE UNI Carrier Ethernet Network CE CE CE UNI UNI Point-to-Multipoint EVC E-LAN Service - used to create • Single bridge instance per UNI (EPLAN) • Several (virtual) bridge instances per UNI (EVPLAN) CE UNI CE Carrier Ethernet Network UNI Any-to-any EVC CE Ether Access Technical Overview for CIS TS 2013 Slide 6

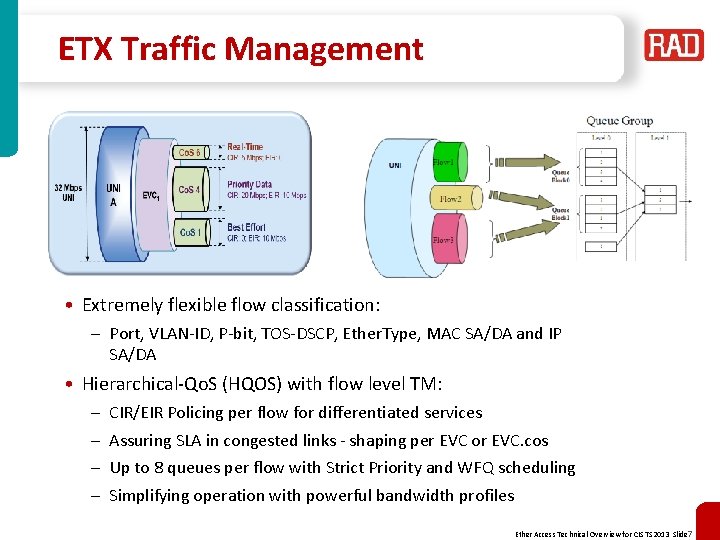

ETX Traffic Management • Extremely flexible flow classification: – Port, VLAN-ID, P-bit, TOS-DSCP, Ether. Type, MAC SA/DA and IP SA/DA • Hierarchical-Qo. S (HQOS) with flow level TM: – – CIR/EIR Policing per flow for differentiated services Assuring SLA in congested links - shaping per EVC or EVC. cos Up to 8 queues per flow with Strict Priority and WFQ scheduling Simplifying operation with powerful bandwidth profiles Ether Access Technical Overview for CIS TS 2013 Slide 7

Standards: OAM – Operation Administration & Maintenance Delay, Jitter, Packet Loss, Availability Operator A Operator B ITU-T Y. 1731 (PM) /802. 3 ag (CFM) IEEE 802. 3 ah (EFM) Type Span Scope Standard Status RAD Implement. IEEE 802. 3 ah (Clause 57) Link Single Segment Per UNI Finalized IEEE 802. 1 ag-D 8 Connectivity End-to-End Per EVC Finalized ITU-T Y. 1731 Service End-to-End Per EVC. Co. S Finalized Ether Access Technical Overview for CIS TS 2013 Slide 8

RFC-2544 Measurements to Ensure Service Parameters Branch A Traffic Generation and loopback per RFC-2544 Headquarters UNI Real Time Priority Data Best Effort Real Time PE Real Time ETX EVC Priority Data Best Effort ETX PE EVC 1 PSN Branch B EVC 2 IP DSLAM Real Time ETX EVC Priority Data Best Effort UNI • Used before service is commissioned to ensure service parameters • Measures Latency, Loss and Throughput • Up to 8 sessions simultaneously Ether Access Technical Overview for CIS TS 2013 Slide 9

RFC-2544 CLI Reports Test ID : <ID> Tested by : User Name Product Name : <HW product name and version> Version Number : <firmware name and version> Serial Number : <serial number here > Date & Time : <Test time, format: day, dd/mm/yy hh: mm: sec> Profile Name : <e. g. - RFC 2544 Throughput Test - Per Port Binary Search> Number of Trials : < number of trials> Test Duration : <hh: mm: ss> Test Parameters ------------------------------------------------------- Bind: MD: <MD id>, MA <MA id>, MEP <MEP id>, p-bit <pbit>, VLAN <vlan> Maximum Theoretical Rate: <Maximal defined Rate> [FPS] Duration: <Duration> Pattern: <Frame Pattern>, Frame Type <frame type> Opcode <Opcode>, mode <mode> Search resolution <Search resolution>, Tolerance <tolerance>, Trials <Number of trials> Learning Frames: Number of frames <number of frames>, Frequency <Frequency> Throughput Report < Trial #>: ==== Status: SUCCESS { or FAIL – Link down, OAM connectivity failure } Duration: <HH: MM: SS> Frame Size [bytes] | 64 | 128 | 256 | 512 | 1024 | 1280 | 1518 | Theoretical maximum [fps] |10000 | 5000 | 2500 | 1250 | - | - | 500 | Throughput [fps] |9500 | 4900 | 2490 | 1250 | - | 500 | success [%] | 95 | 98 | 99. 6 | 100 | - | 100 | Packet Loss report: <Trial #> ======= Status: SUCCESS Frame Size <64> Maximum theoretical rate <10000> Throughput of max | 100% | 90% | 80% | 70% | 60% | %success | 80% | 87% | 93% | 99% | 100% | Latency Report < Trial #>: ==== Status: SUCCESS { or FAIL – Link down, OAM connectivity failure } Duration: <HH: MM: SS> Frame Size [bytes] | 64 | 128 | 256 | 512 | 1024 | 1280 | 1518 | Latency [ms] |50 | 45 | 42 | 37 | - | 24 | Ether Access Technical Overview for CIS TS 2013 Slide 10

RFC-2544 Reports on RADview Frame loss Throughput Delay Measurement Ether Access Technical Overview for CIS TS 2013 Slide 11

Link Protection • Link Aggregation Redundancy (802. 3 ad based) – Redundant connection to a single upstream device via two ports which form a singe logical port – Link Aggregation Control protocol used to sync LAG members and identify Single homing failures CPE PSN • Dual homing – 1: 1 connectivity to two different upstream devices for node redundancy Dual homing Switch criteria: – Loss Of Signal (LOS) indication – Manual commands CPE PSN Ether Access Technical Overview for CIS TS 2013 Slide 12

Ethernet Linear Protection based on G. 8031 Automatic Protection Switching (APS) CPE Remote Customer Premises Local Customer Premises NTU CC OAM 1 PE Ethernet RDI on CC message PE NTU CC OAM CPE 2 • Protection as per ITU-T G. 8031 – Bidirectional 1: 1 mode using APS messages • Triggers - Port Signal loss, CCM LOC, ETH-AIS • Protection time – Under 50 ms protection time for a single protection group (multiple EVC per group) – Up to 200 ms protection time for 4 protection groups Ether Access Technical Overview for CIS TS 2013 Slide 13

Fault Propagation Based on OAM Loss Of Connectivity Receive RDI CPE State LOC Remote Customer Premises Local Customer Premises NTU 1 CC OAM PE Ethernet RDI on CC message PE NTU CC OAM CPE 2 • Network failure propagation to user ports – User ports are turned off upon Loss-of Connectivity (LOC) or Remote Defect Indication (RDI) • Customer equipment senses the failure and immediately reroutes to alternative path – Shortens restoration time by triggering restoration much faster than native routing protocols Ether Access Technical Overview for CIS TS 2013 Slide 14

Fault Propagation Based on OAM Remote User Failure CPE Remote Customer Premises Local Customer Premises NTU CC OAM PE Ethernet 1 PE NTU CC OAM CPE 2 • User port failure propagation to remote end: – Remote end port is turned off upon alarm indication from local end • Customer equipment senses the failure and immediately reroutes to alternative path – Shortens restoration time by triggering restoration much faster than native routing protocols Ether Access Technical Overview for CIS TS 2013 Slide 15

Layer 2 Protocol Tunneling (L 2 PT) CPE Local Customer Premises L 2 PDU NTU PE Ethernet Remote Customer Premises PE 1 NTU L 2 PDU CPE 2 • Allowing full transparency to L 2 control Protocols using different configurations: – – Peer-supported L 2 Protocols Data Units (PDU) frames Discard the L 2 control protocol frames Tunnel: Pass through Layer-2 control frames Including Vendor Specific L 2 CP frames Ether Access Technical Overview for CIS TS 2013 Slide 16

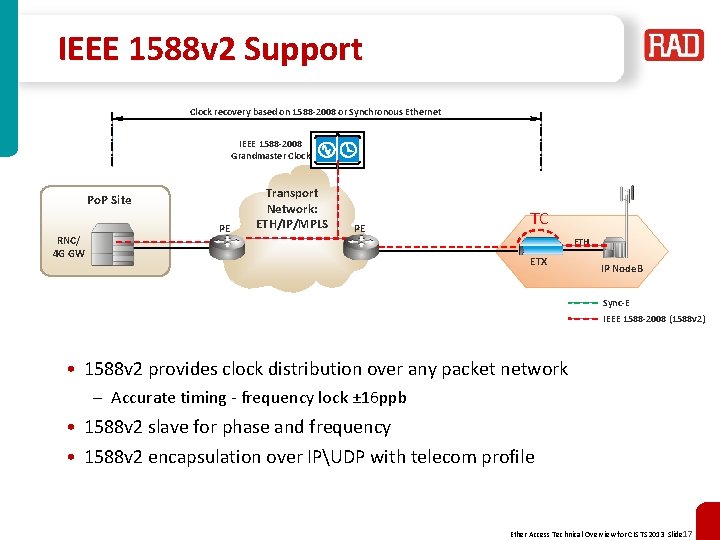

IEEE 1588 v 2 Support Clock recovery based on 1588 -2008 or Synchronous Ethernet IEEE 1588 -2008 Grandmaster Clock Po. P Site RNC/ 4 G GW PE Transport Network: ETH/IP/MPLS PE TC ETH ETX IP Node. B Sync-E IEEE 1588 -2008 (1588 v 2) • 1588 v 2 provides clock distribution over any packet network – Accurate timing - frequency lock ± 16 ppb • 1588 v 2 slave for phase and frequency • 1588 v 2 encapsulation over IPUDP with telecom profile Ether Access Technical Overview for CIS TS 2013 Slide 17

Mobile Demarcation with ETX-205 A Clock recovery based on 1588 -2008 or Synchronous Ethernet Sync-E Clock Source TC IEEE 1588 -2008 Grandmaster Clock ETH IP Node B ETX External Clock Source Po. P Site RNC/4 G Gateway PE PE Transport Network: ETH/IP/MPLS ETH ETX Sync-E IEEE 1588 -2008 (1588 v 2) • • IP Node B ETH IP Node B ETX BTS Nx. E 1/T 1 Mobile Demarcation Device – Timing Gateway & Demarcation Per-flow SLA measurements Multiple synchronization over packet standards Support for legacy Cellular generations Ether Access Technical Overview for CIS TS 2013 Slide 18

Products Overview Ether Access Technical Overview for CIS TS 2013 Slide 19

ETX Portfolio Performance Ethernet Service Aggregation Platform ETX-5300 A High End MDD Flow Base Service Flexible classification With TDM Services High End EDD Flow Base Service Flexible classification Basic NTU Port Base Service ETX-26/36 ETX-202/102 FE/GE SFP based NTU ETX-205 A ETX-220 A 10 GE Interfaces 10 GE NTU 10 GE Ring ETX-204 A Mi. NID ETX-203 AX ETX 203 AX/AM Scale nx. GE nx 10 GE Ether Access Technical Overview for CIS TS 2013 Slide 20

ETX-203 AX Power Wide-range AC&DC PS Management Out of Band FE port Local RS-232 Network and User Interfaces 1 or 2 network SFP interfaces (redundancy) Up to 4 or 5 user ports • Carrier Ethernet Demarcation Device for: – SLA-based retail and wholesale Ethernet services • Carrier grade design – Service and port level redundancy • MEF CE 2. 0 compliant EPL and EVPL Ethernet services Ether Access Technical Overview for CIS TS 2013 Slide 21

ETX-203 AM All-In-One FE/Gb. E Combo port uplink module 2 x 10/1000 BT 2 x 100/1000 Fx (SFP) SHDSL EFM uplink module Ethernet over PDH uplink module – 4 wire – 11. 4 Mbps – 4/8 x. E 1/T 1 – 8 wire – 22. 8 Mbps – 1/2 x. T 3 GFP/VCAT/LCAS Modular Uplink ETH SHDSL ETH Over PDH/SDH Management Out of Band FE port Local RS-232 User interfaces: 4 FE/GE interfaces SFP or UTP Ether Access Technical Overview for CIS TS 2013 Slide 22

ETX-205 A Physical View Synt. Top™ synchronization ports: • External in/out (T 3/T 4) • 1 PPS and To. D 4 E 1/T 1 PWE interfaces: • CESo. PSN and SATo. P • UPD/IP and MEF 8 • Flexible and accurate timing • 16 PWE per E 1 port and CAS support Management ports • Out of band - Ethernet port • Local craft terminal - RS-232 6 FE/GE combo interfaces: • 2 Network ports • 4 User ports Redundant power supplies: • AC: 100– 240 VAC, 50 -60 Hz • DC: 24/48 VDC • Advanced Carrier Ethernet Demarcation Device for: – SLA-based retail and wholesale Ethernet services – 2 G/3 G/4 G-LTE Mobile backhauling demarcation – Migration to packet networks with integrated Ethernet and E 1/T 1 services Ether Access Technical Overview for CIS TS 2013 Slide 23

ETX-220 A Layout H/W ready Synt. Top™ synchronization ports: • RJ-45 and BNC i/f • External in/out (T 3/T 4) • To. D and 1 PPS 4 x 10 GE XFP Based Ports • 2 Network i/f 1: 1 • 2 User i/f (only one is functioning in the first release) Management ports • Out of band - Ethernet port • Local craft terminal - RS-232 4 x 1 GE aggregation Redundant power supplies: • AC: 100– 240 VAC, 50 -60 Hz • DC: 24/48 VDC • 19”, 1 RU shelf, Rack and wall mount • Environmentally Hardened Option: -20 to +65 C Ether Access Technical Overview for CIS TS 2013 Slide 24

ETX-5300 A Front View Description Redundant PSU (DC/AC Clocking Interfaces Outlet) Fan Module 4 x 10 Gb. E XFP fully redundant Secondary Main Card Primary Main Card Alarm output connector 20 x 1 Gb. E Opt SFP I/O card Air Filter 20 x 1 Gb. E Elec I/O card Ether Access Technical Overview for CIS TS 2013 Slide 25

ETX-2 xx Technical Description Ether Access Technical Overview for CIS TS 2013 Slide 26

ETX Forwarding Plane EVC QUEUE BLOCK Classifier Rx Flow 1 Flow N CIR/EIR Policing Pre Forwarding Editing Forwarding engine (for E-LAN services) Post Forwarding Editing 8 Queue per EVC WRED EVC Scheduler EVC Shaper WFQ SP Port level Scheduler WFQ Tx 8 or 31 Queue blocks per egress port • Classify and map incoming packets into flows (EVC. Co. S) • Police each flow (Green, Yellow, Red) • For E-LAN services (version 4. 5) the forwarding engine is the bridge and MAC learning mechanism • For E-Line service, there is no Forwarding engine. Egress port and queue block selection are set at the classification stage • Up to 8 or 31 queue blocks per port with up to 8 queues per block • WRED at each queue • User configurable scheduling in queue block • Shaper queue block • Port level scheduler distributing BW between all the queue blocks Ether Access Technical Overview for CIS TS 2013 Slide 27

Counter Locations in ETX Location of Flow Statistics counters Location of Port Statistics counters Ingress PORT Counters Classifier Rx Policer Counters Flow 1 CIR/EIR Policing Flow N CIR/EIR Policing Egress PORT Counters Dropped packet Counters (Queue level) EVC QUEUE BLOCK Pre Forwarding Editing Forwarding engine (for E-LAN services) Post Forwarding Editing 8 Queue per EVC WRED EVC Scheduler EVC Shaper WFQ SP Port level Scheduler WFQ Tx 8 or 31 Queue blocks per egress port • Port level statistics are measured in ingress and egress ports in the MAC level • Flow level Statistics are measured before and after the flow policer, green/Yellow dropped statistics are measured by WRED mechanism (queue level) Ether Access Technical Overview for CIS TS 2013 Slide 28

Summary – OAM and Counter locations in ETX Location of Flow Statistics counters Location of Port Statistics counters Ingress PORT Counters Classifier Rx Dropped packet Counters Policer Counters Flow 1 Flow N EVC QUEUE BLOCK CIR/EIR Policing Pre Forwarding Editing Forwarding engine (for E-LAN services) Post Forwarding Editing Down MEP UP MEP 8 Queue per EVC WRED EVC Scheduler EVC Shaper WFQ SP Port level Scheduler WFQ Tx 8 or 31 Queue blocks per egress port CCM PM COS 1 PM COS 7 Egress PORT Counters 2544 Generator/ Analyzer HW block PM COS 1 PM COS 7 Ether Access Technical Overview for CIS TS 2013 Slide 29

ETX-5300 A Technical Description Ether Access Technical Overview for CIS TS 2013 Slide 30

Performance 100 Gbps Full Duplex: • 100 Gbps Ingress • 100 Gbps Egress Total of 100 Gbps Ingress from all I/F (Main/IO) Total of 100 Gbps Egress from all I/F (Main/IO) • Note: The maximum interface capacity ( 160 Gbps ) exceeds the device performance Ether Access Technical Overview for CIS TS 2013 Slide 31

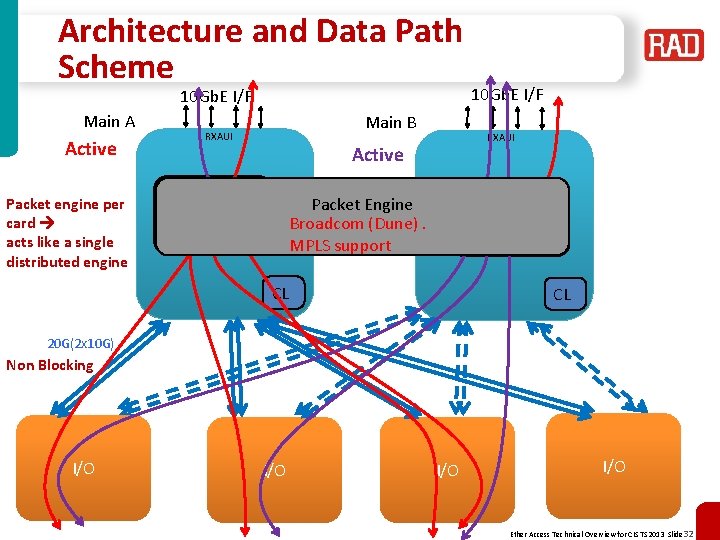

Architecture and Data Path Scheme 10 Gb. E I/F Main A Active Packet engine per card acts like a single distributed engine Main B RXAUI Active 2/4 10 G Packet 2/4 Packet 10 G Packet Engine Fabric I/F(Dune) 40 Gbps. Broadcom MPLS support Engine CL CL 20 G(2 x 10 G) Non Blocking I/O I/O Ether Access Technical Overview for CIS TS 2013 Slide 32

ETX-5300 A – SAP & SAG • SAG (Service Aggregation Group) is a logical port (management entity) that represents a physical connection between I/O and main Ethernet cards. • Each SAG includes 512 Service Attachment Points (SAPs) Ether Access Technical Overview for CIS TS 2013 Slide 33

HW Architecture: ETH IO Structure 10 Gb. E I/F Main A • IO card is actually build from 2 x 10 Gb. E sections • 2 x 10 Gb. E internal ports for IO/Main interconnection RXAUI • This is reflected in some ETX-5300 features and limitations: 2/4 10 G Packet – Two SAG’s per IO , one for each 10 G IO port group (reflects internal io/main 10 G port) Engine – LAG group membership – Limitation: E-Line is not support between ports on the same 10 port group CL 20 G(2 x 10 G) I/O 1……… 10 11……. 20 Ether Access Technical Overview for CIS TS 2013 Slide 34

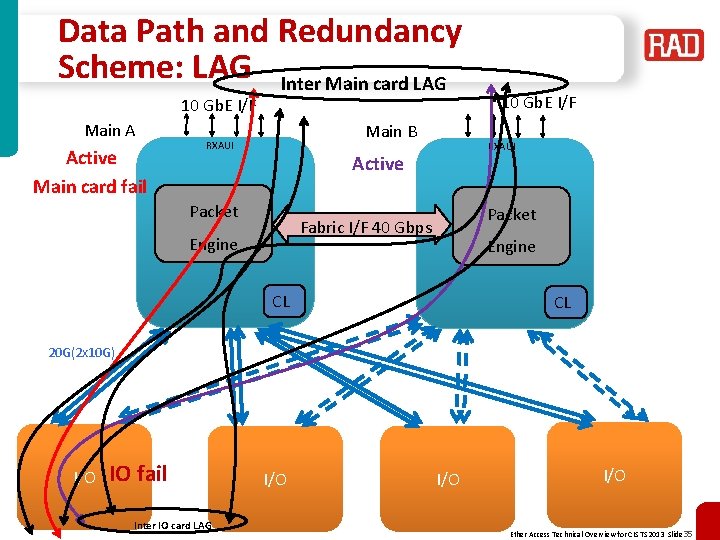

Data Path and Redundancy Scheme: LAG Inter Main card LAG 10 Gb. E I/F Main A Active Main card fail Main B RXAUI Active 2/4 10 G Packet 2/4 Packet 10 G Fabric I/F 40 Gbps Engine 10 Gb. E I/F Engine CL CL 20 G(2 x 10 G) I/O IO fail Inter IO card LAG I/O I/O Ether Access Technical Overview for CIS TS 2013 Slide 35

Data Path and Redundancy Scheme: Ring 10 Gb. E I/F Main A Active Main card fail Ring Port East RXAUI Ring Port West Main B Active 2/4 10 G Packet RXAUI 2/4 Packet 10 G Fabric I/F 40 Gbps Engine 10 Gb. E I/F Engine Bridge CL CL 20 G(2 x 10 G) I/O I/O Ether Access Technical Overview for CIS TS 2013 Slide 36

ETX-5300 A Flows and Scale I/O-1 Flow Processing 1 512 SAP Flow Processing 10 SAG - Service Aggregation Group SAP - Service Attachment Point SAP 1 k flows 1 k rules Per 10 x 1 Gbe ports SAG up to 1 K SAG Flow Processing up to 1 K 4 K/Up to 8 k Packet Engine 10 G 20 PORTS 2 k flows 512 SAP 10 G 20 10 G Flow Processing SAP 11 SAP 1 k flows 1 k rules Per 10 x 1 Gbe ports I/O-2 10 G 20 PORTS 2 k flows up to 1 K I/O-3 20 PORTS 2 k flows up to 1 K Total=16 k I/O-4 Ether Access Technical Overview for CIS TS 2013 Slide 37

Workshop Applications Ether Access Technical Overview for CIS TS 2013 Slide 38

Workshop Applications • During the workshop you will create several applications: – – ETX‑ 5300 A Out-of-Band (OOB) Management E-Line – Ethernet Private Line Application E-Line – Ethernet Virtual Private Line Application E-LAN – In band Management from Central Location to Remote CPEs Ether Access Technical Overview for CIS TS 2013 Slide 39

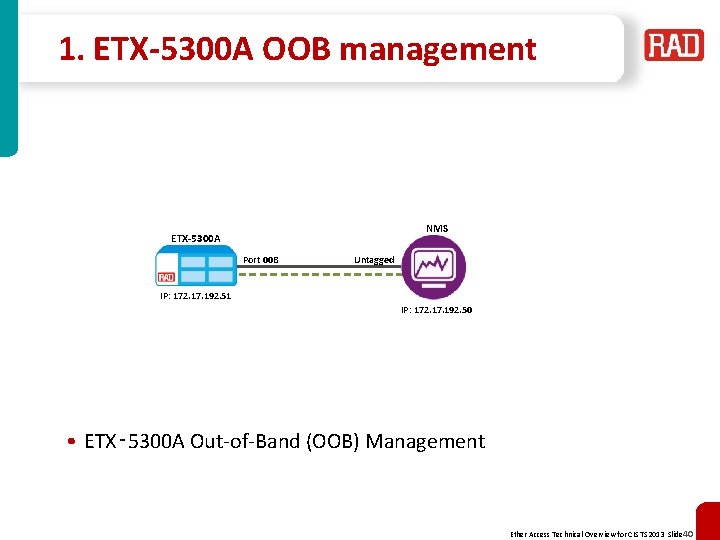

1. ETX-5300 A OOB management NMS ETX-5300 A Port 00 B Untagged IP: 172. 17. 192. 51 IP: 172. 17. 192. 50 • ETX‑ 5300 A Out-of-Band (OOB) Management Ether Access Technical Overview for CIS TS 2013 Slide 40

Management Flow Configuration There are several procedures for configuring management flow: • SVI (Switched Virtual Interface) – Defines a logical port used to associate the router interface with the remote device (peer). • Flow Classifications – Define the types of traffic. • Flow – Defines the In/Out paths. • Router Interface – Makes the ETX accessible from different access points. The router provides a logical path at L 3. Ether Access Technical Overview for CIS TS 2013 Slide 41

OOB Management Flows CLI Configuration flow "mng_in" classifier "untagged" ingress-port mng-ethernet main-a/0 egress-port svi 99 no shutdown exit flow "mng_out" classifier "all" ingress-port svi 99 egress-port mng-ethernet main-a/0 no shutdown exit Ether Access Technical Overview for CIS TS 2013 Slide 42

2. E-line – EPL Application Ether Access Technical Overview for CIS TS 2013 Slide 43

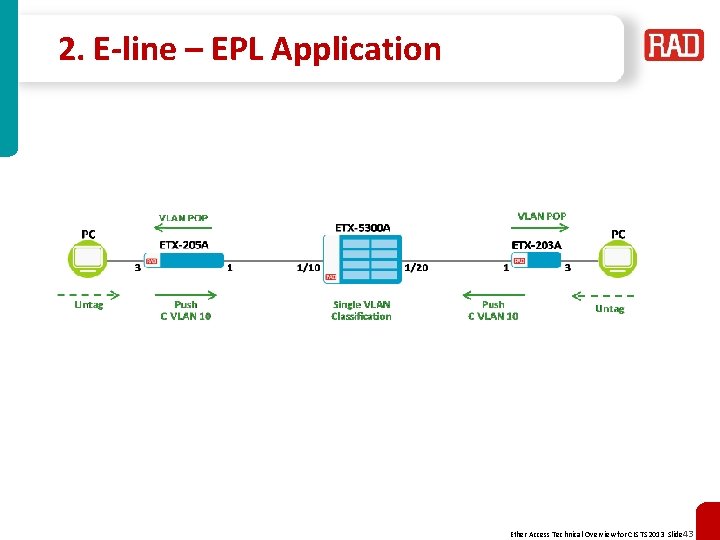

ETX‑ 5300 A – Logical Connection • Outgoing Data Traffic from ETX‑ 5300 A I/O ETH Card Port 1/10 to Port 1/20 Ether Access Technical Overview for CIS TS 2013 Slide 44

ETX-5300 A – Data Flows Configuration flow 10_sap classifier v 10 ingress-port ethernet 1/10 egress-port sap 1/1/2 queue-map-profile Queue. Map. Default. Profile block 0/1 no shutdown exit flow sap_20 classifier all ingress-port sap 1/1/2 egress-port ethernet 1/20 queue-map-profile Queue. Map. Default. Profile block 0/1 no shutdown exit Ether Access Technical Overview for CIS TS 2013 Slide 45

3. E-Line Application – EVPL VLAN POP MEP 1 PC 1 1/9 Push SP-VLAN 100 VLAN 2 p-bit 1 VLAN 2 p-bit 2 VLAN 2 p-bit 5 PC ETX-5300 A ETX-205 A 3 VLAN POP MEP 2 ETX-203 AX 1/19 Single VLAN Classification 1 3 Push SP-VLAN 100 VLAN 2 p-bit 1 VLAN 2 p-bit 2 VLAN 2 p-bit 5 OAM CFM+PM • EVC. Co. S application, with multiple data services that include the following capabilities: – – Traffic management per EVC. Co. S OAM CFM monitoring per single EVC Performance monitoring based on Y. 1731 per EVC. Co. S RFC-2544 tests per EVC. Co. S Ether Access Technical Overview for CIS TS 2013 Slide 46

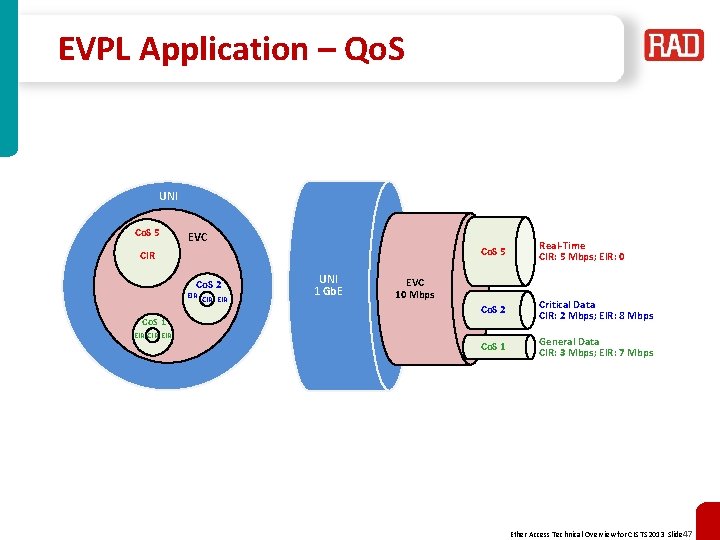

EVPL Application – Qo. S UNI Co. S 5 EVC CIR Co. S 2 EIR CIR EIR Co. S 1 EIR CIR EIR UNI 1 Gb. E Co. S 5 Real-Time CIR: 5 Mbps; EIR: 0 Co. S 2 Critical Data CIR: 2 Mbps; EIR: 8 Mbps Co. S 1 General Data CIR: 3 Mbps; EIR: 7 Mbps EVC 10 Mbps Ether Access Technical Overview for CIS TS 2013 Slide 47

EVPL Application Logical Diagram ETX-205 A Traffic Generator C-VLAN 2. 5 S-VLAN 100. 5 RT C-VLAN 2. 2 CD C-VLAN 2. 1 GD Port 3 ETX-203 AX ETX-5300 A S-VLAN 100. 5 S-VLAN 100. 2 S-VLAN 100. 1 1/9 Port 1 1/19 RT C-VLAN 2. 5 CD C-VLAN 2. 2 GD C-VLAN 2. 1 Port 1 Service Name Policer name CIR (Mbps) EIR(Mbps) PIR - Expected Rate (Mbps) RT V 2_rt 5 0 5 CD V 2_cd 2 8 10 GD V 2_cd 3 7 10 Traffic Generator Port 3 Ether Access Technical Overview for CIS TS 2013 Slide 48

RFC Traffic Diagram Ether Access Technical Overview for CIS TS 2013 Slide 49

4. E-LAN In-band Management Ether Access Technical Overview for CIS TS 2013 Slide 50

Bridge • Bridge Entity enables E-LAN services • Bridge ports may be bounded to physical port or to Logical port. Bridge port which is flow based should be bounded to SVI and connected to Physical ports with flows. • VLAN aware bridge, configure for each VLAN port membership list needed. • When a bridge port is bounded to a physical port or any of the logical ports except SVI, the forwarding to/from the BP and the Eth port will be done according to the VLAN membership. In case that the BP will be bounded to SVI, the forwarding to/from the BP and the SVI will be done through flows configuration. ETX-5300 A • Features: – 256 K MAC table – 32 Bridge instances – 128 BP per Bridge User Port SVI BP BP Bridge BP SVI Network Port Ether Access Technical Overview for CIS TS 2013 Slide 51

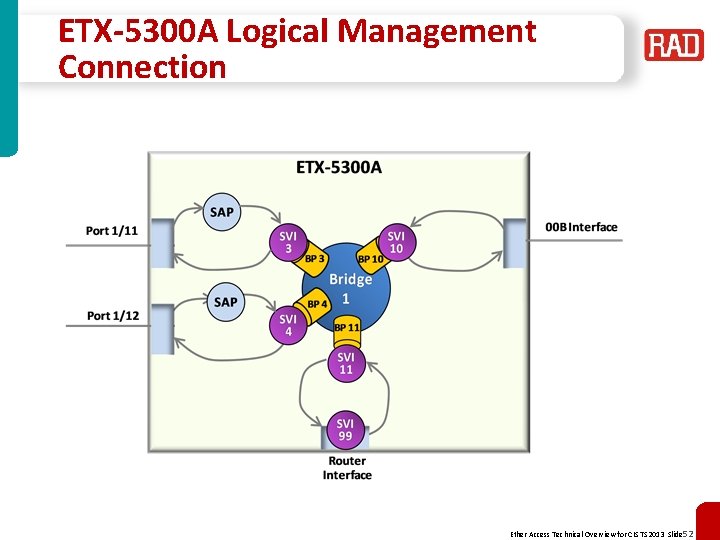

ETX-5300 A Logical Management Connection Ether Access Technical Overview for CIS TS 2013 Slide 52

Ether. Access Value Proposition Service Reach • ETHo. Fiber • ETHo. PDH • ETHo. SDH/SO NET • ETHo. DSL Traffic Management • Classification • Policing (CIR/CBS, EIR/EBS) • Scheduling • Rate Limit/Shaping • Services • EPL/EVPL • EPLAN • EVPLAN Service Validation & Assurance • 802. 3 -2005 • 802. 1 ag • Y. 1731 • RFC 2544 • G. 8031 Control and Monitoring • • • SLA assurance Frame Delay variation Frame Loss Availability Ether Access Technical Overview for CIS TS 2013 Slide 53
