RAD-IT Tool Training Regional Architecture Development for Intelligent Transportation PLANNING Module 3

Module Outcomes • Explain how to access the Planning Tab in RAD-IT Tool • Explain the key features of the Planning Tab • Be able to modify information on the Planning Tab This Module will take approximately 30 minutes to complete. 3 -2

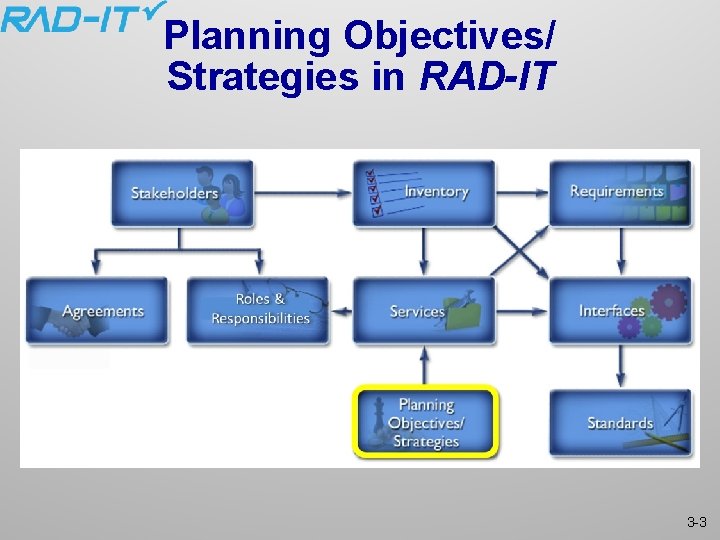

Planning Objectives/ Strategies in RAD-IT 3 -3

Architecture Link to Planning Process Transportation Planning ITS Architecture Regional Vision & Goals ITS Services Alternate Improvement Strategies Operations Capital Projects 3 -4

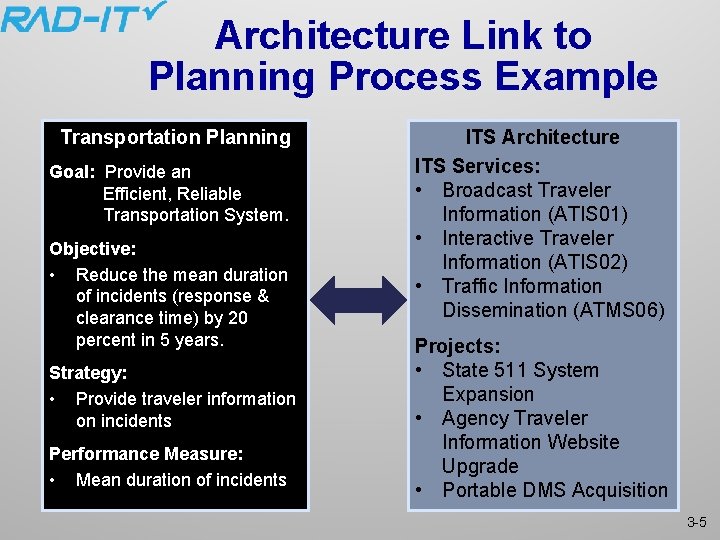

Architecture Link to Planning Process Example Transportation Planning Goal: Provide an Efficient, Reliable Transportation System. Objective: • Reduce the mean duration of incidents (response & clearance time) by 20 percent in 5 years. Strategy: • Provide traveler information on incidents Performance Measure: • Mean duration of incidents ITS Architecture ITS Services: • Broadcast Traveler Information (ATIS 01) • Interactive Traveler Information (ATIS 02) • Traffic Information Dissemination (ATMS 06) Projects: • State 511 System Expansion • Agency Traveler Information Website Upgrade • Portable DMS Acquisition 3 -5

Planning Tab 3 -6

Planning Tab (cont. ) Two levels of planning goals New Titles of levels can be customized Delete 3 -7

Customizing Levels of Planning Goals Select # of levels Provide titles of levels 3 -8

Planning Tab (cont. ) Level If lower level, supported objective Number Name Description Source Performance Measures Service Packages Projects 3 -9

Planning Tab -Entering Performance Measures 3 -10

Planning Tab – Service Package Search 3 -11

Knowledge Check To link an architecture to transportation planning, how many levels of planning goals can be entered into RAD-IT? 3 -12

Knowledge Check - Answer Up to two 3 -13

Relationship of Planning to Other Architecture Components 3 -14

Output - Planning Table 3 -15

Output - Planning Table (cont. ) 3 -16

Exercise Database = marinaraforexercises. radit Architecture = Marinara County (Regional) 3 -17

Exercise - Facts • In the update to the Marinara County Long Range Transportation Plan (LRTP), a goal was added for the alerting of travelers of travel weather impacts via the TOMATO Traveler Information System 3 -18

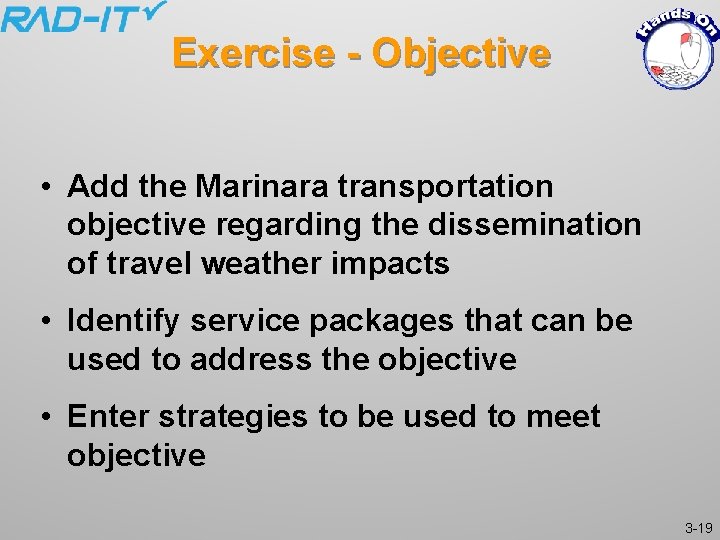

Exercise - Objective • Add the Marinara transportation objective regarding the dissemination of travel weather impacts • Identify service packages that can be used to address the objective • Enter strategies to be used to meet objective 3 -19

Exercise - Steps • Add new objective 6. 1: “Within the next 3 years alert travelers of travel weather impacts using the TOMATO Traveler Information System within 5 minutes of confirmation of an event. ” 3 -20

Exercise – Steps (cont. ) • For objective 6. 1: Source = Marinara County LRTP Performance Measure = Time from confirmation of weather event to posting of traveler information on TOMATO System 3 -21

Exercise – Steps (cont. ) • Use service package search for those including text “weather information” • For Objective 6. 1, • Service Packages = three service packages identified from the search • Project = TOMATO 3 -22

Exercise – Steps (cont. ) • Add new strategy 6. 1. 1 (that supports Objective 6. 1) “Collect and process road weather data” 3 -23

Exercise – Steps (cont. ) • Add new strategy 6. 1. 2 (that supports Objective 6. 1) “Disseminate travel weather impact alerts using the TOMATO Traveler Information System” 3 -24

Exercise – Steps (cont. ) • View Planning Table 3 -25

Exercise - Knowledge Check How would I disassociate the TI 01 Broadcast Traveler Information Service Package from Objective 6. 1? On the Planning tab, uncheck the TI 01 Service Package in the Service Package selection 3 -26

Review Module Outcomes • Explain how to access the Planning Tab in RAD-IT Tool • Explain the key features of the Planning Tab • Be able to modify information on the Planning Tab Return to the training curriculum to select the next module. To close this window, select the "X" in the upper right hand corner of your screen. 3 -27
