RADIONAVIGATIONAL AIDS AT AIRBASE 2019 Structure Lighting system
RADIONAVIGATIONAL AIDS AT AIRBASE 2019
Structure � Lighting system � Navigational system � Surveillance units � Other aids

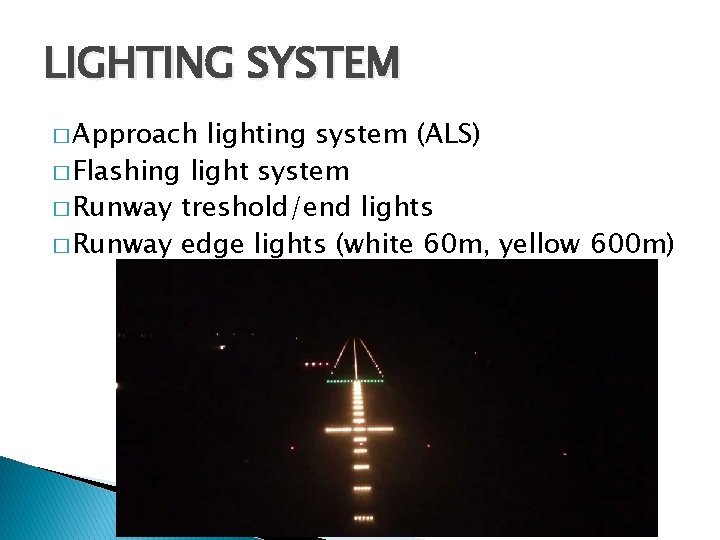

LIGHTING SYSTEM � Approach lighting system (ALS) � Flashing light system � Runway treshold/end lights � Runway edge lights (white 60 m, yellow 600 m)

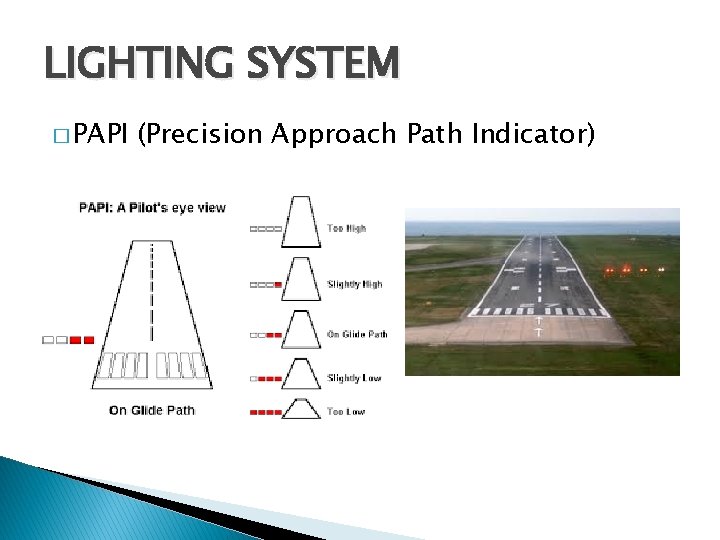

LIGHTING SYSTEM � PAPI (Precision Approach Path Indicator)

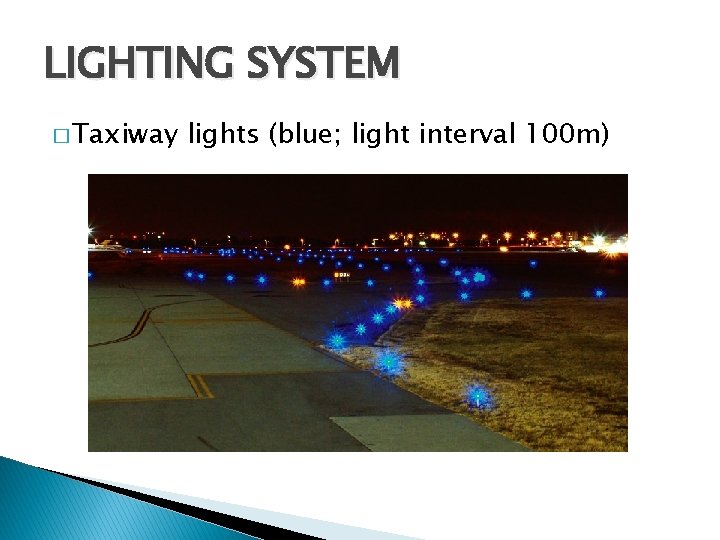

LIGHTING SYSTEM � Taxiway lights (blue; light interval 100 m)

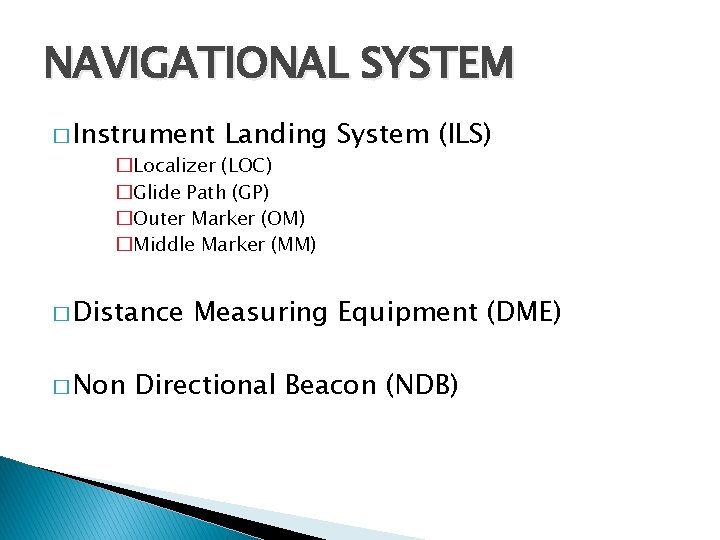

NAVIGATIONAL SYSTEM � Instrument Landing System (ILS) �Localizer (LOC) �Glide Path (GP) �Outer Marker (OM) �Middle Marker (MM) � Distance � Non Measuring Equipment (DME) Directional Beacon (NDB)

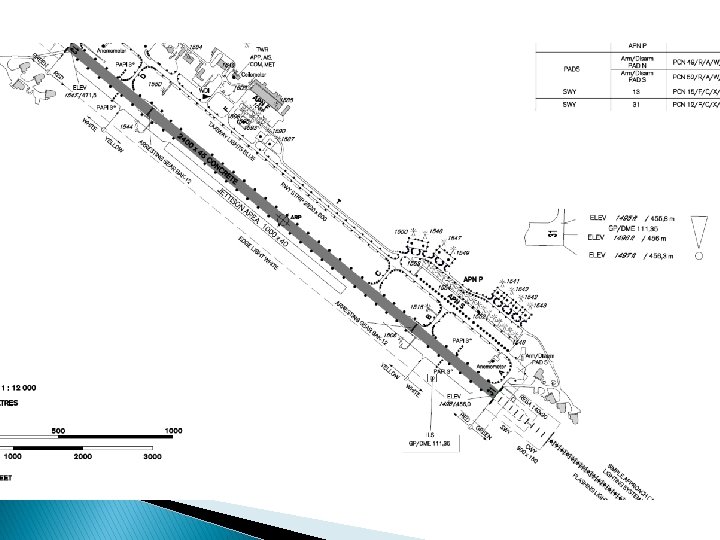

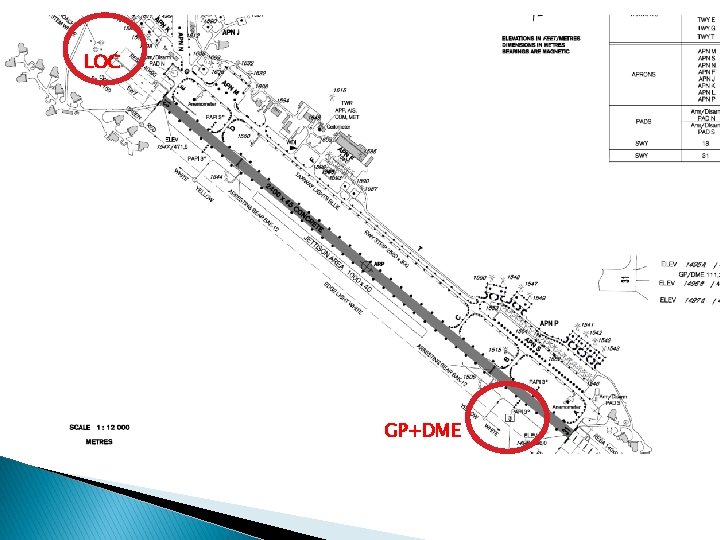

LOC GP+DME

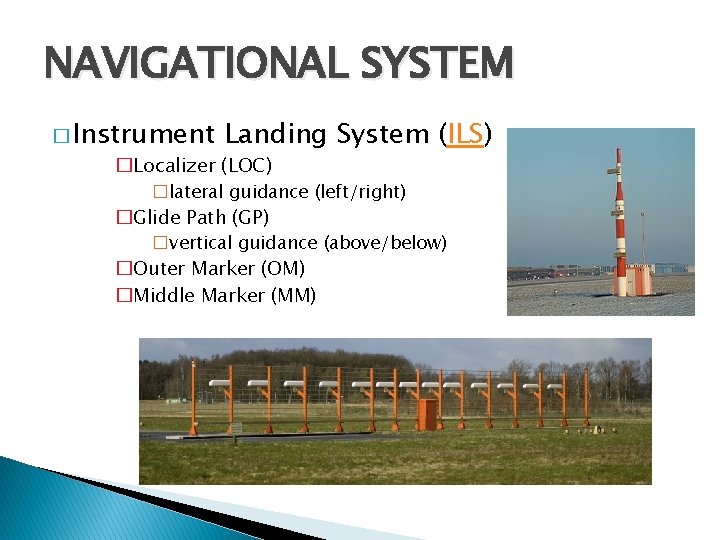

NAVIGATIONAL SYSTEM � Instrument Landing System (ILS) �Localizer (LOC) �lateral guidance (left/right) �Glide Path (GP) �vertical guidance (above/below) �Outer Marker (OM) �Middle Marker (MM)

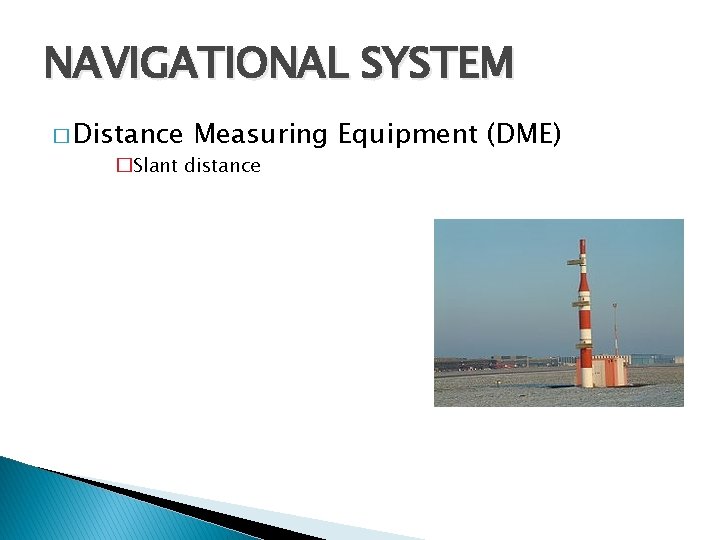

NAVIGATIONAL SYSTEM � Distance Measuring Equipment (DME) �Slant distance

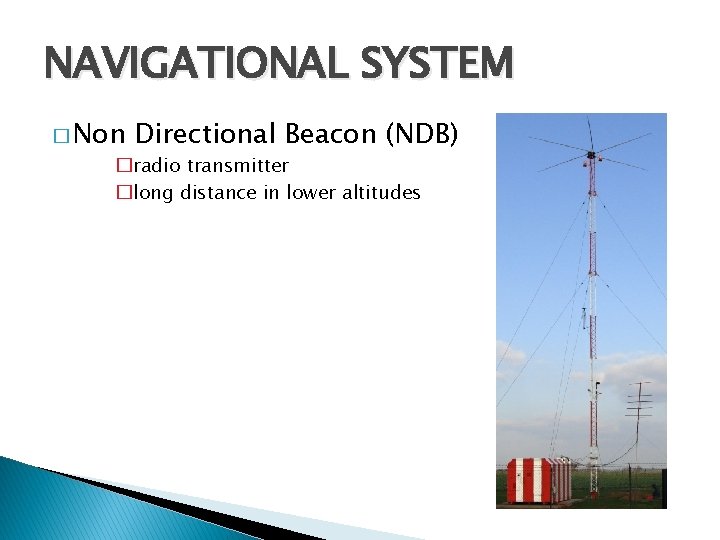

NAVIGATIONAL SYSTEM � Non Directional Beacon (NDB) �radio transmitter �long distance in lower altitudes

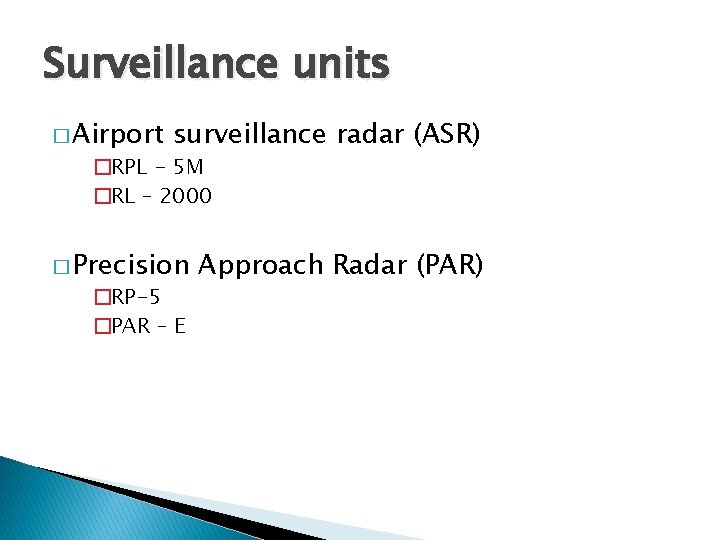

Surveillance units � Airport surveillance radar (ASR) �RPL - 5 M �RL – 2000 � Precision �RP-5 �PAR – E Approach Radar (PAR)

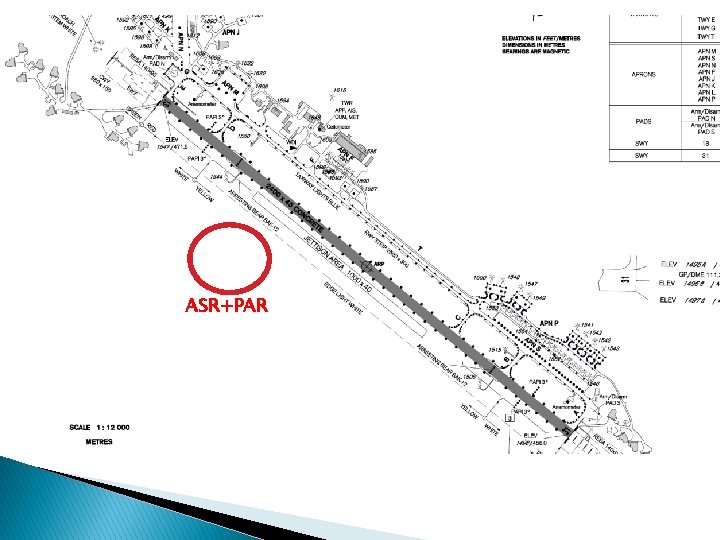

ASR+PAR
Surveillance units � Airport surveillance radar (ASR) �RPL - 5 M �RL – 2000 �primary radar �secondary surveillance radar (SSR)

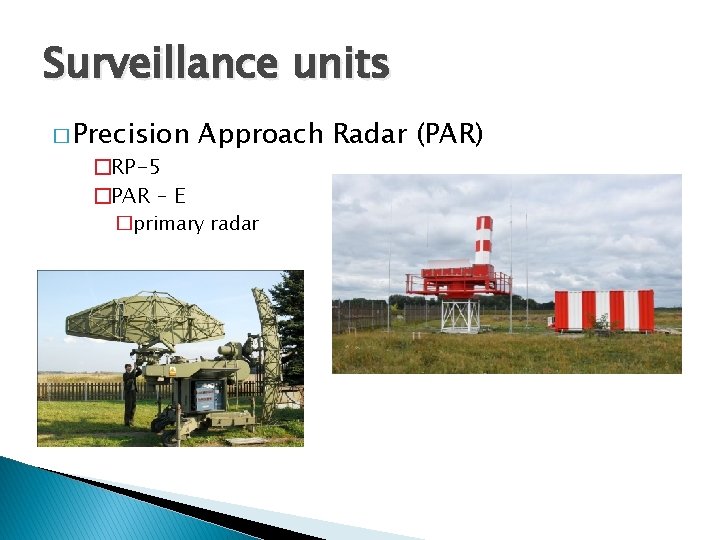

Surveillance units � Precision �RP-5 �PAR – E Approach Radar (PAR) �primary radar

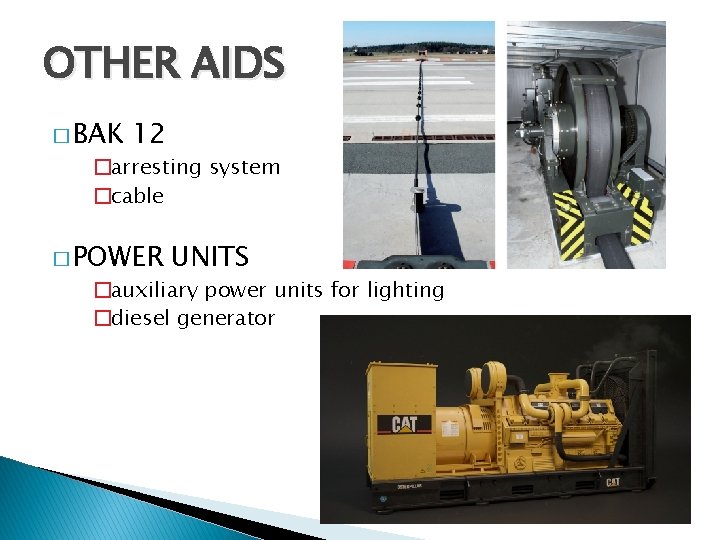

OTHER AIDS � BAK 12 �arresting system �cable � POWER UNITS �auxiliary power units for lighting �diesel generator
Questions ? ?
