RADIOLOGY CASE HISTORIES Facial pain Trauma to orbit
RADIOLOGY
CASE HISTORIES: • Facial pain • Trauma to orbit • Allergic reaction • Bruit heard in neck • Neck mass inferiorly • Dysphagia • Hoarseness • Blurred vision • Epistaxsis
AP Caldwell View of Sinuses 2 4 3 1 5 6 1. Nasal Septum 2. Frontal Sinus 3. Maxillary Sinus 4. Ethmoid Sinus 5. Inferior Turbinate 6. Odontoid process
AP WATERS VIEW Sinuses 1. Frontal sinus 1 2. Ethmoid Sinus 10 3. Nasal Septum (bony) 4. Zygomatical-Frontal Suture 2 5. Maxillary Sinus 4 6. Zygoma 7. Zygomatic Arch 5 3 8. Mandible 9. Inferior orbital margin 6 9 7 8 10. Left orbit
1. Frontal Sinus Lateral Sinus & Skull 2. Maxillary Sinus 3. Ethmoid Sinus 11 4. Spenoid Sinus 5. Sella Turcica 1 6. Occipital Bone 7. Mastoid Air Cells 3 8. Floor of posterior fossa 5 9. Anterior arch of C-1 7 10. Mandible 11. Coronal Suture 2 4 6 9 8 10
AP Townes SKULL 1 1 1. Parietal bone 2. Lambdoid suture 2 3 3. Foramen magnum 4. Petrous temporal bone 5. Mandible 6. Mastoid air cells 4 6 5
Base of the Skull 1. Lat. ptyergoid plate 2. Ethmoid Sinus 6 3. Odontoid Process 4. Sphenoid Sinus 2 5. Foramen ovale 6. Maxillary Sinus 7. Mastoid air cells 8. Ant arch of C-1 9. Margin of foramen magnum 1 10. Ext auditory canal 5 4 10 8 3 9 7
Airway 3 2 5 4 1 1. Calcified tracheal cartilage rings 2. Hyoid bone 3. Epiglottis 4. Thyroid cartilage 5. Cricoid cartilage
1 Lateral Neck 2 3 4 1. Stylo-hyoid ligament 2. Hyoid bone 3. Thyroid cartilage 4. Cricoid cartilage
3 Lateral Neck 1 2 4 4 1. Hard pallate 2. Soft pallate 3. Nasopharynx 4. Oropharynx
Arteriogram 2 3 1. Internal Carotid artery 2. Carotid Syphon 3. Maxillary artery 4. Occipital artery 5. External carotid artery 6. Common carotid artery 4 1 5 6

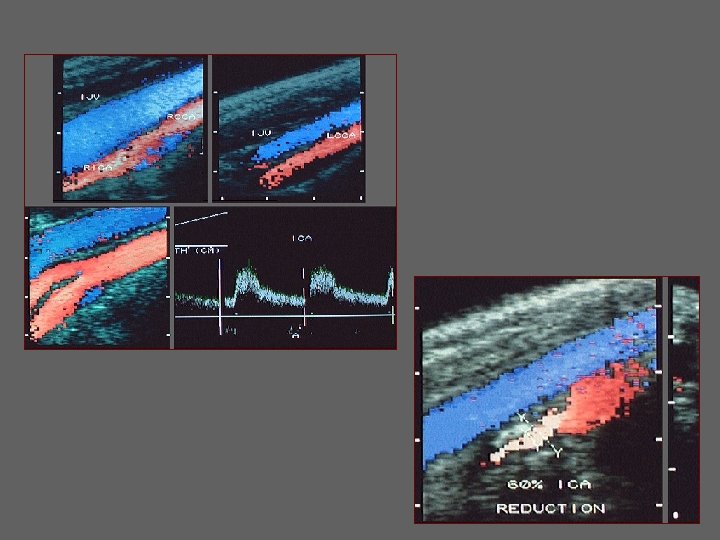

Color Doppler Ultrasound of Carotid Artery

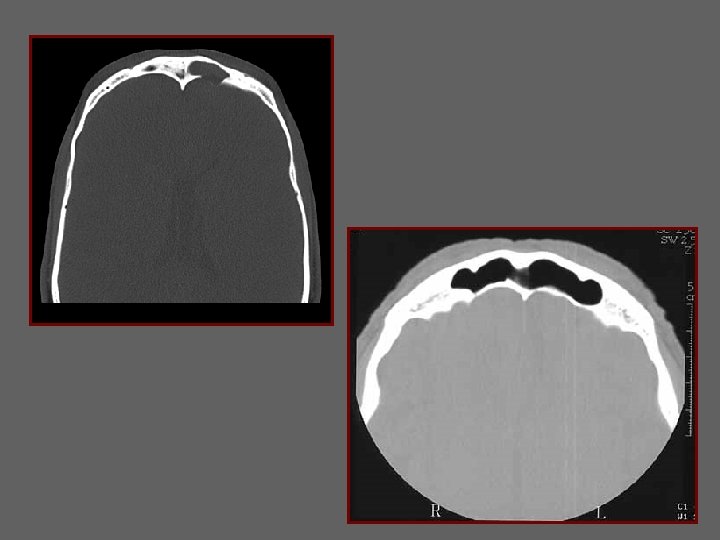

SINUS-CT Axial view 1. Frontal Sinus 1

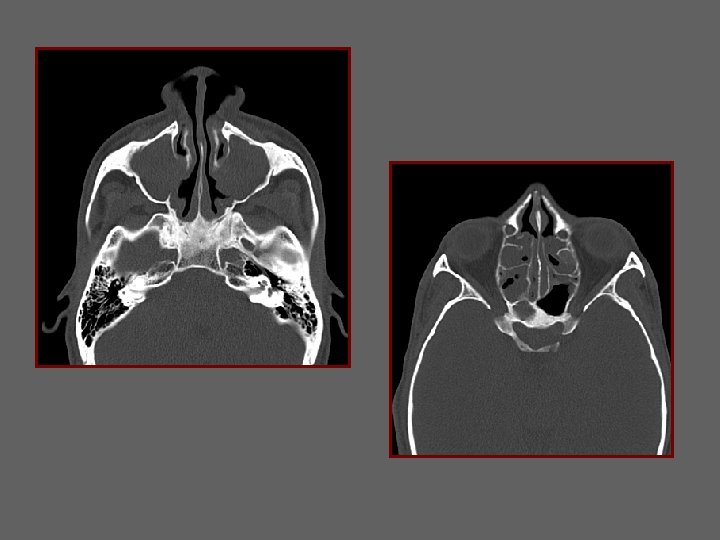

CT of Sinus Axial view 1 1. Ethmoid Sinus 2. Sphenoid Sinus 2 3 3. Carotid canal
1 CT of Sinus Axial view 4 2 5 3 1. Maxillary Sinus 2. Pterygoid plate 3. Nasopharynx 4. Nasal septum 5. Inferior turbinate
CT of Sinus 1 Axial View 2 4 4 3 3 1. Maxillary Sinus 2. Hard Palate 3. Mandible 4. Masseter muscle

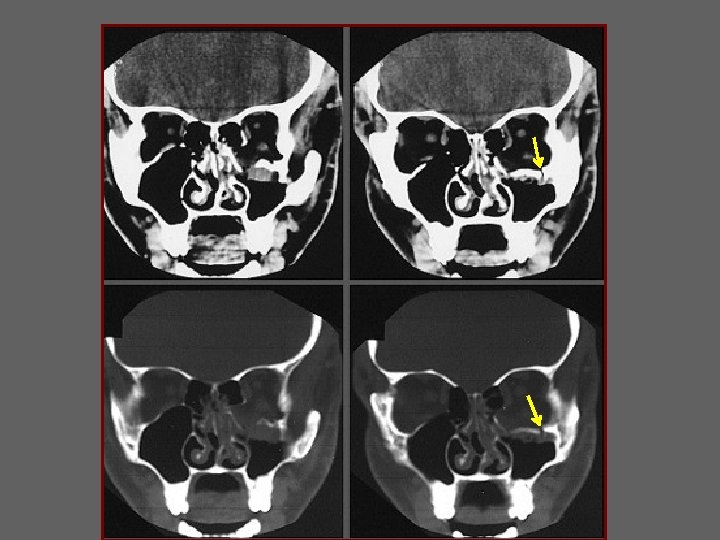

2 Coronal view of Sinus 1 3 1. Fronto-nasal suture 2. Frontal sinus 3. Nasal bones
1 3 2 Coronal view of sinus 1. Ethmoid sinus 2. Inferior turbinate 3. Middle turbinate
1 Coronal view of sinus 2 1. Maxillary sinus 2. Nasal Septum
Coronal View of sinus 1 1. Sphenoid sinus 2. Hard Palatte 2
Axial scan of orbit 2 1 3 4 5 1. Retrorbital fat 2. Medial rectus 3. Lens 4. Lateral rectus 5. Optic nerve
SCAN LEVEL MAXILLARY SINUSES ZYGOMA LT ZYGOMA SPHENOID SINUS
SCAN LEVEL MANDIBULAR CONDYLE MAXILLA LT EXTERNAL AUDITORY MEATUS NASOPHARNYX MASTOIDS
SCAN LEVEL MASSETER MUSCLE MANDIBLE PTERYGOID MUSCLES PAROTID GLAND MASSETER MUSCLE LT
SCAN LEVEL SUBMANDIBULAR GLAND EPIGLOTTIS STERNOCLEIOMASTOID MUSCLE SUBCUTANEOUS FAT LT
SCAN LEVEL LT HYOID BONE JUGULAR VEIN COMMON CAROTID ARTERIES

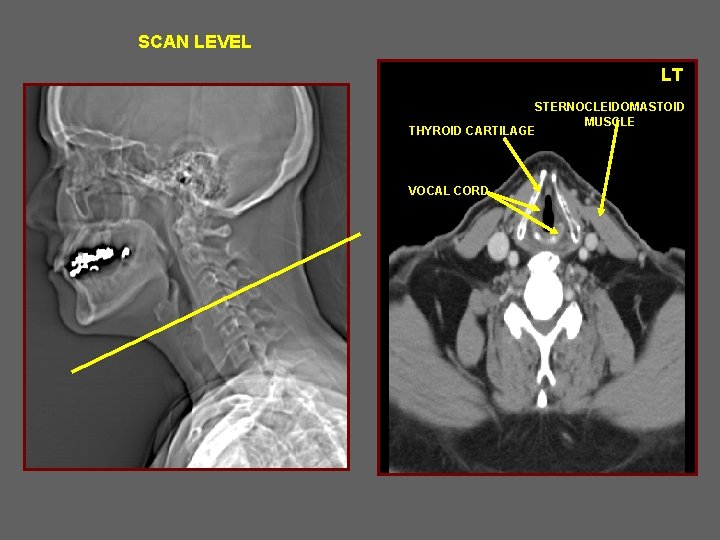

SCAN LEVEL LT STERNOCLEIDOMASTOID MUSCLE THYROID CARTILAGE VOCAL CORD
SCAN LEVEL LT THYROID CARTILAGE COMMON CAROTID ARTERY JUGULAR VEIN CRICOID CARTILAGE
LT SCAN LEVEL THYROID GLAND CLAVICLE FAT TRACHEA ESOPHAGUS FAT
CASE HISTORIES: • Facial pain • Trauma to orbit • Allergic reaction • Bruit heard in neck • Neck mass inferiorly • Dysphagia • Hoarseness • Blurred vision • Epistaxsis

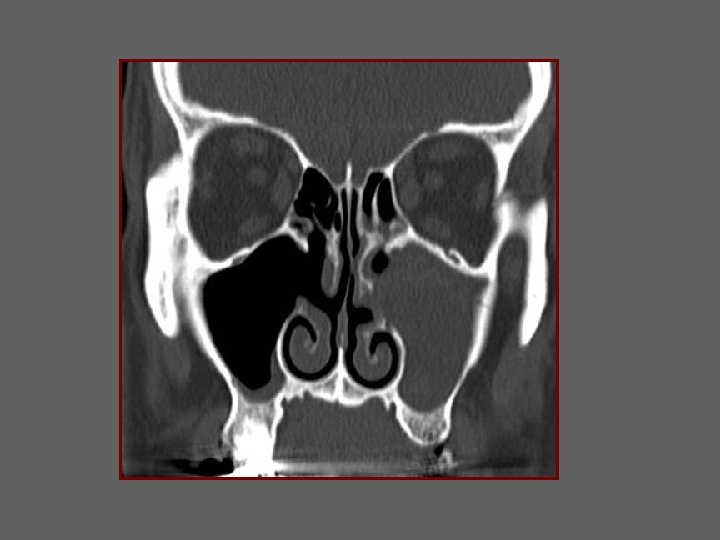

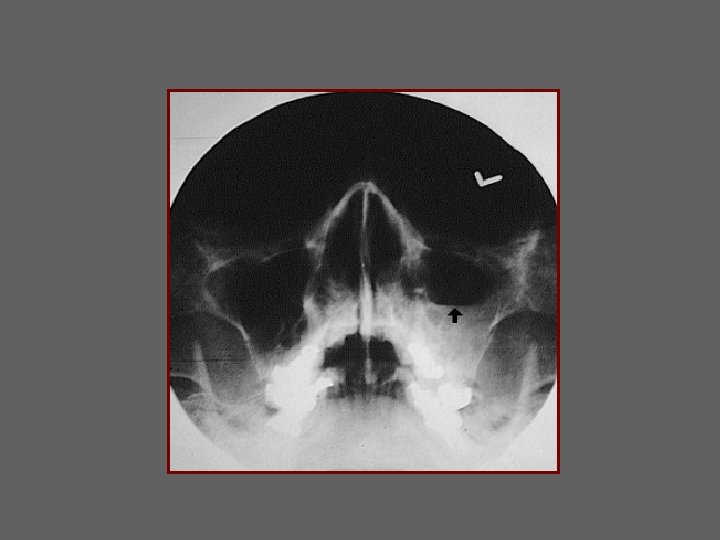

FACIAL PAIN AND NASAL CONGESTION

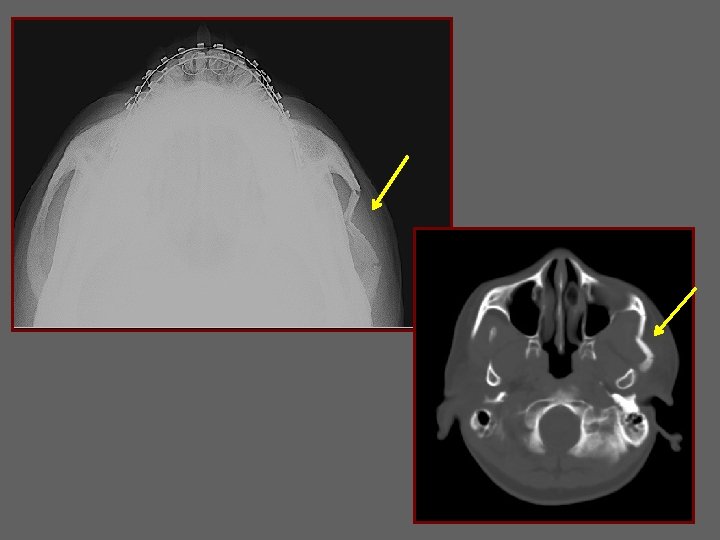

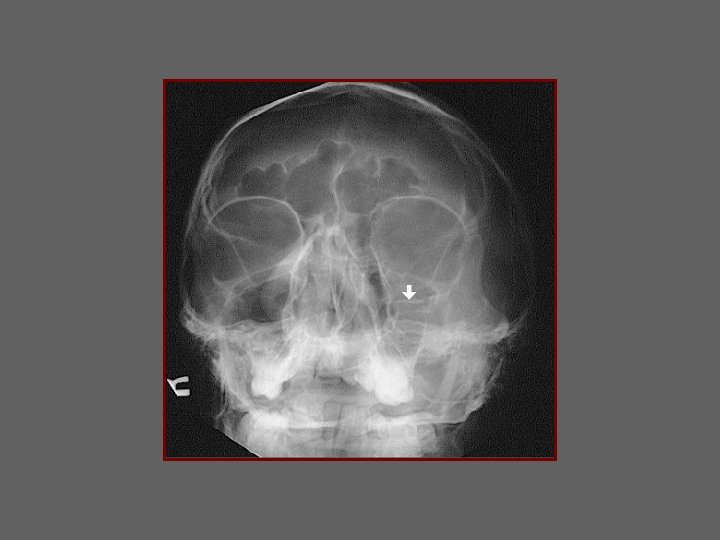

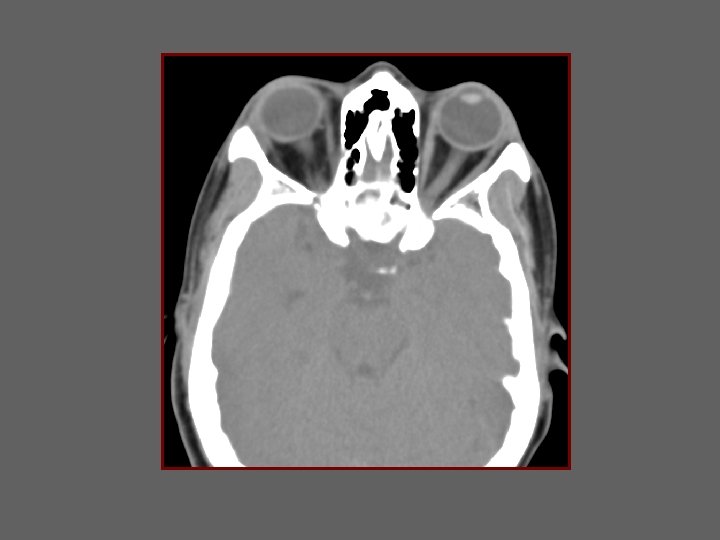

TRAUMA TO ORBIT
PT WITH ALLERGIC REACTION

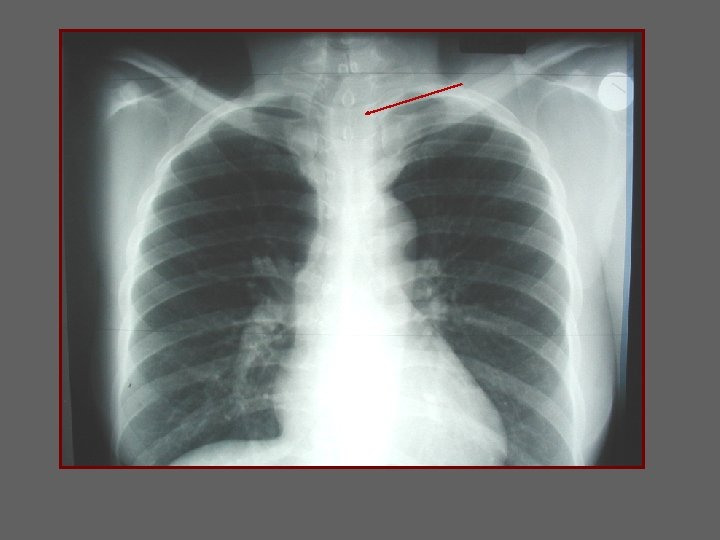

ASYMTOMATIC BRUIT ON PHYSICAL EXAM
Arteriogram 2 3 1. Internal Carotid artery 2. Carotid Syphon 3. Maxillary artery 4. Occipital artery 5. External carotid artery 6. Common carotid artery 4 1 5 6
LATERAL CAROTID ARTERIOGRAM
Subtraction film

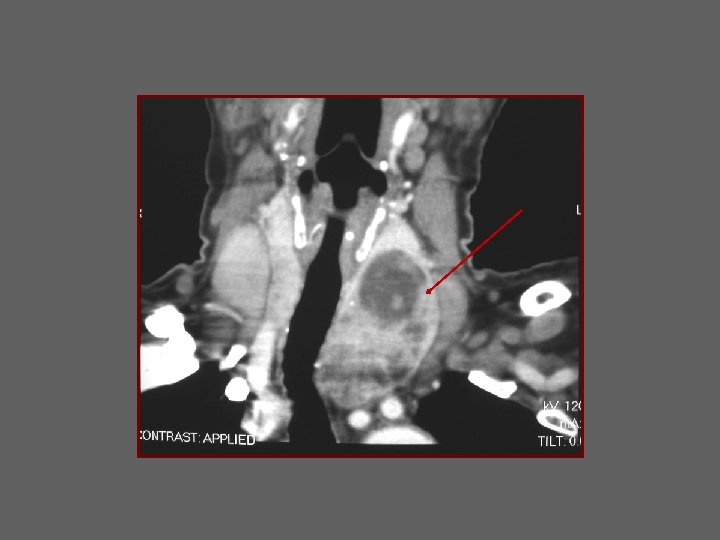

PALPABLE NECK MASS INFERIORLY
Thyroid Scan Nuclear Medicine
Thyroid Scan Nuclear Medicine

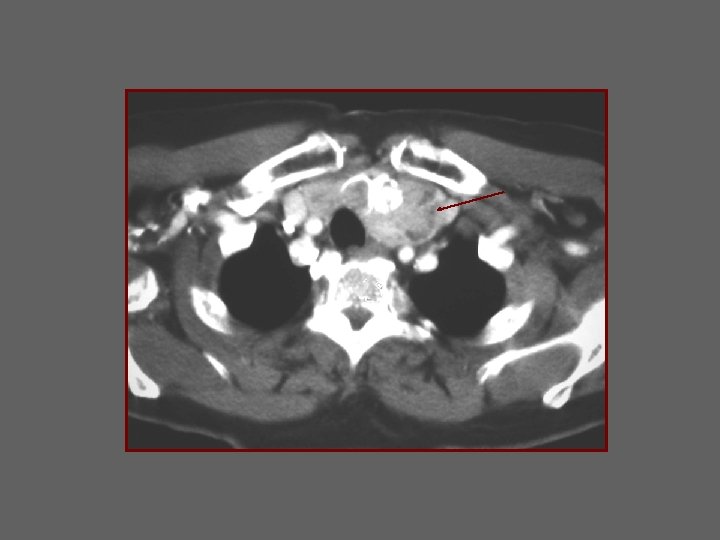

Thyroid

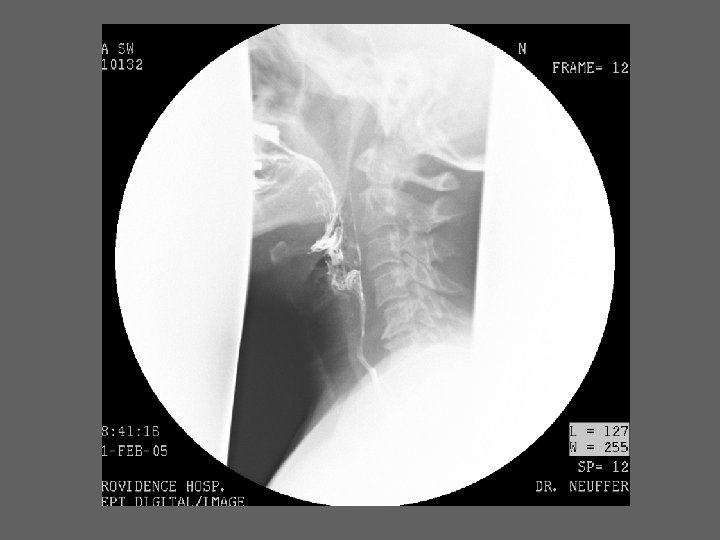

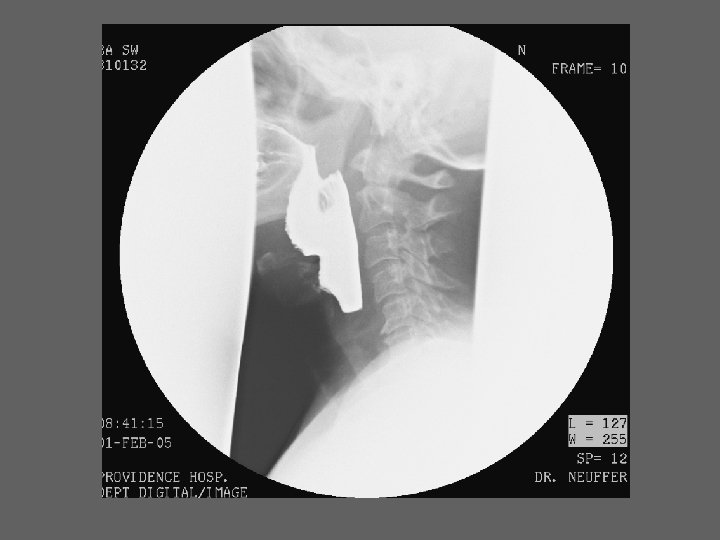

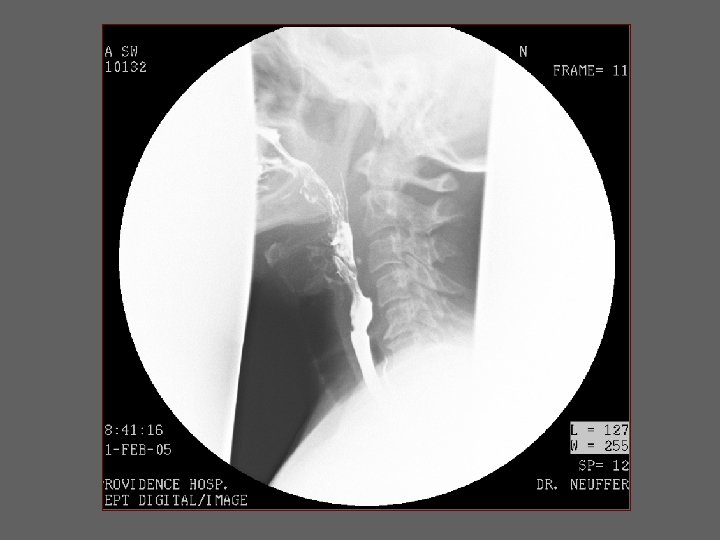

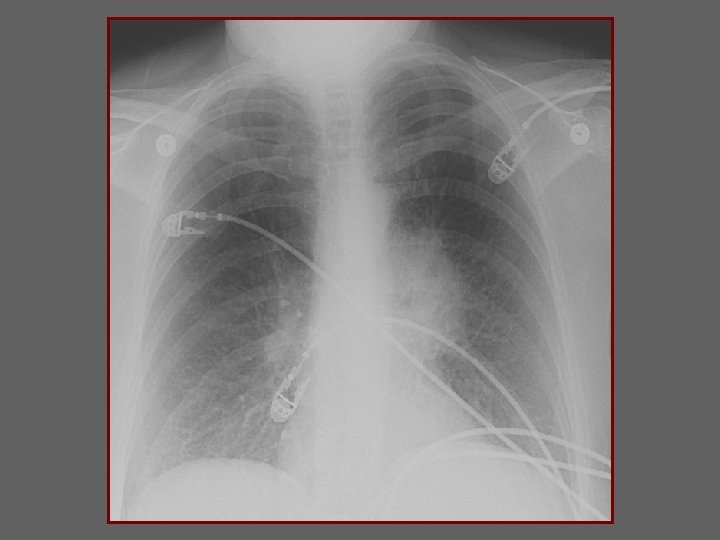

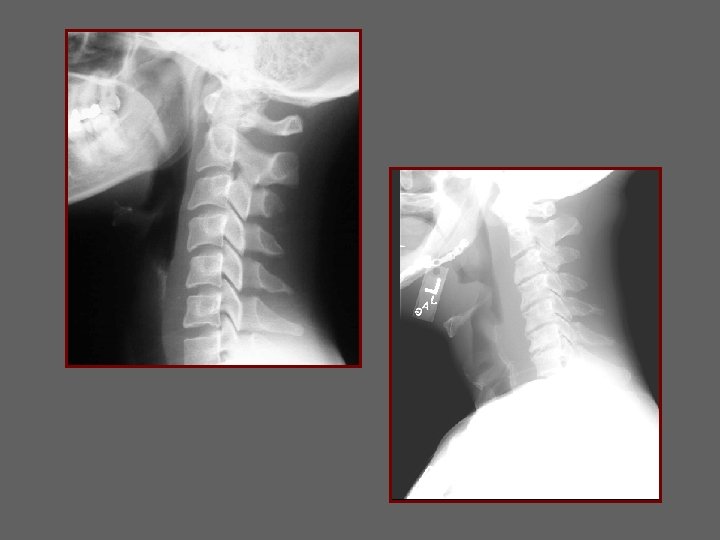

DYSPHAGIA

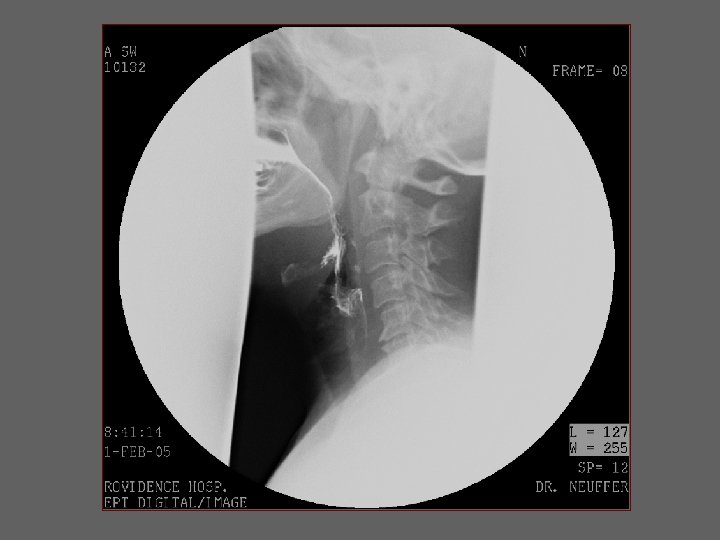

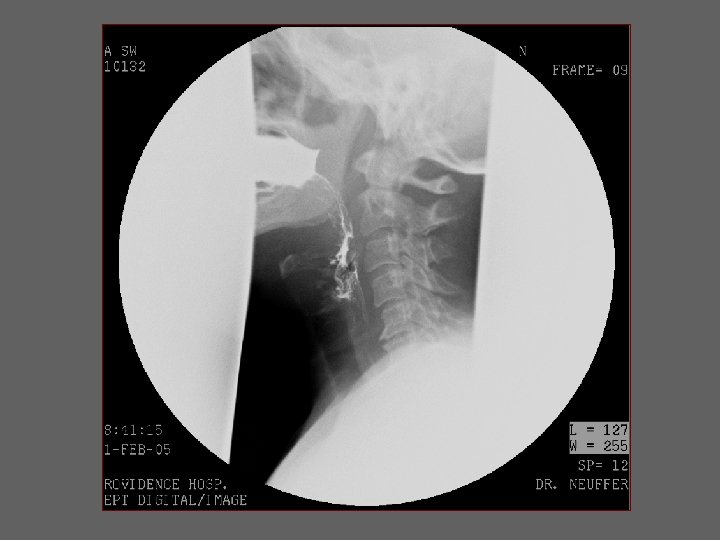

ASPIRATION NORMAL

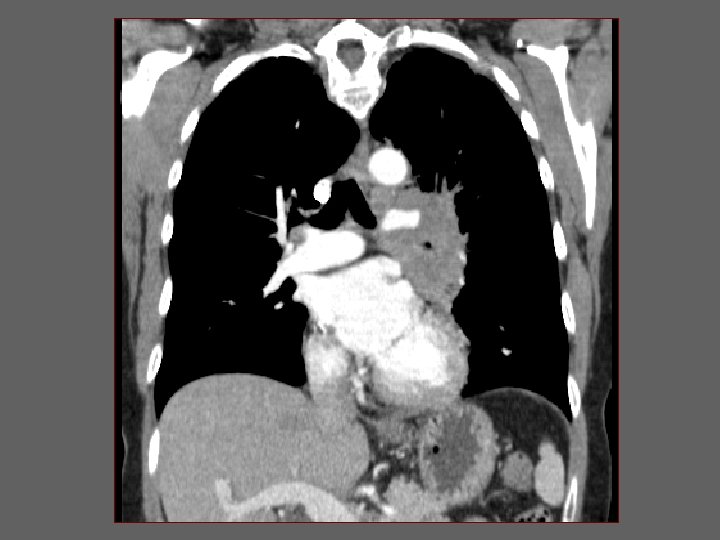

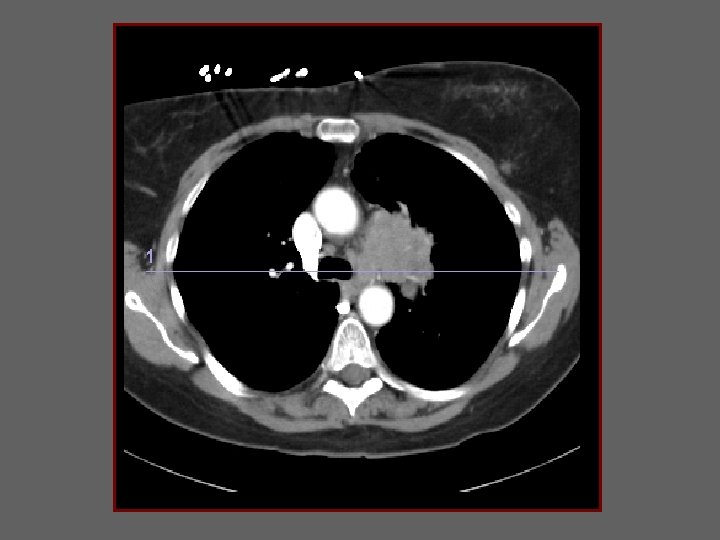

HOARSENESS
VISUAL FIELD DEFECT BLURRED VISION
Normal skull Normal Sella
Normal Sella Mass

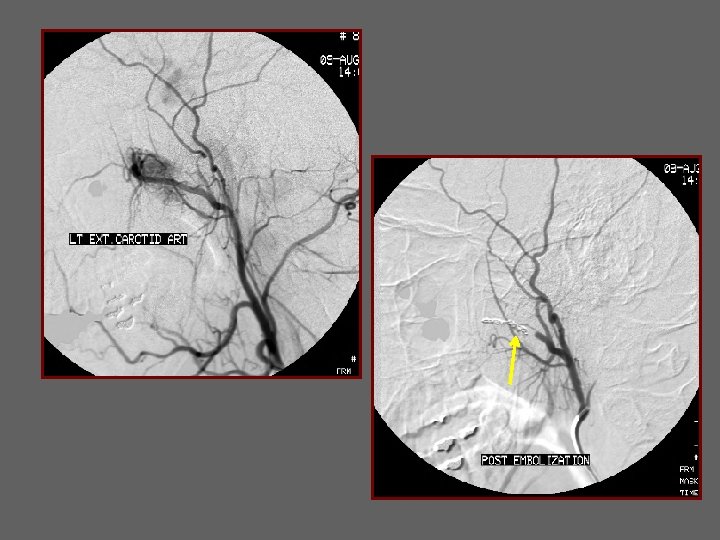

EPISTAXIS

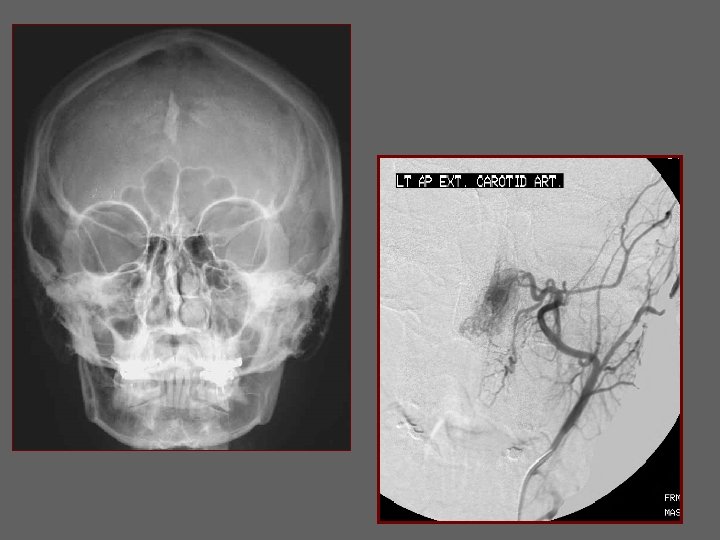

Vascular Tumor Normal
- Slides: 73
