Radioactivity Veronica Equiua Physics 223 Table of Content
Radioactivity Veronica Equiua Physics & 223

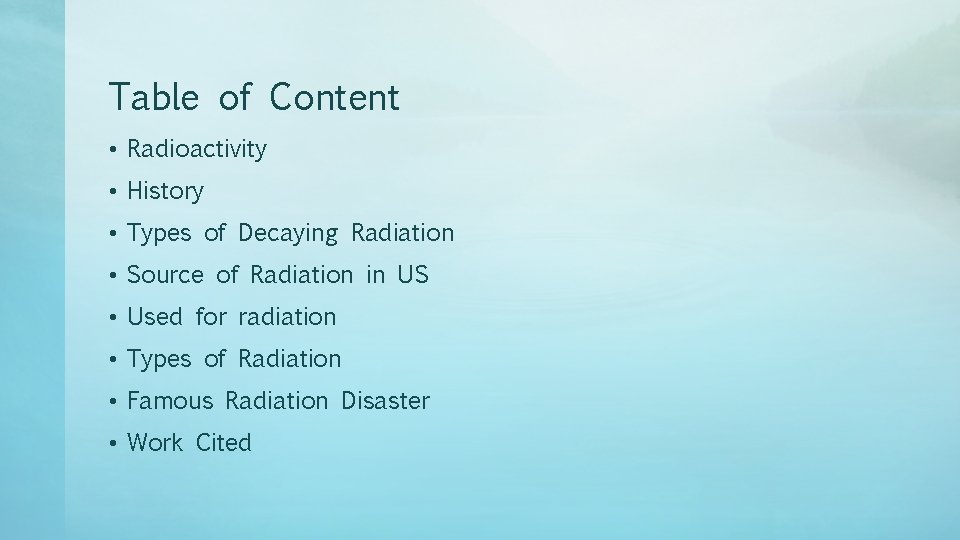

Table of Content • Radioactivity • History • Types of Decaying Radiation • Source of Radiation in US • Used for radiation • Types of Radiation • Famous Radiation Disaster • Work Cited
Radioactivity •

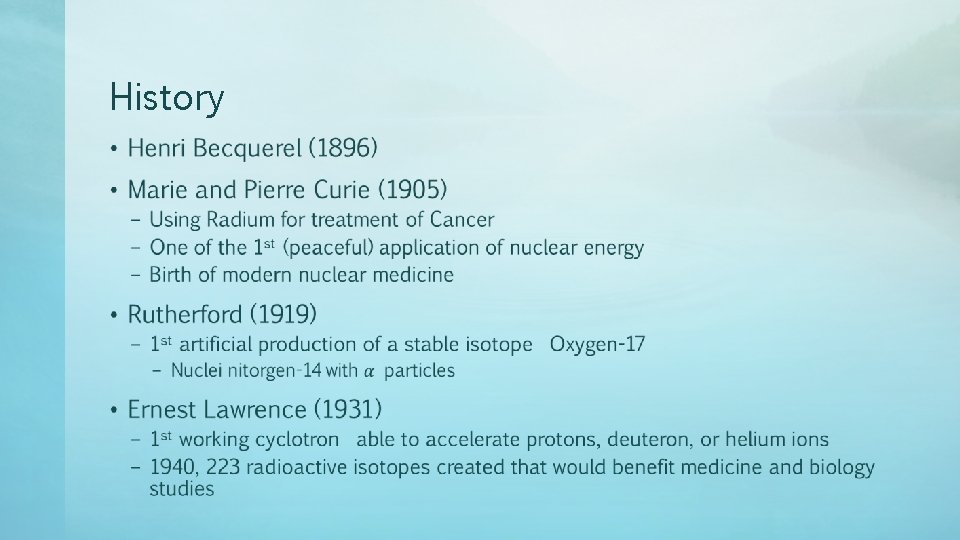

History

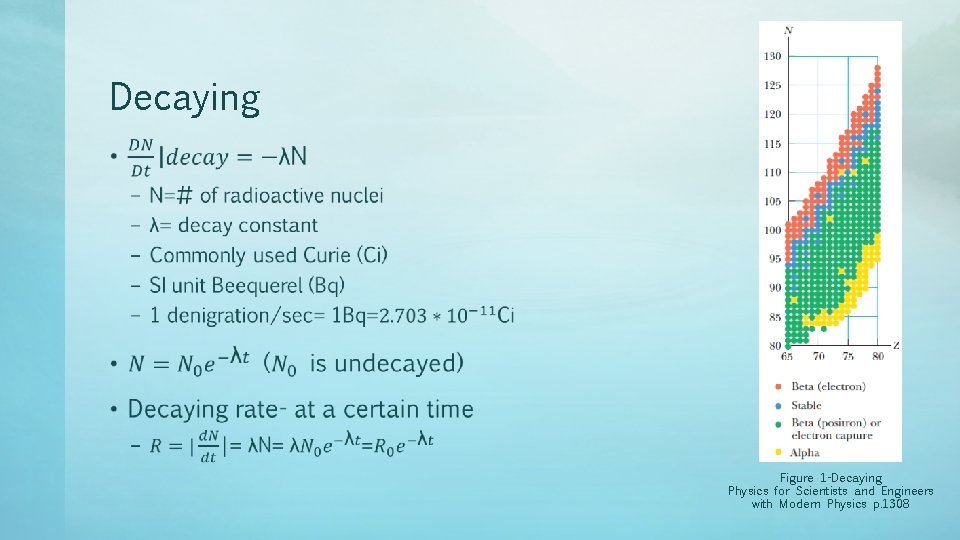

Decaying Figure 1 -Decaying Physics for Scientists and Engineers with Modern Physics p. 1308
Half-life • Figure 2 - Half life Physics for Scientists and Engineers with Modern Physics p. 135

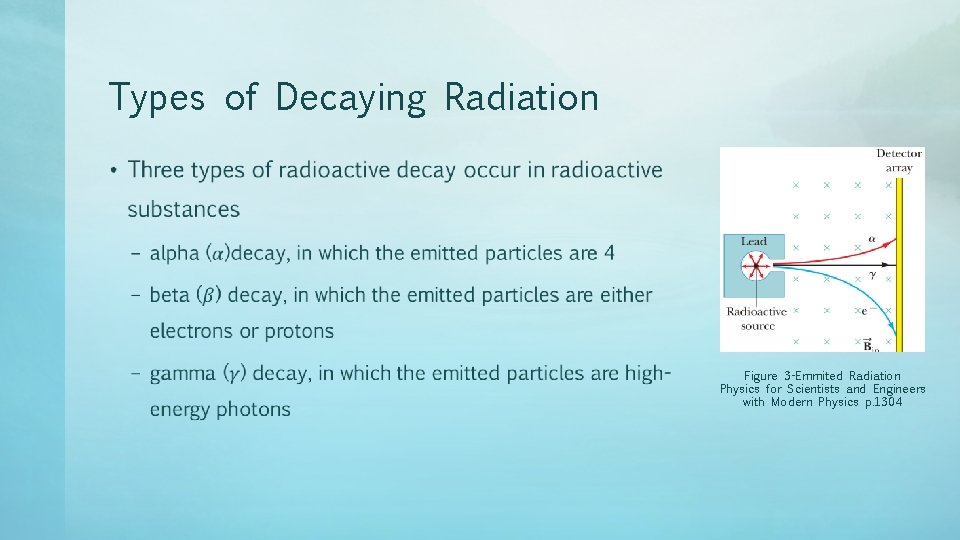

Types of Decaying Radiation • Figure 3 -Emmited Radiation Physics for Scientists and Engineers with Modern Physics p. 1304

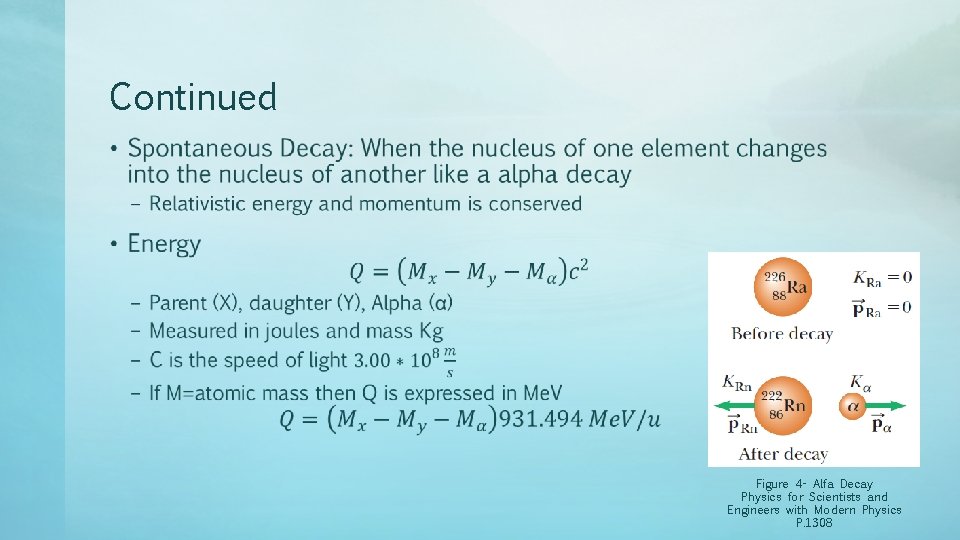

Continued • Figure 4 - Alfa Decay Physics for Scientists and Engineers with Modern Physics P. 1308
• Beta particles can penetrate a few millimeters of aluminum • Beta decay itself comes in two kinds: β+ and β-. • β- emission occurs by the transformation of one of the nucleus’s neutrons into a proton, an electron and an antineutrino. • β+ decays is a similar process, but involves a proton changing into a neutron, a positron and a neutrino.

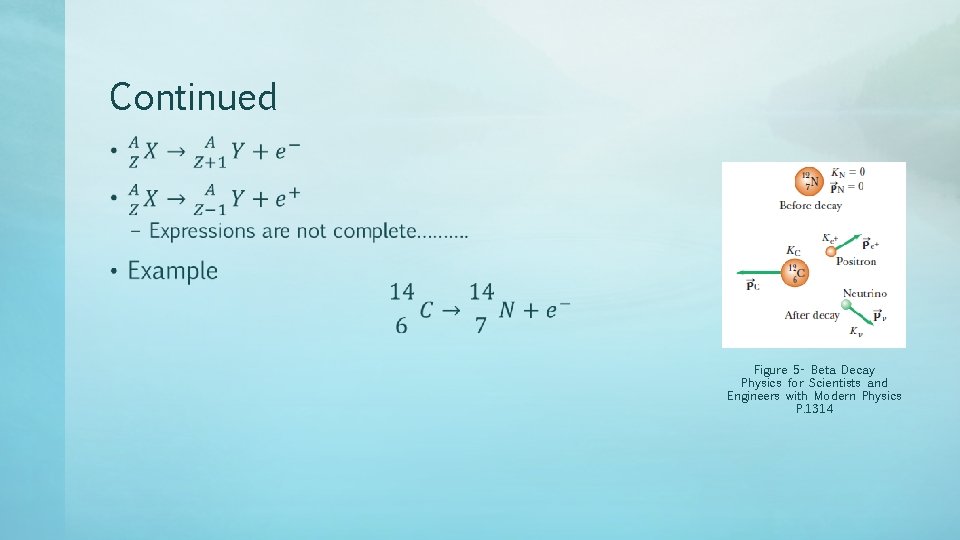

Continued • Figure 5 - Beta Decay Physics for Scientists and Engineers with Modern Physics P. 1314

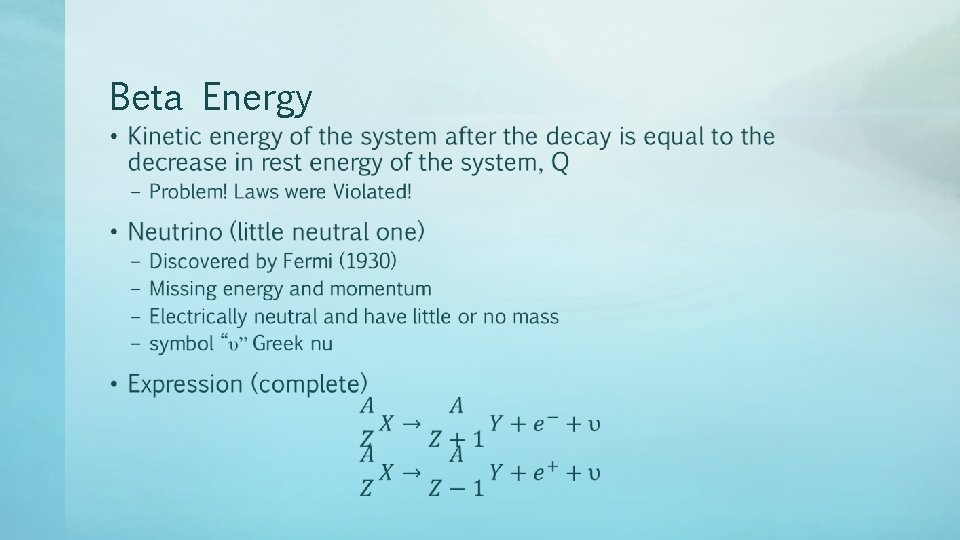

Beta Energy •

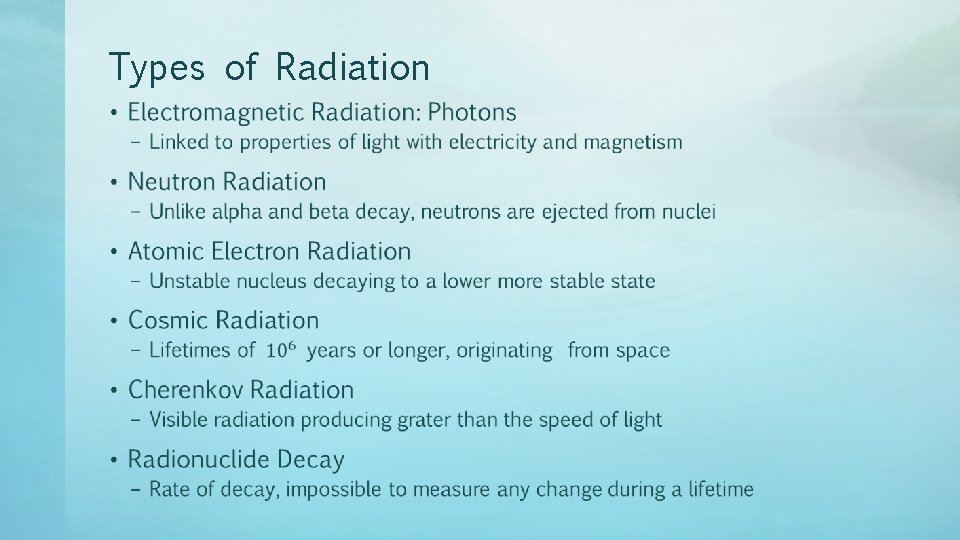

Types of Radiation •

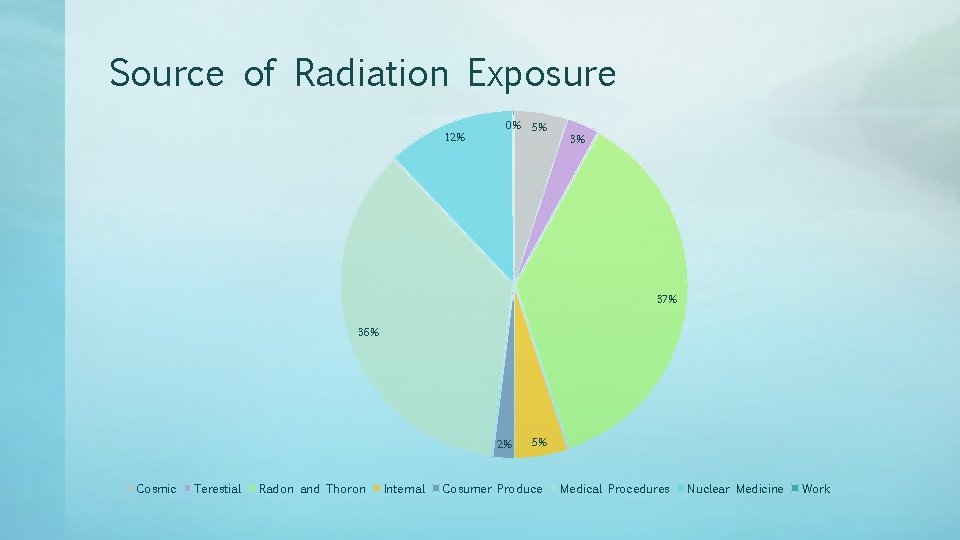

Source of Radiation Exposure 12% 0% 5% 3% 37% 36% 2% Cosmic Terestial Radon and Thoron Internal 5% Cosumer Produce Medical Procedures Nuclear Medicine Work

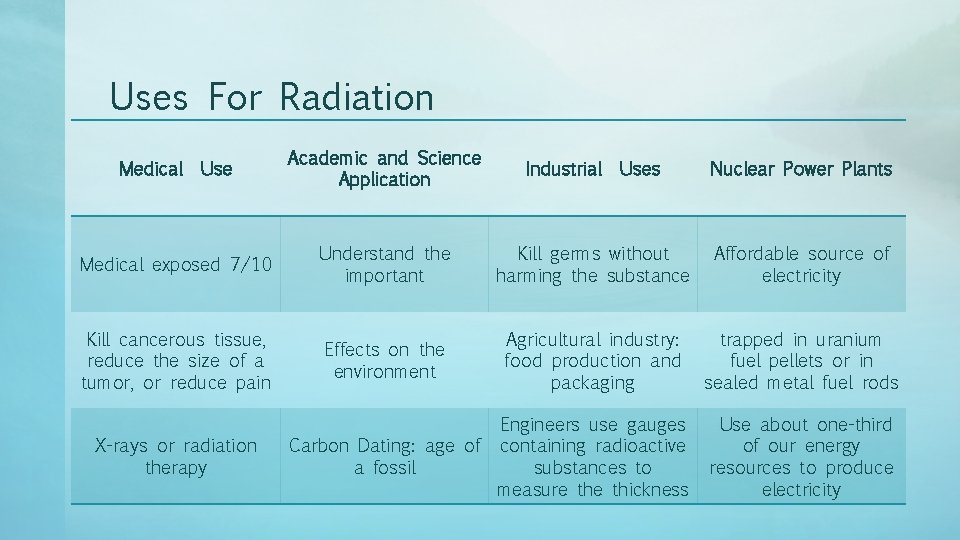

Uses For Radiation Medical Use Academic and Science Application Industrial Uses Nuclear Power Plants Medical exposed 7/10 Understand the important Kill germs without harming the substance Affordable source of electricity Kill cancerous tissue, reduce the size of a tumor, or reduce pain Effects on the environment Agricultural industry: food production and packaging trapped in uranium fuel pellets or in sealed metal fuel rods X-rays or radiation therapy Engineers use gauges Carbon Dating: age of containing radioactive a fossil substances to measure thickness Use about one-third of our energy resources to produce electricity

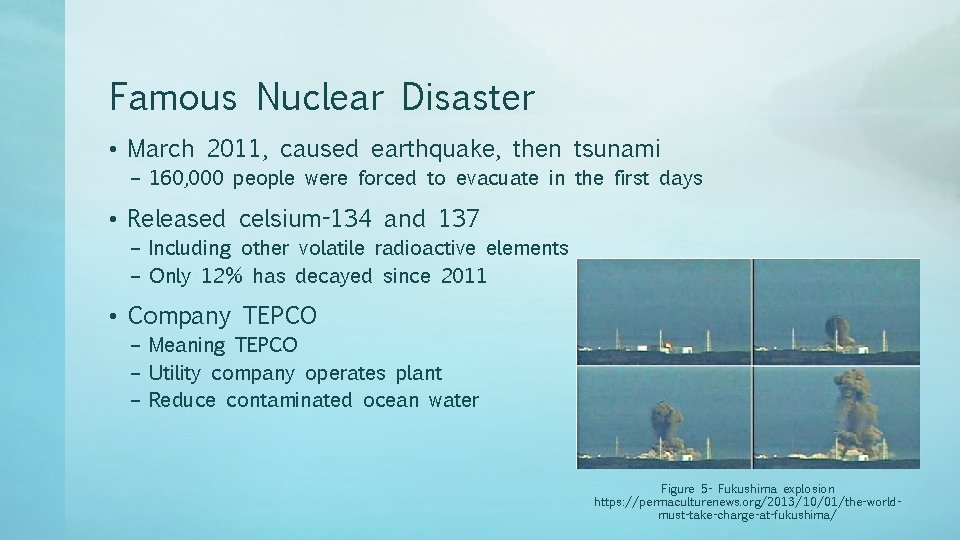

Famous Nuclear Disaster • March 2011, caused earthquake, then tsunami – 160, 000 people were forced to evacuate in the first days • Released celsium-134 and 137 – Including other volatile radioactive elements – Only 12% has decayed since 2011 • Company TEPCO – Meaning TEPCO – Utility company operates plant – Reduce contaminated ocean water Figure 5 - Fukushima explosion https: //permaculturenews. org/2013/10/01/the-worldmust-take-charge-at-fukushima/

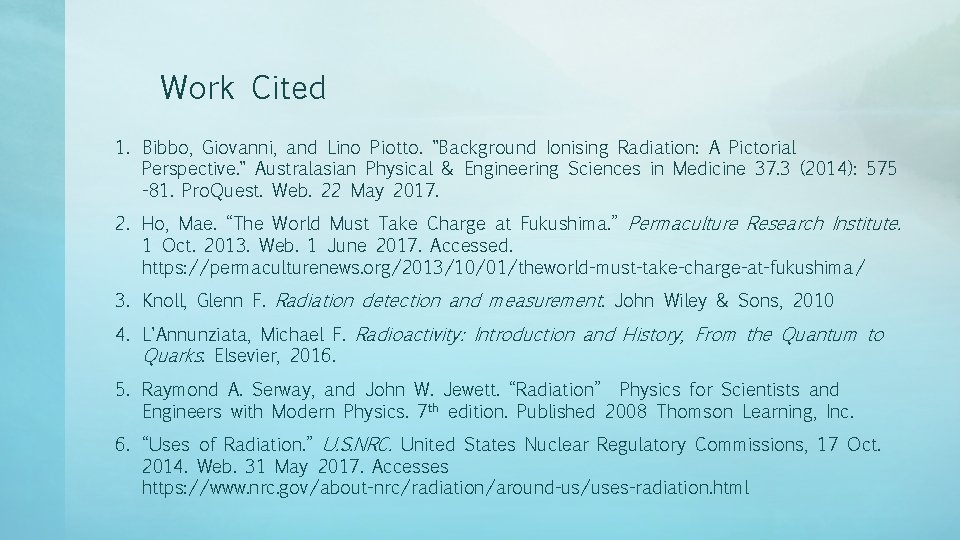

Work Cited 1. Bibbo, Giovanni, and Lino Piotto. "Background Ionising Radiation: A Pictorial Perspective. " Australasian Physical & Engineering Sciences in Medicine 37. 3 (2014): 575 -81. Pro. Quest. Web. 22 May 2017. 2. Ho, Mae. “The World Must Take Charge at Fukushima. ” Permaculture Research Institute. 1 Oct. 2013. Web. 1 June 2017. Accessed. https: //permaculturenews. org/2013/10/01/theworld-must-take-charge-at-fukushima/ 3. Knoll, Glenn F. Radiation detection and measurement. John Wiley & Sons, 2010 4. L'Annunziata, Michael F. Radioactivity: Introduction and History, From the Quantum to Quarks. Elsevier, 2016. 5. Raymond A. Serway, and John W. Jewett. “Radiation” Physics for Scientists and Engineers with Modern Physics. 7 th edition. Published 2008 Thomson Learning, Inc. 6. “Uses of Radiation. ” U. S. NRC. United States Nuclear Regulatory Commissions, 17 Oct. 2014. Web. 31 May 2017. Accesses https: //www. nrc. gov/about-nrc/radiation/around-us/uses-radiation. html
