Radio Warning Heavy Science Content Ahead Baghdad battery
Radio
*Warning* Heavy Science Content Ahead
Baghdad battery – 250 BCE
n Electricity was a heavy duty toy for decades, including Ben Franklin and his kite, people rubbing cat skins on glass or amber rods, spinning sulfur balls, and sparking everything and everyone in sight
Luigi Galvani - 1786 n n n Believed everything contained electricity Looked for “animal magnetism” Touched different metals to frogs’ legs which twitched
Alessandro Volta - 1796
Alessandro Volta - 1796 n n Volta took Galvani’s experiment and showed that it was the current produced by the different metals that caused the twitch Built a pile of alternating sandwiches of zinc and copper in an acid and created electicity
Hans Christian Oersted - 1820
Oersted’s experiment - 1820 n In a lecture in Copenhagen he performed an experiment to demonstrate there was no connection between electricity and magnetism by showing that an electric current passing through a wire wouldn’t affect a nearby compass needle
n n Imagine his surprise when the needle swung the moment he turned on the current He demonstrated that electricity created a magnetic field
William Sturgeon - 1825 Created the first electromagnet by wrapping wire around a soft iron bar and sending a current through the wire n Electricity can create magnetism n
Michael Faraday - 1826 n n Reversed Sturgeon’s experiment Showed that magnetism could create an electric current

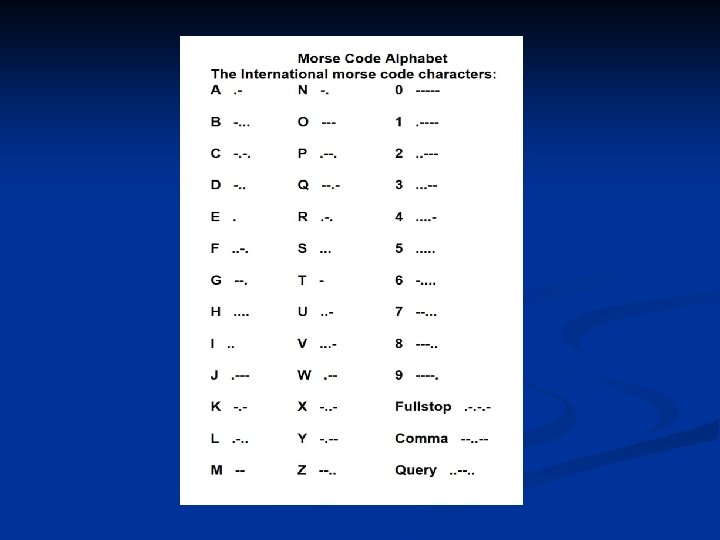

Samuel F. B. Morse - 1838

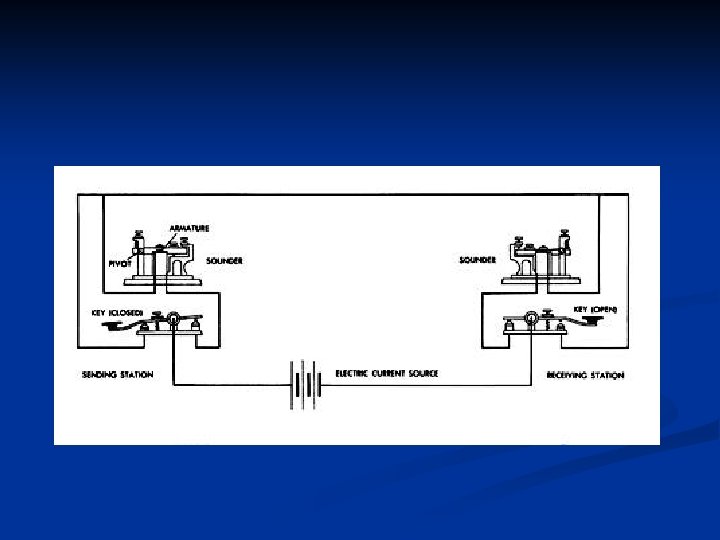

n Used a an on-off switch – the telegraph key – to turn an electric current on and off, sending pulses of current through a wire to an electromagnet that would click in time to the pulses
Johannes Mueller - 1840
n Examined physical sensations Can you feel colors n Can you hear shapes n Can you smell sounds n Discovered that each sense detects different things n We think this is obvious, but no one had proven it before. Remember “common sense”? n
Herman Hemholtz - 1857
Meuller’s pupil n Investigated hearing n Noticed sound produced vibrations n
n Did the vibrations operate at different frequencies? They did n Thus, sound traveled at different frequencies n n Used an electromagnet to attract the arms of a tuning fork, causing it to vibrate and produce sound
Leon Scott de Martinville phonautograph - 1857 n n n Attached a bristle to a membrane at the end of a cone, set the bristle to touch a piece of smoked glass Spoke into the cone membrane vibrated to the sound and the bristle etched a wavy line onto the smoked glass
The Telephone - 1876 n Scott’s membrane, Faraday’s electromagnet, Oersted’s and Sturgeon’s electromagnet, Morse’s wire and electrical current, Heimholtz’s vibration, Scott’s membrane
Bell and Gray
Samuel Morse
Heinrich Hertz - 1886
Hemholtz’s pupil n Investigated whether electricity traveled in frequencies the way sound did n
Spark gap generator
Hertz’ spark gap experiment
Demonstrated that electricity traveled through air at specific frequencies, just like it did through wires
Guglielmo Marconi - 1894
Marconi radio
Morse key
Marconi and his radio
Nikola Tesla
Tesla coil - 1891 n n n Developed the first amplifier coil, the Tesla coil Raised the voltage of an electrical current high enough to allow the air to conduct the current Key to wireless transmission of radio waves
Reginald Fessenden
Felt that the variation in electrical amplitude created by a voice, just like on a telephone, could be carried by electrical wave of a radio signal n Did the first voice broadcast in 1900 n Short range n Poor quality n n Needed far more power
Ernst Alexanderson
Developed the Alexanderson Alternator, a machine capable of generating the power, up to 100, 000 hertz, that Fessenden needed to piggyback voice onto radio waves n In Dec. 1906, Fessenden did the first good voice and music broadcast, going hundreds of miles n Poetry and a Bible reading n A woman singing opera n A violin playing a Christmas carol n
Lee de Forest
The audion tube is actually a Fleming valve (British term for tube) invented in England n de Forest simply added the bent wire n

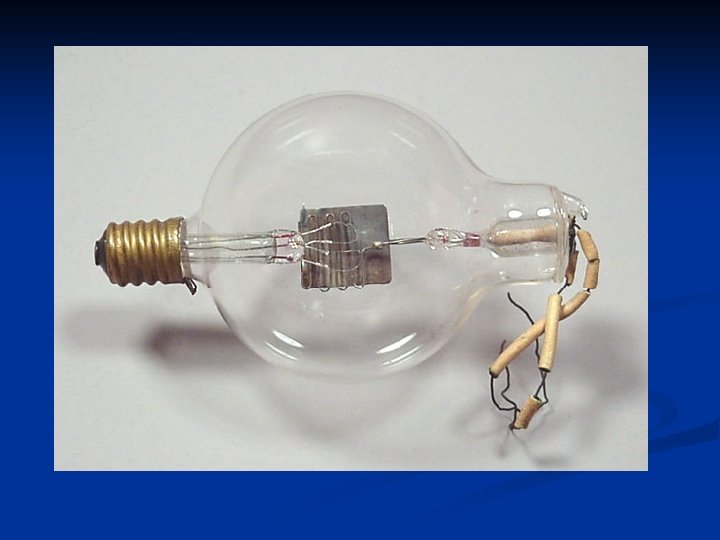

De Forest’s audion tube 1904
Audion tube amplified the radio signal the way the Alexanderson generator increased the electrical power n de Forest didn’t know how the audion worked n Another man did n
Edwin Howard Armstrong
Investigated the audion tube, figured out how it worked, and improved it n Developed “regeneration” n The signal was fed back into the tube over and over again, up to 20, 000 times a second n Vastly increased the power of the tube to output the signal – it was an amplifier n Raise the level enough and the tube becomes a transmitter n Armstrong invented the ability to broadcast sound n
It combined high frequency waves with low frequency waves, then fed them back into the system to amplify the signal and increase its sensitivity n Resulted in the creation of the home, and the portable, radio n
Armstrong’s superheterodyne n Armstrong’s next invention was the superheterodyne
Crystal Radio
David Sarnoff
Enamored of radio n Saw the possibilities n Wrote the “Radio Music Box Memo” that outlined the commercial possibilities of radio n
RCA (Radio Corporation of America) After World War I n Four companies merged their patents to create RCA n American Marconi n General Electric n American Telephone & Telegraph n Westinghouse n n Sarnoff named as commercial manager
n Used Armstrong’s inventions, building superheterodyne radios to build RCA, the Radio Corporation of America, into one of the biggest companies in the world
Radio stations soon opened all over the U. S. Including KWSC (now KWSU) in 1922, one of the first radio stations in the country
https: //skylight. wsu. edu/st udent
Examples of programming n n n n Operas Concerts Sports News Dramas Comedies Variety shows Soap operas n Pretty much everything we get on TV today
Fibber Mc. Gee and Molly
Burns and Allen
Fred Allen
Abbott and Costello
Orson Welles - 1938
Hindenburg disaster - 1937
Edward R. Murrow
The Advent of Television
n It was assumed that radio would be dead Audiences would watch TV instead of listening to the radio n TV took over so many of the radio programs n n Soap operas n Dramas n Sitcoms n Sports n news
Radio had a great advantage over TV – Portability
Take it anywhere
Even in the car
New kinds of programming n Music Top 40 n Country n Rock n Easy listening n Golden oldies n n Talk shows
Howard Stern

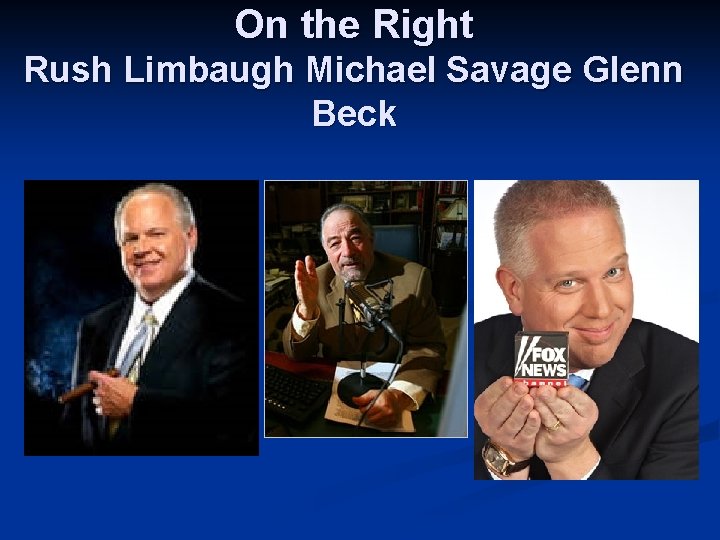

On the Right Rush Limbaugh Michael Savage Glenn Beck
On the Left Ed Schultz Stephanie Miller
