RAdio Detection And Ranging World War II Was

RAdio Detection And Ranging

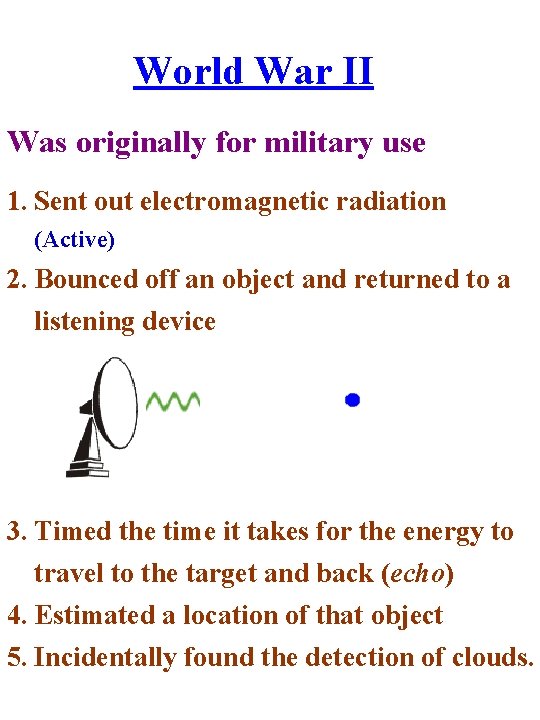

World War II Was originally for military use 1. Sent out electromagnetic radiation (Active) 2. Bounced off an object and returned to a listening device 3. Timed the time it takes for the energy to travel to the target and back (echo) 4. Estimated a location of that object 5. Incidentally found the detection of clouds.

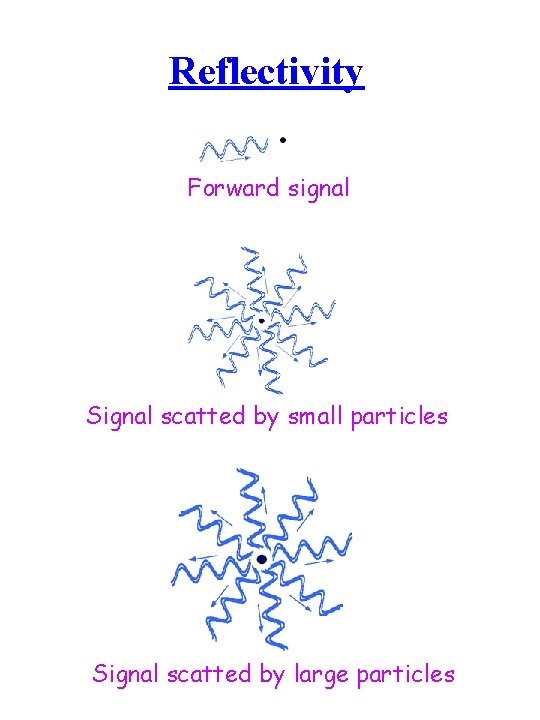

Reflectivity Forward signal Signal scatted by small particles Signal scatted by large particles

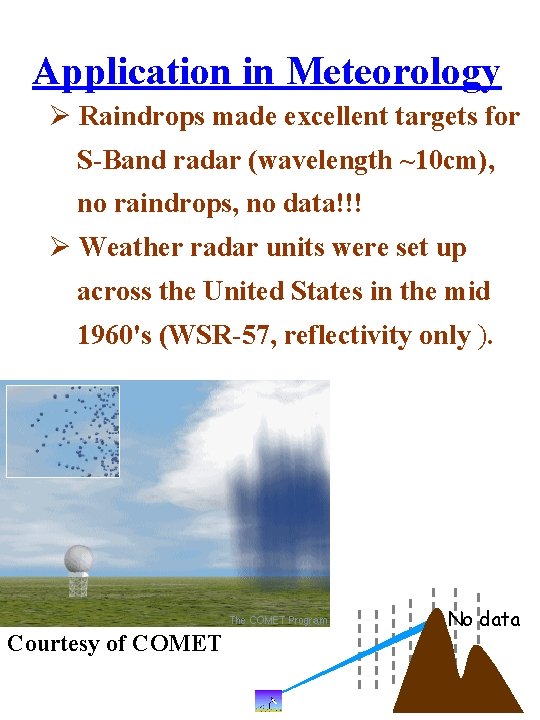

Application in Meteorology Ø Raindrops made excellent targets for S-Band radar (wavelength ~10 cm), no raindrops, no data!!! Ø Weather radar units were set up across the United States in the mid 1960's (WSR-57, reflectivity only ). Courtesy of COMET No data

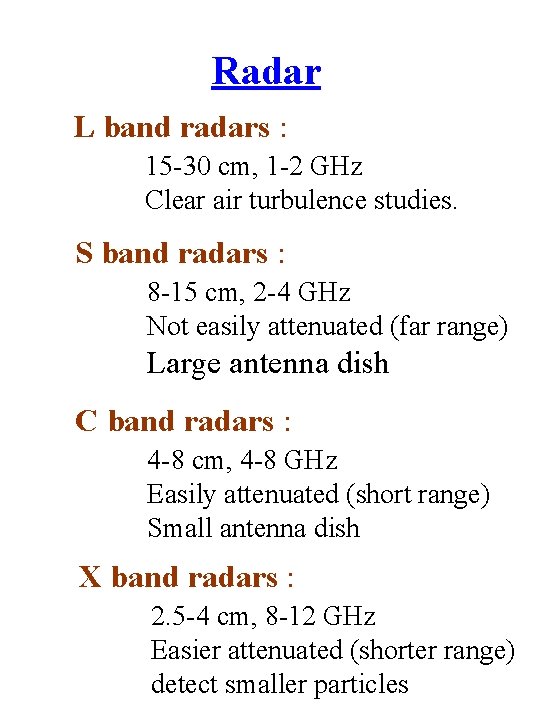

Radar L band radars : 15 -30 cm, 1 -2 GHz Clear air turbulence studies. S band radars : 8 -15 cm, 2 -4 GHz Not easily attenuated (far range) Large antenna dish C band radars : 4 -8 cm, 4 -8 GHz Easily attenuated (short range) Small antenna dish X band radars : 2. 5 -4 cm, 8 -12 GHz Easier attenuated (shorter range) detect smaller particles

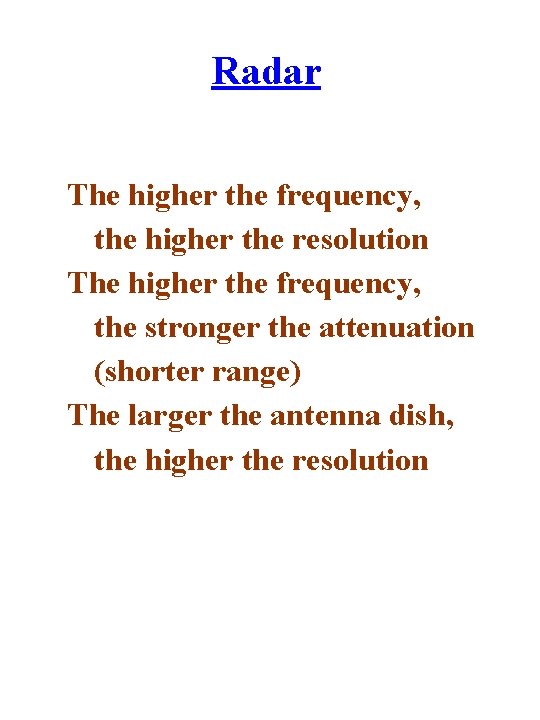

Radar The higher the frequency, the higher the resolution The higher the frequency, the stronger the attenuation (shorter range) The larger the antenna dish, the higher the resolution

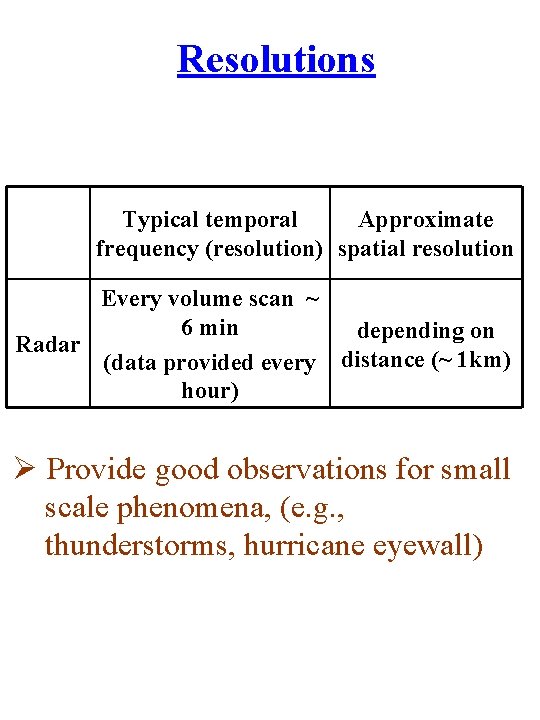

Resolutions Typical temporal Approximate frequency (resolution) spatial resolution Every volume scan ~ 6 min depending on Radar (data provided every distance (~ 1 km) hour) Ø Provide good observations for small scale phenomena, (e. g. , thunderstorms, hurricane eyewall)

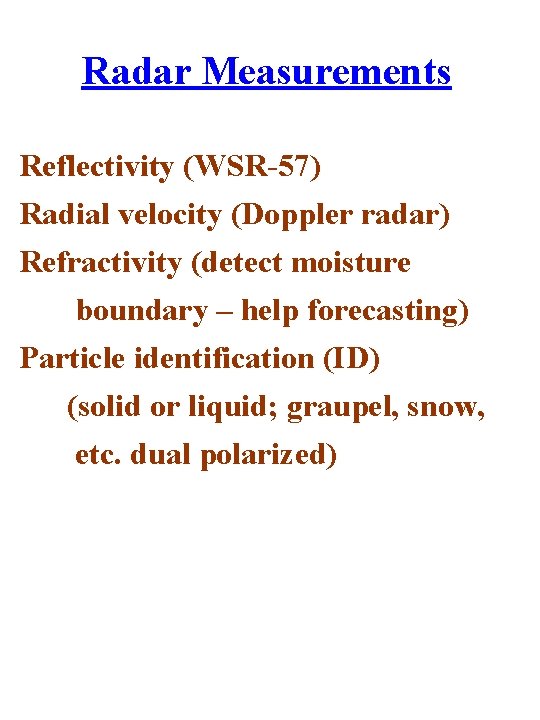

Radar Measurements Reflectivity (WSR-57) Radial velocity (Doppler radar) Refractivity (detect moisture boundary – help forecasting) Particle identification (ID) (solid or liquid; graupel, snow, etc. dual polarized)

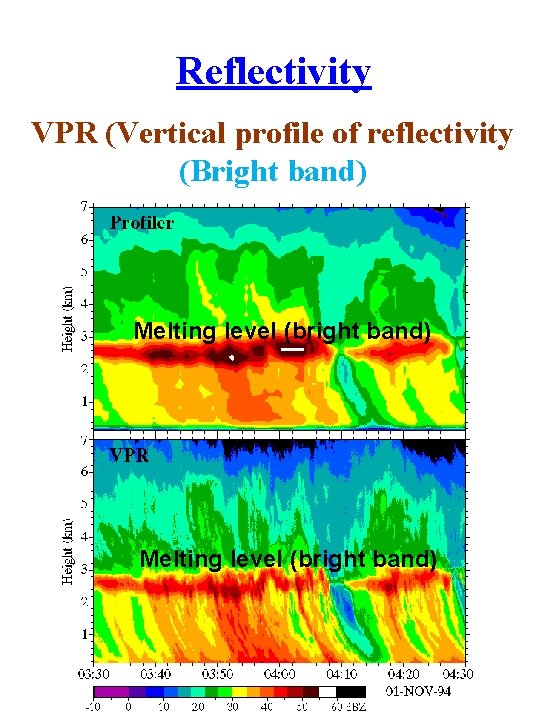

Reflectivity VPR (Vertical profile of reflectivity (Bright band) Melting level (bright band)

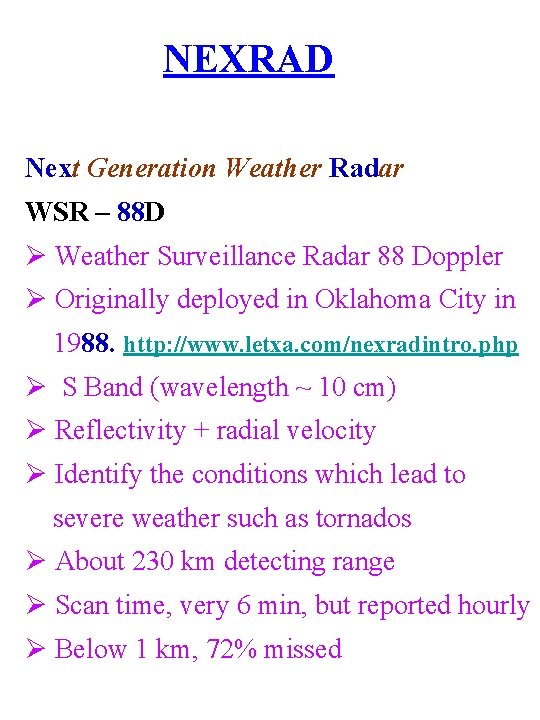

NEXRAD Next Generation Weather Radar WSR – 88 D Ø Weather Surveillance Radar 88 Doppler Ø Originally deployed in Oklahoma City in 1988. http: //www. letxa. com/nexradintro. php Ø S Band (wavelength ~ 10 cm) Ø Reflectivity + radial velocity Ø Identify the conditions which lead to severe weather such as tornados Ø About 230 km detecting range Ø Scan time, very 6 min, but reported hourly Ø Below 1 km, 72% missed

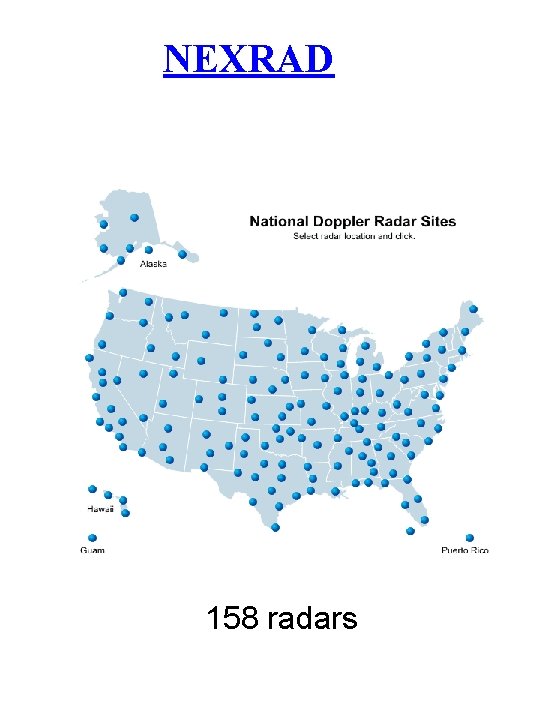

NEXRAD 158 radars

WSR-88 D Radar image

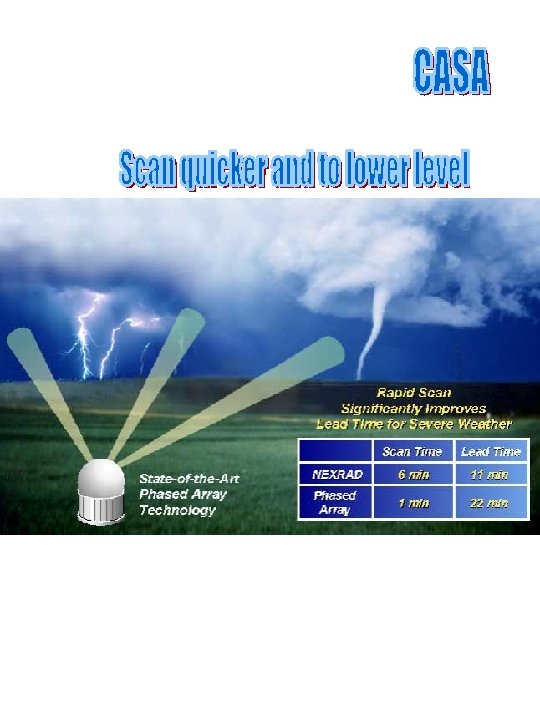

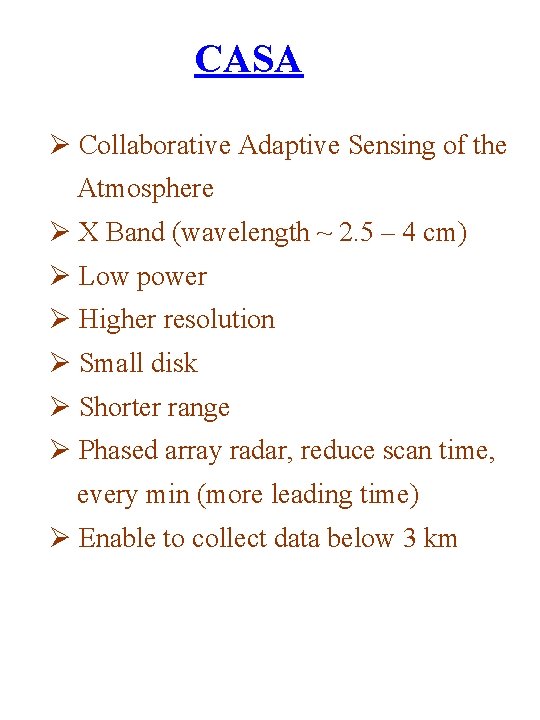

CASA Ø Collaborative Adaptive Sensing of the Atmosphere Ø X Band (wavelength ~ 2. 5 – 4 cm) Ø Low power Ø Higher resolution Ø Small disk Ø Shorter range Ø Phased array radar, reduce scan time, every min (more leading time) Ø Enable to collect data below 3 km

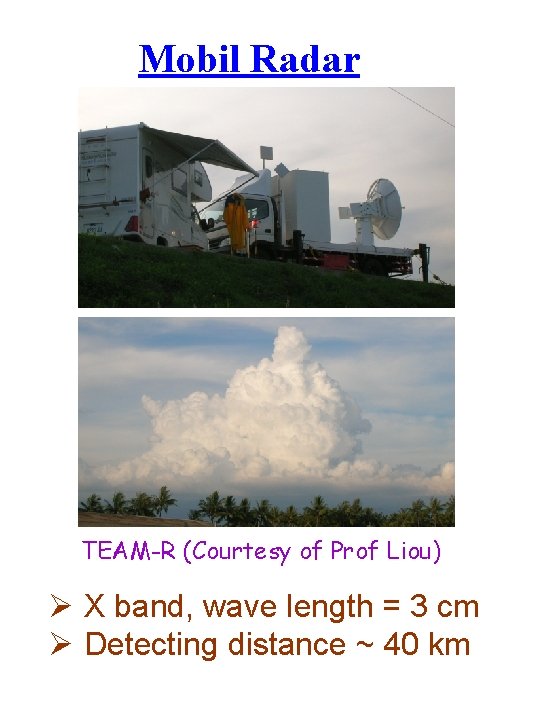

Mobil Radar TEAM-R (Courtesy of Prof Liou) Ø X band, wave length = 3 cm Ø Detecting distance ~ 40 km

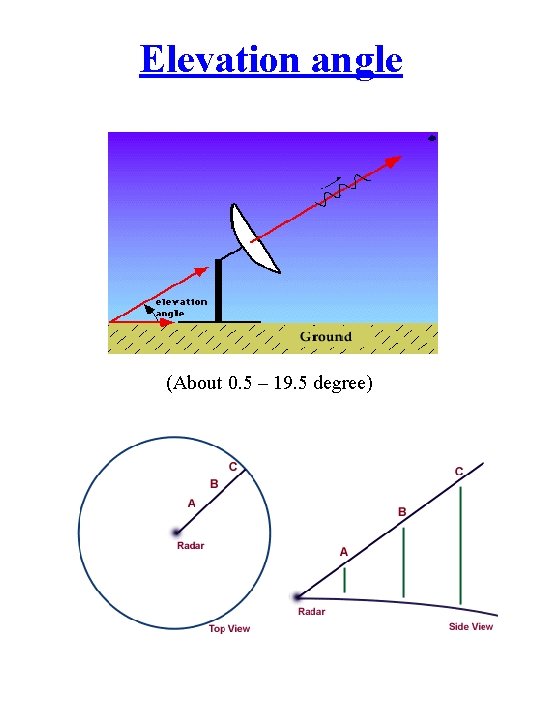

Elevation angle (About 0. 5 – 19. 5 degree)

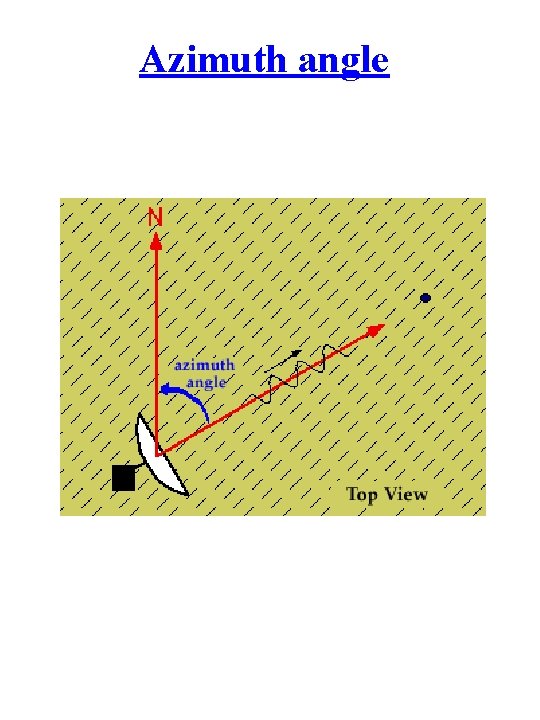

Azimuth angle

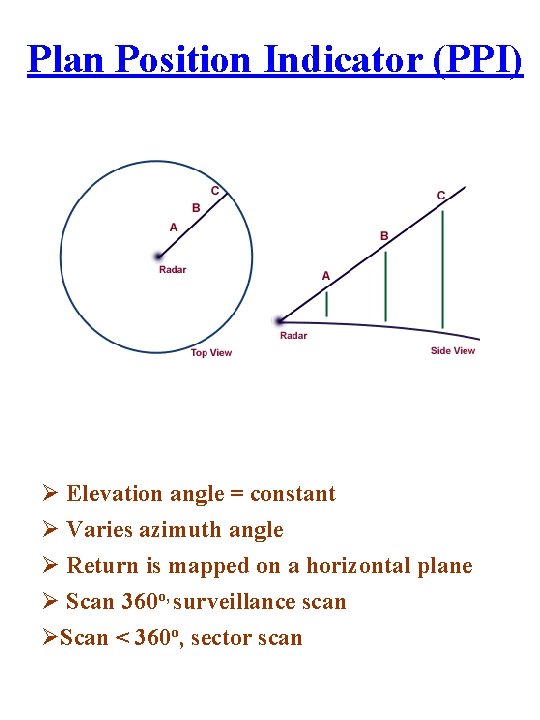

Plan Position Indicator (PPI) Ø Elevation angle = constant Ø Varies azimuth angle Ø Return is mapped on a horizontal plane Ø Scan 360 o, surveillance scan ØScan < 360 o, sector scan

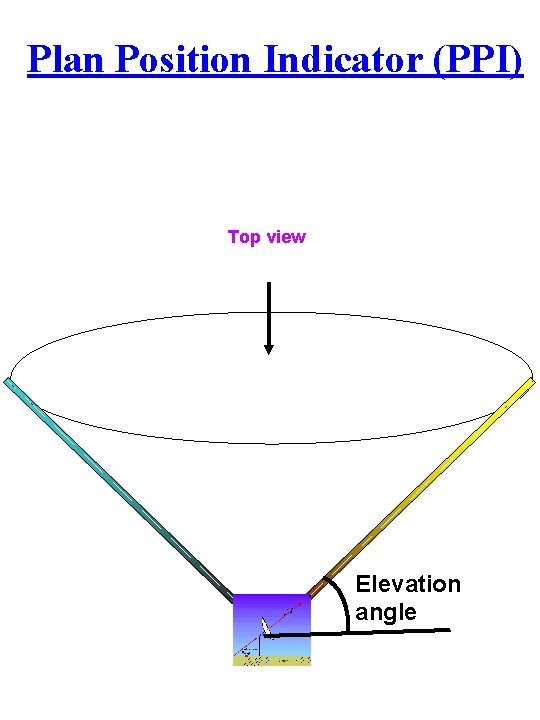

Plan Position Indicator (PPI) Top view Elevation angle

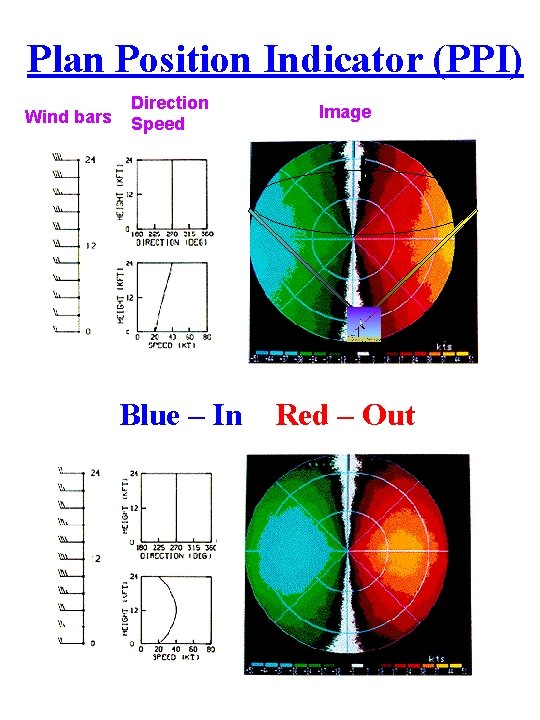

Plan Position Indicator (PPI) Wind bars Direction Speed Blue – In Image Red – Out

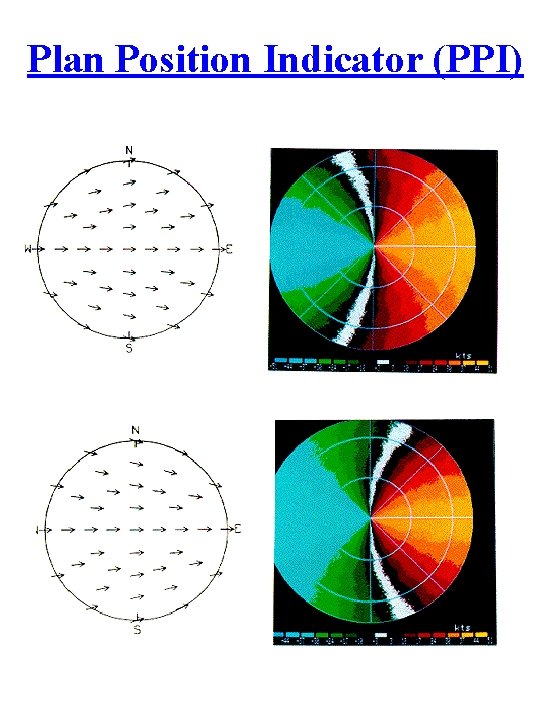

Plan Position Indicator (PPI)

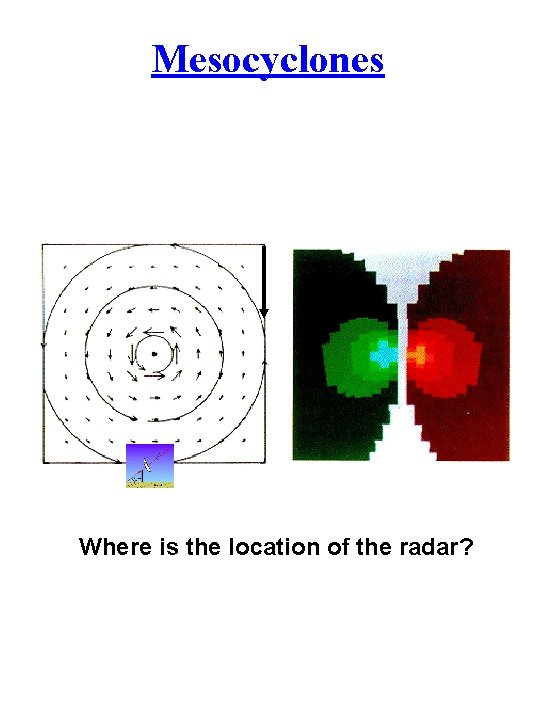

Mesocyclones Where is the location of the radar?

Cumulonimbus Clouds Supercell In general, radar images won’t be able to see tornados (unless very close), but can see the favorable environment for tornado development

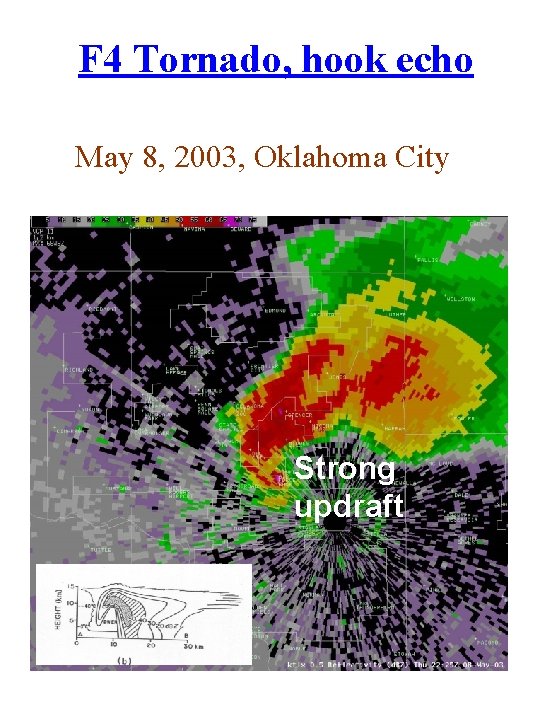

F 4 Tornado, hook echo May 8, 2003, Oklahoma City Strong updraft

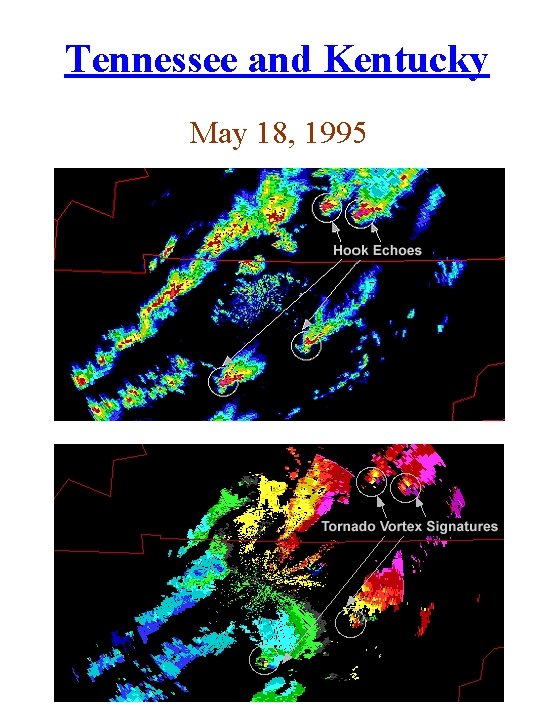

Tennessee and Kentucky May 18, 1995

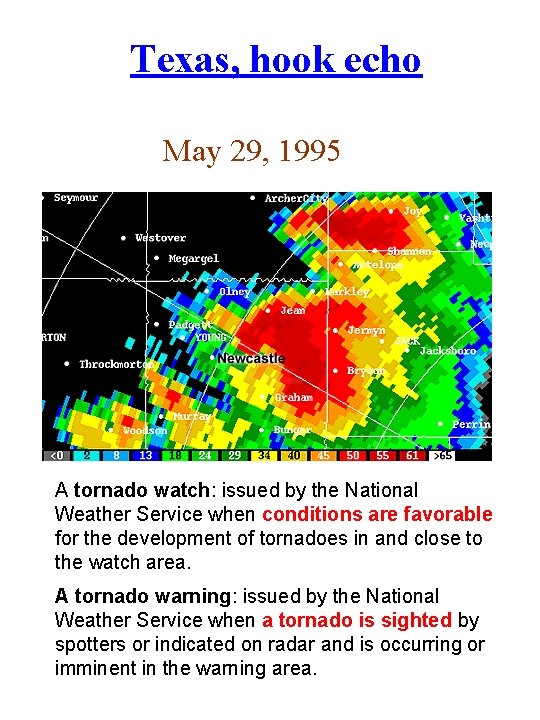

Texas, hook echo May 29, 1995 A tornado watch: issued by the National Weather Service when conditions are favorable for the development of tornadoes in and close to the watch area. A tornado warning: issued by the National Weather Service when a tornado is sighted by spotters or indicated on radar and is occurring or imminent in the warning area.

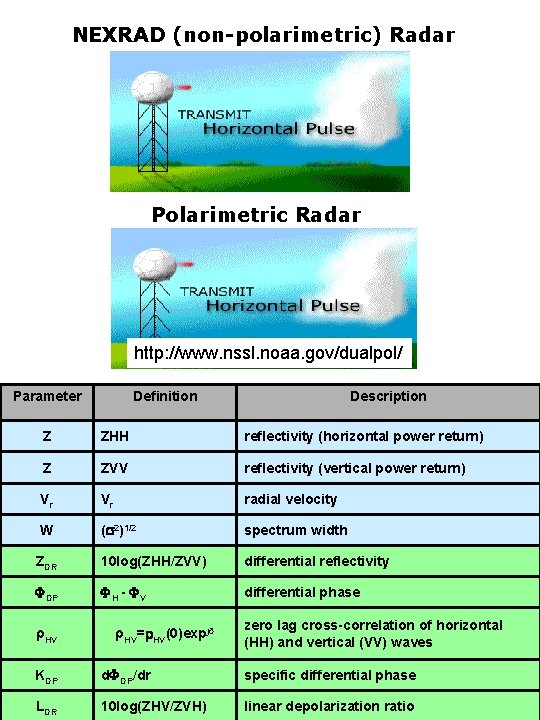

NEXRAD (non-polarimetric) Radar Polarimetric Radar http: //www. nssl. noaa. gov/dualpol/ Parameter Definition Description Z ZHH reflectivity (horizontal power return) Z ZVV reflectivity (vertical power return) Vr Vr radial velocity W ( 2)1/2 spectrum width ZDR 10 log(ZHH/ZVV) differential reflectivity DP H - V differential phase ρHV= HV(0)expjδ zero lag cross-correlation of horizontal (HH) and vertical (VV) waves KDP d DP/dr specific differential phase LDR 10 log(ZHV/ZVH) linear depolarization ratio

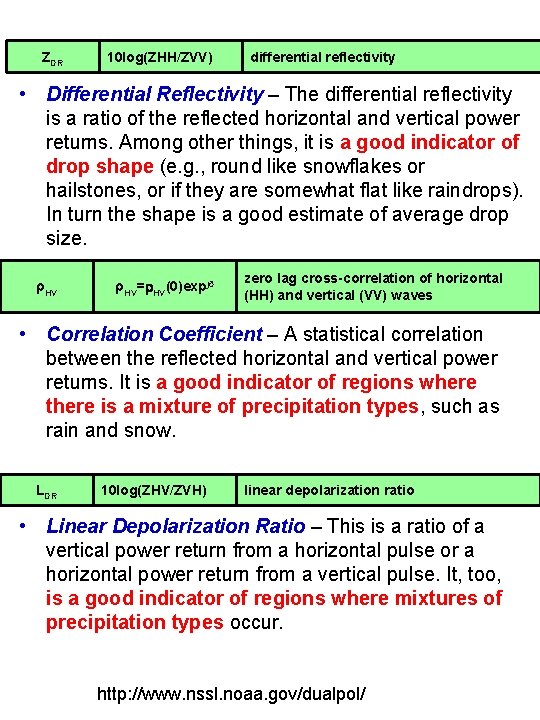

ZDR 10 log(ZHH/ZVV) differential reflectivity • Differential Reflectivity – The differential reflectivity is a ratio of the reflected horizontal and vertical power returns. Among other things, it is a good indicator of drop shape (e. g. , round like snowflakes or hailstones, or if they are somewhat flat like raindrops). In turn the shape is a good estimate of average drop size. ρHV= HV(0)expjδ zero lag cross-correlation of horizontal (HH) and vertical (VV) waves • Correlation Coefficient – A statistical correlation between the reflected horizontal and vertical power returns. It is a good indicator of regions where there is a mixture of precipitation types, such as rain and snow. LDR 10 log(ZHV/ZVH) linear depolarization ratio • Linear Depolarization Ratio – This is a ratio of a vertical power return from a horizontal pulse or a horizontal power return from a vertical pulse. It, too, is a good indicator of regions where mixtures of precipitation types occur. http: //www. nssl. noaa. gov/dualpol/

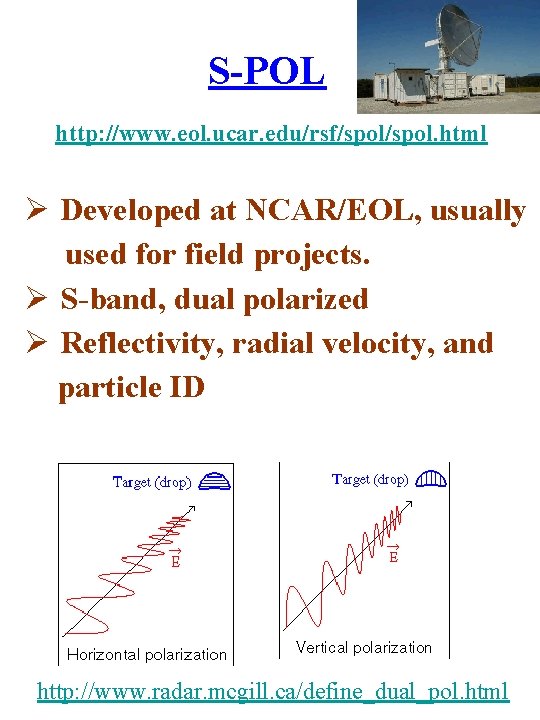

S-POL http: //www. eol. ucar. edu/rsf/spol. html Ø Developed at NCAR/EOL, usually used for field projects. Ø S-band, dual polarized Ø Reflectivity, radial velocity, and particle ID http: //www. radar. mcgill. ca/define_dual_pol. html

Wind Profiler Vr 3 Vr 1 z Vr 2 w v y x u Similar to Radar

Wind Profiler
