Radiation Protection System in the Czech Republic Occupational

Radiation Protection System in the Czech Republic Occupational Radiation Protection Control of Radioactive Sources Karla Petrová State Office for Nuclear Safety

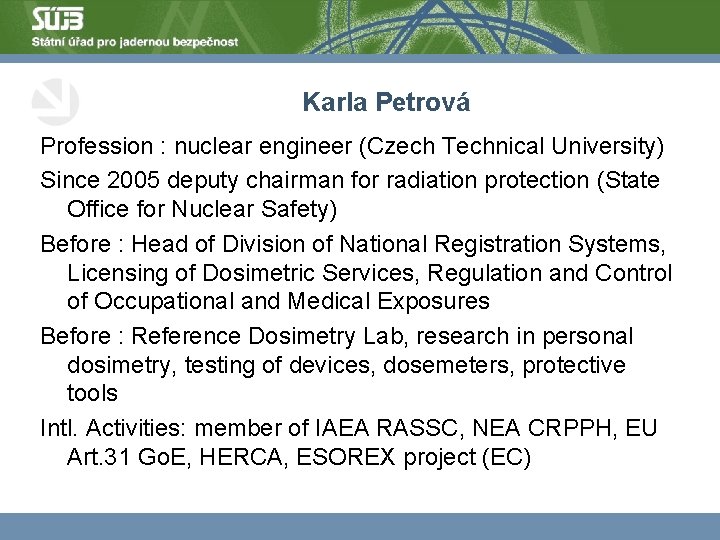

Karla Petrová Profession : nuclear engineer (Czech Technical University) Since 2005 deputy chairman for radiation protection (State Office for Nuclear Safety) Before : Head of Division of National Registration Systems, Licensing of Dosimetric Services, Regulation and Control of Occupational and Medical Exposures Before : Reference Dosimetry Lab, research in personal dosimetry, testing of devices, dosemeters, protective tools Intl. Activities: member of IAEA RASSC, NEA CRPPH, EU Art. 31 Go. E, HERCA, ESOREX project (EC)

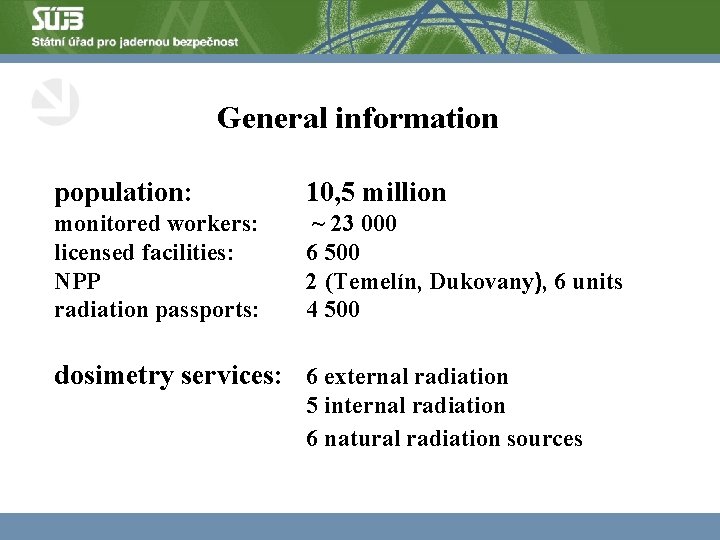

General information population: 10, 5 million monitored workers: ~ 23 000 licensed facilities: 6 500 NPP 2 (Temelín, Dukovany), 6 units radiation passports: 4 500 dosimetry services: 6 external radiation 5 internal radiation 6 natural radiation sources

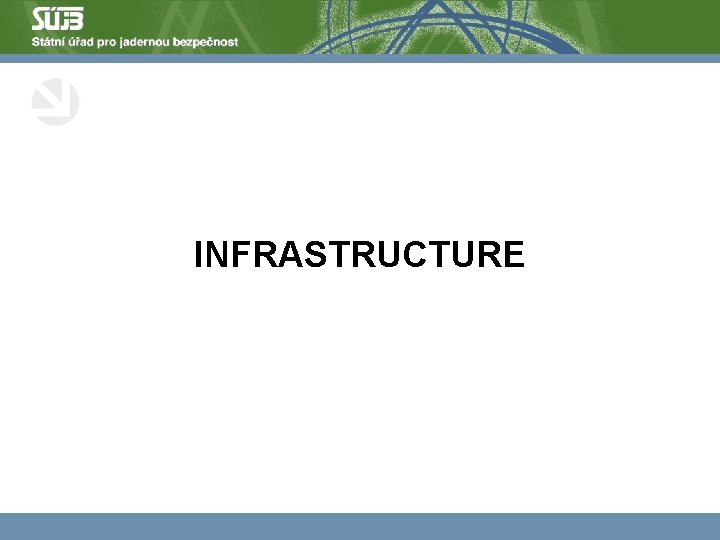

INFRASTRUCTURE

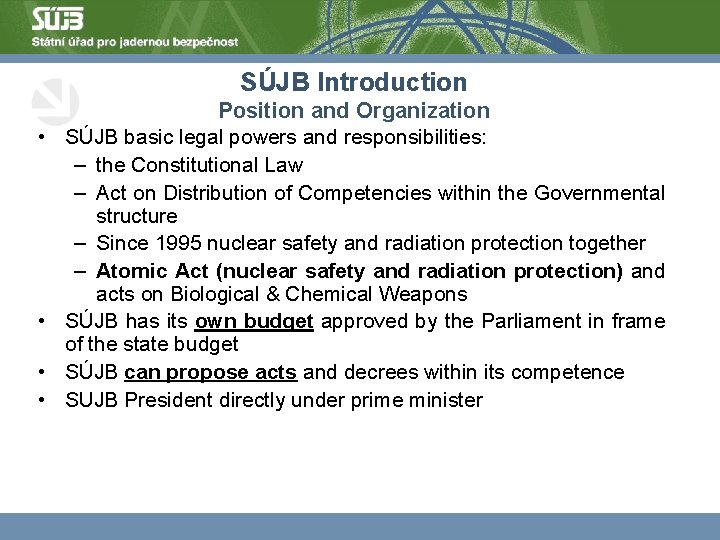

SÚJB Introduction • • Position and Organization SÚJB basic legal powers and responsibilities: – the Constitutional Law – Act on Distribution of Competencies within the Governmental structure – Since 1995 nuclear safety and radiation protection together – Atomic Act (nuclear safety and radiation protection) and acts on Biological & Chemical Weapons SÚJB has its own budget approved by the Parliament in frame of the state budget SÚJB can propose acts and decrees within its competence SUJB President directly under prime minister

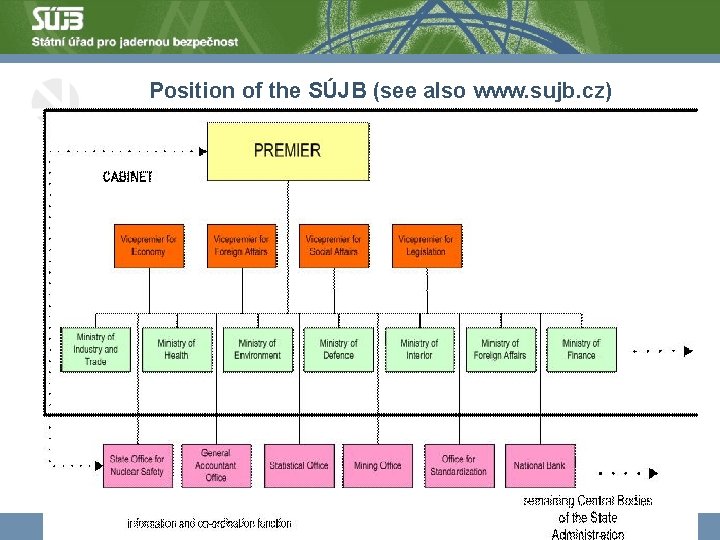

Position of the SÚJB (see also www. sujb. cz)

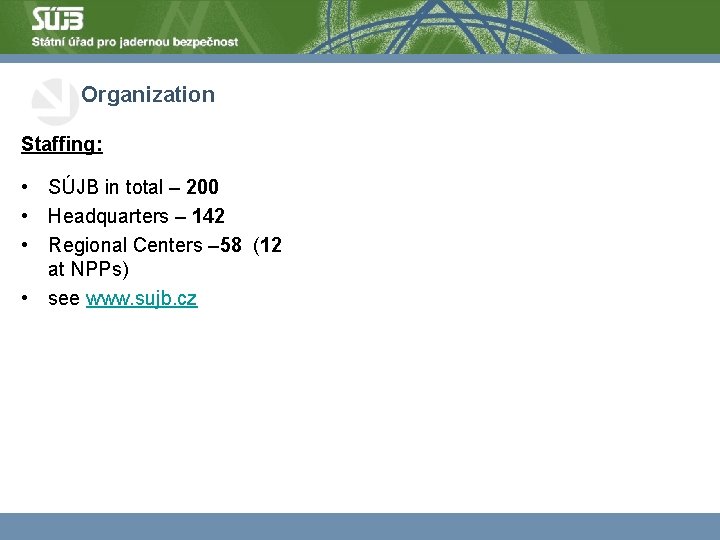

Organization Staffing: • SÚJB in total – 200 • Headquarters – 142 • Regional Centers – 58 (12 at NPPs) • see www. sujb. cz

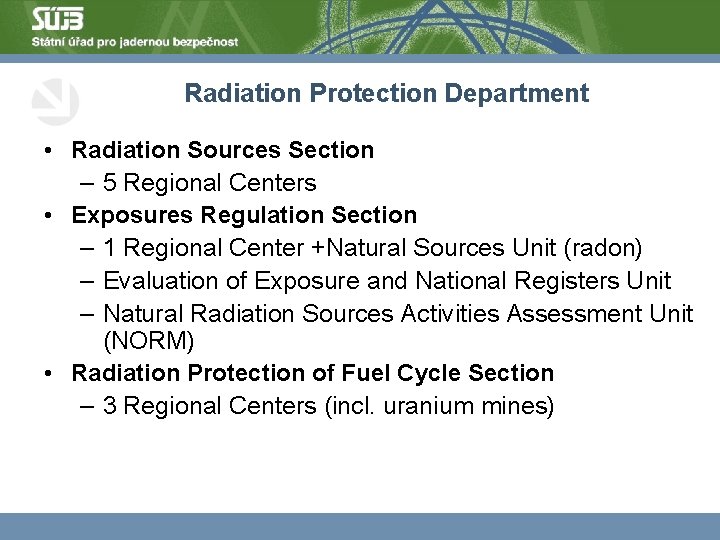

Radiation Protection Department • Radiation Sources Section – 5 Regional Centers • Exposures Regulation Section – 1 Regional Center +Natural Sources Unit (radon) – Evaluation of Exposure and National Registers Unit – Natural Radiation Sources Activities Assessment Unit (NORM) • Radiation Protection of Fuel Cycle Section – 3 Regional Centers (incl. uranium mines)

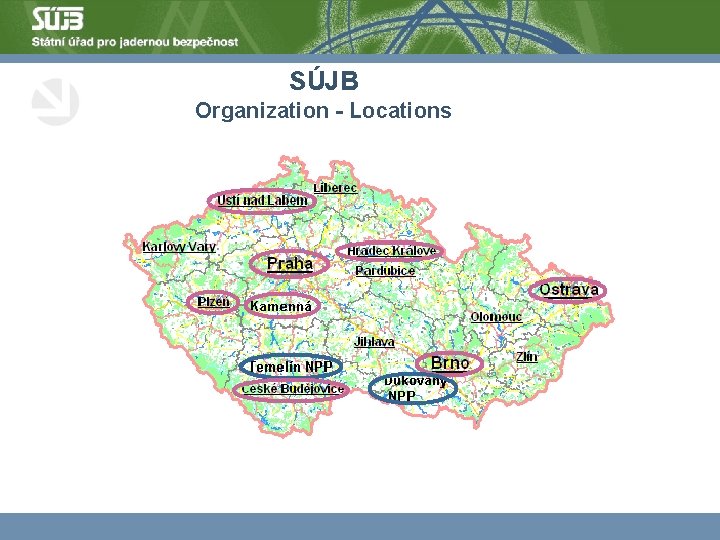

SÚJB Organization - Locations

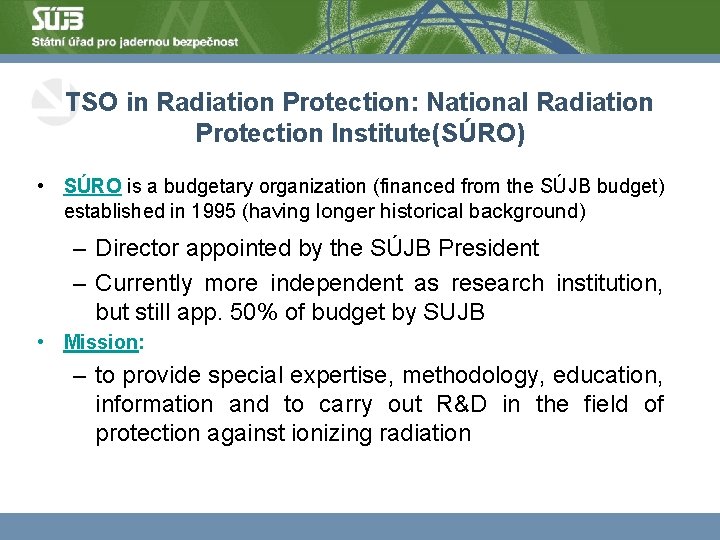

TSO in Radiation Protection: National Radiation Protection Institute(SÚRO) • SÚRO is a budgetary organization (financed from the SÚJB budget) established in 1995 (having longer historical background) – Director appointed by the SÚJB President – Currently more independent as research institution, but still app. 50% of budget by SUJB • Mission: – to provide special expertise, methodology, education, information and to carry out R&D in the field of protection against ionizing radiation

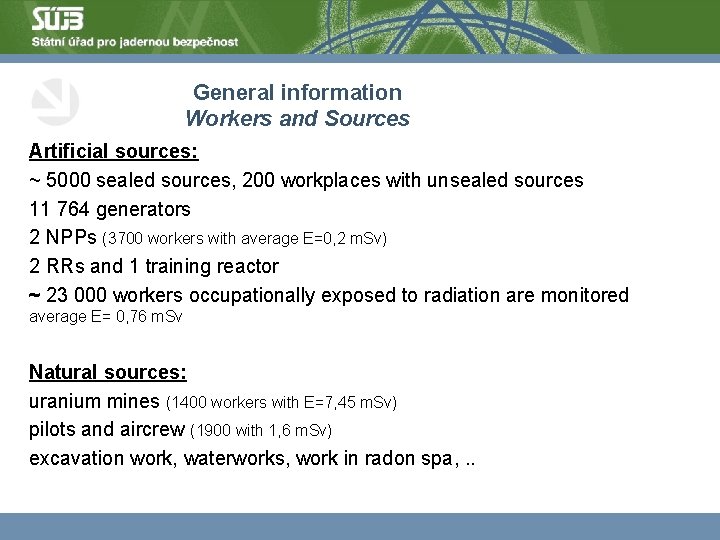

General information Workers and Sources Artificial sources: ~ 5000 sealed sources, 200 workplaces with unsealed sources 11 764 generators 2 NPPs (3700 workers with average E=0, 2 m. Sv) 2 RRs and 1 training reactor ~ 23 000 workers occupationally exposed to radiation are monitored average E= 0, 76 m. Sv Natural sources: uranium mines (1400 workers with E=7, 45 m. Sv) pilots and aircrew (1900 with 1, 6 m. Sv) excavation work, waterworks, work in radon spa, . .

Occupational Radiation Safety in the Czech legislation

Legal Framework General protection of workers is governed by: • Labour Code (No. 262/2006 Coll. ) Radiation protection requirements - Atomic Act (No. 18/1997 Coll. ), as amended Decree on Radiation Protection (No. 307/2002 Coll. ), as amended Decree on Personal Radiation Passports (No. 419/2002 Coll. ) supported by: • Series of Guides published by SÚJB = implementation of good practice (VDS, VDMI - „Series of blue line“) www. sujb. cz specific requirements in • Licence conditions, • Documentations – some of them approved by SUJB

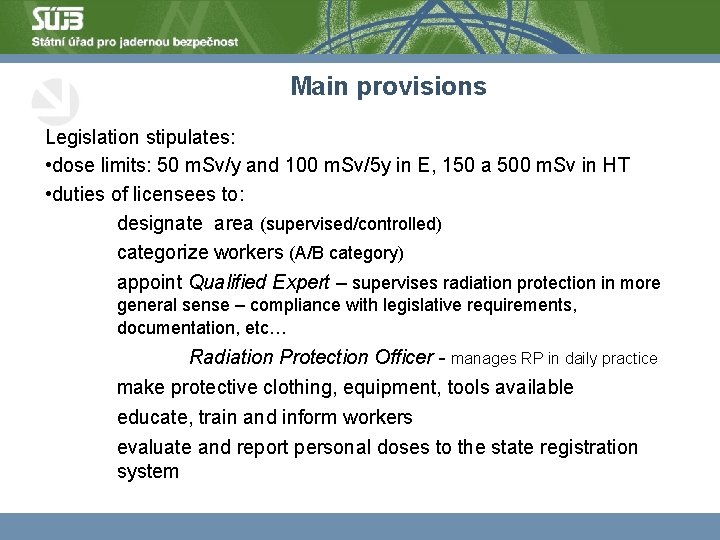

Main provisions Legislation stipulates: • dose limits: 50 m. Sv/y and 100 m. Sv/5 y in E, 150 a 500 m. Sv in HT • duties of licensees to: designate area (supervised/controlled) categorize workers (A/B category) appoint Qualified Expert – supervises radiation protection in more general sense – compliance with legislative requirements, documentation, etc… Radiation Protection Officer - manages RP in daily practice make protective clothing, equipment, tools available educate, train and inform workers evaluate and report personal doses to the state registration system

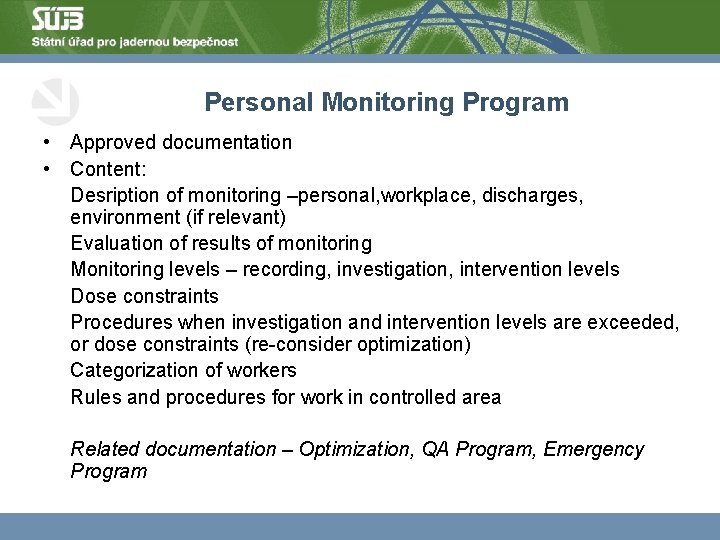

Personal Monitoring Program • Approved documentation • Content: Desription of monitoring –personal, workplace, discharges, environment (if relevant) Evaluation of results of monitoring Monitoring levels – recording, investigation, intervention levels Dose constraints Procedures when investigation and intervention levels are exceeded, or dose constraints (re-consider optimization) Categorization of workers Rules and procedures for work in controlled area Related documentation – Optimization, QA Program, Emergency Program

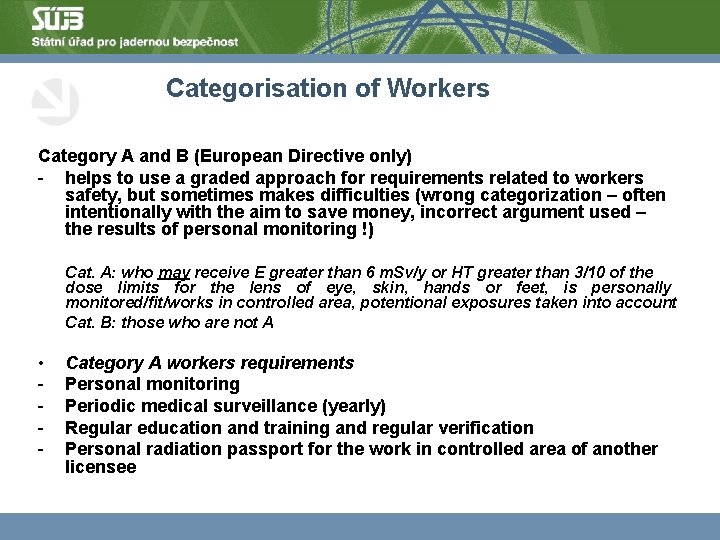

Categorisation of Workers Category A and B (European Directive only) - helps to use a graded approach for requirements related to workers safety, but sometimes makes difficulties (wrong categorization – often intentionally with the aim to save money, incorrect argument used – the results of personal monitoring !) Cat. A: who may receive E greater than 6 m. Sv/y or HT greater than 3/10 of the dose limits for the lens of eye, skin, hands or feet, is personally monitored/fit/works in controlled area, potentional exposures taken into account Cat. B: those who are not A • - Category A workers requirements Personal monitoring Periodic medical surveillance (yearly) Regular education and training and regular verification Personal radiation passport for the work in controlled area of another licensee

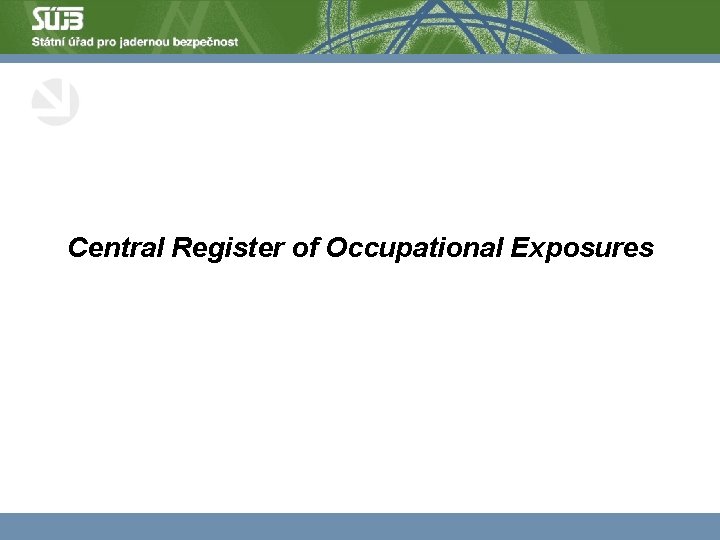

Central Register of Occupational Exposures

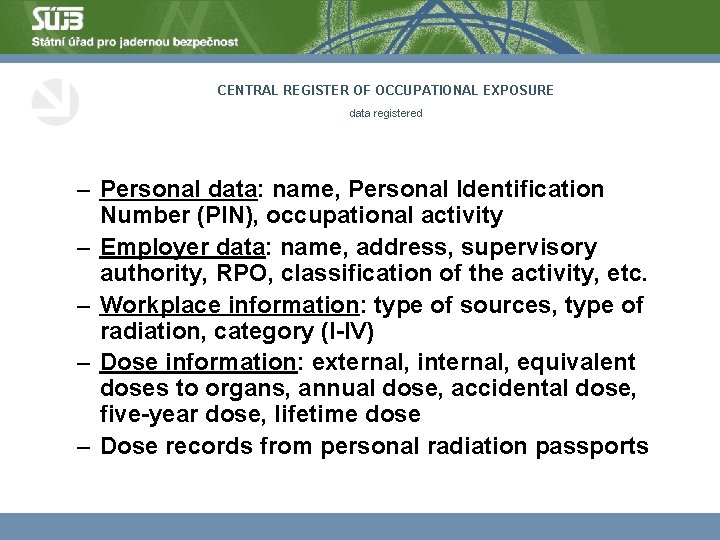

CENTRAL REGISTER OF OCCUPATIONAL EXPOSURE data registered – Personal data: name, Personal Identification Number (PIN), occupational activity – Employer data: name, address, supervisory authority, RPO, classification of the activity, etc. – Workplace information: type of sources, type of radiation, category (I-IV) – Dose information: external, internal, equivalent doses to organs, annual dose, accidental dose, five-year dose, lifetime dose – Dose records from personal radiation passports

CENTRAL REGISTER OF OCCUPATIONAL EXPOSURE data exchange Individual monitoring is based on measurements carried out by authorized Personal Dosimetric Services (PDS) PDS and Licensee report to SUJB: • Personal dose on each worker of the A category within 1 month from the coming to the employment and during each change of these data and within the 2 months after the termination of the monitoring period • Effective dose exceeding 20 m. Sv or the equivalent dose exceeding 150 m. Sv of external exposure and the effective dose exceeding 6 m. Sv or equivalent dose exceeding 15 m. Sv of internal exposure - immediately • Annual overview of personal doses for the preceding year is ready till the end of April of the next year

CENTRAL REGISTER OF OCCUPATIONAL EXPOSURE storage of data • PDS keeps the data at least one year after the year to which the data are related • Licensee shall archive the dose data till the 75 years of the radiation workers age and at least 30 years after the end of the work as a radiation worker • Personal doses from exceptional exposures and from the exposures that the worker obtained during radiation accidents are recorded separately • Dose certificate from CROE is issued on request of worker

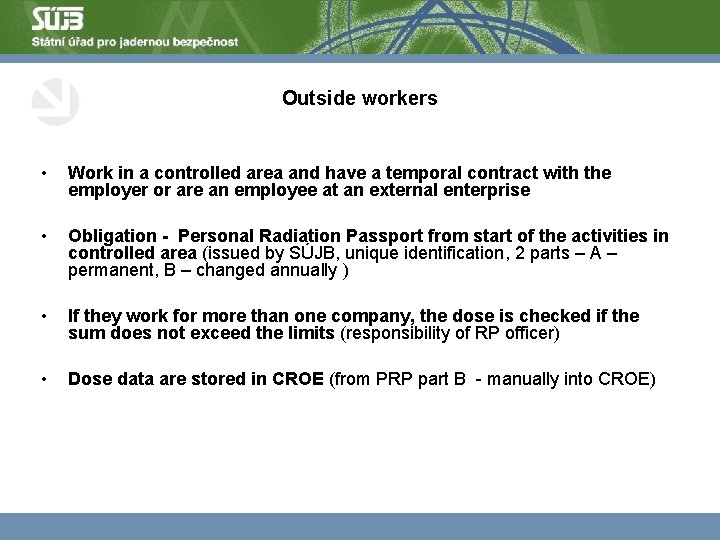

Outside workers • Work in a controlled area and have a temporal contract with the employer or are an employee at an external enterprise • Obligation - Personal Radiation Passport from start of the activities in controlled area (issued by SÚJB, unique identification, 2 parts – A – permanent, B – changed annually ) • If they work for more than one company, the dose is checked if the sum does not exceed the limits (responsibility of RP officer) • Dose data are stored in CROE (from PRP part B - manually into CROE)

Other provisions • Health surveillance (provided by occupational health services according to Acts No. 372, 373/2011 Coll. and Decree No. 79/2013 Coll. ) • Protection of pregnant/fetus, breast-feeding • Exceptional exposure – authorisation, 100 m. Sv, 500 m. Sv/5 y • Protection of outside workers (as category A) (SÚJB issues radiation passports - 4300) • Training and information training services giving training to QE and RPO shall be approved by SÚJB Recognition of QE and RPO – necessary to pass an exam, SUJB special commission established

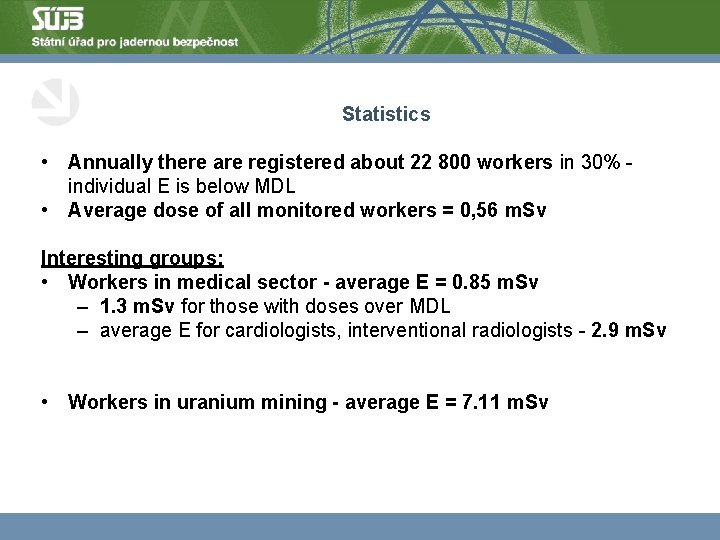

Statistics • Annually there are registered about 22 800 workers in 30% individual E is below MDL • Average dose of all monitored workers = 0, 56 m. Sv Interesting groups: • Workers in medical sector - average E = 0. 85 m. Sv – 1. 3 m. Sv for those with doses over MDL – average E for cardiologists, interventional radiologists - 2. 9 m. Sv • Workers in uranium mining - average E = 7. 11 m. Sv

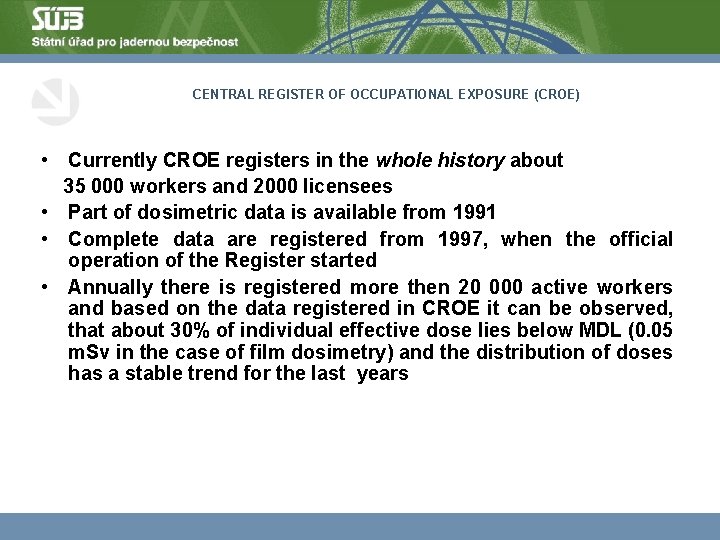

CENTRAL REGISTER OF OCCUPATIONAL EXPOSURE (CROE) • Currently CROE registers in the whole history about 35 000 workers and 2000 licensees • Part of dosimetric data is available from 1991 • Complete data are registered from 1997, when the official operation of the Register started • Annually there is registered more then 20 000 active workers and based on the data registered in CROE it can be observed, that about 30% of individual effective dose lies below MDL (0. 05 m. Sv in the case of film dosimetry) and the distribution of doses has a stable trend for the last years

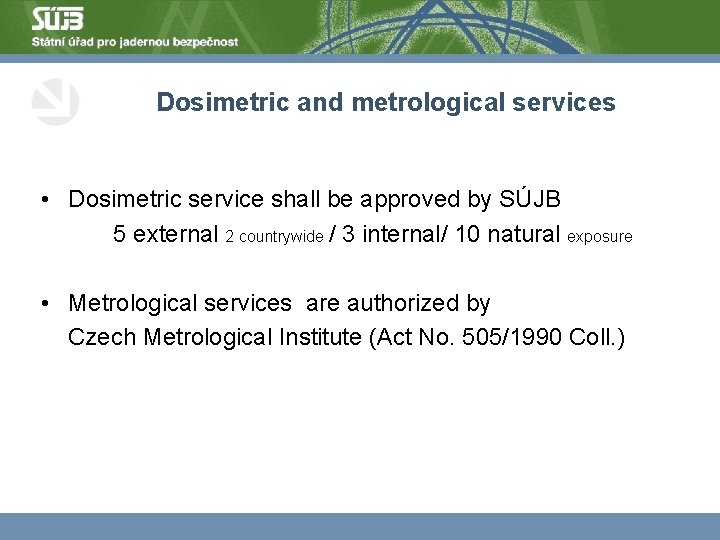

Dosimetric and metrological services • Dosimetric service shall be approved by SÚJB 5 external 2 countrywide / 3 internal/ 10 natural exposure • Metrological services are authorized by Czech Metrological Institute (Act No. 505/1990 Coll. )

Statistika – počty vyšetření, dávky ÚZIS/2006, VZP/2004 ÚZIS Celkový počet provedených radiologických vyšetření (vč. zubních, ULZ, MR): 13 160 329 Počet provedených CT výkonů: 750 798 (5, 7 %) VZP (cca 70% pojištěnců) 6 463 212 Z toho 335 061 CT – 5% (170 156 hlava, 104 156 břicho, 40 749 páteř) Počet CT vyšetření se v ČR meziročně zvyšuje cca o 5 -10%

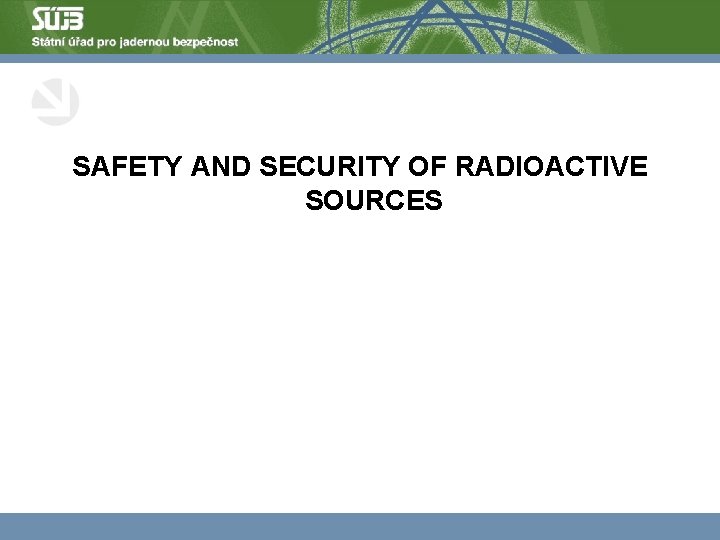

SAFETY AND SECURITY OF RADIOACTIVE SOURCES

Categorization of sources according to the increasing degree of possible health hazards and environmental hazards 1. major sources – nuclear reactor 2. important sources – radioterapeutical sources, irradiators, accelerators, mobile industrial radiography, HASS 3. simple sources – X-ray generators, 4. minor source – ionizing smoke detectors 5. unimportant sources – calibration, small activities

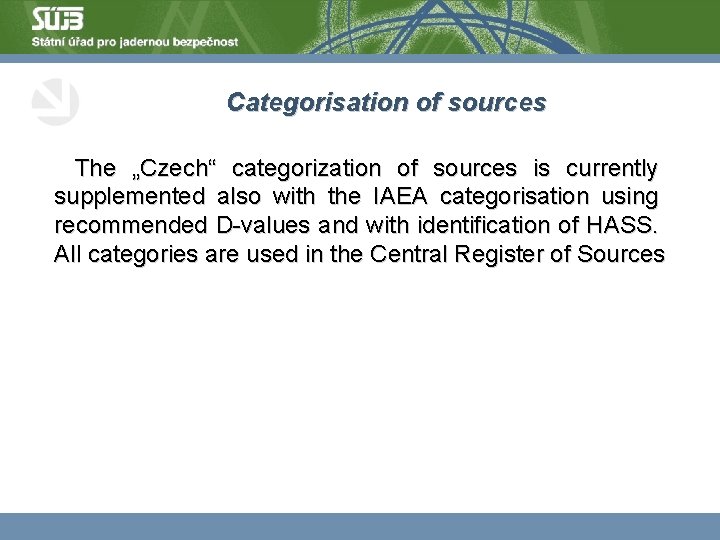

Categorisation of sources The „Czech“ categorization of sources is currently supplemented also with the IAEA categorisation using recommended D-values and with identification of HASS. All categories are used in the Central Register of Sources

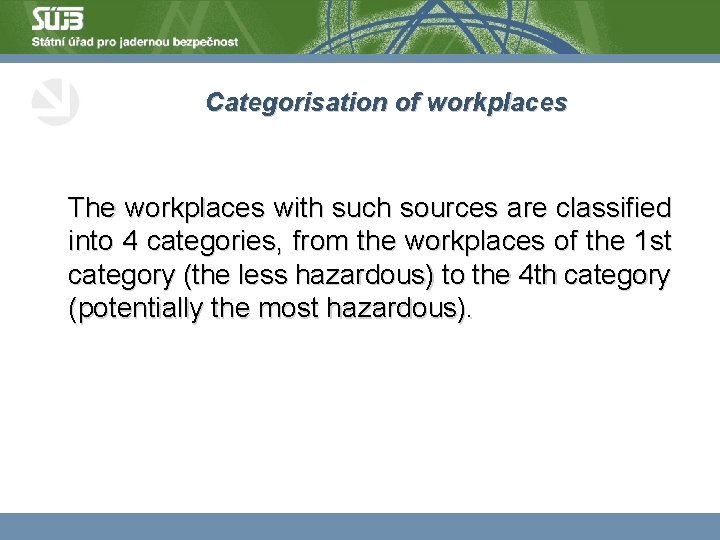

Categorisation of workplaces The workplaces with such sources are classified into 4 categories, from the workplaces of the 1 st category (the less hazardous) to the 4 th category (potentially the most hazardous).

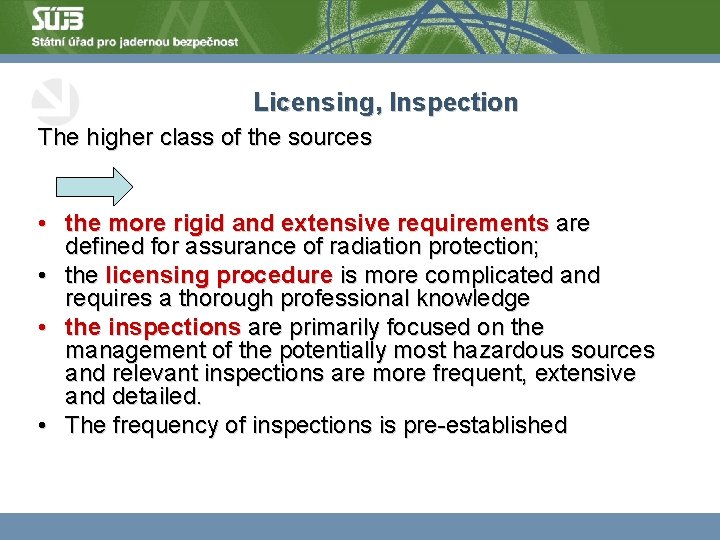

Licensing, Inspection The higher class of the sources • the more rigid and extensive requirements are defined for assurance of radiation protection; • the licensing procedure is more complicated and requires a thorough professional knowledge • the inspections are primarily focused on the management of the potentially most hazardous sources and relevant inspections are more frequent, extensive and detailed. • The frequency of inspections is pre-established

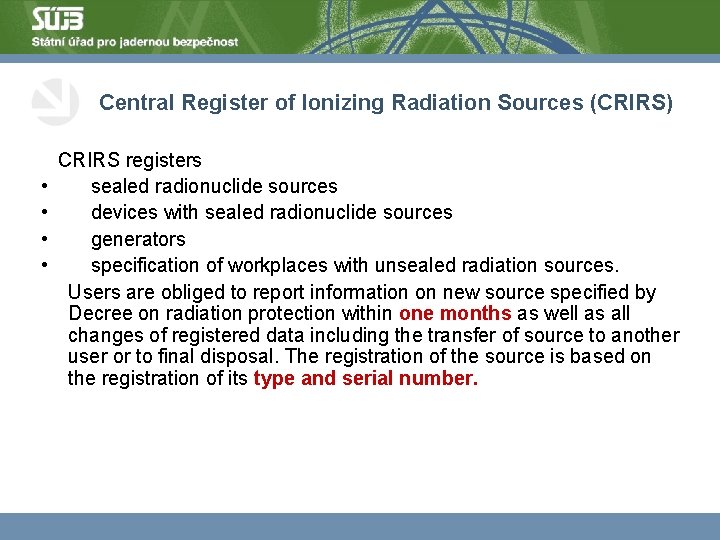

Central Register of Ionizing Radiation Sources (CRIRS) • • CRIRS registers sealed radionuclide sources devices with sealed radionuclide sources generators specification of workplaces with unsealed radiation sources. Users are obliged to report information on new source specified by Decree on radiation protection within one months as well as all changes of registered data including the transfer of source to another user or to final disposal. The registration of the source is based on the registration of its type and serial number.

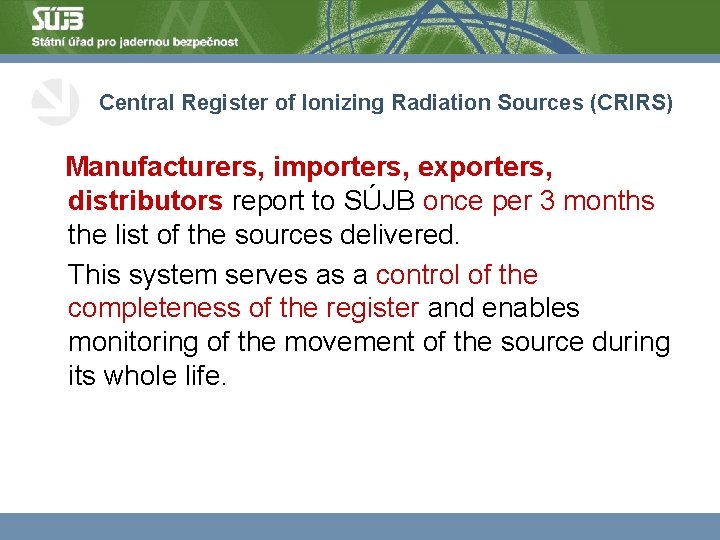

Central Register of Ionizing Radiation Sources (CRIRS) Manufacturers, importers, exporters, distributors report to SÚJB once per 3 months the list of the sources delivered. This system serves as a control of the completeness of the register and enables monitoring of the movement of the source during its whole life.

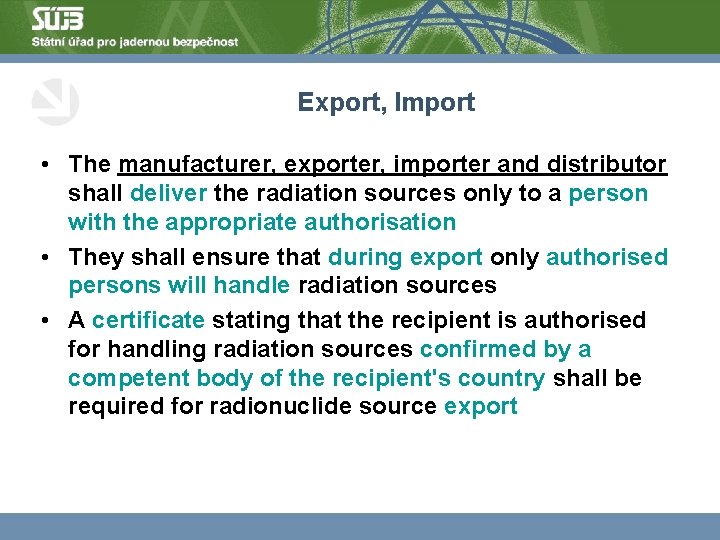

Export, Import • The manufacturer, exporter, importer and distributor shall deliver the radiation sources only to a person with the appropriate authorisation • They shall ensure that during export only authorised persons will handle radiation sources • A certificate stating that the recipient is authorised for handling radiation sources confirmed by a competent body of the recipient's country shall be required for radionuclide source export

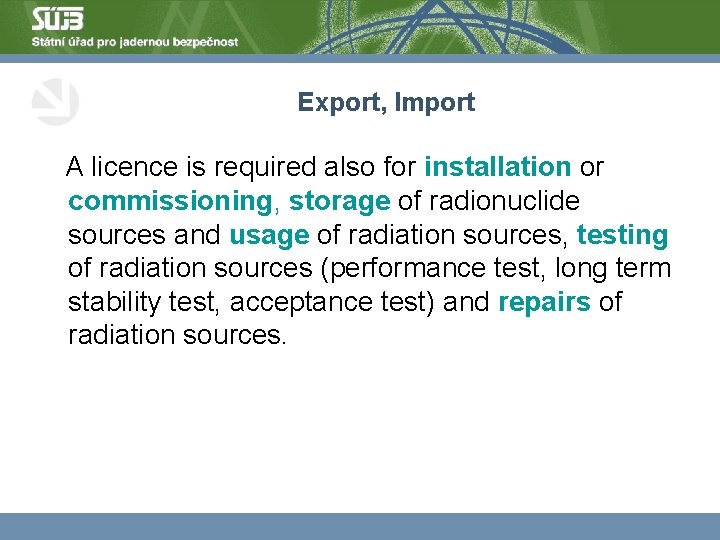

Export, Import A licence is required also for installation or commissioning, storage of radionuclide sources and usage of radiation sources, testing of radiation sources (performance test, long term stability test, acceptance test) and repairs of radiation sources.

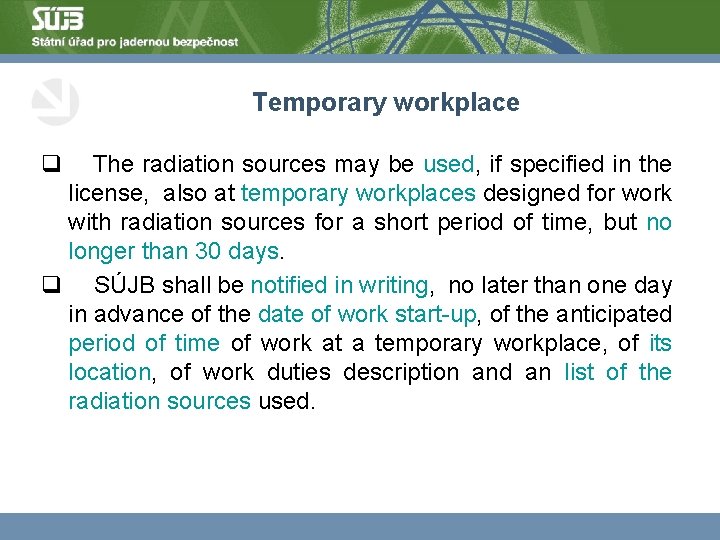

Temporary workplace q The radiation sources may be used, if specified in the license, also at temporary workplaces designed for work with radiation sources for a short period of time, but no longer than 30 days. q SÚJB shall be notified in writing, no later than one day in advance of the date of work start-up, of the anticipated period of time of work at a temporary workplace, of its location, of work duties description and an list of the radiation sources used.

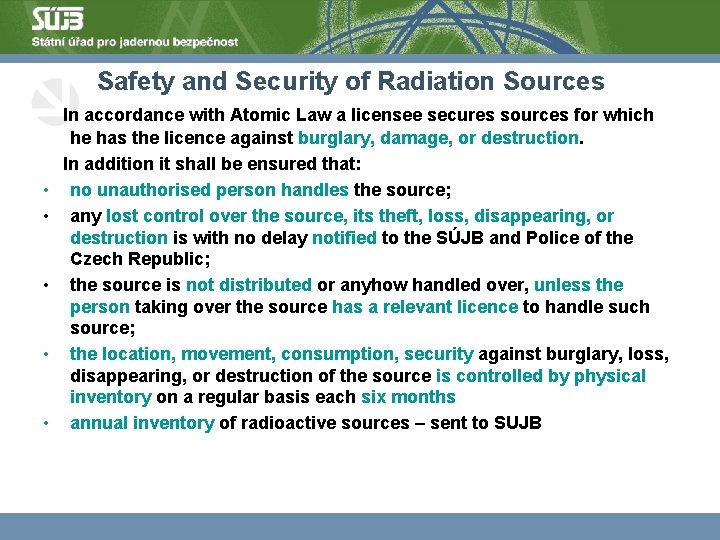

Safety and Security of Radiation Sources In accordance with Atomic Law a licensee secures sources for which he has the licence against burglary, damage, or destruction. In addition it shall be ensured that: • no unauthorised person handles the source; • any lost control over the source, its theft, loss, disappearing, or destruction is with no delay notified to the SÚJB and Police of the Czech Republic; • the source is not distributed or anyhow handled over, unless the person taking over the source has a relevant licence to handle such source; • the location, movement, consumption, security against burglary, loss, disappearing, or destruction of the source is controlled by physical inventory on a regular basis each six months • annual inventory of radioactive sources – sent to SUJB

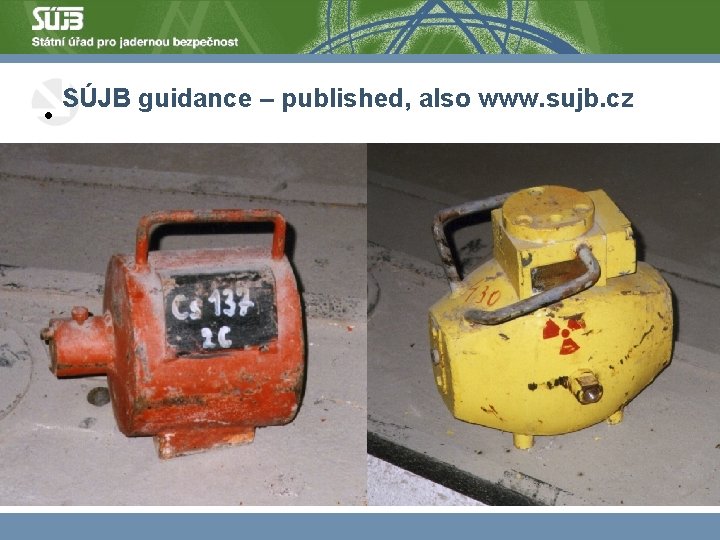

• SÚJB guidance – published, also www. sujb. cz

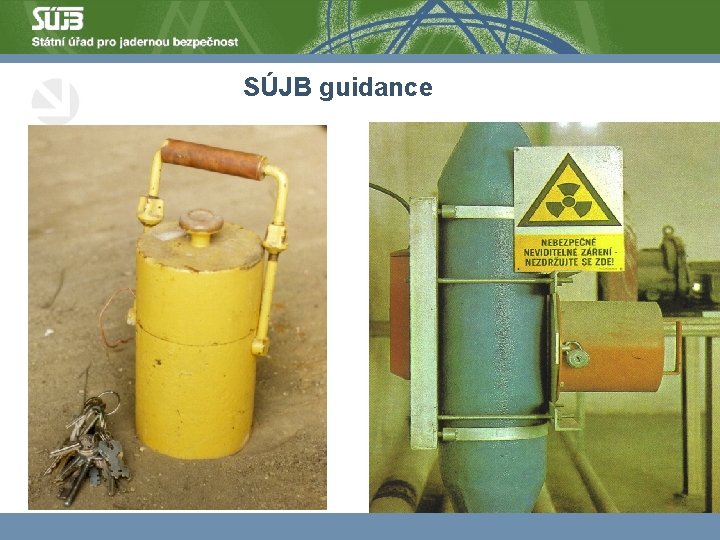

SÚJB guidance

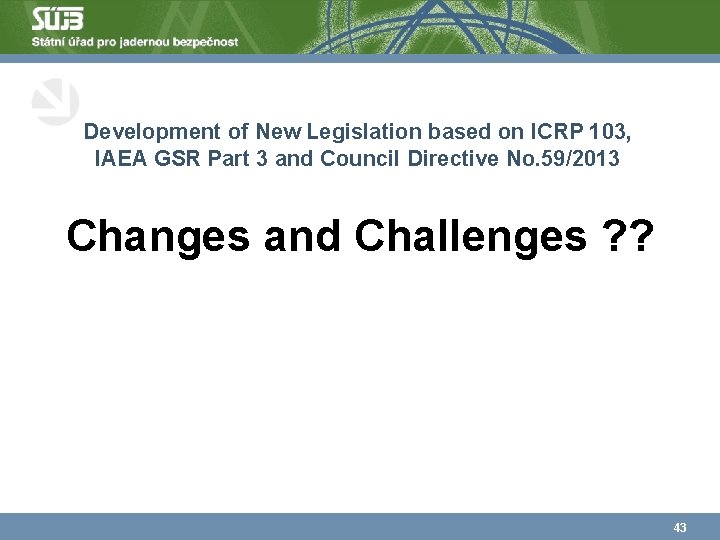

Development of New Legislation based on ICRP 103, IAEA GSR Part 3 and Council Directive No. 59/2013 Changes and Challenges ? ? 43

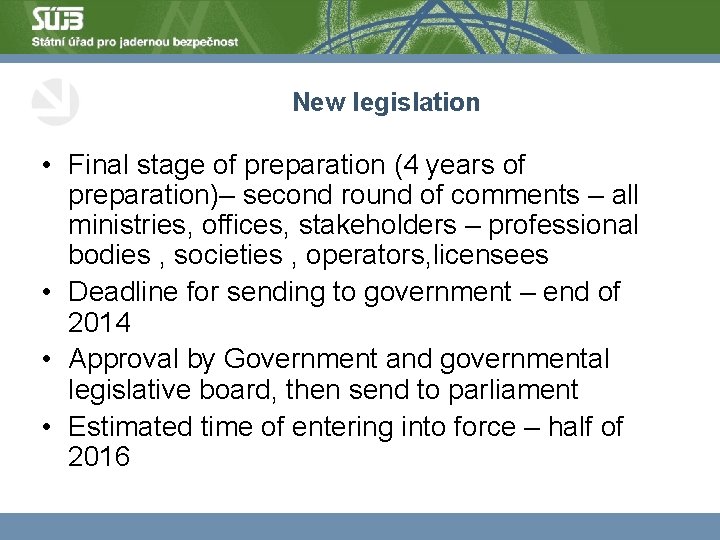

New legislation • Final stage of preparation (4 years of preparation)– second round of comments – all ministries, offices, stakeholders – professional bodies , societies , operators, licensees • Deadline for sending to government – end of 2014 • Approval by Government and governmental legislative board, then send to parliament • Estimated time of entering into force – half of 2016

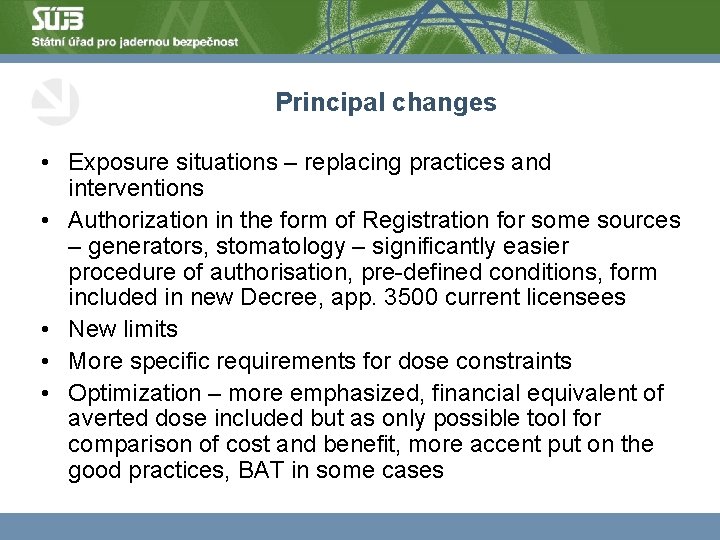

Principal changes • Exposure situations – replacing practices and interventions • Authorization in the form of Registration for some sources – generators, stomatology – significantly easier procedure of authorisation, pre-defined conditions, form included in new Decree, app. 3500 current licensees • New limits • More specific requirements for dose constraints • Optimization – more emphasized, financial equivalent of averted dose included but as only possible tool for comparison of cost and benefit, more accent put on the good practices, BAT in some cases

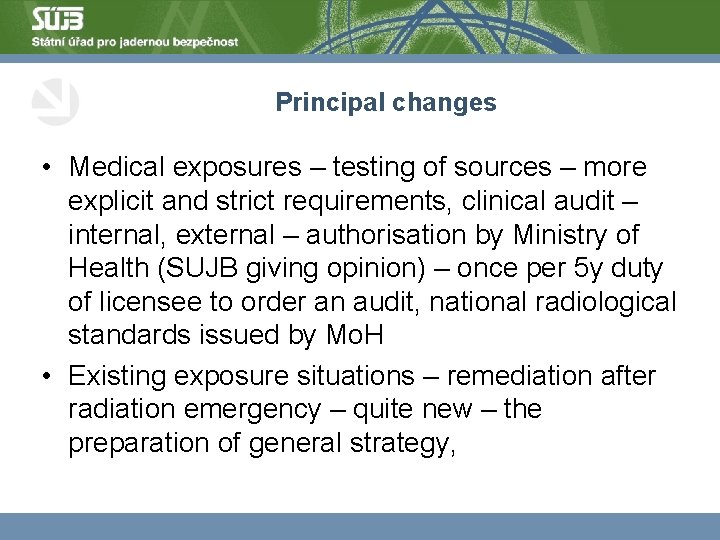

Principal changes • Medical exposures – testing of sources – more explicit and strict requirements, clinical audit – internal, external – authorisation by Ministry of Health (SUJB giving opinion) – once per 5 y duty of licensee to order an audit, national radiological standards issued by Mo. H • Existing exposure situations – remediation after radiation emergency – quite new – the preparation of general strategy,

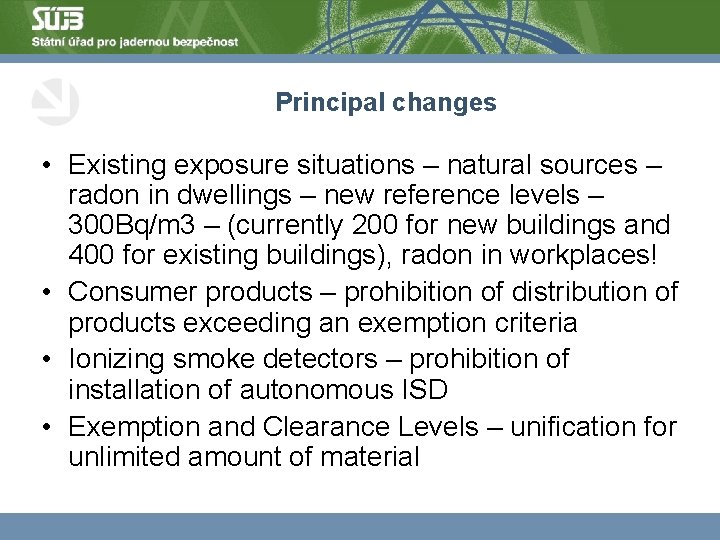

Principal changes • Existing exposure situations – natural sources – radon in dwellings – new reference levels – 300 Bq/m 3 – (currently 200 for new buildings and 400 for existing buildings), radon in workplaces! • Consumer products – prohibition of distribution of products exceeding an exemption criteria • Ionizing smoke detectors – prohibition of installation of autonomous ISD • Exemption and Clearance Levels – unification for unlimited amount of material

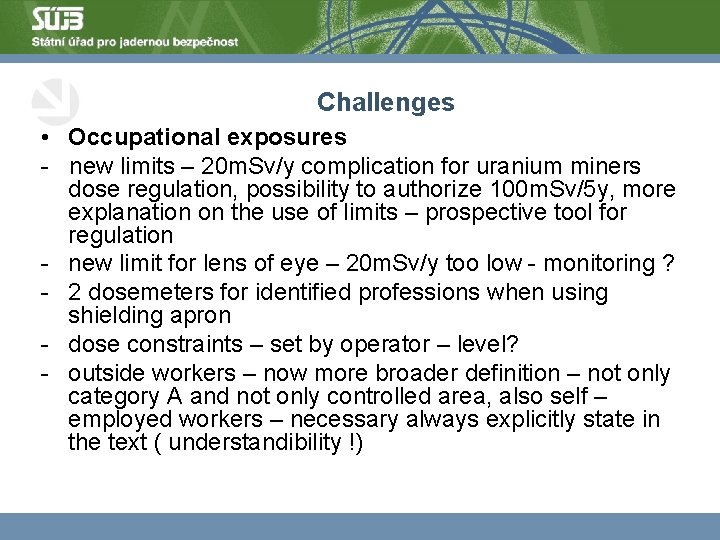

Challenges • Occupational exposures - new limits – 20 m. Sv/y complication for uranium miners dose regulation, possibility to authorize 100 m. Sv/5 y, more explanation on the use of limits – prospective tool for regulation - new limit for lens of eye – 20 m. Sv/y too low - monitoring ? - 2 dosemeters for identified professions when using shielding apron - dose constraints – set by operator – level? - outside workers – now more broader definition – not only category A and not only controlled area, also self – employed workers – necessary always explicitly state in the text ( understandibility !)

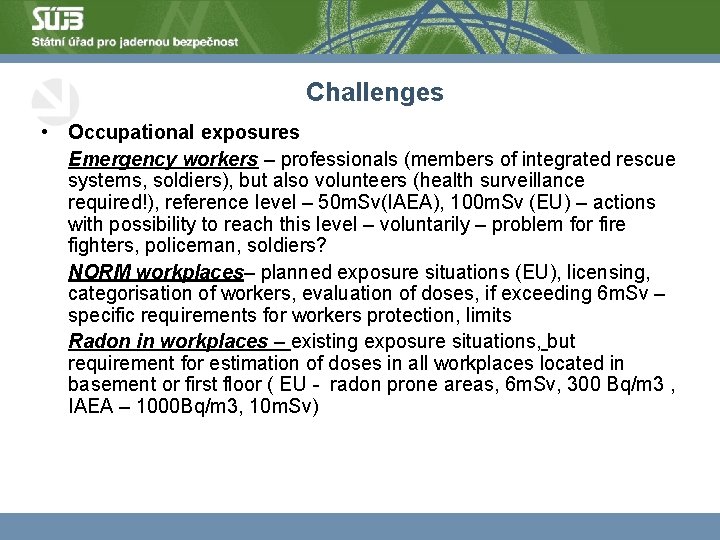

Challenges • Occupational exposures Emergency workers – professionals (members of integrated rescue systems, soldiers), but also volunteers (health surveillance required!), reference level – 50 m. Sv(IAEA), 100 m. Sv (EU) – actions with possibility to reach this level – voluntarily – problem for fire fighters, policeman, soldiers? NORM workplaces– planned exposure situations (EU), licensing, categorisation of workers, evaluation of doses, if exceeding 6 m. Sv – specific requirements for workers protection, limits Radon in workplaces – existing exposure situations, but requirement for estimation of doses in all workplaces located in basement or first floor ( EU - radon prone areas, 6 m. Sv, 300 Bq/m 3 , IAEA – 1000 Bq/m 3, 10 m. Sv)

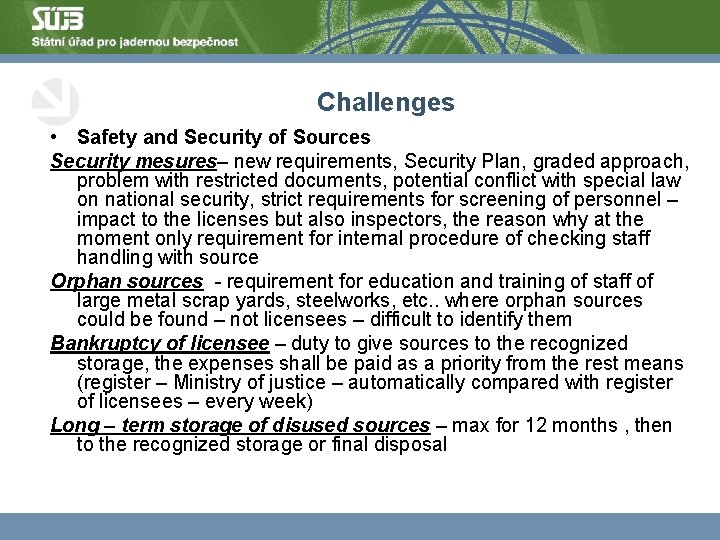

Challenges • Safety and Security of Sources Security mesures– new requirements, Security Plan, graded approach, problem with restricted documents, potential conflict with special law on national security, strict requirements for screening of personnel – impact to the licenses but also inspectors, the reason why at the moment only requirement for internal procedure of checking staff handling with source Orphan sources - requirement for education and training of staff of large metal scrap yards, steelworks, etc. . where orphan sources could be found – not licensees – difficult to identify them Bankruptcy of licensee – duty to give sources to the recognized storage, the expenses shall be paid as a priority from the rest means (register – Ministry of justice – automatically compared with register of licensees – every week) Long – term storage of disused sources – max for 12 months , then to the recognized storage or final disposal

Thank you for your attention and Good Luck ! Questions?
