Radiation Protection RAD 101 Unit 4 Protection of

Radiation Protection RAD 101 Unit 4 Protection of the Patient and Technologist During Diagnostic Radiography

Objectives • Explain the need for effective communication between the radiographer and the patient. • Explain the significance of adequate immobilization of the patient during a radiographic exposure. • Describe the various beam-limiting devices and identify the device which best confines the radiographic beam. • Explain the function of x-ray beam filtration in diagnostic radiology. • State the reason for using gonadal shielding during radiologic examinations and identify the types of shields used. • Discuss the need for using appropriate exposure factors for all radiologic procedures. • Explain how the use of IR combinations reduces radiographic exposure for the patient. • Discuss the value of good radiographic processing techniques in reducing radiographic exposure for the patient. • State the reason for reducing the number of repeat radiographs. • Explain how patient exposure can be reduced during fluoroscopic procedures

Equipment Design for Radiation Protection Chapter 11

Equipment Design • Control Panel – Must be behind protective barrier w/ window – Must indicate condition of exposure and have light or audible x-ray indicator • Tube housing – Must be lead lined metal (protective tube housing) • Protects from off-focus or leakage radiation • Leakage can not exceed 100 m. R/hr at a distance of 1 meter when operating at the highest voltage • Table – Uniform thickness – Radiolucent- absorbs only minimal amount of radiation- commonly carbon fiber • SID – Must have a means of measurement from anode focal spot to IR – Distance must be accurate to 2% of SID – Centering must be accurate to 1% of SID

Beam Limiting Devices • Devices that limit the x-ray beam before it enters the patient • Benefits – – Amount of tissue irradiated is less Dose received is less Amount of scatter radiation produced in the body is less Image quality is improved • Types – Aperture diaphragm – fixed and variable – Cone/cylinders – Collimator

Aperture Diaphragm • Lead square with a fixed circular opening-fixed • Placed below ( under) the tube • Restricts the beam dimensions to a given size Pg 236

Cones/Cylinders • Fixed aperture device consisting of an extended metal structure – Cone – flared metal tube – Cylinder- straight tube , more restricting- • Longer cylinders are more restricting • Slide into attachment under tube housing • Uses: – Dental, detail , sinuses, spot L-spine

Collimators • “Variable aperture or variable rectangular” • Most versatile • More control over beam limitation • 2 sets of shutters • 1 st set reduces off focus radiation from the primary beam- located below tube window – Off focus- radiation in tube that results from electrons hitting areas other that the focal spot) • 2 nd Set- 2 pairs; each pair can be independently adjusted- located below the light source and mirror • Most machines have PBL- positive beam limitations – but can be reduce further • NCRP requires light field to be accurate to no more than 2% of the SID – 40” x 2%=. 8 “ of light showing around cassette

Filtration • The process of eliminating undesirable low-energy x-ray photons by the insertion of absorbing materials into the primary beam • Effects of filtration – Increase quality of the beam because boo penetrating x-rays are left- Beam gets “hardened”- removes low energy – Decreased quantity of x-rays- by absorbing some low energy beams- fewer overall beams are left – Reduces patient dose- especially to skin and superficial tissue • 2 types – Inherent – Added

Inherent filtration • Result of tube and housing composition • Glass envelope surrounding tube • Oil that surrounds tube ( oil helps in heat dissipation) • Glass window- most of inherent comes from here • Typical x-ray tube may have total inherent filtration of. 5 -1. 0 mm Al equivalent

Added Filtration • Any filtration occurring outside the tube and housing and before the IR • The collimators themselves are considered added filtration – avg 1. 0 mm. Al eq. • Sheets of Al also added after tube window • Al is considered standard filtering material – All filtration is expressed in Al equivalences • Inherent + Added = total filtration • Operating levels require certain amts of filtration per NCRP #102 • When filtration is increased, technical factors must be increased to maintain same density on film • Although exposure needs to be increased to pt, there is still a greater decrease in overall exposure to pt with filtration

Require Filtration NCRP #102 Box 11 -2 OPERATING k. Vp Total filtration Required (HVL) Below 50 k. Vp . 5 mm Al 50 -70 k. Vp 1. 5 mm Al Above 70 k. Vp 2. 5 mm Al Mobile & fluoro units 2. 5 mm Al

Half Value Layer - HVL • The amount ( thickness) of an absorber ( Al) required to decrease the intensity of the primary beam by ½ (50%) of its original value • Expressed in terms of Al equivalent • Physicist measures beam quality • Shielding devices use HVL • TVL- amount of shielding required to reduce the radiation intensity to one-tenth its original value

http: //o. quizlet. com/RUQPb. YCy 7 J 8 zw. Da. Ucy. N. GA_m. jpg Compensating Filters • Placed outside under collimators • Designed to solve a problem of unequal subject densities • Adds an absorber to compensate for unequal absorption with the subject • Result – overall absorption of primary beam will be more equal and even densites on radiograph ( one end won’t be black and other underexposed) • Made of aluminum, leaded plastic or plastic ( acrylic) • Types – Wedge – bone and joint – T-spine, feet – Trough ( bilateral wedge) CXR-PA http: //o. quizlet. com/zi. B 0 q. Nlw 6 LZl. WDVCa. LGRKA_m. png

Reproducibility/ Linearity • Reproducibility – Consistent output in radiation intensity for identical generator setting from one exposure to the next – Any combo of k. Vp, m. A and time – Variance of 5% or less • Linearity – Consistent output of radiation intensity at any selected k. Vp setting when generator setting are changed from m. A/time combo to another – Cannot exceed 10%

Image Receptors • Film Screen – – intensifying screens – convert x-ray energy to visible light- screens have phosphors ( crystals) that luminesce(give off visible light) when struck by x-rays – Screen-Speed- how fast a screen is capable of converting x-rays to light – Slow screens need more radiation to produce same density- higher pt dose but better detail • CR- computed radiography – Photostimulable phosphor plate- aprox equal to 200 speed screen film – Dose creep- results from practice of overexposing patients to create good images and avoid repeat images • DR- digital radiography – Latent image is formed by x-ray photons on a radiation detector- electronic latent image – Matrix size and pixel size determine image detail – Reduction in repeats reduce overall patient dose

Grids • Devices that remove scattered x-ray photons that emerge from the patient before the scatter reaches the film • Improves contrast and visibility of detail- image quality • Placed between the patient and IR • Pt dose will increase because bore technique is necessary • Used when thickness of part is >10 cm • Made of alternating strips of lead and aluminum or plastic • Come in varying grid ratios- the higher the grid ratio the more grid lines-better absorption of scatter- higher patient dose

Dose Reduction for Mobile X-Ray ( portable) • Mobile radiography requires SSD of at least 30 cm (12 inches) • Recheck your positioning • Check previous radiographs for exposure factors, SID and body habitus – useful for CXR • Use high k. Vp technique ( gives a wider margin for exposure error and reduces dose) • Shield pt • Collimate • Warn personnel and family to reduce their dose- have family leave room

Dose Reduction during Fluoro X-ray exam is performed and demonstrates dynamic, or active, motion of selected anatomy- real time (Regular x-ray is considered static images ) • Use intermittent rather than continuous beam on • Dead-man switch for foot pedal must be equipped- fluoro only when switch is depressed • Collimate • Filtration of 2. 5 mm. AL required • Exposure rate cannot exceed 10 R/min • 5 minute reset timer- audible

Dose Reduction during Fluoro • Bucky slot shielding device of at least. 25 mm. Pb is required • Protective curtain min. 25 mm lead • Stationary Fixed Fluoro SSD no less that 38 cm ( 15 inches) • Mobile fluoro (c-arm) requires SSD of at least 30 cm (12 inches) • Cannot operate in parked position • Primary protective barrier must be 2 mm. Pb equivalent • Lower exposure factors for peds • Fluoroscopically Guided Positioning (FGP) – Practice of using fluoro to determine exact location of the central ray before taking a radiographic exposure – ASRT says “ unethical practice that increases patient dose”

Management of Patient Dose Chapter 12

Effective Communication • “ The holistic approach” the use of verbal messages and body language to communicate with your patient • Advantages: – Reduces patient anxiety – Creates better tech/patient relationship- trust and caring – Increases chance of completing exams and reduce repeats • Consists of : – – – Clear concise instructions Give patient time to ask questions and answer truthfully Listen and offer empathy Respond according to ethical guidelines Don’t overemphasize pain ( may cause more anziety)

Immobilization • Sometimes needed based on patient and exam being performed • Reduces motion • 2 types of motion – Voluntary- patient controlled • Age • Breathing • Fear – Involuntary- body systems • Muscle spasms • Chills • Tremors • Shortened exposure time while maintaining m. As ( high m. A , low seconds) • Good instructions

Protective Shielding • Devices made of lead or lead impregnated materials that will adequately attenuate ionizing radiation • Should reduce or eliminate radiation doses that can cause biological damage • Areas that should be shielded – Eyes – Breasts – Reproductive organs • Types of shields – Gonadal • Flat, shadow, shaped, clear – Specific area shielding • Breast, thyroid

Gonadal Shielding • Used to protect reproductive organs when organs are within 5 cm of the beam • Used unless it will compromise the exam (pelvic, abdominal ) • Females receive 3 x the exposure to reproductive organs than males during exams of the pelvic region • Female dose- can be reduced by up to 50% with contact shield – placed 2. 5 cm medial to ASIS • Male dose- can be reduced by up to 90 -95% with contact shield- placed below symphysis pubis

Types of Gonadal Shielding • Flat contact shields – – Lead strips Placed directly over patient’s reproductive organs Best when used in AP or PA recumbent position Under the patient during fluoro • Shadow shields – – – Made of radiopaque material Suspend from above the tube collimator box Hang over patient and shadow area to be shielded- gonad and breast Can’t use during fluoro Can use during sterile procedures Reduce patient embarrassment

Types of Gonadal Shielding Cont’d • Shaped Contact shields – 1 mm of lead and are contoured to enclose male reproductive organs – Can be used with disposable or washable briefs – Can be used for recumbent or nonrecumbent positions- AP, oblique, and lateral – not for use with PA projections- only covers anterior and lateral – Can be used for fluoro exams – Have patient place when changing for exam • Clear Lead Shields – Transparent lead acrylic impregnated with approx. 30% lead by weight – Can be gonad and breast shielding for scoliosis exams

Specific Area Shielding • Used for radiosensitive organs and tissues – Thyroid – Breast ( or PA positioning can reduce dose) – Eyes • Can be contact, shadow or clear plastic http: //www. eakoh. com/X-rays/thyroid. jpg http: //www. alimed. com/_resources/images/product/_cache/920338_280 x 280. jpg http: //corearmor. com/cav 02/wp-content/uploads/2012/09/attenurad-ct-eye-shield. png

Technical Exposure Factors • Essential to ensure a diagnostic image with minimal patient dose • Images must have: – – Sufficient density (brightness) to display structures Good contrast to differentiate structures Maximum special resolution( detail) and minimal distortion Low quantum noise or mottle – results from insufficient technique

Technique Charts • Used when AEC ( automatic exposure control) is not used • Standardized set of techniques based on equipment and patient size • Departments establish own protocols • Ensures consistency • Minimizes errors if used correctly

SAMPLE TECHNIQUE CHART

Exposure Factor • Typically high k. Vp and low m. As will reduce dose • Increasing k. Vp by 15% and reducing m. As ( ½) will reduce radiation exposure • Select the highest practical k. Vp within optimal range for the position and part along with sufficient m. As that will produce and optimal radiograph

Radiographic Processing • Of main concern with film-screen imaging • Correct processing promotes archival quality • Inadequate processing will produce poor films leading to repeats and extra exposures • Digital Imaging- also concern on post-processing – Artifacts – Software problems

Quality Control Program/ Repeat Analysis Program • Ensures standardization in processing in film and digital • Regular monitoring and maintenance of processor and image display • Types of QC – Acceptance testing – Calibration – PM schedule • Repeat analysis program – Repeats and reasons for repeats are evaluated – Increases awareness about quality of images – In-service if consistent problems arise

The Pregnant Patient • Screen all women of child bearing age – Some hospitals have specific ages outlined • Ask LMP – NCRP- Elective exams should be completed in the first few days after the onset of menses to minimize possible radiation of an embryo. - “Ten day rule” ICRP for woman of reproductive age. States that "whenever possible, one should confine the radiological examination of the lower abdomen and pelvis to the 10 -day interval following the onset of menstruation. ” - Consideration for replacing with 28 day rule. Pt is considered not pregnant until a menstrual period is skipped then they are until proven otherwise. • Shield is recommended if the ovaries and uterus are less than 5 cm from edge • Some facilities will require HCG

Figuring Fetal Dose • List in as much detail about the x-ray exam – – – – – Projections Number of views Film size Technique SID Shielding used? Patient thickness Fluoro time Number Spot films taken • Report information to RSO or Medical Physicist- they will determine Eq. D

Management of Tech Dose Chapter 13

The Patient as a Beam Emitter • During the exam- the patient becomes a source of radiation for the tech- scattered radiation because of Compton interaction • Greatest occupational hazard • Lowest scatter area is at 900 to the patient • Ways of reducing – – – Beam limiting devices –PBL Filtration- (primarily benefits pt) Protective apparel Technical factors Cardinal principles Structure of dept

Protective Apparel • Lead aprons, gloves and shielded barriers • Protect from secondary ( scatter and leakage) • Standard apron thickness. 5 mm lead equivalent at 100 k. Vp reduces by 75% • . 25 mm is minimum (mammo) 1 mm is maximum ( rare because of weight) • Lead should be hung on racks or draped over a bar- never folded or crunched • Must be inspected yearly for integrity ( use high k. Vp to reduce dose) • Thyroid shields-. 5 mm lead • Glasses. 35 mm lead • Gloves. 25 mm lead

Cardinal Principles (Time, Distance, Shielding ) • Distance – The most effective means of protection from ionizing radiation • Inverse Square Law – Expresses the relationship between distance and intensity ( quantity) of radiation – “The intensity of radiation is inversely proportional to the square of the distance from the source” – Decrease in radiation intensity physically occurs because of the area– Expressed as an equation: I 1 = (d 2)2 I 2 (d 1)2 Where : I 1 = original intensity & I 2 = new intensity (d 2)2 = new distance & (d 1)2 = original distance

Practice Problem • If a radiographer stands 3 m from an x-ray tube and is subjected to an exposure of 9 m. R/h, what will the exposure be if the same radiographer moves to a position 6 m from the x-ray tube? I 1 = (d 2)2 9 = (6)2 I 2 (d 1)2 I 2 (3) 2 cross multiply 36 I 2 = 81 divide I 2 = 2. 25 m. R/h

Protective Structural Shielding • Primary Protective Barrier– – prevents DIRECT or unscattered, radiation from reaching personnel or public perpendicular to line of travel of primary beam 1/16 inch lead Extends 7 feet • Secondary Protective Barrier– – – – protects against leakage and scatter. Any wall or barrier that is never struck by primary beam Located parallel to the direction of the beam 1/32 inch lead Extends to ceiling and should overlap primary by 1/2” Includes ceiling and control booth Doors are considered secondary 1/32 inch lead – must remain closed during exposure

Protective Structural Shielding • Control Booth Barrier- considered secondary barrier – – – Permanent or nonportable equipment require permanent control booth Should be positioned where x-rays scatter a min of 2 x before reaching behind barrier Contains window for personnel 1. 5 mm lead equivalent ( can be. 3 -2 mm) Max allowance of 1 m. Sv (100 mrem) per week Exposure cord must be short enough that the tech cannot operate outside booth Tube should never be pointed at control booth • Ceiling mount - Overhead lead acrylic – Used during special procedures – Typically. 5 mm

Workload • Used to determine barrier shield requirements • Since x-ray units do not have constant on-time a formula is used to determine approx. amount of radiation “output-weighted time” • Expressed in m. As per week or m. A-min per week • Workload (W)= m. A x time x days per week x #pts x #img per pt

Use Factor & Occupancy Factor If no one will ever be present beyond an existing wall- no additional shielding is needed ( courtyard) • Use Factor- the factor that represent the portion of beam-on time that the x-ray beam is directed at a primary barrier during the week ( table 13 -2 pg 328) • Occupancy Factor- use to modify shielding based on the fraction of the work week during which the space beyond the barrier is occupied (table 13 -3 p 329) • Controlled area- used only by x-ray personnel – 1 m. Sv (100 mrem) • Uncontrolled area- general public – hallway, stairwell – Weekly max dose 20 microsieverts ( 2 mrem)

Caution Signs Posted signs warning for radiation “Catution” and radiation symbol : Must be magenta, purple or black on a yellow background Must read: “Radiation Area” “High Radiation Area” “Very High Radiation Area” Departments usually have “If you think you are pregnant please tell the technologist”

Where to stand during exams • Fluoro – Stand as far away from the patient as practical or behind radiologist – Book recommends control booth…. . Usually not practical • Portable – Cord must be 6 foot – 90 degrees to beam • C-arm – As far as achievable – use of foot pedal for exposure helps – Position image intensifier as close to patient as possible ( decreases scatter) – If possible place tube under table and image intensifier over table

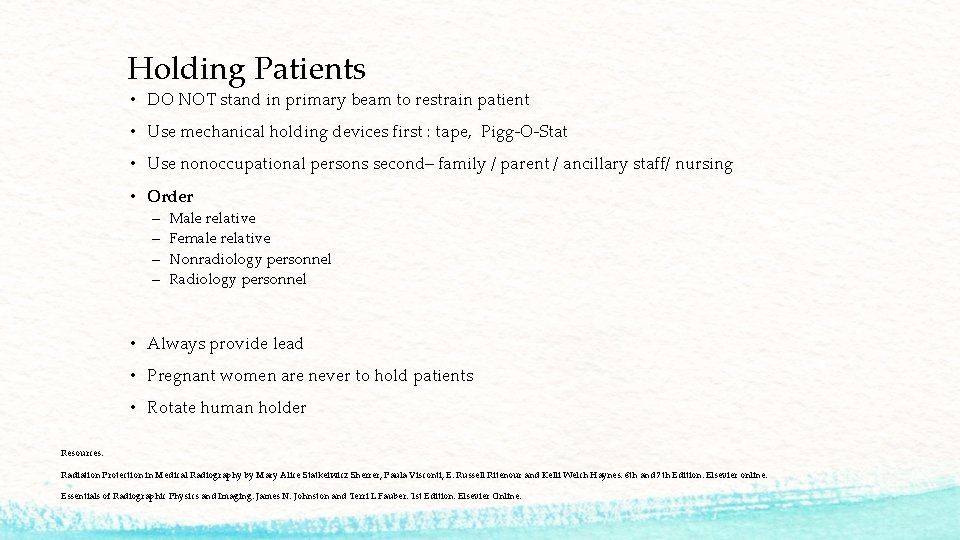

Holding Patients • DO NOT stand in primary beam to restrain patient • Use mechanical holding devices first : tape, Pigg-O-Stat • Use nonoccupational persons second– family / parent / ancillary staff/ nursing • Order – – Male relative Female relative Nonradiology personnel Radiology personnel • Always provide lead • Pregnant women are never to hold patients • Rotate human holder Resources: Radiation Protection in Medical Radiography by Mary Alice Statkeiwicz Sherrer, Paula Visconti, E. Russell Ritenour and Kelli Welch Haynes. 6 th and 7 th Edition. Elsevier online. Essentials of Radiographic Physics and Imaging. James N. Johnston and Terri L Fauber. 1 st Edition. Elsevier Online.
