Radar Video Surveillance
Radar Video Surveillance (RVS) Detect Track Respond • Automates Detection, Tracking, and Video Response • Identifies potential threats before they reach the perimeter • Deployed as a Product, not as a Project • Utilizes Radar and CCTV to their Strengths 2 File Number- 2

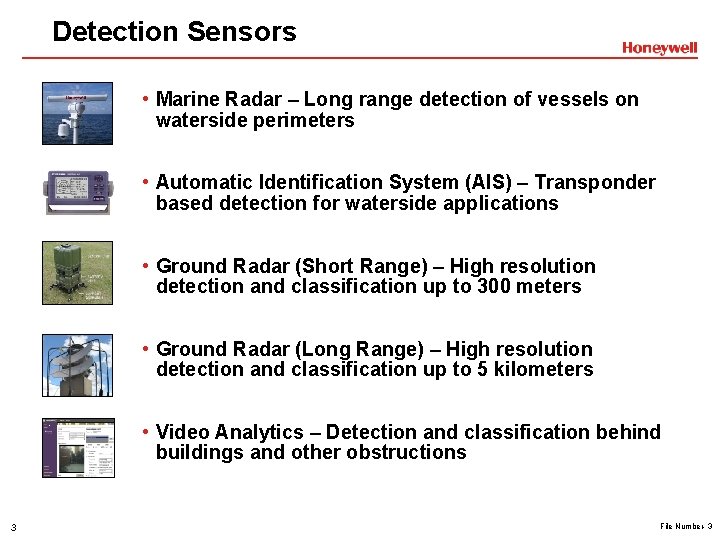

Detection Sensors • Marine Radar – Long range detection of vessels on waterside perimeters • Automatic Identification System (AIS) – Transponder based detection for waterside applications • Ground Radar (Short Range) – High resolution detection and classification up to 300 meters • Ground Radar (Long Range) – High resolution detection and classification up to 5 kilometers • Video Analytics – Detection and classification behind buildings and other obstructions 3 File Number- 3
RVS Tracking • Data from multiple sensors ‘fused’ into one display to provide situational awareness • Full featured geospatial map allows operator to view areas of interest • Custom alarm zones filter out activity in operational areas • User defined rules allow tuning of system to reduce false alarms • Tracked objects or ‘targets’ are prioritized using the rules for that facility • Targets are ignored once the operator acknowledges an alarm • Multiple configurations change maps, alarm zones, and rules for different security readiness levels 4 File Number- 4
Threat Response • Honeywell EBI – Alarms processed in the same screen and format as all other alarms. Unique responses available through scripting. • Pro-Watch Alarms – In the same screen and format as all other alarms. Acknowledging alarm causes target to be ignored. • CCTV Response – DVM steers camera, displays image, and records activity. Record rate and pre-record times are configurable. • Most Cameras Supported – DVM supports industry standard camera interfaces such as Pelco. 5 File Number- 5
RVS vs. Video Analytics • • • 6 24 cameras for detection Partial coverage Several Cameras to Identify Extensive set up, tuning Daylight operation only Highly susceptible to weather RVS • • • 1 radar for detection Full coverage Several Cameras to Identify Less set up, maintenance 24 hour detection Less susceptible to weather File Number- 6

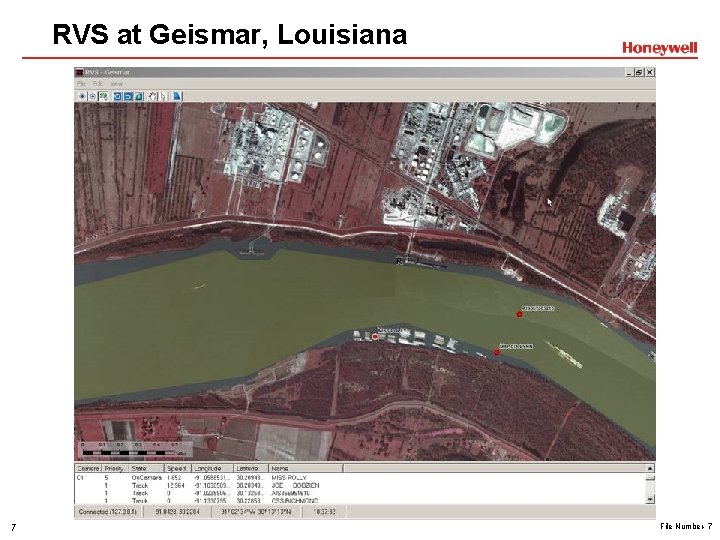

RVS at Geismar, Louisiana 7 File Number- 7
RVS at Houston Bush and Hobby Airports • Protecting 30 miles of perimeter at Bush Intercontinental, 6 miles at Hobby • Bush is currently patrolled my mounted police • Combination of long range / short range radars • Persons detected at up to 5 km • Long range color / thermal cameras controlled automatically for assessment • RVS is integrated with Pro-Watch and DVM for Command & Control • DVM 200 provides Video Analytics for areas not in radar line of sight 8 File Number- 8
RVS Map – Bush Intercontinental Alarm Zone R R Long Range Radar (5 km) Short Range Radar (300 m) Low Priority Target High Priority Target 9 File Number- 9
RVS Configuration – Alarm Zone 10 File Number- 10
GIS Capabilities - Zoom 11 File Number- 11
RVS Control – Configurations 12 File Number- 12

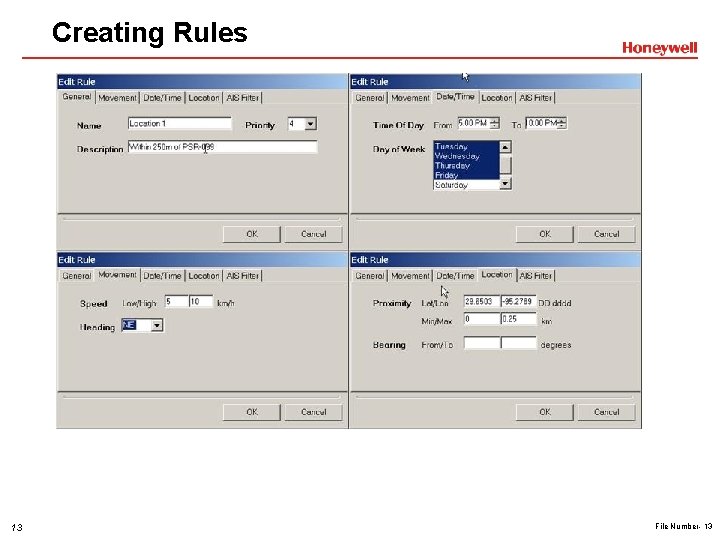

Creating Rules 13 File Number- 13
Sensor Configurations 14 File Number- 14
Response Configurations 15 File Number- 15
Target Summary Screen 16 File Number- 16
Questions? 17 File Number- 17
