RNDSG Action Requirement RAD Restrictions Study 1. NM to run a Network impact assessment of the RAD RNDSG/84 -06 restrictions implemented in the States. (FEB 2015) 2. States to study if some of the RAD restrictions were put in place to balance capacity during a specific period of the year and therefore can be deactivated during the rest. Document Confidentiality Classification: Green States NM

Content and Analyses Document Confidentiality Classification: Green

Purpose and Scope § RAD restrictions impact on the horizontal flight planning efficiency. § Correlation of two restrictions. § Difference in applying restrictions in planning and actual phase of flight. Document Confidentiality Classification: Green

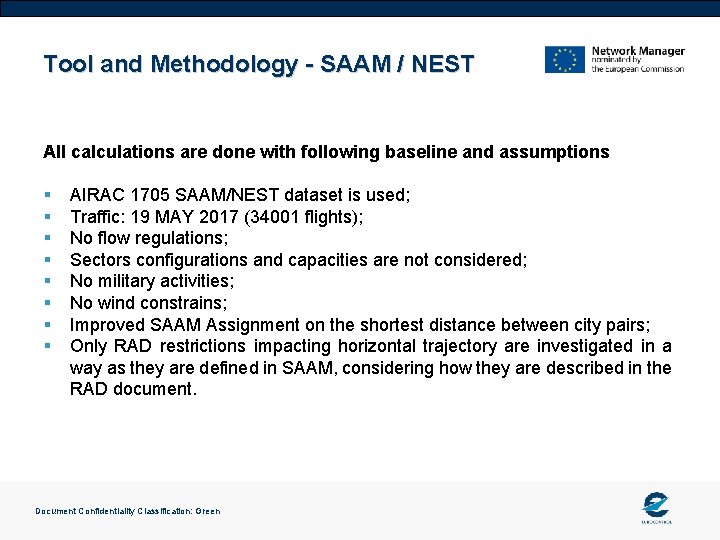

Tool and Methodology - SAAM / NEST All calculations are done with following baseline and assumptions § § § § AIRAC 1705 SAAM/NEST dataset is used; Traffic: 19 MAY 2017 (34001 flights); No flow regulations; Sectors configurations and capacities are not considered; No military activities; No wind constrains; Improved SAAM Assignment on the shortest distance between city pairs; Only RAD restrictions impacting horizontal trajectory are investigated in a way as they are defined in SAAM, considering how they are described in the RAD document. Document Confidentiality Classification: Green

Macroscopic Analysis Document Confidentiality Classification: Green

Macroscopic Analysis § Difference between RTE-DES and RTE-RAD Document Confidentiality Classification: Green

M 1 Document Confidentiality Classification: Green

RAD ON - SAAM assignment Document Confidentiality Classification: Green

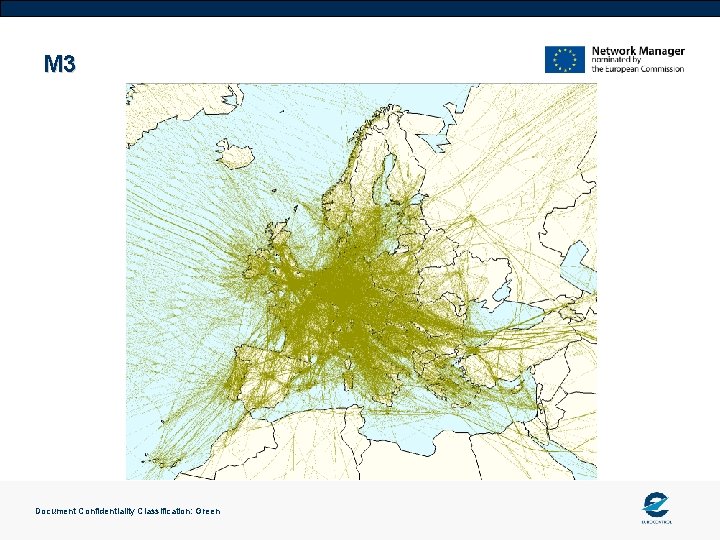

M 3 Document Confidentiality Classification: Green

RAD OFF - SAAM assignment Document Confidentiality Classification: Green

Macroscopic Analysis § Percentage of used RAD Pan-European Annex restrictions in SAAM/NEST assignment. § Used restrictions - all RAD Pan-European annex restrictions defined in the SAAM/NEST dataset that have be considered during any of the assignment steps. Not used restrictions - all RAD Pan-European annex restrictions that were not involved in any of the assignment computations. As an average, 6 RADAN restrictions has to be considered per CP (flights on CP EDDM_EGBB have to consider 32 different RADAN restrictions with all braches taken in consideration). § § Document Confidentiality Classification: Green

RAD Restriction Utilization § Route extension (in NM) caused by RAD restriction (horizontal) Significant impact on horizontal flight efficiency (total penalization) City-pairs per number of different RAD Pan-European annex restrictions considered (main branch) 1 2 3 4 5 6 7 8 9 10 Document Confidentiality Classification: Green City Pair EDDL_LOWS LTAC_EDDK LIMC_EGHH LOWI_EDDF LIPE_EDFM LEIB_EGKK LDZD_EGBB LFPG_EDDB EKBI_EDSB LFPG_EINN Number of RADAN 7 5 5 4 4 4 4

RAD Restriction Utilization § Route extension (in NM) caused by RAD restriction City-pairs significantly impacted by RAD (total length difference between restricted and not restricted assignment) 1 2 3 4 5 6 7 8 9 10 City Pair Number of Flights EGPH_EGLC EIDW_EGLC ENZV_ENGM UKBB_UGTB_UKBB EDDL_LEPA LEBL_EGKK EDDH_EDDF UDYZ_UKBB_UDYZ 13 12 25 2 2 15 15 18 2 2 Document Confidentiality Classification: Green Total Length Diff (NM) 1560. 9 1280. 85 981 691. 8 683. 97 682. 31 658. 18 620. 92 586. 66 585. 11 City-pairs per number of different RAD (average length difference between restricted and not restricted assignment) Average 120. 07 106. 74 39. 24 345. 90 341. 99 45. 49 43. 88 34. 50 293. 33 292. 56 1 2 3 4 5 6 7 8 9 10 City Pair Number of Flights EGPH_EGLC EIDW_EGLC EGKK_EGAA LEPA_EGKK LFPG_LSGG EDDL_LEPA EBBR_LSGG EGLL_LSGG LEBL_EGKK EHAM_LSGG 13 12 11 10 10 15 10 13 15 11 Total Length Diff (NM) 1560. 9 1280. 85 580. 1 521. 88 499. 36 682. 31 450. 01 581. 23 658. 18 453. 49 Average 120. 07 106. 74 52. 19 49. 94 45. 49 45. 00 44. 71 43. 88 41. 23

RAD Restriction Utilization Possible correlation with other RAD restrictions § pivot - by resolving this RAD restriction others restrictions at the same step will be resolved as well § periphery - restrictions that were in the same step as pivot, but were not selected for computation; their conditions were satisfied by resolving the pivot restrictions. Document Confidentiality Classification: Green

RAD Restriction Utilization § Deviation from the RAD restrictions on ATC • Distribution of RAD restrictions from which flights were exempted in m 3 (per country of origin) Document Confidentiality Classification: Green

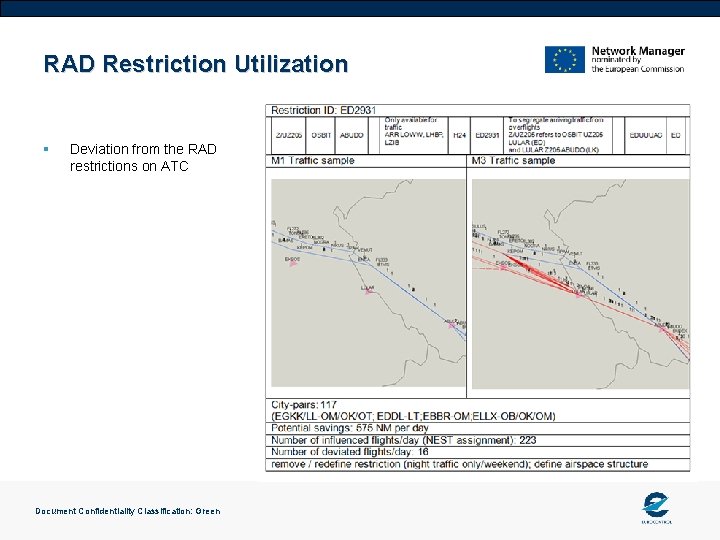

RAD Restriction Utilization § Deviation from the RAD restrictions on ATC Document Confidentiality Classification: Green

RAD Restriction Utilization § Deviation from the RAD restrictions on ATC Document Confidentiality Classification: Green

RAD Restriction Utilization Document Confidentiality Classification: Green

Contradictory / Double Document Confidentiality Classification: Green

RAD Restriction Simplification § Comparison of RAD restriction pairs as they are defined in RAD Annex Document Confidentiality Classification: Green

Study Presentation Document Confidentiality Classification: Green

Presentation and Discussion § Internal EUROCONTROL NM distribution in August 2017. § Bi-lateral skyguide - EUROCONTROL NM meeting in Geneva (12 SEP 2017). skyguide has provided EUROCONTROL NM with comments on RAD restrictions used as an example in the document and has requested additional data to proceed with further analysis. § RMG/30 (NOV 2017) with relevant action it was agreed the NRCs, AOs and CFSPs to provide relevant feedback on presented methodology, results and conclusions. § FABEC AOG workshop in Langen (29 JAN 2018), where it was agreed that ANSPs will request and evaluate additional data on RAD utilisation provided by EUROCONTROL NM. § Discussed (but not presented) at the RNDSG/93 (FEB 2018) where several ANSPs expressed their support for this study and requested EUROCONTROL NM to continue with the further elaboration of this study. § Concluded that the “RAD Impact Assessment Study” document to be updated with the new examples and EUROCONTROL NM to continue sharing additional data with ANSP on their request. Document Confidentiality Classification: Green

Presentation and Discussion § Officially presented at RNDSG/95 (SEP 2018). Reference RNDSG/95 -12 (SEP 2018) Subject: Description and Action RAD Network impact assessment study NM can provide more details on the presented study to the ANSPs on their request. RNDSG/95 -13 (SEP 2018) RAD Network impact assessment study NM to provide further presentations on the study at the NM RAD Workshop on 12 - 13 December 2018. Responsible Completion Date NM ASAP NM 12 - 13 December 2018 § In accordance with Action RNDSG/95 -12 (SEP 2018) and on States request EUROCONTROL NM provided required data to Austria and Greece. § FMP exchange: Italy and Spain requested data Document Confidentiality Classification: Green
