RAD Evolution Workshop Purpose of the RAD and

RAD Evolution Workshop Purpose of the RAD and evolutions to-date Beginning, Evolution, Management, Control RAD WS 12 - 13 DEC 2018, Brussels, Belgium Tihomir Todorov Head of Section Airspace Design 12 DEC 2018

before 1996 - mid 2012 Document Confidentiality Classification: Green

Structural Airspace Restrictive Measures § The initial aim was to communicate to AOs the ATC / ATFM and structural airspace restrictive measures imposed by States § Before 1996 … Traffic Orientation Scheme (TOS) … § Before 1996 … Contingency Routing Scheme…: § 1999 - 2001 …. Standard Routing Scheme (SRS) § Due to several non-operational crises in Europe the SRS was converted into Avoidance Routing Scheme (ARS) Document Confidentiality Classification: Green

History of the RAD The Beginning § Route Availability Document (RAD) as from 2001 § Discussions on RAD started somewhere in 1997 at CRS / TOS Meeting that originally defined the SRS Proposal tabled by AO organisation - tell us what you don’t want Austria - First to agree the concept followed by Germany - First to adopt full RAD principle - SRS plus AIP route flow restrictions Two parts: Part 1 - State by State, Part 2 - Pan European February 2001 - Scandinavia added Proposals out to: UK, France for Paris, Reims and Brest (1 Annex) and Bordeaux, Turkey Transition starting 19 th April 2001 and SRS was withdrawn End transition 5 th October 2001 - All States compliant § § § § Document Confidentiality Classification: Green

History of the RAD Benefits and dis-benefits Benefits § Computer readable § Electronic download into external computer systems § Sole source data § Single publication § Single document versus AIPs § All AIP route flow restrictions included (many currently checked) § Pan European § Automatic AO compliant routes § Reduction/elimination of MANual queues § No requirement by AO’s for route catalogue § Review of AIP restrictions § Route continuity check § Publication discipline Dis-Benefits § Interim complexity § Interim management § Route characteristics remain in AIP § Expansion of the SRS area Document Confidentiality Classification: Green

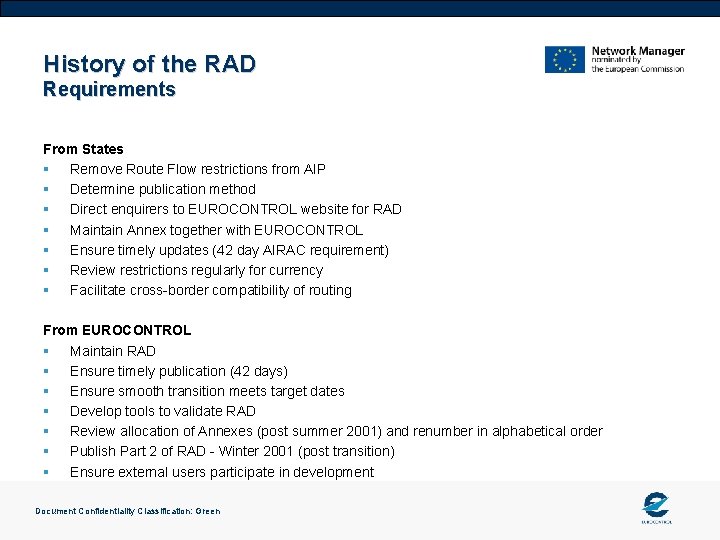

History of the RAD Requirements From States § Remove Route Flow restrictions from AIP § Determine publication method § Direct enquirers to EUROCONTROL website for RAD § Maintain Annex together with EUROCONTROL § Ensure timely updates (42 day AIRAC requirement) § Review restrictions regularly for currency § Facilitate cross-border compatibility of routing From EUROCONTROL § Maintain RAD § Ensure timely publication (42 days) § Ensure smooth transition meets target dates § Develop tools to validate RAD § Review allocation of Annexes (post summer 2001) and renumber in alphabetical order § Publish Part 2 of RAD - Winter 2001 (post transition) § Ensure external users participate in development Document Confidentiality Classification: Green

RAD Structure - 2001 RAD Part 1 § 3 (three) Appendices: • Appendix 1 - Introduction; • Appendix 2 - Area Definition; • Appendix 3 - City Pair Level Capping. § 32 (thirty two) Annexes: • Annex 1 - 30: States; • Annex 31: NAT; • Annex 32: Military Routes. RAD Part 2 § Includes Annex 1 - 30 structured on ATS route alphabetical order Document Confidentiality Classification: Green

RAD Structure Evolution 2001 - 2012 § RAD 0312 - 27 NOV 2003 - Annexes renamed as National Annexes, Annex MIL and Annex NAT § RAD 0401 - 20 JAN 2004 - New Appendix 4 DCT Limits § RAD 0411 - 28 OCT 2004 - New Appendix 5 - SID/STAR § RAD 1003 - 11 MAR 2010 - New Appendix 6 - Inter ACC § RAD 1007 - 01 JUL 2010 - Annex MIL withdrawn and restrictions included in National Annexes § RAD 1206 - 31 MAY 2012 - New Annex Special Event - created for the purpose of EURO 2012. Document Confidentiality Classification: Green

Beyond mid 2012 Document Confidentiality Classification: Green

ERNIP RAD § PART 1 - The European Airspace Design Methodology Guidelines General Principles and Technical Specification for Airspace Design § Chapter 8 Route Network and Free Route Airspace utilisation rules and availability § PART 4 - Route Availability Document (RAD) User Manual The 4 th meeting of the Network Management Board (NMB) on 7 th June 2012 approved the full ERNIP (5 documents) and the actions required to enhance airspace utilisation. Document Confidentiality Classification: Green

RAD Introduction § The RAD is a common reference document containing the policies, procedures and description for route and traffic orientation. It also includes route network and free route airspace utilisation rules and availability. § The RAD is also an Air Traffic Flow and Capacity Management (ATFCM) tool that is designed as a sole-source flight-planning document, which integrates both structural and ATFCM requirements, geographically and vertically. Document Confidentiality Classification: Green

RAD Basic Principles § The objective of the RAD is to facilitate flight planning. § The RAD enables States/FABs/ANSPs to maximise capacity and reduce complexity. § The RAD should also assist the Network Manager in identifying and providing rerouting options § The content of the RAD shall be agreed between the Network Manager and the Operational Stakeholders through an appropriate Cooperative Decision Making (CDM) process. § The RAD is subject to continuous review by the Network Manager and the Operational Stakeholders to ensure that the requirements are still. § The RAD is updated each AIRAC cycle following a structured standard. § The RAD is only applicable to the IFR part of the Flight Plan. § The NM is responsible for preparing of a common RAD reference document, collating, coordinating, validating and publishing it. Document Confidentiality Classification: Green

RAD Restriction § A restriction normally shall not qualify for inclusion in the RAD unless it has a FLOW ELEMENT and/or TIME AVAILABILITY / RESTRICTION APPLICABILITY attached to it. § A FLOW ELEMENT is defined as affecting either: • Departures from an Airfield / Group / Area; • Arrivals to an Airfield / Group / Area; • Traffic flying between Airfield / Group / Area; • Overflying traffic. Document Confidentiality Classification: Green

RAD Restriction Structure § Each restriction is hierarchical and specific and has been arranged to facilitate parsing of the information into computer systems. § For the usage of the restricted object (significant point, ATS route segment, defined DCT, airspace volume (ATC Unit, Ao. R of relevant ATC Unit - CTA/UTA, TMA, CTR or individual control sector/s within an ATC unit, etc. )) there are 3 (three) main types of restrictions: • Not available for … Flight planning via restricted object is forbidden for described flow(s). • Only available for … Flight planning via restricted object is allowed exclusively for described flow(s). • Compulsory for … Flight planning via restricted object is the only valid option for described flow(s). § For the combination of elements that define the flow of traffic, there are 2 (two) types of restrictions - inclusive and exclusive: • INCLUSIVE restriction - traffic must meet ALL of the conditions to be subject to the restriction. The implicit logical operator between the listed conditions is an “AND” - Logical Conjunction. • EXCLUSIVE restriction - traffic only needs to meet ONE of the numbered sub-conditions to be subject to the restriction. The implicit logical operator between the numbered conditions is an “OR” - Logical Disjunction. Document Confidentiality Classification: Green

RAD Restriction Identification § Restrictions shall be uniquely identified by a 6 digit alpha/numeric identifier which comprises the ICAO nationality letters for location indicators assigned to the State of origin or 2 letter Regional / FAB naming convention prefix code, together with a 4 digit number (LF 2016, DU 2001, RE 2001). § Exception from above rules is allowed for DCT identification in Appendix 4 where a maximum 9 digit alpha/numeric identifier containing 5 digit number might be used (LF 50001, DU 52345, RE 54999, DSYX 50000) and FUA restrictions in Appendix 7. § The FUA restrictions shall be identified as follows: § § Restricted Airspaces Identifier (RSA ID) as published in State AIP followed by 1 letter R, S, T, U, V, W, X, Y (LBTSA 11 R); or Restricted Airspaces Identifier (RSA ID) as published in State AIP followed by 1 letter Z indicating FBZ existence followed by 1 letter R, S, T, U, V, W, X, Y (LBTSA 11 ZR). Document Confidentiality Classification: Green

RAD Period of Validity § The routeing organisation is permanently effective and applies daily H 24, except where otherwise specified. § When it can be identified that capacity is surplus to demand the RAD restrictions may be relaxed from the H 24 time constraints. § The RAD may be suspended, or temporarily relaxed, in cases where it has an abnormally adverse impact upon the traffic flows. This action will always be co-ordinated through the CDM process between the Network Manager and its Operational Stakeholders. Document Confidentiality Classification: Green

RAD Tactical Operations § The Network Manager in conjunction with the FMPs will monitor the actual situation during the day of operation to ensure the RAD is achieving the balance of traffic required. § If, due to a major unexpected event, there is a significant disturbance to traffic patterns, after co-ordination with the relevant parties (FMPs and AO’s), the Network Manager may suspend part of the RAD and provide alternative routeings. Document Confidentiality Classification: Green

RAD Structure - 2018 § 7 (six) Appendices: • Appendix 1 - General Description; • Appendix 2 - Area Definition; • Appendix 3 - Flight Level Capping limits; • Appendix 4 - En-route DCT limits; • Appendix 5 - Airport connectivity; • Appendix 6 - Flight Profile Restrictions; • Appendix 7 - FUA Restrictions (as from RAD 1404 - 3 APR 2014). § Network wide Pan-European Annex § Annex for special events, if necessary (restrictions of temporary nature for European Sport Events, World Sport Events, Olympic Games, Large scale Military exercises, Economic forums, etc. Document Confidentiality Classification: Green

RAD Management Document Confidentiality Classification: Green

RAD Control and Management § § The NM RAD Team is responsible for the maintenance and publication of the RAD; this is coordinated through liaison with the National RAD Coordinators (NRCs) on an AIRAC cycle basis. Development of the RAD is through the RAD Management Group (RMG) established to monitor the evolution of the RAD; the NRCs are contacted if and when necessary on matters of procedure. The NM RAD Team shall refuse and/or remove any RAD requirement, if not properly co-ordinated until the coordination process is completed; this might include as an example request for a cross-border restriction/s not properly coordinated with the neighbouring State / FAB / ANSP or restriction that following the internal NM RAD validation (or in an impact assessment) is in conflict with another one (often in another State / FAB / ANSP) The final content of any amendment to the RAD shall be positively agreed between the NM RAD Team and State concerned. Document Confidentiality Classification: Green

RAD Publication Coordination § The RAD is created in accordance with ICAO publication procedures and is published 28 days prior to the relevant AIRAC cycle. § “Last minute” changes are changes required due to exceptional circumstances and/or only when they have a significant impact on operational requirements. They are promulgated on the NM NOP portal via the “Increment File”. § The RAD including the “Increment File” are published via EUROCONTROL NM NOP website as xls files and via B 2 B. RAD PROCESS ACTION Cycle Ident Cut-Off Publication (D - AIRAC DA Y D 63 Notification to States "One week to Cutoff". Finalisation of States requirements. Cut-off date. States provide amendments Dto NM. 56 Three weeks to compile the RAD and to resolve errors/conflicts. Publication. DTwo weeks to assess impact of new 28 restrictions. Results of impact assessment of new D- restrictions. 14 Changes/amendments to be promulgated via the “Increment File” on the NOP Portal. DFreeze of ENVironment tape for AIRAC. Document Confidentiality Classification: Green 10 (D -56) EUROCONTROL NM 28) 1 1801 09 NOV 17 07 DEC 17 2 1802 07 DEC 17 04 JAN 18 3 1803 04 JAN 18 01 FEB 18 4 1804 01 FEB 18 01 MAR 18 EUROCONTROL NM 5 1805 01 MAR 18 29 MAR 18 6 1806 29 MAR 18 26 APR 18 EUROCONTROL NM 7 1807 26 APR 18 24 MAY 18 8 1808 24 MAY 18 21 JUN 18 9 1809 21 JUN 18 19 JUL 18 States / FABs / ANSPs EUROCONTROL NM 04 JAN 18 01 FEB 18 01 MAR 18 29 MAR 18 26 APR 18 24 MAY 18 21 JUN 18 19 JUL 18 16 AUG 18
