R 6041 -06(浜松ホトニクス) PMT Size Photo-Cathode Material Active Area Dynode type Number of Stages Supplied H. V. Gain Q. E. (in Lxe) φ57 mm Rb-Cs-Sb (with Mn layer) φ46 mm Metal channel 12 900 V typ. 10^6 typ. 6%(typ. )
実験のセットアップ この 1本を基準とし下のPMTのみ 実験ごとに交換する。 sample R 9288 3本 R 6041 -06 2本 この 5本の光電子数の比を求め、 それをQ. E. の比とする。 LED 241 Am Gain(LEDを使用してcalibrationする) 1 x 10^6 Photo-Cathode g: gain c: ADC least count σ: standard deviation M: mean of ADC spectrum e: elementary electric charge

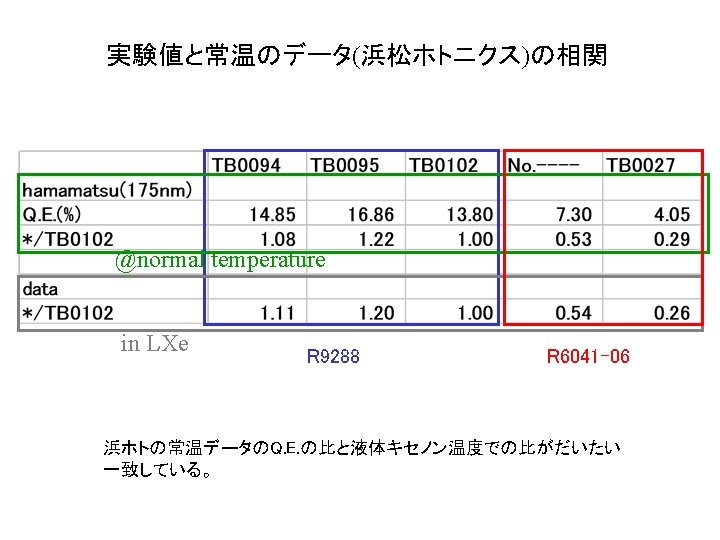

Samples Sigma^2 Gain calibration ADCpeak Alpha data
