QZ4 sin constant variable 2 step by step
鏡面反射率測定 @原子炉 QZ=(4 / )sin : constant : variable -2 スキャン step by step 2 Detector
@パルス中性子源 Neutron velocity v (m/sec) = L(m)/ TOF(sec)
資料提供:JAEA/KEK J-PARCセンター Reflectometer twins at BL 16&17 BL 16:高性能試料水平型中性子反射率計 BL 17:試料垂直型偏極中性子反射率計 In J-PARC/MLF, there are two neutron reflectometers at BL 16 (in operation) and BL 17 IAC 2010資料 (under construction). 高エネ機構・山田悟史氏

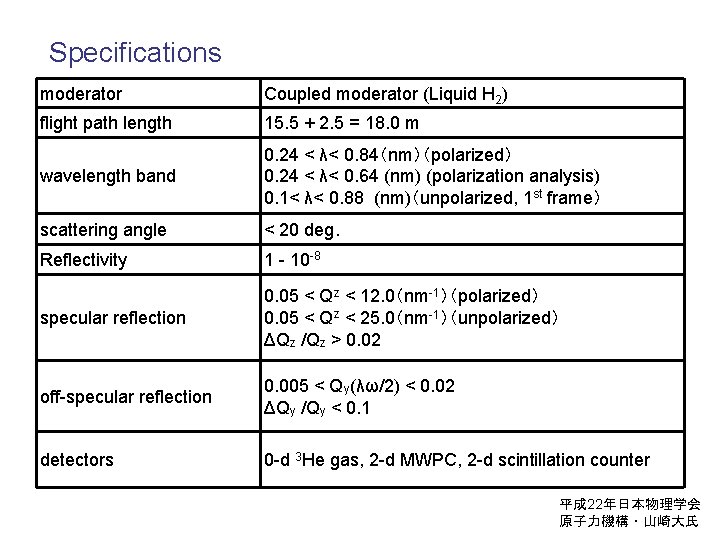

Specifications moderator Coupled moderator (Liquid H 2) flight path length 15. 5 + 2. 5 = 18. 0 m wavelength band 0. 24 < λ< 0. 84(nm)(polarized) 0. 24 < λ< 0. 64 (nm) (polarization analysis) 0. 1< λ< 0. 88 (nm)(unpolarized, 1 st frame) scattering angle < 20 deg. Reflectivity 1 - 10 -8 specular reflection 0. 05 < Qz < 12. 0(nm-1)(polarized) 0. 05 < Qz < 25. 0(nm-1)(unpolarized) ΔQz /Qz > 0. 02 off-specular reflection 0. 005 < Qy(λω/2) < 0. 02 ΔQy /Qy < 0. 1 detectors 0 -d 3 He gas, 2 -d MWPC, 2 -d scintillation counter 平成 22年日本物理学会 原子力機構・山崎大氏
資料提供:JAEA/KEK J-PARCセンター BL 17 Beam Line Evacuated path with guide coils Pol. /Unpol. Spin Flipper Exchanger Detectors T 0 chopper Sample Stage Vacuum Tank Spin Flipper & Spin Analyzer 3 Disk Choppers 平成 22年日本物理学会 原子力機構・山崎大氏

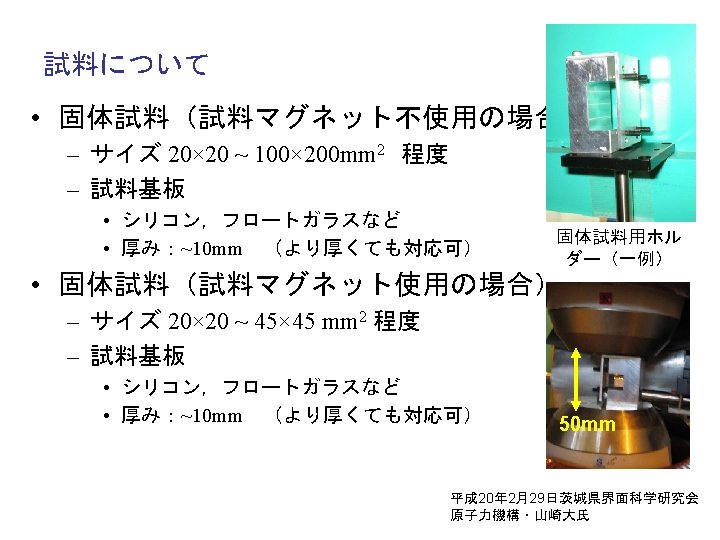

Features of ARISA-II@BL 16 パルス中性子を用いた試料水平型反射率計 2. 22 deg. (avairable) 5. 71 deg. (unavairable) →useful for wide-q measurement 平成 22年 11月15日BL 16反射率計研究会 高エネ機構・山田悟史氏
Performance @ 2010 Oct. 15 mm角 sample Si. O /D O interface 2 2 現在のARISA-IIを用いた反射率データ Si substrate deuterated PS on Si wafer 反射率で 10 -7、Qzで 4. 3 nm-1まで到達 3インチφ重水素化高分子薄膜 -1 -1 Qz< 1 nm : 3分,Qz< 2 nm : 20分 平成 22年 11月15日BL 16反射率計研究会 高エネ機構・山田悟史氏
Multi-dimensional analysis 非鏡面反射による面内構造観察 Reflection shift in the vertical Test experiment (Stacking of lipid bilayers) Long-range in-plane structure can be observed. 平成 22年 11月15日BL 16反射率計研究会 高エネ機構・山田悟史氏
Sample environment 現在利用可能な試料環境 High-temperature cell Solid/Liquid cell T<200℃ vacuumable manual control maximum size: 3 inchφ for 3 inchφ/65 mm角 substrate 平成 22年 11月15日BL 16反射率計研究会 高エネ機構・山田悟史氏

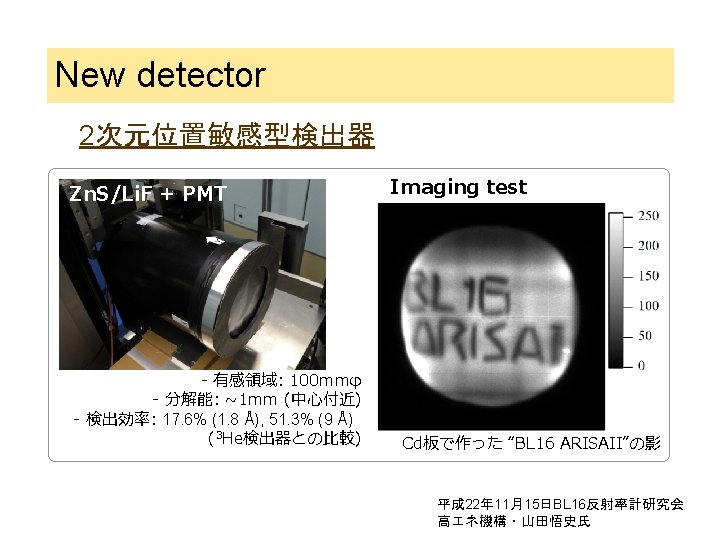

装置本体の新設 ソフト界面解析装置SOFIA(SOFt Interface Analyzer) JST/ERATO高原ソフト界面プロジェクト New reflectometer started the operation this February. Further blight results are coming soon!! K. Mitamura et al. , J. Phys. : Conf. Ser. , 272, 012017 (2011) IAC 2010資料 高エネ機構・山田悟史氏

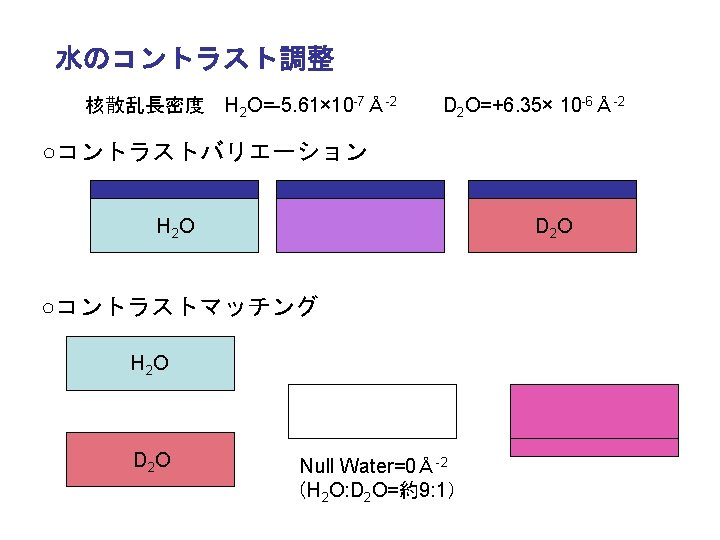

経時変化(密度プロファイル) 0 min 140 nm 0 min 7 min 23 min 500 min 界面での拡散 120 min 表面偏斥 500 min M. Harada et al. , J. Polym. Sci. : Part B: Polym. Phy. 43 1486 (2005)

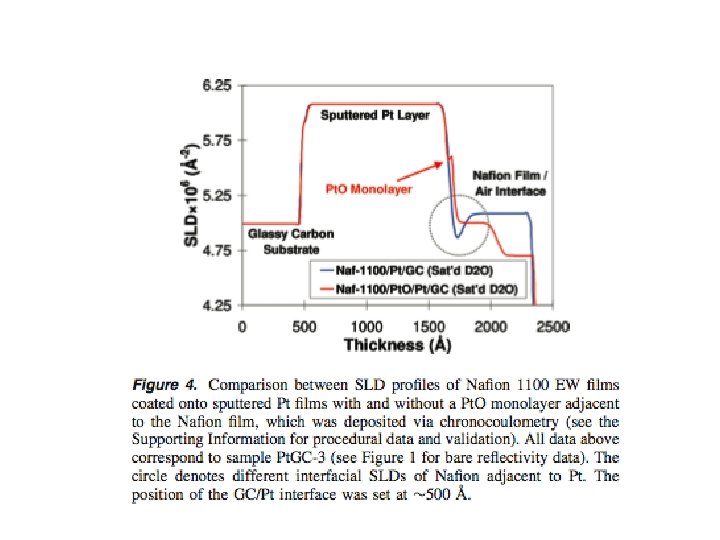

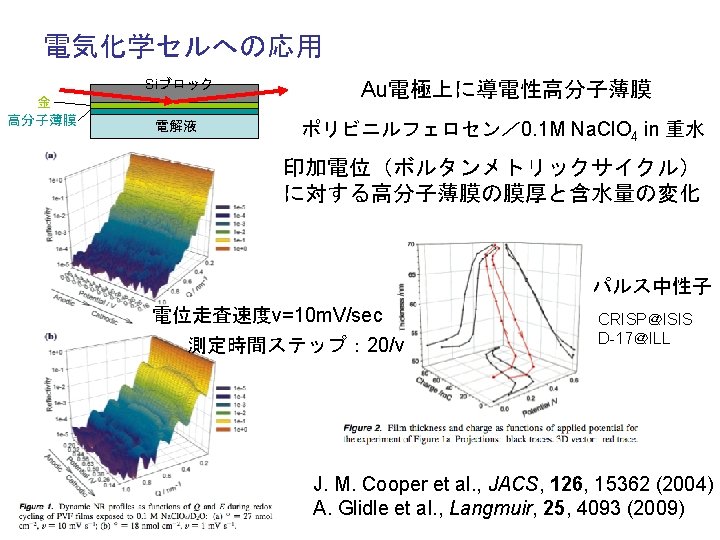

PBOCSt PHOSt
Editors: Toyoko Imae, Toshiji Kanaya, Michihiro Furusaka, Naoya Torikai ISBN: 978 -0 -470 -40252 -8 Hardcover, 668 pages US $149. 95 April 2011 Wiley List Price: Neutron and synchrotron facilities are beyond the scale of the laboratory and supported on a national level in countries throughout the world. These tools for probing micro- and nano-structure research and on fast dynamics research of atomic location in materials have been key in the development of new polymer-based materials. Different from several existing professional books on neutron science, this book focuses on theory, instrumentation, and applications. • • • Part 1 describes the underlying theory of neutron scattering. Part 2 describes the various instruments that exist and the various techniques used to achieve neutron scattering or bombardment. Part 3 discusses data treatment and simulation methods as well as how to assess the environment of the sample (temperature, pressure, shear, and external fields). Part 4 addresses the myriad applications of small and large molecules, biomolecules, and gels. Part 5 describes the various global neutron sources that exist and provide an overview of the different reactors.
