Quo Vadis SAP HANA – Erwartungen und Ausblick Jürgen Karnstädt HP SAP Competence Center Walldorf Mai 2013

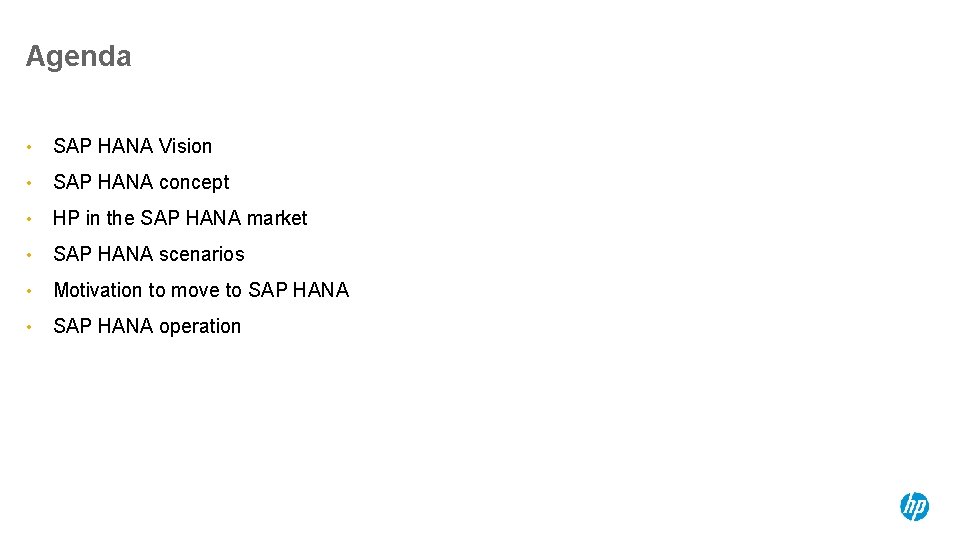

Agenda • SAP HANA Vision • SAP HANA concept • HP in the SAP HANA market • SAP HANA scenarios • Motivation to move to SAP HANA • SAP HANA operation © 2013 SAP AG or an SAP affiliate company. All rights reserved. 2

SAP’s Real-Real Time Computing … … a business user dream becomes true © 2013 SAP AG or an SAP affiliate company. All rights reserved. 3

SAP HANA concept

SAP HANA – Appliance Prerequisits Memory/CPU ratio = 128 GB/CPU (valid for BW powered by SAP HANA) Support for INTEL EX CPUs only SUSE SLES Linux Rack servers (Scale UP) with internal disks: • Log volume - PCIe-Flash/SSD with performance threshold • Data volume - SAS / SSD with different performance threshold Scale out configurations with external storage: • Shared file-system for “Scale Out Solution” Successful validation required for successful certification 5 Westmere

SAP HANA – How it integrates in SAP landscapes Typical SAP 2/3 -tier client-server architectures Presentation Application SAP CRM SAP ERP SAP BW SAP Two-Tier Architecture SAP Three-Tier Architecture with HANA SAP GUI / Any Input Device One Server (Central System) Multiple Servers Typically single instance Multiple Servers Single or multiple instances SAP Net. Weaver technology platform Database SAP Sybase ASE, Oracle, MS SQL Server, IBM DB 2, SAP live. Cache, My. SQL Max DB 6 © Copyright 2012 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. SAP HANA DB HP App. Systems for SAP HANA

HP in the SAP HANA market

SAP HANA - HP’s solutions portfolio HP App. Systems for SAP HANA Enterprise 8 X-Small Scale-Up Medium+ Scale-Up Large Scale-Up XL Scale-Out HP server Pro. Liant DL 580 G 7 Pro. Liant DL 980 G 7 Up to 16 Pro. Liant BL 680 c G 7 Processor Two Intel x 86 -E 7 Four Intel x 86 -E 7 Eight Intel x 86 E 7 4 Intel x 86 -E 7 (Per Server) In-memory database 128 GB 256 GB 512 GB 1 TB 512 GB (Per Server) Persistent storage 2 x 300 GB SAS Ext 24 x 146 G SAS 2 x 300 GB SAS Ext 24 x 300 G SAS HP X 9300 IBRIX Gateway HP P 6550 EVA Low-latency log storage 1 x 320 GB FIO 2 x 320 GB FIO 4 x 320 GB FIO N/A Software SLES 11 SAP HANA SLES 11 SAP HANA SLES for SAP HANA HP Services for SAP HANA HP Fast. Start HP Technology Support Single node Scalable

Industry-firsts from HP for SAP HANA Strength of the SAP and HP relationship “HP and SAP have been a winning combination for more than 20 years. We are truly proud of this partnership. ” Bill Mc. Dermott, Co-CEO, SAP, June 2011 HP innovations Virtualized HP App. System for SAP HANA Test/Dev Disaster tolerance for scale-out solution Over 300 joint customer installations HP App. Systems for SAP HANA—scale out CRM on HANA HP Co. E dedicated to inmemory technologies Hasso-Plattner Institute develops HANA on HP HP App. Systems for SAP HANA—single node Leading EML performance benchmark Project Kraken— 12 TB development platform BWA co-innovation and leadership SAP HANA general availability BW on SAP HANA HP Business Suite on HANA 2010 and before 9 SAP product releases 2011 2012 Now

SAP HANA scenarios

SAP HANA Innovation Overview HANA Accelerators Client SAP HANA DB Side-by-side scenarios 11 In seconds Accelerating existing transactions of the Business Suite More insight Exploring data loaded from Business Suite on any level of detail • CO-PA RDS • … • Ops. Reporting RDS • … Supercharged BW Speed up your BW without disruption • BW on SAP HANA DB Integrated scenario Innovation Functional apps natively built on SAP HANA, with or without Business Suite integration All-in-one – ultimate Business Suite solution fully integrated with and optimized for SAP HANA as database • CRM on HANA • Cash Forecasting • Smart Meter Analytics …… Apps Any. DB Apps BW SAP HANA DB Business Suite VDL Any. DB BW PLM SAP HANA DB SAP Business Suite SRM Any. DB (VDL) SAP Business Suite SCM SAP Business Suite / non-SAP Business Suite on HANA CRM SAP HANA DB Client HANA Apps (Next Generation & Strategic Investments) SAP ERP SAP Business Suite Any. DB HANA Analytics BW on HANA (Content & Virtual Data Layer)

SAP HANA – Side car approach Many customers are using a side-car approach to start with HANA e. g. : - CO-PA Accelerator - Short implementation time - RDS available - Easy to implement in the data center 12

SAP HANA – CO-PA Accelerator Many customers are using that side-car approach to start with HANA SAP ERP 1 HANA Instance The data is replicated regularly to the HANA-system. CO-PA COPA reports are reading directly from HANA instead of the ERP database. HANA DB any DB Customer Example Oracle Allocation costs Distribution sampling on customer level Reporting: P&L Material view Custom programs: sales variance 13 HANA 126 s 6 s 32 s 2 s 63 s 6 s 686 s 31 s

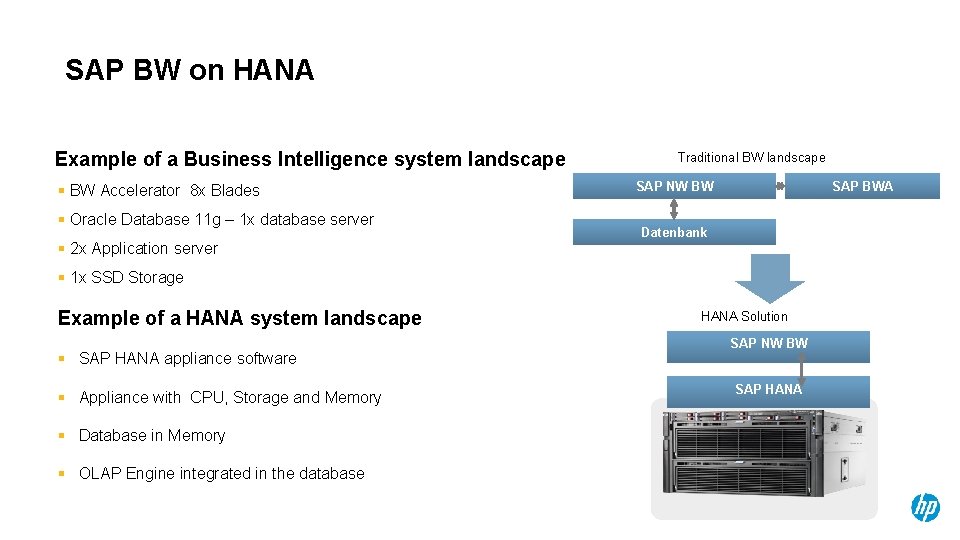

SAP BW on HANA Example of a Business Intelligence system landscape § BW Accelerator 8 x Blades § Oracle Database 11 g – 1 x database server § 2 x Application server Traditional BW landscape SAP BWA SAP NW BW Datenbank § 1 x SSD Storage Example of a HANA system landscape § SAP HANA appliance software § Appliance with CPU, Storage and Memory § Database in Memory § OLAP Engine integrated in the database HANA Solution SAP NW BW SAP HANA

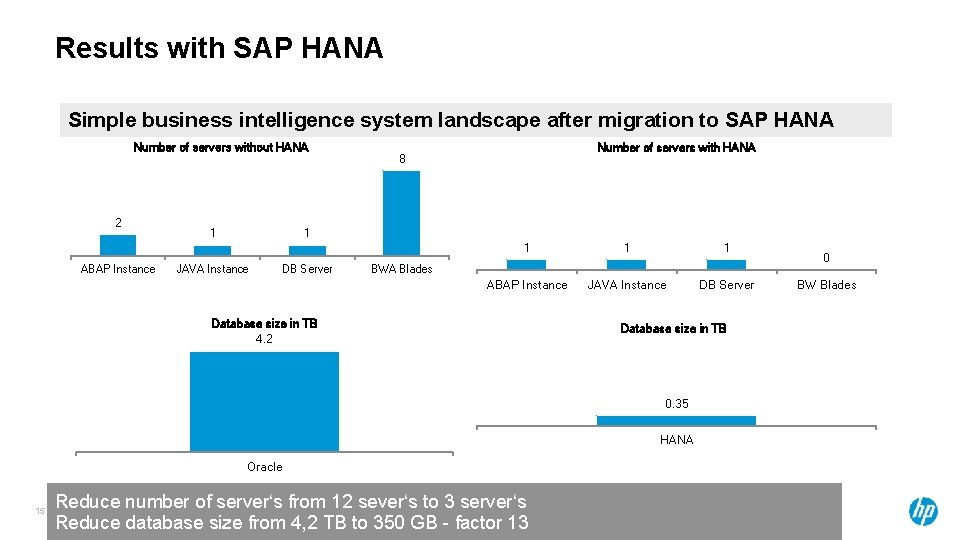

Results with SAP HANA Simple business intelligence system landscape after migration to SAP HANA Number of servers without HANA 2 ABAP Instance 1 Number of servers with HANA 8 1 JAVA Instance DB Server 1 1 1 ABAP Instance JAVA Instance DB Server BWA Blades Database size in TB 4. 2 Database size in TB 0. 35 HANA Oracle 15 Reduce number of server‘s from 12 sever‘s to 3 server‘s Reduce database size from 4, 2 TB to 350 GB - factor 13 0 BW Blades

Results with SAP HANA Performance – Data load and activation process AR Reporting 3 Mio. records factor 170 Billing Documents 1, 1 Mio records factor 30 11400 Min. Without HANA 132 Min. 66 Min. HANA Parallel 2010 Min. 16 8 Min. 6 Min. Load Parallel HANA Parallel DSO Load 3, 7 Mio. records with HANA factor 36 for DS activation 32 Min. 6 Min. Activation 26 Min. Without HANA DSO Load 3, 7 Mio. Records without HANA 36 Min. 45 Min. Activation Parallel Load HANA 2 Min. 1 Min. < 1 Min. Load HANA Parallel Activation Parallel

SAP Business Suite on HANA App DB Server Test System 1 (any DB) Update to Suite on HANA 1. 0 SP 1 EHP 616 SP 0 • ERP 6. 16 SP 1, NW ABAP 7. 40 SP 1 Traditional SAP ERP system SAP ERP Database Timely independent from each other Test System 2 (HANA DB) App DB Server EHP 616 SP 0 Update to Suite on HANA 1. 0 SP 1 • ERP 6. 16 SP 1, NW ABAP 7. 40 SP 1 • HANA SP 5, Latest Revision Level 48 HANA Solution SAP ERP SAP HANA

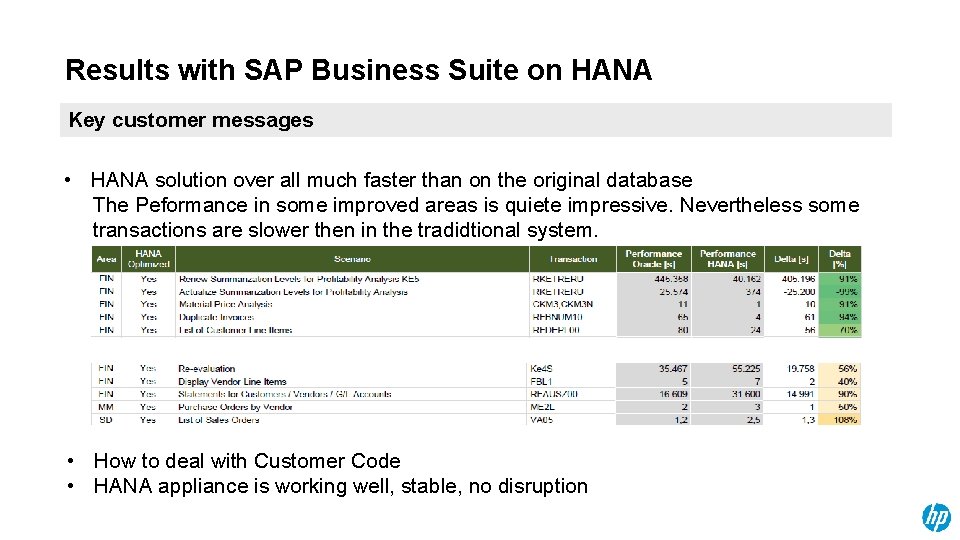

Results with SAP Business Suite on HANA Key customer messages • HANA solution over all much faster than on the original database The Peformance in some improved areas is quiete impressive. Nevertheless some transactions are slower then in the tradidtional system. • How to deal with Customer Code • HANA appliance is working well, stable, no disruption

Motivation to move to HANA

Motivation to move to SAP HANA Replace Infrastructure Syst arch emitect ure § Infrastructure refresh pending High Support Sys perf temorm ance § High support to achieve performance Reduce hardware/administration costs § High hardware/administration costs Technology § Customer wants to use the newest technology 20 Infra struc cost ture s

SAP HANA operation

SAP HANA – Data Center readiness Backup/ Recovery System Replication Host Auto. Failover Storage Replication • Lowest cost • Simplest solution • Point-in-time recovery • Disaster Recovery • Can be used to clone or copy systems • Can be used as Main HA failover for failures and planned downtime • Disaster Recovery • Can be used to clone or copy systems • No data loss • Automatic detection and failover • Requires spare server • Disaster Recovery • No data loss • Secondary system can be used for Test systems Available for Scale-Up Solution Available for Scale-Out Solution 22

Disaster tolerant solution for SAP HANA Coming later: HP App. Systems for HANA with Async DT* Mitigate risk Improve IT availability • Minimize direct financial impact • Prevent impact to reputation • Maintain productivity • Improve customer experience Reduce the cost of downtime • Improve time to recovery • Reduce resources required Two available solutions based on HP Continuous Access EVA and HP X 9300 Network Storage System with SAN Boot 23 Synch DT (<50 KM) © Copyright 2013 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. HP Restricted.

Virtualized solution for SAP HANA Coming soon: HP App. Systems for HANA with VMware Customer benefits Cost savings • Run multiple HANA instances in single physical server Increased flexibility • Save significant time by deploying on a virtual machine Streamlined processes • Ease procurement and installation of SAP HANA 24 Available Q 3 FY 2013 Key differentiators • Optimized, tested, and tuned for VMware and SAP HANA • Templates for quick and easy deployment, updates and cloning SAP HANA system • HP Factory Express – Unique appliance delivery model • Integrated management tools for easy and centralized monitoring and display © Copyright 2013 Hewlett-Packard Development Company, L. P. The information contained herein is subject to change without notice. HP Restricted. HP Pro. Liant DL 980 G 7 (L) Server D 2700 Disk Enclosure Storage

Project Kraken Demonstrating SAP® Business Suite on HANA® Meeting SAP’s need for a technology platform to handle large amount of inmemory computing resources • Leadership platform • Biggest-ever HANA machine • Development platform for next-gen HANA (e. g. Hydra. Lynx /Dragon. Hawk) Watch: SAP Business Suite on HANA • Mission Critical environment “…we co-labored with HP to demonstrate a x-86 based 160 core 8 TB machine, nick-named Kraken running 200 B scans per second…similar to the HP system we put together 20 years ago, just been updated with latest technology…” —Dr. Vishal Sikka CTO & Exec Board Member, SAP on Jan 10 th 2013 @SAP Press Event 25

Thank you Contact information: Juergen. Karnstaedt@hp. com © 2013 SAP AG or an SAP affiliate company. All rights reserved.
