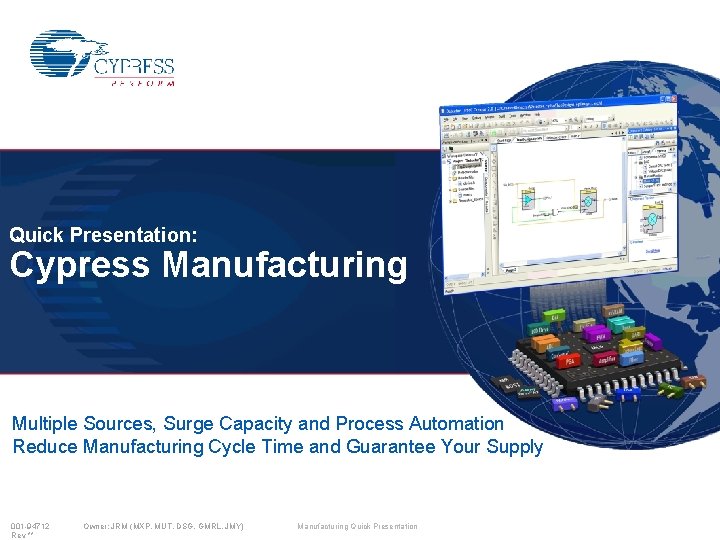

Quick Presentation: Cypress Manufacturing Multiple Sources, Surge Capacity and Process Automation Reduce Manufacturing Cycle Time and Guarantee Your Supply 001 -94712 Rev ** Owner: JRM (MXP, MUT, DSG, GMRL, JMY) Manufacturing Quick Presentation

Cypress Wafer Fabs: Multiple Sources, Surge Capacity Enable Assured Supply Qualified sources for high-volume products + 50% surge capacity 1 enable Cypress assured supply 1 Capacity above current Cypress forecast 001 -94712 Rev ** Owner: JRM Cypress Minnesota Inc. Products 64 k sq ft, 200 -mm wafers 0. 35 - to 0. 09 -µm production processes 14 k wafers per month True. Touch®: Cypress’s capacitive touch-screen controller Cap. Sense®: Cypress's capacitive-sensing technology for touch and proximity sensing PSo. C®: Cypress’s Programmable System-on-Chip USB SRAM HHGRACE (Shanghai) Products Subcontracted partner 240 k sq ft, 200 -mm wafers 0. 35 -µm/0. 13 -µm/0. 09 -µm processes 100 k wafers per month True. Touch Cap. Sense PSo. C USB UMC (Taiwan) Products Subcontracted partner 200 -mm and 300 -mm wafers 65 -nm and 0. 13 -µm processes True. Touch USB SRAM Manufacturing Quick Presentation 2

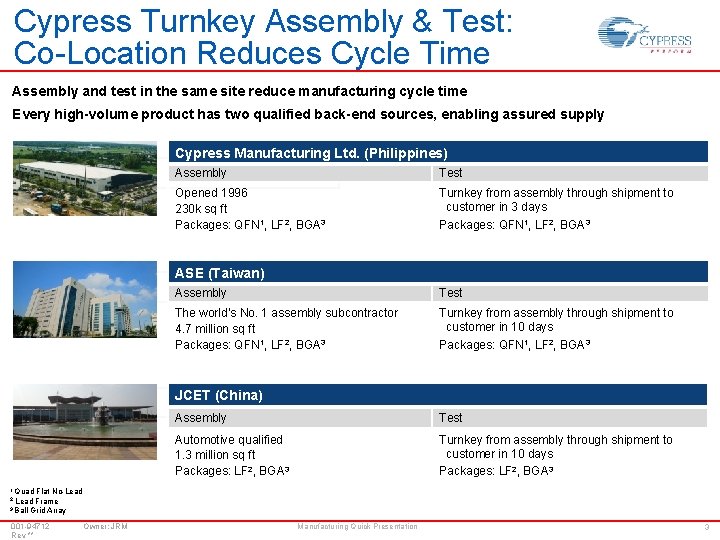

Cypress Turnkey Assembly & Test: Co-Location Reduces Cycle Time Assembly and test in the same site reduce manufacturing cycle time Every high-volume product has two qualified back-end sources, enabling assured supply Cypress Manufacturing Ltd. (Philippines) CML: Cypress Philippines Assembly Test Opened 1996 230 k sq ft Packages: QFN 1, LF 2, BGA 3 Turnkey from assembly through shipment to customer in 3 days Packages: QFN 1, LF 2, BGA 3 ASE (Taiwan) ASEKH : Taiwan Assembly Test The world’s No. 1 assembly subcontractor 4. 7 million sq ft Packages: QFN 1, LF 2, BGA 3 Turnkey from assembly through shipment to customer in 10 days Packages: QFN 1, LF 2, BGA 3 JCET: (China) China Assembly Test Automotive qualified 1. 3 million sq ft Packages: LF 2, BGA 3 Turnkey from assembly through shipment to customer in 10 days Packages: LF 2, BGA 3 1 Quad Flat No-Lead Frame 3 Ball Grid Array 2 001 -94712 Rev ** Owner: JRM Manufacturing Quick Presentation 3

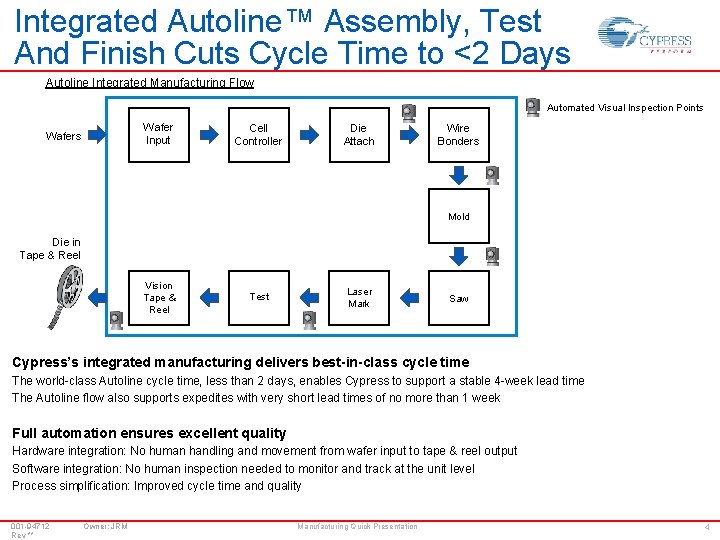

Integrated Autoline™ Assembly, Test And Finish Cuts Cycle Time to <2 Days Autoline Integrated Manufacturing Flow Automated Visual Inspection Points Wafer Input Wafers Cell Controller Die Attach Wire Bonders Mold Die in Tape & Reel Vision Tape & Reel Test Laser Mark Saw Cypress’s integrated manufacturing delivers best-in-class cycle time The world-class Autoline cycle time, less than 2 days, enables Cypress to support a stable 4 -week lead time The Autoline flow also supports expedites with very short lead times of no more than 1 week Full automation ensures excellent quality Hardware integration: No human handling and movement from wafer input to tape & reel output Software integration: No human inspection needed to monitor and track at the unit level Process simplification: Improved cycle time and quality 001 -94712 Rev ** Owner: JRM Manufacturing Quick Presentation 4

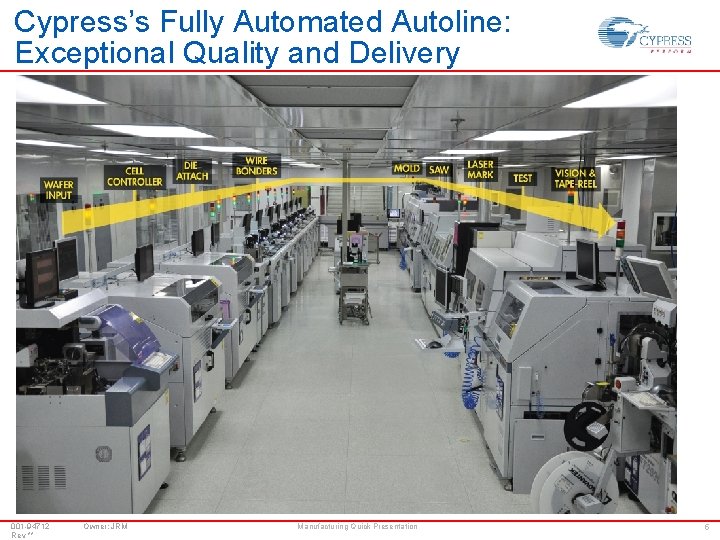

Cypress’s Fully Automated Autoline: Exceptional Quality and Delivery 001 -94712 Rev ** Owner: JRM Manufacturing Quick Presentation 5

Best-in-Class Delivery: Cypress Delivers > 99% On Time with Lead Time < 5 Weeks On-Time Delivery (OS 1) Lead Time 1 Original schedule 001 -94712 Rev ** Owner: JRM Manufacturing Quick Presentation 6
