Quick Presentation 16 Mb Asynchronous SRAM with ECC
Quick Presentation: 16 Mb Asynchronous SRAM with ECC = Error-Correcting Code New High-Speed, Low-Power Asynchronous SRAMs With On-Chip ECC to Improve System Reliability 001 -92175 Rev ** Owner: SAYD 16 Mb Asynchronous SRAM with ECC Pop-up Presentation

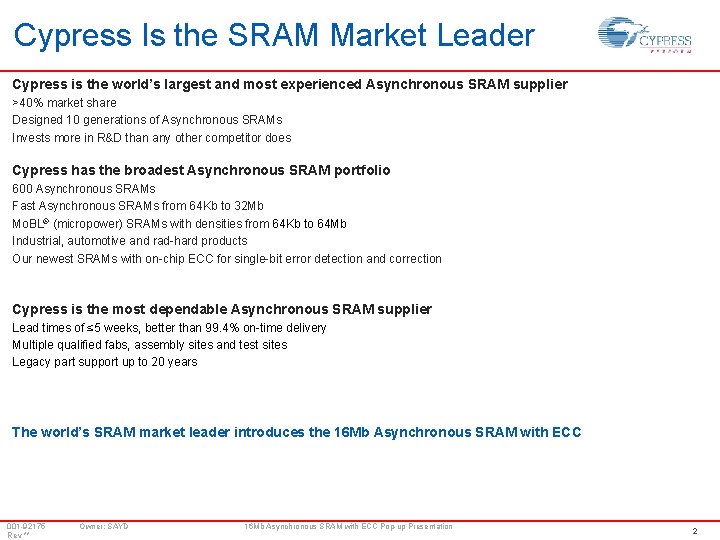

Cypress Is the SRAM Market Leader Cypress is the world’s largest and most experienced Asynchronous SRAM supplier >40% market share Designed 10 generations of Asynchronous SRAMs Invests more in R&D than any other competitor does Cypress has the broadest Asynchronous SRAM portfolio 600 Asynchronous SRAMs Fast Asynchronous SRAMs from 64 Kb to 32 Mb Mo. BL® (micropower) SRAMs with densities from 64 Kb to 64 Mb Industrial, automotive and rad-hard products Our newest SRAMs with on-chip ECC for single-bit error detection and correction Cypress is the most dependable Asynchronous SRAM supplier Lead times of ≤ 5 weeks, better than 99. 4% on-time delivery Multiple qualified fabs, assembly sites and test sites Legacy part support up to 20 years The world’s SRAM market leader introduces the 16 Mb Asynchronous SRAM with ECC 001 -92175 Rev ** Owner: SAYD 16 Mb Asynchronous SRAM with ECC Pop-up Presentation 2

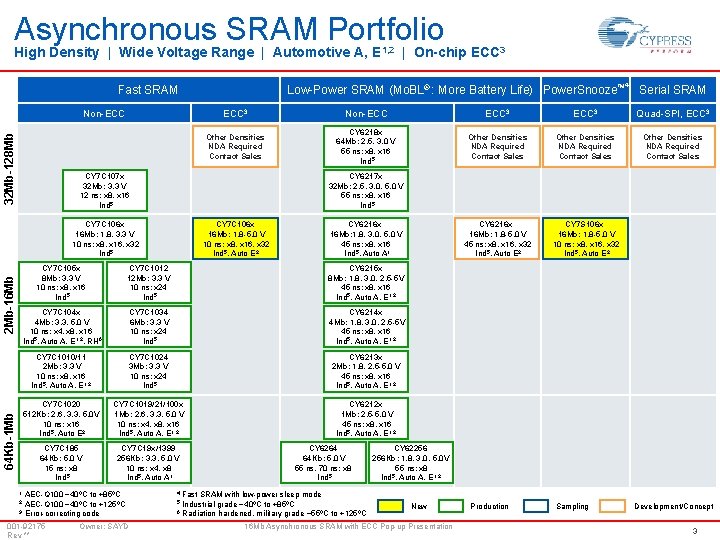

Asynchronous SRAM Portfolio High Density | Wide Voltage Range | Automotive A, E 1, 2 | On-chip ECC 3 4 Fast SRAM 32 Mb-128 Mb Non-ECC Low-Power SRAM (Mo. BL® : More Battery Life) Power. Snooze™ ECC 3 Non-ECC 3 Quad-SPI, ECC 3 Other Densities NDA Required Contact Sales CY 6218 x 64 Mb; 2. 5, 3. 0 V 55 ns; x 8, x 16 Ind 5 Other Densities NDA Required Contact Sales CY 6216 x 16 Mb; 1. 8 -5. 0 V 45 ns; x 8, x 16, x 32 Ind 5, Auto E 2 CY 7 S 106 x 16 Mb; 1. 8 -5. 0 V 10 ns; x 8, x 16, x 32 Ind 5, Auto E 2 CY 7 C 107 x 32 Mb; 3. 3 V 12 ns; x 8, x 16 Ind 5 CY 6217 x 32 Mb; 2. 5, 3. 0, 5. 0 V 55 ns; x 8, x 16 Ind 5 64 Kb-1 Mb 2 Mb-16 Mb CY 7 C 106 x 16 Mb; 1. 8, 3. 3 V 10 ns; x 8, x 16, x 32 Ind 5 CY 7 C 106 x 16 Mb; 1. 8 -5. 0 V 10 ns; x 8, x 16, x 32 Ind 5, Auto E 2 CY 6216 x 16 Mb; 1. 8, 3. 0, 5. 0 V 45 ns; x 8, x 16 Ind 5, Auto A 1 CY 7 C 105 x 8 Mb; 3. 3 V 10 ns; x 8, x 16 Ind 5 CY 7 C 1012 12 Mb; 3. 3 V 10 ns; x 24 Ind 5 CY 6215 x 8 Mb; 1. 8, 3. 0, 2. 5 -5 V 45 ns; x 8, x 16 Ind 5, Auto A, E 1, 2 CY 7 C 104 x 4 Mb; 3. 3, 5. 0 V 10 ns; x 4, x 8, x 16 Ind 5, Auto A, E 1, 2, RH 6 CY 7 C 1034 6 Mb; 3. 3 V 10 ns; x 24 Ind 5 CY 6214 x 4 Mb; 1. 8, 3. 0, 2. 5 -5 V 45 ns; x 8, x 16 Ind 5, Auto A, E 1, 2 CY 7 C 1010/11 2 Mb; 3. 3 V 10 ns; x 8, x 16 Ind 5, Auto A, E 1, 2 CY 7 C 1024 3 Mb; 3. 3 V 10 ns; x 24 Ind 5 CY 6213 x 2 Mb; 1. 8, 2. 5 -5. 0 V 45 ns; x 8, x 16 Ind 5, Auto A, E 1, 2 CY 7 C 1020 512 Kb; 2. 6, 3. 3, 5. 0 V 10 ns; x 16 Ind 5, Auto E 2 CY 7 C 1019/21/100 x 1 Mb; 2. 6, 3. 3, 5. 0 V 10 ns; x 4, x 8, x 16 Ind 5, Auto A, E 1, 2 CY 6212 x 1 Mb; 2. 5 -5. 0 V 45 ns; x 8, x 16 Ind 5, Auto A, E 1, 2 CY 7 C 185 64 Kb; 5. 0 V 15 ns; x 8 Ind 5 CY 7 C 19 x/1399 256 Kb; 3. 3, 5. 0 V 10 ns; x 4, x 8 Ind 5, Auto A 1 AEC-Q 100 − 40ºC to +85ºC AEC-Q 100 − 40ºC to +125ºC 3 Error-correcting code 4 2 5 Owner: SAYD CY 6264 64 Kb; 5. 0 V 55 ns, 70 ns; x 8 Ind 5 Fast SRAM with low-power sleep mode Industrial grade − 40ºC to +85ºC 6 Radiation hardened, military grade − 55ºC to +125ºC 1 001 -92175 Rev ** Serial SRAM CY 62256 256 Kb; 1. 8, 3. 0, 5. 0 V 55 ns; x 8 Ind 5, Auto A, E 1, 2 New 16 Mb Asynchronous SRAM with ECC Pop-up Presentation Production Sampling Development/Concept 3

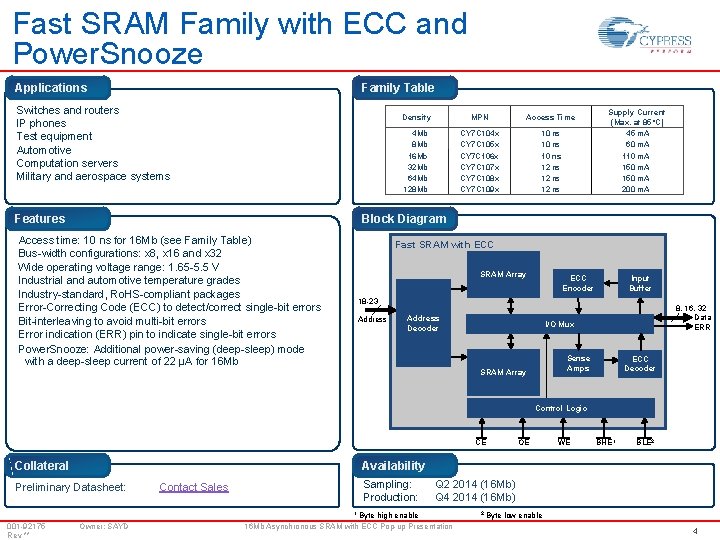

Fast SRAM Family with ECC and Power. Snooze Applications Family Table Switches and routers IP phones Test equipment Automotive Computation servers Military and aerospace systems Features Density MPN Access Time 4 Mb 8 Mb 16 Mb 32 Mb 64 Mb 128 Mb CY 7 C 104 x CY 7 C 105 x CY 7 C 106 x CY 7 C 107 x CY 7 C 108 x CY 7 C 109 x 10 ns 12 ns Supply Current (Max. at 85ºC) 45 m. A 60 m. A 110 m. A 150 m. A 200 m. A Block Diagram Access time: 10 ns for 16 Mb (see Family Table) Bus-width configurations: x 8, x 16 and x 32 Wide operating voltage range: 1. 65 -5. 5 V Industrial and automotive temperature grades Industry-standard, Ro. HS-compliant packages Error-Correcting Code (ECC) to detect/correct single-bit errors Bit-interleaving to avoid multi-bit errors Error indication (ERR) pin to indicate single-bit errors Power. Snooze: Additional power-saving (deep-sleep) mode with a deep-sleep current of 22 µA for 16 Mb Fast SRAM with ECC SRAM Array ECC Encoder Input Buffer 18 -23 Address Decoder 8, 16, 32 Data ERR I/O Mux Sense Amps SRAM Array ECC Decoder Control Logic CE Collateral WE BHE 1 BLE 2 Availability Preliminary Datasheet: Sampling: Production: Contact Sales Owner: SAYD Q 2 2014 (16 Mb) Q 4 2014 (16 Mb) Byte high enable 16 Mb Asynchronous SRAM with ECC Pop-up Presentation 1 001 -92175 Rev ** OE 2 Byte low enable 4

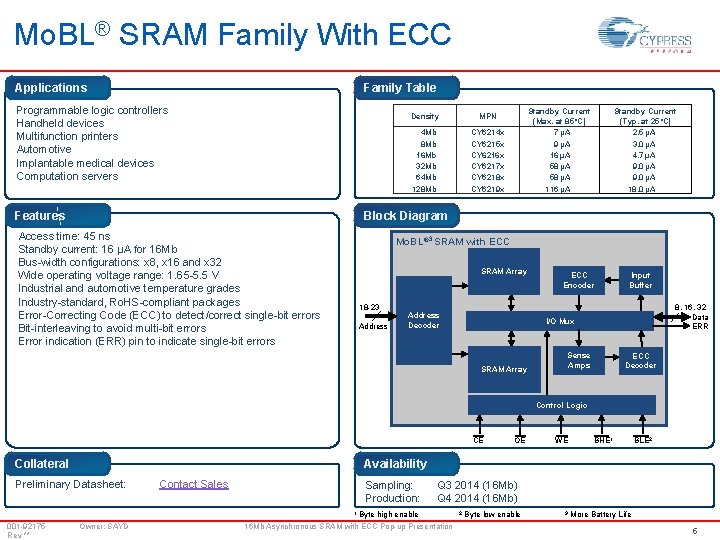

Mo. BL® SRAM Family With ECC Applications Family Table Programmable logic controllers Handheld devices Multifunction printers Automotive Implantable medical devices Computation servers Features Density MPN 4 Mb 8 Mb 16 Mb 32 Mb 64 Mb 128 Mb CY 6214 x CY 6215 x CY 6216 x CY 6217 x CY 6218 x CY 6219 x Standby Current (Max. at 85ºC) 7 µA 9 µA 16 µA 58 µA 116 µA Standby Current (Typ. at 25ºC) 2. 5 µA 3. 0 µA 4. 7 µA 9. 0 µA 18. 0 µA Block Diagram Access time: 45 ns Standby current: 16 µA for 16 Mb Bus-width configurations: x 8, x 16 and x 32 Wide operating voltage range: 1. 65 -5. 5 V Industrial and automotive temperature grades Industry-standard, Ro. HS-compliant packages Error-Correcting Code (ECC) to detect/correct single-bit errors Bit-interleaving to avoid multi-bit errors Error indication (ERR) pin to indicate single-bit errors Mo. BL® 3 SRAM with ECC SRAM Array 18 -23 Address Decoder ECC Encoder Input Buffer 8, 16, 32 Data ERR I/O Mux SRAM Array Sense Amps ECC Decoder Control Logic CE Collateral WE BHE 1 BLE 2 Availability Preliminary Datasheet: Contact Sales Sampling: Production: Owner: SAYD Q 3 2014 (16 Mb) Q 4 2014 (16 Mb) Byte high enable 16 Mb Asynchronous SRAM with ECC Pop-up Presentation 1 001 -92175 Rev ** OE 2 Byte low enable 3 More Battery Life 5

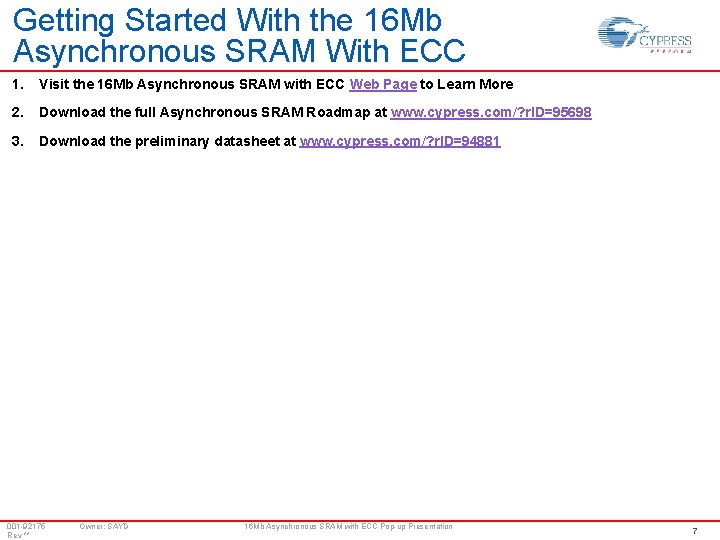

Getting Started With the 16 Mb Asynchronous SRAM With ECC 1. Visit the 16 Mb Asynchronous SRAM with ECC Web Page to Learn More 2. Download the full Asynchronous SRAM Roadmap at www. cypress. com/? r. ID=95698 3. Download the preliminary datasheet at www. cypress. com/? r. ID=94881 001 -92175 Rev ** Owner: SAYD 16 Mb Asynchronous SRAM with ECC Pop-up Presentation 7
