Queuing Theory Queuing Theory represents the body of

Queuing Theory • Queuing Theory represents the body of knowledge dealing with waiting lines. • Most queuing problems focus on determining the level of service that a company should provide. -188 - HMP 654/EXECMAS

Queuing Theory Queuing Systems Configurations -189 - HMP 654/EXECMAS

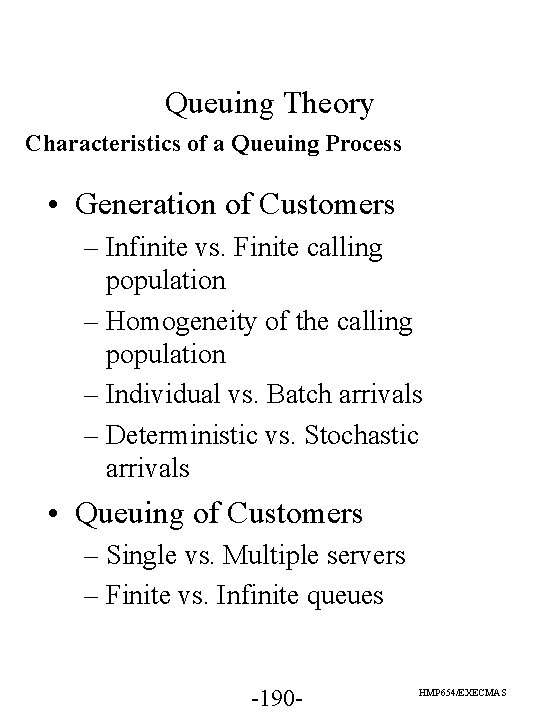

Queuing Theory Characteristics of a Queuing Process • Generation of Customers – Infinite vs. Finite calling population – Homogeneity of the calling population – Individual vs. Batch arrivals – Deterministic vs. Stochastic arrivals • Queuing of Customers – Single vs. Multiple servers – Finite vs. Infinite queues -190 - HMP 654/EXECMAS

Queuing Theory Characteristics of a Queuing Process – FIFO vs. LIFO disciplines – Priority rules • Servicing the Customers – Deterministic vs. Stochastic service time – Individual vs. Batch Processing -191 - HMP 654/EXECMAS

Queuing Theory Characteristics of a Queuing Process • Generation of Customers – Poisson probability distribution ‘x’ represents the number of arrivals in a specific time period. ‘ ’ represents the ‘arrival rate’, that is, the average number of arrivals per time period. -192 - HMP 654/EXECMAS

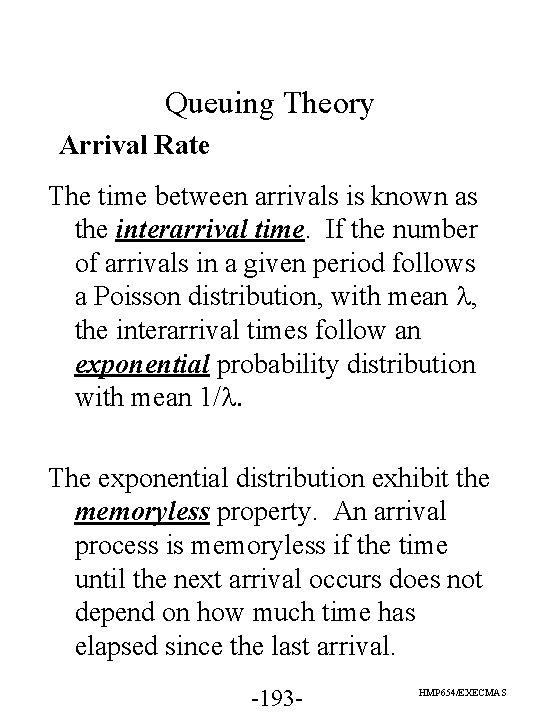

Queuing Theory Arrival Rate The time between arrivals is known as the interarrival time. If the number of arrivals in a given period follows a Poisson distribution, with mean , the interarrival times follow an exponential probability distribution with mean 1/ The exponential distribution exhibit the memoryless property. An arrival process is memoryless if the time until the next arrival occurs does not depend on how much time has elapsed since the last arrival. -193 - HMP 654/EXECMAS

Queuing Theory Arrival Rate -194 - HMP 654/EXECMAS

Queuing Theory Service Rate Queue time is the amount of time a customer spends waiting in line for service to begin. Service time is the amount of time a customer spends at a service facility once the actual performance of service begins. Service time is often model as an exponential random variable -195 - HMP 654/EXECMAS

Queuing Theory Service Rate The service rate, denoted by , represents the average number of customers that can be served per time period. The average service time per customer is 1/ time periods. -196 - HMP 654/EXECMAS

Queuing Theory Kendall Notation 1/2/3 1 The first characteristic identifies the nature of the arrival process using the following standard abbreviations: M = Markovian interarrival times (following an exponential distribution) D = Deterministic interarrival times (not random) -197 - HMP 654/EXECMAS

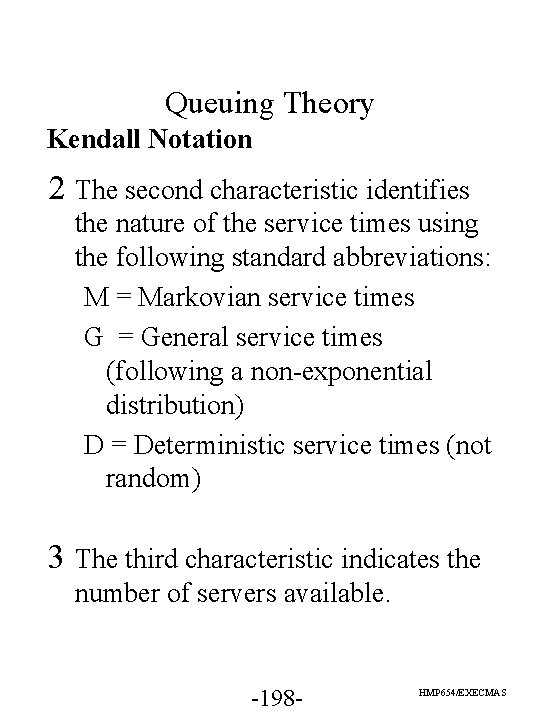

Queuing Theory Kendall Notation 2 The second characteristic identifies the nature of the service times using the following standard abbreviations: M = Markovian service times G = General service times (following a non-exponential distribution) D = Deterministic service times (not random) 3 The third characteristic indicates the number of servers available. -198 - HMP 654/EXECMAS

Queuing Theory Operating Characteristics U - Utilization factor, or the percentage of time that all servers are busy. P 0 - Probability that there are no units in the system. Lq - Average number of units in line waiting for service L - Average number of units in the system (in line and being served) Wq - Average time a unit spends in line waiting for service T - Actual time a unit spends in the queue W - Average time a unit spends in the system (in line and being served) Pw - Probability that an arriving unit has to wait for service Pn - Probability of n units in the system -199 - HMP 654/EXECMAS

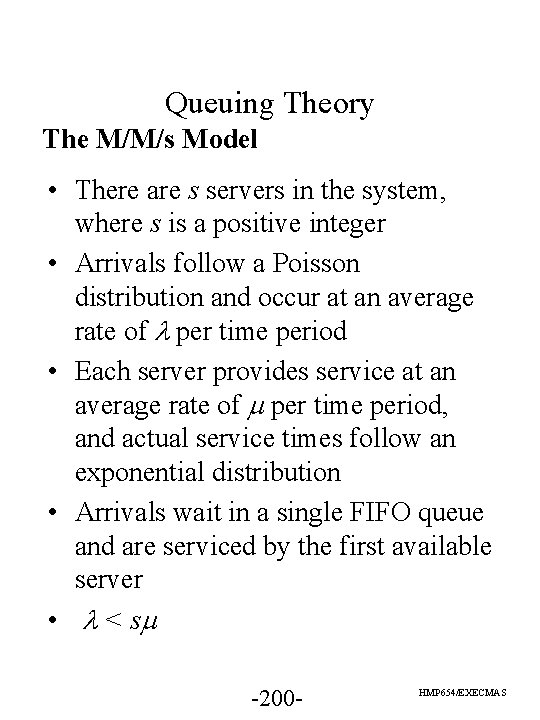

Queuing Theory The M/M/s Model • There are s servers in the system, where s is a positive integer • Arrivals follow a Poisson distribution and occur at an average rate of per time period • Each server provides service at an average rate of per time period, and actual service times follow an exponential distribution • Arrivals wait in a single FIFO queue and are serviced by the first available server • < s -200 - HMP 654/EXECMAS
