Querying Business Processes Catriel Beeri Anat Eyal Simon
![Querying Business Processes Catriel Beeri Anat Eyal, Simon Kamenkovich, Tova Milo Querying Business Processes Querying Business Processes Catriel Beeri Anat Eyal, Simon Kamenkovich, Tova Milo Querying Business Processes](https://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-1.jpg)
Querying Business Processes Catriel Beeri Anat Eyal, Simon Kamenkovich, Tova Milo Querying Business Processes VLDB 2006 Hebrew University Tel Aviv University 1
![Outline v Introduction and motivation v Overview of BPQL by example v Formal model Outline v Introduction and motivation v Overview of BPQL by example v Formal model](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-2.jpg)

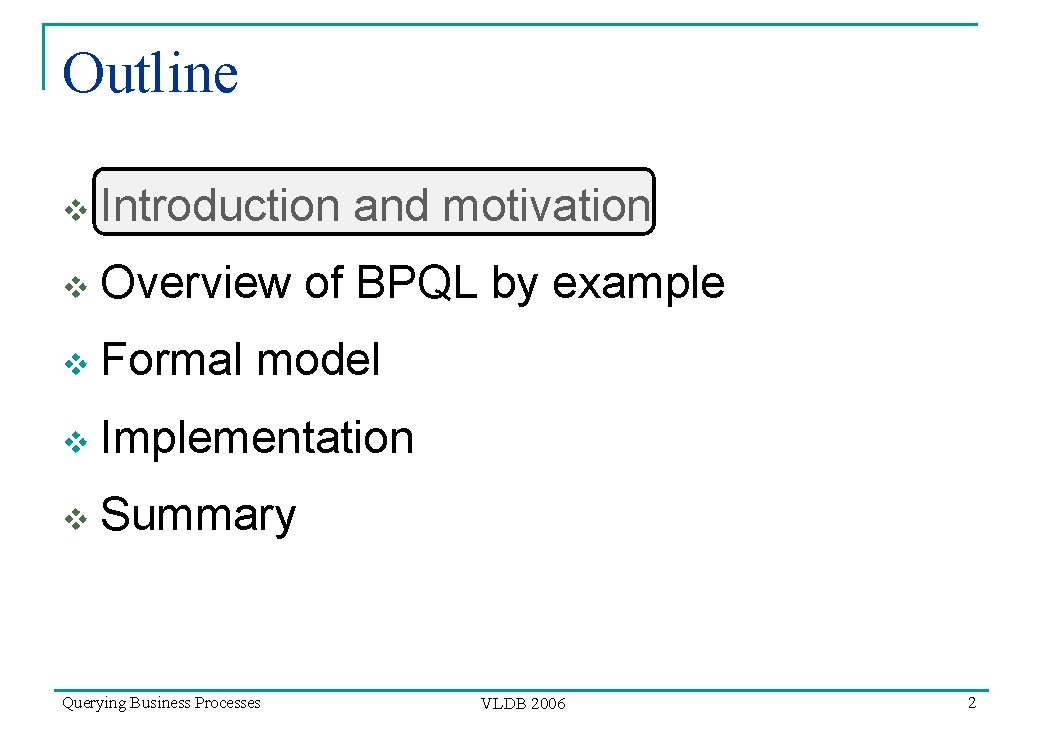

Outline v Introduction and motivation v Overview of BPQL by example v Formal model v Implementation v Summary Querying Business Processes VLDB 2006 2
![(Distributed) Business n Complex applications Processes n Integrating remote Web Services Common practice: n (Distributed) Business n Complex applications Processes n Integrating remote Web Services Common practice: n](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-3.jpg)

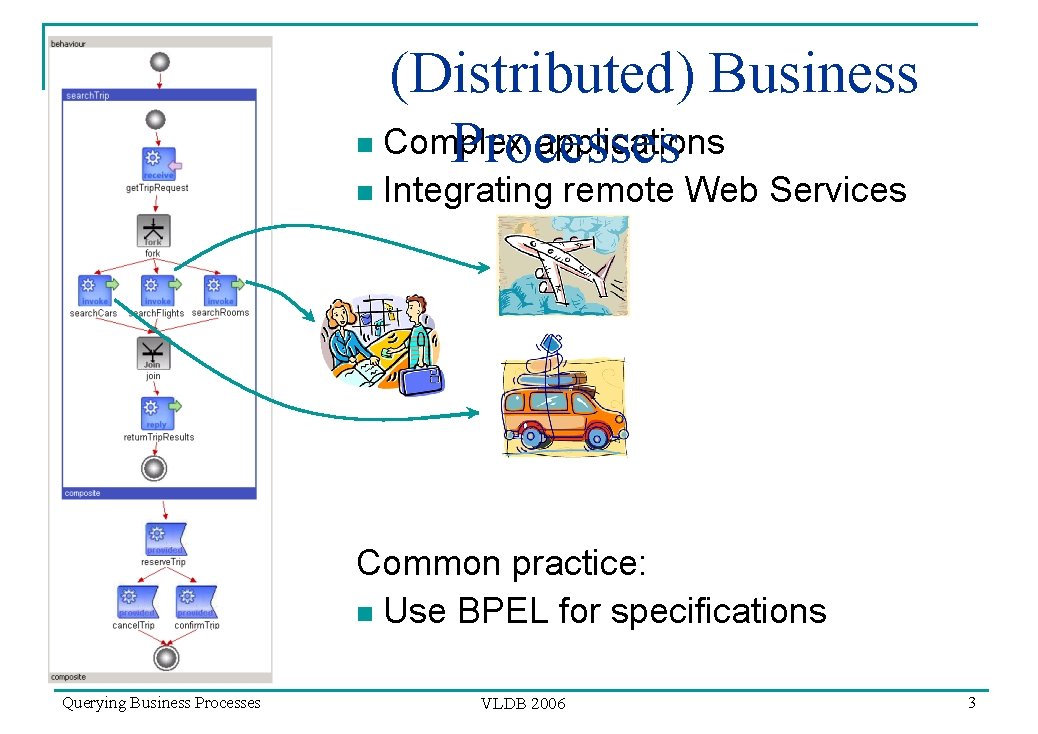

(Distributed) Business n Complex applications Processes n Integrating remote Web Services Common practice: n Use BPEL for specifications Querying Business Processes VLDB 2006 3
![BPEL in a nutshell BPEL 4 WS (V 1. 0 by BEA, IBM, Microsoft, BPEL in a nutshell BPEL 4 WS (V 1. 0 by BEA, IBM, Microsoft,](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-4.jpg)

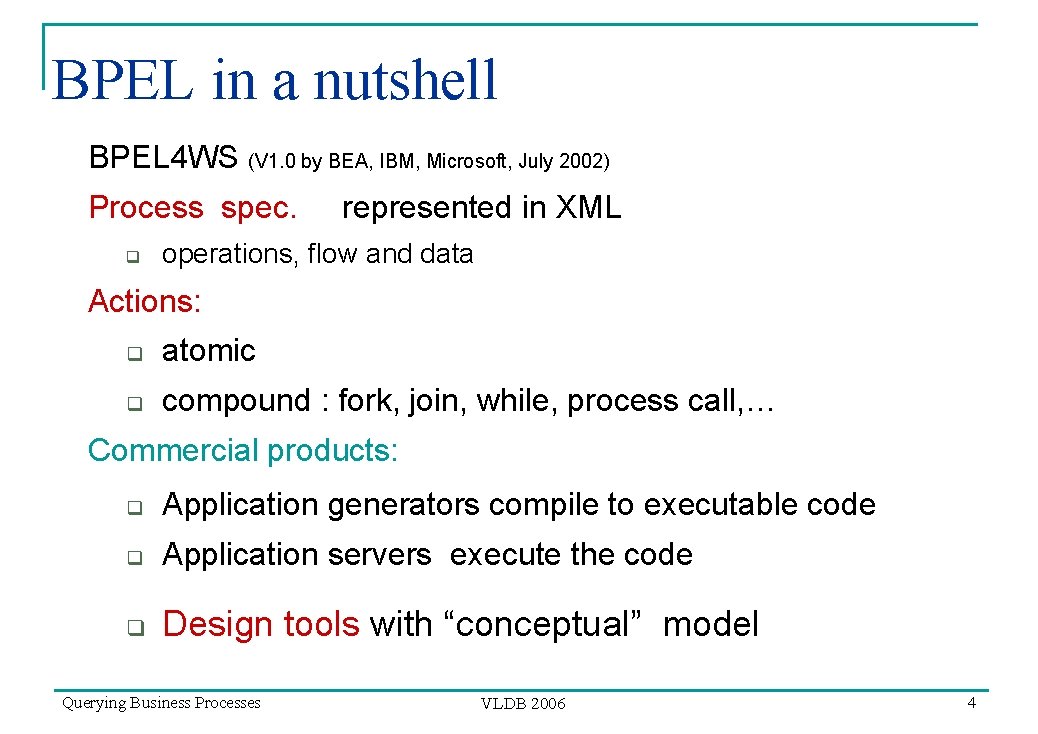

BPEL in a nutshell BPEL 4 WS (V 1. 0 by BEA, IBM, Microsoft, July 2002) Process spec. q represented in XML operations, flow and data Actions: q atomic q compound : fork, join, while, process call, … Commercial products: q Application generators compile to executable code q Application servers execute the code q Design tools with “conceptual” model Querying Business Processes VLDB 2006 4
![Motivation Not just simplifying development… This is a new mine of Information! Interesting questions: Motivation Not just simplifying development… This is a new mine of Information! Interesting questions:](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-5.jpg)

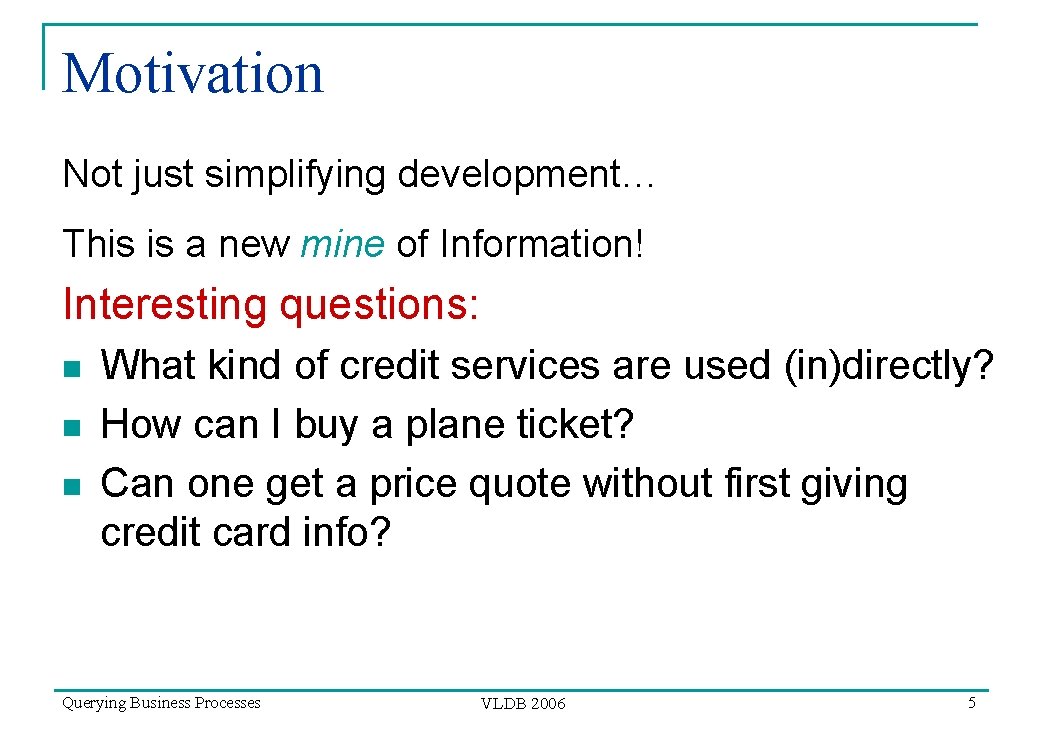

Motivation Not just simplifying development… This is a new mine of Information! Interesting questions: n n n What kind of credit services are used (in)directly? How can I buy a plane ticket? Can one get a price quote without first giving credit card info? Querying Business Processes VLDB 2006 5
![Requirements n Flexible granularity q q n Distribution q q n Zoom into remote Requirements n Flexible granularity q q n Distribution q q n Zoom into remote](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-6.jpg)

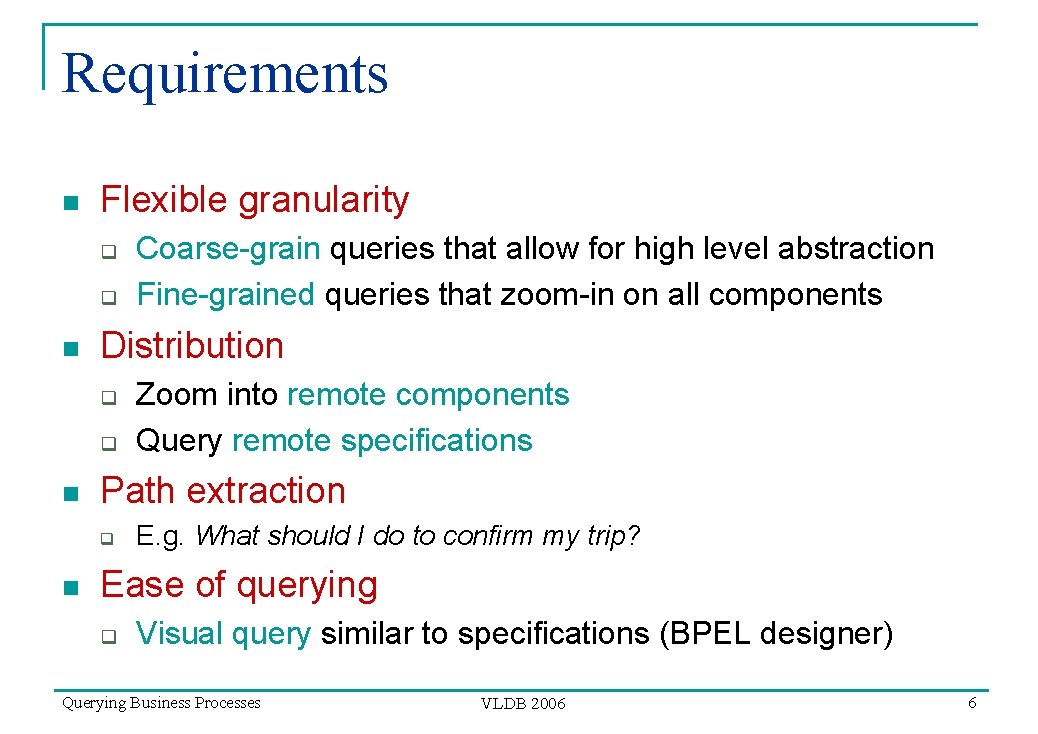

Requirements n Flexible granularity q q n Distribution q q n Zoom into remote components Query remote specifications Path extraction q n Coarse-grain queries that allow for high level abstraction Fine-grained queries that zoom-in on all components E. g. What should I do to confirm my trip? Ease of querying q Visual query similar to specifications (BPEL designer) Querying Business Processes VLDB 2006 6
![Can a query language be based on XQuery over BPEL? NO! The BPEL XML Can a query language be based on XQuery over BPEL? NO! The BPEL XML](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-7.jpg)

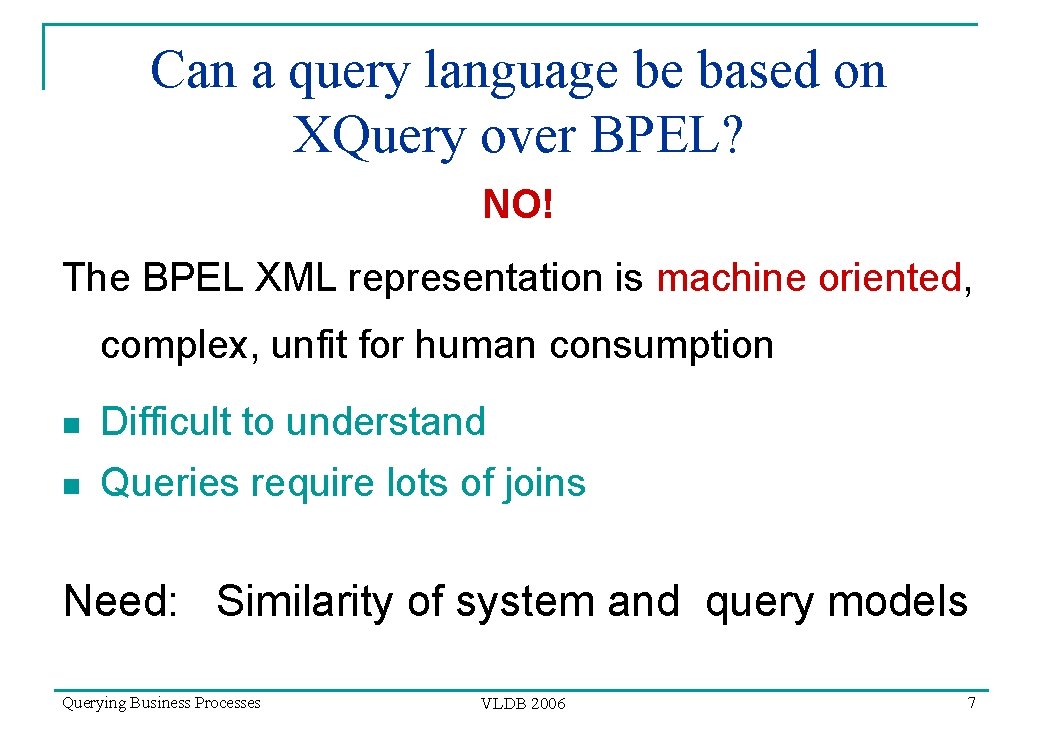

Can a query language be based on XQuery over BPEL? NO! The BPEL XML representation is machine oriented, complex, unfit for human consumption n Difficult to understand n Queries require lots of joins Need: Similarity of system and query models Querying Business Processes VLDB 2006 7
![Outline v Introduction and motivation v Overview of BPQL by example v Formal model Outline v Introduction and motivation v Overview of BPQL by example v Formal model](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-8.jpg)

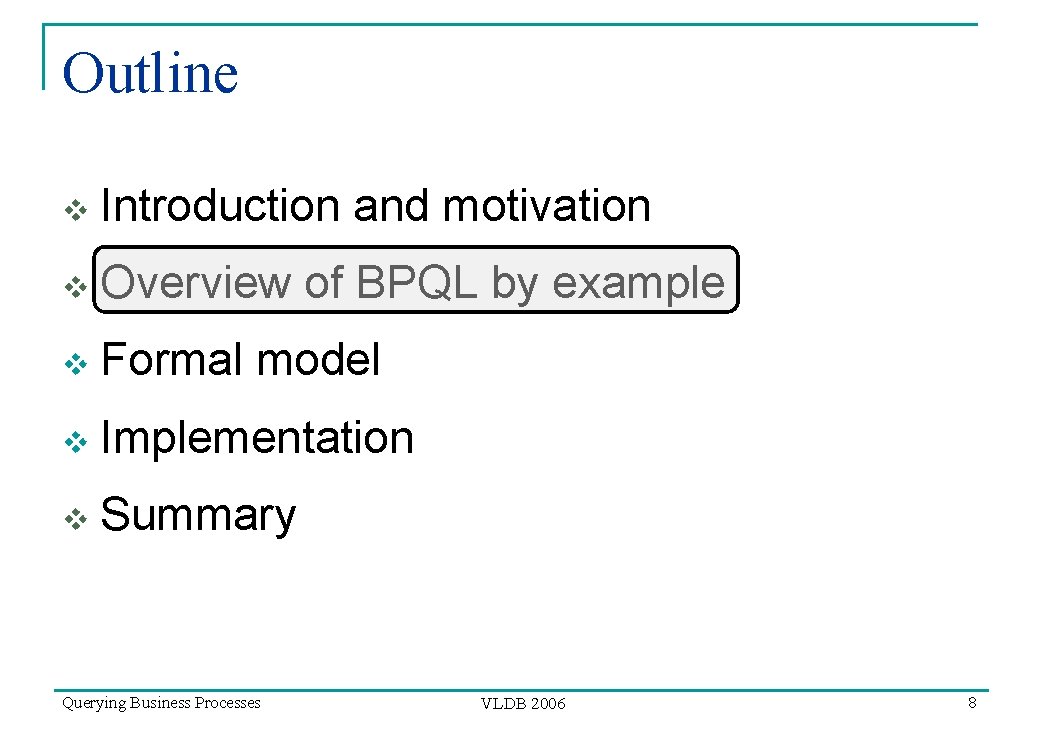

Outline v Introduction and motivation v Overview of BPQL by example v Formal model v Implementation v Summary Querying Business Processes VLDB 2006 8
![Travel Agency Spec n Property, data & activity nodes n Control and data flow Travel Agency Spec n Property, data & activity nodes n Control and data flow](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-9.jpg)

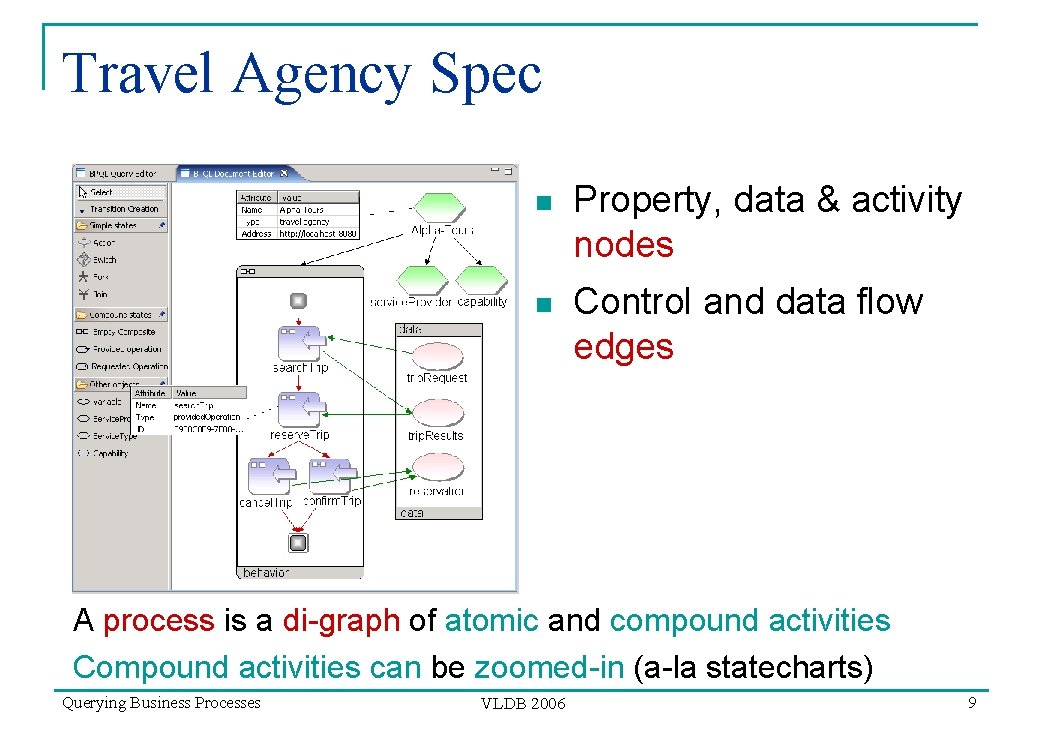

Travel Agency Spec n Property, data & activity nodes n Control and data flow edges A process is a di-graph of atomic and compound activities Compound activities can be zoomed-in (a-la statecharts) Querying Business Processes VLDB 2006 9
![Zoom-in Querying Business Processes VLDB 2006 10 Zoom-in Querying Business Processes VLDB 2006 10](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-10.jpg)

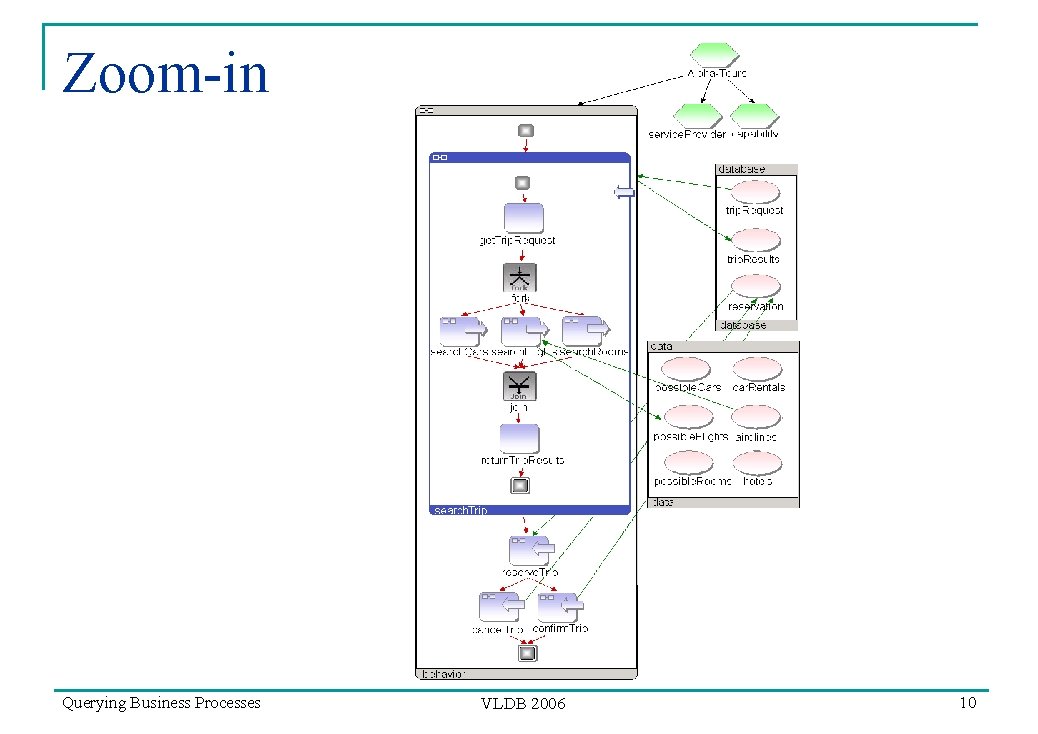

Zoom-in Querying Business Processes VLDB 2006 10
![BPQL Queries n Use process patterns (like tree patterns for xml) Query 1: Provided BPQL Queries n Use process patterns (like tree patterns for xml) Query 1: Provided](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-11.jpg)
BPQL Queries n Use process patterns (like tree patterns for xml) Query 1: Provided operations? n Single/double-headed edges (compare to / and // in XPath) q q n Single/double-bounded activities: q q n n Querying Business Processes – edges – paths of arbitrary length – w/o zoom-in – unbounded zoom-in Mark requested nodes/edges by Node label variables VLDB 2006 11 ü
![Query 2: used credit card services? local Querying Business Processes VLDB 2006 12 Query 2: used credit card services? local Querying Business Processes VLDB 2006 12](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-12.jpg)

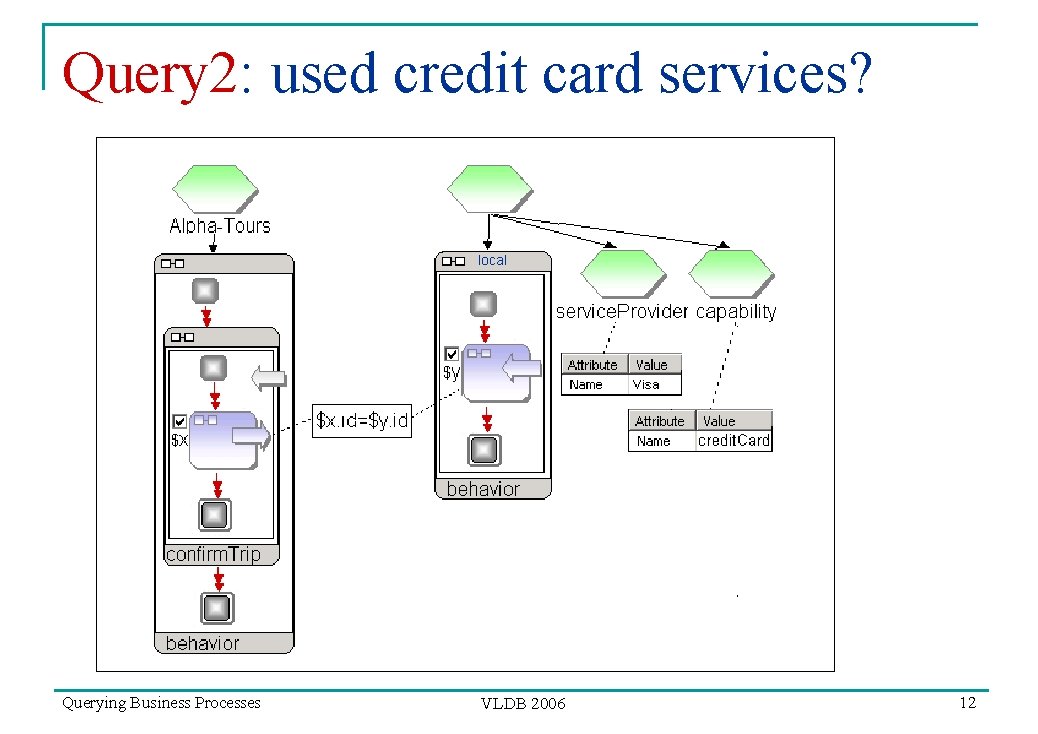

Query 2: used credit card services? local Querying Business Processes VLDB 2006 12
![Query 3: search without login? Querying Business Processes VLDB 2006 13 Query 3: search without login? Querying Business Processes VLDB 2006 13](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-13.jpg)

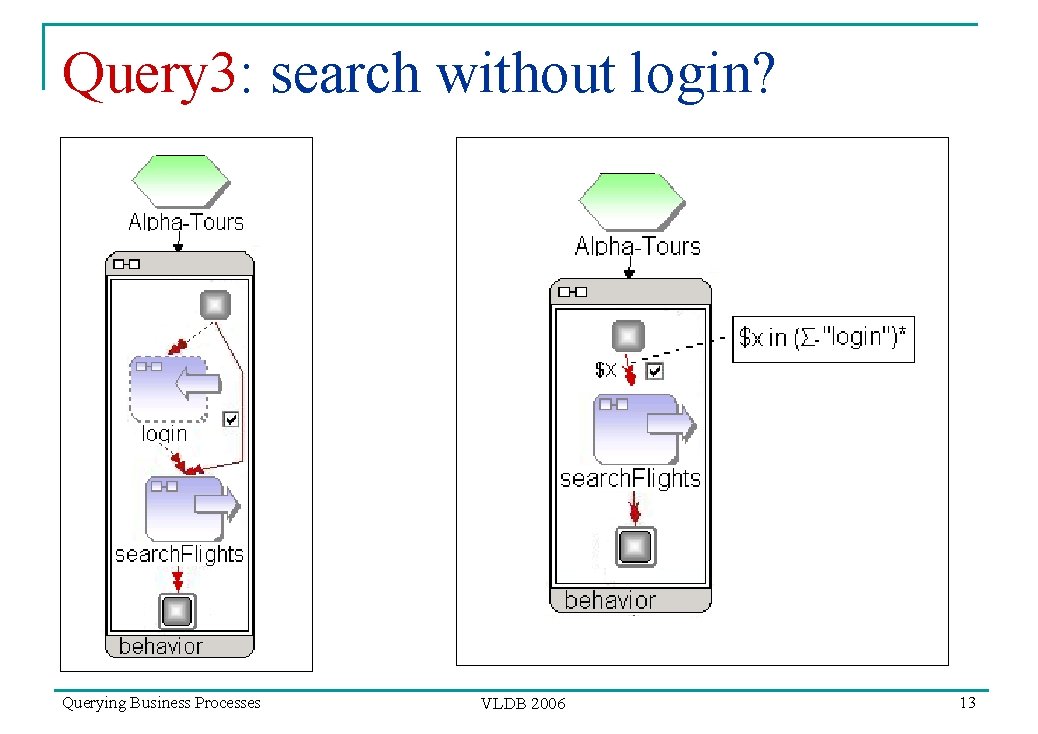

Query 3: search without login? Querying Business Processes VLDB 2006 13
![Query 4: data flow Data elements affected by search. Request and affecting return. Trip. Query 4: data flow Data elements affected by search. Request and affecting return. Trip.](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-14.jpg)

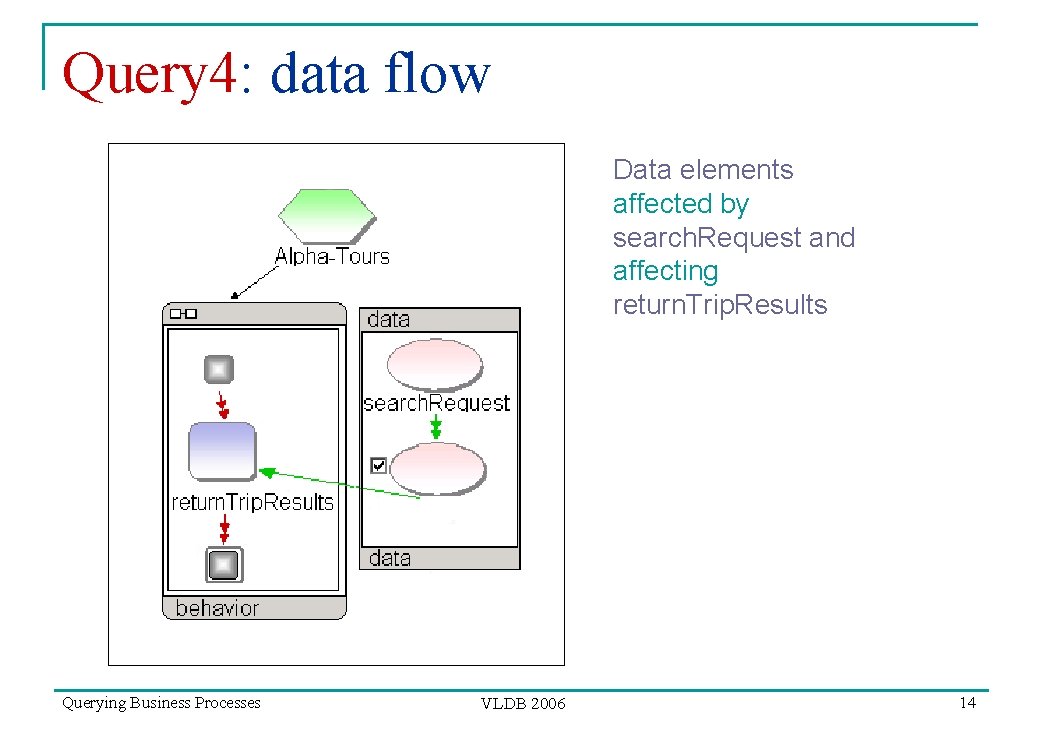

Query 4: data flow Data elements affected by search. Request and affecting return. Trip. Results Querying Business Processes VLDB 2006 14
![Outline v Introduction and motivation v Overview of BPQL by example v Formal model Outline v Introduction and motivation v Overview of BPQL by example v Formal model](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-15.jpg)

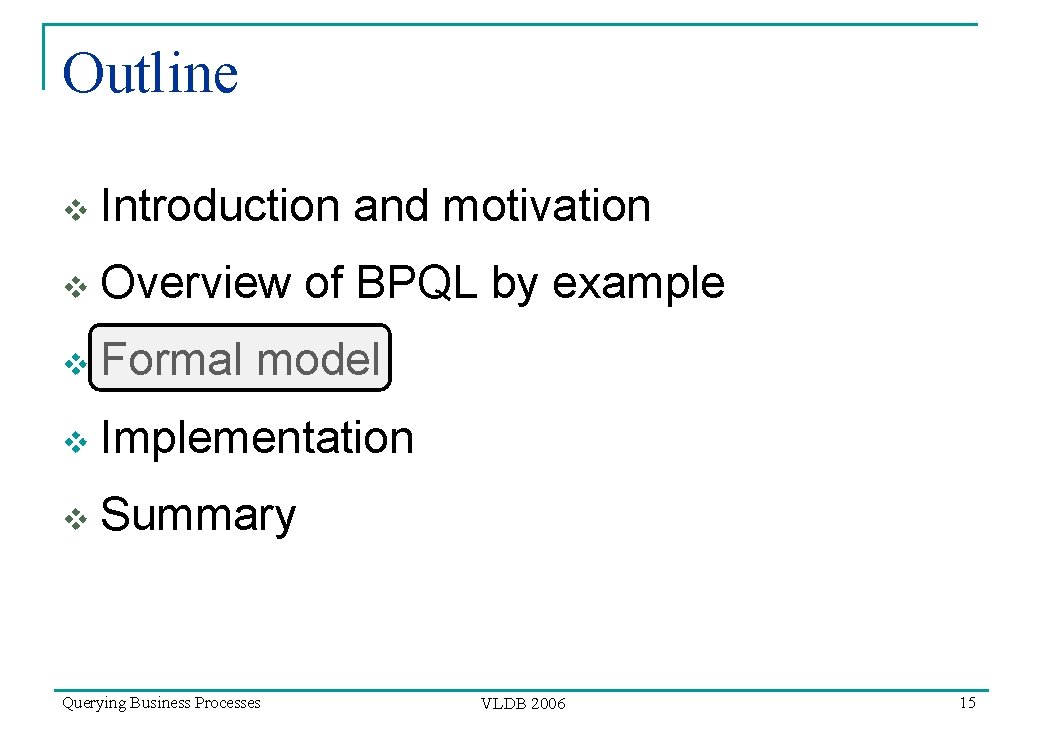

Outline v Introduction and motivation v Overview of BPQL by example v Formal model v Implementation v Summary Querying Business Processes VLDB 2006 15
![Formal Model System: n Process graphs + implementation function n Graph refinement (graph rewriting) Formal Model System: n Process graphs + implementation function n Graph refinement (graph rewriting)](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-16.jpg)
Formal Model System: n Process graphs + implementation function n Graph refinement (graph rewriting) implementation Query: n A system where some nodes & edges are marked transitive Querying Business Processes VLDB 2006 16
![Semantics An embedding: a mapping from: to: query graphs [refinements of] process graphs satisfying Semantics An embedding: a mapping from: to: query graphs [refinements of] process graphs satisfying](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-17.jpg)

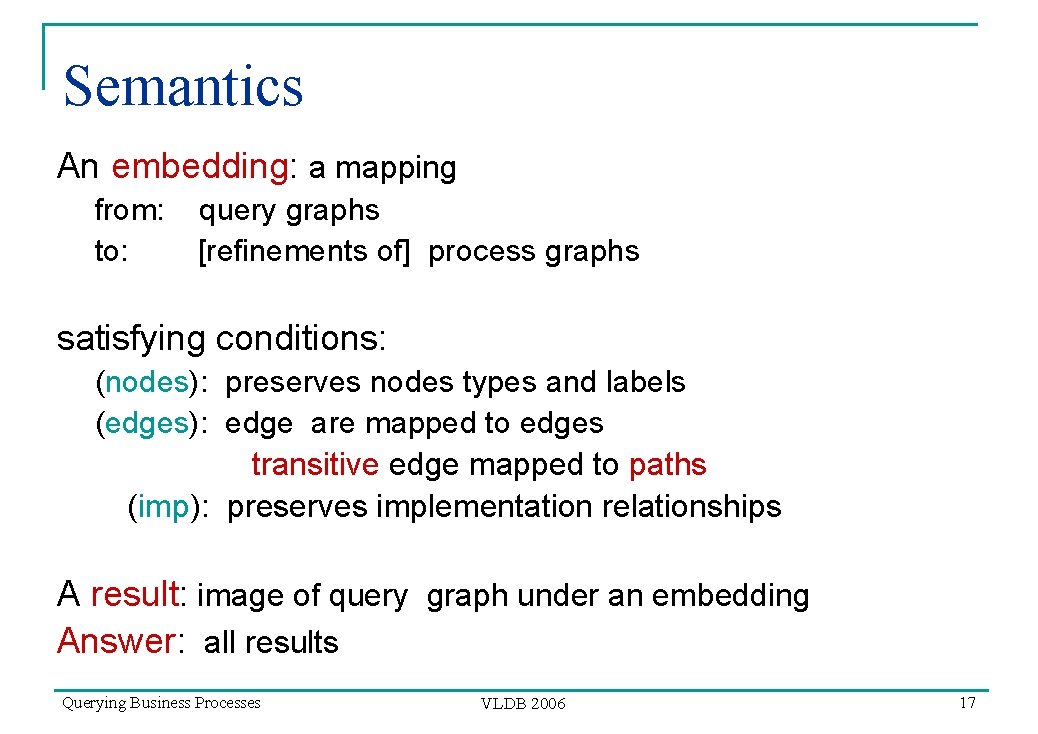

Semantics An embedding: a mapping from: to: query graphs [refinements of] process graphs satisfying conditions: (nodes): preserves nodes types and labels (edges): edge are mapped to edges transitive edge mapped to paths (imp): preserves implementation relationships A result: image of query graph under an embedding Answer: all results Querying Business Processes VLDB 2006 17
![Large or Infinite answers! n Many fork/joins exponential number of paths n Cycles in Large or Infinite answers! n Many fork/joins exponential number of paths n Cycles in](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-18.jpg)

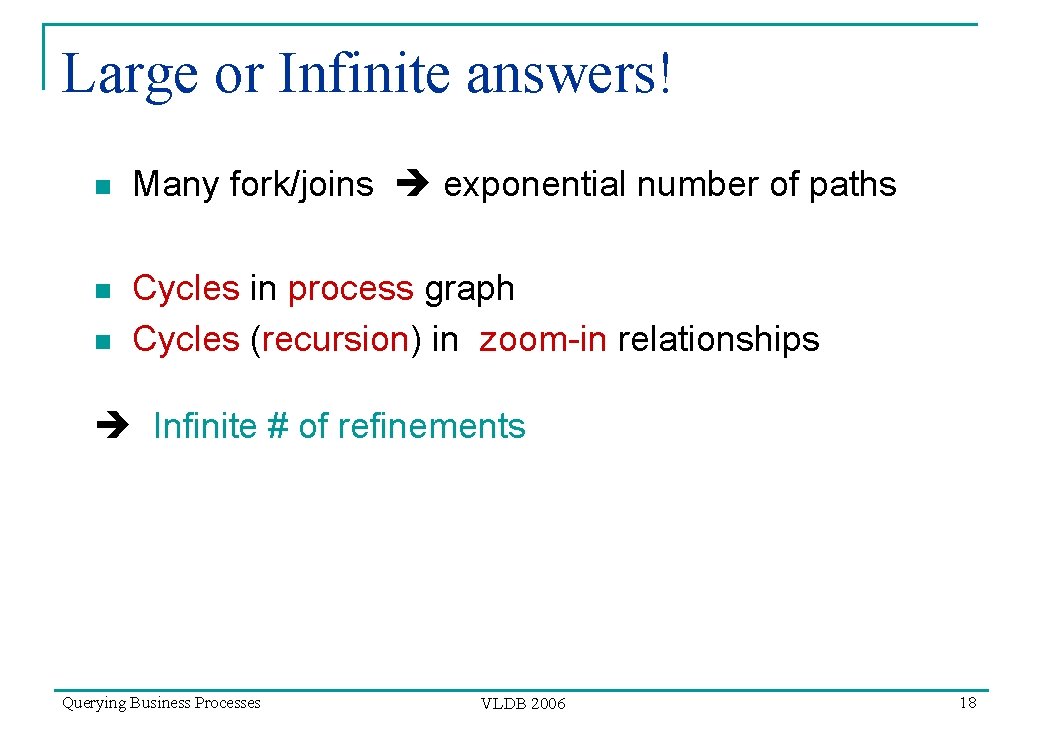

Large or Infinite answers! n Many fork/joins exponential number of paths n Cycles in process graph Cycles (recursion) in zoom-in relationships n Infinite # of refinements Querying Business Processes VLDB 2006 18
![Recursion example Travel Agency Querying Business Processes Airline VLDB 2006 19 Recursion example Travel Agency Querying Business Processes Airline VLDB 2006 19](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-19.jpg)

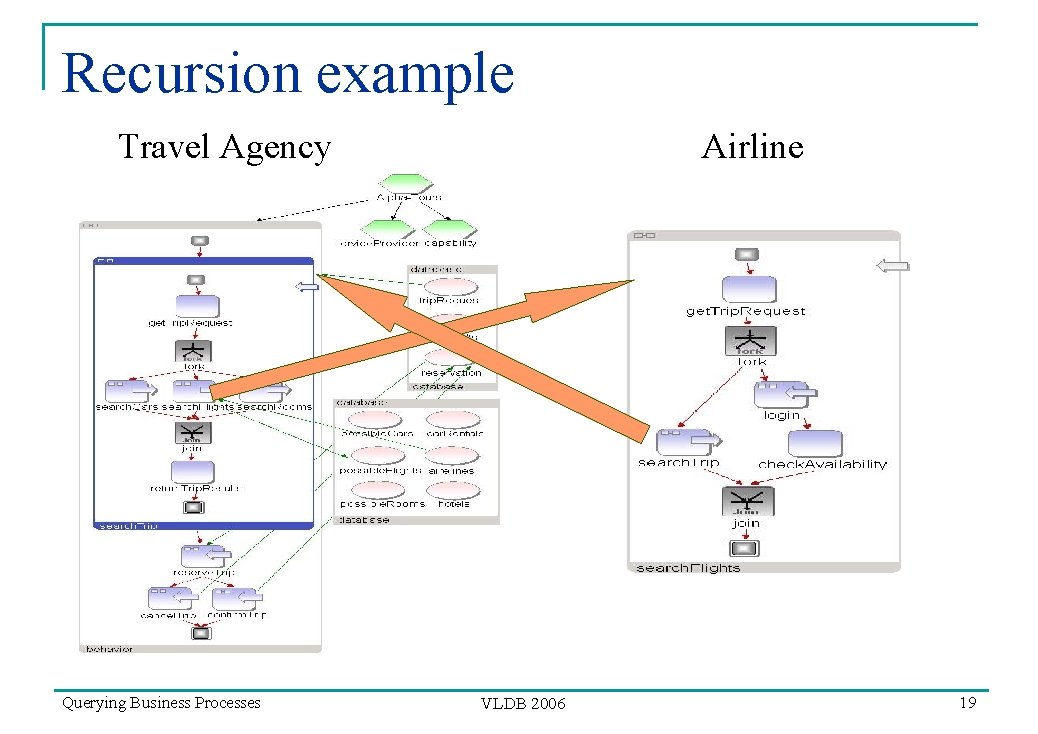

Recursion example Travel Agency Querying Business Processes Airline VLDB 2006 19
![Compact representation Querying Business Processes Infinite VLDB 2006 Compact 20 Compact representation Querying Business Processes Infinite VLDB 2006 Compact 20](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-20.jpg)

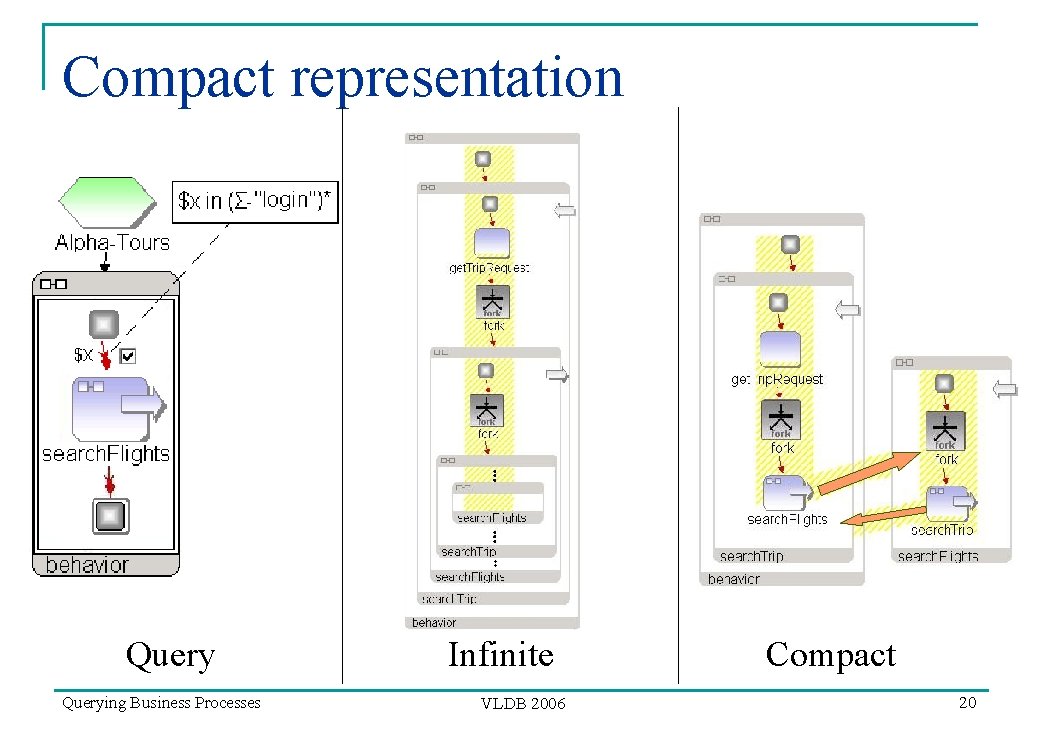

Compact representation Querying Business Processes Infinite VLDB 2006 Compact 20
![Query Evaluation Algorithm Systems and queries are essentially (Vertex Replacement) Context Free Graph Grammars Query Evaluation Algorithm Systems and queries are essentially (Vertex Replacement) Context Free Graph Grammars](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-21.jpg)

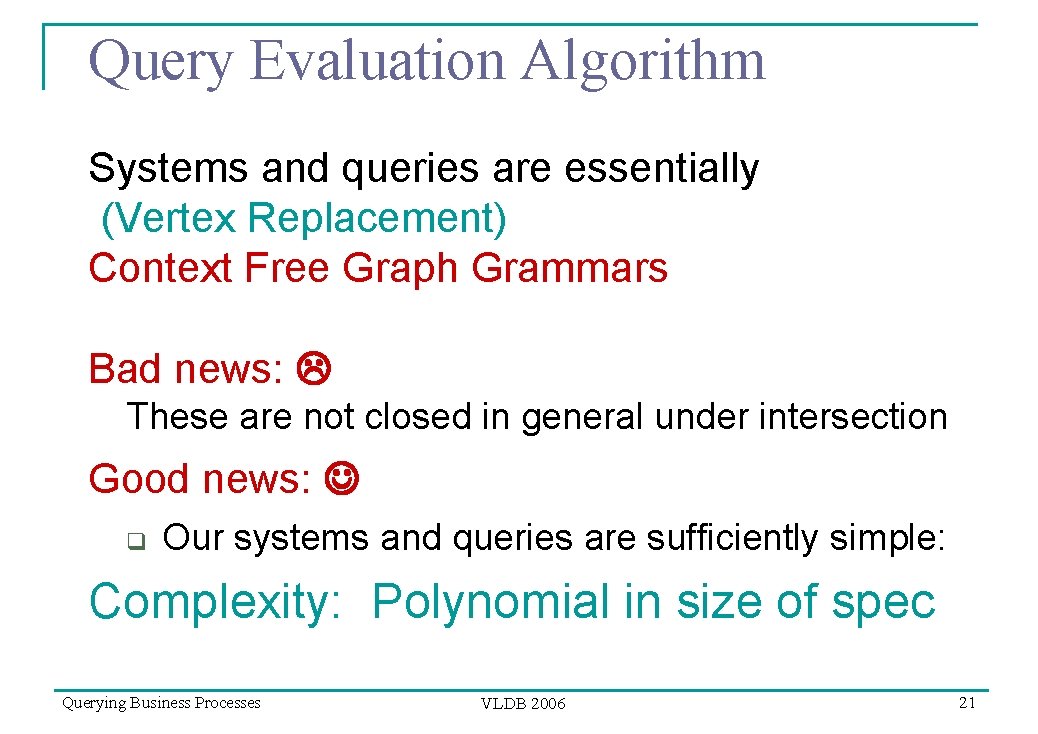

Query Evaluation Algorithm Systems and queries are essentially (Vertex Replacement) Context Free Graph Grammars Bad news: These are not closed in general under intersection Good news: q Our systems and queries are sufficiently simple: Complexity: Polynomial in size of spec Querying Business Processes VLDB 2006 21
![Extensions: n OK extensions (implemented): q q n label predicates Regular path expressions (on Extensions: n OK extensions (implemented): q q n label predicates Regular path expressions (on](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-22.jpg)

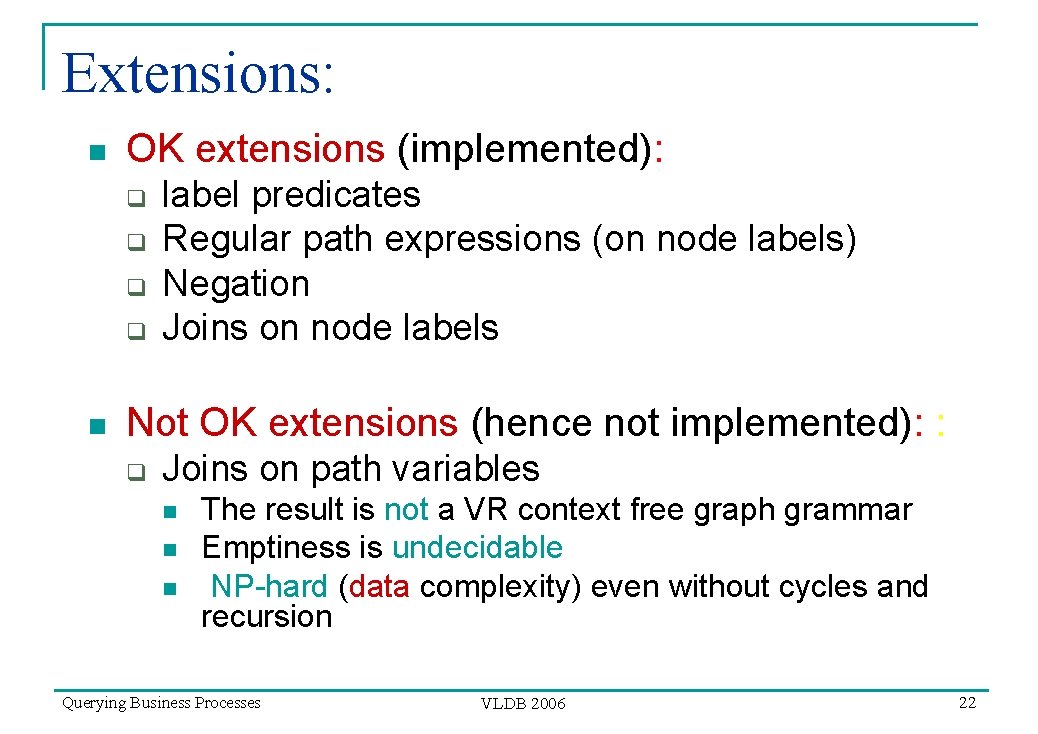

Extensions: n OK extensions (implemented): q q n label predicates Regular path expressions (on node labels) Negation Joins on node labels Not OK extensions (hence not implemented): : q Joins on path variables n n n The result is not a VR context free graph grammar Emptiness is undecidable NP-hard (data complexity) even without cycles and recursion Querying Business Processes VLDB 2006 22
![Outline v Introduction and motivation v Overview of BPQL by example v Formal model Outline v Introduction and motivation v Overview of BPQL by example v Formal model](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-23.jpg)

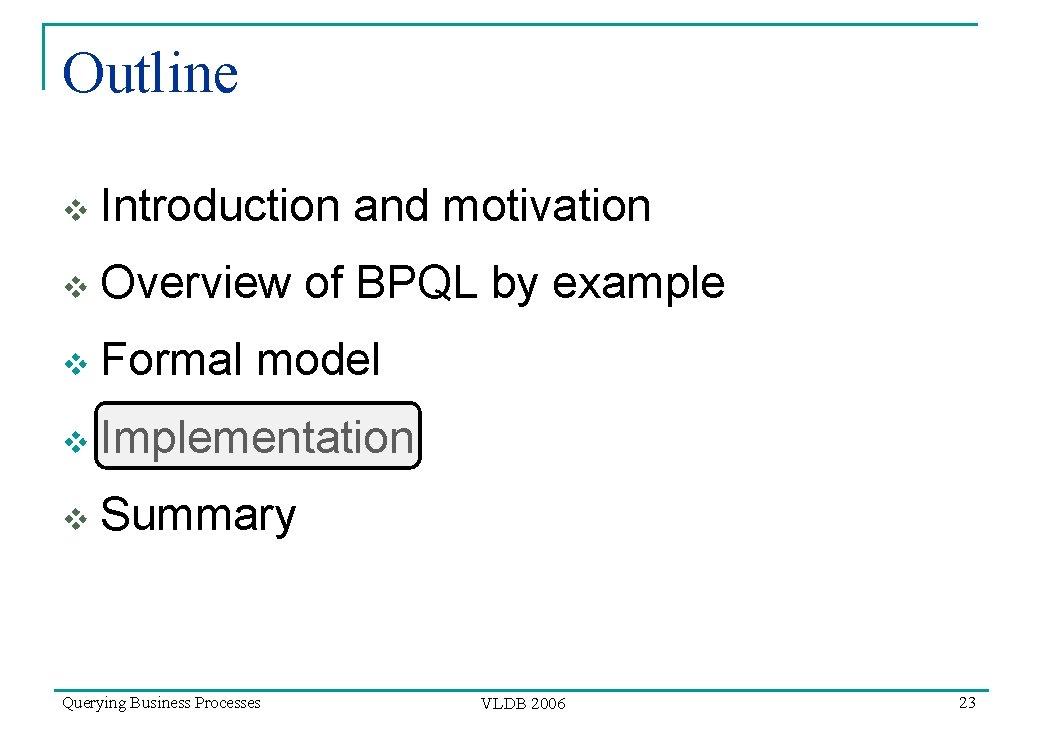

Outline v Introduction and motivation v Overview of BPQL by example v Formal model v Implementation v Summary Querying Business Processes VLDB 2006 23
![First Attempt Translation to XQuery queries over the BPEL XML Problem: too many joins, First Attempt Translation to XQuery queries over the BPEL XML Problem: too many joins,](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-24.jpg)

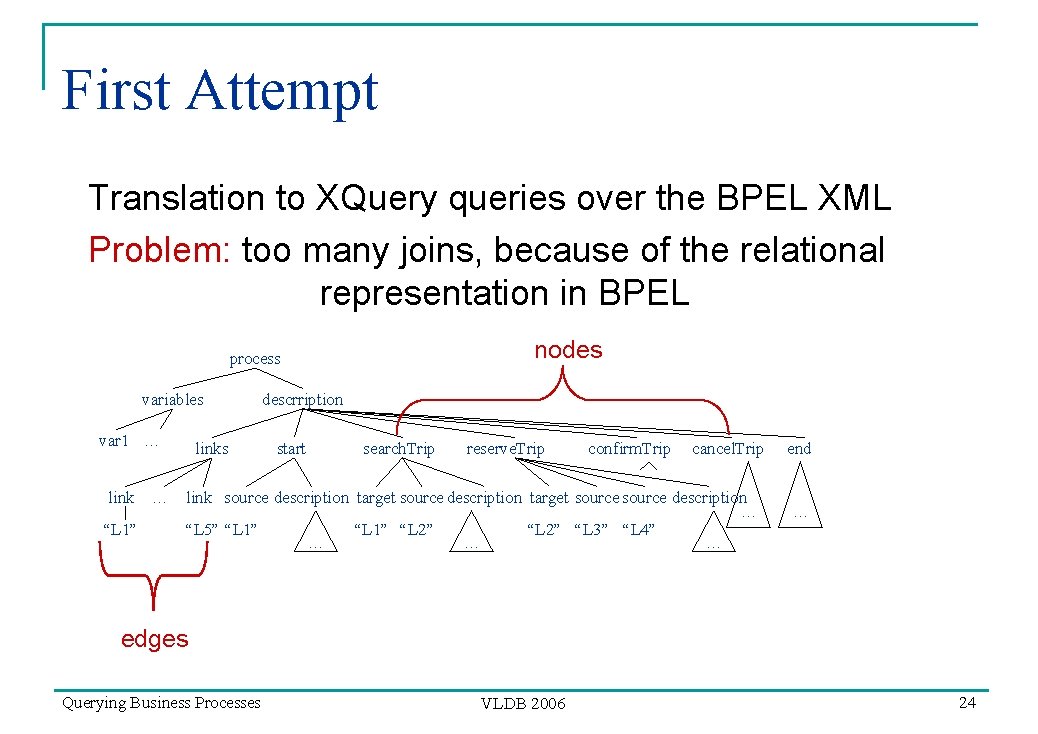

First Attempt Translation to XQuery queries over the BPEL XML Problem: too many joins, because of the relational representation in BPEL nodes process variables var 1 … link … “L 1” links descrription start search. Trip reserve. Trip confirm. Trip cancel. Trip link source description target source description … “L 5” “L 1” “L 2” “L 3” “L 4” … … … end … edges Querying Business Processes VLDB 2006 24
![Solution: use Active XML (www. activexml. net) Travel agency service. Provider capability behavior zoomin Solution: use Active XML (www. activexml. net) Travel agency service. Provider capability behavior zoomin](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-25.jpg)

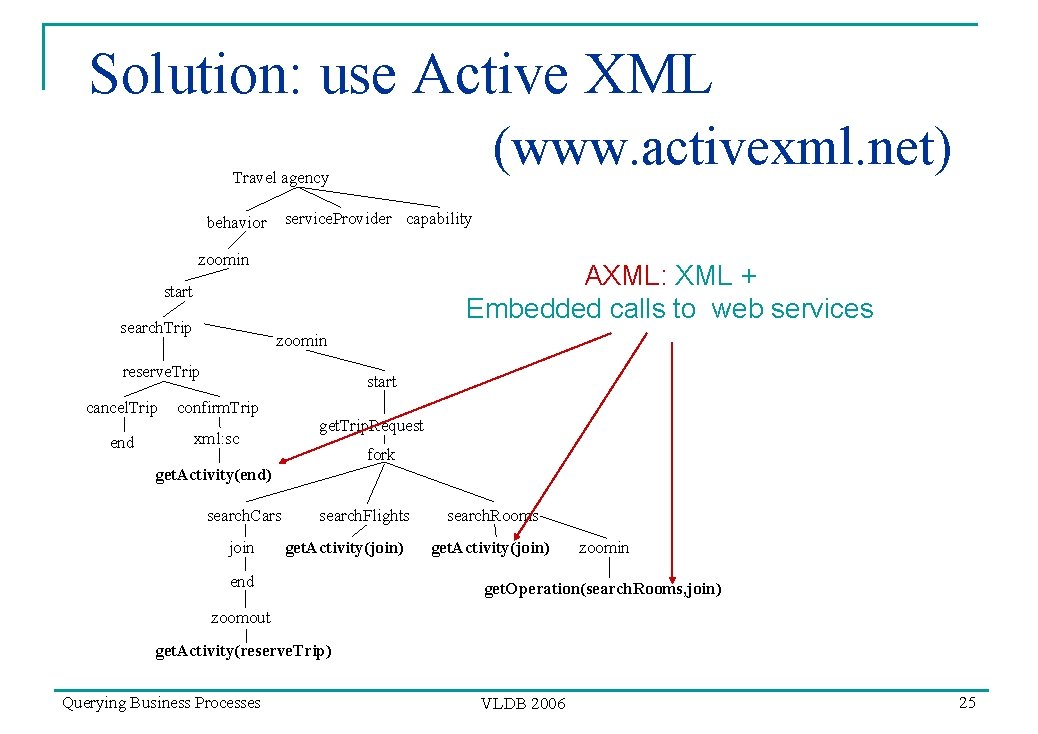

Solution: use Active XML (www. activexml. net) Travel agency service. Provider capability behavior zoomin AXML: XML + Embedded calls to web services start search. Trip zoomin reserve. Trip start cancel. Trip confirm. Trip end xml: sc get. Trip. Request fork get. Activity(end) search. Cars join search. Flights get. Activity(join) end search. Rooms get. Activity(join) zoomin get. Operation(search. Rooms, join) zoomout get. Activity(reserve. Trip) Querying Business Processes VLDB 2006 25
![Results Joins vs. calls to Web services … … … Querying Business Processes VLDB Results Joins vs. calls to Web services … … … Querying Business Processes VLDB](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-26.jpg)

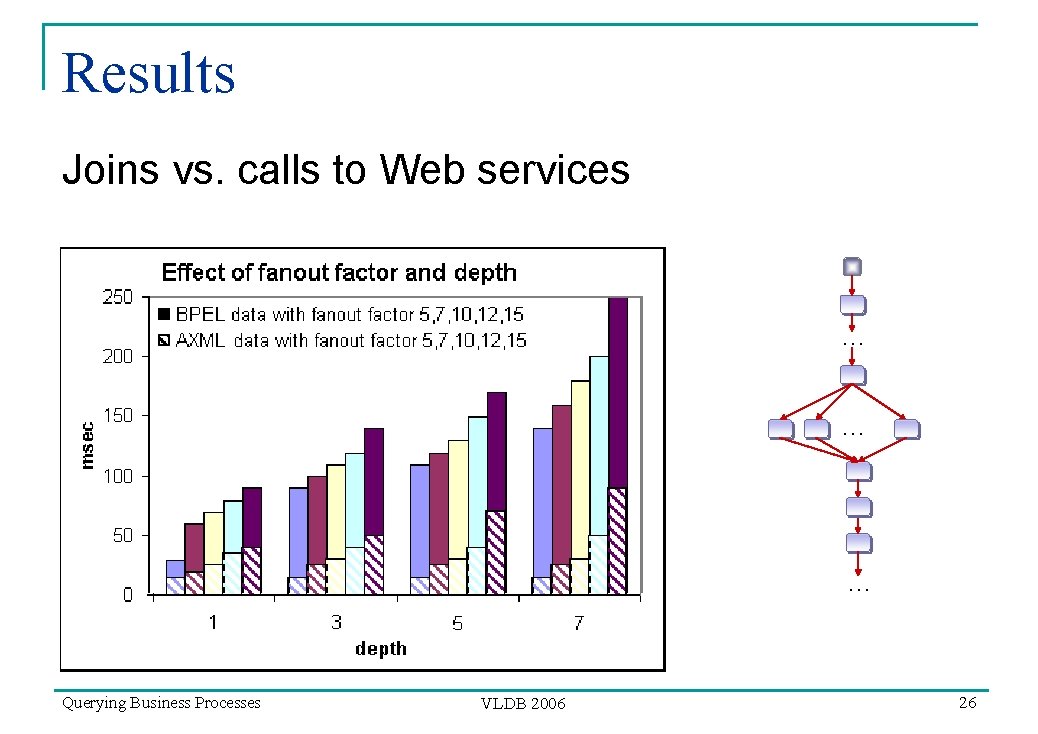

Results Joins vs. calls to Web services … … … Querying Business Processes VLDB 2006 26
![Distribution Effect Querying Business Processes VLDB 2006 27 Distribution Effect Querying Business Processes VLDB 2006 27](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-27.jpg)

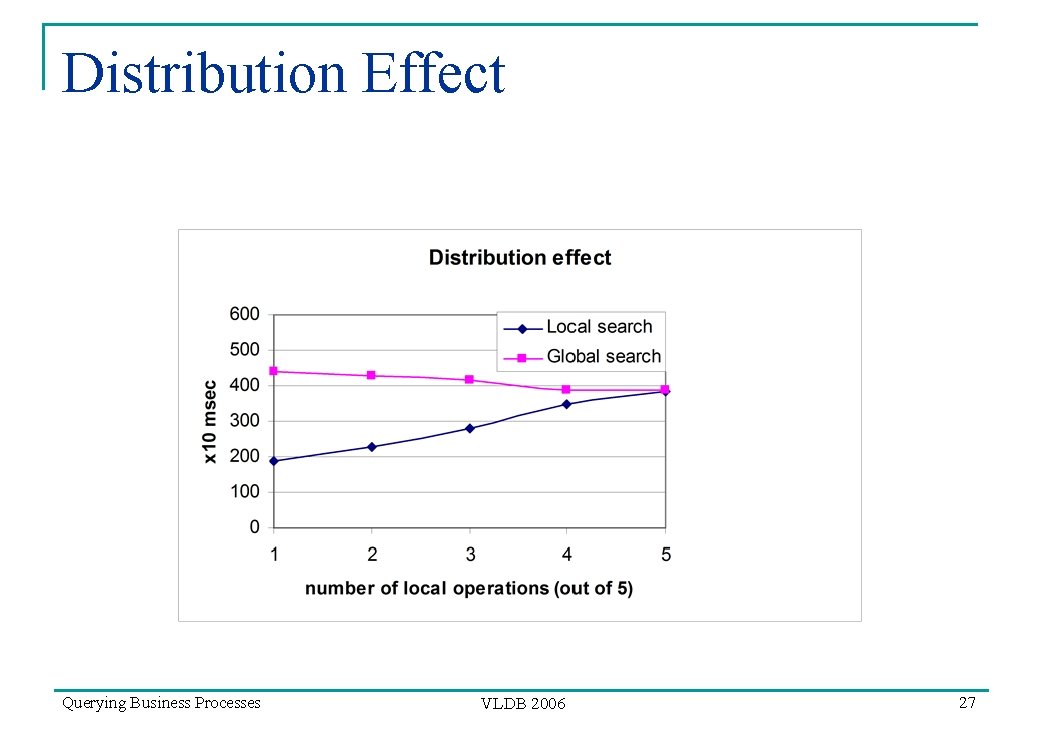

Distribution Effect Querying Business Processes VLDB 2006 27
![Outline v Introduction and motivation v Overview of BPQL by example v Formal model Outline v Introduction and motivation v Overview of BPQL by example v Formal model](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-28.jpg)

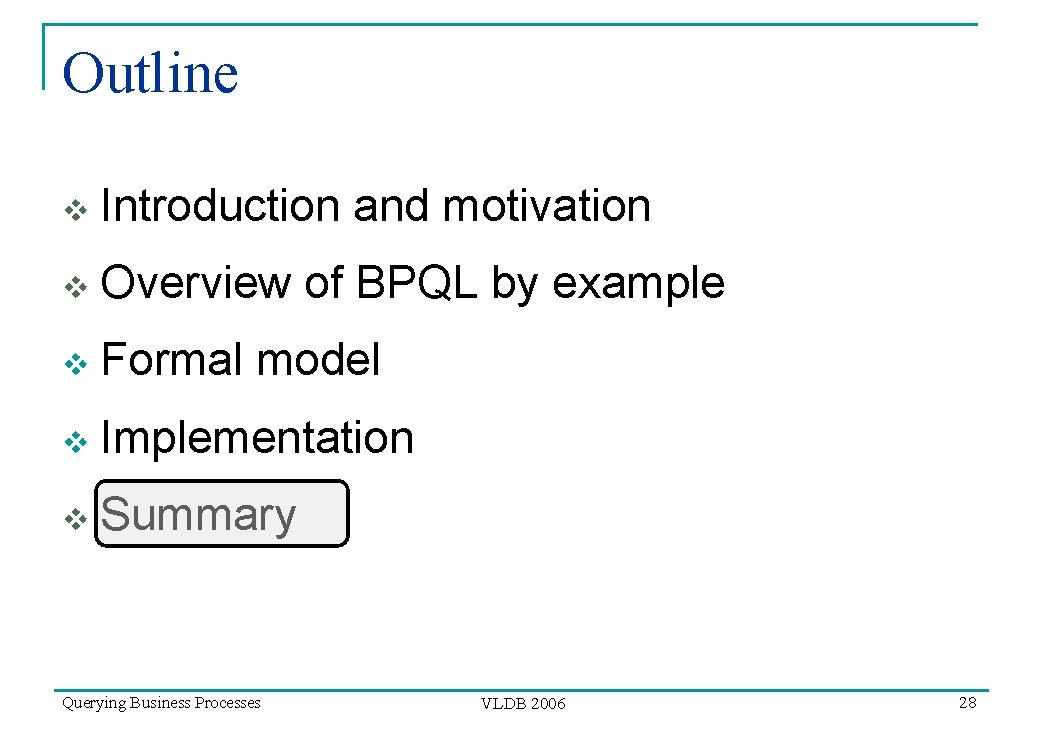

Outline v Introduction and motivation v Overview of BPQL by example v Formal model v Implementation v Summary Querying Business Processes VLDB 2006 28
![Summary n Simple and intuitive query language q q n n Similar to how Summary n Simple and intuitive query language q q n n Similar to how](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-29.jpg)

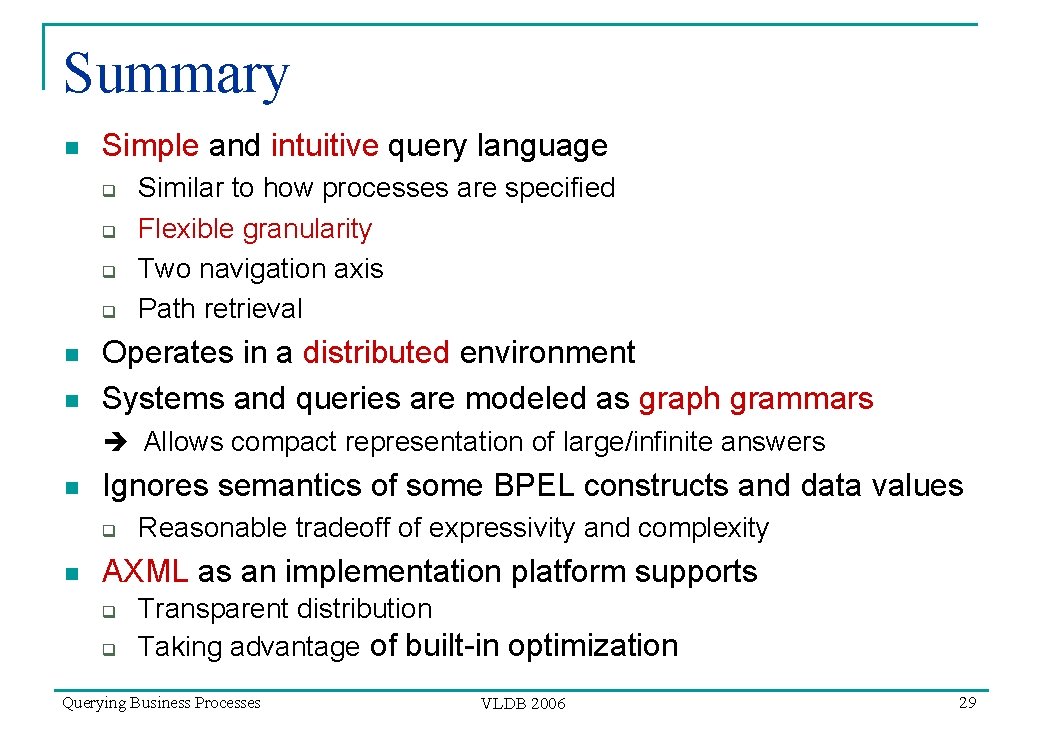

Summary n Simple and intuitive query language q q n n Similar to how processes are specified Flexible granularity Two navigation axis Path retrieval Operates in a distributed environment Systems and queries are modeled as graph grammars Allows compact representation of large/infinite answers n Ignores semantics of some BPEL constructs and data values q n Reasonable tradeoff of expressivity and complexity AXML as an implementation platform supports q q Transparent distribution Taking advantage of built-in optimization Querying Business Processes VLDB 2006 29
![Ongoing and future work n n n n Incomplete information Querying/mining logs Applications to Ongoing and future work n n n n Incomplete information Querying/mining logs Applications to](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-30.jpg)

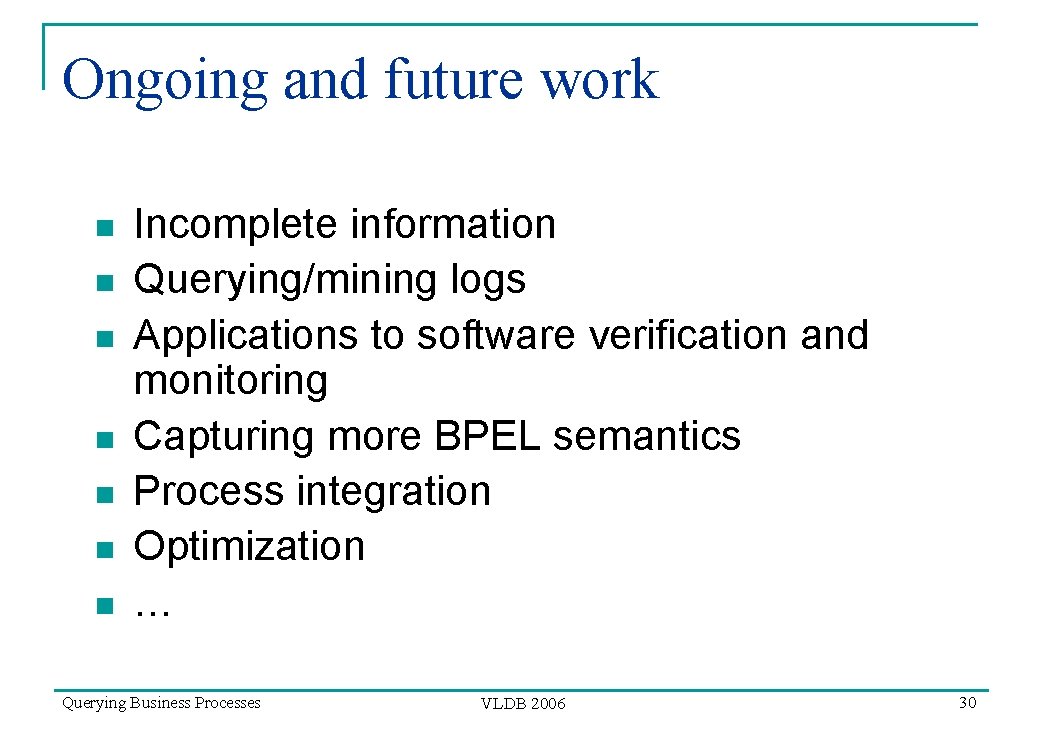

Ongoing and future work n n n n Incomplete information Querying/mining logs Applications to software verification and monitoring Capturing more BPEL semantics Process integration Optimization … Querying Business Processes VLDB 2006 30
![Thank you Querying Business Processes VLDB 2006 31 Thank you Querying Business Processes VLDB 2006 31](http://slidetodoc.com/presentation_image_h/2a5091a7a83262257245703458751a46/image-31.jpg)
Thank you Querying Business Processes VLDB 2006 31
- Slides: 31
