Framework for query optimization • The selection of a query processing strategy involves: – determining the physical copies of the fragments upon which to execute the query – selecting the order of the execution of operations, particularly, this involves the determination of a „good” sequence of joins – selecting the method for executing each operation 2

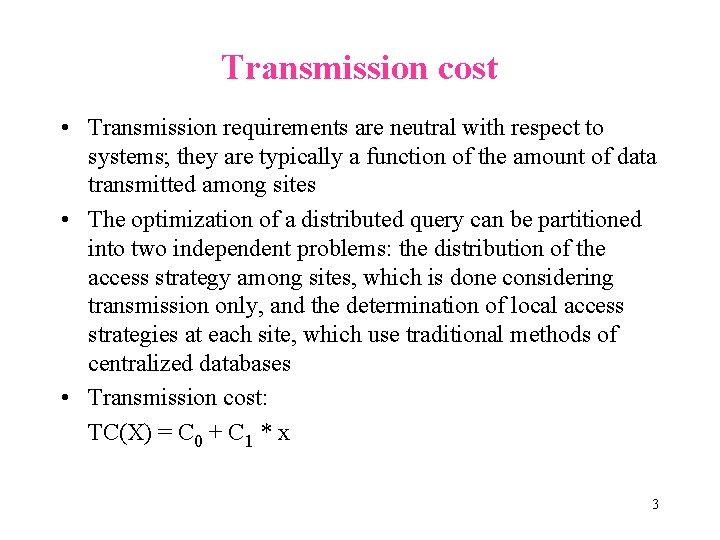

Transmission cost • Transmission requirements are neutral with respect to systems; they are typically a function of the amount of data transmitted among sites • The optimization of a distributed query can be partitioned into two independent problems: the distribution of the access strategy among sites, which is done considering transmission only, and the determination of local access strategies at each site, which use traditional methods of centralized databases • Transmission cost: TC(X) = C 0 + C 1 * x 3

Database Profile Database profile: • • The number of tuples in each relation Ri (card(Ri)) The size of each attribute A (size(A) ) The size of Ri (size(Ri)) is sum of the sizes of its attributes For each attribute A in each relation Ri: the number of distinct values appearing in Ri (val(A[Ri])), max and min LDBS 1 Supply 1 Dept 1 LDBS 2 Supply 2 Dept 2 4

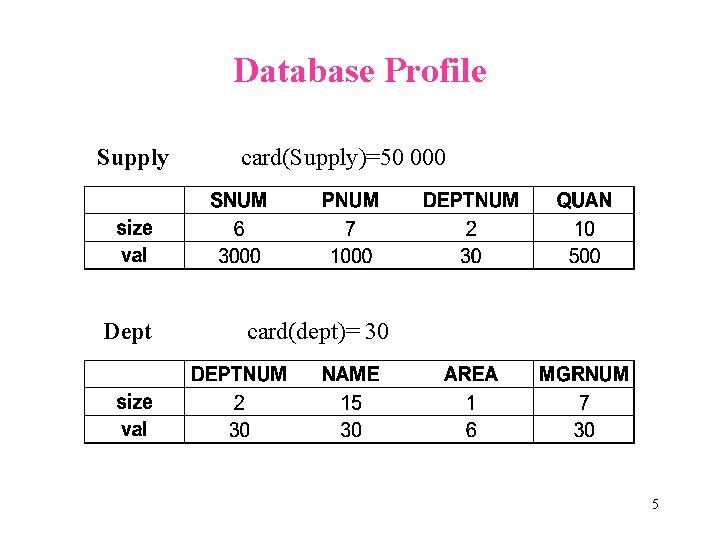

Database Profile Supply card(Supply)=50 000 Dept card(dept)= 30 5

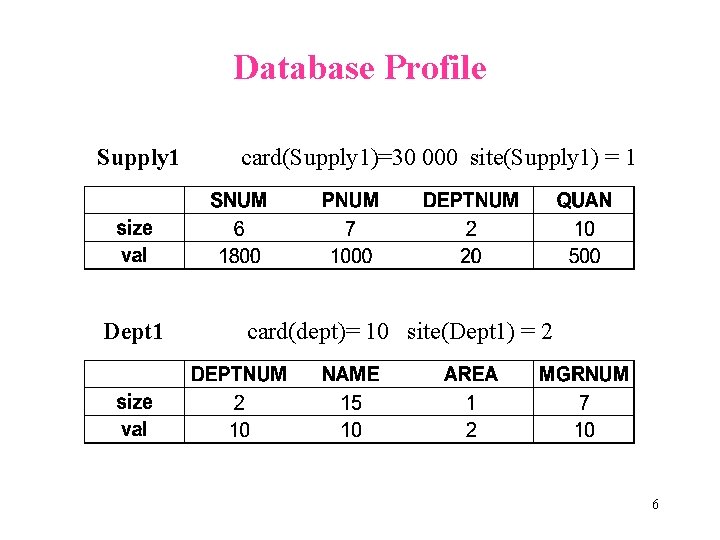

Database Profile Supply 1 card(Supply 1)=30 000 site(Supply 1) = 1 Dept 1 card(dept)= 10 site(Dept 1) = 2 6

Profile of partial results of algebraic operations - SELECTION Let S denote the result of performing a unary relation over a relation R • Cardinality - to each selection we associate a selectivity factor which is the fraction of tuples satisfying it In simple selection attribute = value (A=v), can be defined as follows: = 1/val(A[Ri]) under the assumptions that values are homogeneously distributed. Thus card(S) = * card(R) 7

Profile of partial results of algebraic operations - SELECTION • Size: selection does not affect the size of relations size(S) = size(R) • Distinct values : depends on the selection criterion Consider an attribute B which is not used in selection formula. The determination of val(B[S]) may be as follows Given n=card(R) - objects uniformly distributed over m = val(B[R]) colors. How many different colors c= val(B[S]) are selected if we take just r objects? 8

Profile of partial results of algebraic operations - SELECTION • Yao approximation: c(n, m, r) = r, (r+m)/3 m, for r < m/2 for m/2 < r < 2 m for r > 2 m 9

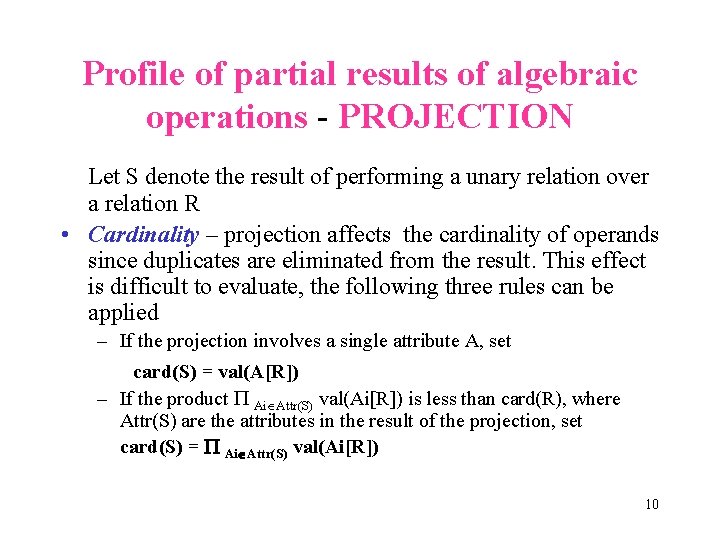

Profile of partial results of algebraic operations - PROJECTION Let S denote the result of performing a unary relation over a relation R • Cardinality – projection affects the cardinality of operands since duplicates are eliminated from the result. This effect is difficult to evaluate, the following three rules can be applied – If the projection involves a single attribute A, set card(S) = val(A[R]) – If the product Ai Attr(S) val(Ai[R]) is less than card(R), where Attr(S) are the attributes in the result of the projection, set card(S) = Ai Attr(S) val(Ai[R]) 10

Profile of partial results of algebraic operations - PROJECTION – If the projection includes a key of R, set card(S) = card(R) • Note that if the system does not eliminate duplicates, the cardinality of the result is the same as the cardinality of the operand relation • Size: the size of the result of a projection is reduced to the sum of the sizes of attributes in its specification • Distinct values : the distinct values of projected attributes are the same as in the operand relation 11

Profile of partial results of algebraic operations – GROUP BY • • • Let G denote the attributes on which the grouping is performed, AF indicates the aggregate functions to be evaluated Cardinality – we give an upper bound on the cardinality of S: card(S) < Ai G val(Ai[R]) Size: for all attributes A appearing in G size(R. A) = size (S. A) Distinct values : for all attributes A appearing in G val(A[S]) = val(A[R]) 12

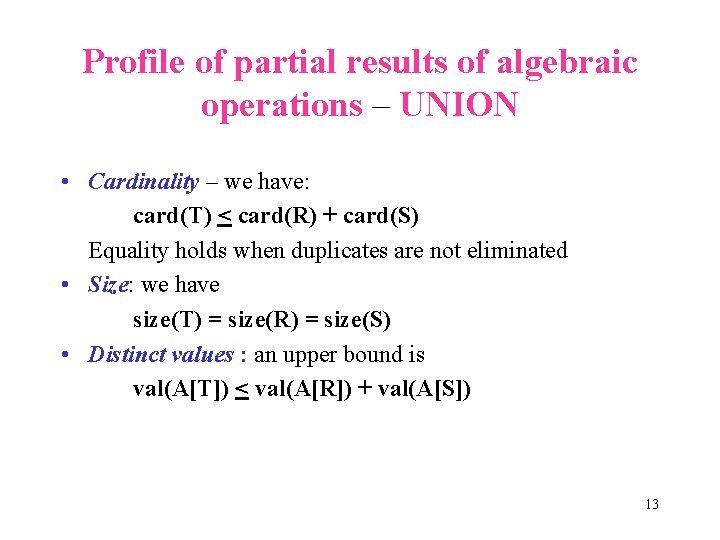

Profile of partial results of algebraic operations – UNION • Cardinality – we have: card(T) < card(R) + card(S) Equality holds when duplicates are not eliminated • Size: we have size(T) = size(R) = size(S) • Distinct values : an upper bound is val(A[T]) < val(A[R]) + val(A[S]) 13

Profile of partial results of algebraic operations – DIFFERENCE • Cardinality – we have: max(0, card((R)-card(S)) < card(T) < card(R) • Size: we have size(T) = size(R) = size(S) • Distinct values : an upper bound is val(A[T]) < val(A[R]) 14

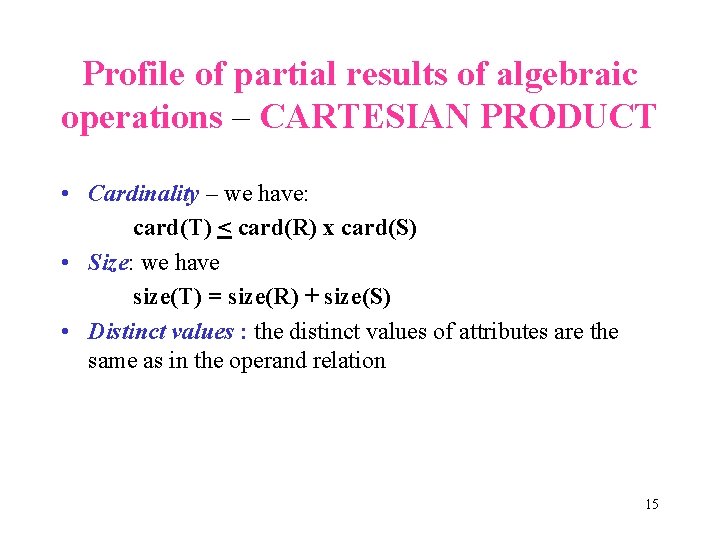

Profile of partial results of algebraic operations – CARTESIAN PRODUCT • Cardinality – we have: card(T) < card(R) x card(S) • Size: we have size(T) = size(R) + size(S) • Distinct values : the distinct values of attributes are the same as in the operand relation 15

Profile of partial results of algebraic operations – JOIN • Cardinality – estimating precisely the cardinality of T is very complex; we can give an upper bound to card(T) because card(T) < card(R) x card(S), but this value is usually much higher than the actual cardinality. Assuming that all the values of A in R appear also as values of B in S and vice versa and that the two attributes are both uniformly distributed over tuples of R and S, we have card(T) = (card(R) x card(S))/val(A[R]) if one of the two attributes, say A, is a key of R, then card(T) = card(S) 16

Profile of partial results of algebraic operations – JOIN • Size: we have size(T) = size(R) + size(S) In the case of natural join the size of the join attribute must be subtracted from the size of the result • Distinct values : if A is a join attribute, an upper bound is val(A[T]) < min(val(A[R]), val(B[S]) ) if A is not a join attribute, an upper bound is val(A[T]) < val(A[R]) + val(B[S]) 17

Profile of partial results of algebraic operations – SEMIJOIN Consider the semijoin T=R SJ A=B S • Cardinality – the estimation of the cardinality of T is similar to that of a selection operation; we denote with the selectivity of the semijoin operation, which measures the fraction of the tuples of R which belong to the result. The estimation is the following: = 1/val(A[S]) / val(dom[A]) Given card(T) = * card(R) 18

Profile of partial results of algebraic operations – SEMIJOIN • Size: The size of the result of a semijoin is the same as the size of its first operand size(T) = size(R) • Distinct values : the number of distinct values of attributes which do not belong to the semijoin specification can be estimated using Yao’s formula with n= card(R), m=val(A[R]), and r =card(T). If A is the only attribute appearing in the semijoin specification, then val(A[T]) = * val(A[R]) 19

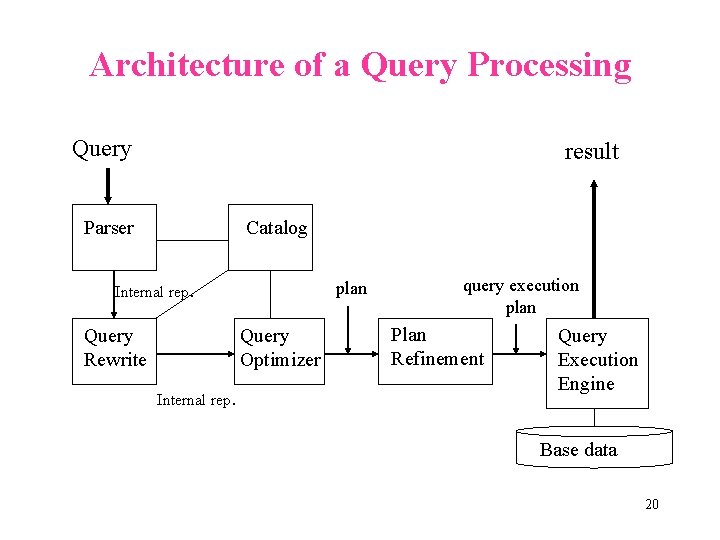

Architecture of a Query Processing Query result Parser Catalog Internal rep. Query Rewrite plan Query Optimizer Internal rep. query execution plan Plan Refinement Query Execution Engine Base data 20

Architecture of a Query Processing • Parser: the query is parsed and translated into an internal representation (flex and bison can be used for the construction of SQL parser) • Query Rewrite: query rewrite transforms a query in order to carry out optimizations that are good regardless of the physical state of the system (elimination of redundant predicates, unnesting of subqueries, simplification of expressions). Query rewrite is carried out by a rule engine • Query Optimizer: this component carries out optimizations that depend on the physical state of the system. QO decides which index, which method, and in which order to execute operations of a query. 21

Architecture of a Query Processing • Query optimizer: in distributed system QO must decide at which site each operation is to be executed. QO enumerates alternative plans and chooses the best plan using a cost estimation model • Plan: specifies precisely how the query is to be executed. The nodes are operators, and every operator carries out one particular operation. The edges represent consumerproducer relationships of operators. • Plan Refinement: this component transforms the plan into an executable plan. In DB 2 this transformation involves the generation of an assembler-like code to evaluate expressions and predicates efficiently 22

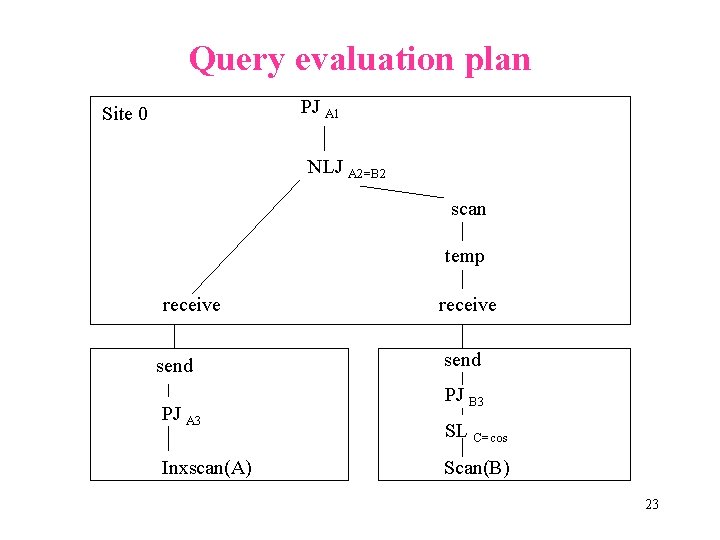

Query evaluation plan PJ A 1 Site 0 NLJ A 2=B 2 scan temp receive send PJ A 3 Inxscan(A) receive send PJ B 3 SL C=cos Scan(B) 23

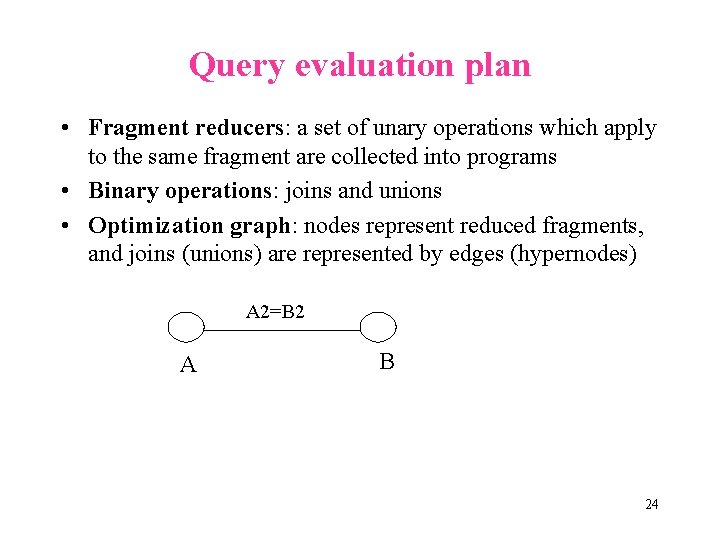

Query evaluation plan • Fragment reducers: a set of unary operations which apply to the same fragment are collected into programs • Binary operations: joins and unions • Optimization graph: nodes represent reduced fragments, and joins (unions) are represented by edges (hypernodes) A 2=B 2 A B 24

Query Optimization (1) • Plan enumeration with Dynamic Programming Input: SPJ query q on relations R 1, . . . , Rn Output: A query plan for q 1. for i=1 to n do { 2. opt. Plan({Ri}) = access. Plans(Ri) 3. prune. Plans(opt. Plan({Ri})) 4. } 5. for i=2 to n do { 6. for all S {R 1, . . . , Rn} such that |S| = i do { 7. opt. Plan(S) = 25

Query Optimization (2) 8. 9. for all O S do { opt. Plan(S) = opt. Plan(S) join. Plans(opt. Plan(O), opt. Plan(S-O)) prune. Plans(opt. Plan(S)) 10. 11. } 12. } 13. } 14. return opt. Plan({R 1, . . . , Rn}) Problem: alternative plans cannot be immediately pruned 26

Query Optimization (3) • Optimization criteria: – Classic cost model (total time, total resource consumption) – estimate the cost of every individual operator of the plan and then sum up these costs – this model is useful to estimate the overall throughput of a system – Mean response time model – estimate the lowest response time of a query 27

Query Execution Techniques • Row blocking – implementation of send and receive operators is based on TCP/IP, UDP protocols; idea: ship tuples in a blockwise fashion • Optimization of Multicasts: send data sequentially instead of sending data twice (NY Berlin Poznan) • Joins with Horizontally Partitioned Data – (A 1 A 2) JN B or (A 1 JN B) (A 2 JN B) If A and B are both partitioned than we have more plans • Semijoin and Bloojoin programs 28

Semijoin Programs • Semijoin between R and S over two attributes A and B is defined as follows: ( R SJ A=B S) JN A=B S is equal R JN A=B S 1. Send PJ B (S) to site R at a cost C 0 + C 1 * size(B) * val(B(S)) 2. Compute semijoin on R at a null cost; Let R’= R SJ A=B S 3. Send R’ to site S at a cost C 0 + C 1 * size(R) * card(R’) 4. Compute the join on site S at a null value 29

Reducers • Semijoin programs can be regarded as reducers, i. e. Operations that can be applied to reduce the cardinality of their operands • Let RED(Q, R) denote the set of reducer programs that can be built for a given relation R in a given query Q • There is one reducer program, element of RED(Q, R), which reduces R more than all other programs – full reducer • The problem : find all full reducers for the relations of a query (difficult task) • Acyclic (tree queries) versus cyclic queries 30

Reducers • Is it possible to give a limitation to the length of the full reducer? • Tree queries – YES The limitation on the length of the full reducer amounts to n-1, where n is the number of nodes of the tree • Cyclic queries – NO The limitation on the length of the ‘best’ reducer is linearly bound by the number of tuples of some relations of the query • Best reducer does not mean full reducer 31

Example (1) R T S S Cyclic query C=C B=B T R A=A The final result is empty relation; the length of the reducers is 3*(m-1), where m is the number of tuples 32

Example (2) R T S S Acyclic query B=B C=C R T The final result - one tuple (a, x) 33

Testing the graph for cycles • There are two cases in which cycles can be broken without changing the meaning of the query 1. In the cycle (R. A=S. B), (S. B=T. C), (T. C=R. A), in which R, S, T are relation names, and A, B, C are attributes, any one of the edges can be dropped, as any edge can be obtained from the remaining ones by transitivity. 2. In the cycle (R. A=S. B), (S. B=T. C), (T. C=R. D), we can substitute (R. A=R. D) for (T. C=R. D) because, by transitivity, T. C must equal R. A; the remaining graph contains two edges (R. S) and (S. T) and is acyclic, because an interrelation clause can be sabstituted by an intrarelation clause 34
