Query Operations Adapted from Lectures by Prabhakar Raghavan
Query Operations Adapted from Lectures by Prabhakar Raghavan (Yahoo, Stanford) and Christopher Manning (Stanford) Prasad L 10 Query. Ops 1

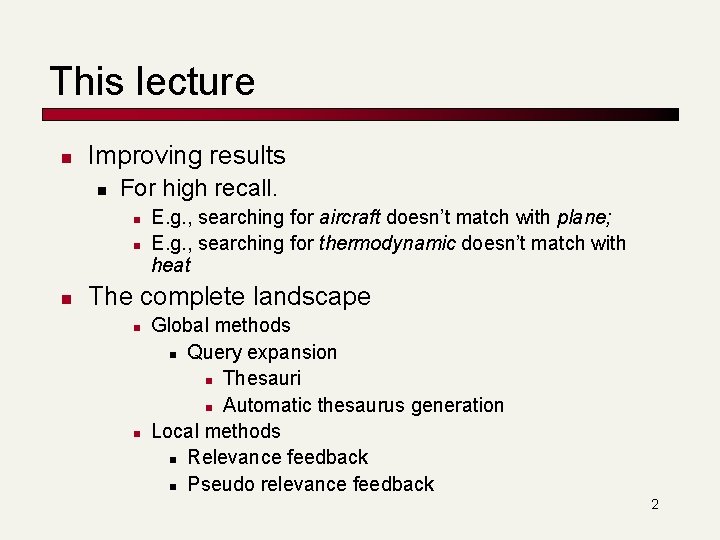

This lecture n Improving results n For high recall. n n n E. g. , searching for aircraft doesn’t match with plane; E. g. , searching for thermodynamic doesn’t match with heat The complete landscape n n Global methods n Query expansion n Thesauri n Automatic thesaurus generation Local methods n Relevance feedback n Pseudo relevance feedback 2
Relevance Feedback 3
Relevance Feedback n Relevance feedback: user feedback on relevance of docs in initial set of results n n n User issues a (short, simple) query The user marks returned documents as relevant or non-relevant. The system computes a better representation of the information need based on feedback. Relevance feedback can go through one or more iterations. Idea: it may be difficult to formulate a good query when you don’t know the collection well, so iterate 4
Relevance Feedback: Example n Image search engine http: //nayana. ece. ucsb. edu/imsearch. html 5
Results for Initial Query 6
Relevance Feedback 7
Results after Relevance Feedback 8
Rocchio Algorithm n n n The Rocchio algorithm incorporates relevance feedback information into the vector space model. Want to maximize sim (Q, Cr) - sim (Q, Cnr) The optimal query vector for separating relevant and non-relevant documents (with cosine sim. ): n Qopt = optimal query; Cr = set of rel. doc vectors; N = collection size n Unrealistic: we don’t know relevant documents. 9
The Theoretically Best Query x x o o o x Optimal query x x x x non-relevant documents o relevant documents 10
Rocchio 1971 Algorithm (SMART) n n n Used in practice: qm = modified query vector; q 0 = original query vector; α, β, γ: weights (hand-chosen or set empirically); Dr = set of known relevant doc vectors; Dnr = set of known irrelevant doc vectors New query moves toward relevant documents and away from irrelevant documents Tradeoff α vs. β/γ : If we have a lot of judged documents, we want a higher β/γ. Negative term weights ignored (set to 0) 11

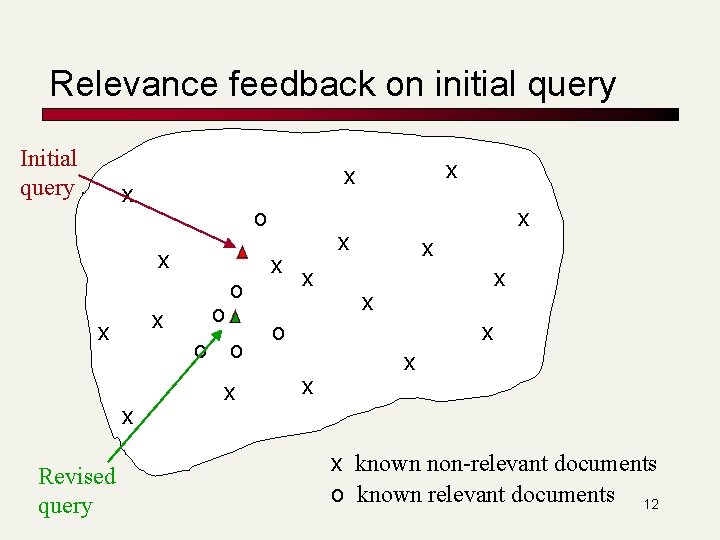

Relevance feedback on initial query Initial query x o x x x Revised query x x o o o x x x x o x x known non-relevant documents o known relevant documents 12
Positive vs Negative Feedback n n Positive feedback is more valuable than negative feedback (so, set < ; e. g. = 0. 25, = 0. 75). Many systems only allow positive feedback ( =0). ? y h W 13
Aside: Vector Space can be Counterintuitive. Doc x x “J. Snow & Cholera” x x x o q 1 x x Query “cholera” x x x x q 1 query “cholera” o www. ph. ucla. edu/epi/snow. html x other documents 14
High-dimensional Vector Spaces n n The queries “cholera” and “john snow” are far from each other in vector space. How can the document “John Snow and Cholera” be close to both of them? Our intuitions for 2 - and 3 -dimensional space don't work in >10, 000 dimensions. 3 dimensions: If a document is close to many queries, then some of these queries must be close to each other. n Doesn't hold for a high-dimensional space. 15
Probabilistic relevance feedback n n Rather than re-weighting in a vector space… If user has told us some relevant and irrelevant documents, then we can proceed to build a classifier, such as a Naive Bayes model: n n P(tk|R) = |Drk| / |Dr| P(tk|NR) = (Nk - |Drk|) / (N - |Dr|) n tk = term in document; Drk = known relevant doc containing tk; Nk = total number of docs containing tk 16
Relevance Feedback: Assumptions n n A 1: User has sufficient knowledge for initial query. A 2: Relevance prototypes are “well-behaved”. n n Term distribution in relevant documents will be similar Term distribution in non-relevant documents will be different from those in relevant documents n n Either: All relevant documents are tightly clustered around a single prototype. Or: There are different prototypes, but they have significant vocabulary overlap. 17
Violation of A 1 n n User does not have sufficient initial knowledge. Examples: n n n Misspellings (Brittany Speers). Cross-language information retrieval (hígado). Mismatch of searcher’s vocabulary vs. collection vocabulary n Cosmonaut/astronaut 18
Violation of A 2 n n There are several relevance prototypes. Examples: n n n Burma/Myanmar Contradictory government policies Pop stars that worked at Burger King Often: instances of a general concept Good editorial content can address problem n Report on contradictory government policies 19
Relevance Feedback: Problems n Long queries are inefficient for typical IR engine. n n n Long response times for user. High cost for retrieval system. Partial solution: n n n W hy ? Only reweight certain prominent terms n Perhaps top 20 by term frequency Users are often reluctant to provide explicit feedback It’s often harder for the user to understand the consequences of applying relevance feedback 20
Relevance Feedback Example: Initial Query and Top 8 Results n n n n n Query: New space satellite applications Note: want high recall + 1. 0. 539, 08/13/91, NASA Hasn't Scrapped Imaging Spectrometer + 2. 0. 533, 07/09/91, NASA Scratches Environment Gear From Satellite Plan 3. 0. 528, 04/04/90, Science Panel Backs NASA Satellite Plan, But Urges Launches of Smaller Probes 4. 0. 526, 09/09/91, A NASA Satellite Project Accomplishes Incredible Feat: Staying Within Budget 5. 0. 525, 07/24/90, Scientist Who Exposed Global Warming Proposes Satellites for Climate Research 6. 0. 524, 08/22/90, Report Provides Support for the Critics Of Using Big Satellites to Study Climate 7. 0. 516, 04/13/87, Arianespace Receives Satellite Launch Pact From Telesat Canada + 8. 0. 509, 12/02/87, Telecommunications Tale of Two 21 Companies
Relevance Feedback Example: Expanded Query n n n n n 2. 074 new 30. 816 satellite 5. 991 nasa 4. 196 launch 3. 516 instrument 3. 004 bundespost 2. 790 rocket 2. 003 broadcast 0. 836 oil 15. 106 space 5. 660 application 5. 196 eos 3. 972 aster 3. 446 arianespace 2. 806 ss 2. 053 scientist 1. 172 earth 0. 646 measure 22
Top 8 Results After Relevance Feedback n n n n + 1. 0. 513, 07/09/91, NASA Scratches Environment Gear From Satellite Plan + 2. 0. 500, 08/13/91, NASA Hasn't Scrapped Imaging Spectrometer 3. 0. 493, 08/07/89, When the Pentagon Launches a Secret Satellite, Space Sleuths Do Some Spy Work of Their Own 4. 0. 493, 07/31/89, NASA Uses 'Warm‘ Superconductors For Fast Circuit + 5. 0. 492, 12/02/87, Telecommunications Tale of Two Companies 6. 0. 491, 07/09/91, Soviets May Adapt Parts of SS-20 Missile For Commercial Use 7. 0. 490, 07/12/88, Gaping Gap: Pentagon Lags in Race To Match the Soviets In Rocket Launchers 8. 0. 490, 06/14/90, Rescue of Satellite By Space Agency To Cost $90 Million 23
Evaluation of relevance feedback strategies n n Use q 0, and compute precision and recall graph Use qm, and compute precision recall graph n Assess on all documents in the collection n n Use documents in residual collection (set of documents minus those assessed relevant) n n Spectacular improvements, but … it’s cheating! Partly due to known relevant documents ranked higher Must evaluate with respect to documents not seen by user Measures usually then lower than for original query But a more realistic evaluation Relative performance can be validly compared Empirically, one round of relevance feedback is often very useful. Two rounds is sometimes marginally useful. 24
Relevance Feedback on the Web [in 2003: now less major search engines, but same general story] n Some search engines offer a similar/related pages feature (this is a trivial form of relevance feedback) n n α/β/γ ? ? But some don’t because it’s hard to explain to average user: n n Google (link-based) Altavista Stanford Web. Base Alltheweb msn Yahoo Excite initially had true relevance feedback, but abandoned it due to lack of use. 25
Excite Relevance Feedback Spink et al. 2000 n Only about 4% of query sessions from a user used relevance feedback option n n But about 70% of users only looked at first page of results and didn’t pursue things further n n Expressed as “More like this” link next to each result So 4% is about 1/8 of people extending search Relevance feedback improved results about 2/3 of the time 26
Other Uses of Relevance Feedback n n n Following a changing information need Maintaining an information filter (e. g. , for a news feed) Active learning [Deciding which examples it is most useful to know the class of to reduce annotation costs] 27
Relevance Feedback Summary n Relevance feedback has been shown to be very effective at improving relevance of results. n n n Requires enough judged documents, otherwise it’s unstable (≥ 5 recommended) Requires queries for which the set of relevant documents is medium to large Full relevance feedback is painful for the user. Full relevance feedback is not very efficient in most IR systems. Other types of interactive retrieval may improve relevance by as much with less work. 28
The complete landscape n Global methods n Query expansion/reformulation n n Thesauri (or Word. Net) Automatic thesaurus generation Global indirect relevance feedback Local methods n n Relevance feedback Pseudo relevance feedback 29
Query Expansion 30
Query expansion 31

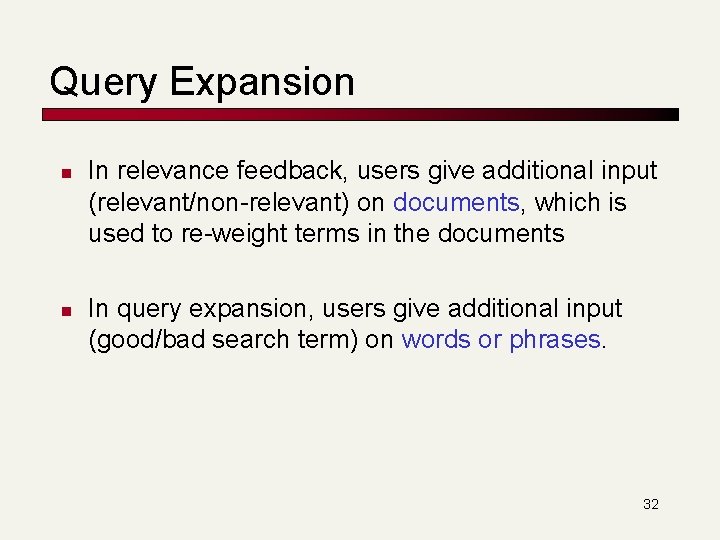

Query Expansion n n In relevance feedback, users give additional input (relevant/non-relevant) on documents, which is used to re-weight terms in the documents In query expansion, users give additional input (good/bad search term) on words or phrases. 32
Query Expansion: Example Also: see www. altavista. com, www. teoma. com 33
Types of Query Expansion n Global Analysis: (static; of all documents in collection) n Controlled vocabulary n n Manual thesaurus n n (co-occurrence statistics) Refinements based on query log mining n n E. g. Med. Line: physician, syn: doc, doctor, MD, medico Automatically derived thesaurus n n Maintained by editors (e. g. , medline) Common on the web Local Analysis: (dynamic) n Analysis of documents in result set 34
Controlled Vocabulary 35
Thesaurus-based Query Expansion n n This doesn’t require user input For each term, t, in a query, expand the query with synonyms and related words of t from thesaurus n n n May weight added terms less than original query terms. Generally increases recall. Widely used in many science/engineering fields May significantly decrease precision, particularly with ambiguous terms. n n feline → feline cat “interest rate” “interest rate fascinate evaluate” There is a high cost of manually producing a thesaurus n And for updating it for scientific changes 36
Automatic Thesaurus Generation n n Attempt to generate a thesaurus automatically by analyzing the collection of documents Two main approaches n n Co-occurrence based (co-occurring words are more likely to be similar) Shallow analysis of grammatical relations n n Entities that are grown, cooked, eaten, and digested are more likely to be food items. Co-occurrence based is more robust, grammatical relations are more accurate. Why? 37
Co-occurrence Thesaurus n n Simplest way to compute one is based on term-term similarities in C = AAT where A is term-document matrix. wi, j = (normalized) weighted count (ti , dj) With integer counts – what n dj do you get for a boolean co-occurrence ti matrix? m 38
Automatic Thesaurus Generation Example 39
Automatic Thesaurus Generation Discussion n n Quality of associations is usually a problem. Term ambiguity may introduce irrelevant statistically correlated terms. n n Problems: n n n “Apple computer” “Apple red fruit computer” False positives: Words deemed similar that are not False negatives: Words deemed dissimilar that are similar Since terms are highly correlated anyway, expansion may not retrieve many additional documents. 40
Query Expansion: Summary n Query expansion is often effective in increasing recall. n n Not always with general thesauri Fairly successful for subject-specific collections In most cases, precision is decreased, often significantly. Overall, not as useful as relevance feedback; may be as good as pseudo-relevance feedback 41
Pseudo Relevance Feedback n Automatic local analysis Pseudo relevance feedback attempts to automate the manual part of relevance feedback. Retrieve an initial set of relevant documents. Assume that top m ranked documents are relevant. Do relevance feedback n Mostly works (perhaps better than global analysis!) n n n Found to improve performance in TREC ad-hoc task Danger of query drift 42
Pseudo relevance feedback: Cornell SMART at TREC 4 n n Results show number of relevant documents out of top 100 for 50 queries (so out of 5000) Results contrast two length normalization schemes (L vs. l), and pseudo relevance feedback (Ps. RF) (done as adding 20 terms) n n lnc. ltc-Ps. RF Lnu. ltu-Ps. RF 3210 3634 3709 4350 43
Indirect relevance feedback n n On the web, Direct. Hit introduced a form of indirect relevance feedback. Direct. Hit ranked documents higher that users look at more often. n Clicked on links are assumed likely to be relevant n n n Assuming the displayed summaries are good, etc. Globally: Not user or query specific. This is the general area of clickstream mining 44
