Quarter 2 Topics Cell Transport Photosynthesis Respiration Cells
- Slides: 52
Quarter 2 Topics Cell Transport Photosynthesis Respiration
Cells
Organelle Buzz Word Function Mitochondria Energy(ATP) production Nucleus Control center Ribosome Protein Synthesis Cell Membrane Cell Transport /Diffusion/Osmosis Made of lipids Cell Wall Protection & structure/made of cellulose Uses Sun’s energy, creates sugars Chloroplast Vacuole Lysosome Storage Cell Digestion
Organelle Buzz Word Function Centrioles cell division Nucleolus In the nucleus, RNA Rough Endoplasmic Reticulum Produces/transports protien Smooth Endoplasmic reticulum Produces/transports lipids
Plant Cell: Animal Cell: Cell Wall No Cell Wall Chloroplasts Eukaryotic Centrioles Large Vacuole All other organelles small vacuoles Takes up most of The space
ANIMAL CELL Cytoskeleton
PLANT CELL
Researchers have discovered a toxin that stops cells from releasing stored energy. Cells exposed to this toxin cannot carry out many of their normal processes: Which of these cell organelles are most directly affected by this toxin? a. ribosomes b. chloroplasts c. mitochondria d. vacuoles
The exchange of oxygen and carbon dioxide between the body and the air occurs in the lungs. This exchange of gases takes place at the cellular level. What part of the cell is primarily responsible for this exchange? a. b. c. d. the cell membrane the nucleus the cell wall the ribosome
Which of these organelles in animal cells provide energy for cell activities? a. b. c. d. Mitochondria Chloroplasts Ribosomes nuclei
Cyanide is a poison that prevents mitochondria from using oxygen. As a result, the mitochondria cannot produce a. b. c. d. Lipids Sugar Minerals energy
Maryland white oak trees make their own food. Their cells contain structures that capture energy from the sun. What are these structures? a. chloroplasts b. nuclei c. mitochondria d. ribosomes
In Eukaryotes, which of these organelles are used to make sugars? a. b. c. d. Flagella Ribosomes Mitochondria chloroplasts
Which structure in a cell is used to release energy in the cell? a. nucleus b. cell wall c. chloroplasts d. mitochondrion
5 Cell Transport
Exocytosis: large particles leave the cell by means of a vesicle Endocytosis: large particles enter cell by means of a vesicle Osmosis: Movement of water across the cell membrane Active Transport - Requires energy- ATP -Typically goes against concentration gradient (from low to high) Transport particles & nutrients into and out of the cell - Works with the concentration gradient ( high to low) - Does not require energy Passive Transport Ion Pump: A protein in the cell membrane tha pumps ions against the gradient Diffusion: Movement of particles from an area of high concentration to low concentration
1. Which of these is the process by which water moves across a selectively permeable membrane? a. b. c. d. Osmosis Transpiration capillary action active transport
2. If the dialysis sac is permeable only to water and iodine, what will the solutions in the beaker and the sac look like after two hours? Two hours later Iodine water starch Iodine water Iodine Water starch a. The starch solution in the dialysis sac will turn blueblack; the iodine solution will not change. b. The iodine solution in the beaker will turn blueblack; the starch solution will not change c. Neither solution will turn blue-black d. Both solution will turn blue-black
3. Which of these processes is demonstrated by the experiment shown in the diagram? a. cellular respiration b. active transport c. endocytosis d. diffusion
In an experiment, a group of students placed ten raisins in a container with 100 milliliters of water. They covered the container and let the raisins sit overnight. The students removed the raisins from the container and observed that they were larger. They also observed that the volume of water in the container had decreased. 4. What happened to the raisins to cause the raisins to become larger? a. Water moved in due to osmosis b. Water moved out due to diffusion c. Water moved out due to active transport d. Water moved in due to active transport
5. What caused the water to enter the raisin? a. Higher water concentration in the raisin b. Water has to be pumped out c. Lower water concentration inside the raisin allowed water to come in. d. Water did not move, the raisin was at equilibrium
6. If a cell engulfs a bacterium in order to destroy it, what process takes place? a. Passive transport b. Endocytosis c. Exocytosis d. Osmosis
8 Photosynthesis
water LIGHT Takes place in leaves of plants And any organism with Chlorophyll… algae, some bacteria Chlorophyll, a pigment in the chloroplast absorbs sunlight energy Carbon Dioxide Forms glucose Oxygen is released as a waste product Used in cellular respiration
Carbon Dioxide + Water Glucose + Oxygen (CO 2) + (H 2 O) (C 6 H 12 O 6) + (O 2)

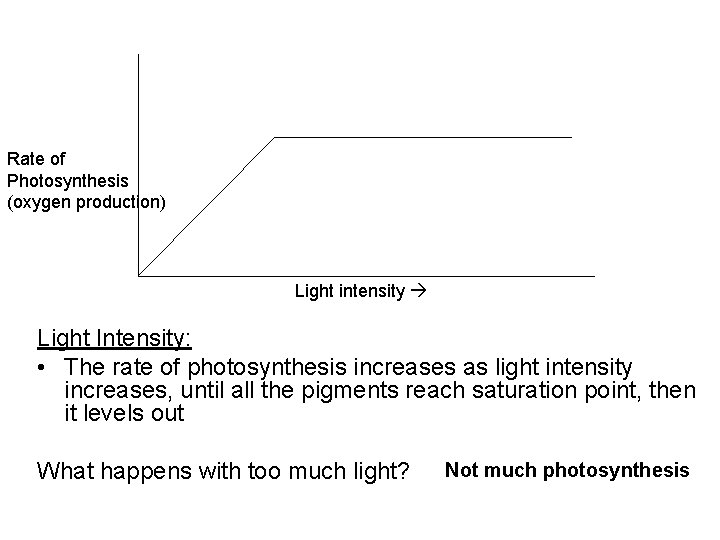

Rate of Photosynthesis (oxygen production) Light intensity Light Intensity: • The rate of photosynthesis increases as light intensity increases, until all the pigments reach saturation point, then it levels out What happens with too much light? Not much photosynthesis
Rate of Photosynthesis (oxygen production) Amount of Carbon Dioxide Concentration: • The rate of photosynthesis increases until all the pigments reach their saturation point then level off • What happens if there is not a lot of carbon dioxide? Not much photosynthesis
Rate of Photosynthesis (oxygen production) Temperature: • The rate of photosynthesis is optimal at a certain temperature, too extreme and it decreases…Why? Destroyed the enzymes needed • What happens if too cool? Not much photosynthesis
A scientist wants to study photosynthesis in a newly discovered species. Which of these cell structures should the scientist study: a. b. c. d. Vacuoles Chloroplasts Mitochondria ribosomes
During photosynthesis, trees convert carbon dioxide and other materials to: a. b. c. d. Lipids amino acids nucleic acids sugars
In a recent experiment, scientists studied the effects of increased carbon dioxide levels on the growth of pine trees. The scientists observed that increases levels of carbon dioxide resulted in a increase in the average circumference of the tree trunks. The change in circumference is a results of process of: a. b. c. d. Osmosis Adaptation Transpiration photosynthesis

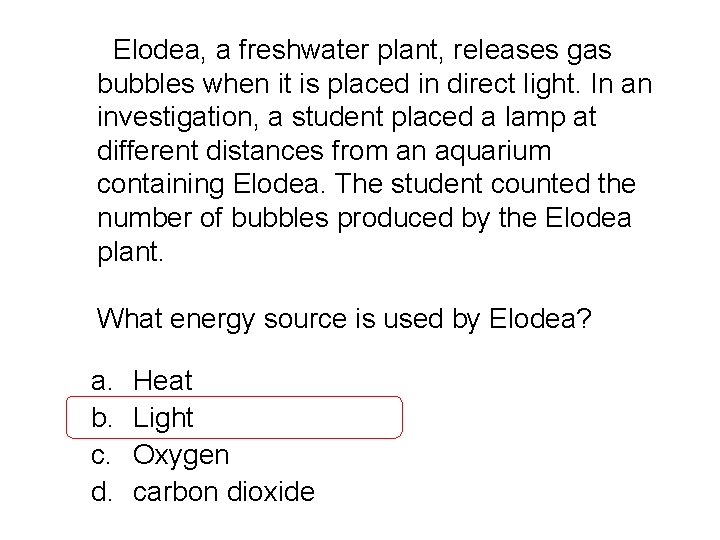

Elodea, a freshwater plant, releases gas bubbles when it is placed in direct light. In an investigation, a student placed a lamp at different distances from an aquarium containing Elodea. The student counted the number of bubbles produced by the Elodea plant. What energy source is used by Elodea? a. b. c. d. Heat Light Oxygen carbon dioxide
The bubbles released by Elodea contain mostly? a. b. c. d. oxygen carbon dioxide Nitrogen water vapor
The energy required for photosynthesis is provided by: a. b. c. d. Proteins Sunlight Chlorophyll carbohydrates
Cellular Respiration
ATP used for cellular activites IN IN OUT ATP OUT
Overall Reaction Glucose + Oxygen Carbon Dioxide + Water O 2 CO 2 H 2 O C 6 H 12 O 6 AND 36 ATP energy Two types of Respiration: 1. Aerobic repiration 2. Anaerobic respiration
Aerobic respiration • • Oxygen is required produces 36 ATP Occurs in all cells The most efficient type of respiration
Anaerobic Respiration • NO oxygen required • Produces 2 ATP and alcohol or in animals produces lactic acid ( as in overworked muscles) *Occurs in mostly in bacteria that live in reduced oxygen ( ocean floor, soil, inside animals)

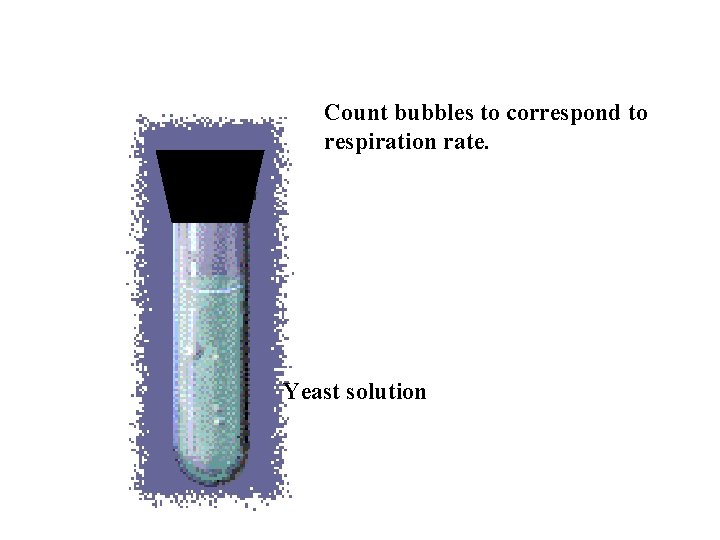

Count bubbles to correspond to respiration rate. Yeast solution
What can be tested? Water at different temps Different food sources for the yeast
How photosynthesis and Respiration are tied together
9 Respiration. vs. Chemosynthesis. vs. Photosynthesis.
Photosynthesis What is it? Cellular Respiration Chemosynthesis Process by which organisms who sunlight and oxygen and live in harsh carbon dioxide glucose are used conditions create are used to to create ATP their own food create glucose (energy) from inorganic chemicals
Initial Energy Source Sun Gluc ose Inorgan ic Compo unds
Carbon Inorgan Dioxide Oxygen ic Inputs & & Light (needs) Compo & Glucose unds Water
Carbon Dioxide, Oxygen Water, Outputs & (wastes) And Glucose energy ATP Energy, waste gas
Where does it occur? Chlorop Mitoch lasts ondria Prokary otes
Types of organis ms Plants & Bacteria animals
Autotro phs or Autotro Heterot phs rophs
Which of these best describes the process of chemosynthesis a. DNA molecules are formed b. Cell membranes are constructed c. Food is produced using energy from inorganic compounds d. Food is produced using energy from light
One of the organelles in a cell releases energy from sugars. What is this process called? a. b. c. d. Respiration Transpiration Photosynthesis chemosynthesis
