Quantum Computing Stephen Bartlett www physics usyd edu

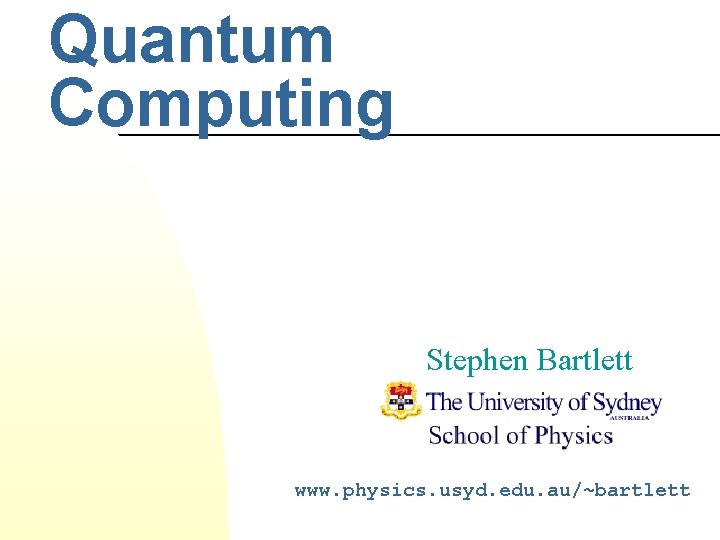

Quantum Computing Stephen Bartlett www. physics. usyd. edu. au/~bartlett

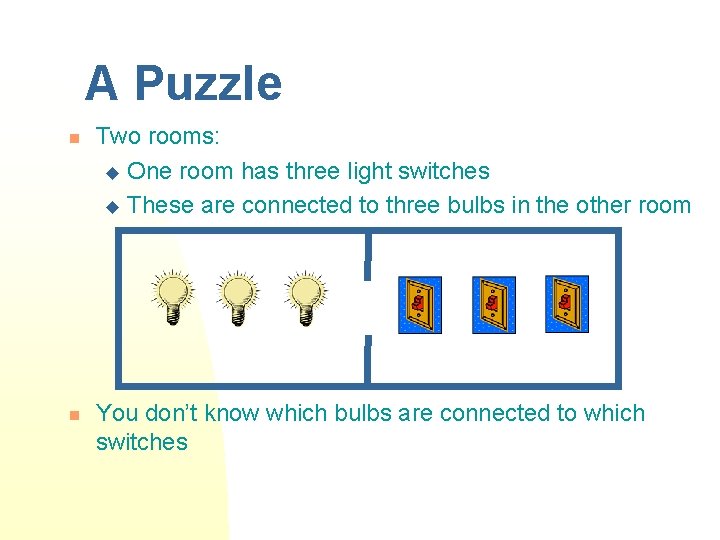

A Puzzle n n Two rooms: u One room has three light switches u These are connected to three bulbs in the other room You don’t know which bulbs are connected to which switches

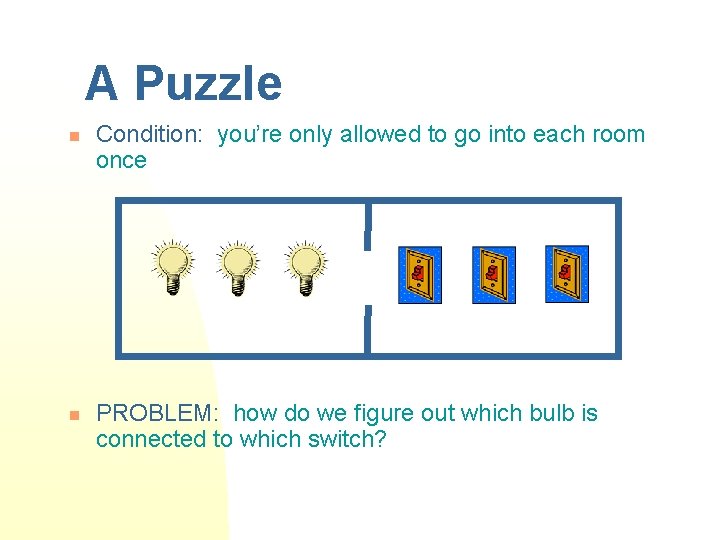

A Puzzle n n Condition: you’re only allowed to go into each room once PROBLEM: how do we figure out which bulb is connected to which switch?

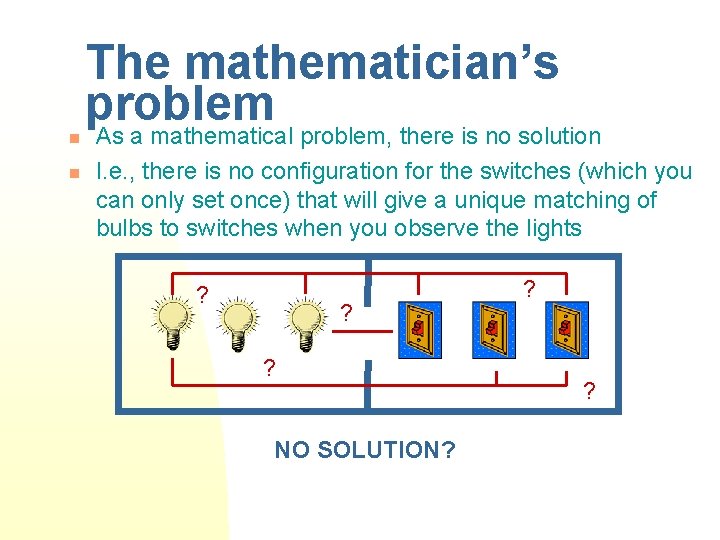

The mathematician’s problem n n As a mathematical problem, there is no solution I. e. , there is no configuration for the switches (which you can only set once) that will give a unique matching of bulbs to switches when you observe the lights ? ? ? NO SOLUTION? ? ?

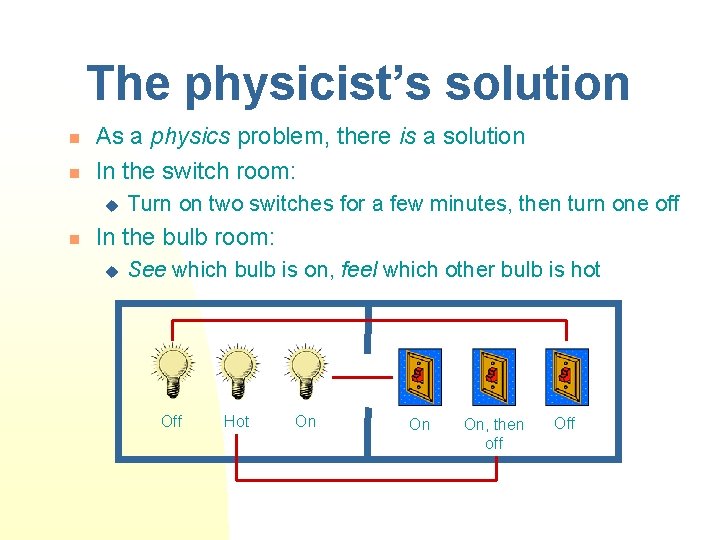

The physicist’s solution n n As a physics problem, there is a solution In the switch room: u n Turn on two switches for a few minutes, then turn one off In the bulb room: u See which bulb is on, feel which other bulb is hot Off Hot On On On, then off Off

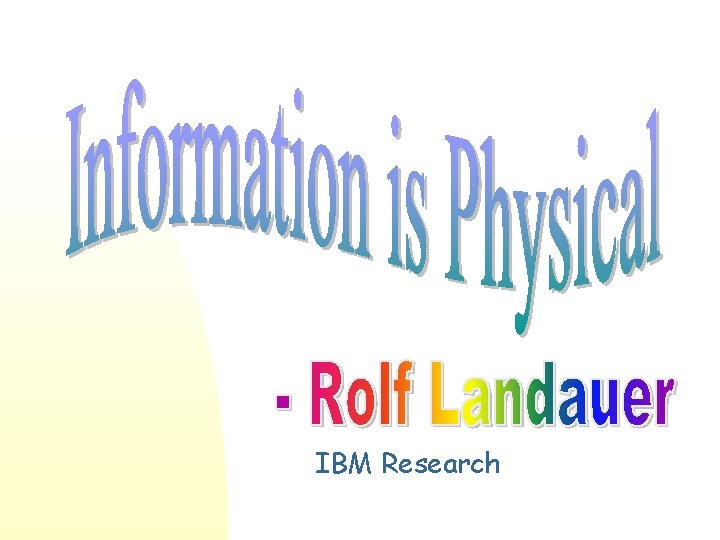

IBM Research

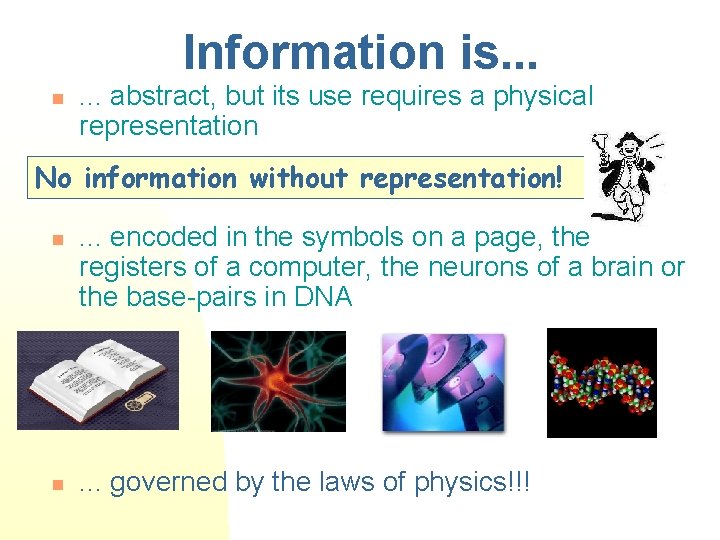

Information is. . . n . . . abstract, but its use requires a physical representation No information without representation! n n . . . encoded in the symbols on a page, the registers of a computer, the neurons of a brain or the base-pairs in DNA . . . governed by the laws of physics!!!

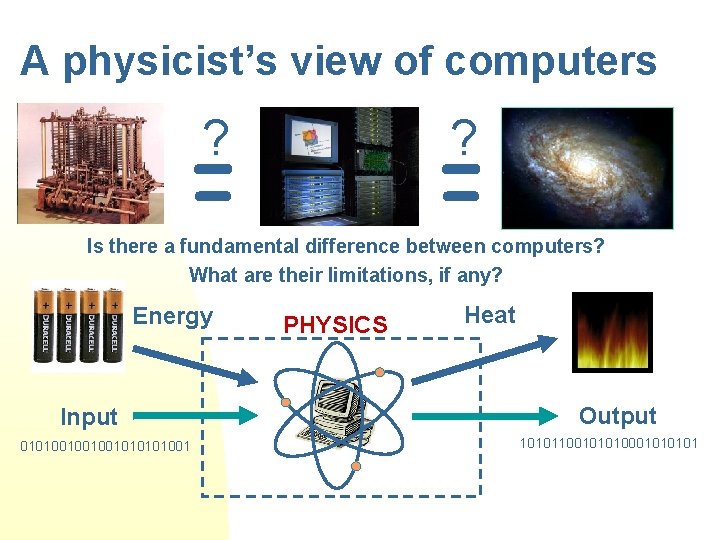

A physicist’s view of computers = = ? ? Is there a fundamental difference between computers? What are their limitations, if any? Energy Input 0101001010101001 PHYSICS Heat Output 101011001010101

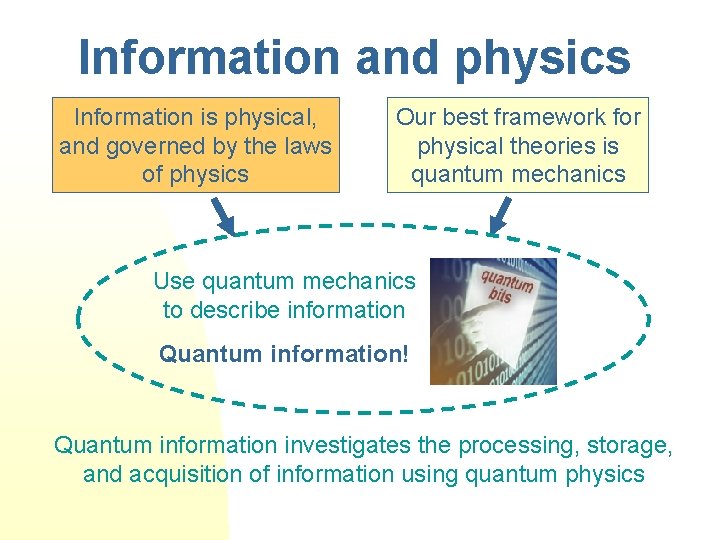

Information and physics Information is physical, and governed by the laws of physics Our best framework for physical theories is quantum mechanics Use quantum mechanics to describe information Quantum information! Quantum information investigates the processing, storage, and acquisition of information using quantum physics

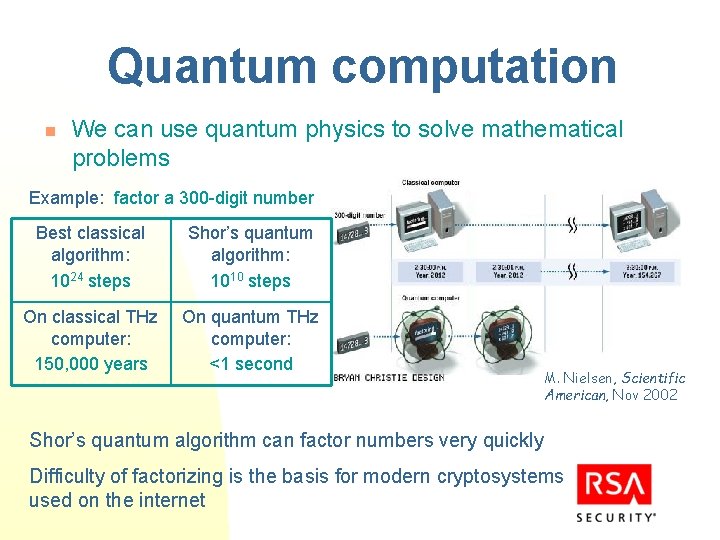

Quantum computation n We can use quantum physics to solve mathematical problems Example: factor a 300 -digit number Best classical algorithm: 1024 steps Shor’s quantum algorithm: 1010 steps On classical THz computer: 150, 000 years On quantum THz computer: <1 second M. Nielsen, Scientific American, Nov 2002 Shor’s quantum algorithm can factor numbers very quickly Difficulty of factorizing is the basis for modern cryptosystems used on the internet

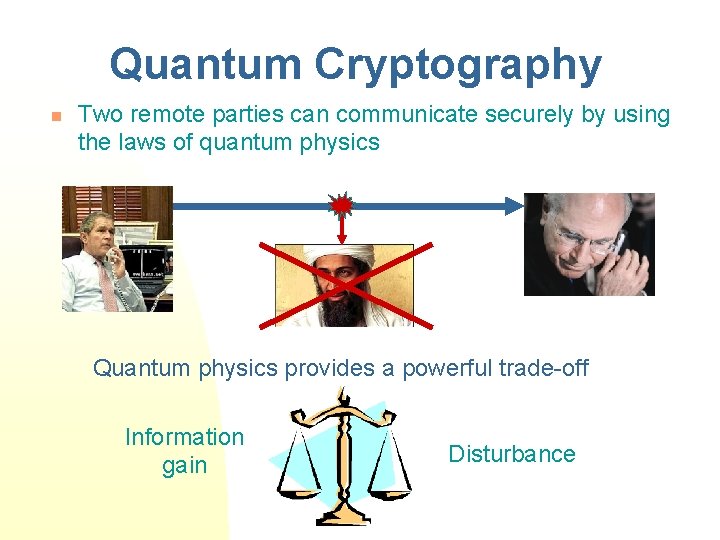

Quantum Cryptography n Two remote parties can communicate securely by using the laws of quantum physics Quantum physics provides a powerful trade-off Information gain Disturbance

Quantum Algorithms

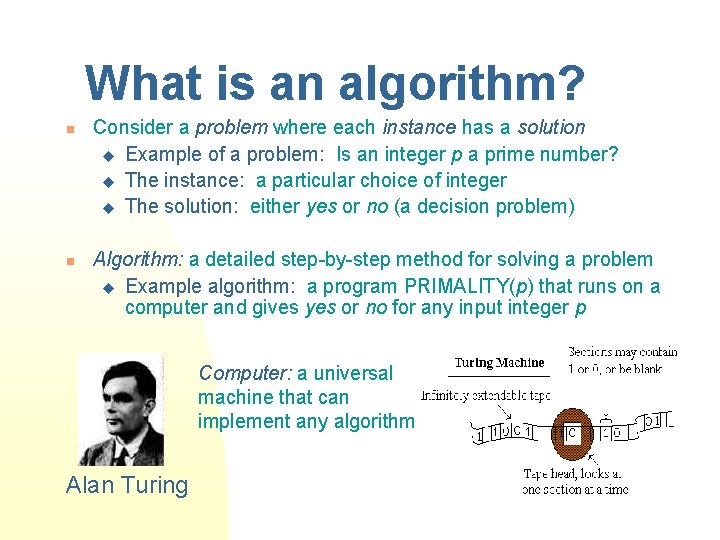

What is an algorithm? n n Consider a problem where each instance has a solution u Example of a problem: Is an integer p a prime number? u The instance: a particular choice of integer u The solution: either yes or no (a decision problem) Algorithm: a detailed step-by-step method for solving a problem u Example algorithm: a program PRIMALITY(p) that runs on a computer and gives yes or no for any input integer p Computer: a universal machine that can implement any algorithm Alan Turing

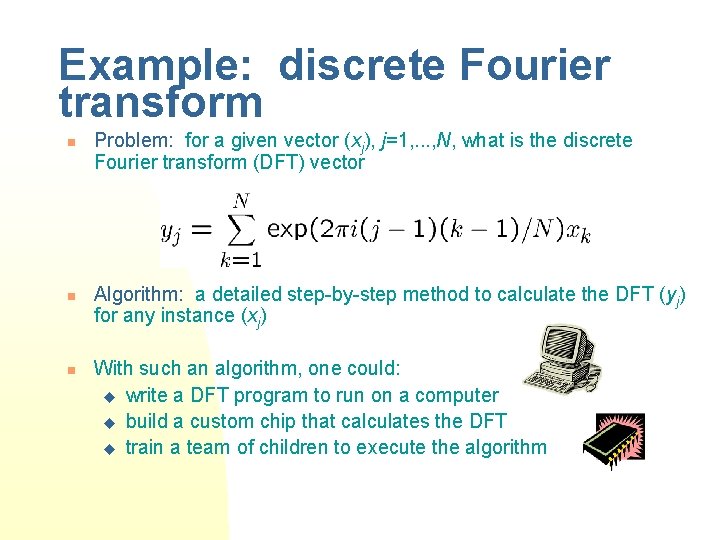

Example: discrete Fourier transform n n n Problem: for a given vector (xj), j=1, . . . , N, what is the discrete Fourier transform (DFT) vector Algorithm: a detailed step-by-step method to calculate the DFT (yj) for any instance (xj) With such an algorithm, one could: u write a DFT program to run on a computer u build a custom chip that calculates the DFT u train a team of children to execute the algorithm

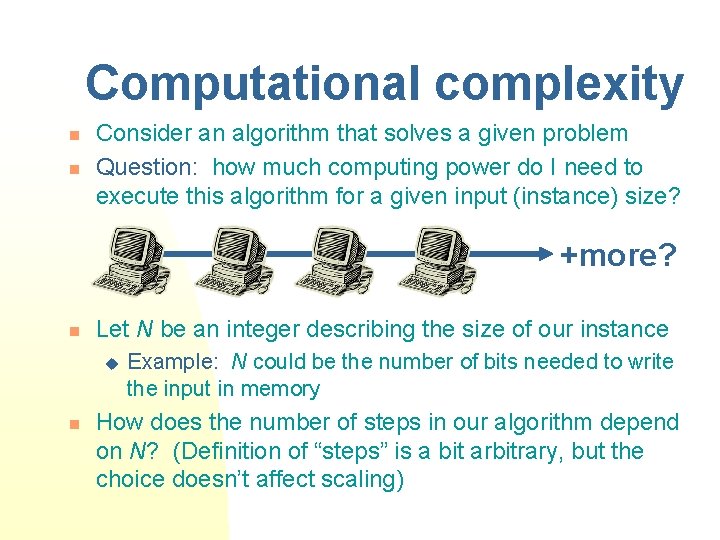

Computational complexity n n Consider an algorithm that solves a given problem Question: how much computing power do I need to execute this algorithm for a given input (instance) size? +more? n Let N be an integer describing the size of our instance u n Example: N could be the number of bits needed to write the input in memory How does the number of steps in our algorithm depend on N? (Definition of “steps” is a bit arbitrary, but the choice doesn’t affect scaling)

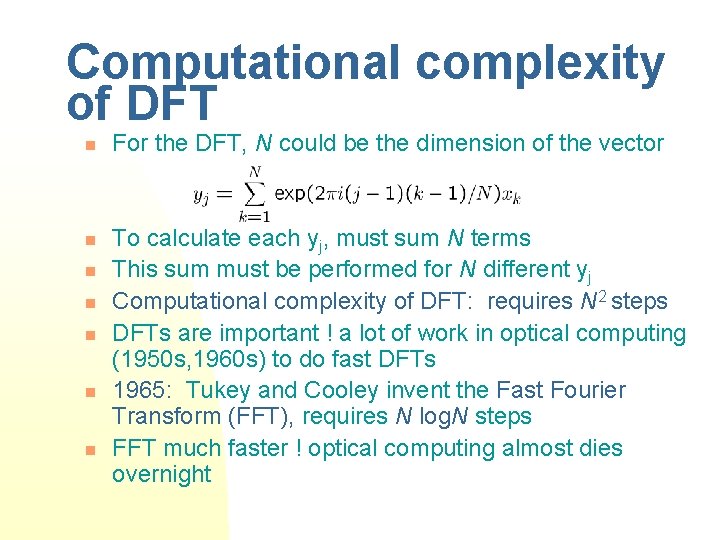

Computational complexity of DFT n n n n For the DFT, N could be the dimension of the vector To calculate each yj, must sum N terms This sum must be performed for N different yj Computational complexity of DFT: requires N 2 steps DFTs are important ! a lot of work in optical computing (1950 s, 1960 s) to do fast DFTs 1965: Tukey and Cooley invent the Fast Fourier Transform (FFT), requires N log. N steps FFT much faster ! optical computing almost dies overnight

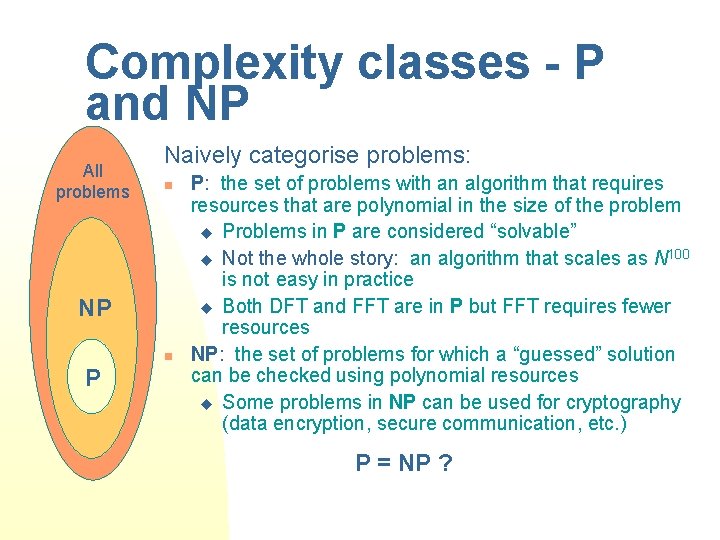

Complexity classes - P and NP All problems Naively categorise problems: n NP n P P: the set of problems with an algorithm that requires resources that are polynomial in the size of the problem u Problems in P are considered “solvable” u Not the whole story: an algorithm that scales as N 100 is not easy in practice u Both DFT and FFT are in P but FFT requires fewer resources NP: the set of problems for which a “guessed” solution can be checked using polynomial resources u Some problems in NP can be used for cryptography (data encryption, secure communication, etc. ) P = NP ?

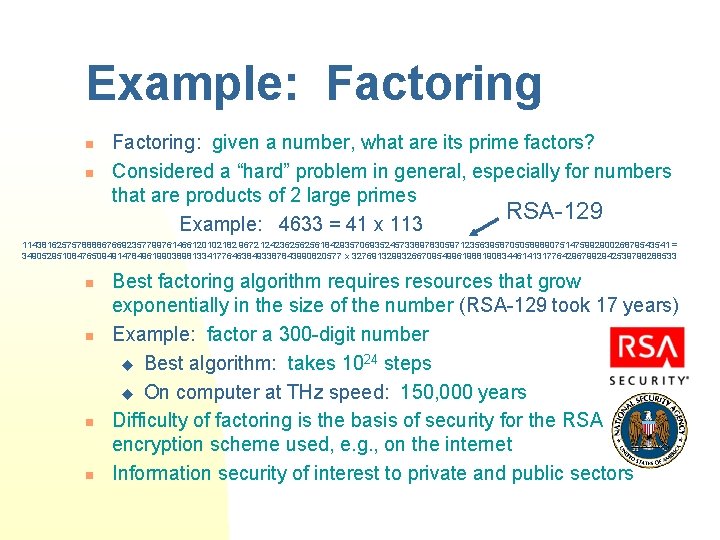

Example: Factoring n n Factoring: given a number, what are its prime factors? Considered a “hard” problem in general, especially for numbers that are products of 2 large primes RSA-129 Example: 4633 = 41 x 113 1143816257578888676692357799761466120102182 96721242362562561842935706935245733897830597123563958705058989075147599290026879543541 = 3490529510847650949147849619903898133417764638493387843990820577 x 32769132993266709549961988190834461413177642967992942539798288533 n n Best factoring algorithm requires resources that grow exponentially in the size of the number (RSA-129 took 17 years) Example: factor a 300 -digit number u Best algorithm: takes 1024 steps u On computer at THz speed: 150, 000 years Difficulty of factoring is the basis of security for the RSA encryption scheme used, e. g. , on the internet Information security of interest to private and public sectors

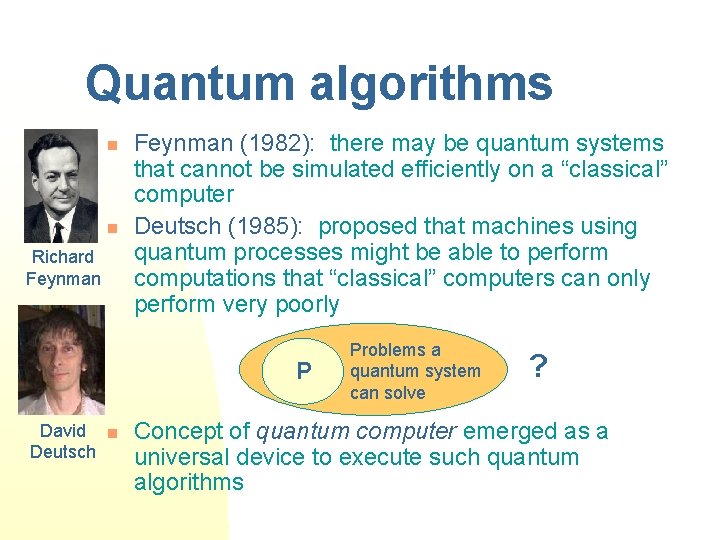

Quantum algorithms n n Richard Feynman (1982): there may be quantum systems that cannot be simulated efficiently on a “classical” computer Deutsch (1985): proposed that machines using quantum processes might be able to perform computations that “classical” computers can only perform very poorly P David n Deutsch Problems a quantum system can solve ? Concept of quantum computer emerged as a universal device to execute such quantum algorithms

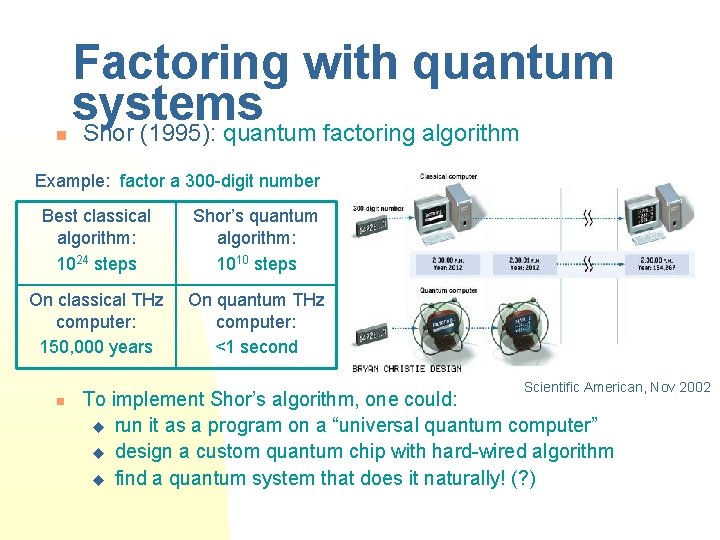

n Factoring with quantum systems Shor (1995): quantum factoring algorithm Example: factor a 300 -digit number Best classical algorithm: 1024 steps Shor’s quantum algorithm: 1010 steps On classical THz computer: 150, 000 years On quantum THz computer: <1 second n Scientific American, Nov 2002 To implement Shor’s algorithm, one could: u run it as a program on a “universal quantum computer” u design a custom quantum chip with hard-wired algorithm u find a quantum system that does it naturally! (? )

Implications n Information security and e-commerce are based on the use of NP problems that are not in P u u n n must be “hard” (not in P) so that security is unbreakable requires knowledge/assumptions about the algorithmic and computational power of your adversaries Quantum algorithms (e. g. , Shor’s factoring algorithm) require us to reassess the security of such systems Lessons to be learned: u u algorithms and complexity classes can change! information security is based on assumptions of what is hard and what is possible ! better be convinced of their validity

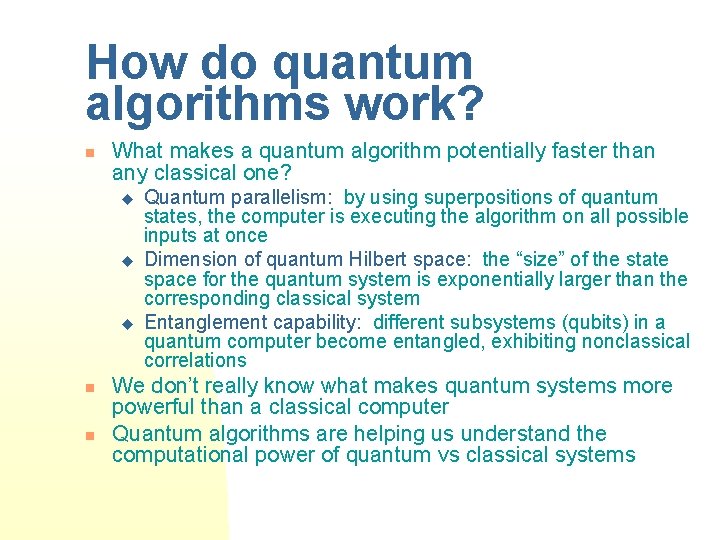

How do quantum algorithms work? n What makes a quantum algorithm potentially faster than any classical one? u u u n n Quantum parallelism: by using superpositions of quantum states, the computer is executing the algorithm on all possible inputs at once Dimension of quantum Hilbert space: the “size” of the state space for the quantum system is exponentially larger than the corresponding classical system Entanglement capability: different subsystems (qubits) in a quantum computer become entangled, exhibiting nonclassical correlations We don’t really know what makes quantum systems more powerful than a classical computer Quantum algorithms are helping us understand the computational power of quantum vs classical systems

Quantum Computing

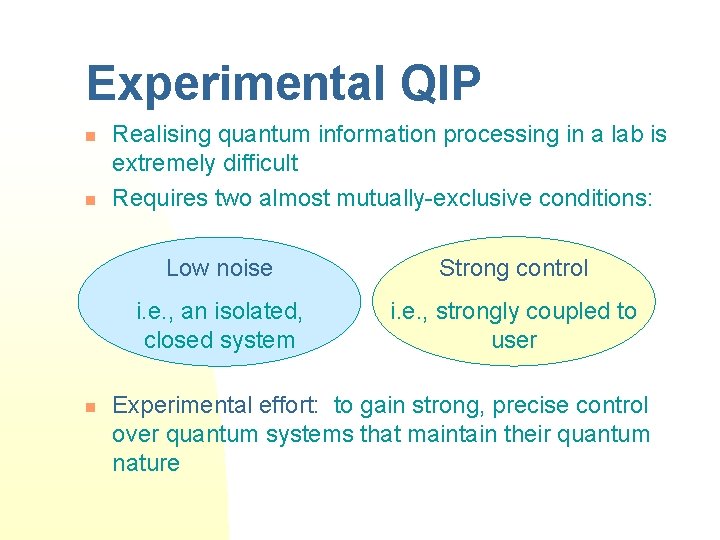

Experimental QIP n n n Realising quantum information processing in a lab is extremely difficult Requires two almost mutually-exclusive conditions: Low noise Strong control i. e. , an isolated, closed system i. e. , strongly coupled to user Experimental effort: to gain strong, precise control over quantum systems that maintain their quantum nature

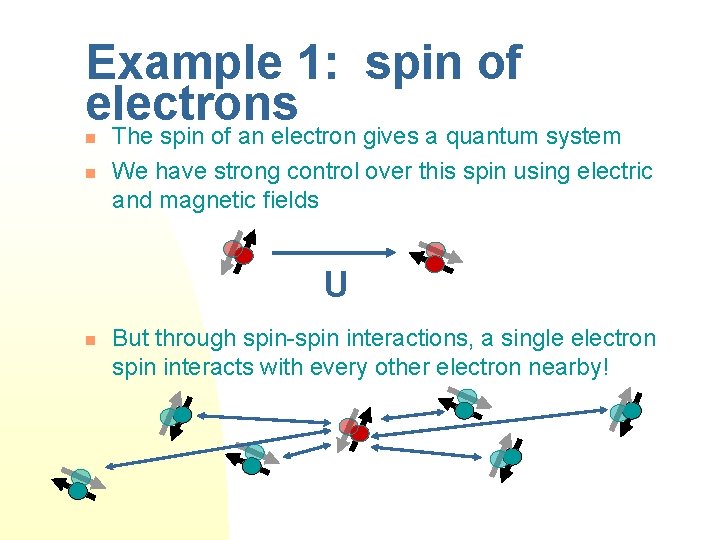

Example 1: spin of electrons n n The spin of an electron gives a quantum system We have strong control over this spin using electric and magnetic fields U n But through spin-spin interactions, a single electron spin interacts with every other electron nearby!

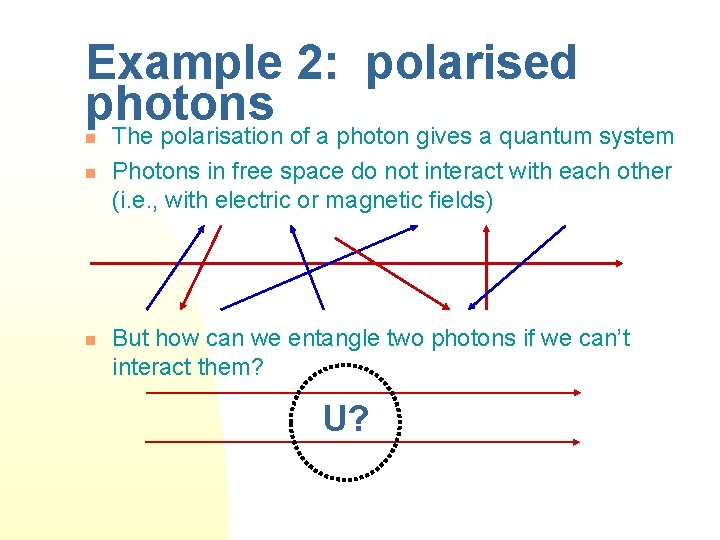

Example 2: polarised photons n n n The polarisation of a photon gives a quantum system Photons in free space do not interact with each other (i. e. , with electric or magnetic fields) But how can we entangle two photons if we can’t interact them? U?

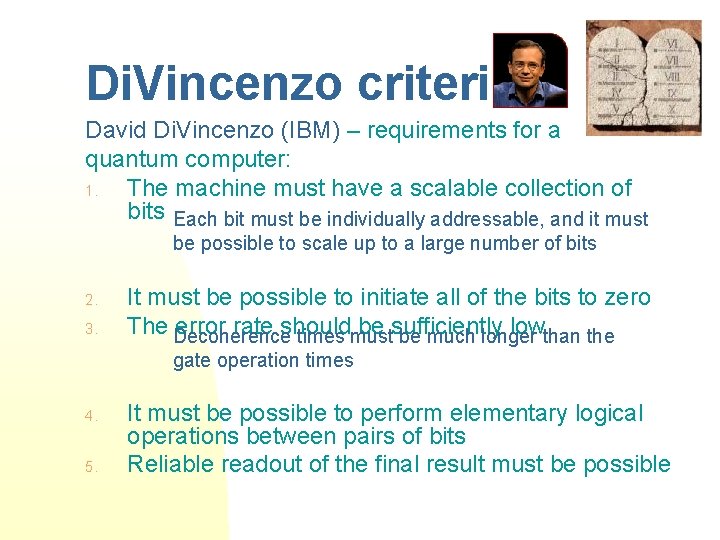

Di. Vincenzo criteria David Di. Vincenzo (IBM) – requirements for a quantum computer: 1. The machine must have a scalable collection of bits Each bit must be individually addressable, and it must be possible to scale up to a large number of bits 2. 3. It must be possible to initiate all of the bits to zero The Decoherence error rate should be sufficiently lowthan the times must be much longer gate operation times 4. 5. It must be possible to perform elementary logical operations between pairs of bits Reliable readout of the final result must be possible

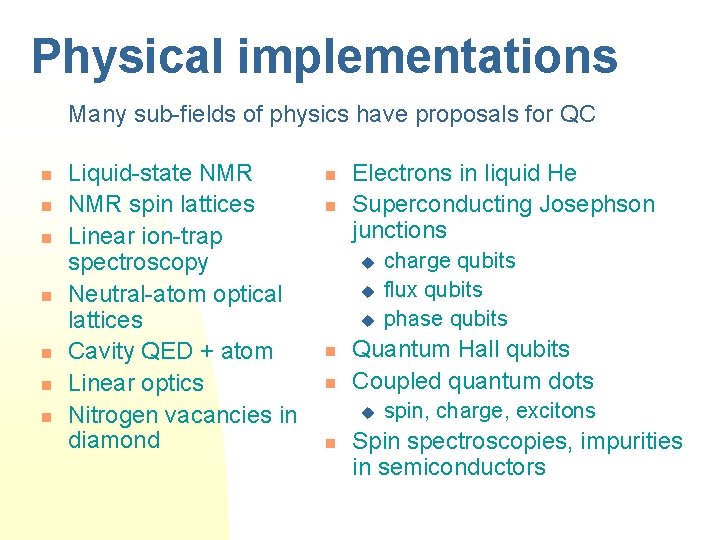

Physical implementations Many sub-fields of physics have proposals for QC n n n n Liquid-state NMR spin lattices Linear ion-trap spectroscopy Neutral-atom optical lattices Cavity QED + atom Linear optics Nitrogen vacancies in diamond n n Electrons in liquid He Superconducting Josephson junctions u u u n n Quantum Hall qubits Coupled quantum dots u n charge qubits flux qubits phase qubits spin, charge, excitons Spin spectroscopies, impurities in semiconductors

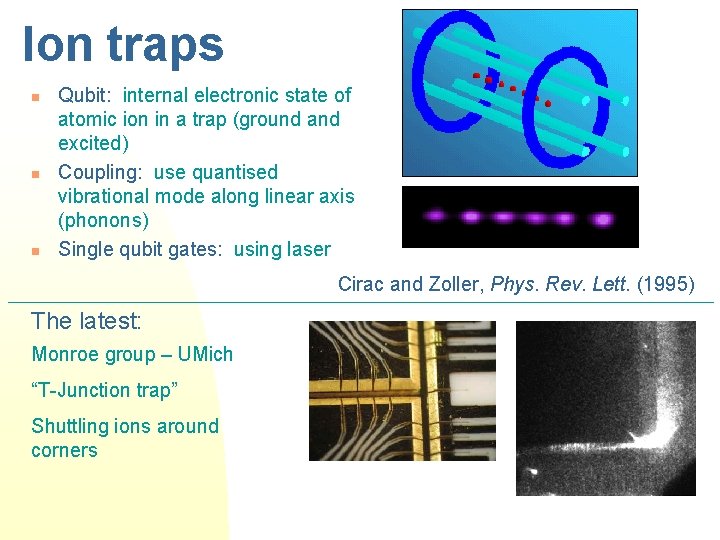

Ion traps n n n Qubit: internal electronic state of atomic ion in a trap (ground and excited) Coupling: use quantised vibrational mode along linear axis (phonons) Single qubit gates: using laser Cirac and Zoller, Phys. Rev. Lett. (1995) The latest: Monroe group – UMich “T-Junction trap” Shuttling ions around corners

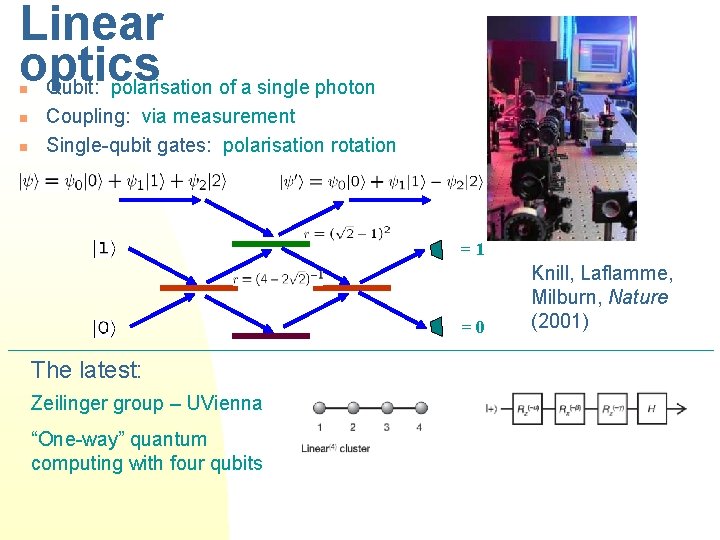

Linear optics Qubit: polarisation of a single photon n Coupling: via measurement Single-qubit gates: polarisation rotation =1 =0 The latest: Zeilinger group – UVienna “One-way” quantum computing with four qubits Knill, Laflamme, Milburn, Nature (2001)

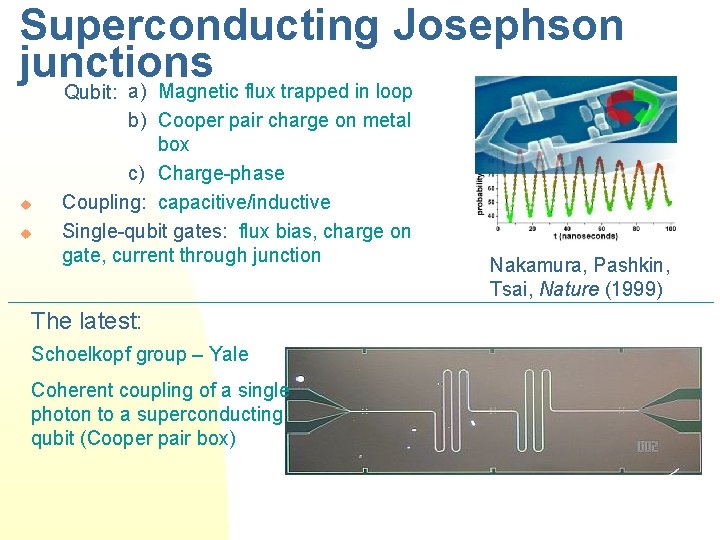

Superconducting Josephson junctions a) Magnetic flux trapped in loop Qubit: u u b) Cooper pair charge on metal box c) Charge-phase Coupling: capacitive/inductive Single-qubit gates: flux bias, charge on gate, current through junction The latest: Schoelkopf group – Yale Coherent coupling of a single photon to a superconducting qubit (Cooper pair box) Nakamura, Pashkin, Tsai, Nature (1999)

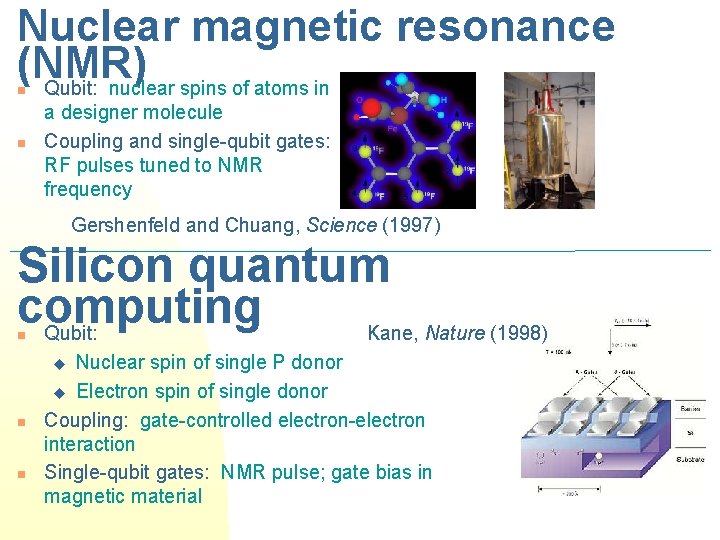

Nuclear magnetic resonance (NMR) Qubit: nuclear spins of atoms in n n a designer molecule Coupling and single-qubit gates: RF pulses tuned to NMR frequency Gershenfeld and Chuang, Science (1997) Silicon quantum computing Kane, Nature (1998) Qubit: n Nuclear spin of single P donor u Electron spin of single donor Coupling: gate-controlled electron-electron interaction Single-qubit gates: NMR pulse; gate bias in magnetic material u n n

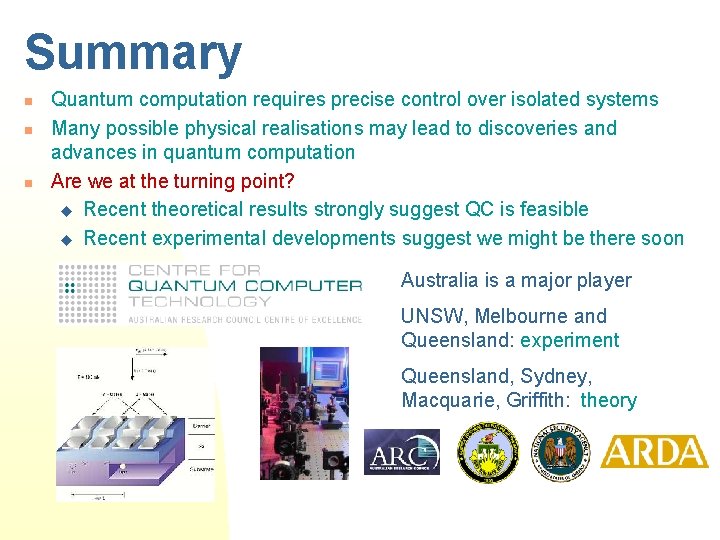

Summary n n n Quantum computation requires precise control over isolated systems Many possible physical realisations may lead to discoveries and advances in quantum computation Are we at the turning point? u Recent theoretical results strongly suggest QC is feasible u Recent experimental developments suggest we might be there soon Australia is a major player UNSW, Melbourne and Queensland: experiment Queensland, Sydney, Macquarie, Griffith: theory

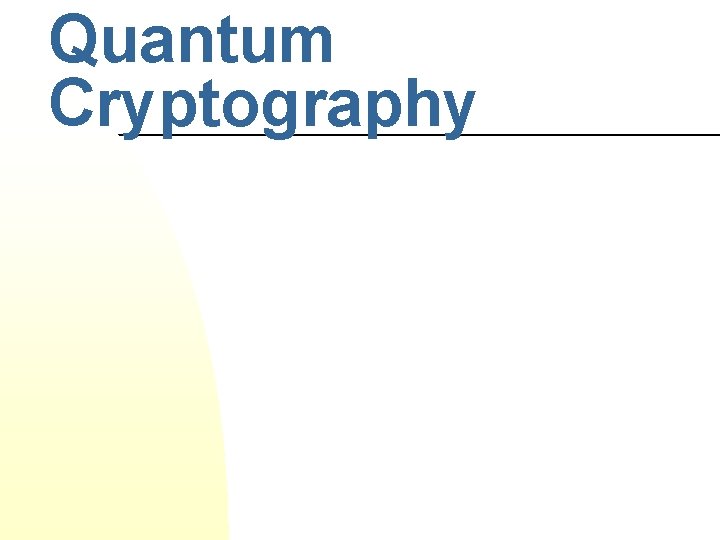

Quantum Cryptography

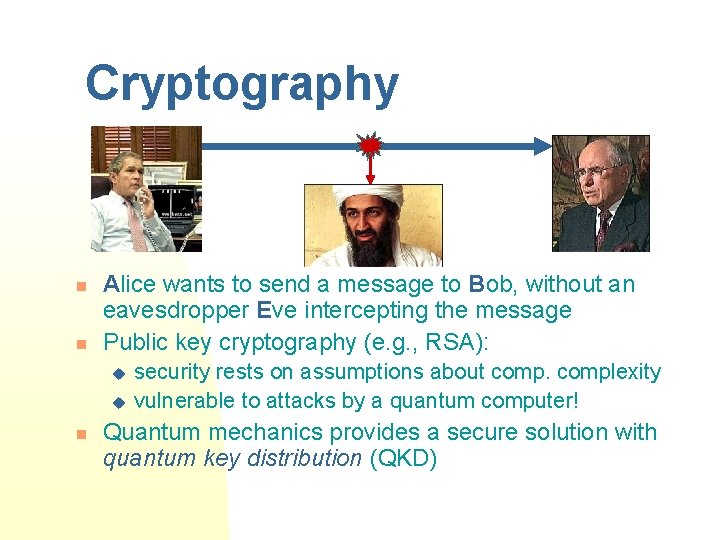

Cryptography n n Alice wants to send a message to Bob, without an eavesdropper Eve intercepting the message Public key cryptography (e. g. , RSA): u u n security rests on assumptions about complexity vulnerable to attacks by a quantum computer! Quantum mechanics provides a secure solution with quantum key distribution (QKD)

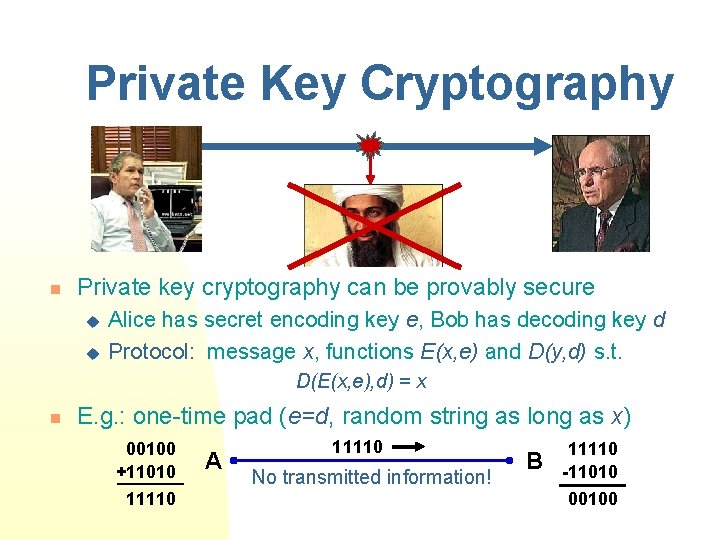

Private Key Cryptography n Private key cryptography can be provably secure u u Alice has secret encoding key e, Bob has decoding key d Protocol: message x, functions E(x, e) and D(y, d) s. t. D(E(x, e), d) = x n E. g. : one-time pad (e=d, random string as long as x) 00100 +11010 11110 A 11110 No transmitted information! B 11110 -11010 00100

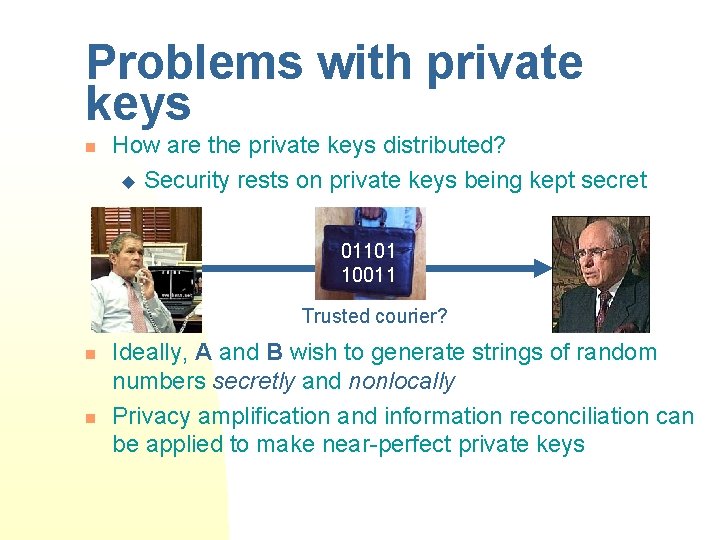

Problems with private keys n How are the private keys distributed? u Security rests on private keys being kept secret 01101 10011 Trusted courier? n n Ideally, A and B wish to generate strings of random numbers secretly and nonlocally Privacy amplification and information reconciliation can be applied to make near-perfect private keys

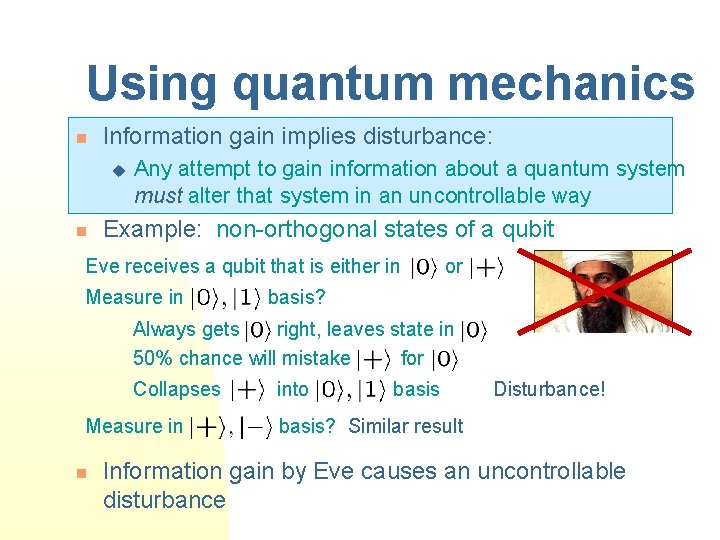

Using quantum mechanics n Information gain implies disturbance: u n Any attempt to gain information about a quantum system must alter that system in an uncontrollable way Example: non-orthogonal states of a qubit Eve receives a qubit that is either in Measure in or basis? Always gets right, leaves state in 50% chance will mistake for Collapses Measure in n into basis Disturbance! basis? Similar result Information gain by Eve causes an uncontrollable disturbance

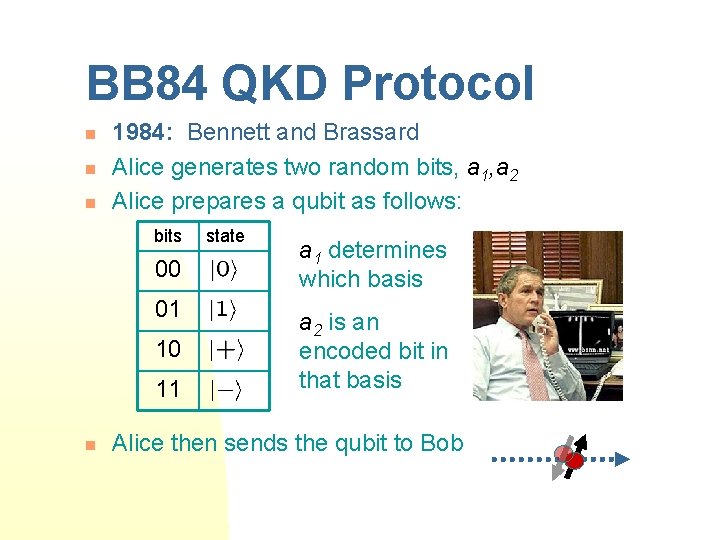

BB 84 QKD Protocol n n n 1984: Bennett and Brassard Alice generates two random bits, a 1, a 2 Alice prepares a qubit as follows: bits 00 01 10 11 n state a 1 determines which basis a 2 is an encoded bit in that basis Alice then sends the qubit to Bob

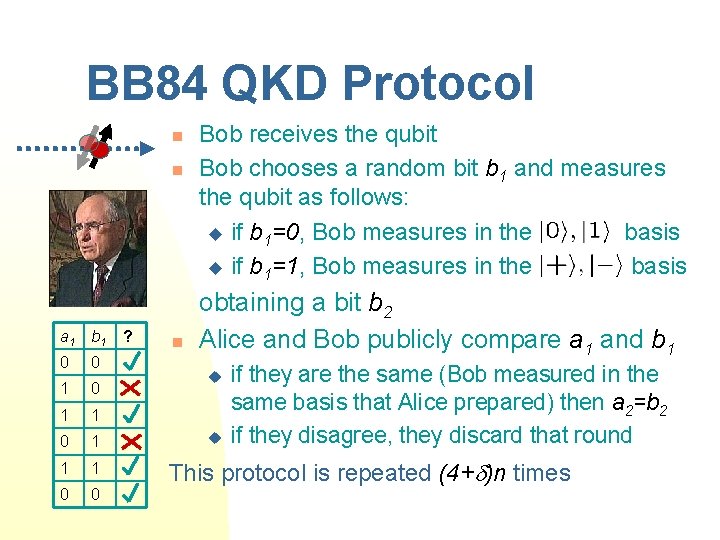

BB 84 QKD Protocol n n a 1 b 1 0 0 1 1 1 0 0 ? n Bob receives the qubit Bob chooses a random bit b 1 and measures the qubit as follows: u if b 1=0, Bob measures in the basis u if b 1=1, Bob measures in the basis obtaining a bit b 2 Alice and Bob publicly compare a 1 and b 1 u u if they are the same (Bob measured in the same basis that Alice prepared) then a 2=b 2 if they disagree, they discard that round This protocol is repeated (4+ )n times

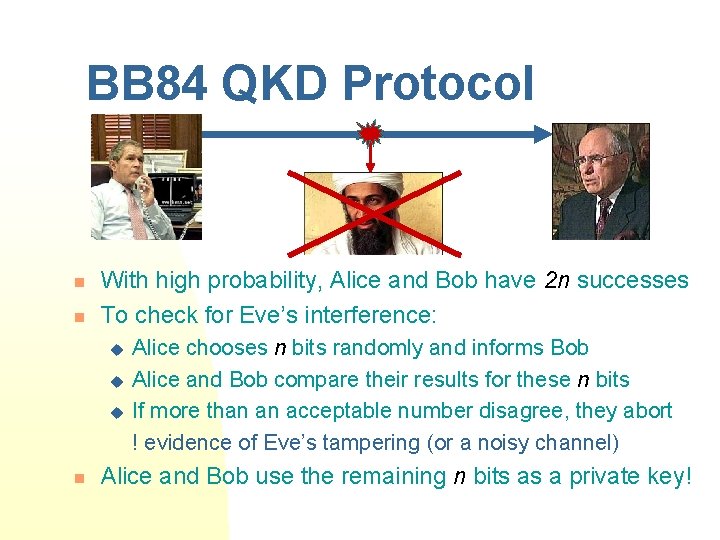

BB 84 QKD Protocol n n With high probability, Alice and Bob have 2 n successes To check for Eve’s interference: u u u n Alice chooses n bits randomly and informs Bob Alice and Bob compare their results for these n bits If more than an acceptable number disagree, they abort ! evidence of Eve’s tampering (or a noisy channel) Alice and Bob use the remaining n bits as a private key!

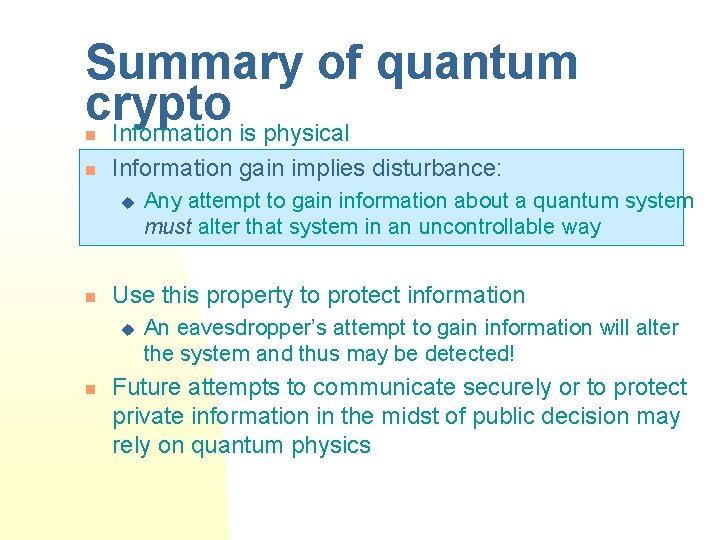

Summary of quantum crypto Information is physical n n Information gain implies disturbance: u n Use this property to protect information u n Any attempt to gain information about a quantum system must alter that system in an uncontrollable way An eavesdropper’s attempt to gain information will alter the system and thus may be detected! Future attempts to communicate securely or to protect private information in the midst of public decision may rely on quantum physics
