QUANTITIES Taking out quantities WHY do we need
- Slides: 12
QUANTITIES Taking out quantities
WHY do we need quantities?
PRICE In order to CALCULATE THE PRICE of a building you need to know the quantities of: • • • Building Materials Man Power Machinery / Equipment

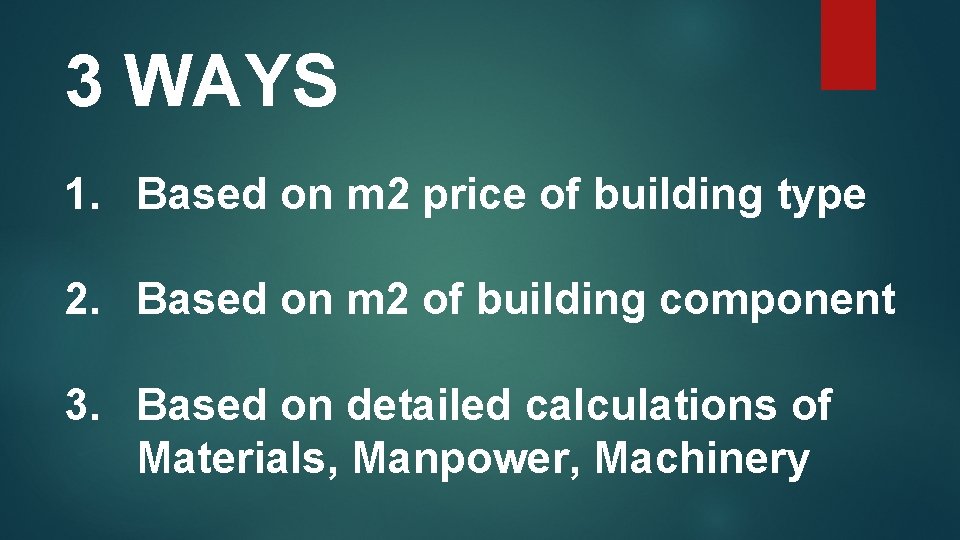

3 WAYS 1. Based on m 2 price of building type 2. Based on m 2 of building component 3. Based on detailed calculations of Materials, Manpower, Machinery
building type: one family house

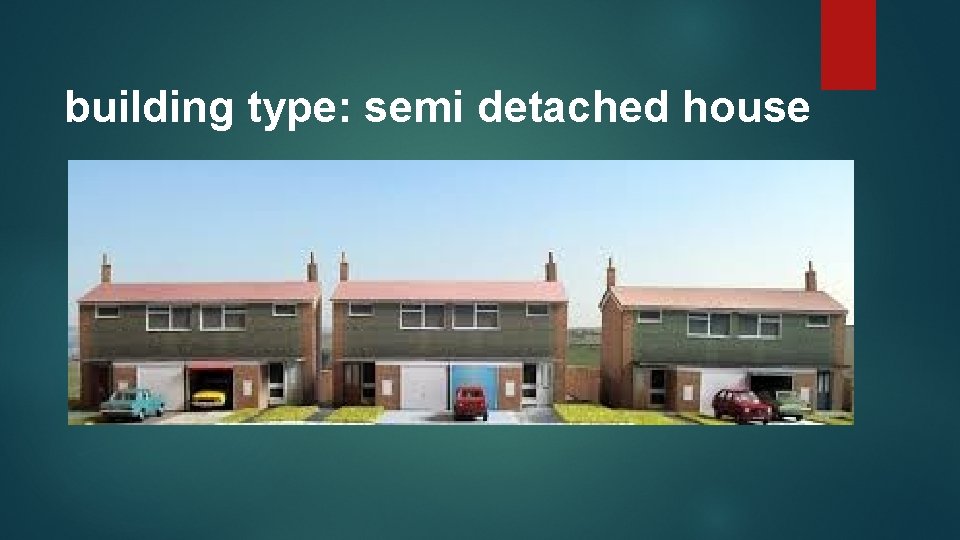

building type: semi detached house
building type: housing blok
Today you will use 1. Based on m 2 price of building type 2. Based on m/m 2/m 3/tons of building components 3. Based on detailed calculations of Materials, Manpower, Machinery
Common quantity units: • m (meters of i. e. a foundation) • m 2 (square meters of i. e. a floor) • m 3 (cubic meters of i. e. concrete) • pc (piece, i. e number of doors)
TYPE OF WORK (TRADES OR PROFESSIONS) • • SOIL WORK (construction worker) SEWER (auth. construction worker) CONCRETE (concreter) BRICKWORK (bricklayer) CARPENTRY WORK (carpenter) DEKORATION (painter) INSTALLATION (plumber, electrician, etc. )
YOUR JOB To take out quantities for: • • SOIL WORK CONCRETE BRICKWORK CARPENTRY WORK
2 WAYS To take out quantities: • MARK THE AMOUNT ON DRAWING PRINTOUTS AND CALCULATE QUANTITIES • EXTRACT QUANTITIES DIRECTLY FROM REVIT MODEL
