Quantifying, Predicting, and Exploiting Uncertainty SIO Modeling Component Bruce Cornuelle, Ganesh Gopalakrishnan, Ibrahim Hoteit, Julie Mc. Clean, Yoo Yin Kim SIO Lihue, Jan 12, 2009

Goals: Large-scale modeling • Understand the influences on the Kuroshio and the experimental region • Predictability of the environment – Kuroshio intrusions – Cold events • One word: “Sensitivity”: propagate uncertainties – IC, Bathymetry, forcing, resolution, …

2008 Tasks • Gather the pertinent observations for the region (w/Niiler) • Obtain HYCOM output, compare to observations • Set up grid with forcing and topography to match MIT (Lermusiaux) • Convert and apply HYCOM as boundary and initial conditions • Compare to MIT results and to observations from pilot experiment

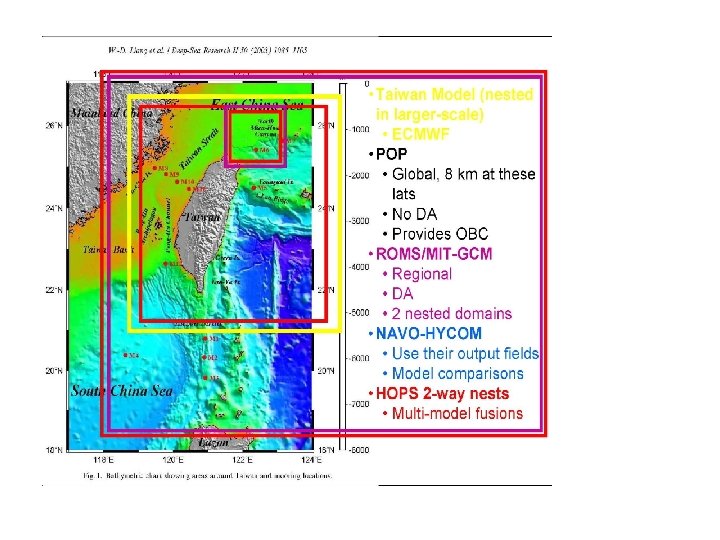

Domain: to 140 E; hard to keep it small

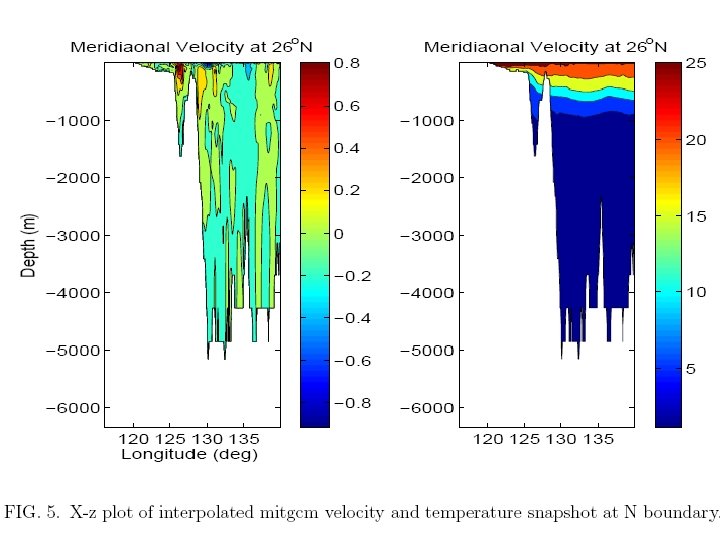

Northern Boundary Condition: HYCOM T V (m/s) Assimilated HYCOM!

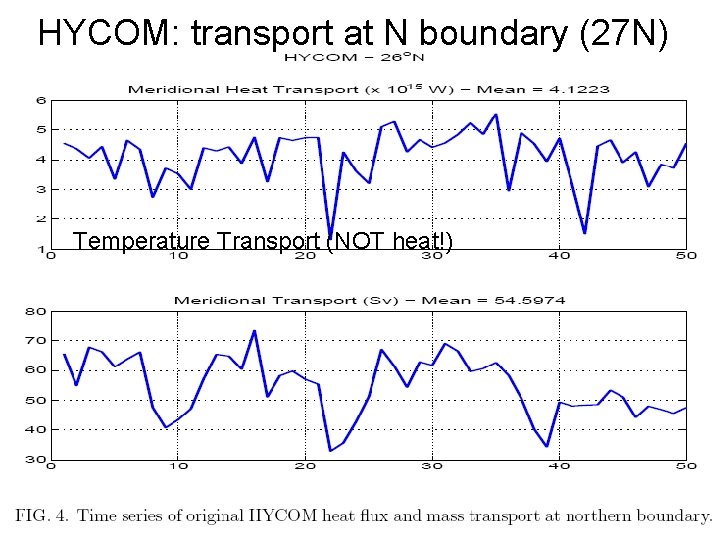

HYCOM: transport at N boundary (27 N) Temperature Transport (NOT heat!)

MITgcm runs: 1/12 degree • ECCO IC and BC, NCEP forcing – Bathymetry from ETOPO 2 – Dec 2001 -- Dec 2004 • ECCO IC, HYCOM BC, NCEP forcing – Dec 2003– Dec 2004 • HYCOM bathy, IC, BC, NCEP forcing – Jan 2004– Nov 2004

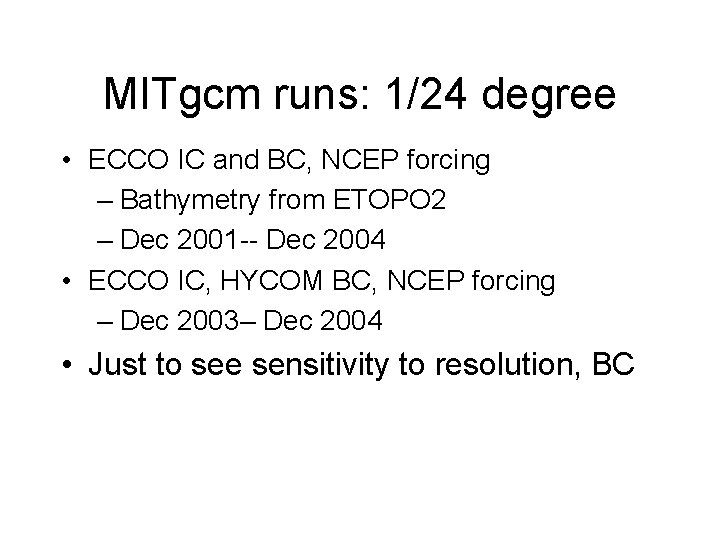

MITgcm runs: 1/24 degree • ECCO IC and BC, NCEP forcing – Bathymetry from ETOPO 2 – Dec 2001 -- Dec 2004 • ECCO IC, HYCOM BC, NCEP forcing – Dec 2003– Dec 2004 • Just to see sensitivity to resolution, BC

MITgcm; 1/12, ECCO IC, HYCOM OBC

MITgcm; 1/12, ECCO IC, HYCOM OBC

MITgcm; 1/12, ECCO IC, HYCOM OBC

MITgcm; 1/12, HYCOM IC, HYCOM OBC

MITgcm; 1/12, ECCO IC, HYCOM OBC

MITgcm; 1/12, HYCOM IC, HYCOM OBC

MITgcm; 1/24, ECCO IC, HYCOM OBC July-September 15 m Velocity Mean (m) RMS (m)

MITgcm; 1/24, ECCO IC, HYCOM OBC July-September 50 m Temp. Mean (m) RMS (m)

To Do • More reality checks and sensitivity tests – Dynamical diagnostics • 2008 runs with NCOR topography, COAMPS or NOGAPS forcing, HYCOM IC/OBC • Adjoint run for experimental region (and cold dome region) • Predictability studies

Thank you!

2008 -2009 Tasks • Extend the model runs and compare to observations and MIT modeling results. • Evaluate the effects of the boundary conditions including adjoint calculations • Start to fit the regional model to the observations to have a better test bed • Do adjoint sensitivity calculations for the experimental region and environmental keys. • Coordinate with Heaney on optimal sampling calculations.

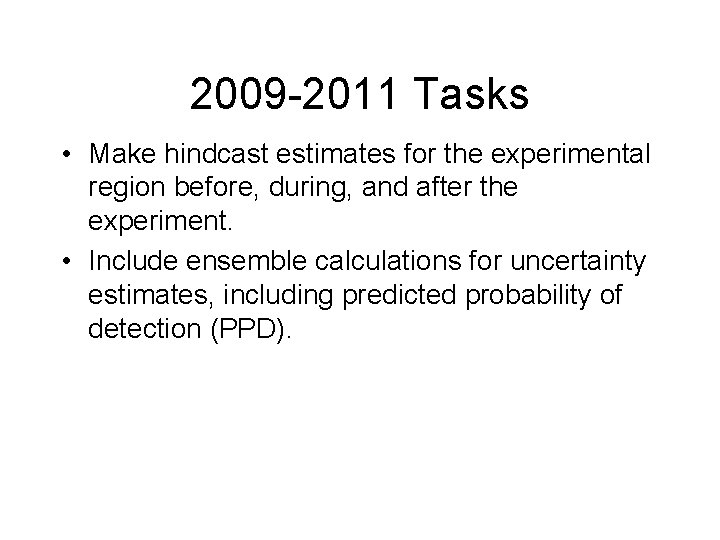

2009 -2011 Tasks • Make hindcast estimates for the experimental region before, during, and after the experiment. • Include ensemble calculations for uncertainty estimates, including predicted probability of detection (PPD).

Drifter trajectories calculated by Yoo Yin Kim 1/12 th degree run, then 1/24 th degree run

1/12 degree

1/12 degree

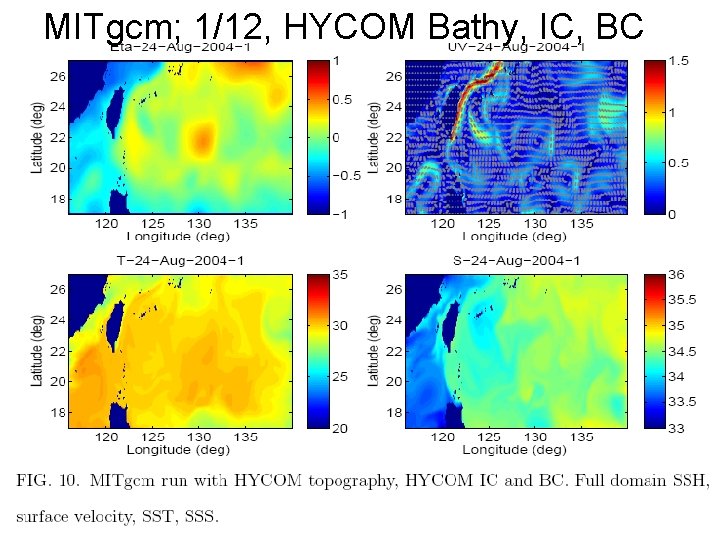

MITgcm; 1/12, HYCOM Bathy, IC, BC

MITgcm; 1/12, HYCOM Bathy, IC, BC

HYCOM; 1/12

HYCOM; 1/12

MITgcm; 1/24, ECCO IC, HYCOM OBC

MITgcm; 1/24, ECCO IC, HYCOM OBC

MITgcm; 1/12, ECCO IC, HYCOM OBC July-September 15 m Velocity Mean (m) RMS (m)

MITgcm; 1/12, ECCO IC, HYCOM OBC July-September 50 m Temp Mean (m) RMS (m)

MITgcm; 1/12, ECCO IC, HYCOM OBC July-September SSH Mean (m) RMS (m)

MITgcm; 1/12, ECCO IC, HYCOM OBC July-September 15 m Velocity Mean (m) RMS (m)

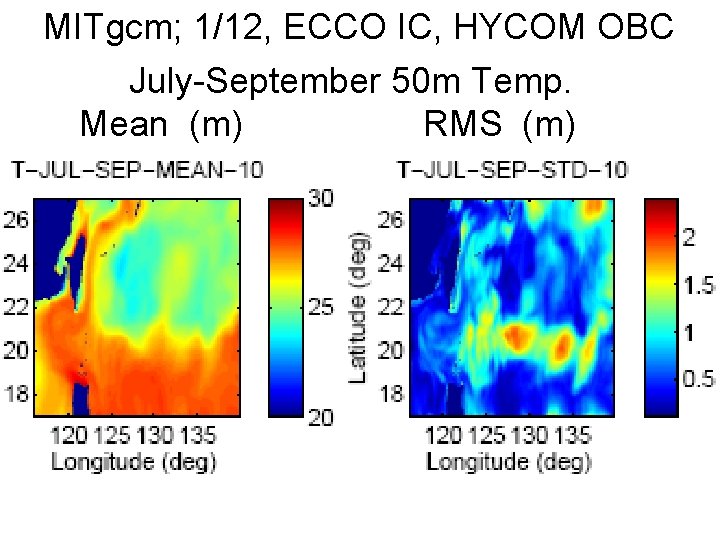

MITgcm; 1/12, ECCO IC, HYCOM OBC July-September 50 m Temp. Mean (m) RMS (m)

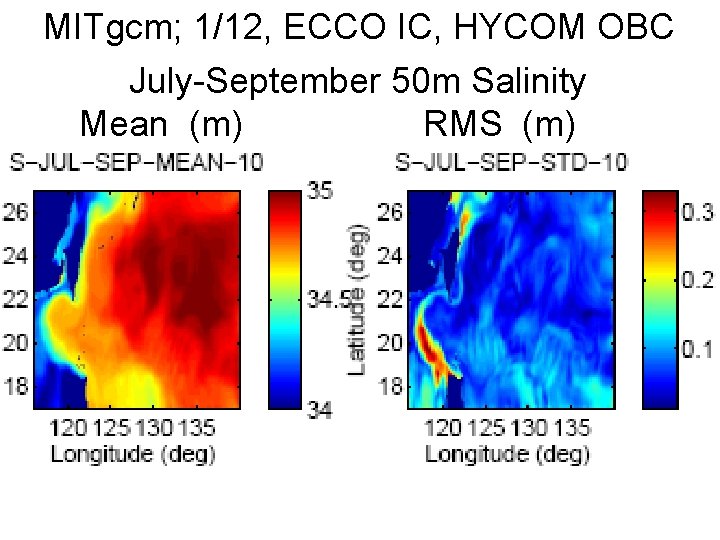

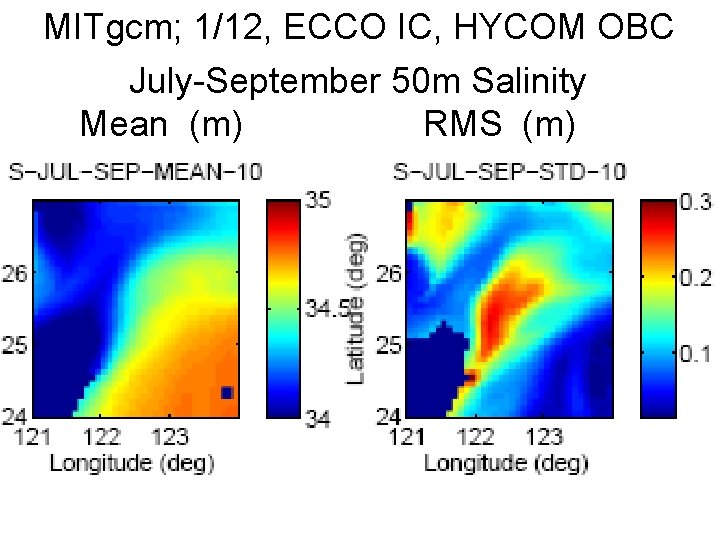

MITgcm; 1/12, ECCO IC, HYCOM OBC July-September 50 m Salinity Mean (m) RMS (m)

MITgcm; 1/12, ECCO IC, HYCOM OBC July-September 50 m Salinity Mean (m) RMS (m)

MITgcm; 1/12, ECCO IC, HYCOM OBC July-September SSH Mean (m) RMS (m)

MITgcm; 1/24, ECCO IC, HYCOM OBC July-September 50 m Salinity Mean (m) RMS (m)

MITgcm; 1/24, ECCO IC, HYCOM OBC July-September SSH Mean (m) RMS (m)

1/24 degree

1/24 degree
