Quality of Xray Beams Khan The Physics of

Quality of X-ray Beams Khan, The Physics of Radiation Therapy, Ch 7

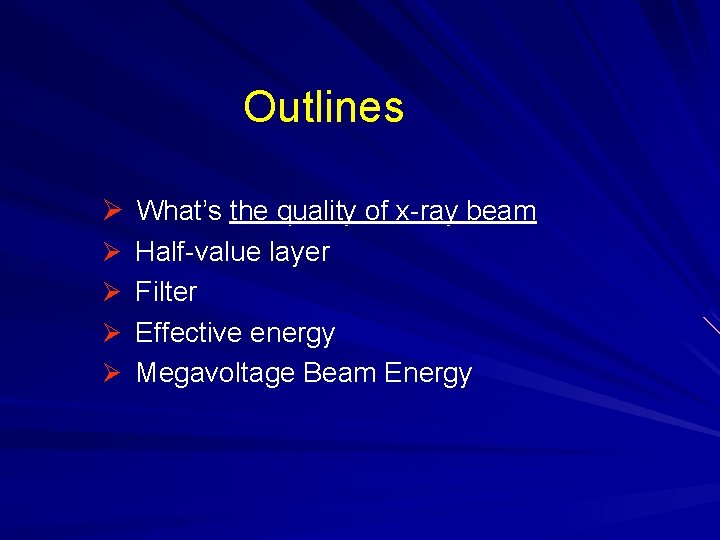

Outlines Ø What’s the quality of x-ray beam Ø Half-value layer Ø Filter Ø Effective energy Ø Megavoltage Beam Energy

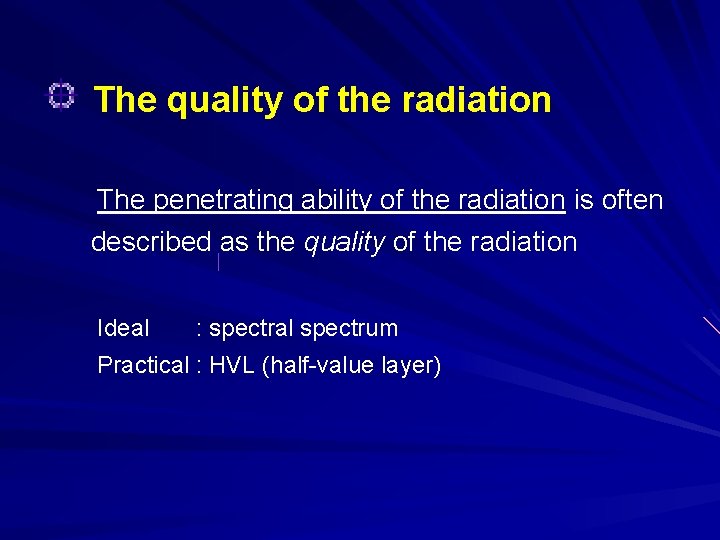

The quality of the radiation The penetrating ability of the radiation is often described as the quality of the radiation Ideal : spectral spectrum Practical : HVL (half-value layer)

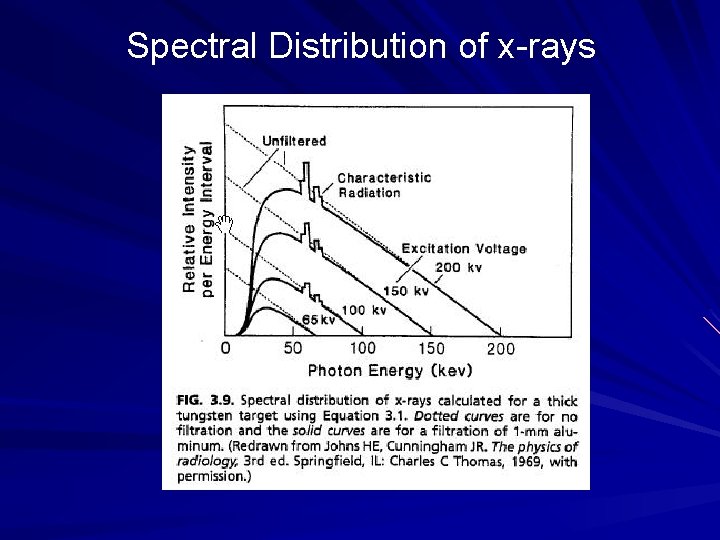

Spectral Distribution of x-rays

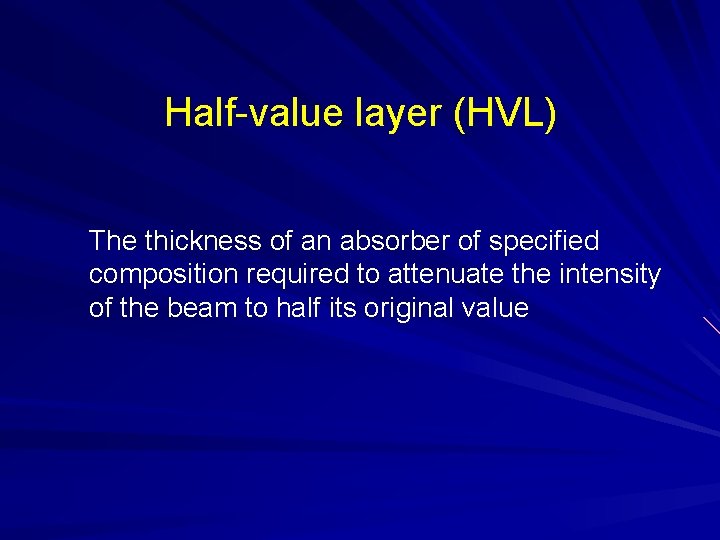

Half-value layer (HVL) The thickness of an absorber of specified composition required to attenuate the intensity of the beam to half its original value

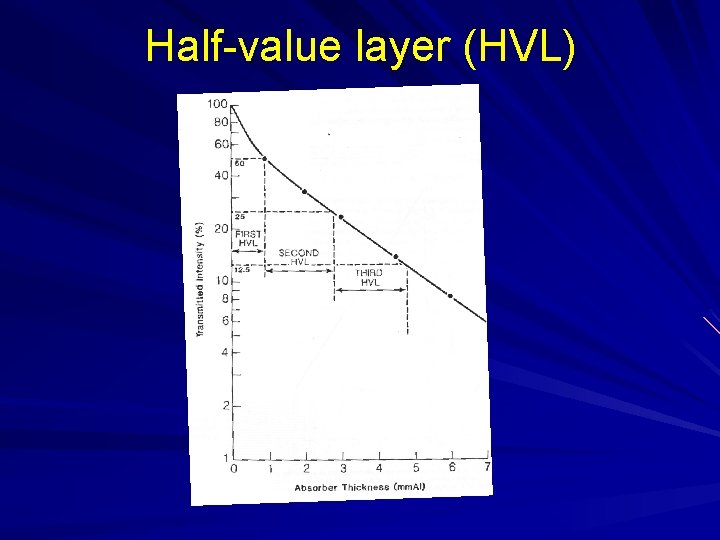

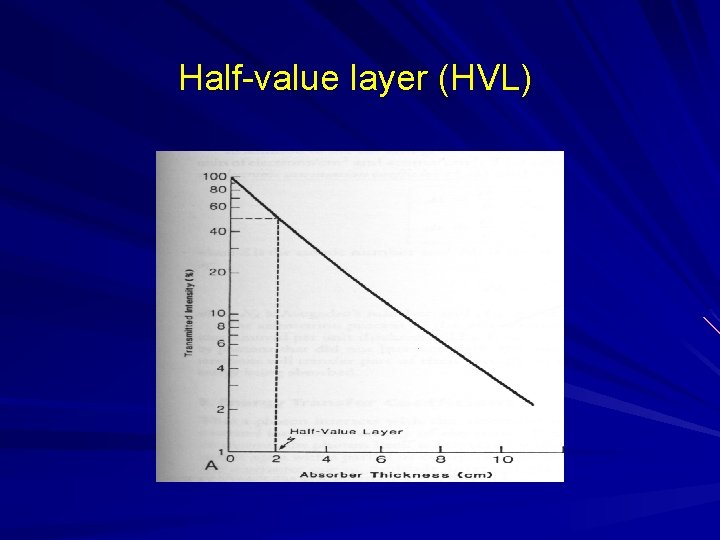

Half-value layer (HVL)

Photon beam attenuation I(x) = I 0 e-μx μ : linear attenuation coefficient (cm-1) μ / ρ : mass attenuation coefficient (cm 2/g)

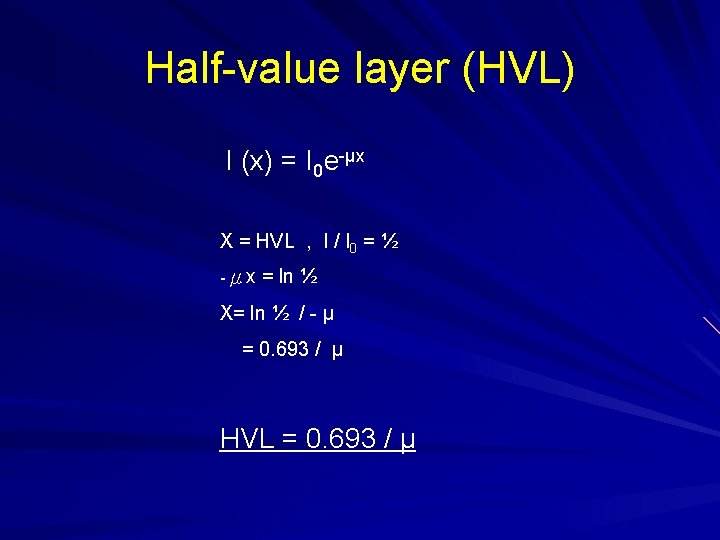

Half-value layer (HVL) I (x) = I 0 e-μx X = HVL , I / I 0 = ½ -μx = ln ½ X= ln ½ / - μ = 0. 693 / μ HVL = 0. 693 / μ

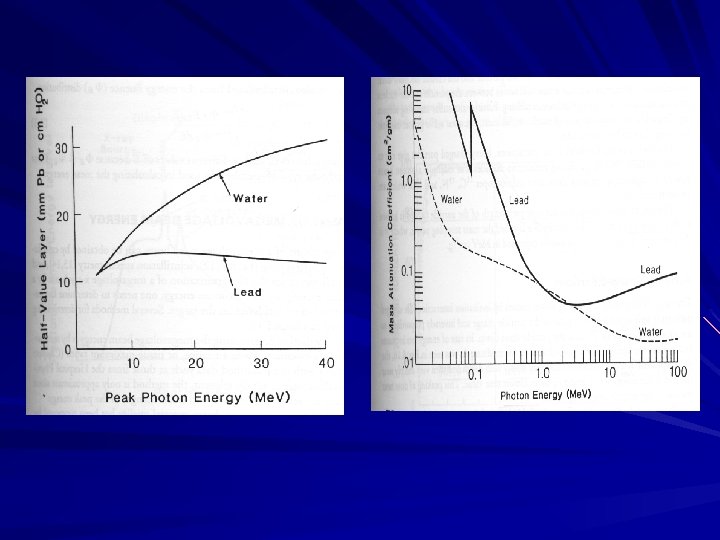

Half-value layer (HVL)

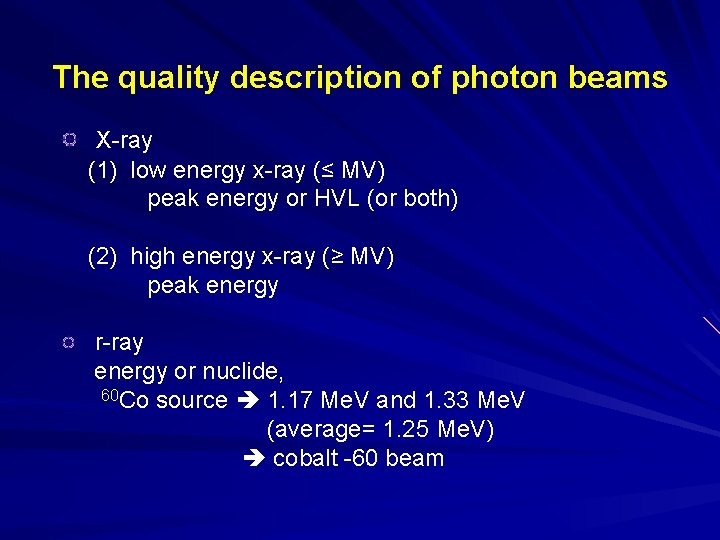

The quality description of photon beams X-ray (1) low energy x-ray (≤ MV) peak energy or HVL (or both) (2) high energy x-ray (≥ MV) peak energy r-ray energy or nuclide, 60 Co source 1. 17 Me. V and 1. 33 Me. V (average= 1. 25 Me. V) cobalt -60 beam

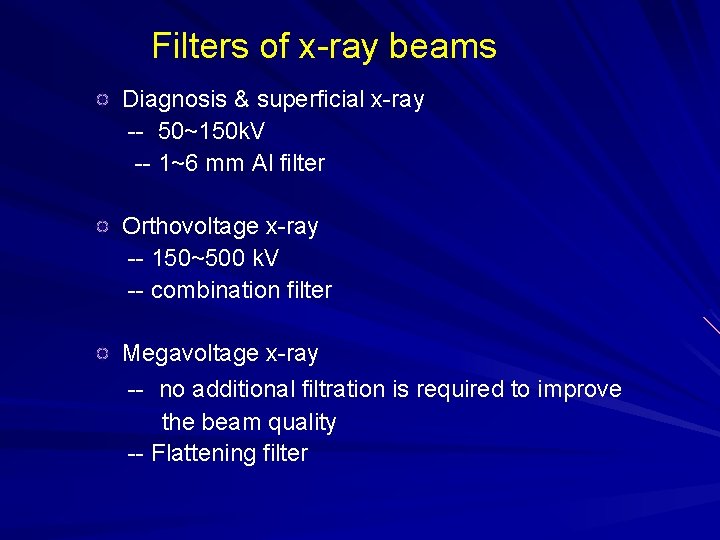

Filters of x-ray beams Diagnosis & superficial x-ray -- 50~150 k. V -- 1~6 mm Al filter Orthovoltage x-ray -- 150~500 k. V -- combination filter Megavoltage x-ray -- no additional filtration is required to improve the beam quality -- Flattening filter

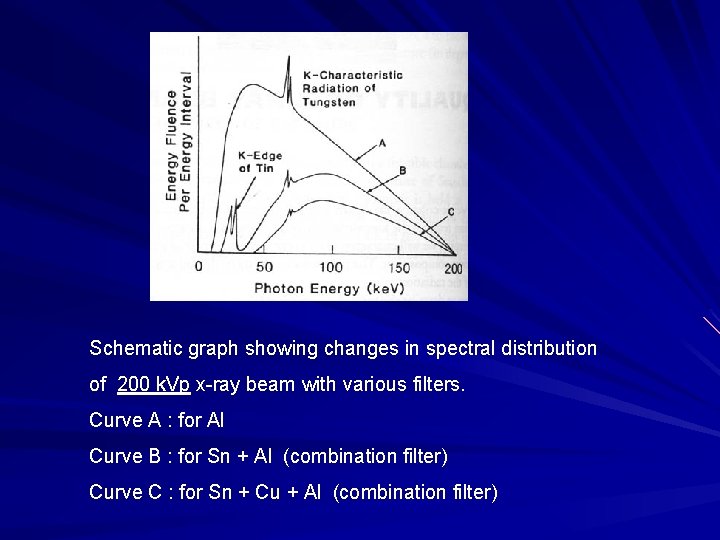

Schematic graph showing changes in spectral distribution of 200 k. Vp x-ray beam with various filters. Curve A : for Al Curve B : for Sn + Al (combination filter) filter Curve C : for Sn + Cu + Al (combination filter) filter

Inherent filtration of x-ray tube • Including : the glass envelop of the x-ray tube, the surrounding oil, and the exit window of the tube housing. • This Inherent filtration is equivalent to approximately 1 mm Al in most x-ray tube.

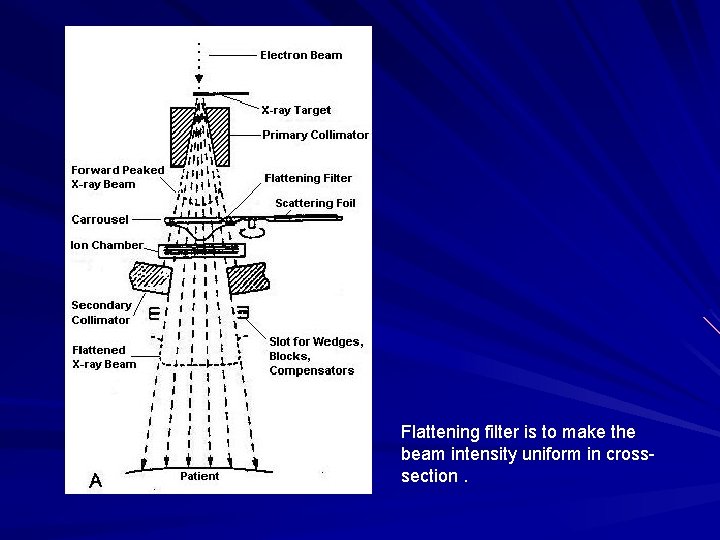

Flattening filter is to make the beam intensity uniform in crosssection.

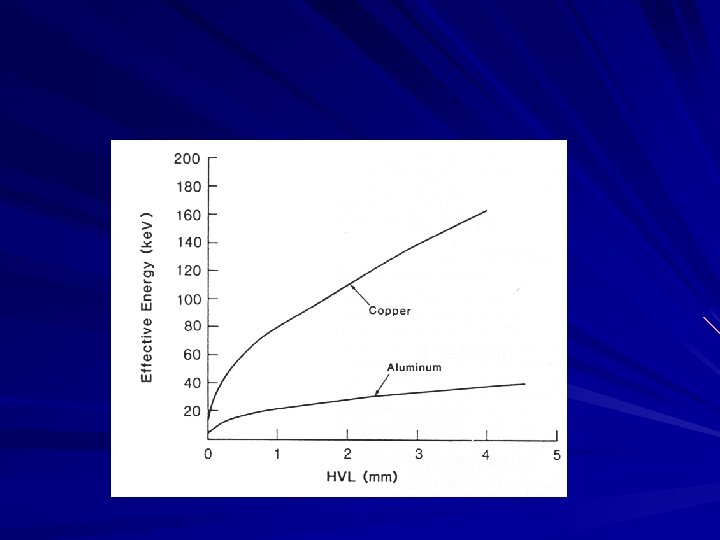

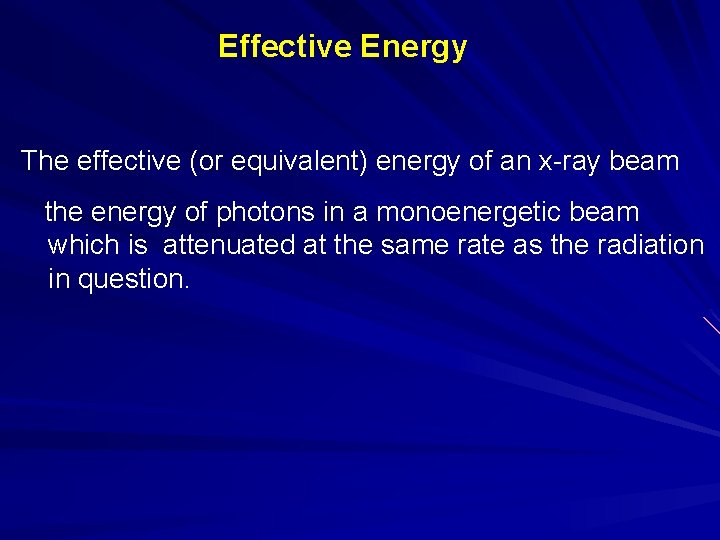

Effective Energy The effective (or equivalent) energy of an x-ray beam the energy of photons in a monoenergetic beam which is attenuated at the same rate as the radiation in question.

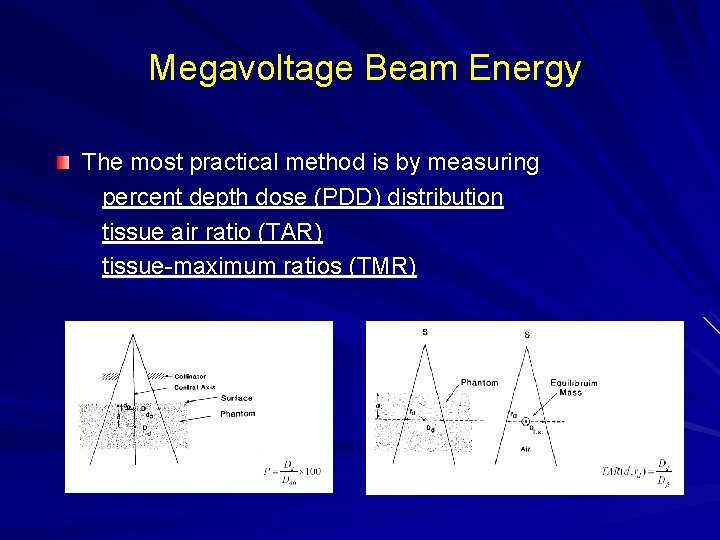

Megavoltage Beam Energy The most practical method is by measuring percent depth dose (PDD) distribution tissue air ratio (TAR) tissue-maximum ratios (TMR)

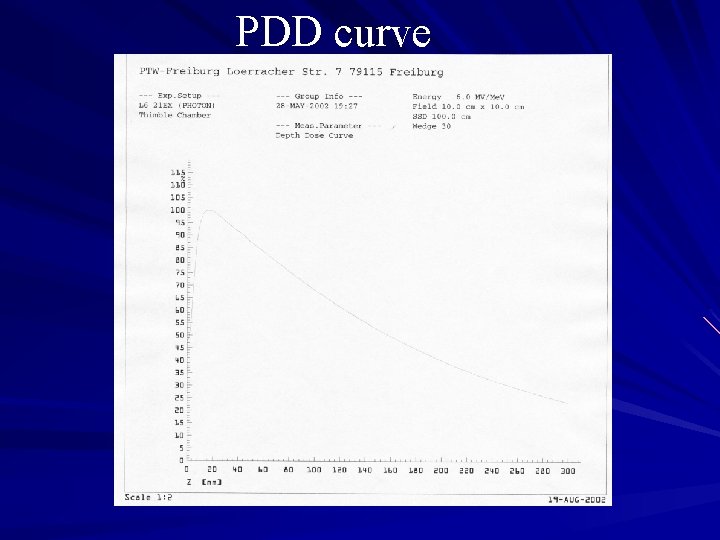

PDD curve
