Quality Improvement Chapter 6 Control Charts for Variables
Quality Improvement Chapter 6 - Control Charts for Variables Power. Point presentation to accompany Besterfield, Quality Improvement, 9 e
Outline q The Control Chart Techniques q State of Introduction q Control q Specifications q Process Capability q Different Control Charts Quality Improvement, 9 e Dale H. Besterfield 2 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

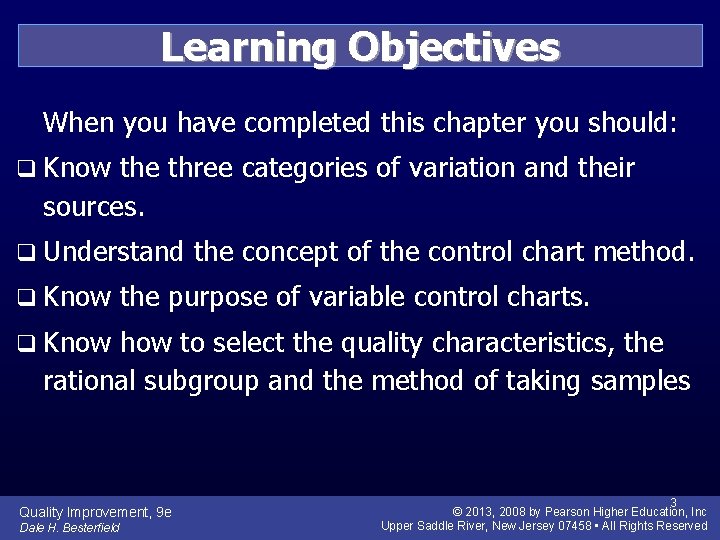

Learning Objectives When you have completed this chapter you should: q Know the three categories of variation and their sources. q Understand the concept of the control chart method. q Know the purpose of variable control charts. q Know how to select the quality characteristics, the rational subgroup and the method of taking samples Quality Improvement, 9 e Dale H. Besterfield 3 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved
Learning Objectives When you have completed this chapter you should: q Be able to calculate the central value, trial control limits and the revised control limits for Xbar and R chart. q Be able to explain what is meant by a process in control and the various out-of-control patterns. q Know the difference between individual measurements and averages; control limits and specifications. Quality Improvement, 9 e Dale H. Besterfield 4 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved
Learning Objectives When you have completed this chapter you should: q Know the different situations between the process spread and specifications and what can be done to correct the undesirable situation. q Be able to calculate process capability. Quality Improvement, 9 e Dale H. Besterfield 5 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

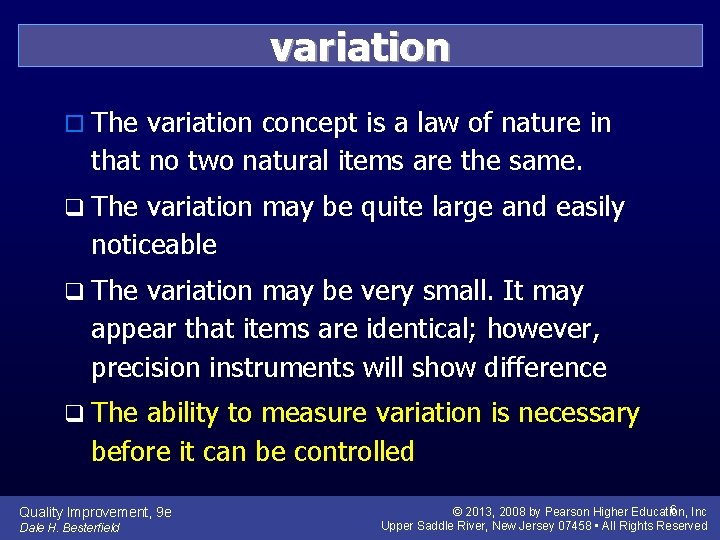

variation o The variation concept is a law of nature in that no two natural items are the same. q The variation may be quite large and easily noticeable q The variation may be very small. It may appear that items are identical; however, precision instruments will show difference q The ability to measure variation is necessary before it can be controlled Quality Improvement, 9 e Dale H. Besterfield 6 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Variation There are three categories of variation in piece part production: 1. Within-piece variation: Surface 2. Piece-to-piece variation: Among pieces produced at the same time 3. Time-to-time variation: Difference in product produced at different times of the day Quality Improvement, 9 e Dale H. Besterfield 7 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

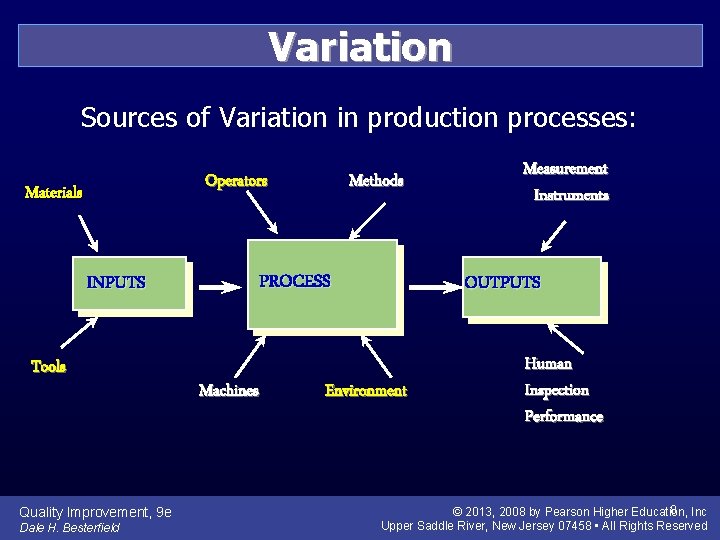

Variation Sources of Variation in production processes: Operators Materials INPUTS Tools Quality Improvement, 9 e Dale H. Besterfield Methods PROCESS Machines Measurement Instruments OUTPUTS Environment Human Inspection Performance 8 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

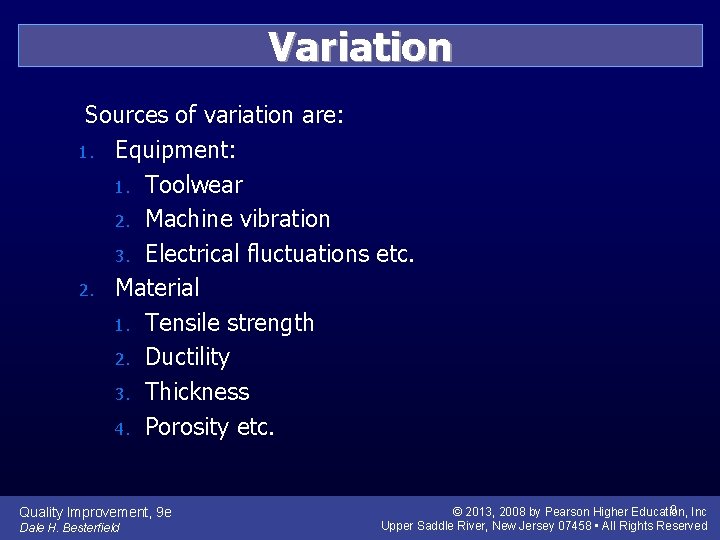

Variation Sources of variation are: 1. Equipment: 1. Toolwear 2. Machine vibration 3. Electrical fluctuations etc. 2. Material 1. Tensile strength 2. Ductility 3. Thickness 4. Porosity etc. Quality Improvement, 9 e Dale H. Besterfield 9 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Variation Sources of variation are: 3. Environment 1. Temperature 2. Light 3. Radiation 4. Humidity etc. 4. Operator 1. Personal problem 2. Physical problem etc. Quality Improvement, 9 e Dale H. Besterfield 10 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

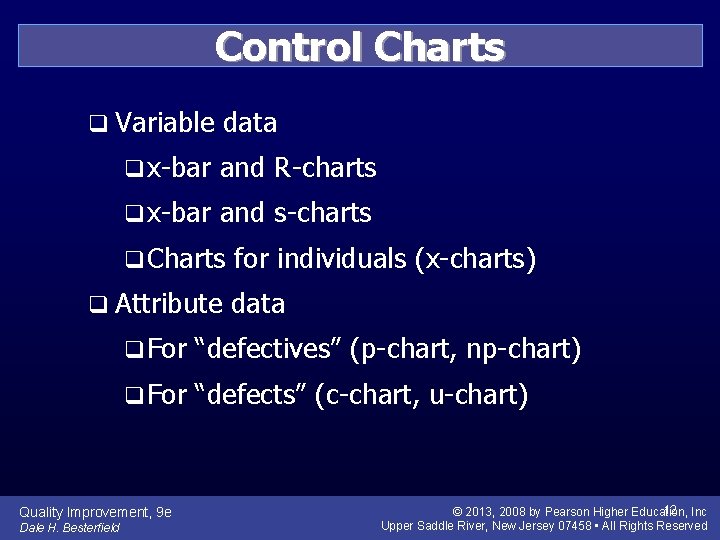

Control Charts q Variable data q x-bar and R-charts q x-bar and s-charts q Charts for individuals (x-charts) q Attribute data q For “defectives” (p-chart, np-chart) q For “defects” (c-chart, u-chart) Quality Improvement, 9 e Dale H. Besterfield 12 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

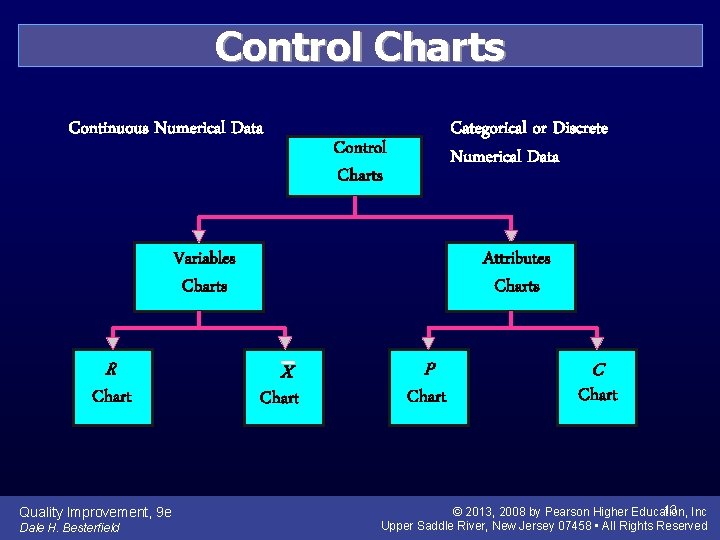

Control Charts Continuous Numerical Data Categorical or Discrete Numerical Data Control Charts Variables Charts R Chart Quality Improvement, 9 e Dale H. Besterfield Attributes Charts X Chart P Chart C Chart 13 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

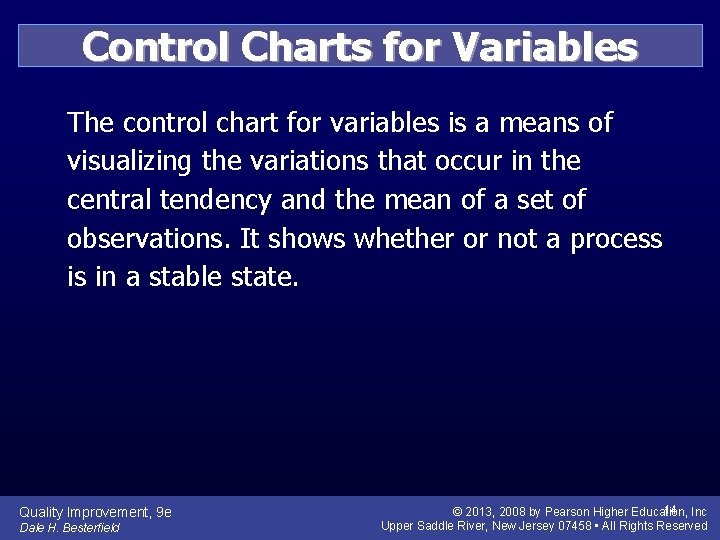

Control Charts for Variables The control chart for variables is a means of visualizing the variations that occur in the central tendency and the mean of a set of observations. It shows whether or not a process is in a stable state. Quality Improvement, 9 e Dale H. Besterfield 14 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

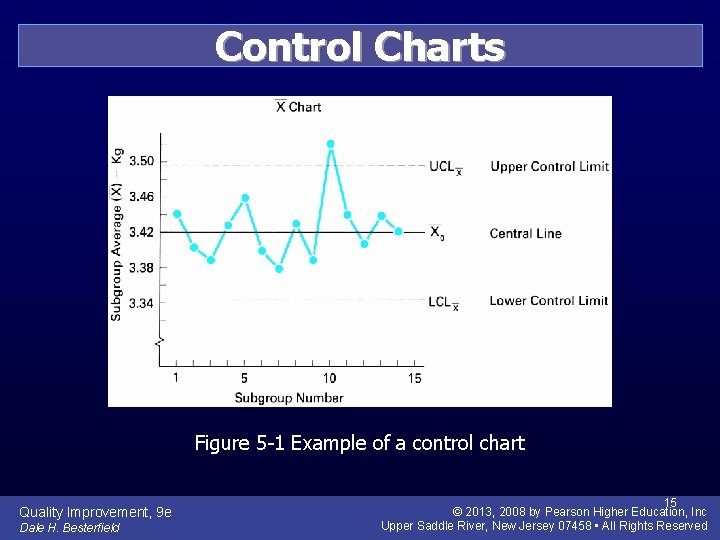

Control Charts Figure 5 -1 Example of a control chart Quality Improvement, 9 e Dale H. Besterfield 15 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

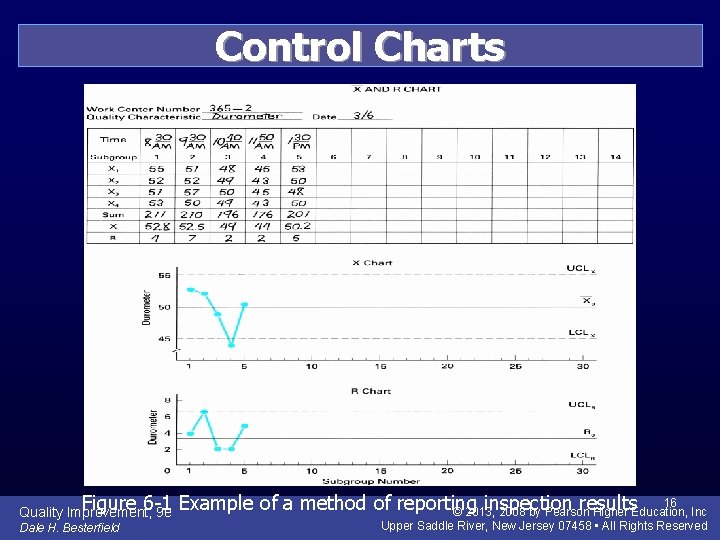

Control Charts 16 Figure 6 -1 Example of a method of reporting inspection results © 2013, 2008 by Pearson Higher Education, Inc Quality Improvement, 9 e Dale H. Besterfield Upper Saddle River, New Jersey 07458 • All Rights Reserved

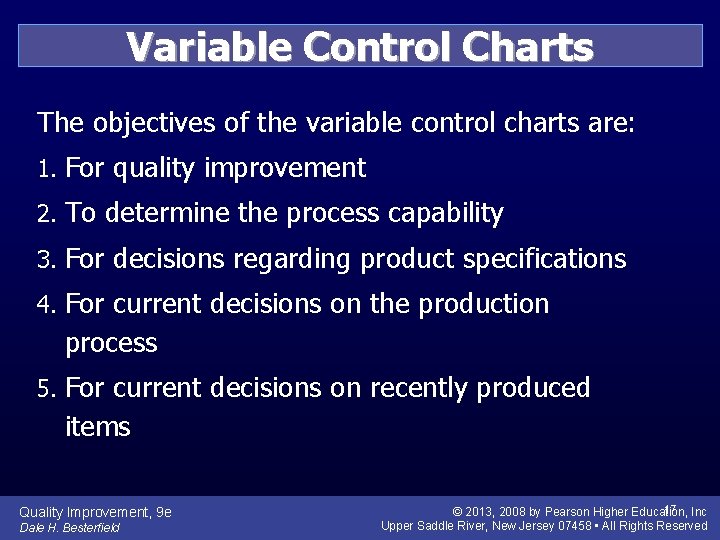

Variable Control Charts The objectives of the variable control charts are: 1. For quality improvement 2. To determine the process capability 3. For decisions regarding product specifications 4. For current decisions on the production process 5. For current decisions on recently produced items Quality Improvement, 9 e Dale H. Besterfield 17 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

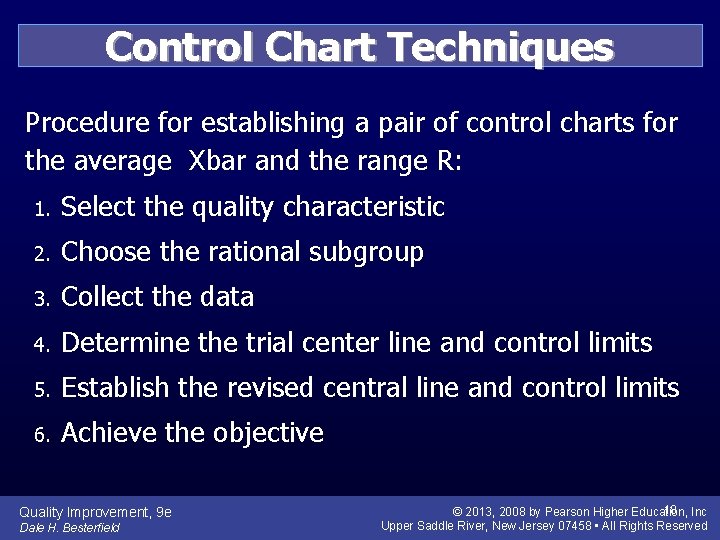

Control Chart Techniques Procedure for establishing a pair of control charts for the average Xbar and the range R: 1. Select the quality characteristic 2. Choose the rational subgroup 3. Collect the data 4. Determine the trial center line and control limits 5. Establish the revised central line and control limits 6. Achieve the objective Quality Improvement, 9 e Dale H. Besterfield 18 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

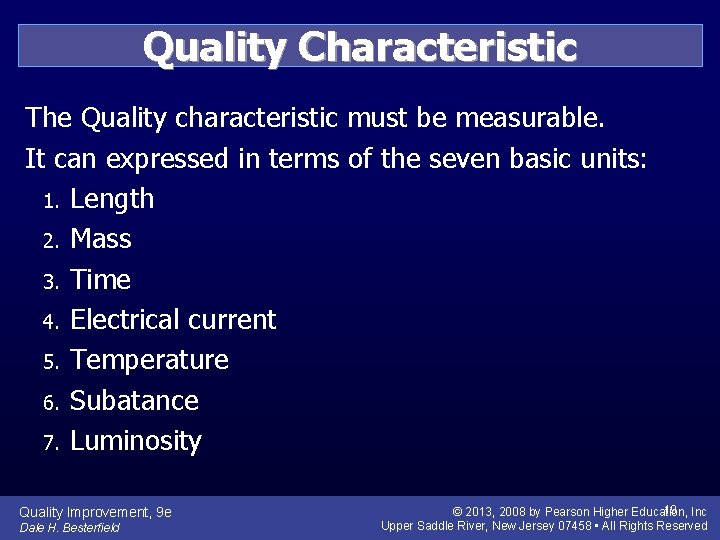

Quality Characteristic The Quality characteristic must be measurable. It can expressed in terms of the seven basic units: 1. Length 2. Mass 3. Time 4. Electrical current 5. Temperature 6. Subatance 7. Luminosity Quality Improvement, 9 e Dale H. Besterfield 19 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Rational Subgroup A rational subgroup is one in which the variation within a group is due only to chance causes. Within-subgroup variation is used to determine the control limits. Variation between subgroups is used to evaluate long-term stability. Quality Improvement, 9 e Dale H. Besterfield 20 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

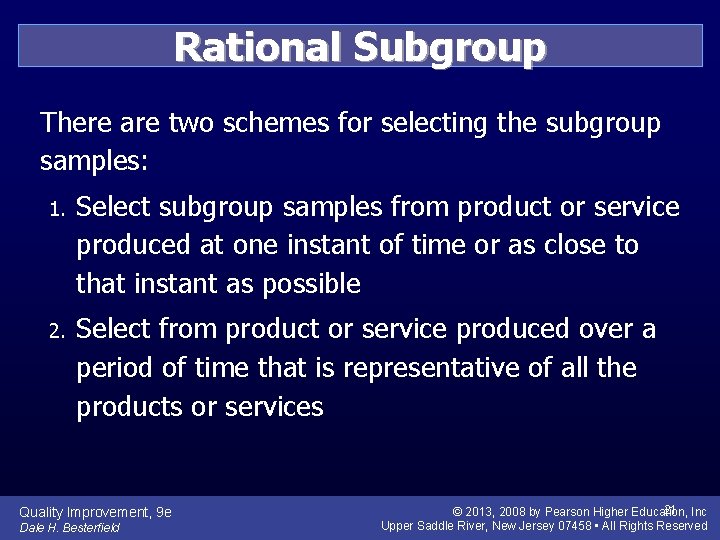

Rational Subgroup There are two schemes for selecting the subgroup samples: 1. Select subgroup samples from product or service produced at one instant of time or as close to that instant as possible 2. Select from product or service produced over a period of time that is representative of all the products or services Quality Improvement, 9 e Dale H. Besterfield 21 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

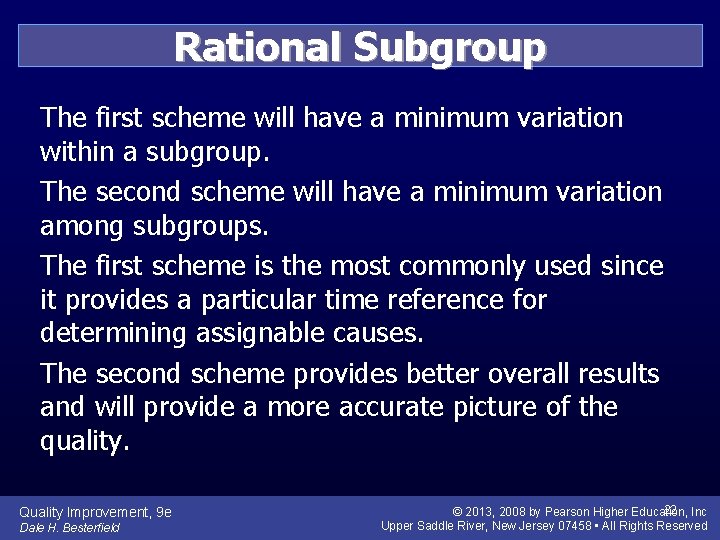

Rational Subgroup The first scheme will have a minimum variation within a subgroup. The second scheme will have a minimum variation among subgroups. The first scheme is the most commonly used since it provides a particular time reference for determining assignable causes. The second scheme provides better overall results and will provide a more accurate picture of the quality. Quality Improvement, 9 e Dale H. Besterfield 22 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

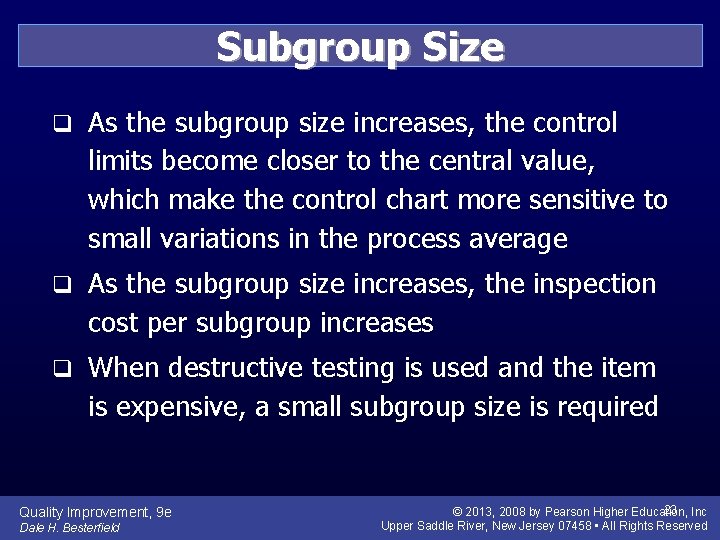

Subgroup Size q As the subgroup size increases, the control limits become closer to the central value, which make the control chart more sensitive to small variations in the process average q As the subgroup size increases, the inspection cost per subgroup increases q When destructive testing is used and the item is expensive, a small subgroup size is required Quality Improvement, 9 e Dale H. Besterfield 23 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

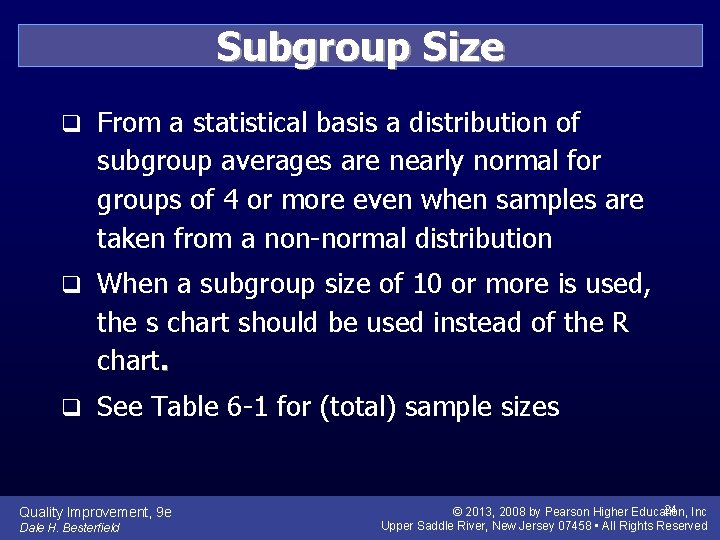

Subgroup Size q From a statistical basis a distribution of subgroup averages are nearly normal for groups of 4 or more even when samples are taken from a non-normal distribution q When a subgroup size of 10 or more is used, the s chart should be used instead of the R chart. q See Table 6 -1 for (total) sample sizes Quality Improvement, 9 e Dale H. Besterfield 24 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

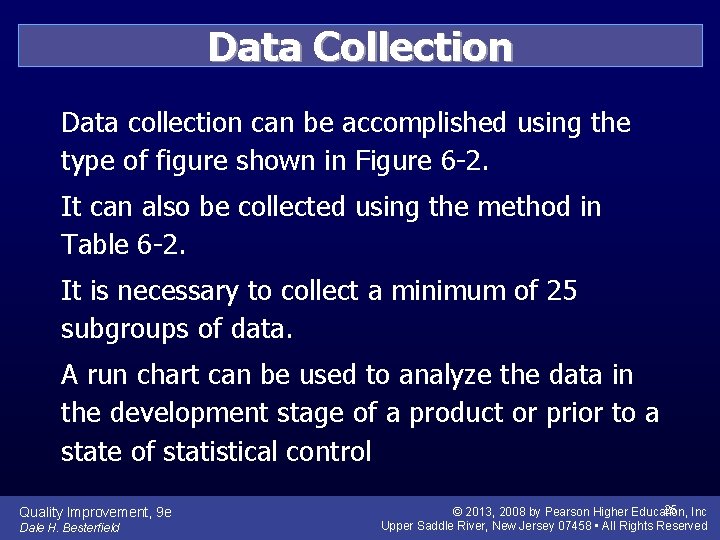

Data Collection Data collection can be accomplished using the type of figure shown in Figure 6 -2. It can also be collected using the method in Table 6 -2. It is necessary to collect a minimum of 25 subgroups of data. A run chart can be used to analyze the data in the development stage of a product or prior to a state of statistical control Quality Improvement, 9 e Dale H. Besterfield 25 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Run Chart Figure 6 -4 Run Chart for data of Table 6 -2 Quality Improvement, 9 e Dale H. Besterfield 26 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

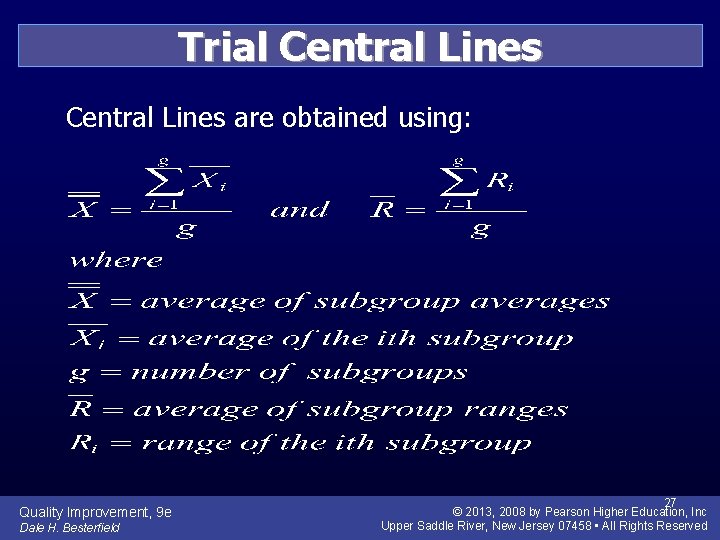

Trial Central Lines are obtained using: Quality Improvement, 9 e Dale H. Besterfield 27 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

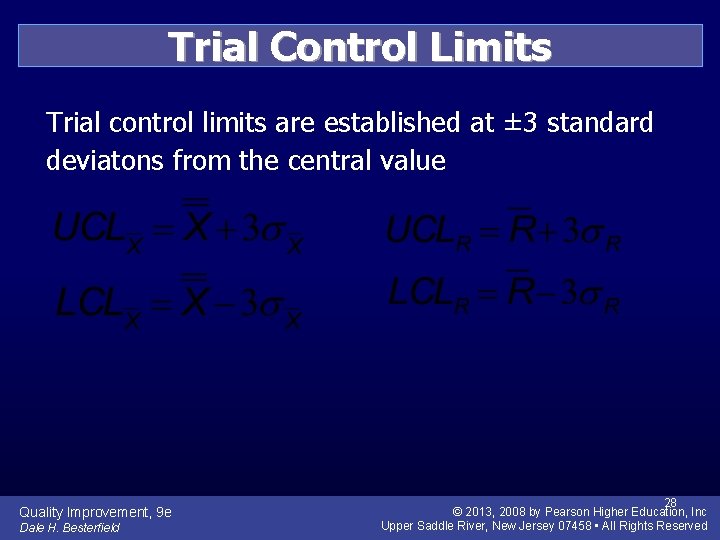

Trial Control Limits Trial control limits are established at ± 3 standard deviatons from the central value Quality Improvement, 9 e Dale H. Besterfield 28 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

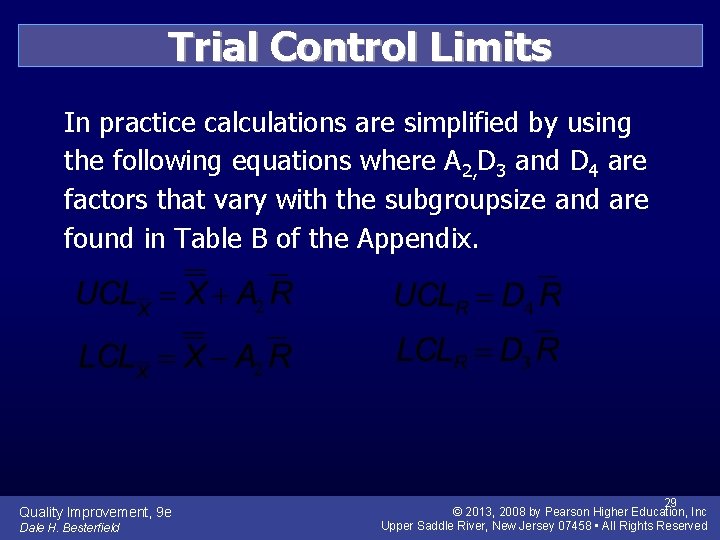

Trial Control Limits In practice calculations are simplified by using the following equations where A 2, D 3 and D 4 are factors that vary with the subgroupsize and are found in Table B of the Appendix. Quality Improvement, 9 e Dale H. Besterfield 29 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

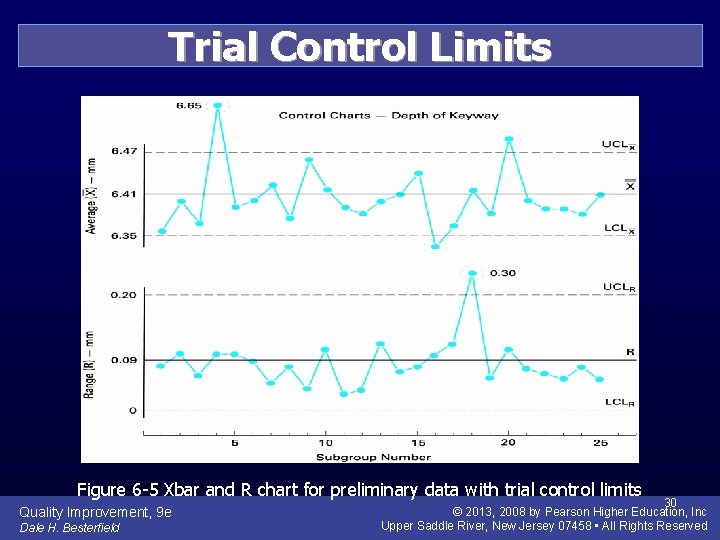

Trial Control Limits Figure 6 -5 Xbar and R chart for preliminary data with trial control limits Quality Improvement, 9 e Dale H. Besterfield 30 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

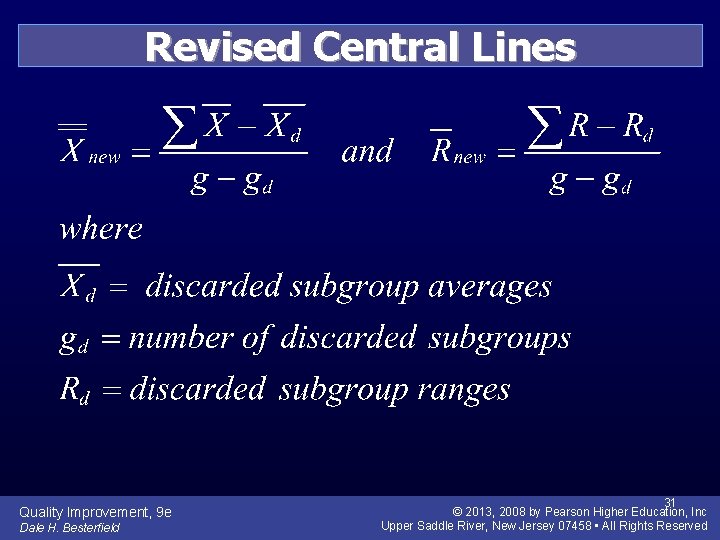

Revised Central Lines Quality Improvement, 9 e Dale H. Besterfield 31 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

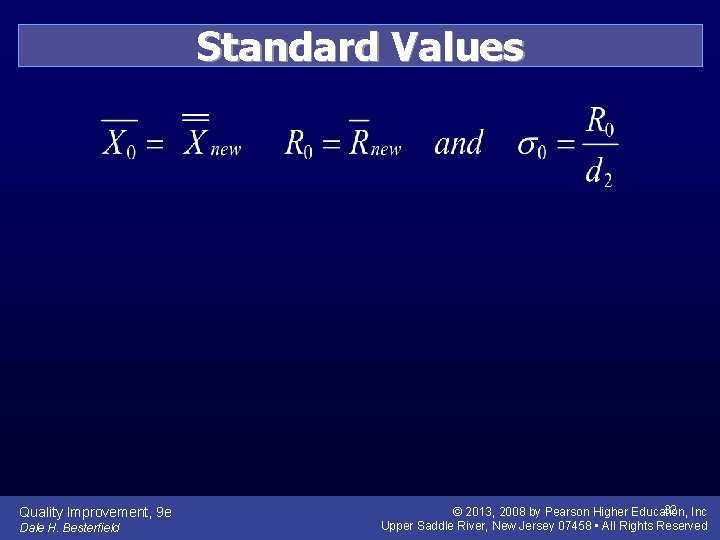

Standard Values Quality Improvement, 9 e Dale H. Besterfield 32 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Figure 6 -6 Trial control limits and revised control limits for Xbar and R charts 33 © 2013, 2008 by Pearson Higher Education, Inc Quality Improvement, 9 e Dale H. Besterfield Upper Saddle River, New Jersey 07458 • All Rights Reserved

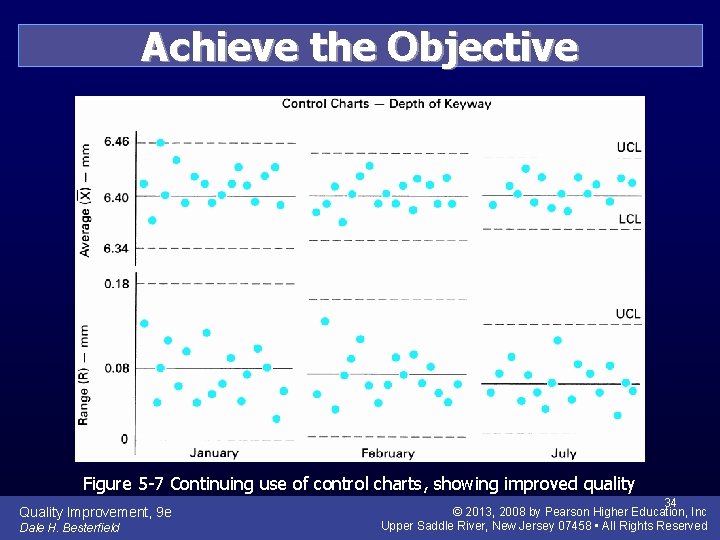

Achieve the Objective Figure 5 -7 Continuing use of control charts, showing improved quality Quality Improvement, 9 e Dale H. Besterfield 34 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved
Revised Central Lines Quality Improvement, 9 e Dale H. Besterfield 35 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

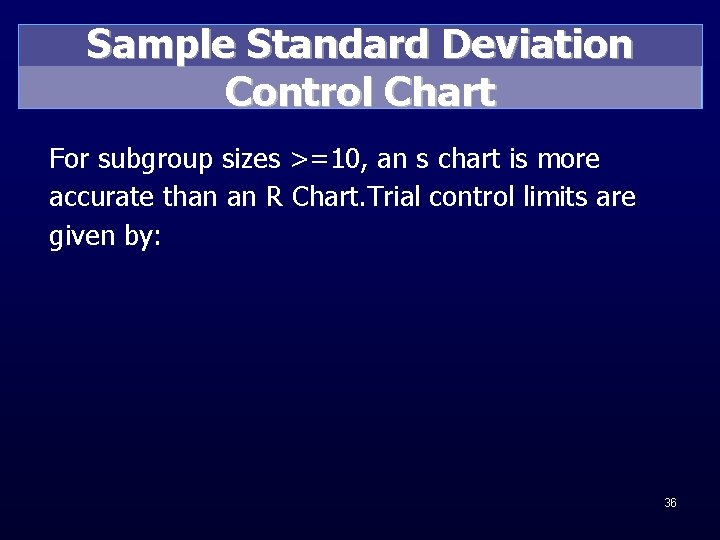

Sample Standard Deviation Control Chart For subgroup sizes >=10, an s chart is more accurate than an R Chart. Trial control limits are given by: 36
Revised Limits for s chart Quality Improvement, 9 e Dale H. Besterfield 37 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

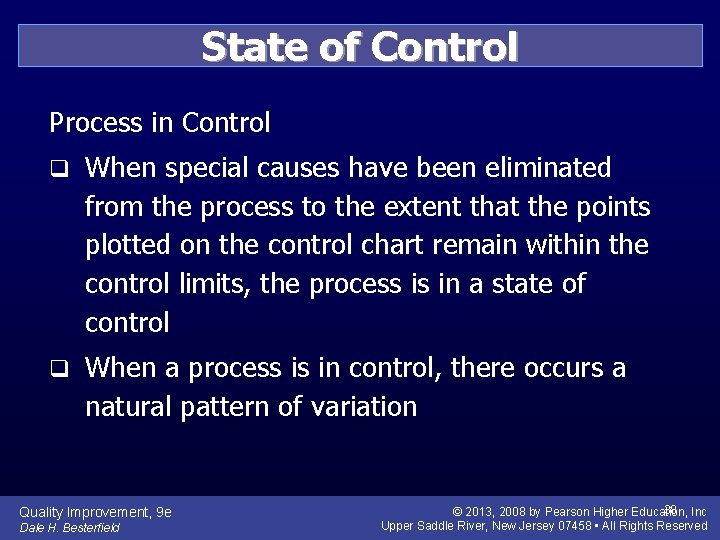

State of Control Process in Control q When special causes have been eliminated from the process to the extent that the points plotted on the control chart remain within the control limits, the process is in a state of control q When a process is in control, there occurs a natural pattern of variation Quality Improvement, 9 e Dale H. Besterfield 38 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

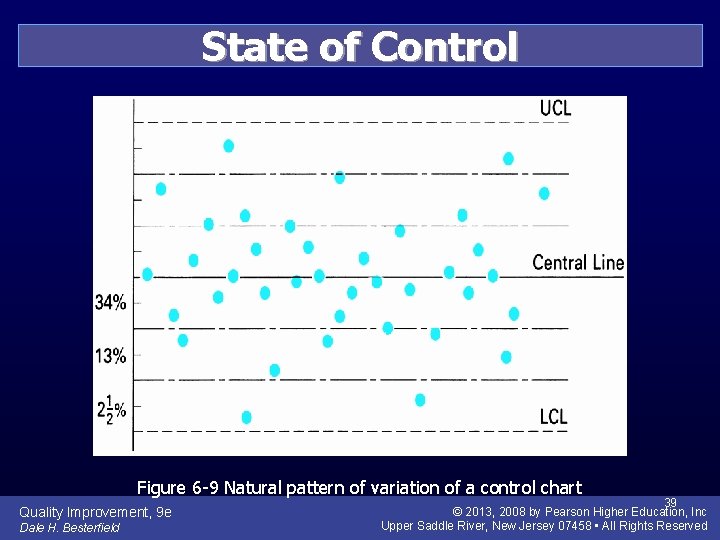

State of Control Figure 6 -9 Natural pattern of variation of a control chart Quality Improvement, 9 e Dale H. Besterfield 39 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

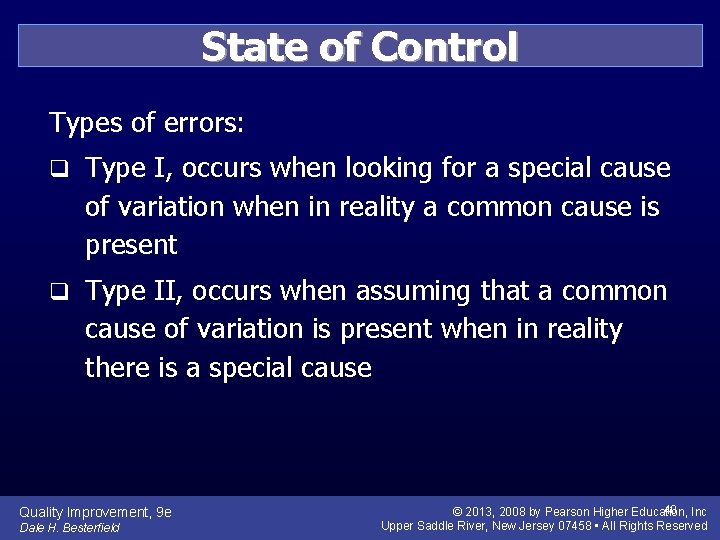

State of Control Types of errors: q Type I, occurs when looking for a special cause of variation when in reality a common cause is present q Type II, occurs when assuming that a common cause of variation is present when in reality there is a special cause Quality Improvement, 9 e Dale H. Besterfield 40 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

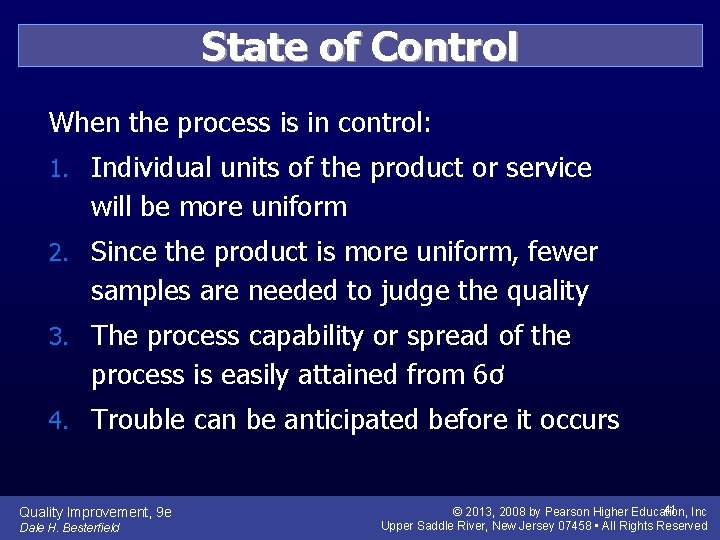

State of Control When the process is in control: 1. Individual units of the product or service will be more uniform 2. Since the product is more uniform, fewer samples are needed to judge the quality 3. The process capability or spread of the process is easily attained from 6ơ 4. Trouble can be anticipated before it occurs Quality Improvement, 9 e Dale H. Besterfield 41 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
State of Control When the process is in control: 5. The % of product that falls within any pair of values is more predictable 6. It allows the consumer to use the producer’s data 7. It is an indication that the operator is performing satisfactorily Quality Improvement, 9 e Dale H. Besterfield 42 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

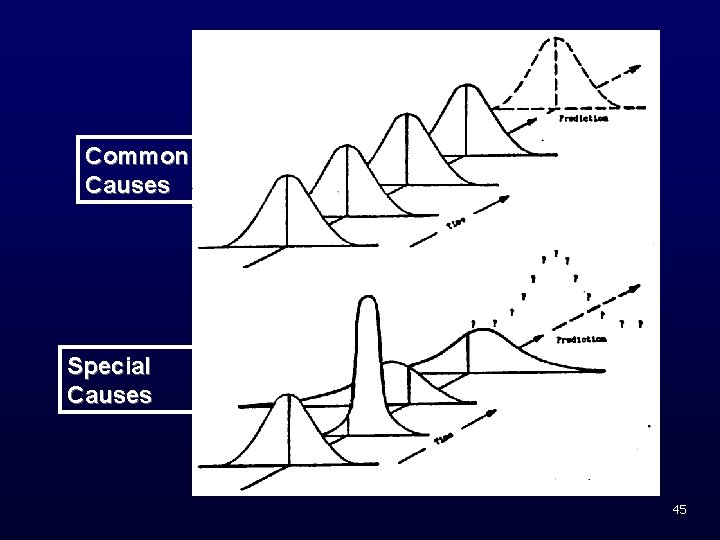

Common Causes Special Causes 45

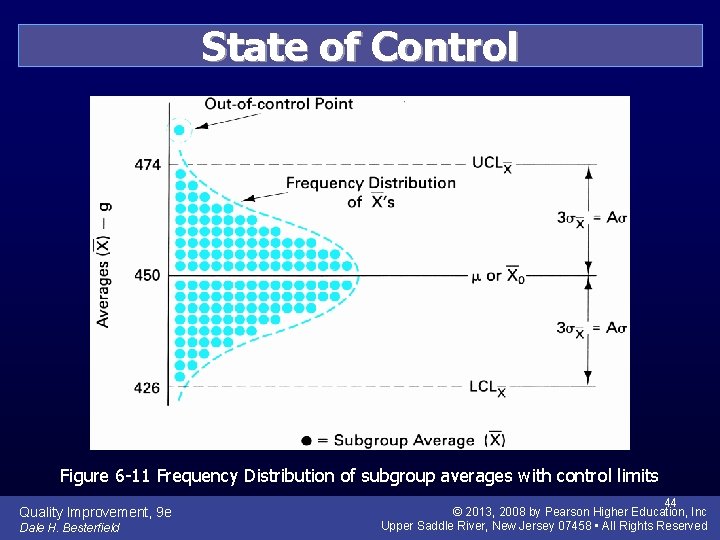

State of Control Figure 6 -11 Frequency Distribution of subgroup averages with control limits Quality Improvement, 9 e Dale H. Besterfield 44 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

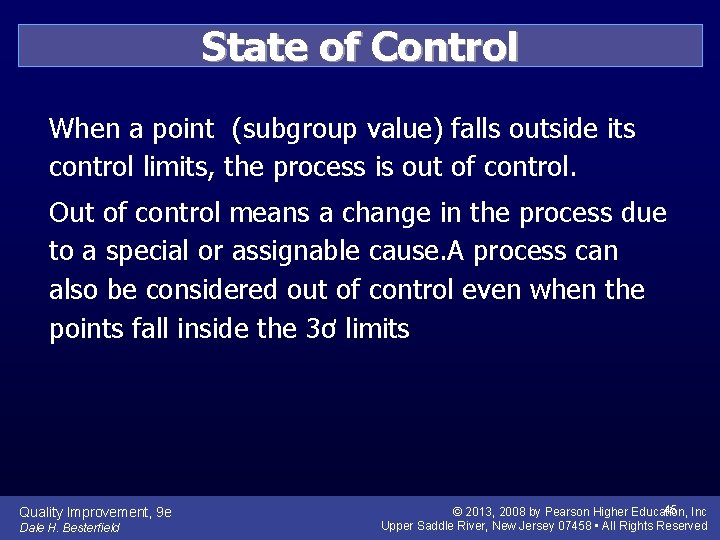

State of Control When a point (subgroup value) falls outside its control limits, the process is out of control. Out of control means a change in the process due to a special or assignable cause. A process can also be considered out of control even when the points fall inside the 3ơ limits Quality Improvement, 9 e Dale H. Besterfield 45 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

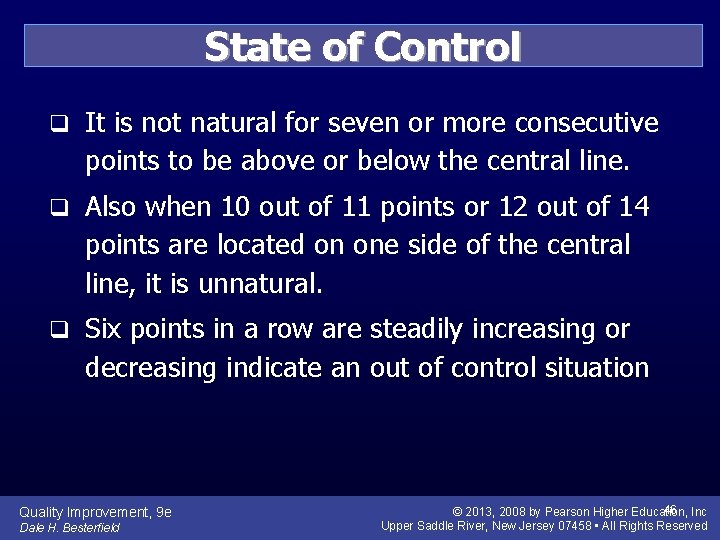

State of Control q It is not natural for seven or more consecutive points to be above or below the central line. q Also when 10 out of 11 points or 12 out of 14 points are located on one side of the central line, it is unnatural. q Six points in a row are steadily increasing or decreasing indicate an out of control situation Quality Improvement, 9 e Dale H. Besterfield 46 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

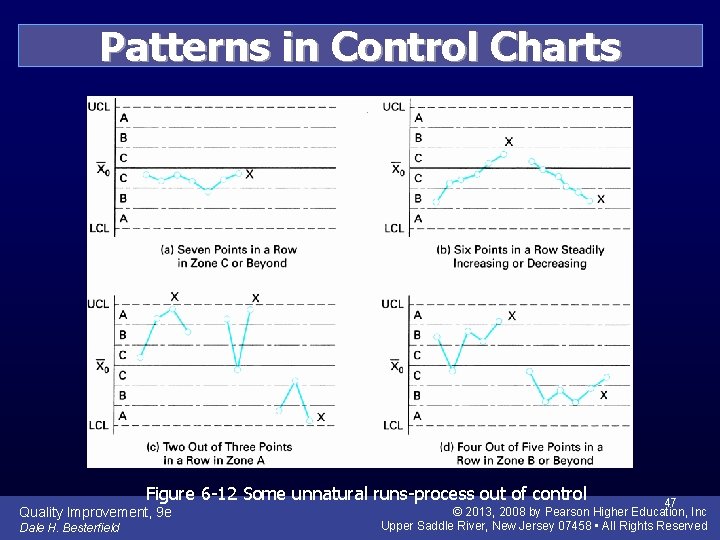

Patterns in Control Charts Figure 6 -12 Some unnatural runs-process out of control Quality Improvement, 9 e Dale H. Besterfield 47 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved
State of Control o Simplified rule: Divide space into two equal zones of 1. 5σ. o Out of control occurs when two consecutive points are beyond 1. 5σ. o See Figure 6 -13 Quality Improvement, 9 e Dale H. Besterfield 48 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

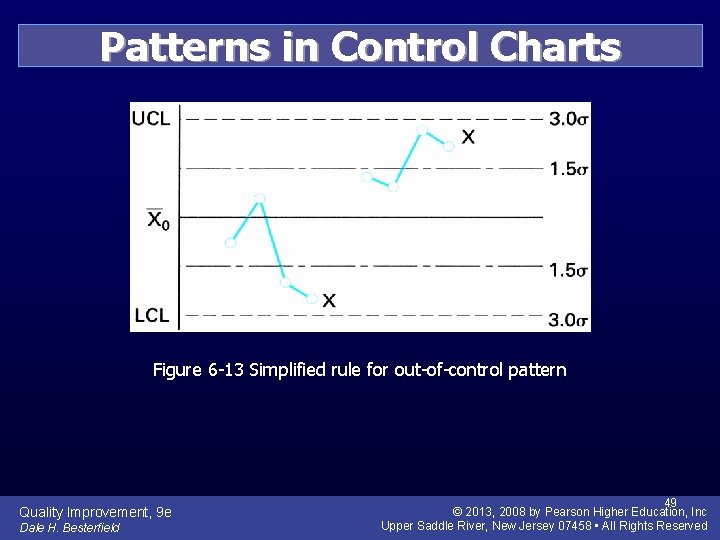

Patterns in Control Charts Figure 6 -13 Simplified rule for out-of-control pattern Quality Improvement, 9 e Dale H. Besterfield 49 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

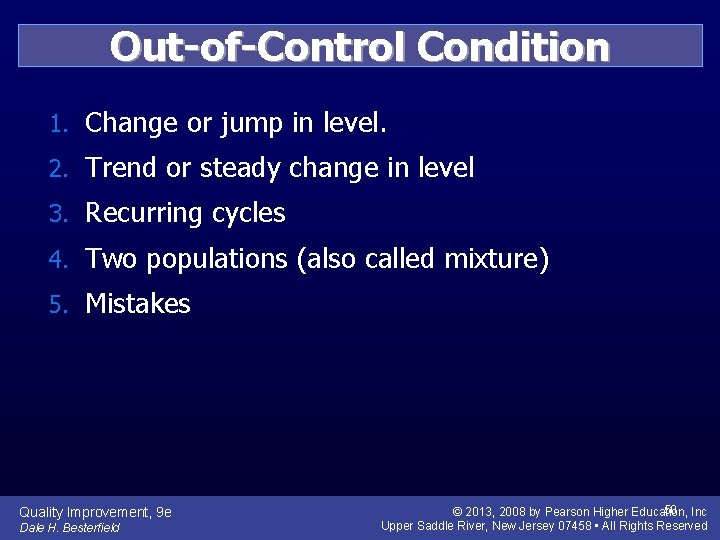

Out-of-Control Condition 1. Change or jump in level. 2. Trend or steady change in level 3. Recurring cycles 4. Two populations (also called mixture) 5. Mistakes Quality Improvement, 9 e Dale H. Besterfield 50 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

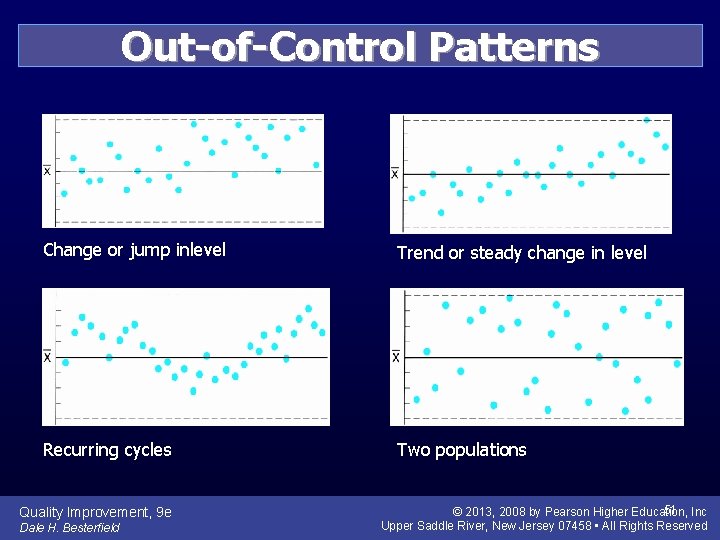

Out-of-Control Patterns Change or jump inlevel Trend or steady change in level Recurring cycles Two populations Quality Improvement, 9 e Dale H. Besterfield 51 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

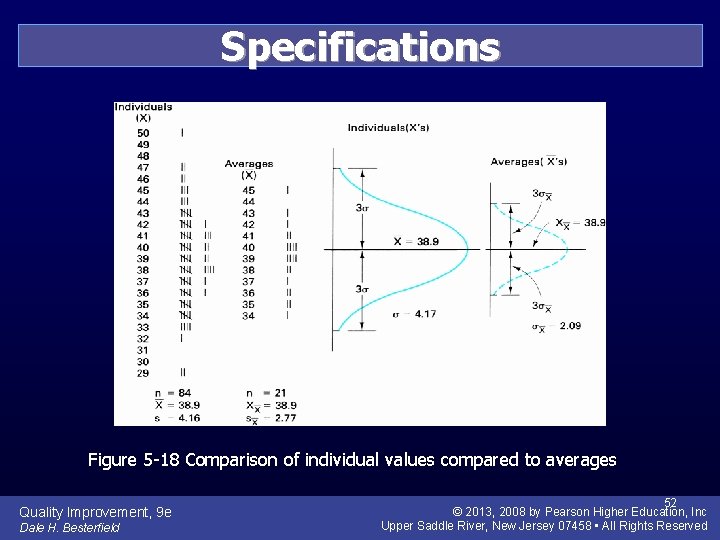

Specifications Figure 5 -18 Comparison of individual values compared to averages Quality Improvement, 9 e Dale H. Besterfield 52 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

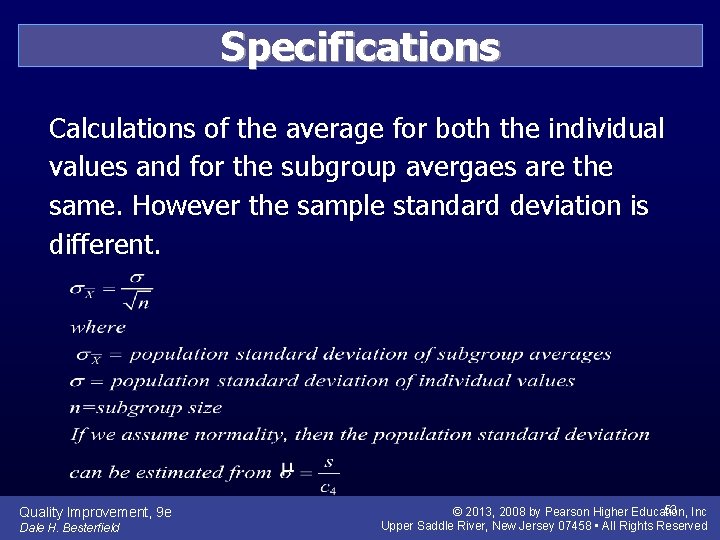

Specifications Calculations of the average for both the individual values and for the subgroup avergaes are the same. However the sample standard deviation is different. Quality Improvement, 9 e Dale H. Besterfield 53 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Central Limit Theorem If the population from which samples are taken is not normal, the distribution of sample averages will tend toward normality provided that the sample size, n, is at least 4. This tendency gets better and better as the sample size gets larger. The standardized normal can be used for the distribution averages with the modification. Quality Improvement, 9 e Dale H. Besterfield 54 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

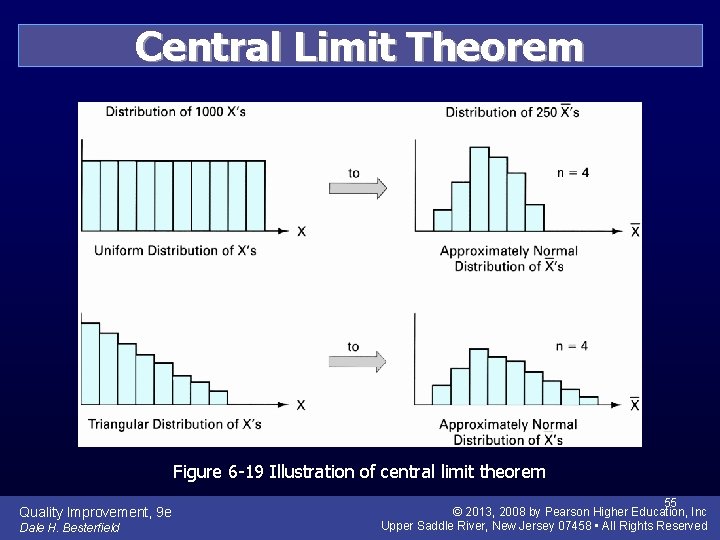

Central Limit Theorem Figure 6 -19 Illustration of central limit theorem Quality Improvement, 9 e Dale H. Besterfield 55 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

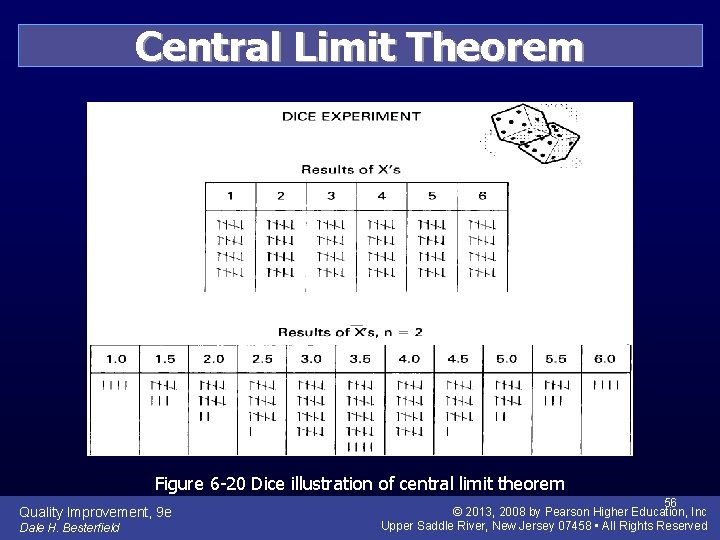

Central Limit Theorem Figure 6 -20 Dice illustration of central limit theorem Quality Improvement, 9 e Dale H. Besterfield 56 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

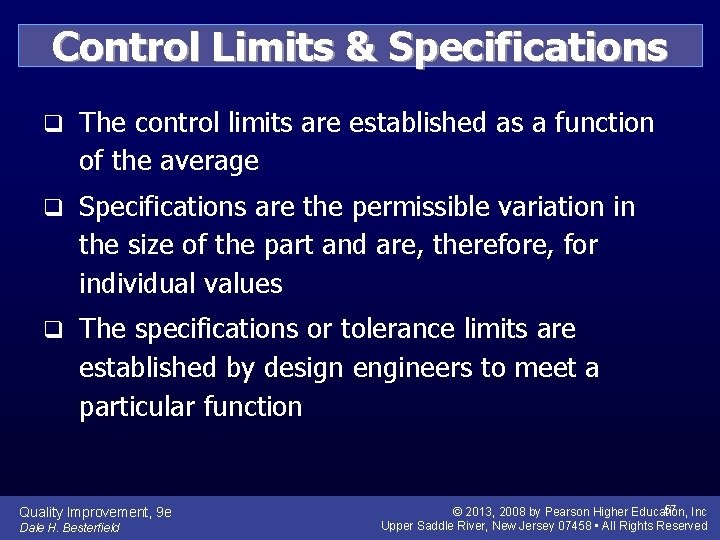

Control Limits & Specifications q The control limits are established as a function of the average q Specifications are the permissible variation in the size of the part and are, therefore, for individual values q The specifications or tolerance limits are established by design engineers to meet a particular function Quality Improvement, 9 e Dale H. Besterfield 57 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

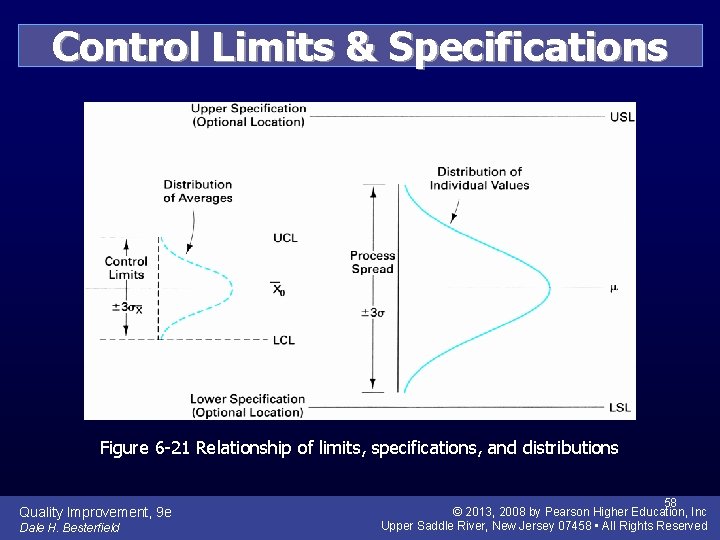

Control Limits & Specifications Figure 6 -21 Relationship of limits, specifications, and distributions Quality Improvement, 9 e Dale H. Besterfield 58 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved
Process Capability & Tolerance q The process spread will be referred to as the process capability and is equal to 6σ q The difference between specifications is called the tolerance q When the tolerance is established by the design engineer without regard to the spread of the process, undesirable situations can result Quality Improvement, 9 e Dale H. Besterfield 59 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Process Capability & Tolerance Three situations are possible: q Case I: When the process capability is less than the tolerance 6σ<USL-LSL q Case II: When the process capability is equal to the tolerance 6σ=USL-LSL q Case III: When the process capability is greater than the tolerance 6σ >USL-LSL Quality Improvement, 9 e Dale H. Besterfield 60 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

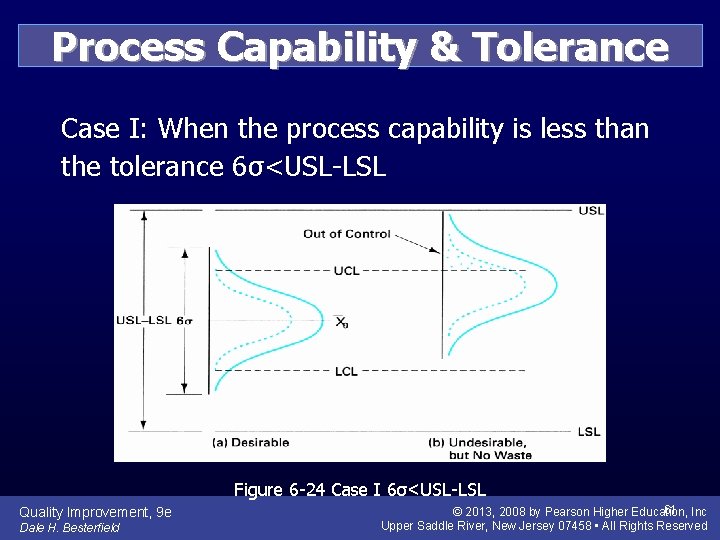

Process Capability & Tolerance Case I: When the process capability is less than the tolerance 6σ<USL-LSL Figure 6 -24 Case I 6σ<USL-LSL Quality Improvement, 9 e Dale H. Besterfield 61 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

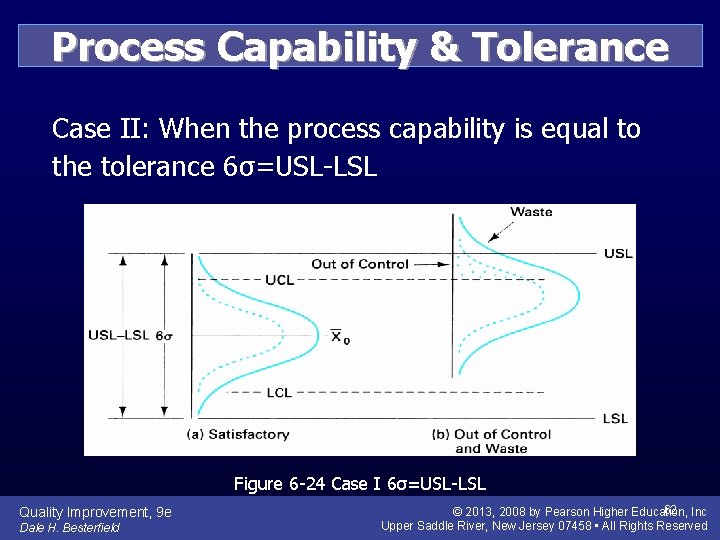

Process Capability & Tolerance Case II: When the process capability is equal to the tolerance 6σ=USL-LSL Figure 6 -24 Case I 6σ=USL-LSL Quality Improvement, 9 e Dale H. Besterfield 62 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

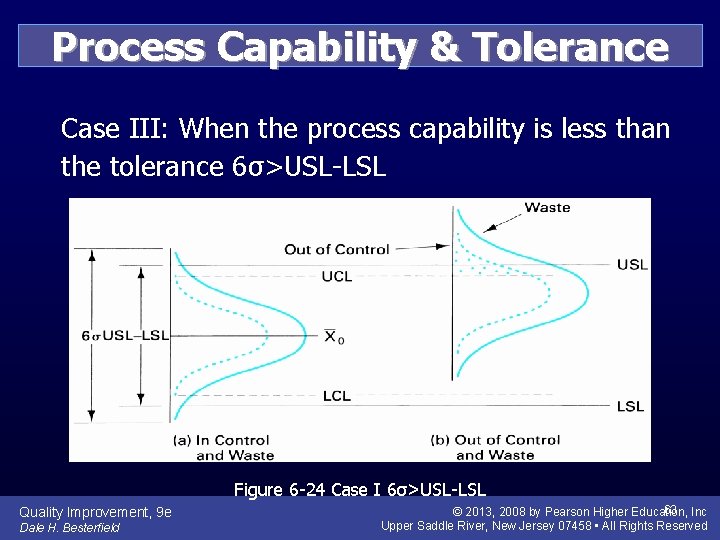

Process Capability & Tolerance Case III: When the process capability is less than the tolerance 6σ>USL-LSL Figure 6 -24 Case I 6σ>USL-LSL Quality Improvement, 9 e Dale H. Besterfield 63 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

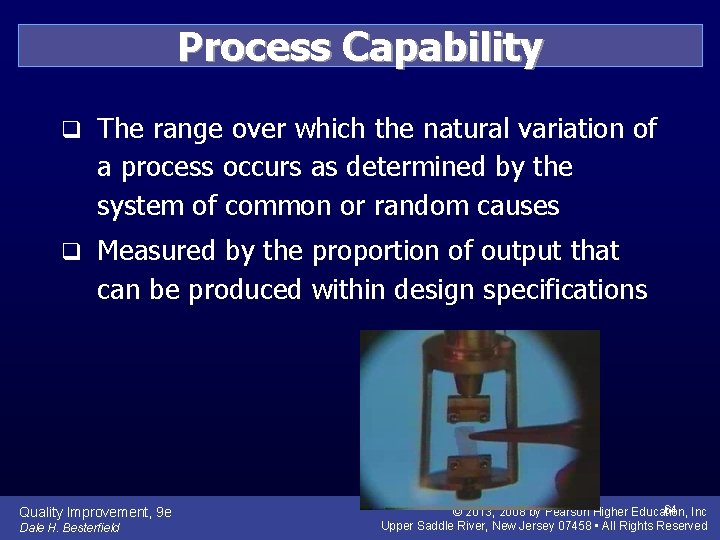

Process Capability q The range over which the natural variation of a process occurs as determined by the system of common or random causes q Measured by the proportion of output that can be produced within design specifications Quality Improvement, 9 e Dale H. Besterfield 64 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

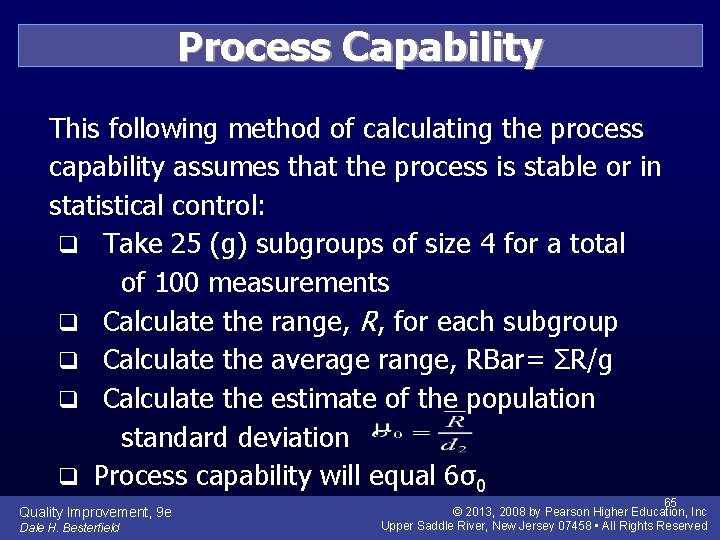

Process Capability This following method of calculating the process capability assumes that the process is stable or in statistical control: q Take 25 (g) subgroups of size 4 for a total of 100 measurements q Calculate the range, R, for each subgroup q Calculate the average range, RBar= ΣR/g q Calculate the estimate of the population standard deviation q Process capability will equal 6σ0 Quality Improvement, 9 e Dale H. Besterfield 65 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

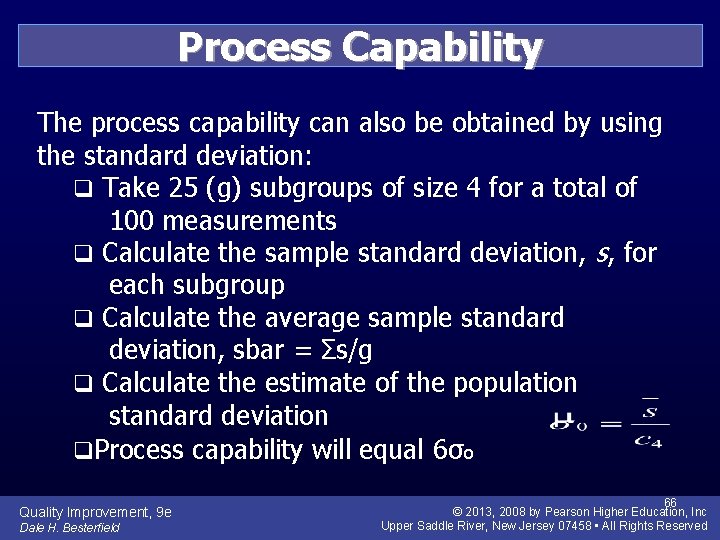

Process Capability The process capability can also be obtained by using the standard deviation: q Take 25 (g) subgroups of size 4 for a total of 100 measurements q Calculate the sample standard deviation, s, for each subgroup q Calculate the average sample standard deviation, sbar = Σs/g q Calculate the estimate of the population standard deviation q. Process capability will equal 6σo Quality Improvement, 9 e Dale H. Besterfield 66 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

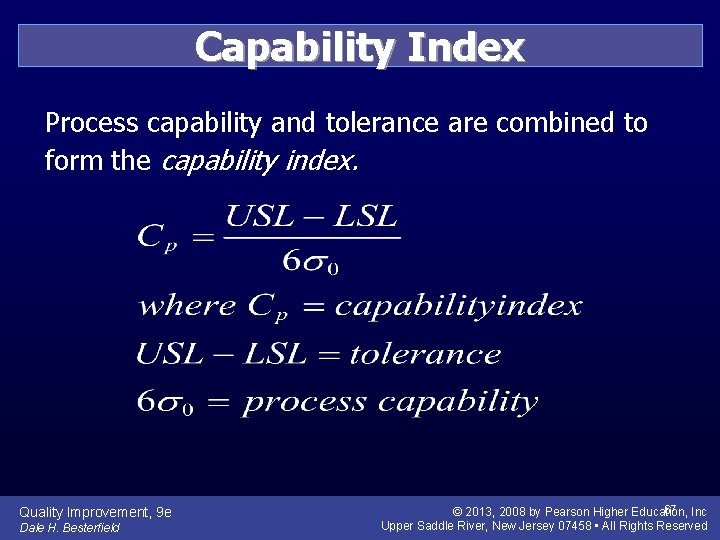

Capability Index Process capability and tolerance are combined to form the capability index. Quality Improvement, 9 e Dale H. Besterfield 67 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Capability Index The capability index does not measure process performance in terms of the nominal or target value. This measure is accomplished by Cpk. Quality Improvement, 9 e Dale H. Besterfield 68 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

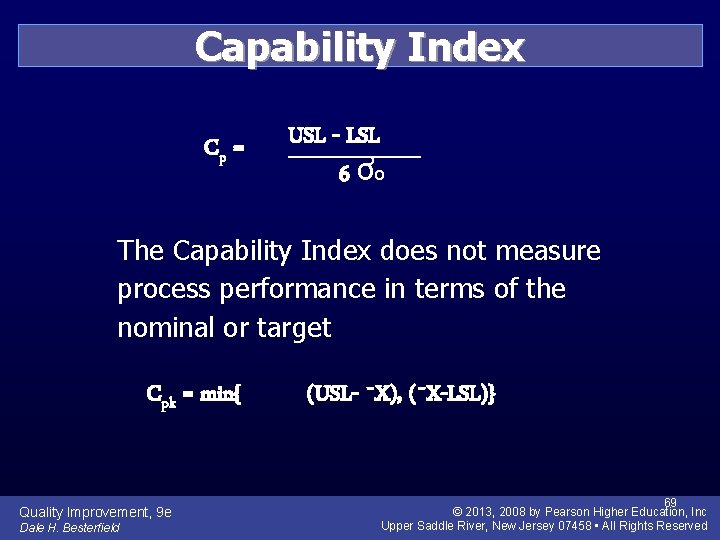

Capability Index Cp = USL - LSL 6 ơo The Capability Index does not measure process performance in terms of the nominal or target Cpk = min{ Quality Improvement, 9 e Dale H. Besterfield (USL- ¯X), (¯X-LSL)} 69 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

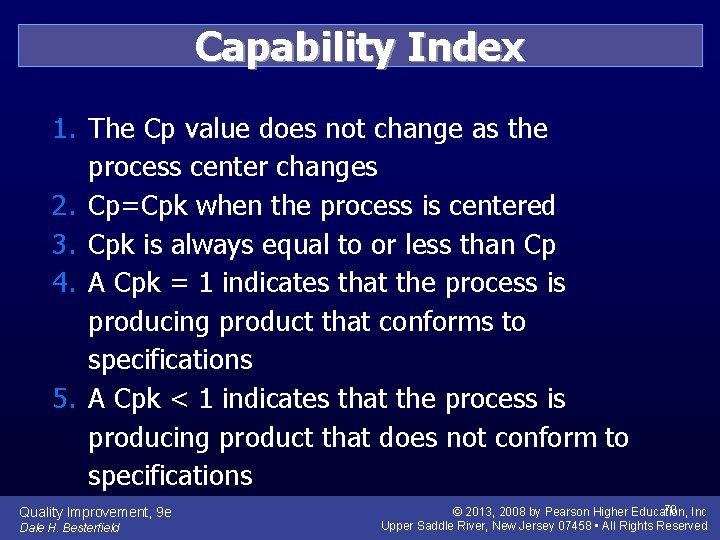

Capability Index 1. The Cp value does not change as the process center changes 2. Cp=Cpk when the process is centered 3. Cpk is always equal to or less than Cp 4. A Cpk = 1 indicates that the process is producing product that conforms to specifications 5. A Cpk < 1 indicates that the process is producing product that does not conform to specifications Quality Improvement, 9 e Dale H. Besterfield 70 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Capability Index 6. A Cp < 1 indicates that the process is not capable 7. A Cpk=0 indicates the average is equal to one of the specification limits 8. A negative Cpk value indicates that the average is outside the specifications Quality Improvement, 9 e Dale H. Besterfield 71 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

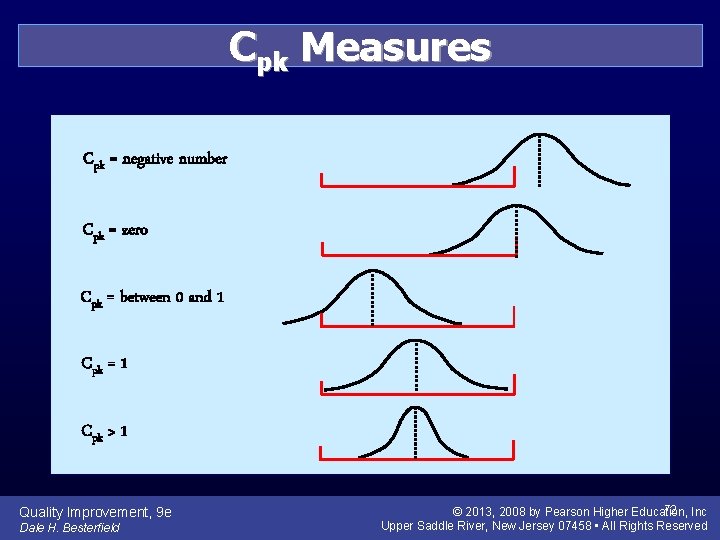

Cpk Measures Cpk = negative number Cpk = zero Cpk = between 0 and 1 Cpk = 1 Cpk > 1 Quality Improvement, 9 e Dale H. Besterfield 72 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Different Control Charts for Better Operator Understanding: 1. Placing individual values on the chart: This technique plots both the individual values and the subgroup average. Not recommended since it does not provide much information. 2. Chart for subgroup sums: This technique plots the subgroup sum, ΣX, rather than the group average, Xbar. Quality Improvement, 9 e Dale H. Besterfield 73 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

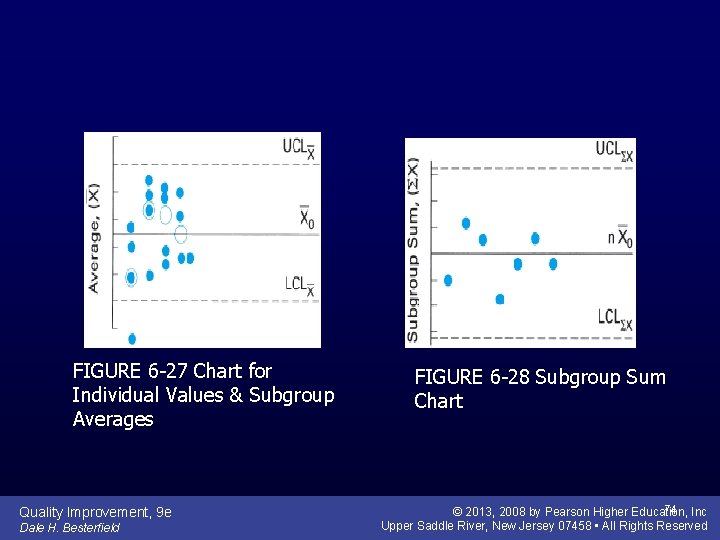

FIGURE 6 -27 Chart for Individual Values & Subgroup Averages Quality Improvement, 9 e Dale H. Besterfield FIGURE 6 -28 Subgroup Sum Chart 74 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Different Control Charts for Variable Subgroup Size: Used when the sample size is not the same q Different control limits for each subgroup q As n increases, limits become narrower q As n decreases, limits become wider apart q Difficult to interpret and explain q To be avoided Quality Improvement, 9 e Dale H. Besterfield 75 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

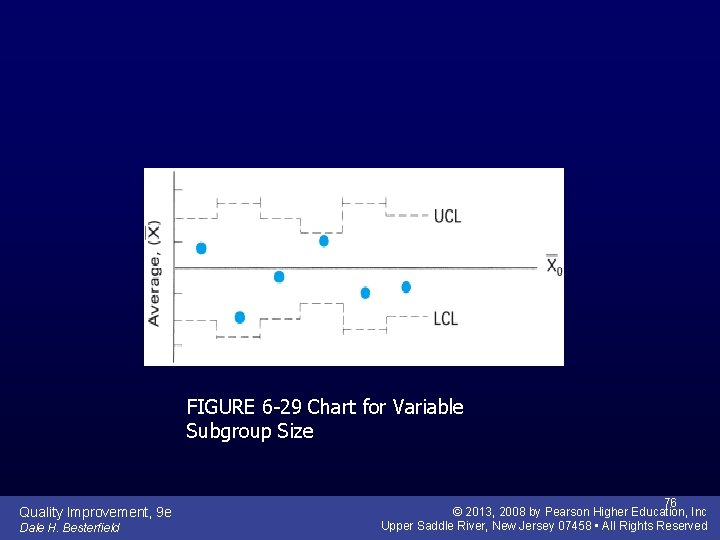

FIGURE 6 -29 Chart for Variable Subgroup Size Quality Improvement, 9 e Dale H. Besterfield 76 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

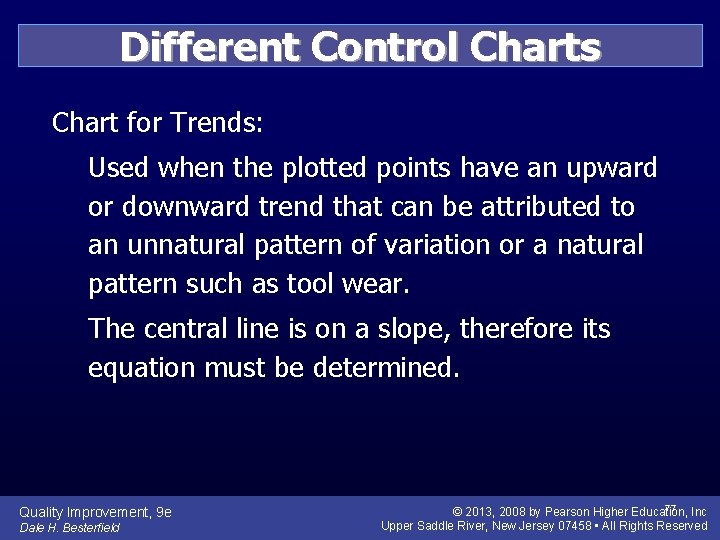

Different Control Charts Chart for Trends: Used when the plotted points have an upward or downward trend that can be attributed to an unnatural pattern of variation or a natural pattern such as tool wear. The central line is on a slope, therefore its equation must be determined. Quality Improvement, 9 e Dale H. Besterfield 77 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

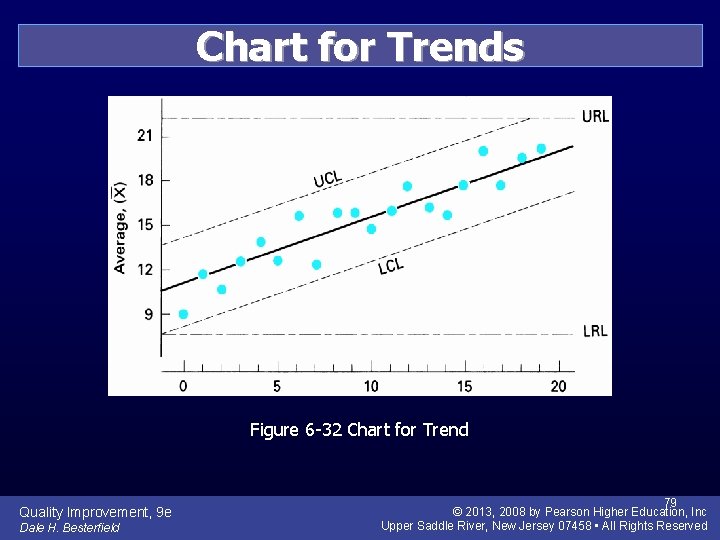

Chart for Trends Figure 6 -32 Chart for Trend Quality Improvement, 9 e Dale H. Besterfield 79 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

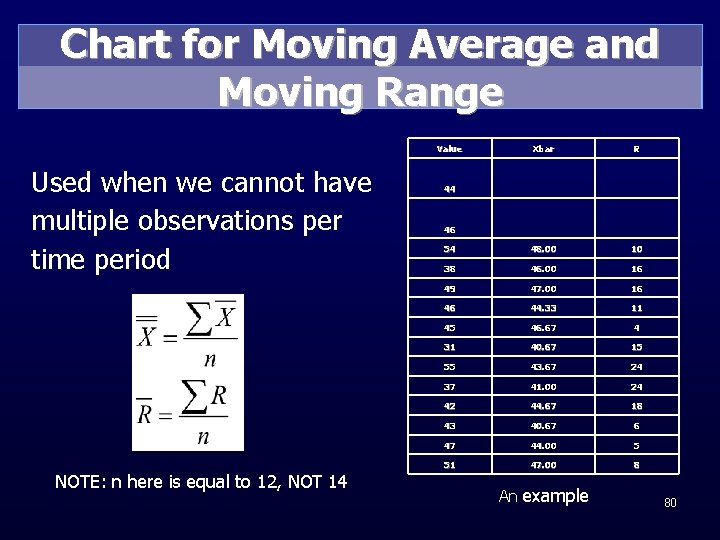

Chart for Moving Average and Moving Range Value Used when we cannot have multiple observations per time period NOTE: n here is equal to 12, NOT 14 Xbar R 54 48. 00 10 38 46. 00 16 49 47. 00 16 46 44. 33 11 45 46. 67 4 31 40. 67 15 55 43. 67 24 37 41. 00 24 42 44. 67 18 43 40. 67 6 47 44. 00 5 51 47. 00 8 44 46 An example 80

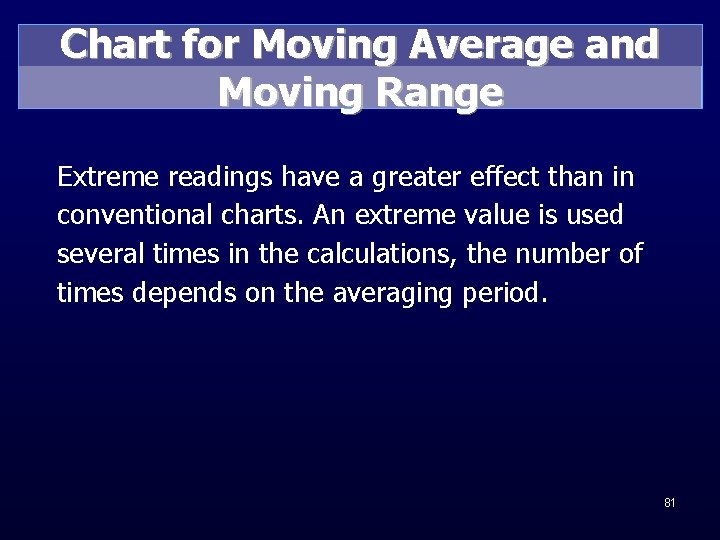

Chart for Moving Average and Moving Range Extreme readings have a greater effect than in conventional charts. An extreme value is used several times in the calculations, the number of times depends on the averaging period. 81

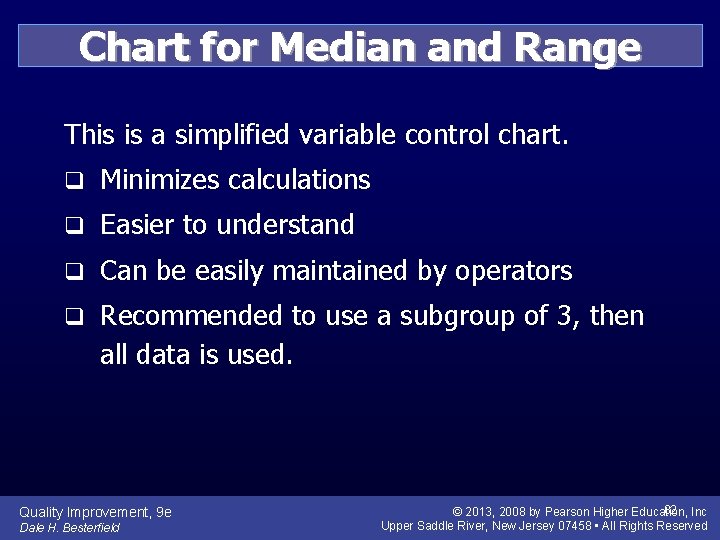

Chart for Median and Range This is a simplified variable control chart. q Minimizes calculations q Easier to understand q Can be easily maintained by operators q Recommended to use a subgroup of 3, then all data is used. Quality Improvement, 9 e Dale H. Besterfield 82 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Chart for Median and Range For Table for A 5, D 5 and D 6 see page 230 Quality Improvement, 9 e Dale H. Besterfield 83 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

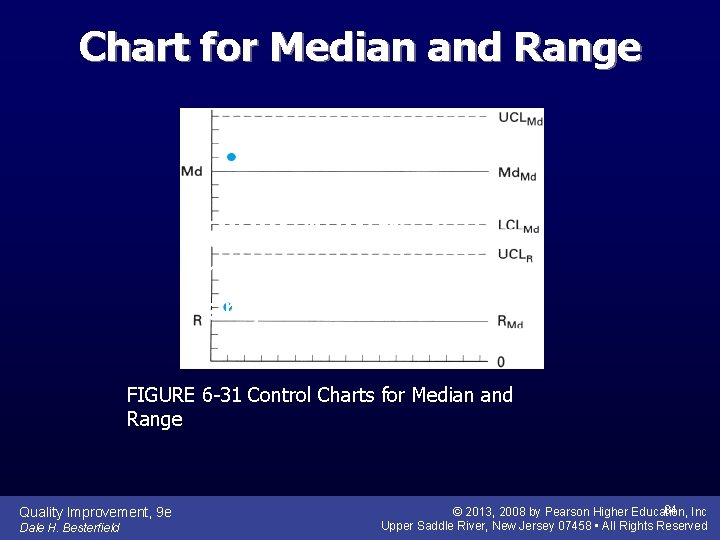

Chart for Median and Range FIGURE 6 -31 Control Charts for Median and Range Quality Improvement, 9 e Dale H. Besterfield 84 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

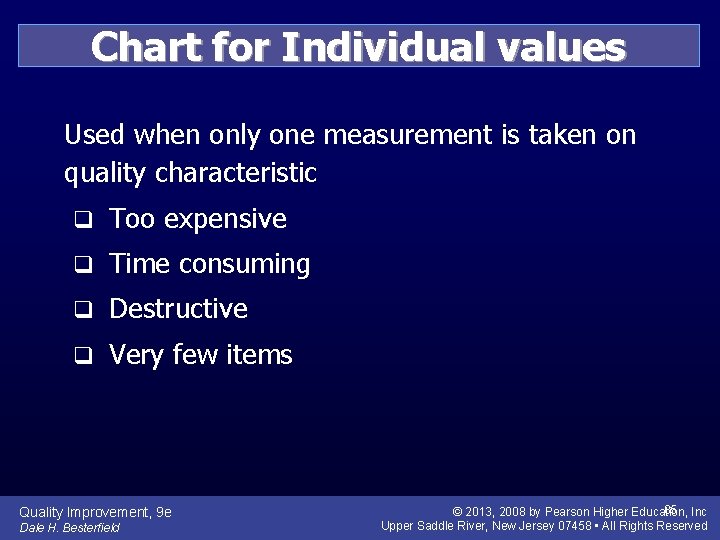

Chart for Individual values Used when only one measurement is taken on quality characteristic q Too expensive q Time consuming q Destructive q Very few items Quality Improvement, 9 e Dale H. Besterfield 85 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Chart for Individual Values To use those equations, you have to use a moving range with n=2 Quality Improvement, 9 e Dale H. Besterfield 86 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
Chart for Individual Values Revised Limits: Quality Improvement, 9 e Dale H. Besterfield 87 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

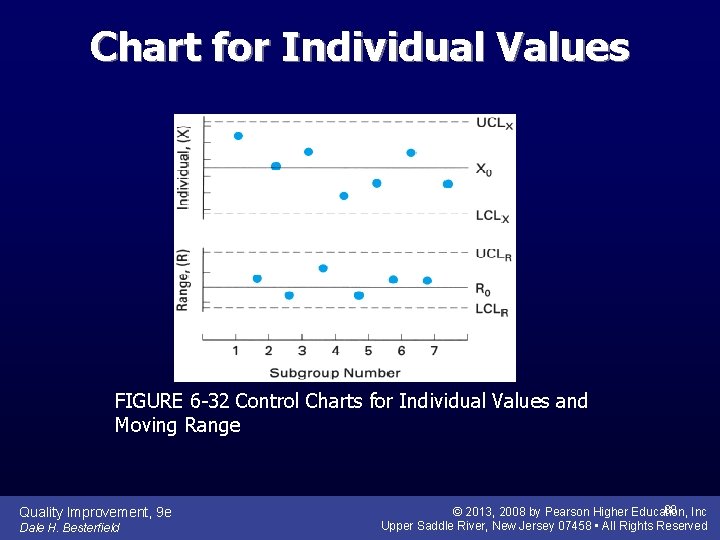

Chart for Individual Values FIGURE 6 -32 Control Charts for Individual Values and Moving Range Quality Improvement, 9 e Dale H. Besterfield 88 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

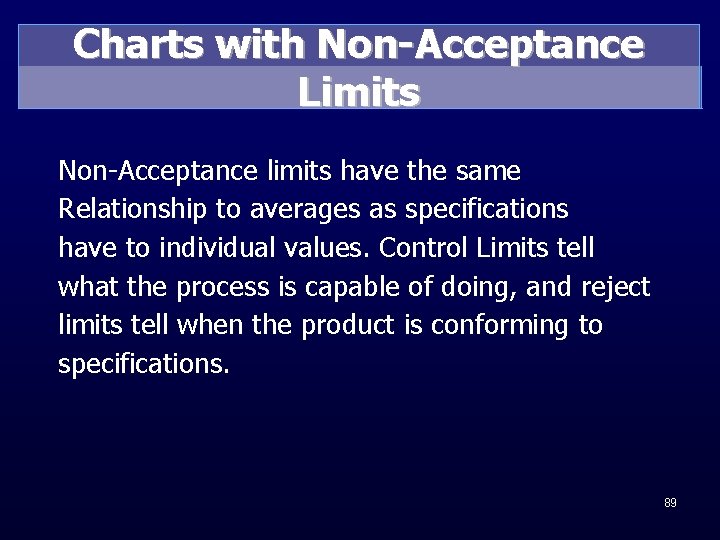

Charts with Non-Acceptance Limits Non-Acceptance limits have the same Relationship to averages as specifications have to individual values. Control Limits tell what the process is capable of doing, and reject limits tell when the product is conforming to specifications. 89

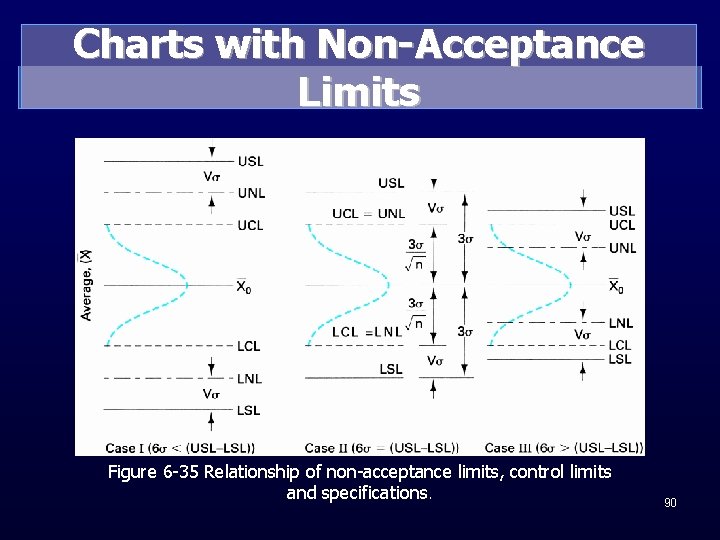

Charts with Non-Acceptance Limits Figure 6 -35 Relationship of non-acceptance limits, control limits and specifications. 90

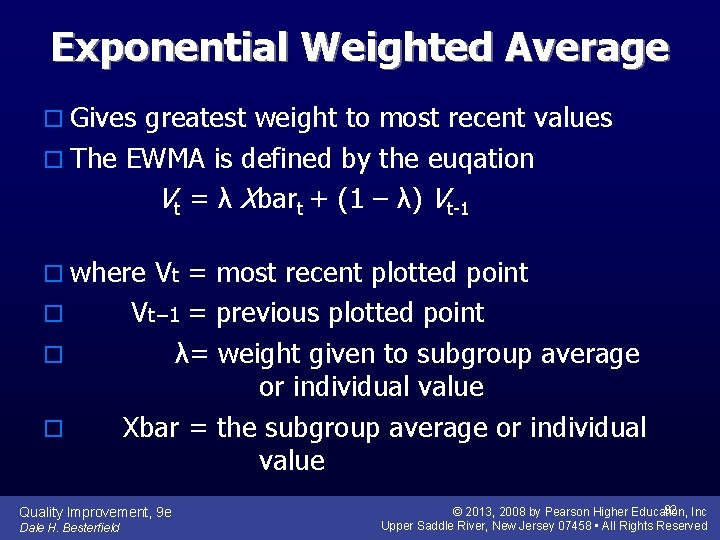

Exponential Weighted Average o Gives greatest weight to most recent values o The EWMA is defined by the euqation o Vt = l. Xt + 11 - l 2 Vt-1 o where V t = the EWMA of the most recent plotted point o V t− 1 = the EWMA of the previous plotted point o l = the weight given to the subgroup average or o individual value 91 Inc © 2013, 2008 by Pearson Higher Education, Quality Improvement, 9 e Dale H. Besterfield Upper Saddle River, New Jersey 07458 • All Rights Reserved
Exponential Weighted Average o Gives greatest weight to most recent values o The EWMA is defined by the euqation Vt = λ Xbart + (1 – λ) Vt-1 o where Vt = most recent plotted point o o o Vt− 1 = previous plotted point λ= weight given to subgroup average or individual value Xbar = the subgroup average or individual value Quality Improvement, 9 e Dale H. Besterfield 92 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

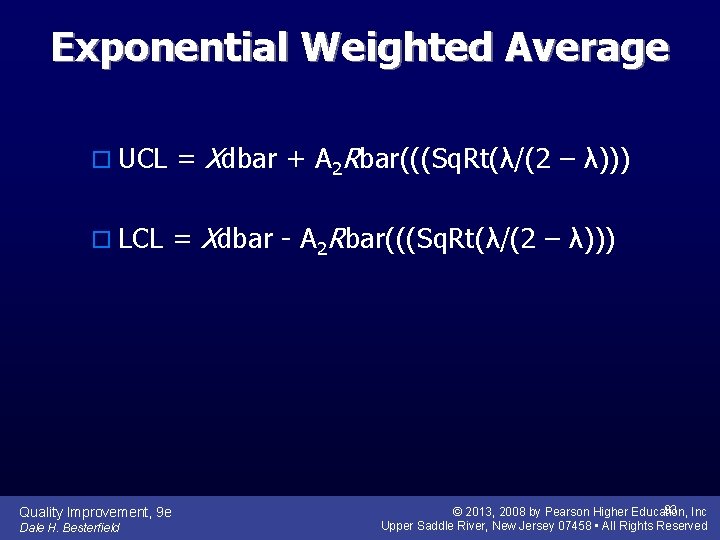

Exponential Weighted Average o UCL = Xdbar + A 2 Rbar(((Sq. Rt(λ/(2 – λ))) o LCL = Xdbar - A 2 Rbar(((Sq. Rt(λ/(2 – λ))) Quality Improvement, 9 e Dale H. Besterfield 93 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved

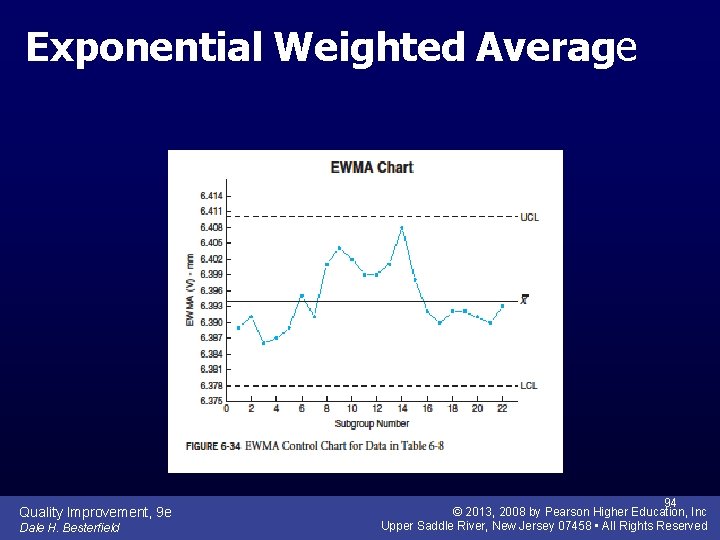

Exponential Weighted Average Quality Improvement, 9 e Dale H. Besterfield 94 © 2013, 2008 by Pearson Higher Education, Inc Upper Saddle River, New Jersey 07458 • All Rights Reserved

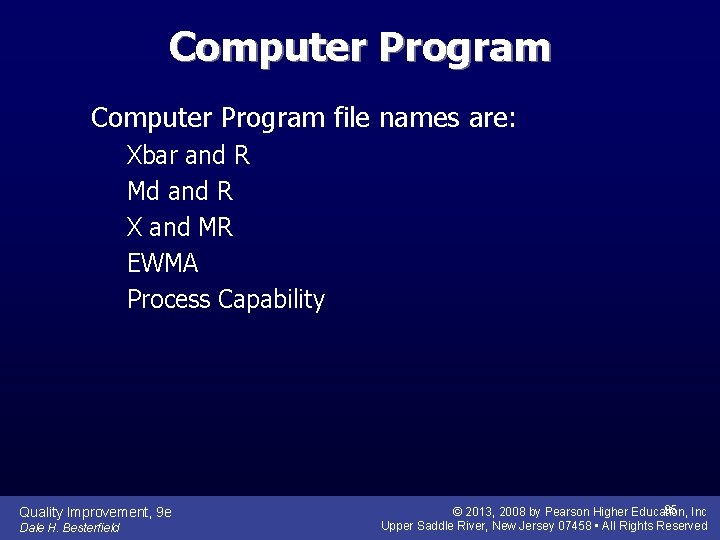

Computer Program file names are: Xbar and R Md and R X and MR EWMA Process Capability Quality Improvement, 9 e Dale H. Besterfield 95 Inc © 2013, 2008 by Pearson Higher Education, Upper Saddle River, New Jersey 07458 • All Rights Reserved
