Quality Control of Product Polyacrylamide Gel Electrophoresis Analysis

Quality Control of Product Polyacrylamide Gel Electrophoresis

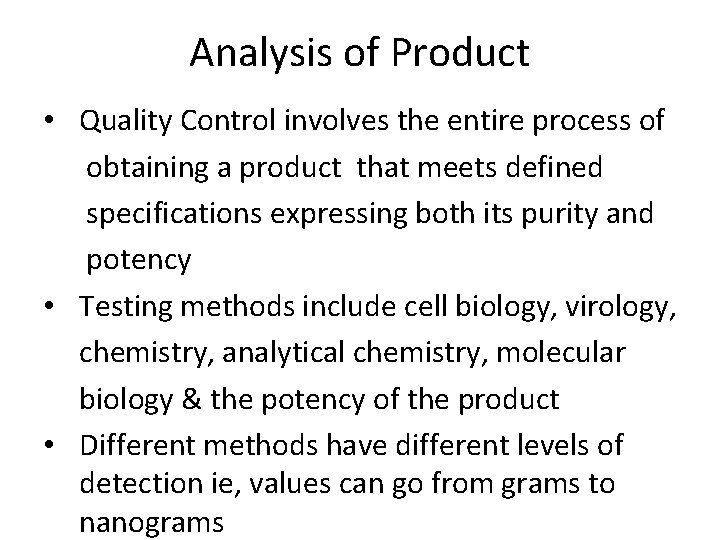

Analysis of Product • Quality Control involves the entire process of obtaining a product that meets defined specifications expressing both its purity and potency • Testing methods include cell biology, virology, chemistry, analytical chemistry, molecular biology & the potency of the product • Different methods have different levels of detection ie, values can go from grams to nanograms

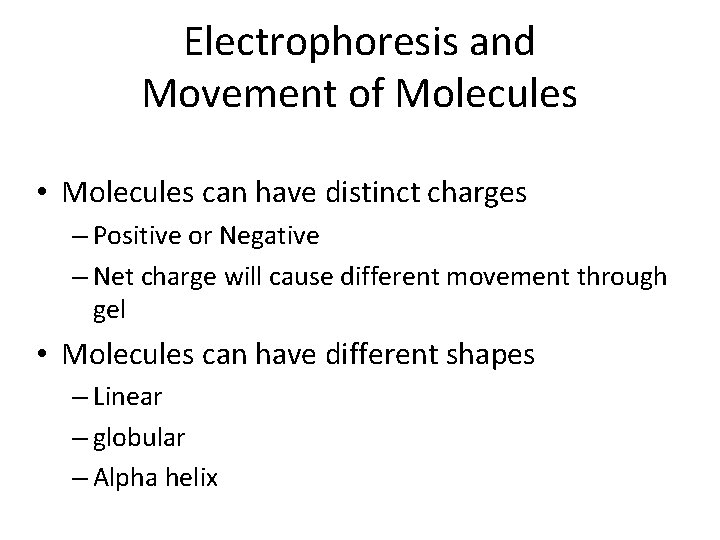

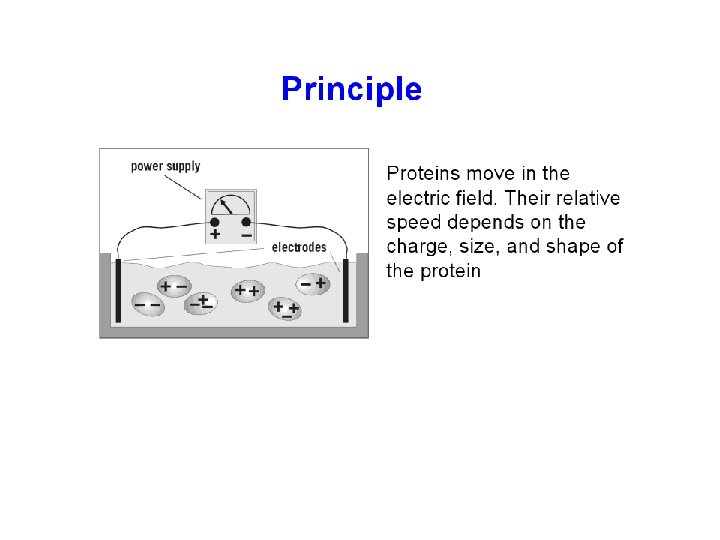

Electrophoresis and Movement of Molecules • Molecules can have distinct charges – Positive or Negative – Net charge will cause different movement through + gel • Molecules can have different shapes – Linear – globular – Alpha helix

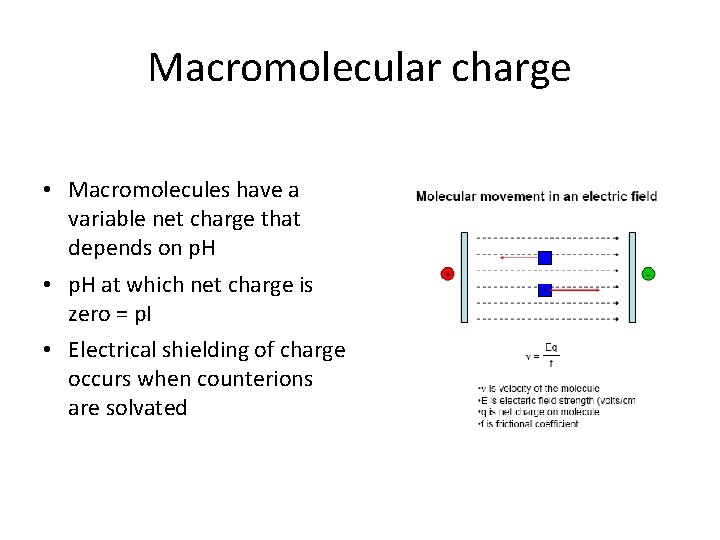

Macromolecular charge • Macromolecules have a variable net charge that depends on p. H • p. H at which net charge is zero = p. I • Electrical shielding of charge occurs when counterions are solvated V= V=

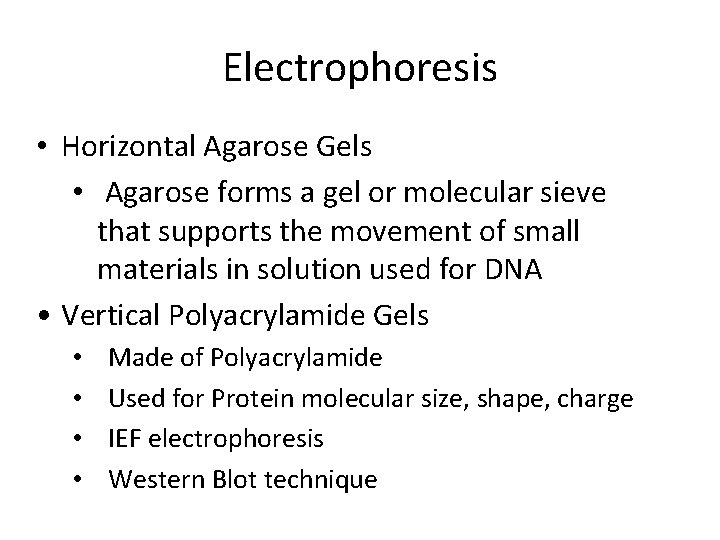

Electrophoresis • Horizontal Agarose Gels • Agarose forms a gel or molecular sieve that supports the movement of small materials in solution used for DNA • Vertical Polyacrylamide Gels • • Made of Polyacrylamide Used for Protein molecular size, shape, charge IEF electrophoresis Western Blot technique

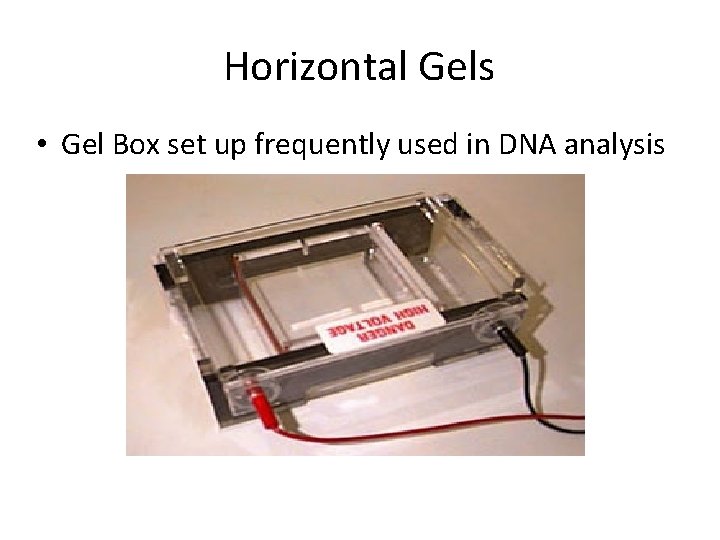

Horizontal Gels • Gel Box set up frequently used in DNA analysis

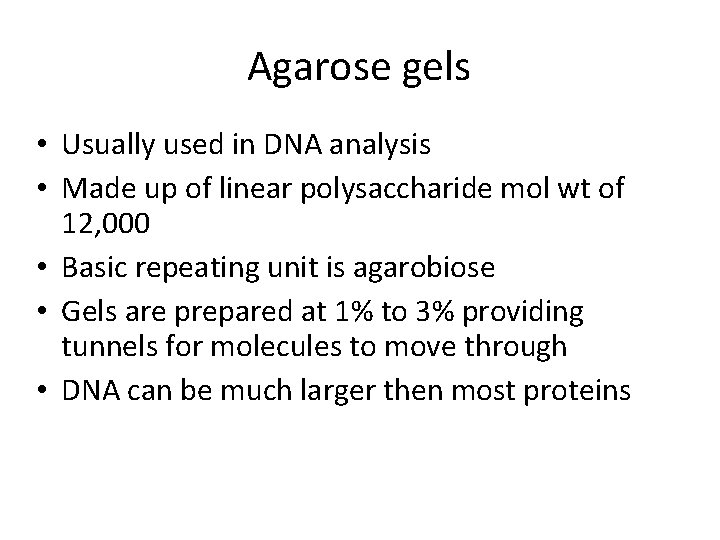

Agarose gels • Usually used in DNA analysis • Made up of linear polysaccharide mol wt of 12, 000 • Basic repeating unit is agarobiose • Gels are prepared at 1% to 3% providing tunnels for molecules to move through • DNA can be much larger then most proteins

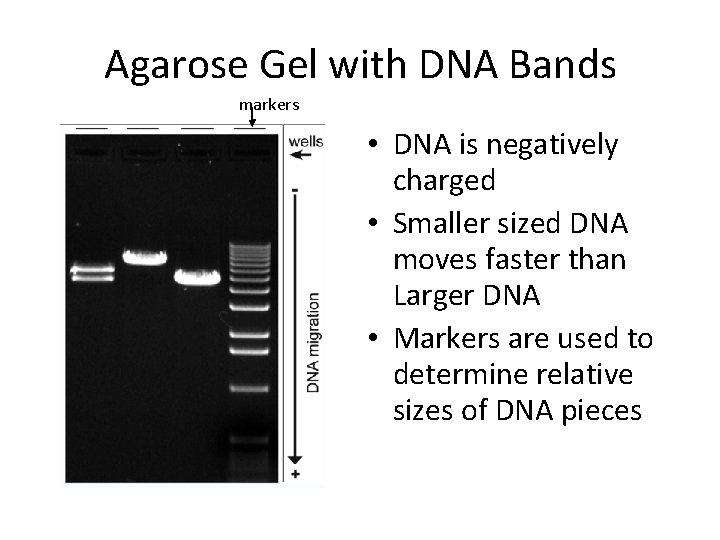

Agarose Gel with DNA Bands markers • DNA is negatively charged • Smaller sized DNA moves faster than Larger DNA • Markers are used to determine relative sizes of DNA pieces

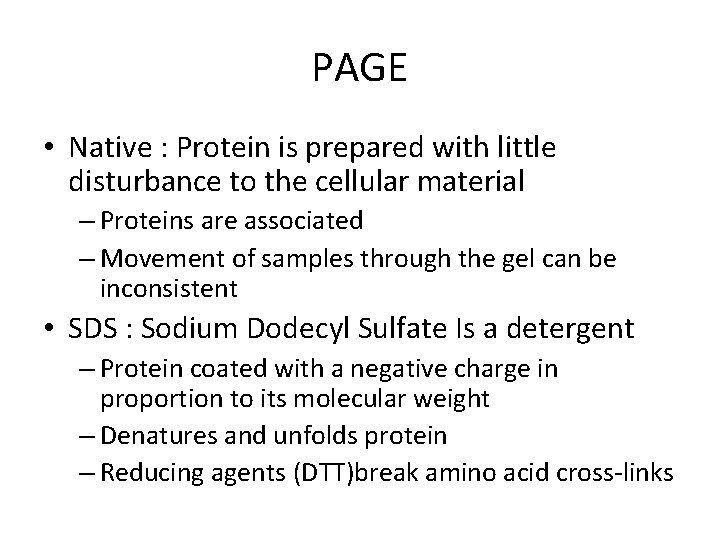

PAGE • Native : Protein is prepared with little disturbance to the cellular material – Proteins are associated – Movement of samples through the gel can be inconsistent • SDS : Sodium Dodecyl Sulfate Is a detergent – Protein coated with a negative charge in proportion to its molecular weight – Denatures and unfolds protein – Reducing agents (DTT)break amino acid cross-links

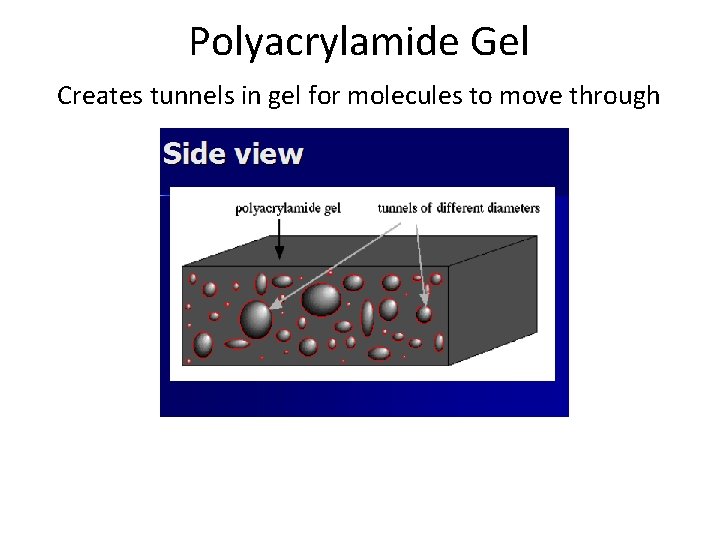

Polyacrylamide Gel P Creates tunnels in gel for molecules to move through

Uses for PAGE • Separates proteins from each other – Proteins separated by size – Isoelectric point • Determines – – Molecular size of protein Quantifies the amount present Displays Impurities Used in western blot assays by antigen interactions

Determine Molecular Weight 1. Run standard molecular weight markers on gel 2. Run unknown protein on the same gel 3. Create a graph of the mol wt versus distance molecule has moved 4. Using the distance the unknown has moved determine the molecular weight from graph

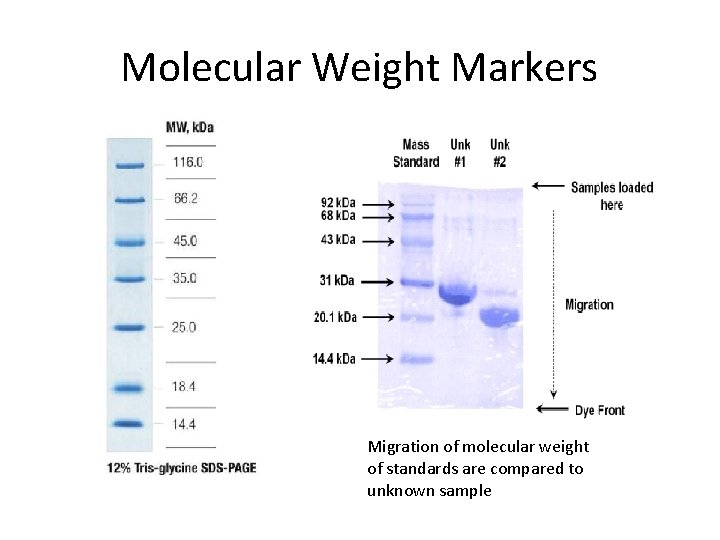

Molecular Weight Markers Migration of molecular weight of standards are compared to unknown samplewt std vs unknown

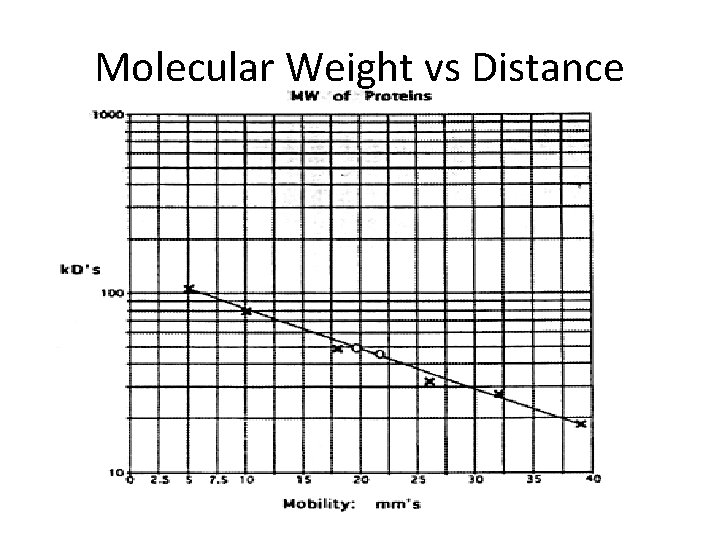

Molecular Weight vs Distance

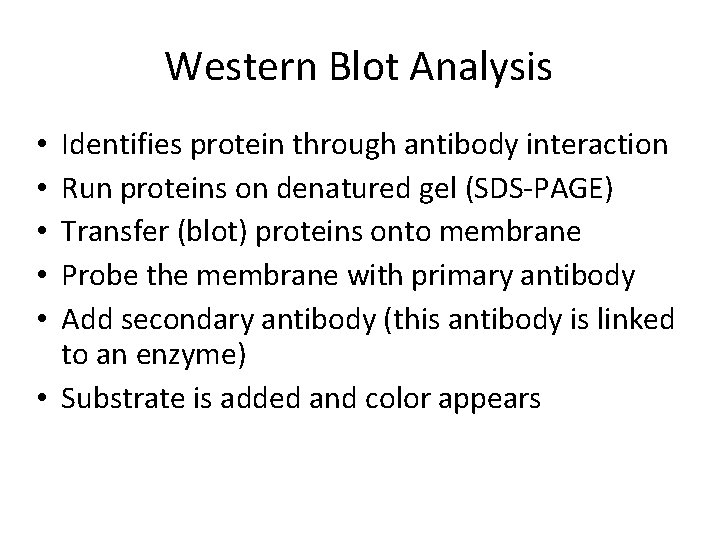

Western Blot Analysis Identifies protein through antibody interaction Run proteins on denatured gel (SDS-PAGE) Transfer (blot) proteins onto membrane Probe the membrane with primary antibody Add secondary antibody (this antibody is linked to an enzyme) • Substrate is added and color appears • • •

SDS Polyacrylamide Electrophoresis

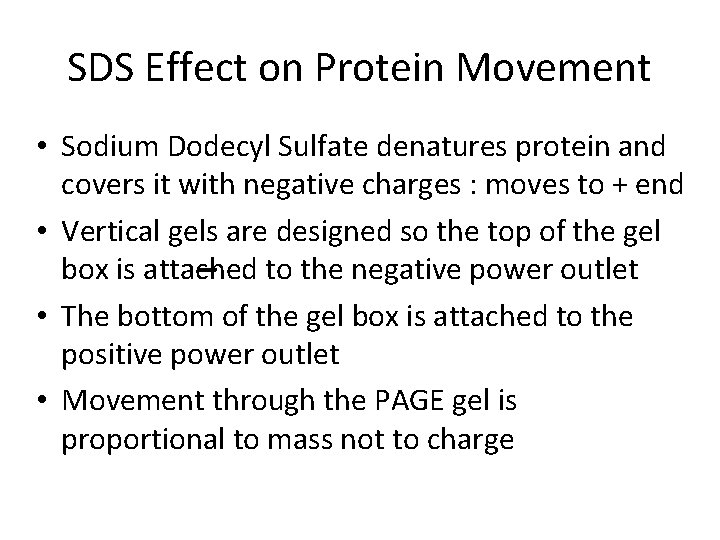

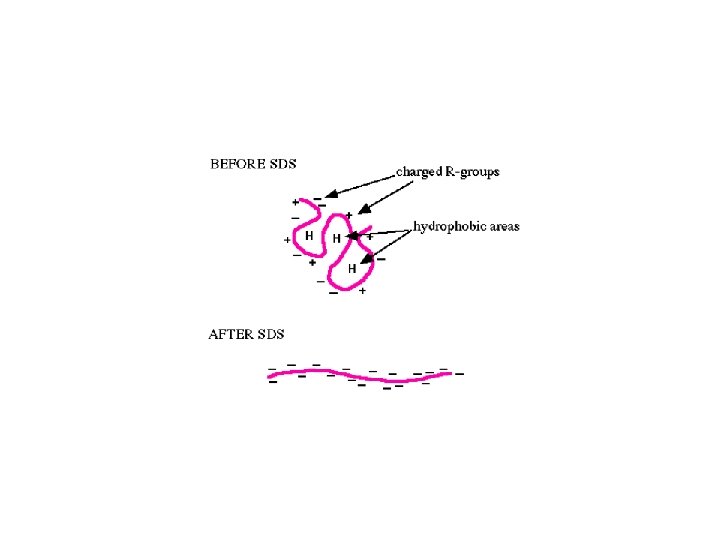

SDS Effect on Protein Movement • Sodium Dodecyl Sulfate denatures protein and covers it with negative charges : moves to + end • Vertical gels are designed so the top of the gel box is attached to the negative power outlet • The bottom of the gel box is attached to the positive power outlet • Movement through the PAGE gel is proportional to mass not to charge

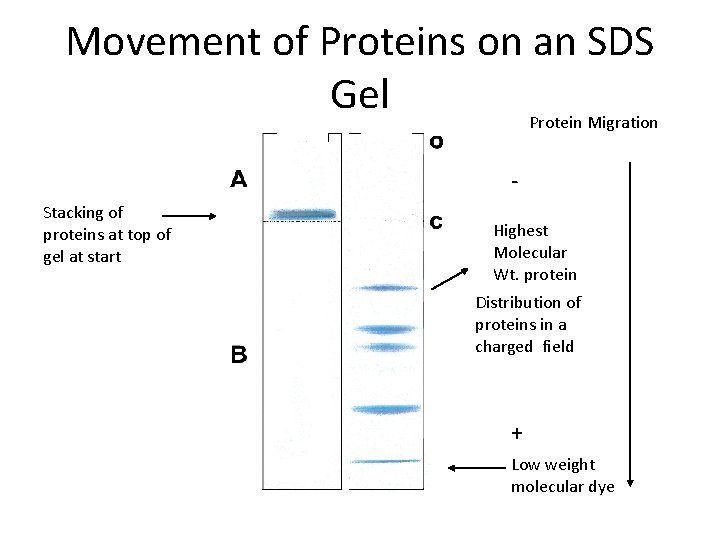

Movement of Proteins on an SDS Gel Protein Migration Stacking of proteins at top of gel at start Highest Molecular Wt. protein Distribution of proteins in a charged field + Low weight molecular dye

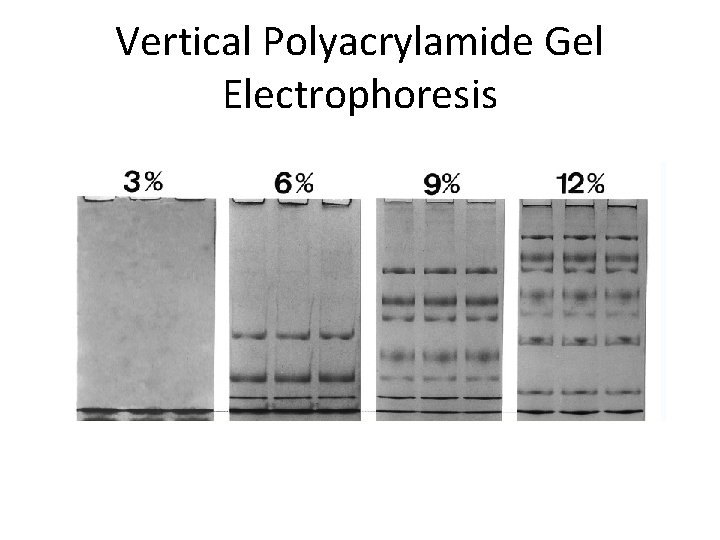

% Polyacrylamide in Gel • Gels can be made at different concentrations of polyacrylamide • Example: gels made at 3%, 6%, 9% and 12% will produce different openings through which the molecule will migrate • The larger the opening allows large molecules to move through the gel

Vertical Polyacrylamide Gel Electrophoresis

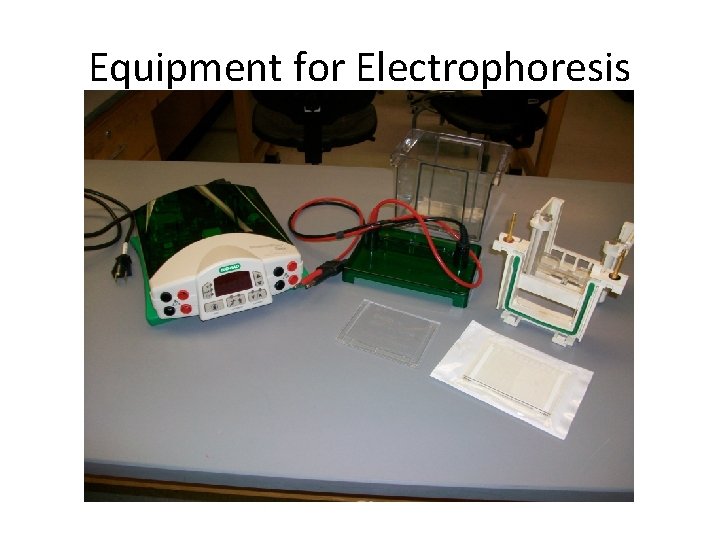

Equipment for Electrophoresis

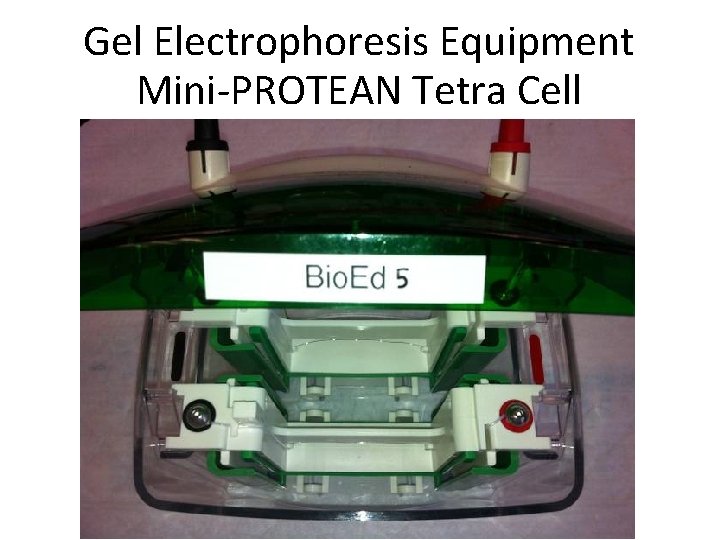

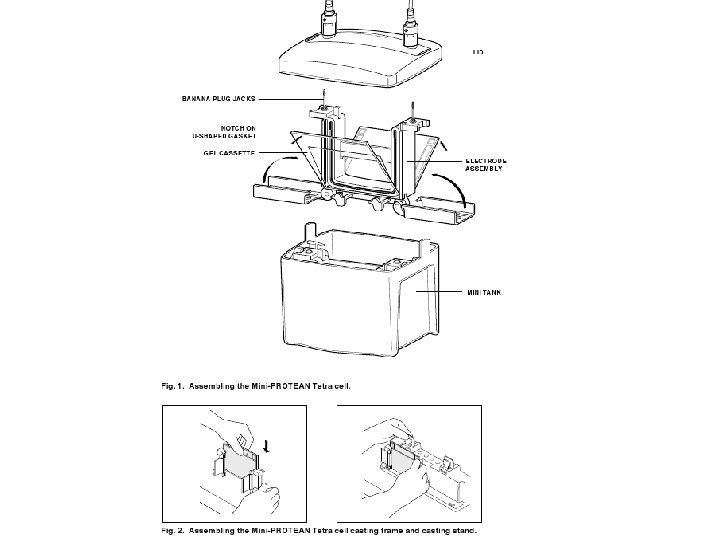

Gel Electrophoresis Equipment Mini-PROTEAN Tetra Cell

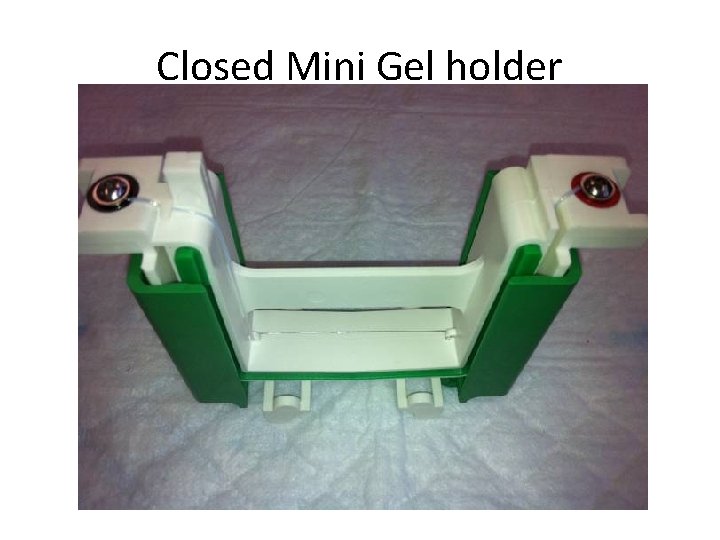

Closed Mini Gel holder

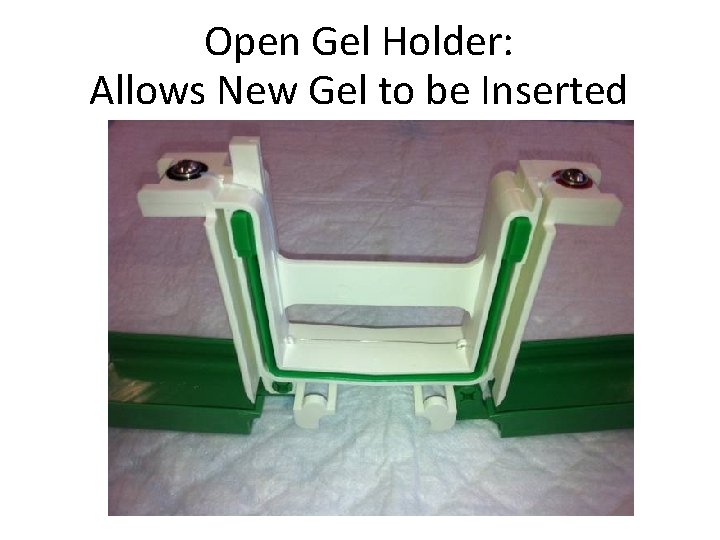

Open Gel Holder: Allows New Gel to be Inserted

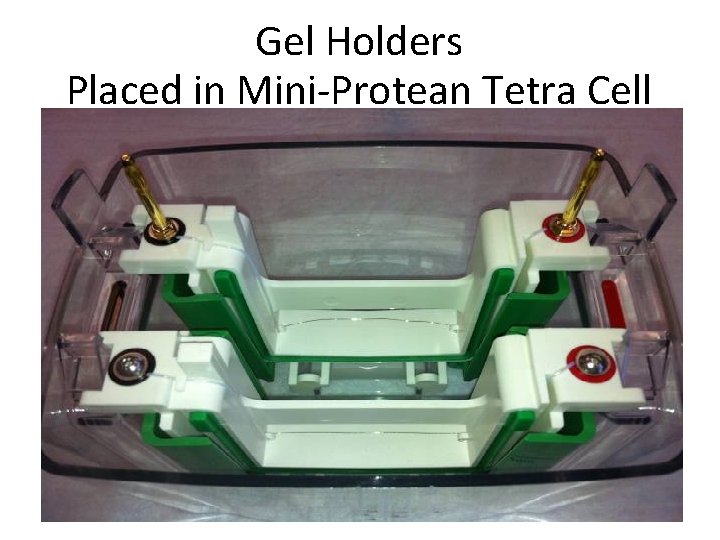

Gel Holders Placed in Mini-Protean Tetra Cell

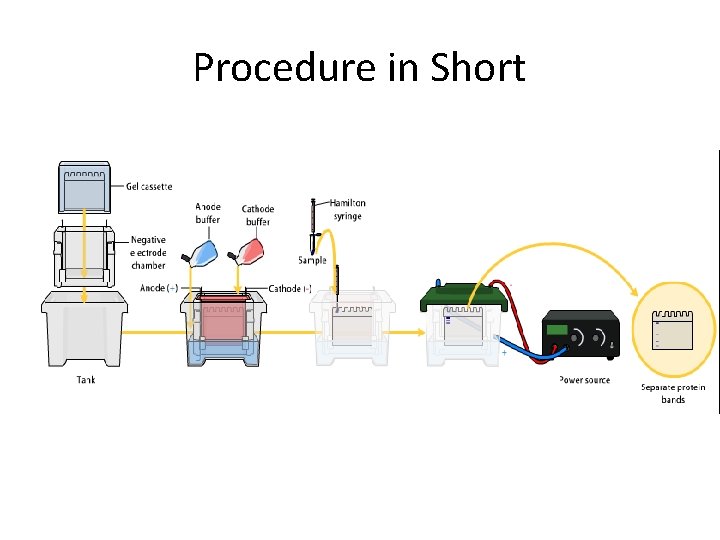

Procedure in Short Load. Ge Equip Place Buffer

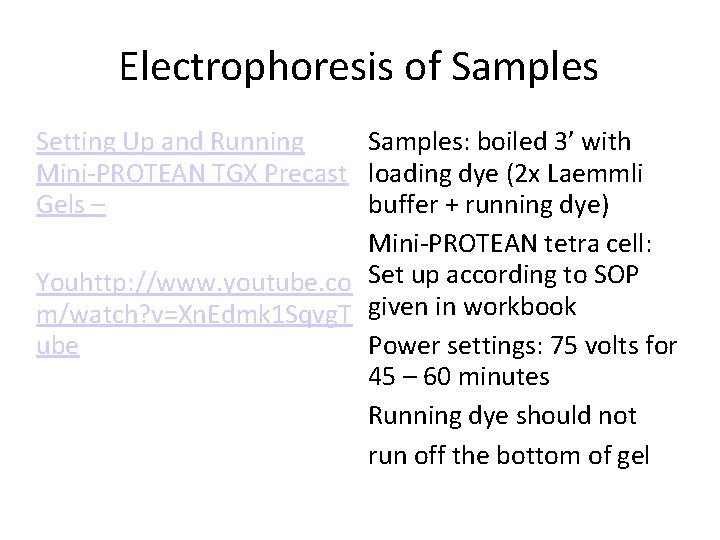

Electrophoresis of Samples Setting Up and Running Samples: boiled 3’ with Mini-PROTEAN TGX Precast loading dye (2 x Laemmli Gels – buffer + running dye) Mini-PROTEAN tetra cell: Youhttp: //www. youtube. co Set up according to SOP m/watch? v=Xn. Edmk 1 Sqvg. T given in workbook ube Power settings: 75 volts for 45 – 60 minutes Running dye should not run off the bottom of gel
