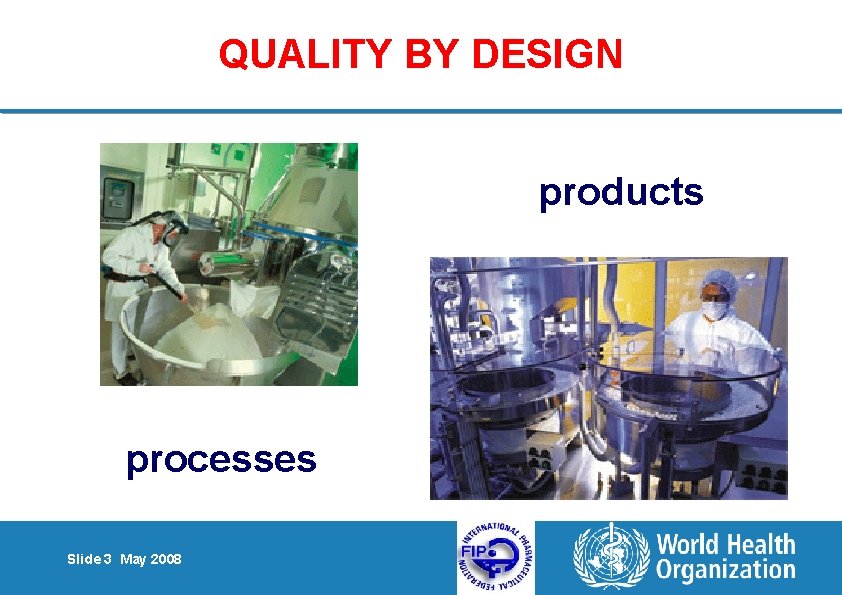

QUALITY BY DESIGN products processes Slide 3 May 2008

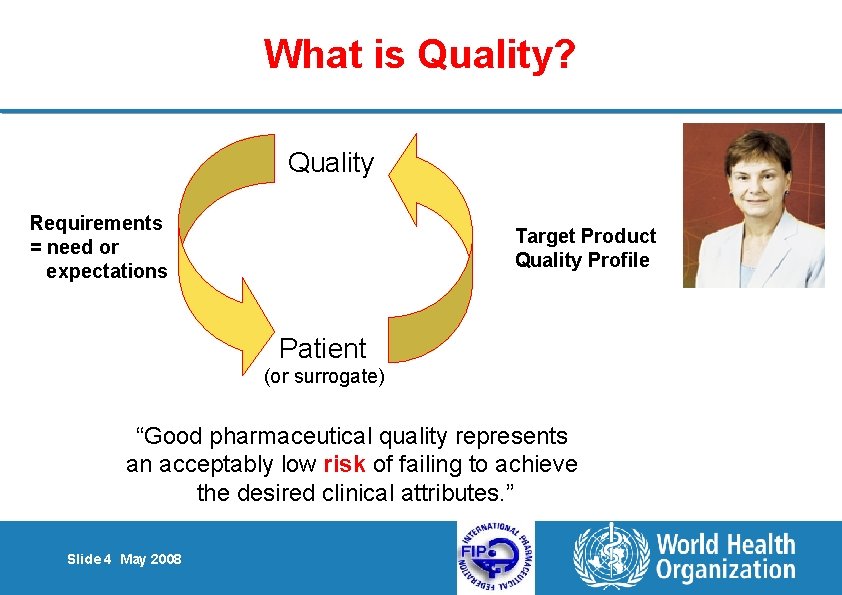

What is Quality? Quality Requirements = need or expectations Target Product Quality Profile Patient (or surrogate) “Good pharmaceutical quality represents an acceptably low risk of failing to achieve the desired clinical attributes. ” Slide 4 May 2008

Which quality do we want for our medicines ? 6σ Source: Motorola, Air Safety Online Slide 5 May 2008

With which quality do we manufacture our medicines: 6σ, 5σ, 4σ, 3σ, 2σ ? fg M t n e r ur C ed d i rov s p ity tient l a Qu o pa t Source: Motorola, Air Safety Online Slide 6 May 2008

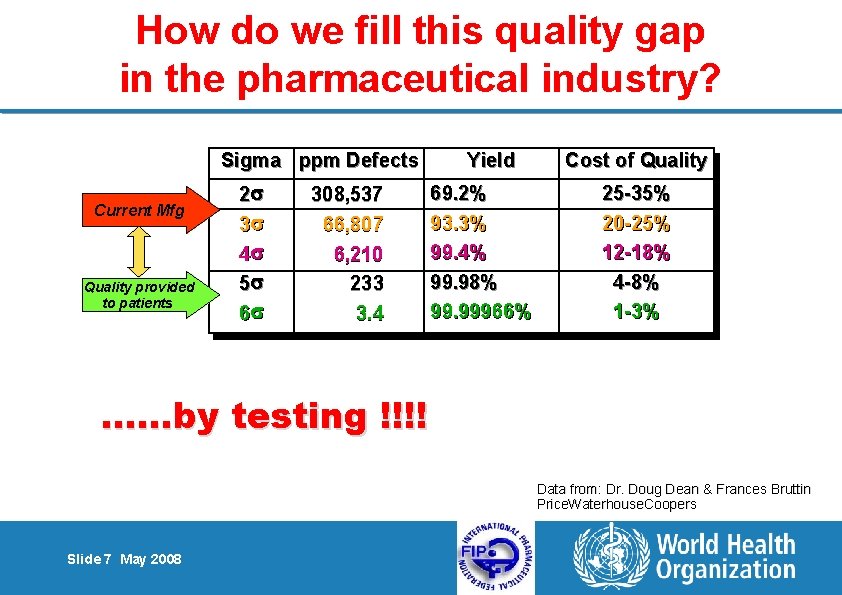

How do we fill this quality gap in the pharmaceutical industry? Sigma ppm Defects Current Mfg Quality provided to patients 2 s 3 s 4 s 5 s 6 s 308, 537 66, 807 6, 210 233 3. 4 Yield 69. 2% 93. 3% 99. 4% 99. 98% 99. 99966% Cost of Quality 25 -35% 20 -25% 12 -18% 4 -8% 1 -3% ……by testing !!!! Data from: Dr. Doug Dean & Frances Bruttin Price. Waterhouse. Coopers Slide 7 May 2008

The quality mantra “Quality can not be tested into products; it has to be built in by design” Slide 8 May 2008

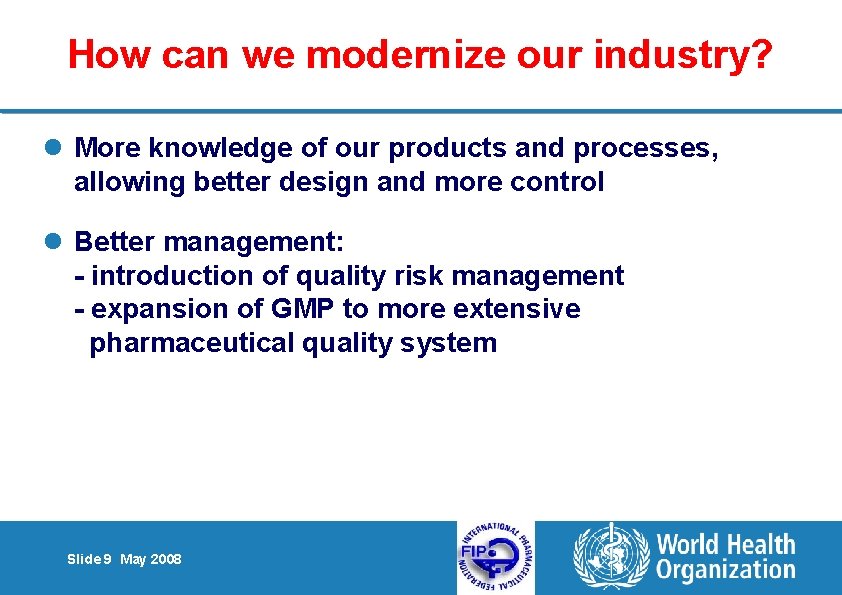

How can we modernize our industry? l More knowledge of our products and processes, allowing better design and more control l Better management: - introduction of quality risk management - expansion of GMP to more extensive pharmaceutical quality system Slide 9 May 2008

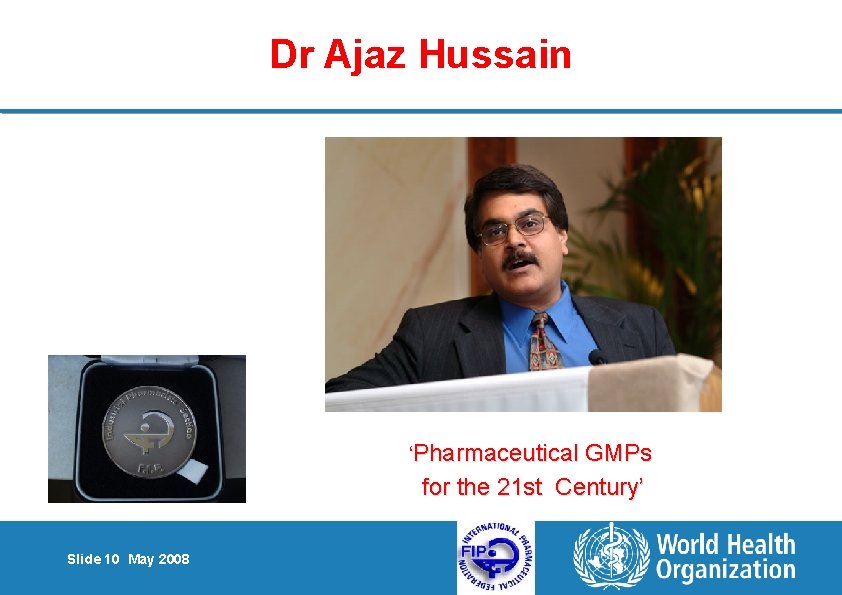

Dr Ajaz Hussain ‘Pharmaceutical GMPs for the 21 st Century’ Slide 10 May 2008

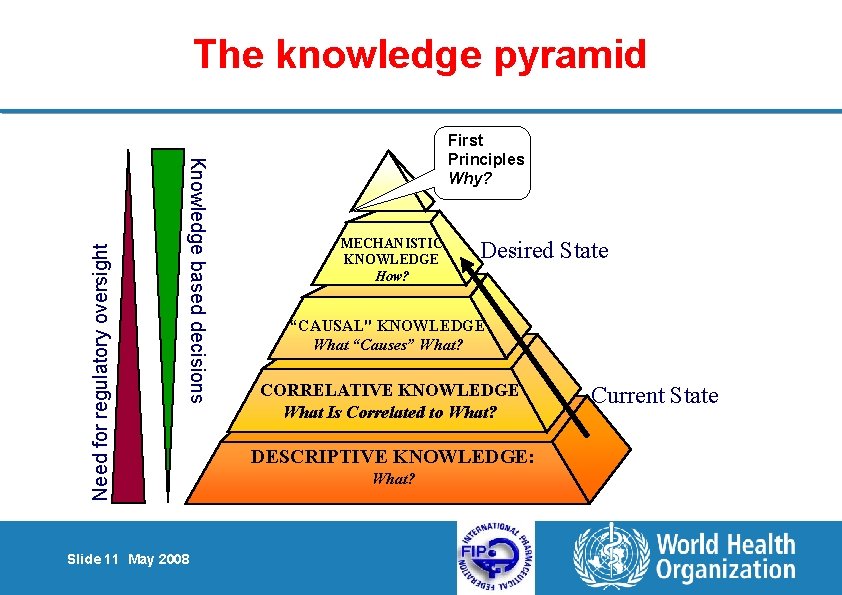

Knowledge based decisions Need for regulatory oversight The knowledge pyramid Slide 11 May 2008 First Principles Why? MECHANISTIC KNOWLEDGE How? Desired State “CAUSAL" KNOWLEDGE What “Causes” What? CORRELATIVE KNOWLEDGE What Is Correlated to What? DESCRIPTIVE KNOWLEDGE: What? Current State

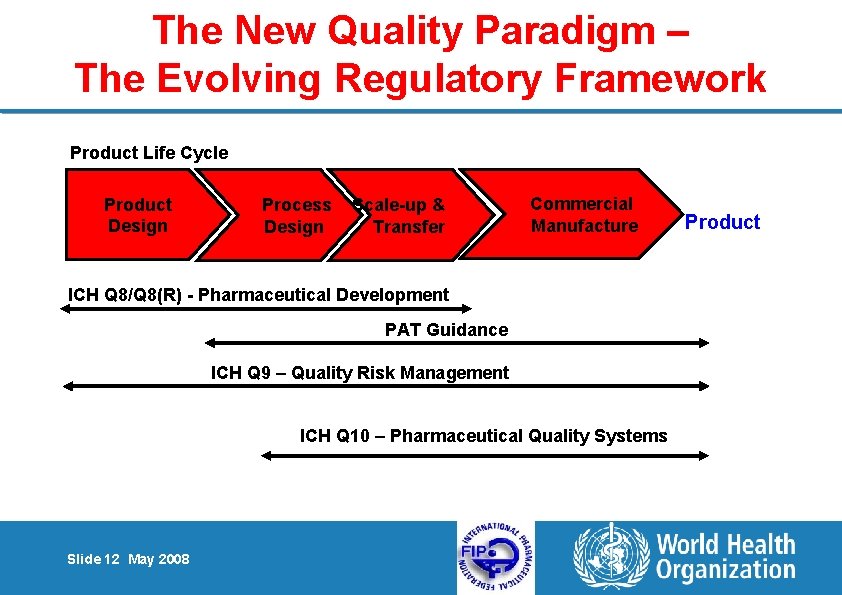

The New Quality Paradigm – The Evolving Regulatory Framework Product Life Cycle Product Design Process Design Scale-up & Transfer Commercial Manufacture ICH Q 8/Q 8(R) - Pharmaceutical Development PAT Guidance ICH Q 9 – Quality Risk Management ICH Q 10 – Pharmaceutical Quality Systems Slide 12 May 2008 Product

Slide 13 May 2008

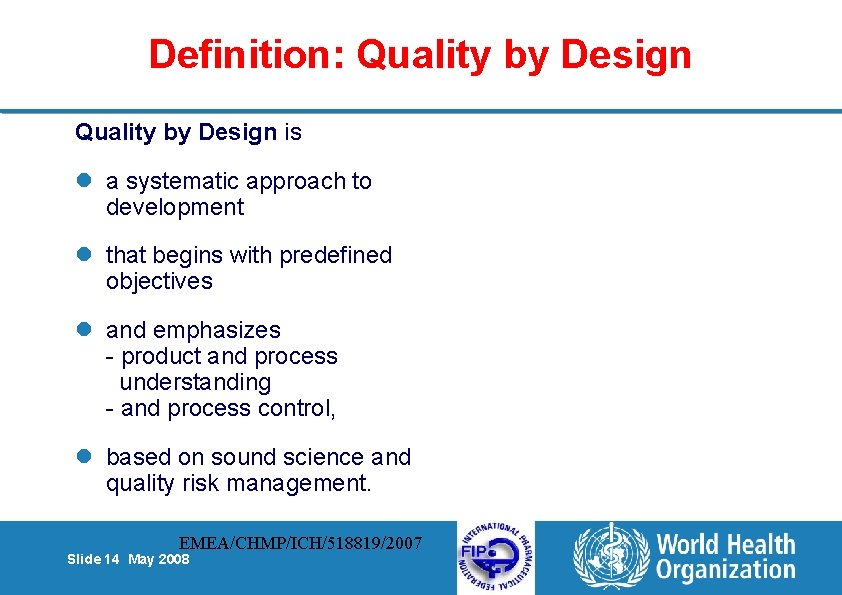

Definition: Quality by Design is l a systematic approach to development l that begins with predefined objectives l and emphasizes - product and process understanding - and process control, l based on sound science and quality risk management. EMEA/CHMP/ICH/518819/2007 Slide 14 May 2008

Quality by Design approach can be used for l Active pharmaceutical ingredients l Materials incl excipients l Analytics Slide 15 May 2008 l Simple dosage forms l Advanced drug delivery systems l Devices l Combination products (e. g. theranostics)

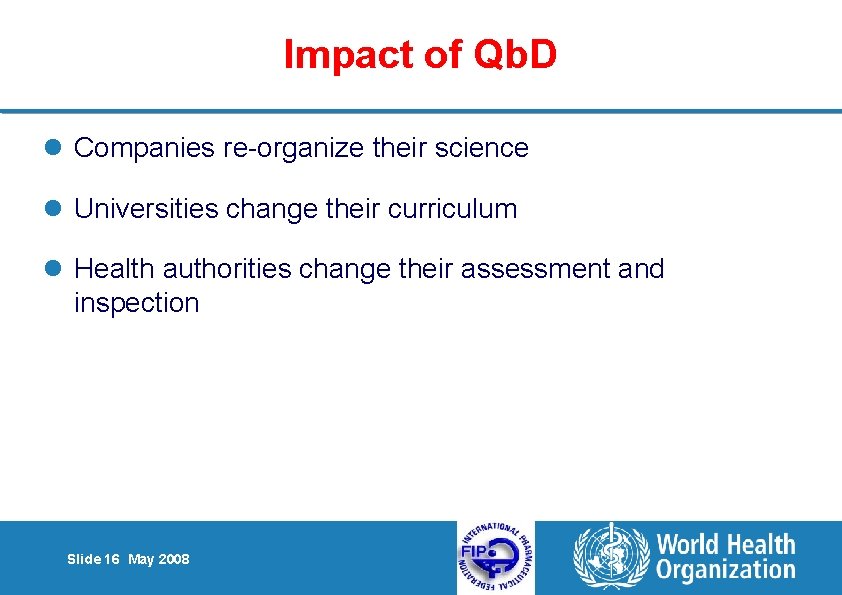

Impact of Qb. D l Companies re-organize their science l Universities change their curriculum l Health authorities change their assessment and inspection Slide 16 May 2008

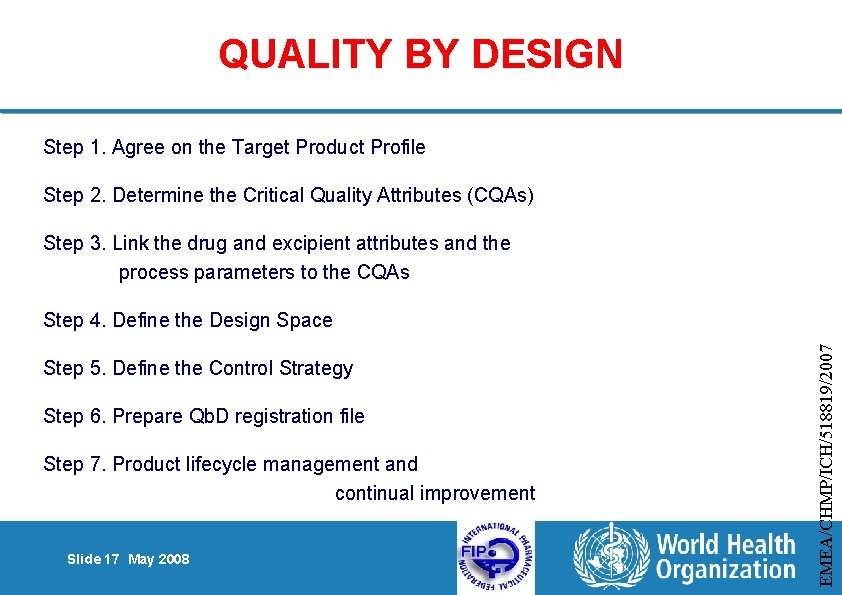

QUALITY BY DESIGN Step 1. Agree on the Target Product Profile Step 2. Determine the Critical Quality Attributes (CQAs) Step 3. Link the drug and excipient attributes and the process parameters to the CQAs Step 5. Define the Control Strategy Step 6. Prepare Qb. D registration file Step 7. Product lifecycle management and continual improvement Slide 17 May 2008 EMEA/CHMP/ICH/518819/2007 Step 4. Define the Design Space

What are the steps in a Quality by Design approach? 2. CRITICAL QUALITY ATTRIBUTES 3. LINK MAs AND PPs TO CQAS 1. TARGET PRODUCT PROFILE 4. ESTABLISH DESIGN SPACE 6. PRODUCT LIFECYCLE MNGMNT Slide 18 May 2008 5. ESTABLISH CONTROL STRATEGY

Step 1. Agree on the Target Product Profile: - a prospective and dynamic summary of the quality characteristics of a drug product - that ideally will be achieved to ensure that the desired quality, and hence the safety and efficacy, of a drug product is realised. The TPP forms the basis of design of the product. Slide 19 May 2008 Consider: l dosage form l route of administration l strength l release / delivery of the drug l pharmacokinetic characteristics (e. g. , dissolution; aerodynamic performance) l drug product quality criteria (e. g. , sterility, purity).

TPP for paediatric dosage form TPP adult Slide 20 May 2008 TPP paediatric (may depend upon age group)

What are the steps in a Quality by Design approach? 2. CRITICAL QUALITY ATTRIBUTES 3. LINK MAs AND PPs TO CQAS 1. TARGET PRODUCT PROFILE 4. ESTABLISH DESIGN SPACE 6. PRODUCT LIFECYCLE MNGMNT Slide 21 May 2008 5. ESTABLISH CONTROL STRATEGY

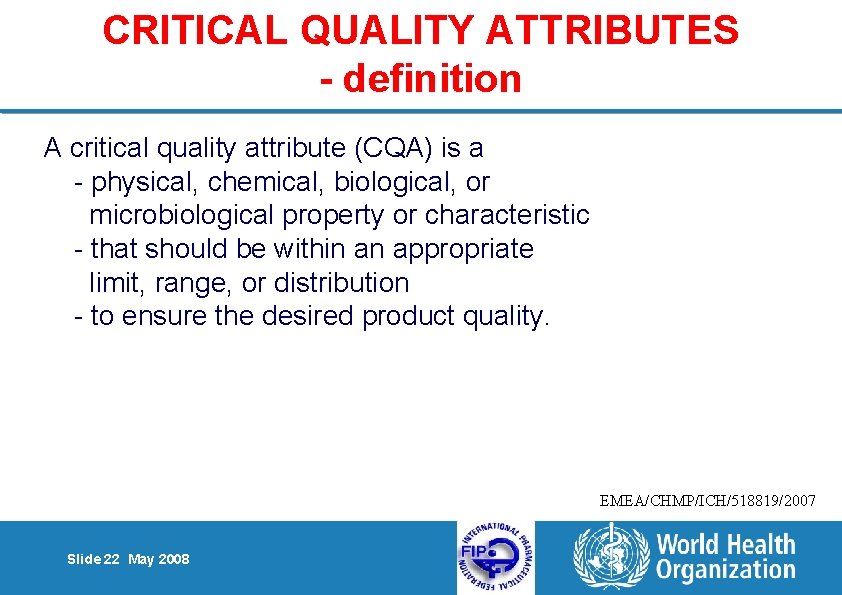

CRITICAL QUALITY ATTRIBUTES - definition A critical quality attribute (CQA) is a - physical, chemical, biological, or microbiological property or characteristic - that should be within an appropriate limit, range, or distribution - to ensure the desired product quality. EMEA/CHMP/ICH/518819/2007 Slide 22 May 2008

Step 2. Determine the Critical Quality Attributes (CQAs) Drug product CQAs are used to guide the product and process development. l solid oral dosage forms: l typically those aspects affecting - product purity - product potency - product stability - drug release. Slide 23 May 2008 l other delivery systems: l can additionally include more product specific aspects, such as - aerodynamic properties for inhaled products - sterility for parenterals, - adhesive force for transdermal patches.

Product-centric Quality by Design Excipient Quality Attributes DRUG PRODUCT Formulation Parameters Slide 24 May 2008 Chemical purity Physical form API Purity Raw Material quality Formulation Process Related Particle size API Quality Attributes Mechanical Properties Excipient Compatibility

What are the steps in a Quality by Design approach? 2. CRITICAL QUALITY ATTRIBUTES 3. LINK MAs AND PPs TO CQAS 1. TARGET PRODUCT PROFILE 4. ESTABLISH DESIGN SPACE 6. PRODUCT LIFECYCLE MNGMNT Slide 25 May 2008 5. ESTABLISH CONTROL STRATEGY

Step 3. Link the drug and excipient attributes and the process parameters to the CQAs s s e rs c Pro mete ra I a P People Equipment N P U T S (X) s e ut il ty a u Q b i r t At Inputs to the process control variability of the Output y = ƒ(x) Measurement y Process OUTPUT Materials Environment Slide 26 May 2008 Source: Moheb Nasr, FDA

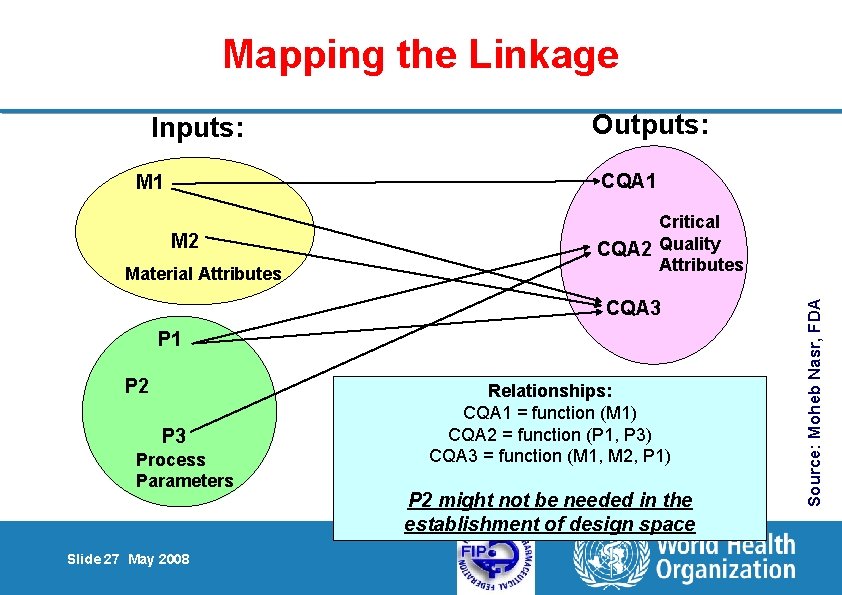

Mapping the Linkage Inputs: Outputs: CQA 1 M 2 Material Attributes Critical CQA 2 Quality Attributes CQA 3 P 1 P 2 P 3 Process Parameters Slide 27 May 2008 Relationships: CQA 1 = function (M 1) CQA 2 = function (P 1, P 3) CQA 3 = function (M 1, M 2, P 1) P 2 might not be needed in the establishment of design space Source: Moheb Nasr, FDA M 1

Experimental Approach for Identifying Parameters Design of Experiments (DOE) is an efficient method to determine relevant parameters and interactions 2. Conduct randomized experiments 1. Choose experimental design (e. g. , full factorial, d-optimal) 3. Analyze Data Determine significant factors Slide 28 May 2008 Experiment Factor A Factor B Factor C 1 + - - 2 - + - 3 + + + 4 + - +

ICH Q 9 Quality Risk Management Initiate Quality Risk Management Process Formal Risk Management Process 1. Risk a l w e n e h T 2. Risk a u Assessment g n Control Output / Result of the Quality Risk Management Process 4. Slide 29 May 2008 Risk Review e g

What are the steps in a Quality by Design approach? 2. CRITICAL QUALITY ATTRIBUTES 3. LINK MAs AND PPs TO CQAS 1. TARGET PRODUCT PROFILE 4. ESTABLISH DESIGN SPACE 6. PRODUCT LIFECYCLE MNGMNT Slide 30 May 2008 5. ESTABLISH CONTROL STRATEGY

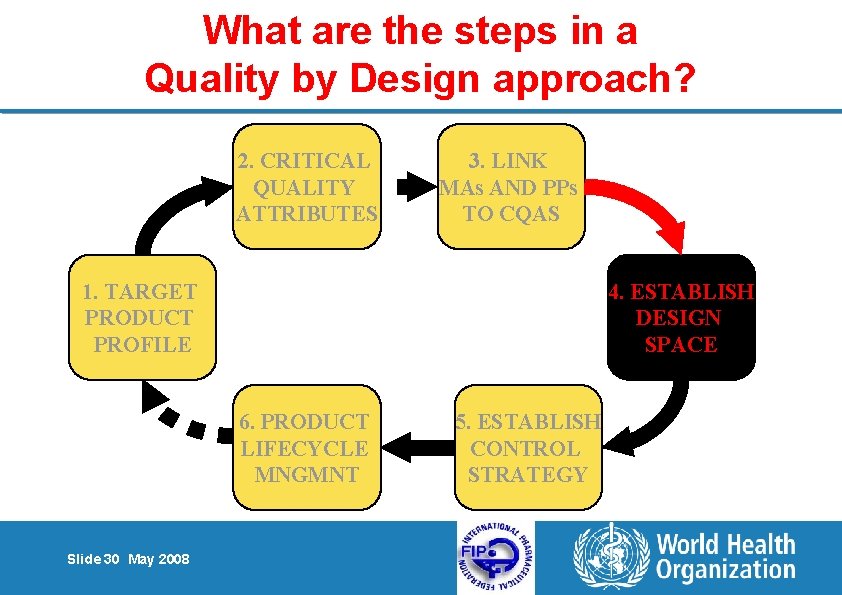

Step 4. Define the Design Space l The linkage between - the process inputs (input variables and process parameters) and - the critical quality attributes l can be described in the design space. Slide 31 May 2008

Definition of Design Space l The multidimensional combination and interaction of input variables (e. g. material attributes) and process parameters that have been demonstrated to provide assurance of quality. Slide 32 May 2008 Roll pressure l The material attributes and process parameters that assure quality. Gap width Screen Size

What are the steps in a Quality by Design approach? 2. CRITICAL QUALITY ATTRIBUTES 3. LINK MAs AND PPs TO CQAS 1. TARGET PRODUCT PROFILE 4. ESTABLISH DESIGN SPACE 6. PRODUCT LIFECYCLE MNGMNT Slide 33 May 2008 5. ESTABLISH CONTROL STRATEGY

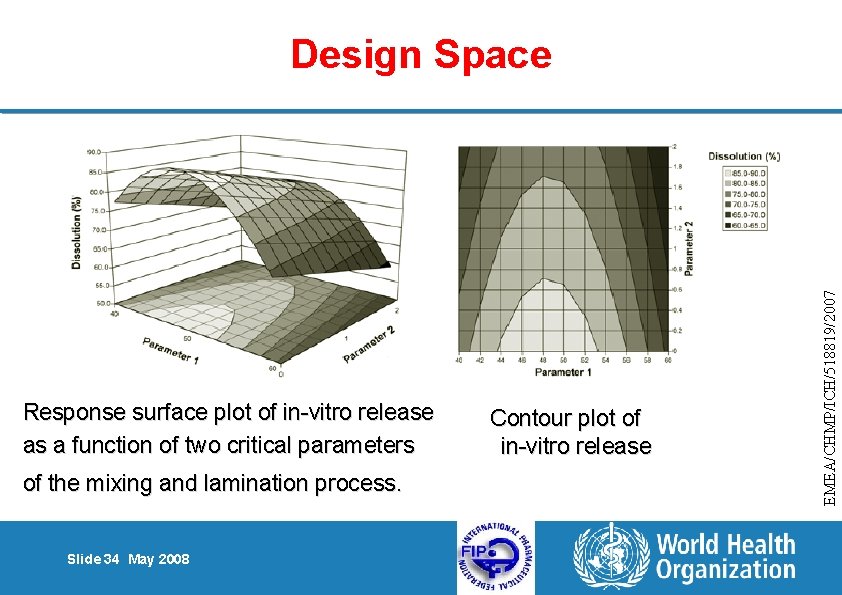

1 a Response surface plot of in-vitro release as a function of two critical parameters of the mixing and lamination process. Slide 34 May 2008 Contour plot of in-vitro release EMEA/CHMP/ICH/518819/2007 Design Space

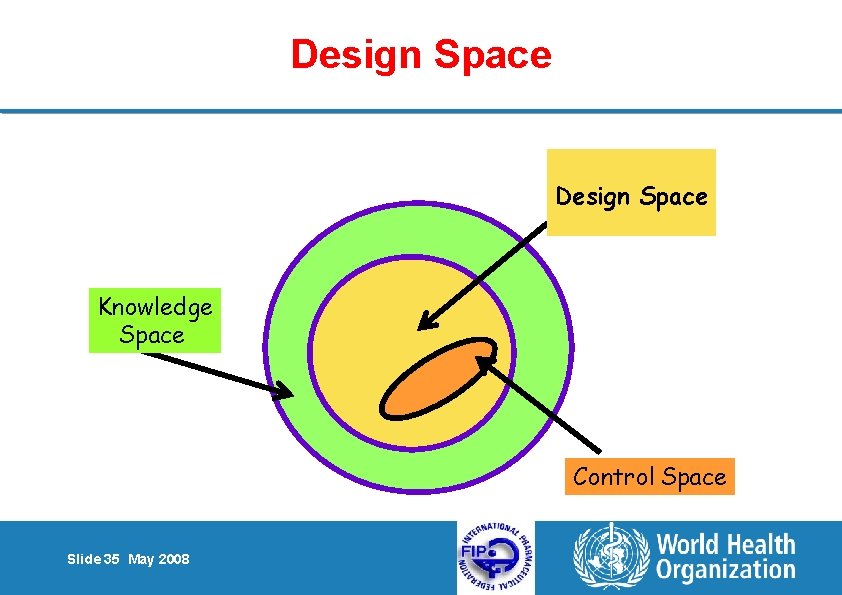

Design Space Knowledge Space Control Space Slide 35 May 2008

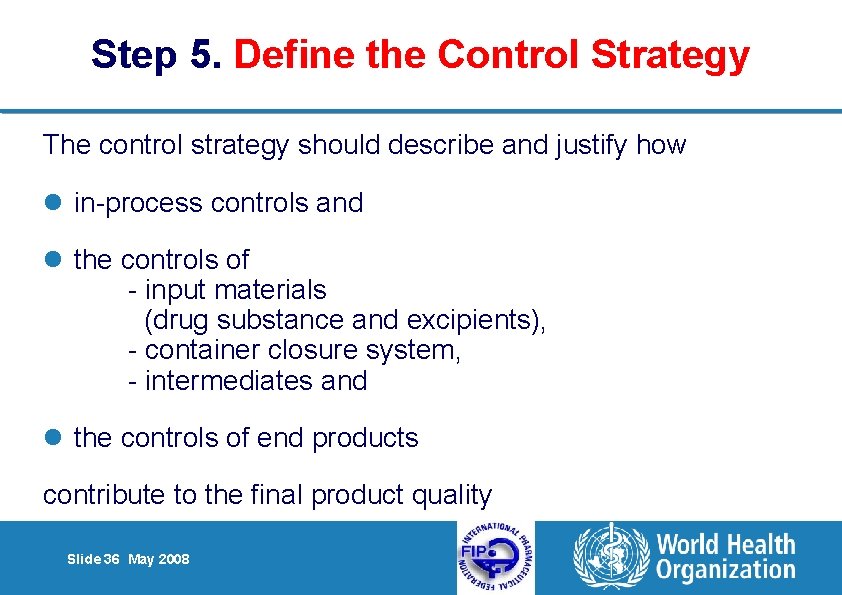

Step 5. Define the Control Strategy The control strategy should describe and justify how l in-process controls and l the controls of - input materials (drug substance and excipients), - container closure system, - intermediates and l the controls of end products contribute to the final product quality Slide 36 May 2008

5. CONTROL STRATEGY Elements of a control strategy can include, but are not limited to, the following: • Control of input material attributes (e. g. , drug substance, adhesive polymer, primary packaging materials) based on an understanding of their impact on processability or product quality • Product specification(s) • Controls for unit operations that have an impact on downstream processing or end-product quality (e. g. , the impact of solvent on degradation) • In-process or real-time release in lieu of end-product testing • A monitoring program (e. g. , full product testing at regular intervals) for verifying multivariate prediction models. Slide 37 May 2008

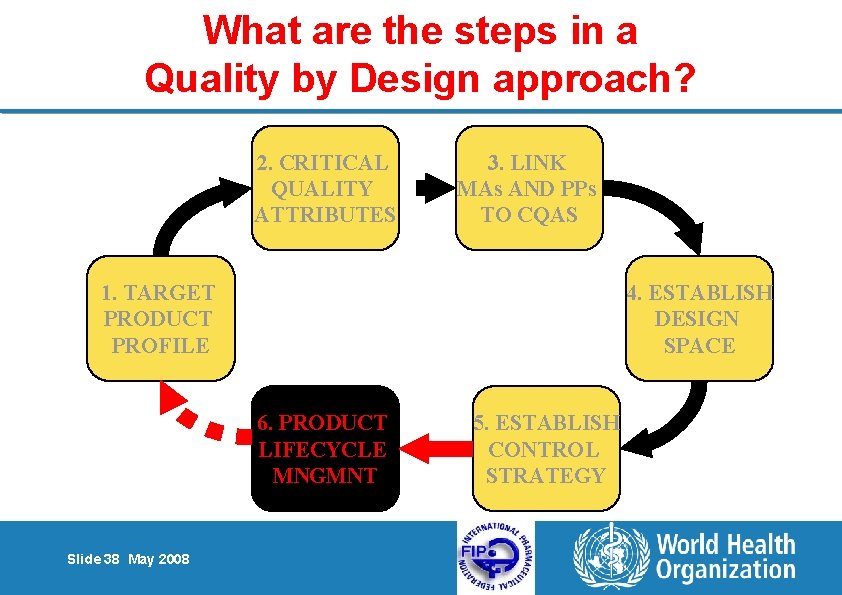

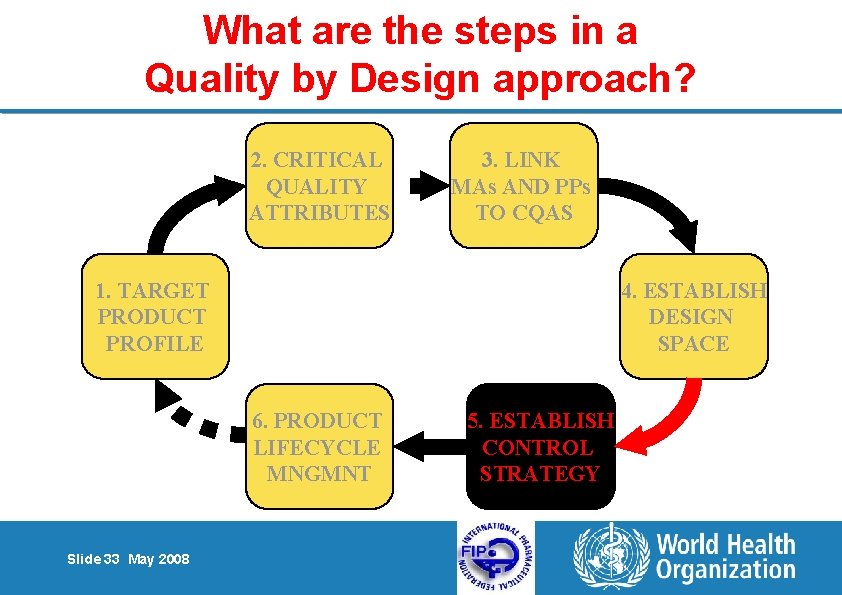

What are the steps in a Quality by Design approach? 2. CRITICAL QUALITY ATTRIBUTES 3. LINK MAs AND PPs TO CQAS 1. TARGET PRODUCT PROFILE 4. ESTABLISH DESIGN SPACE 6. PRODUCT LIFECYCLE MNGMNT Slide 38 May 2008 5. ESTABLISH CONTROL STRATEGY

Step 7. Product lifecycle management continual improvement Minimal Approach Qb. D Approach • Reactive • Preventive (i. e. , problem solving and corrective action) • Continual improvement facilitated Slide 39 May 2008 action

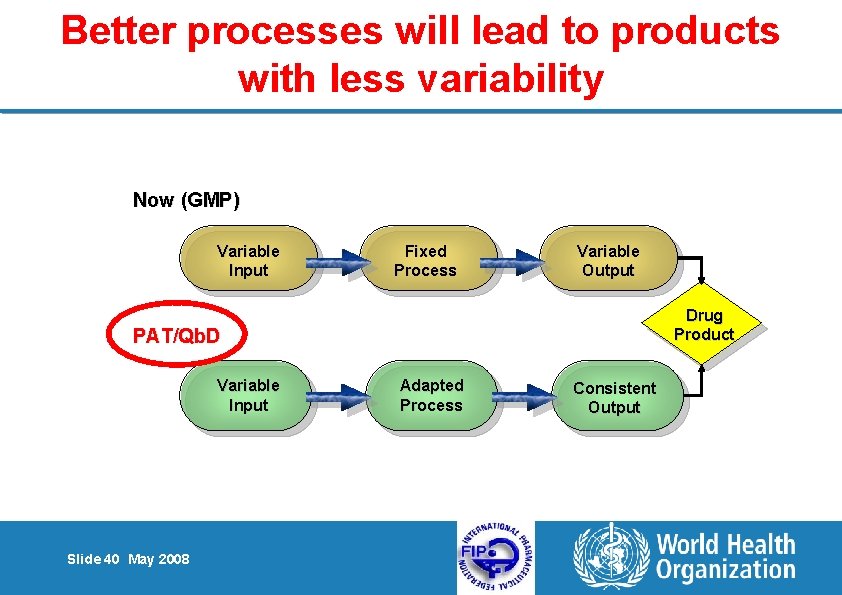

Better processes will lead to products with less variability Now (GMP) Variable Input Fixed Process Variable Output Drug Product PAT/Qb. D Variable Input Slide 40 May 2008 Adapted Process Consistent Output

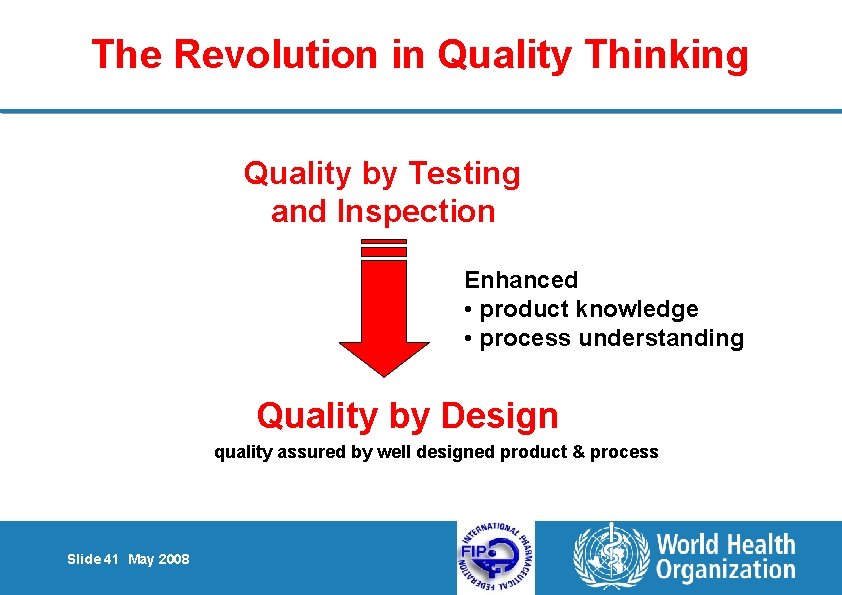

The Revolution in Quality Thinking Quality by Testing and Inspection Enhanced • product knowledge • process understanding Quality by Design quality assured by well designed product & process Slide 41 May 2008
