QUALITY AIR DISTRIBUTION PRODUCTS Air Terminal Induction Chilled

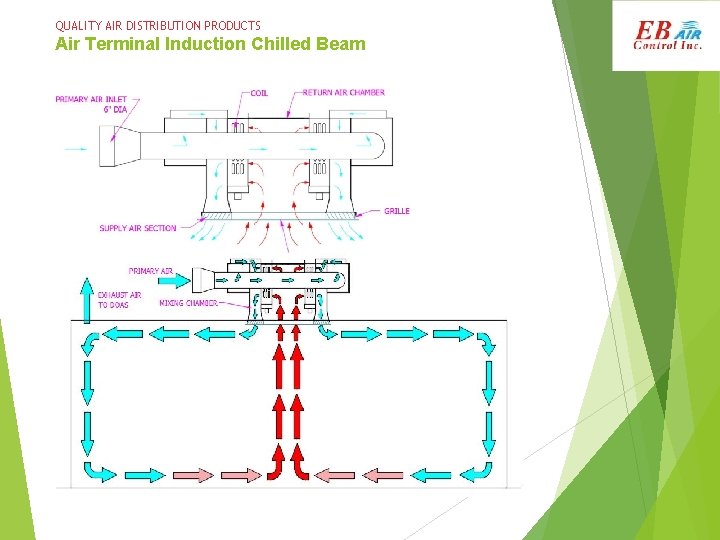

QUALITY AIR DISTRIBUTION PRODUCTS Air Terminal Induction Chilled Beam Flow Schematics – Air Terminal Chilled

QUALITY AIR DISTRIBUTION PRODUCTS CFD of a ceiling model

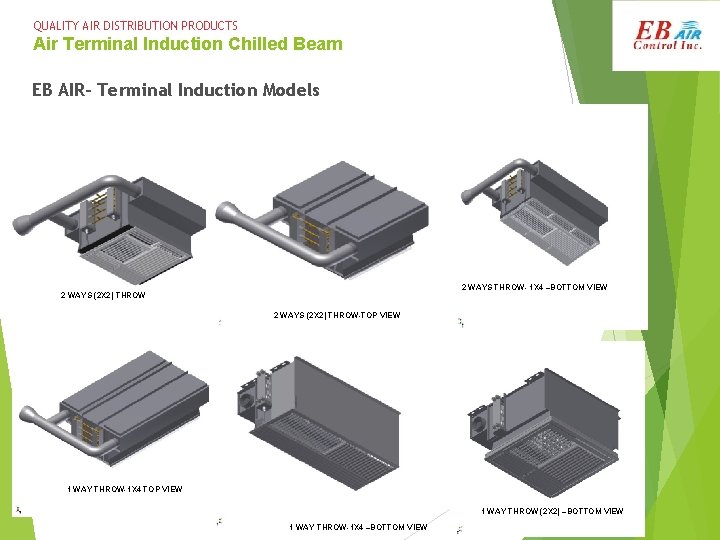

QUALITY AIR DISTRIBUTION PRODUCTS Air Terminal Induction Chilled Beam EB AIR- Terminal Induction Models 2 WAYS THROW- 1 X 4 –BOTTOM VIEW 2 WAYS (2 X 2) THROW-TOP VIEW 1 WAY THROW-1 X 4 TOP VIEW 1 WAY THROW (2 X 2) –BOTTOM VIEW 1 WAY THROW-1 X 4 –BOTTOM VIEW

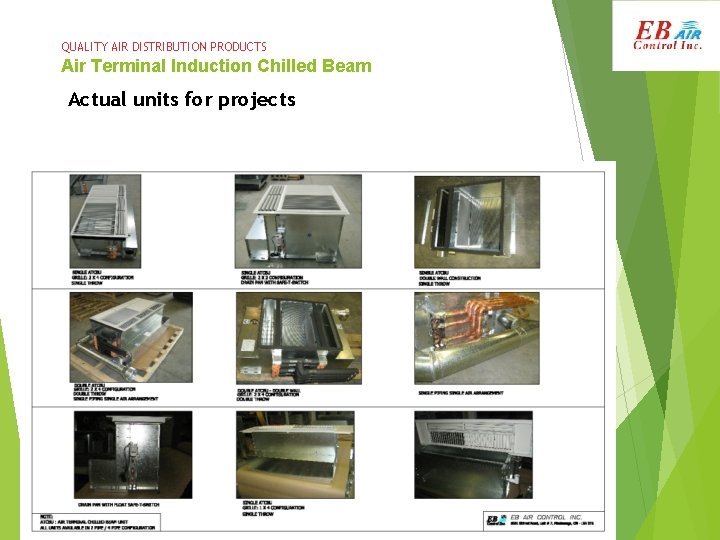

QUALITY AIR DISTRIBUTION PRODUCTS Air Terminal Induction Chilled Beam Actual units for projects

QUALITY AIR DISTRIBUTION PRODUCTS Air Terminal Induction Chilled Beam High Capacity Units ( Single+ Double units) Single ATCBU Double ATCBU

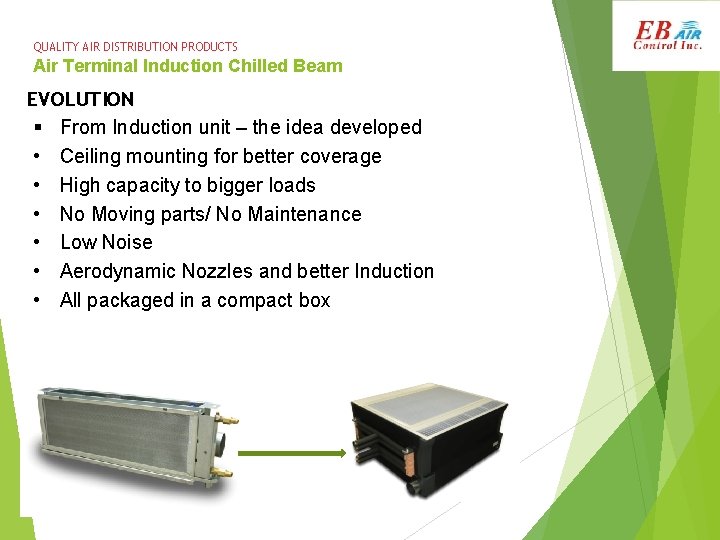

QUALITY AIR DISTRIBUTION PRODUCTS Air Terminal Induction Chilled Beam EVOLUTION § From Induction unit – the idea developed • Ceiling mounting for better coverage • High capacity to bigger loads • No Moving parts/ No Maintenance • Low Noise • Aerodynamic Nozzles and better Induction • All packaged in a compact box

QUALITY AIR DISTRIBUTION PRODUCTS Air Terminal Induction Chilled Beam When not draining the pan, float switch sends signal to CCD controller to shut the water valve so no more water entering the coil, if ½” or more condensate collects on drain pan.

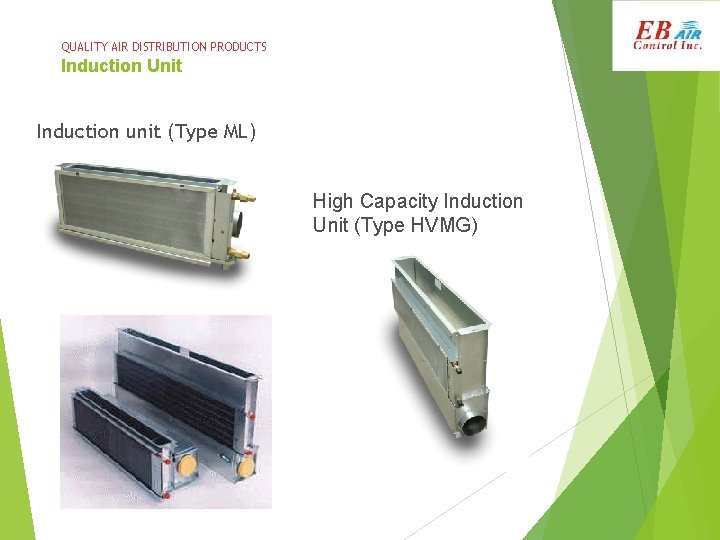

QUALITY AIR DISTRIBUTION PRODUCTS Induction Unit Induction unit (Type ML) High Capacity Induction Unit (Type HVMG)

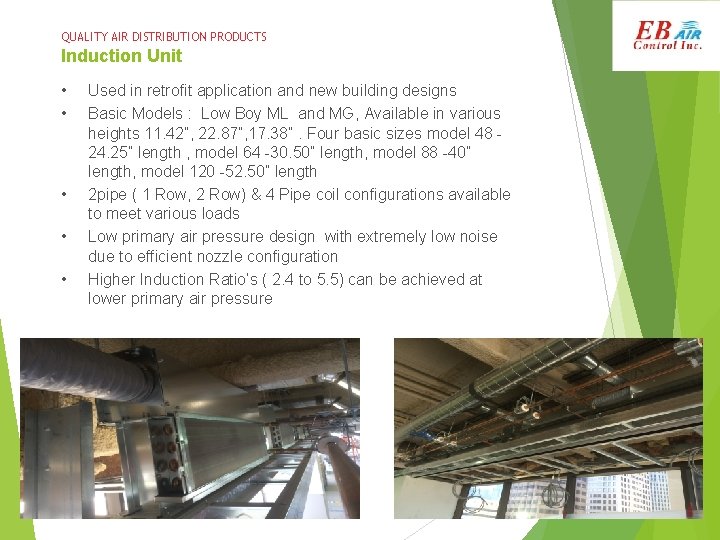

QUALITY AIR DISTRIBUTION PRODUCTS Induction Unit • • • Used in retrofit application and new building designs Basic Models : Low Boy ML and MG, Available in various heights 11. 42”, 22. 87”, 17. 38”. Four basic sizes model 48 24. 25” length , model 64 -30. 50” length, model 88 -40” length, model 120 -52. 50” length 2 pipe ( 1 Row, 2 Row) & 4 Pipe coil configurations available to meet various loads Low primary air pressure design with extremely low noise due to efficient nozzle configuration Higher Induction Ratio’s ( 2. 4 to 5. 5) can be achieved at lower primary air pressure

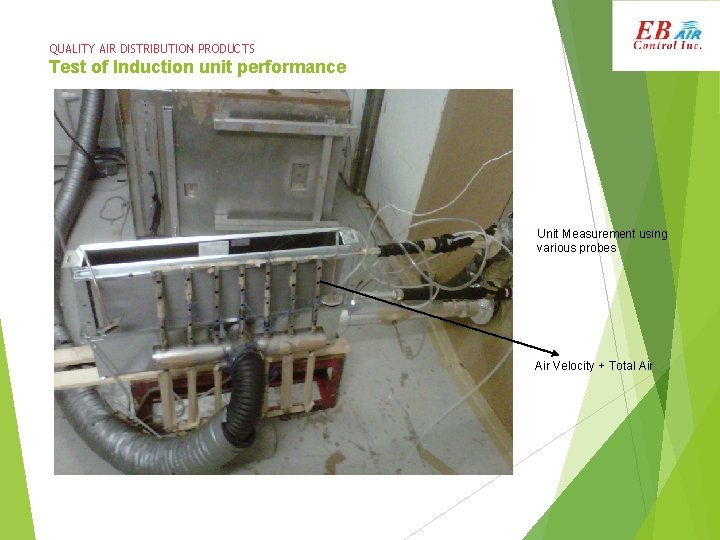

QUALITY AIR DISTRIBUTION PRODUCTS Test of Induction unit performance Unit Measurement using various probes Air Velocity + Total Air

QUALITY AIR DISTRIBUTION PRODUCTS Induction Unit Test set up at ETL Lab Various tests were carried out both on Induction unit and ceiling Induction Chilled Beam to validate performance of capacity, throw and noise. We tested several models to highlight performance on conditions as required on different projects.

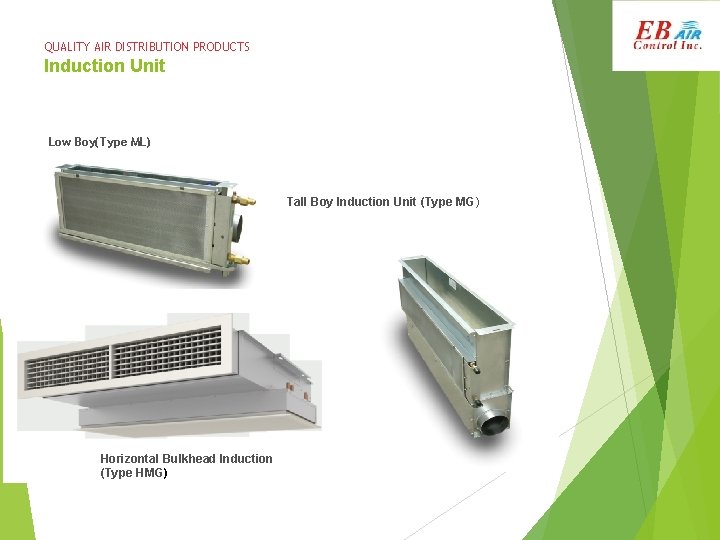

QUALITY AIR DISTRIBUTION PRODUCTS Induction Unit Low Boy(Type ML) Tall Boy Induction Unit (Type MG) Horizontal Bulkhead Induction (Type HMG)

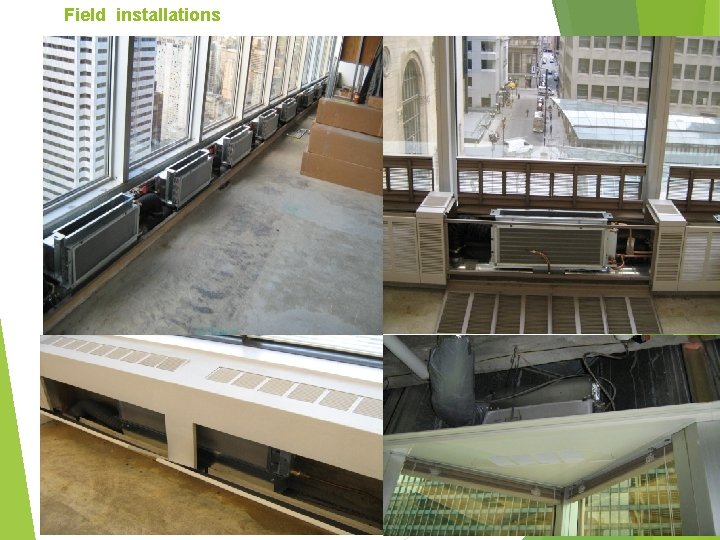

Field installations

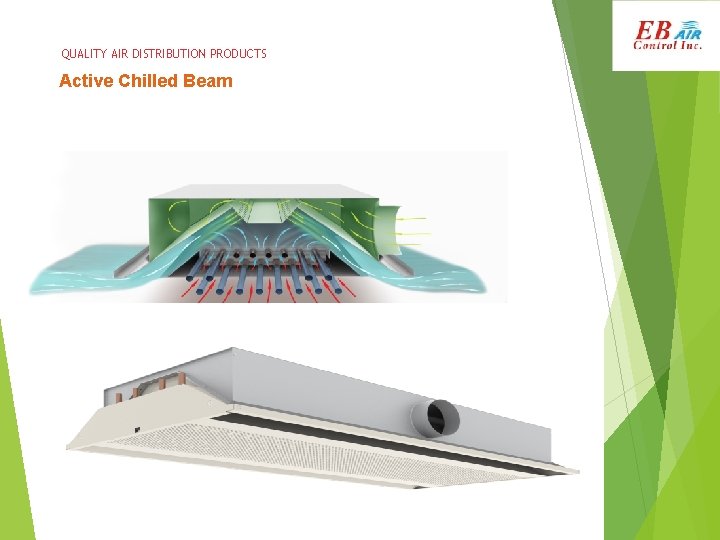

QUALITY AIR DISTRIBUTION PRODUCTS Active Chilled Beam
