Quadrilaterals Shape is made up of 4 straight

Quadrilaterals Shape is made up of 4 straight lines Definition : Quadrilateral is “ A closed 4 sided linear shape” A few types of special quadrilaterals Square Rectangle Kite ? Rhombus Monday, March 8, 2021 Parallelogram Created by Mr. Lafferty Who am I ?

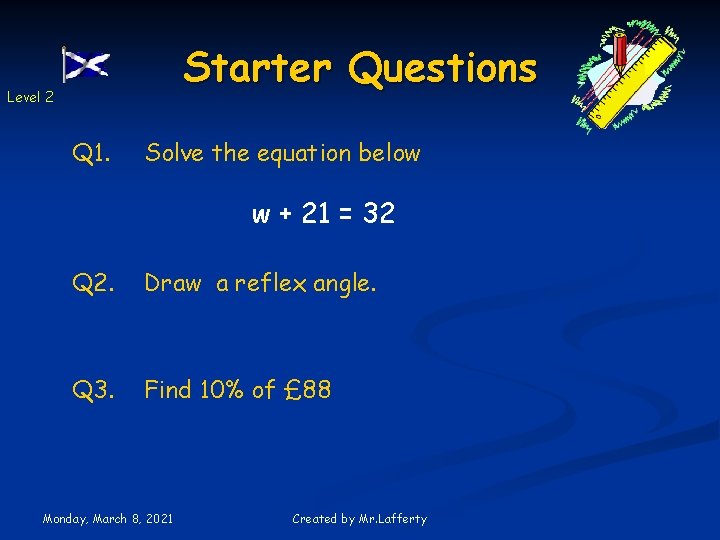

Starter Questions Level 2 Q 1. Solve the equation below w + 21 = 32 Q 2. Draw a reflex angle. Q 3. Find 10% of £ 88 Monday, March 8, 2021 Created by Mr. Lafferty

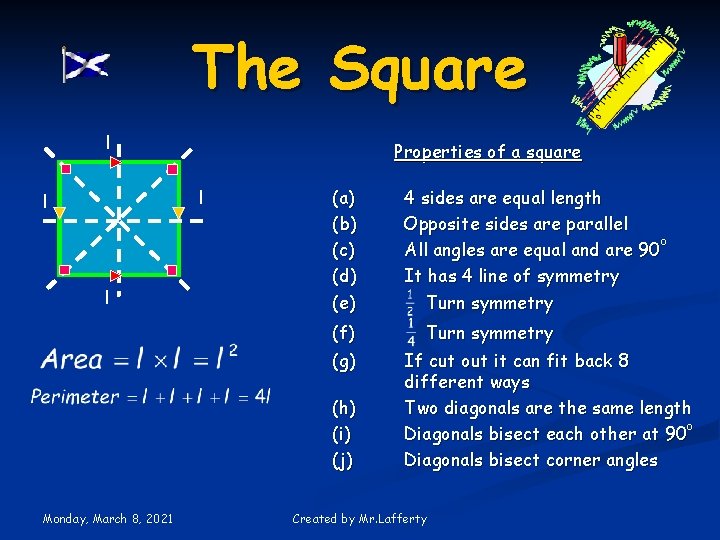

The Square l Properties of a square l l l (a) (b) (c) (d) (e) 4 sides are equal length Opposite sides are parallel o All angles are equal and are 90 It has 4 line of symmetry Turn symmetry (f) (g) Turn symmetry If cut out it can fit back 8 different ways Two diagonals are the same length o Diagonals bisect each other at 90 Diagonals bisect corner angles (h) (i) (j) Monday, March 8, 2021 Created by Mr. Lafferty

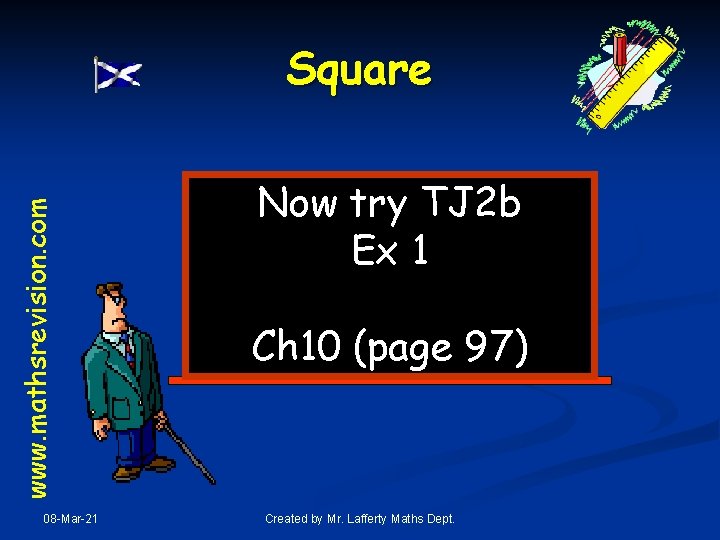

www. mathsrevision. com Square 08 -Mar-21 Now try TJ 2 b Ex 1 Ch 10 (page 97) Created by Mr. Lafferty Maths Dept.

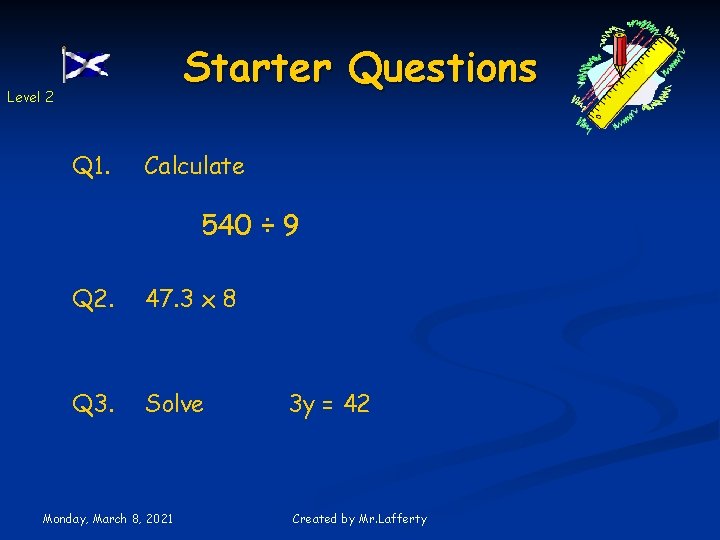

Starter Questions Level 2 Q 1. Calculate 540 ÷ 9 Q 2. 47. 3 x 8 Q 3. Solve Monday, March 8, 2021 3 y = 42 Created by Mr. Lafferty

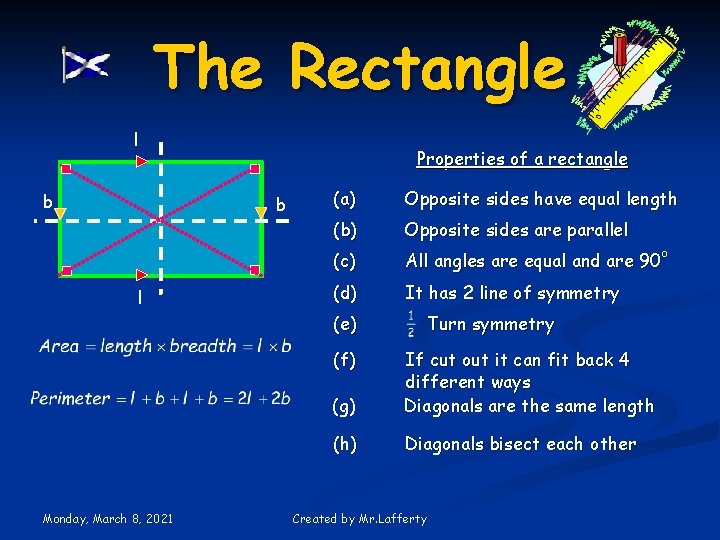

The Rectangle l b Properties of a rectangle b l (a) Opposite sides have equal length (b) Opposite sides are parallel (c) All angles are equal and are 90 (d) It has 2 line of symmetry (e) (f) Monday, March 8, 2021 o Turn symmetry (g) If cut out it can fit back 4 different ways Diagonals are the same length (h) Diagonals bisect each other Created by Mr. Lafferty

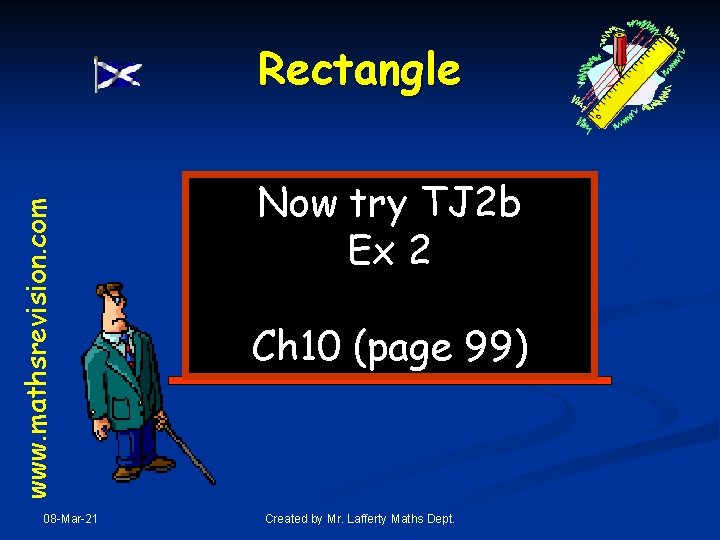

www. mathsrevision. com Rectangle 08 -Mar-21 Now try TJ 2 b Ex 2 Ch 10 (page 99) Created by Mr. Lafferty Maths Dept.

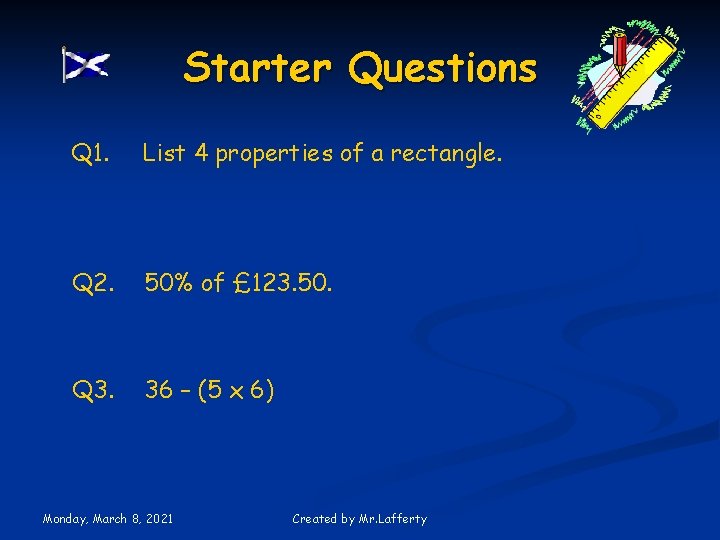

Starter Questions Q 1. List 4 properties of a rectangle. Q 2. 50% of £ 123. 50. Q 3. 36 – (5 x 6) Monday, March 8, 2021 Created by Mr. Lafferty

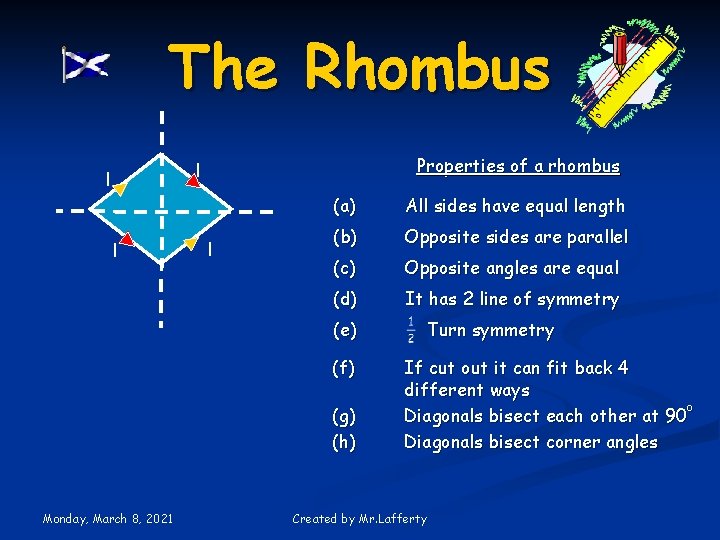

The Rhombus Properties of a rhombus l l (a) All sides have equal length (b) Opposite sides are parallel (c) Opposite angles are equal (d) It has 2 line of symmetry (e) (f) (g) (h) Monday, March 8, 2021 Turn symmetry If cut out it can fit back 4 different ways o Diagonals bisect each other at 90 Diagonals bisect corner angles Created by Mr. Lafferty

www. mathsrevision. com Rhombus 08 -Mar-21 Now try TJ 2 b Ex 3 Ch 10 (page 101) Created by Mr. Lafferty Maths Dept.

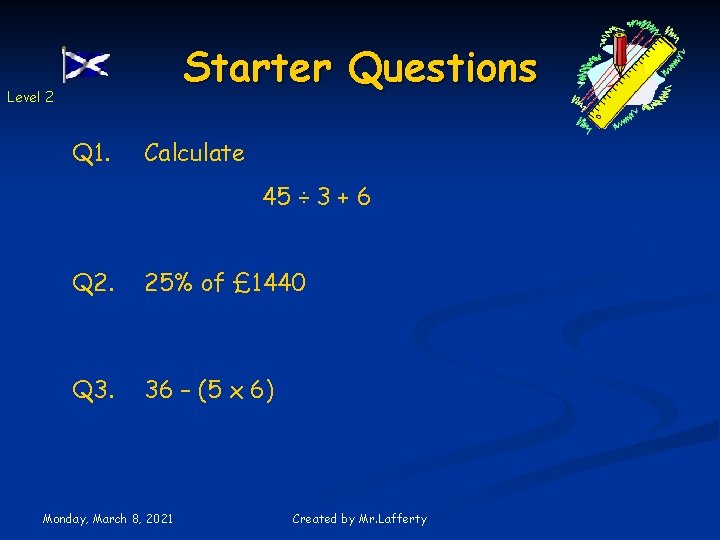

Starter Questions Level 2 Q 1. Calculate 45 ÷ 3 + 6 Q 2. 25% of £ 1440 Q 3. 36 – (5 x 6) Monday, March 8, 2021 Created by Mr. Lafferty

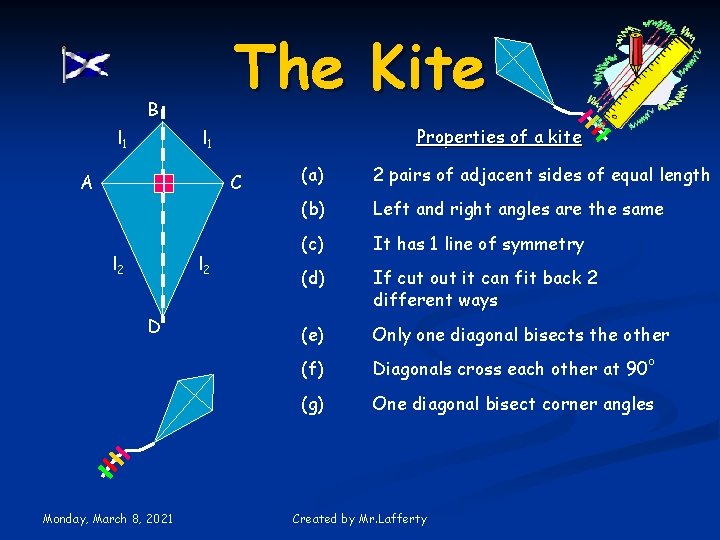

The Kite B l 1 Properties of a kite l 1 A C l 2 D Monday, March 8, 2021 (a) 2 pairs of adjacent sides of equal length (b) Left and right angles are the same (c) It has 1 line of symmetry (d) If cut out it can fit back 2 different ways (e) Only one diagonal bisects the other (f) Diagonals cross each other at 90 (g) One diagonal bisect corner angles Created by Mr. Lafferty o

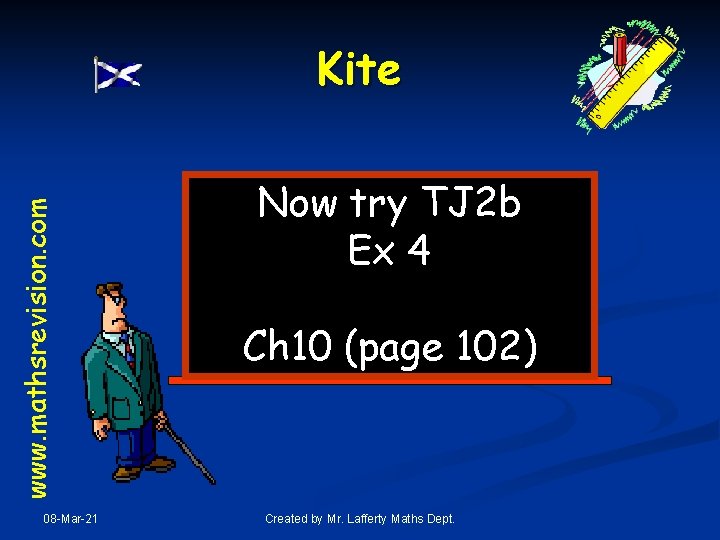

www. mathsrevision. com Kite 08 -Mar-21 Now try TJ 2 b Ex 4 Ch 10 (page 102) Created by Mr. Lafferty Maths Dept.

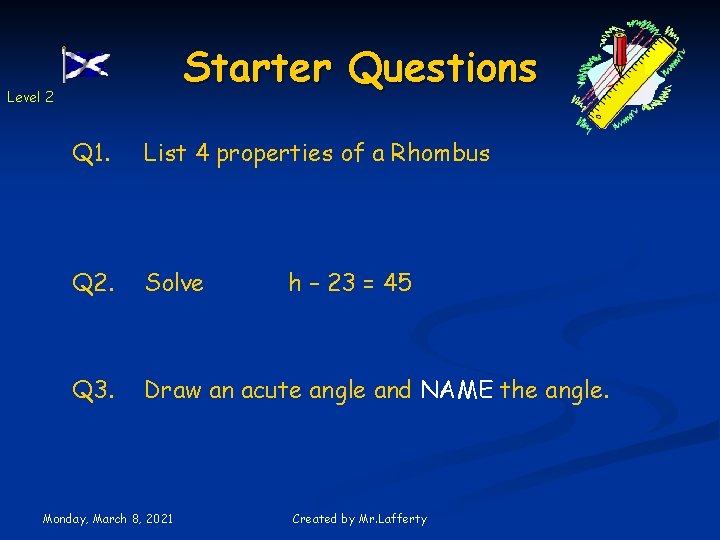

Starter Questions Level 2 Q 1. List 4 properties of a Rhombus Q 2. Solve Q 3. Draw an acute angle and NAME the angle. Monday, March 8, 2021 h – 23 = 45 Created by Mr. Lafferty

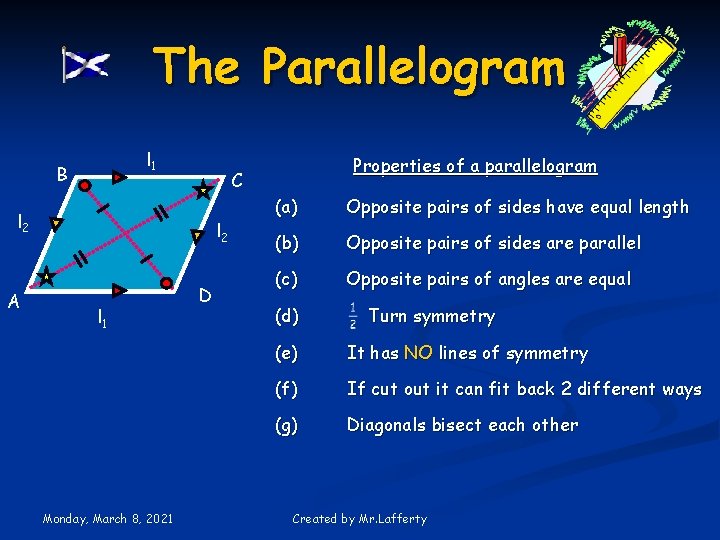

The Parallelogram l 1 B C l 2 A l 2 l 1 Monday, March 8, 2021 Properties of a parallelogram D (a) Opposite pairs of sides have equal length (b) Opposite pairs of sides are parallel (c) Opposite pairs of angles are equal (d) Turn symmetry (e) It has NO lines of symmetry (f) If cut out it can fit back 2 different ways (g) Diagonals bisect each other Created by Mr. Lafferty

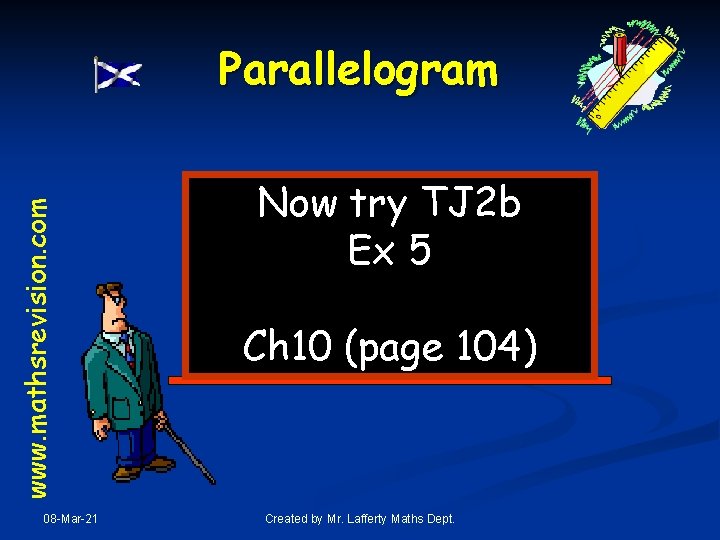

www. mathsrevision. com Parallelogram 08 -Mar-21 Now try TJ 2 b Ex 5 Ch 10 (page 104) Created by Mr. Lafferty Maths Dept.

Starter Questions Level 2 Q 1. Which letter has half-turn symmetry H L F S E Q 2. Solve Q 3. Draw an obtuse angle and NAME the angle. Monday, March 8, 2021 7 d = 56 Created by Mr. Lafferty

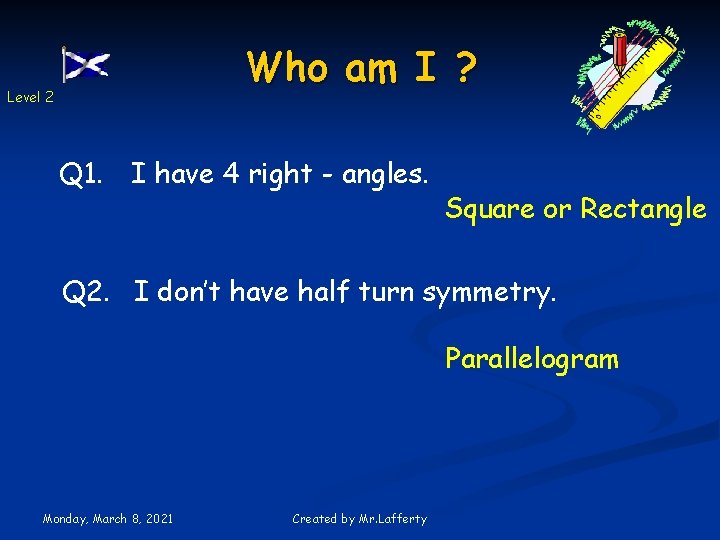

Who am I ? Level 2 Q 1. I have 4 right - angles. Square or Rectangle Q 2. I don’t have half turn symmetry. Parallelogram Monday, March 8, 2021 Created by Mr. Lafferty

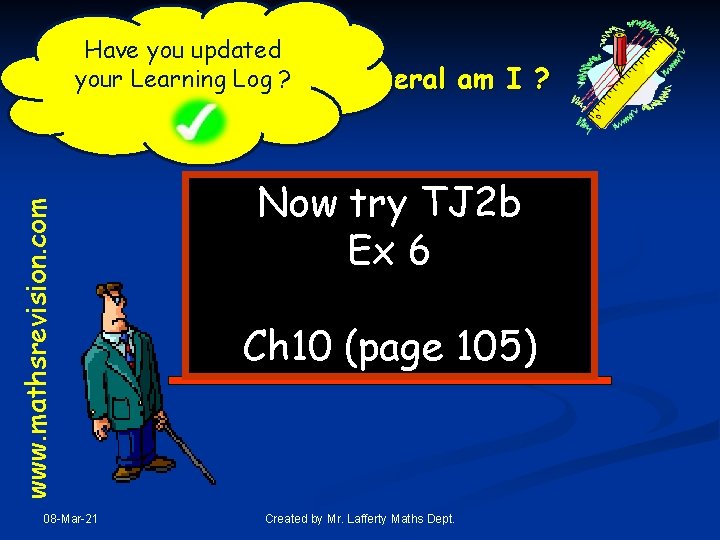

www. mathsrevision. com Have you updated your Learning Log. Quadrilateral ? Which am I ? 08 -Mar-21 Now try TJ 2 b Ex 6 Ch 10 (page 105) Created by Mr. Lafferty Maths Dept.
