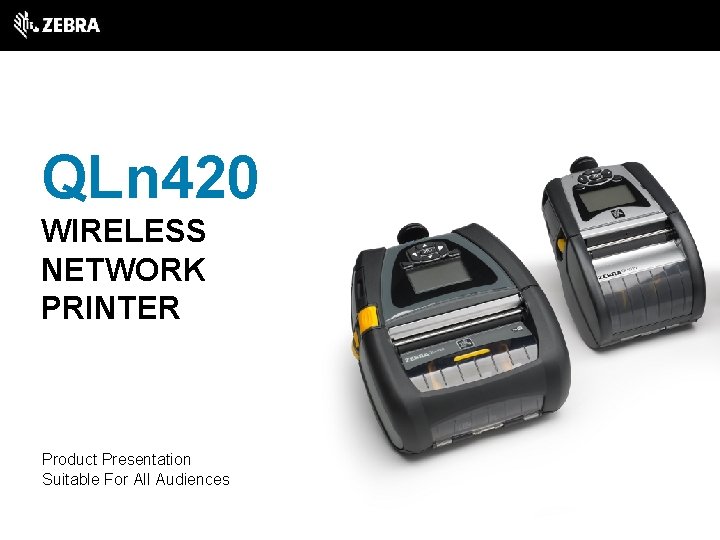

QLn 420 WIRELESS NETWORK PRINTER Product Presentation Suitable

QLn 420 WIRELESS NETWORK PRINTER Product Presentation Suitable For All Audiences

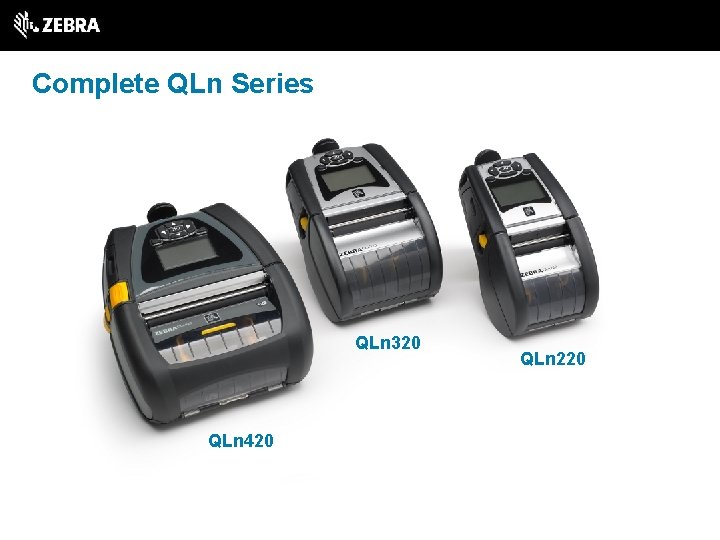

Complete QLn Series QLn 320 QLn 420 QLn 220

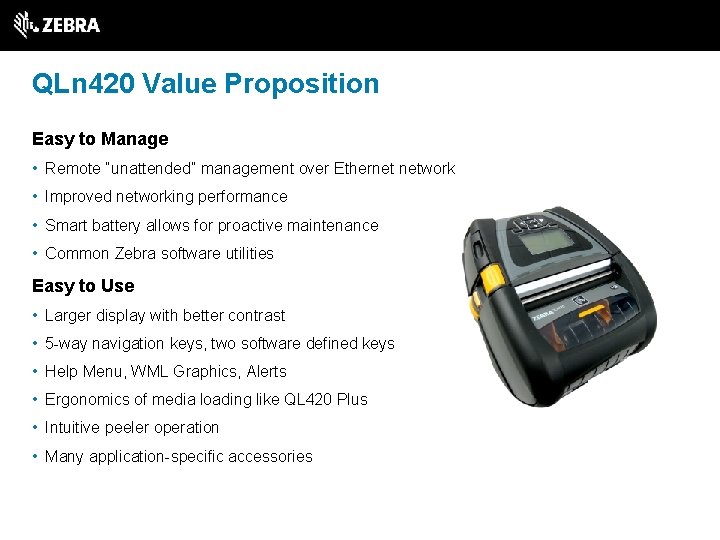

QLn 420 Value Proposition Easy to Manage • Remote “unattended” management over Ethernet network • Improved networking performance • Smart battery allows for proactive maintenance • Common Zebra software utilities Easy to Use • Larger display with better contrast • 5 -way navigation keys, two software defined keys • Help Menu, WML Graphics, Alerts • Ergonomics of media loading like QL 420 Plus • Intuitive peeler operation • Many application-specific accessories

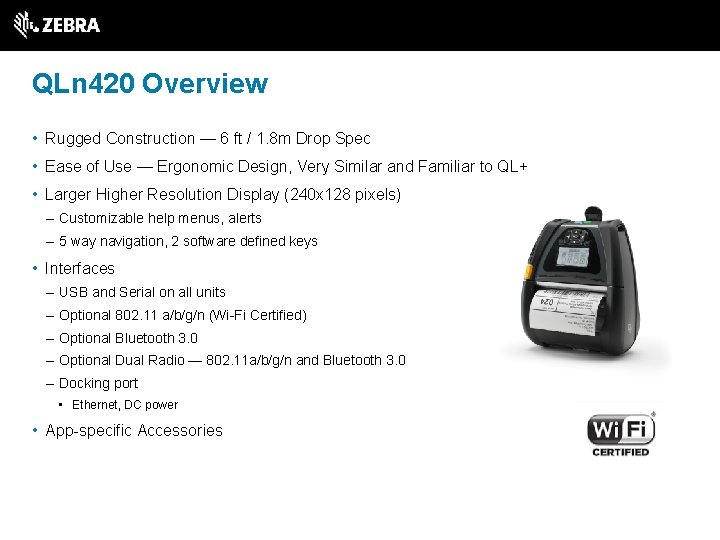

QLn 420 Overview • Rugged Construction — 6 ft / 1. 8 m Drop Spec • Ease of Use — Ergonomic Design, Very Similar and Familiar to QL+ • Larger Higher Resolution Display (240 x 128 pixels) – Customizable help menus, alerts – 5 way navigation, 2 software defined keys • Interfaces – USB and Serial on all units – Optional 802. 11 a/b/g/n (Wi-Fi Certified) – Optional Bluetooth 3. 0 – Optional Dual Radio — 802. 11 a/b/g/n and Bluetooth 3. 0 – Docking port • Ethernet, DC power • App-specific Accessories

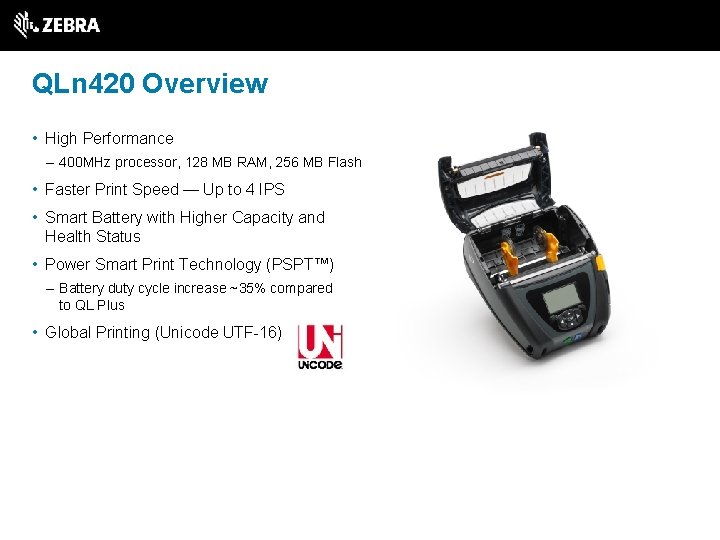

QLn 420 Overview • High Performance – 400 MHz processor, 128 MB RAM, 256 MB Flash • Faster Print Speed — Up to 4 IPS • Smart Battery with Higher Capacity and Health Status • Power Smart Print Technology (PSPT™) – Battery duty cycle increase ~35% compared to QL Plus • Global Printing (Unicode UTF-16)

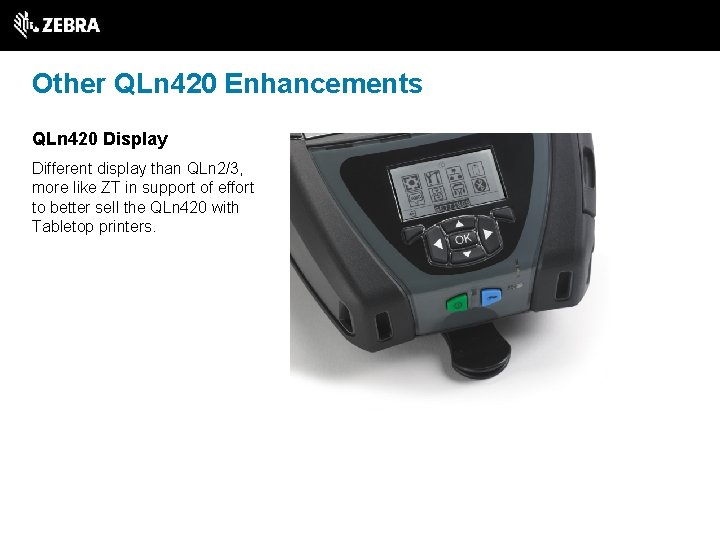

Other QLn 420 Enhancements QLn 420 Display Different display than QLn 2/3, more like ZT in support of effort to better sell the QLn 420 with Tabletop printers.

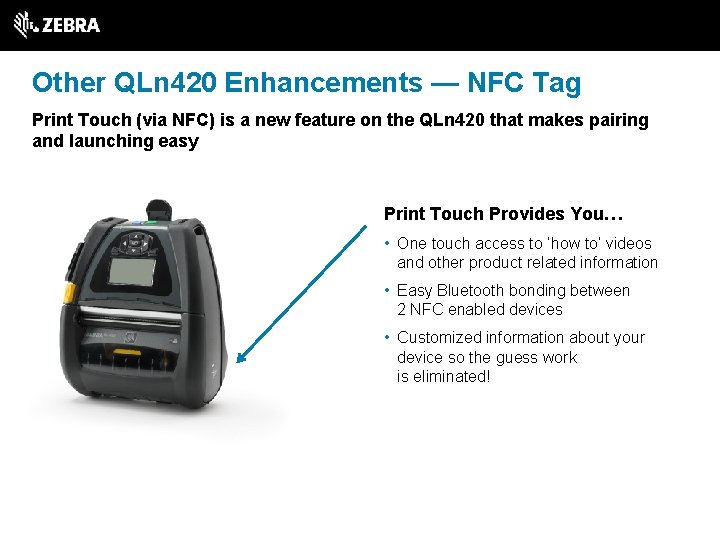

Other QLn 420 Enhancements — NFC Tag Print Touch (via NFC) is a new feature on the QLn 420 that makes pairing and launching easy Print Touch Provides You… • One touch access to ‘how to’ videos and other product related information • Easy Bluetooth bonding between 2 NFC enabled devices • Customized information about your device so the guess work is eliminated!

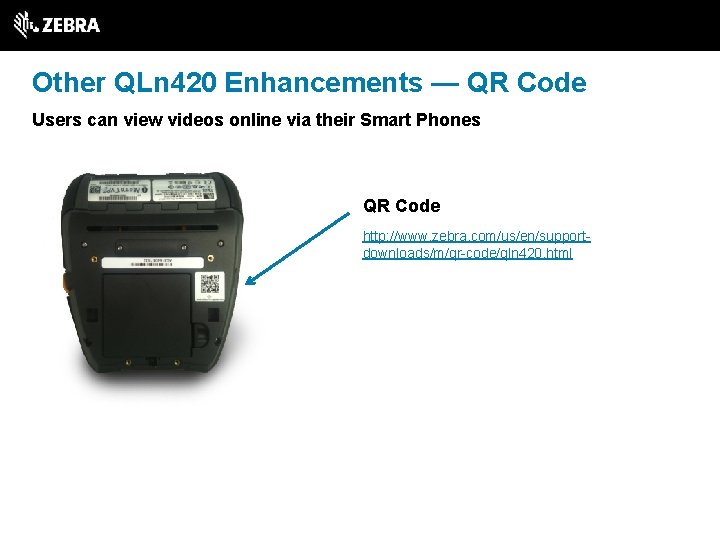

Other QLn 420 Enhancements — QR Code Users can view videos online via their Smart Phones QR Code http: //www. zebra. com/us/en/supportdownloads/m/qr-code/qln 420. html

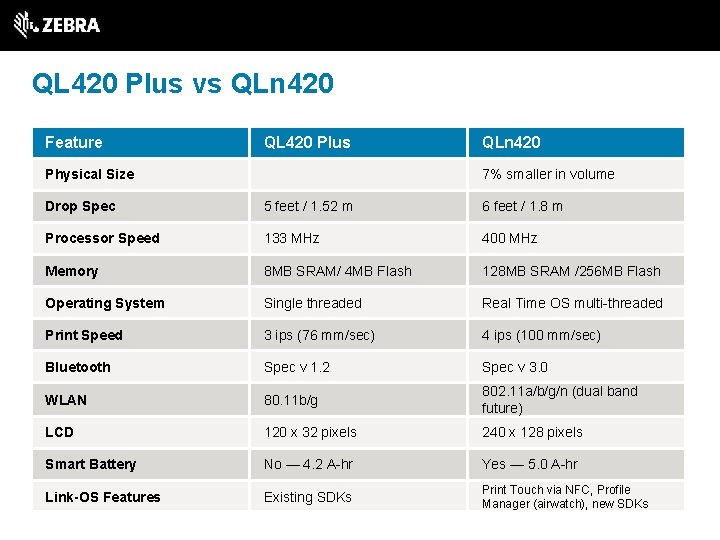

QL 420 Plus vs QLn 420 Feature QL 420 Plus Physical Size QLn 420 7% smaller in volume Drop Spec 5 feet / 1. 52 m 6 feet / 1. 8 m Processor Speed 133 MHz 400 MHz Memory 8 MB SRAM/ 4 MB Flash 128 MB SRAM /256 MB Flash Operating System Single threaded Real Time OS multi-threaded Print Speed 3 ips (76 mm/sec) 4 ips (100 mm/sec) Bluetooth Spec v 1. 2 Spec v 3. 0 WLAN 80. 11 b/g 802. 11 a/b/g/n (dual band future) LCD 120 x 32 pixels 240 x 128 pixels Smart Battery No — 4. 2 A-hr Yes — 5. 0 A-hr Link-OS Features Existing SDKs Print Touch via NFC, Profile Manager (airwatch), new SDKs

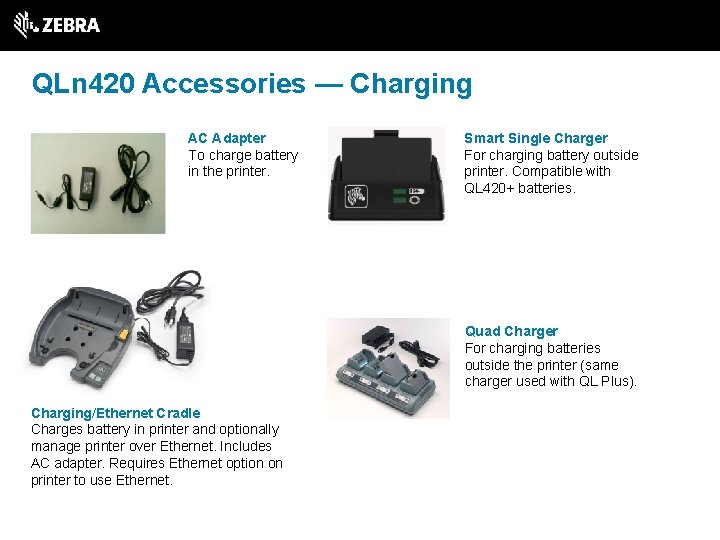

QLn 420 Accessories — Charging AC Adapter To charge battery in the printer. Smart Single Charger For charging battery outside printer. Compatible with QL 420+ batteries. Quad Charger For charging batteries outside the printer (same charger used with QL Plus). Charging/Ethernet Cradle Charges battery in printer and optionally manage printer over Ethernet. Includes AC adapter. Requires Ethernet option on printer to use Ethernet.

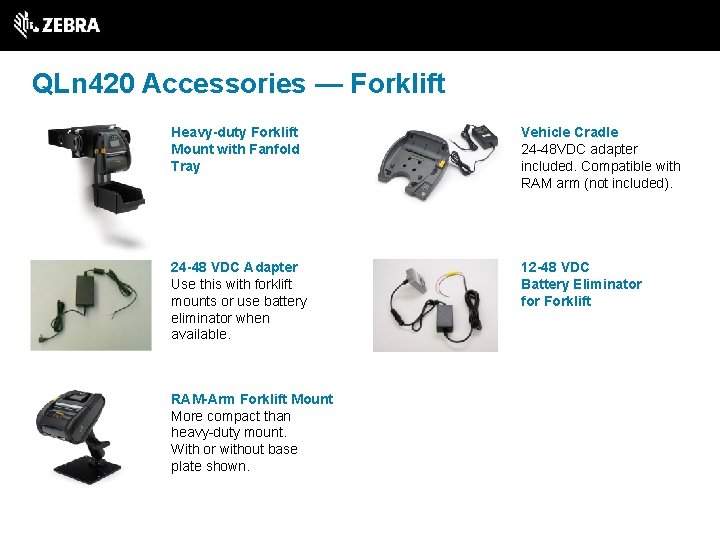

QLn 420 Accessories — Forklift Heavy-duty Forklift Mount with Fanfold Tray Vehicle Cradle 24 -48 VDC adapter included. Compatible with RAM arm (not included). 24 -48 VDC Adapter Use this with forklift mounts or use battery eliminator when available. 12 -48 VDC Battery Eliminator for Forklift RAM-Arm Forklift Mount More compact than heavy-duty mount. With or without base plate shown.

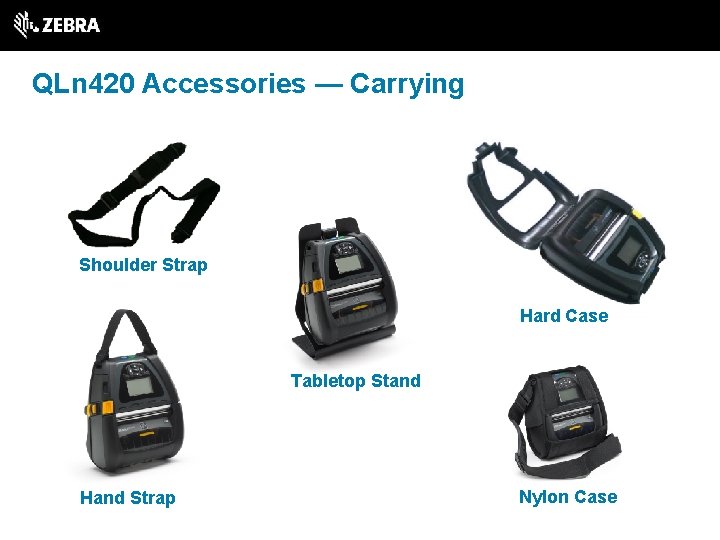

QLn 420 Accessories — Carrying Shoulder Strap Hard Case Tabletop Stand Hand Strap Nylon Case

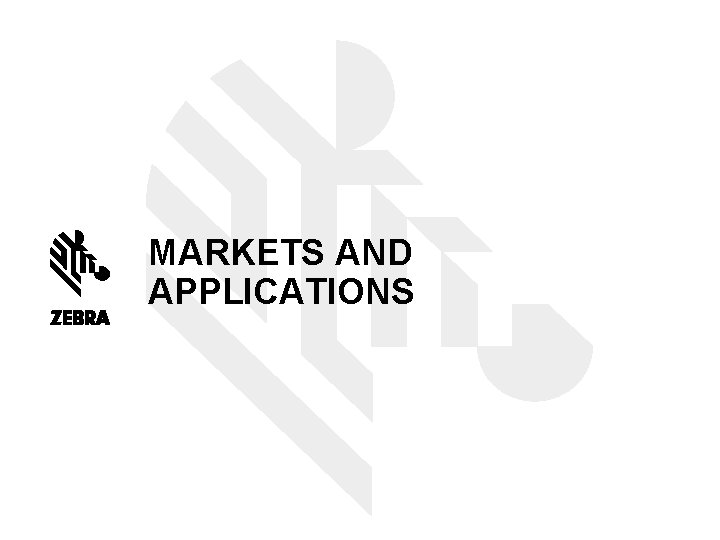

MARKETS AND APPLICATIONS

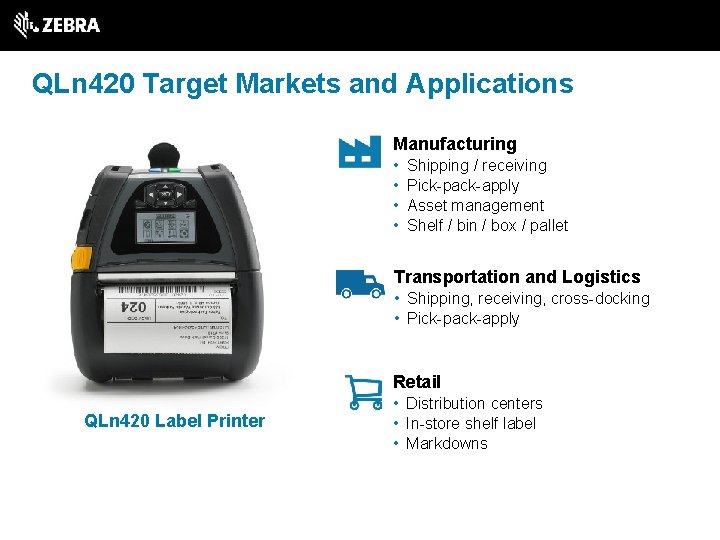

QLn 420 Target Markets and Applications Manufacturing • • Shipping / receiving Pick-pack-apply Asset management Shelf / bin / box / pallet Transportation and Logistics • Shipping, receiving, cross-docking • Pick-pack-apply Retail QLn 420 Label Printer • Distribution centers • In-store shelf label • Markdowns

QUESTIONS?

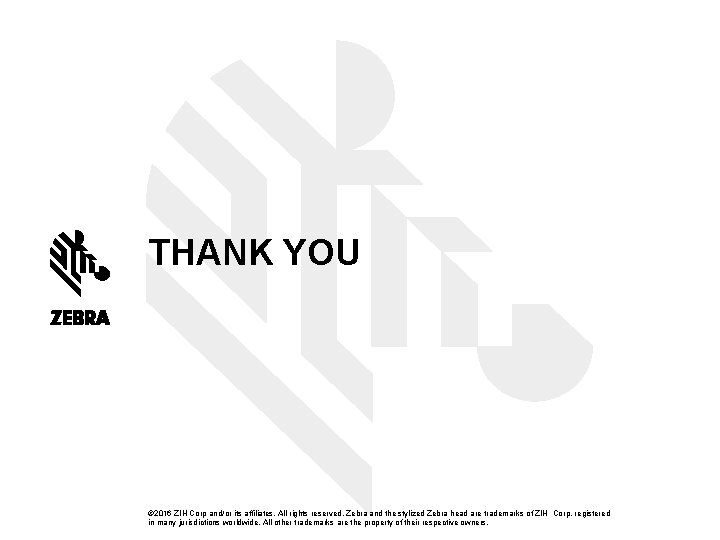

THANK YOU © 2016 ZIH Corp and/or its affiliates. All rights reserved. Zebra and the stylized Zebra head are trademarks of ZIH Corp, registered in many jurisdictions worldwide. All other trademarks are the property of their respective owners.
