Pythagoras & Trigonometry – Higher – GCSE Questions – AQA These questions are the same format as previous GCSE exams. COPY means they use the exact same numbers as the original GCSE question. Otherwise, they are clone questions using different numbers. The worksheets are provided in 2 sizes.

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

AQA Higher: June 2017 Paper 3, Q 25 1 AQA Higher: June 2017 Paper 3, Q 25 Rectangle ABCD is the horizontal base of a triangular prism ABCDEF. AE = BE E is vertically above M, the midpoint of AB. AB = 10 cm AE = 13 cm BC = 25 cm 1 Rectangle ABCD is the horizontal base of a triangular prism ABCDEF. AE = BE E is vertically above M, the midpoint of AB. AB = 10 cm AE = 13 cm BC = 25 cm F F E E D A M D C A B 1 (a) Show that EM = 12 cm 1 (b) Work out the size of angle ECM. [2 marks] [4 marks] M C B 1 (a) Show that EM = 12 cm 1 (b) Work out the size of angle ECM. [2 marks] [4 marks]

AQA Higher: November 2017 Paper 3, Q 27 1 AQA Higher: November 2017 Paper 3, Q 27 VABCD is a square-based pyramid. The horizontal base ABCD has side length 8 cm and centre M. Angle VMA is 90° V Angle VAM is 72° 1 VABCD is a square-based pyramid. The horizontal base ABCD has side length 8 cm and centre M. Angle VMA is 90° V Angle VAM is 72° D D C 72° [6 marks] cm 3 8 cm M 8 cm A B Work out the volume of the pyramid. Answer 72° 8 cm M 8 cm A C B Work out the volume of the pyramid. Answer [6 marks] cm 3

AQA Higher: June 2018 Paper 3, Q 25 1 AQA Higher: June 2018 Paper 3, Q 25 ABCDEF is a triangular prism which represents part of a hill. ABCD is the horizontal rectangular base. E is vertically above A. F 1 E ABCDEF is a triangular prism which represents part of a hill. ABCD is the horizontal rectangular base. E is vertically above A. F E B 32° A 200 cm A D Answer C 32° 300 cm 1 (a) Work out the height EA. [2 marks] m 200 cm 300 cm D 1 (a) Work out the height EA. Answer 1 (b) Hannah walks in a straight line from C to E. [2 marks] m 1 (b) Hannah walks in a straight line from C to E. Work out the size of angle ACE. You must show your working. Answer B C [4 marks] degrees Work out the size of angle ACE. You must show your working. Answer [4 marks] degrees

AQA Higher: June 2017 Paper 3, Q 25 1 Rectangle ABCD is the horizontal base of a triangular prism ABCDEF. AE = BE E is vertically above M, the midpoint of AB. AB = 10 cm AE = 13 cm BC = 25 cm F E D A M C B 1 (a) Show that EM = 12 cm 1 (b) Work out the size of angle ECM. [2 marks] [4 marks]

AQA Higher: November 2017 Paper 3, Q 27 1 VABCD is a square-based pyramid. The horizontal base ABCD has side length 8 cm and centre M. Angle VMA is 90° V Angle VAM is 72° D C 72° 8 cm A 8 cm M B Work out the volume of the pyramid. Answer [6 marks] cm 3

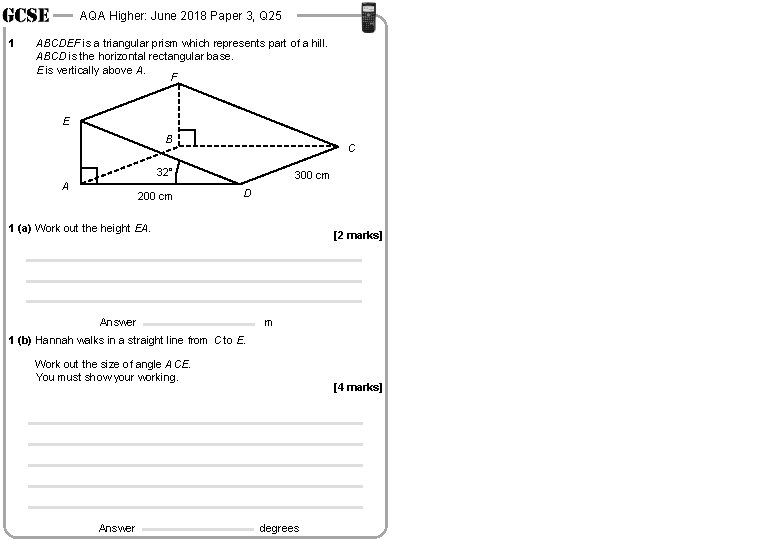

AQA Higher: June 2018 Paper 3, Q 25 1 ABCDEF is a triangular prism which represents part of a hill. ABCD is the horizontal rectangular base. E is vertically above A. F E B C 32° A 200 cm 300 cm D 1 (a) Work out the height EA. Answer [2 marks] m 1 (b) Hannah walks in a straight line from C to E. Work out the size of angle ACE. You must show your working. Answer [4 marks] degrees

AQA Higher: June 2017 Paper 3, Q 25 1 Rectangle ABCD is the horizontal base of a triangular prism ABCDEF. AE = BE E is vertically above M, the midpoint of AB. AB = 10 cm AE = 13 cm BC = 25 cm F E D 13 C 25 A 5 M 1 (a) Show that EM = 12 cm 5 B [2 marks] 13 5 1 (b) Work out the size of angle ECM. C 25 5 M 12 [4 marks]

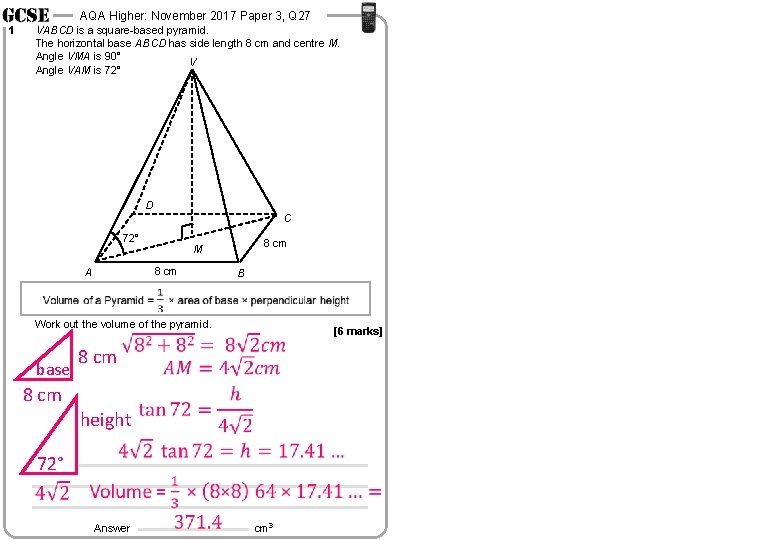

AQA Higher: November 2017 Paper 3, Q 27 1 VABCD is a square-based pyramid. The horizontal base ABCD has side length 8 cm and centre M. Angle VMA is 90° V Angle VAM is 72° D C 72° 8 cm A 8 cm M B Work out the volume of the pyramid. base [6 marks] 8 cm height 72° Answer cm 3

AQA Higher: June 2018 Paper 3, Q 25 1 ABCDEF is a triangular prism which represents part of a hill. ABCD is the horizontal rectangular base. E is vertically above A. F E B C 32° A 200 cm 300 cm D 1 (a) Work out the height EA. Answer [2 marks] 124. 97 m 1 (b) Hannah walks in a straight line from C to E. Work out the size of angle ACE. You must show your working. C [4 marks] 300 A 200 Answer 19. 1° degrees
