Pythagoras in Real Life – Foundation – GCSE Questions These questions are the same format as previous GCSE exams. COPY means they use the exact same numbers as the original GCSE question. Otherwise, they are clone questions using different numbers. The worksheets are provided in a variety of sizes.

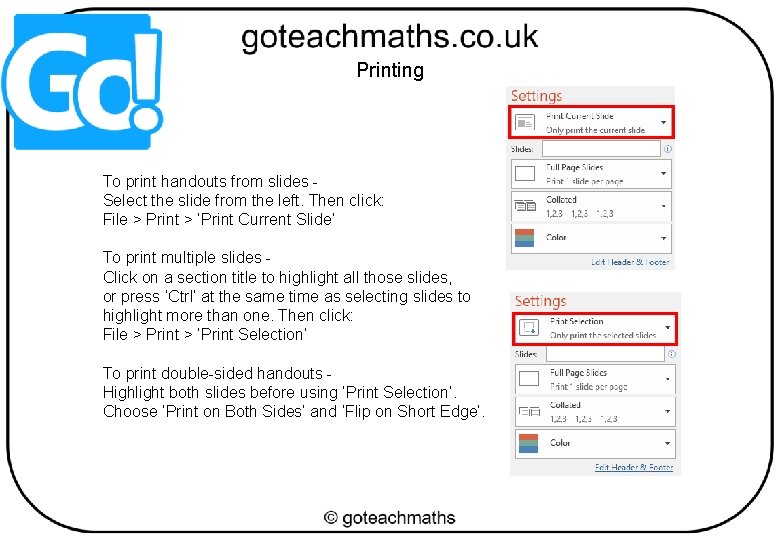

Printing To print handouts from slides Select the slide from the left. Then click: File > Print > ‘Print Current Slide’ To print multiple slides Click on a section title to highlight all those slides, or press ‘Ctrl’ at the same time as selecting slides to highlight more than one. Then click: File > Print > ‘Print Selection’ To print double-sided handouts Highlight both slides before using ‘Print Selection’. Choose ‘Print on Both Sides’ and ‘Flip on Short Edge’.

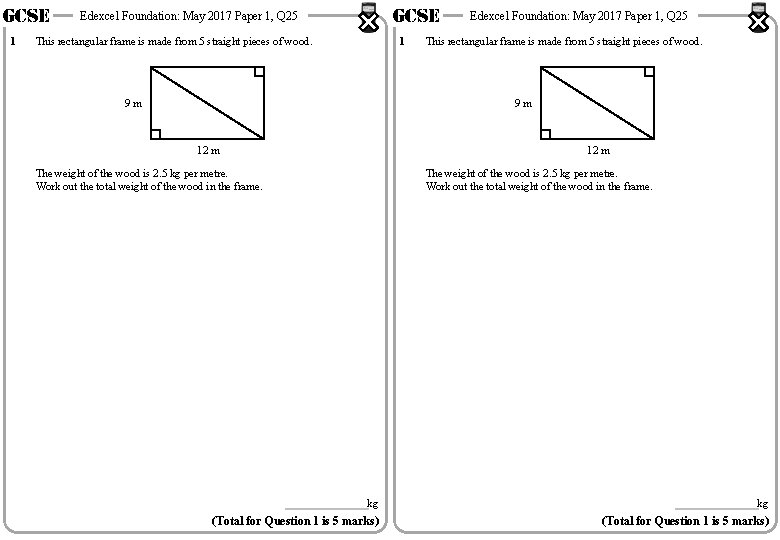

GCSE 1 GCSE Edexcel Foundation: May 2017 Paper 1, Q 25 This rectangular frame is made from 5 straight pieces of wood. 1 9 m Edexcel Foundation: May 2017 Paper 1, Q 25 This rectangular frame is made from 5 straight pieces of wood. 9 m 12 m The weight of the wood is 2. 5 kg per metre. Work out the total weight of the wood in the frame. kg kg (Total for Question 1 is 5 marks)

GCSE 1 Edexcel Foundation: May 2017 Paper 1, Q 25 This rectangular frame is made from 5 straight pieces of wood. 9 m 12 m The weight of the wood is 2. 5 kg per metre. Work out the total weight of the wood in the frame. kg (Total for Question 1 is 5 marks)

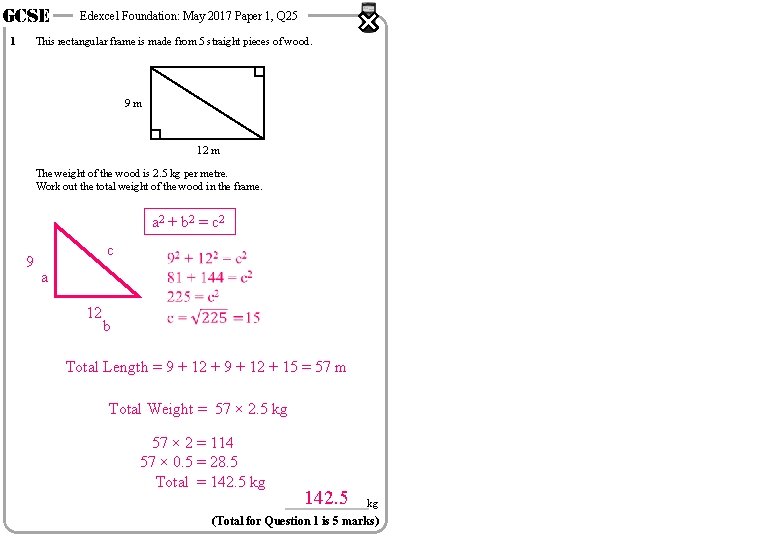

GCSE 1 Edexcel Foundation: May 2017 Paper 1, Q 25 This rectangular frame is made from 5 straight pieces of wood. 9 m 12 m The weight of the wood is 2. 5 kg per metre. Work out the total weight of the wood in the frame. a 2 + b 2 = c 2 9 c a 12 b Total Length = 9 + 12 + 15 = 57 m Total Weight = 57 × 2. 5 kg 57 × 2 = 114 57 × 0. 5 = 28. 5 Total = 142. 5 kg (Total for Question 1 is 5 marks)
