PVG 100 New heights in flowsharing Rev B

PVG 100 New heights in flow-sharing Rev. B

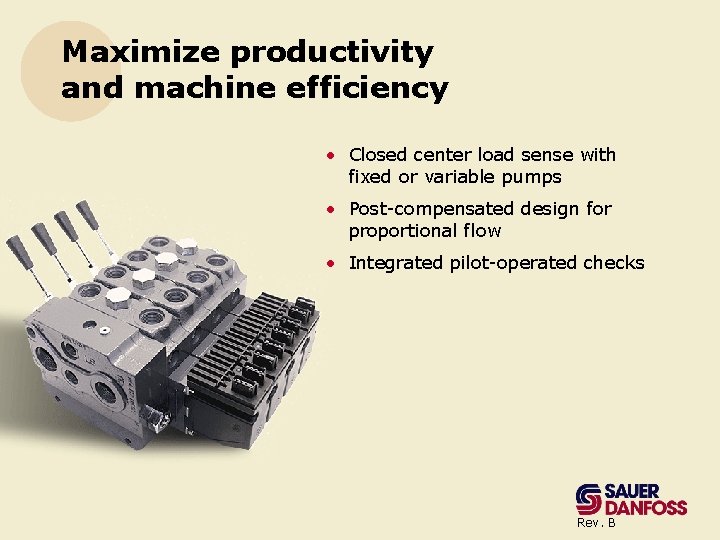

Maximize productivity and machine efficiency • Closed center load sense with fixed or variable pumps • Post-compensated design for proportional flow • Integrated pilot-operated checks Rev. B

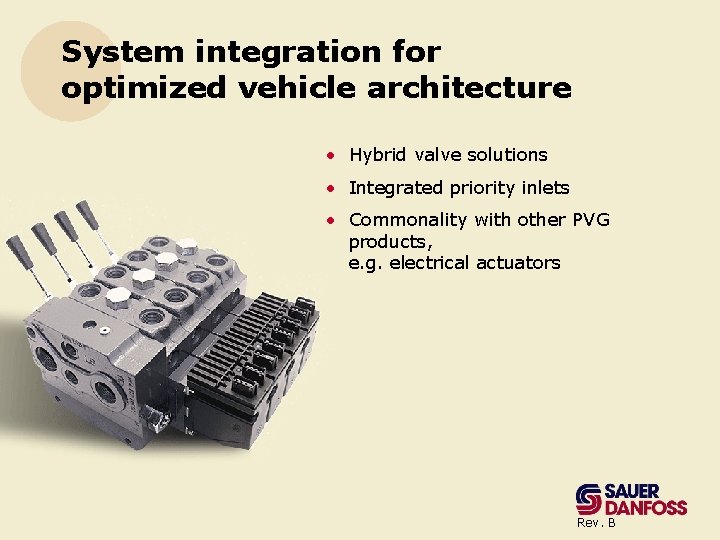

System integration for optimized vehicle architecture • Hybrid valve solutions • Integrated priority inlets • Commonality with other PVG products, e. g. electrical actuators Rev. B

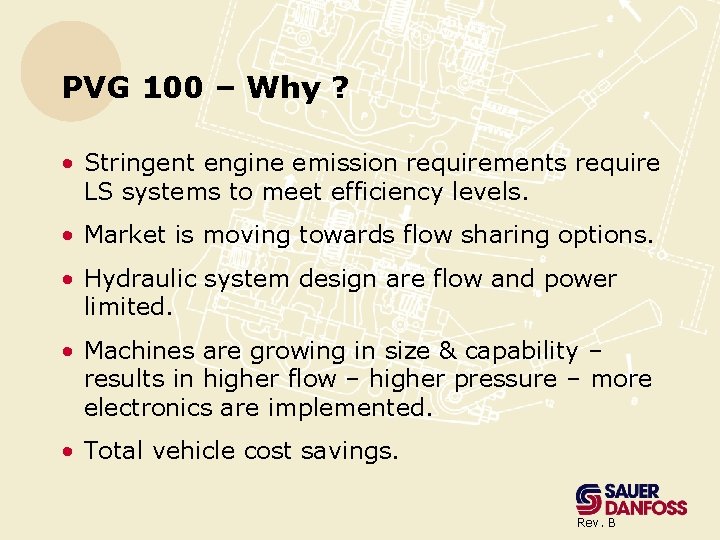

PVG 100 – Why ? • Stringent engine emission requirements require LS systems to meet efficiency levels. • Market is moving towards flow sharing options. • Hydraulic system design are flow and power limited. • Machines are growing in size & capability – results in higher flow – higher pressure – more electronics are implemented. • Total vehicle cost savings. Rev. B

PVG 100 – What is it? • Post-Compensated Directional Control Valve • Fulfills demands for flow/power limited systems • Simplifies operator control • Allows accurate, precise movement • Customized configurations with sectional design • Utilizes common hardware within PVG family • For use with fixed/variable displacement pumps. Rev. B

Introduction of PVG 100 Pre-Compensation Features • Compensator located in front of main spool Post-Compensation • Compensator located after main spool • Compensator controls individual P, determined by the LS work-port pressure, and the compensated pressure. • Compensator controls the P, determined by the highest load pressure (LSmax), and the pump pressure - P across the opening area of the main spool. • Compensator spring and LS opens the compensation spool • Compensator spring and (LSmax) closes the compensation spool. • Enables individual control to LS A/B • Flow-Sharing Simplified Cetop diagram Advantages work-port pressure limitation. Side Effects • Flow-Sharing not possible • Inhibits individual control to LSA/B work-port pressure limitation. Rev. B

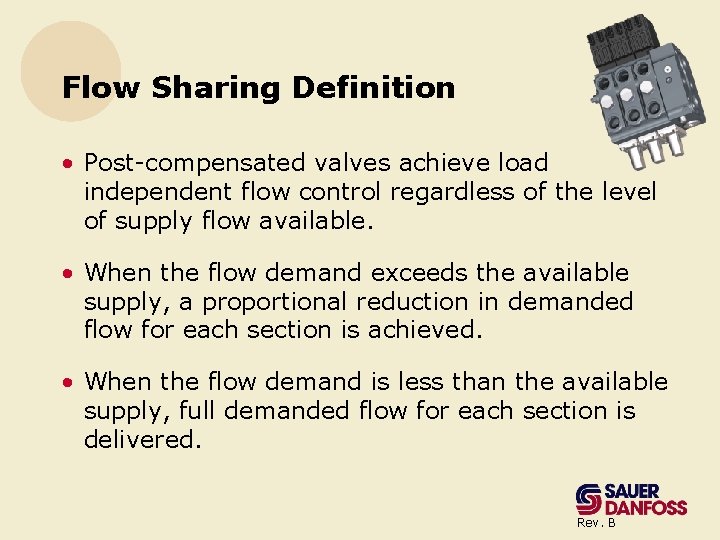

Flow Sharing Definition • Post-compensated valves achieve load independent flow control regardless of the level of supply flow available. • When the flow demand exceeds the available supply, a proportional reduction in demanded flow for each section is achieved. • When the flow demand is less than the available supply, full demanded flow for each section is delivered. Rev. B

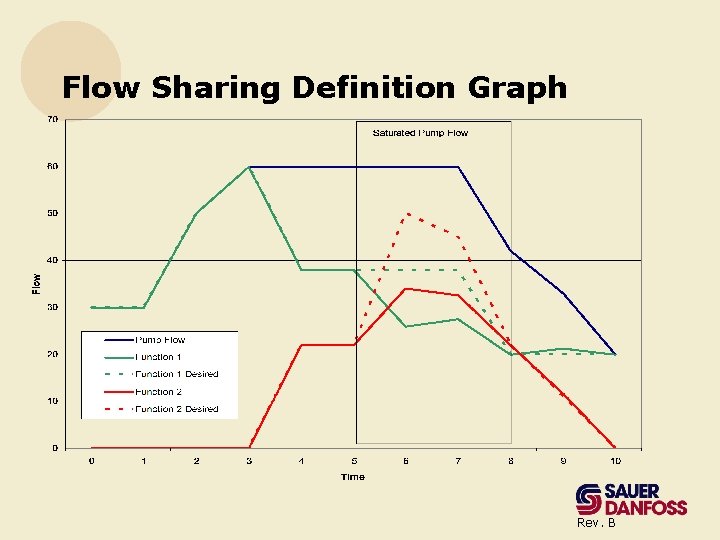

Flow Sharing Definition Graph Rev. B

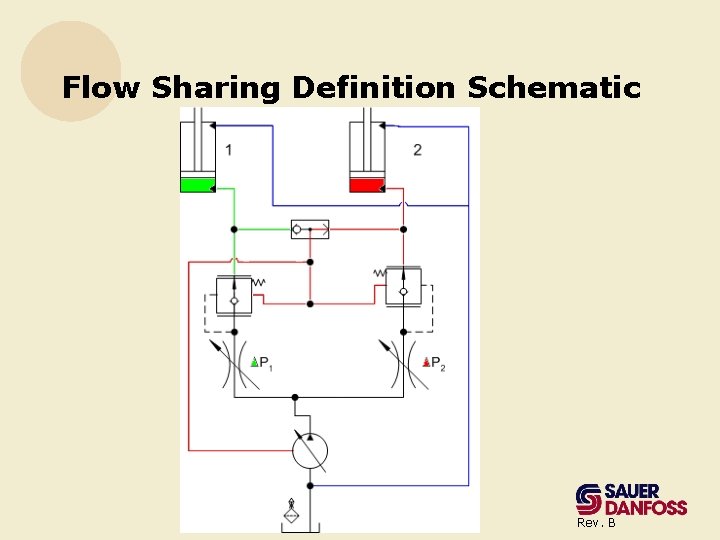

Flow Sharing Definition Schematic Rev. B

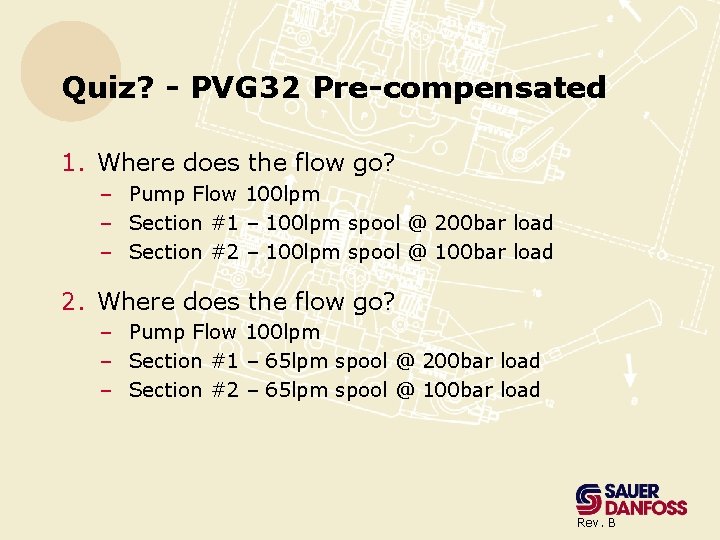

Quiz? - PVG 32 Pre-compensated 1. Where does the flow go? – Pump Flow 100 lpm – Section #1 – 100 lpm spool @ 200 bar load – Section #2 – 100 lpm spool @ 100 bar load 2. Where does the flow go? – Pump Flow 100 lpm – Section #1 – 65 lpm spool @ 200 bar load – Section #2 – 65 lpm spool @ 100 bar load Rev. B

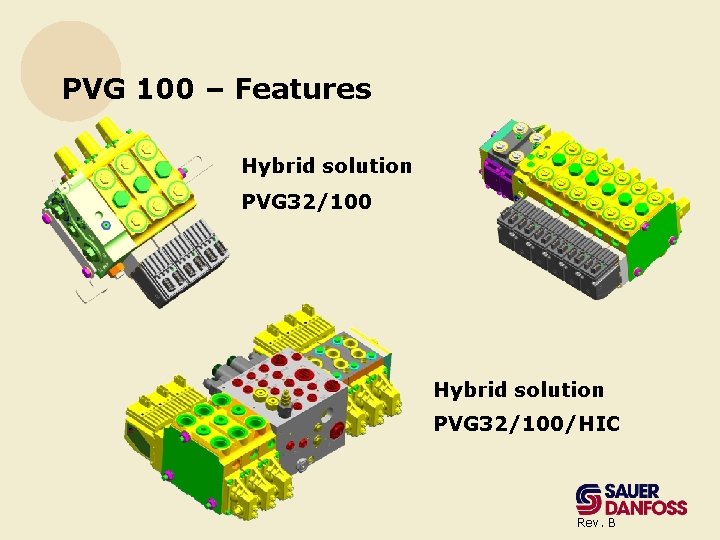

PVG 100 – Features Hybrid solution PVG 32/100/HIC Rev. B

PVG 100 – Features Rev. B

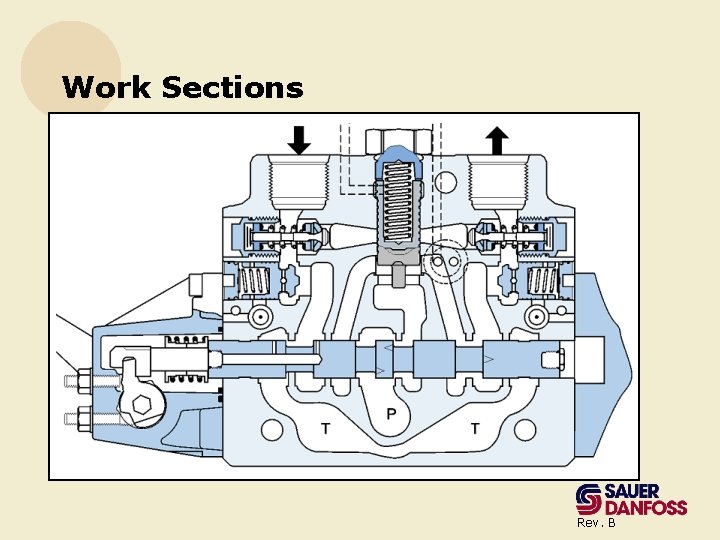

Work Sections Rev. B

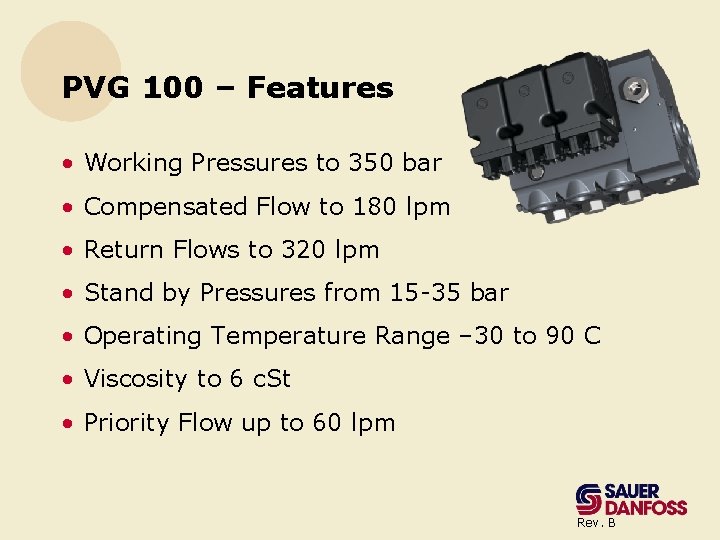

PVG 100 – Features • Working Pressures to 350 bar • Compensated Flow to 180 lpm • Return Flows to 320 lpm • Stand by Pressures from 15 -35 bar • Operating Temperature Range – 30 to 90 C • Viscosity to 6 c. St • Priority Flow up to 60 lpm Rev. B

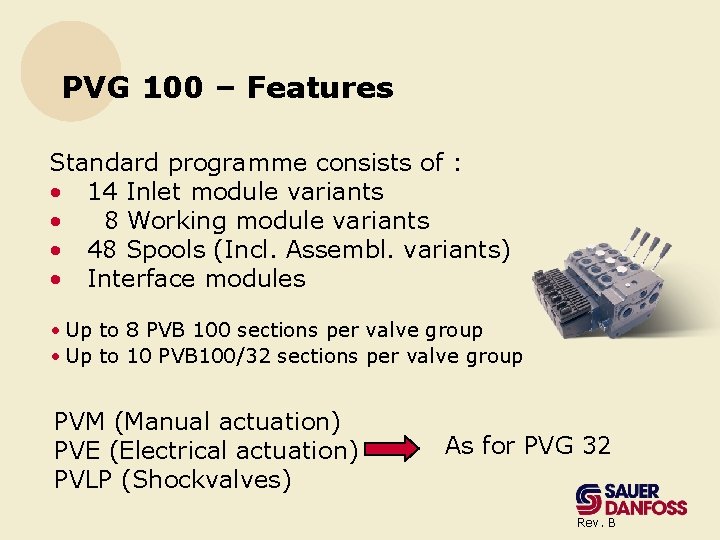

PVG 100 – Features Standard programme consists of : • 14 Inlet module variants • 8 Working module variants • 48 Spools (Incl. Assembl. variants) • Interface modules • Up to 8 PVB 100 sections per valve group • Up to 10 PVB 100/32 sections per valve group PVM (Manual actuation) PVE (Electrical actuation) PVLP (Shockvalves) As for PVG 32 Rev. B

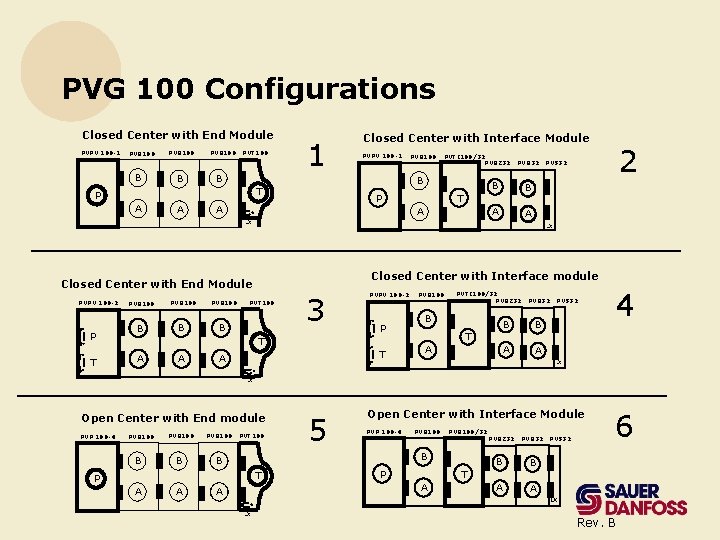

PVG 100 Configurations Closed Center with End Module PVPV 100 -1 PVB 100 B PVB 100 PVT 100 B 1 A A PVPV 100 -1 PVB 100 PVTI 100/32 PVBZ 32 B T P Closed Center with Interface Module P A PVB 32 B B A A T A LX LX Closed Center with Interface module Closed Center with End Module PVPV 100 -2 P T PVB 100 B B B PVT 100 3 PVPV 100 -2 P T A A 2 PVS 32 T A PVB 100 PVTI 100/32 PVBZ 32 B T A PVB 32 B B A A PVS 32 4 LX LX Open Center with End module PVP 100 -4 PVB 100 B B PVT 100 P A PVP 100 -4 PVB 100/32 B T A 5 Open Center with Interface Module A P PVBZ 32 PVB 32 B B A A T A PVS 32 6 LX LX Rev. B

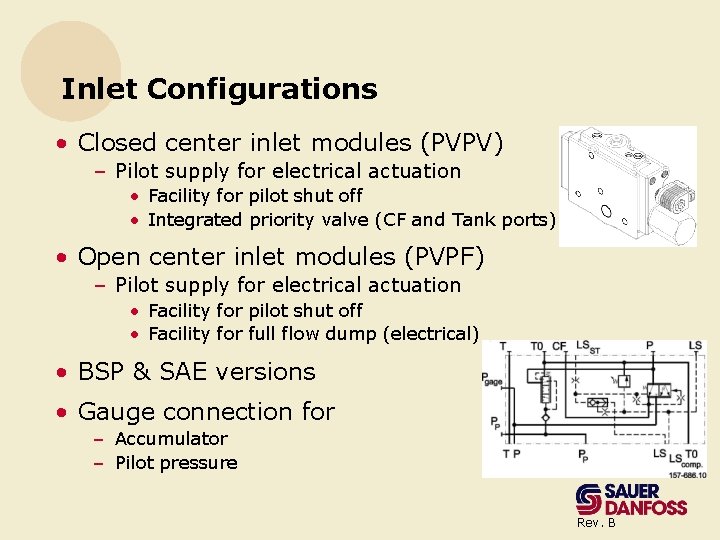

Inlet Configurations • Closed center inlet modules (PVPV) – Pilot supply for electrical actuation • Facility for pilot shut off • Integrated priority valve (CF and Tank ports) • Open center inlet modules (PVPF) – Pilot supply for electrical actuation • Facility for pilot shut off • Facility for full flow dump (electrical) • BSP & SAE versions • Gauge connection for – Accumulator – Pilot pressure Rev. B

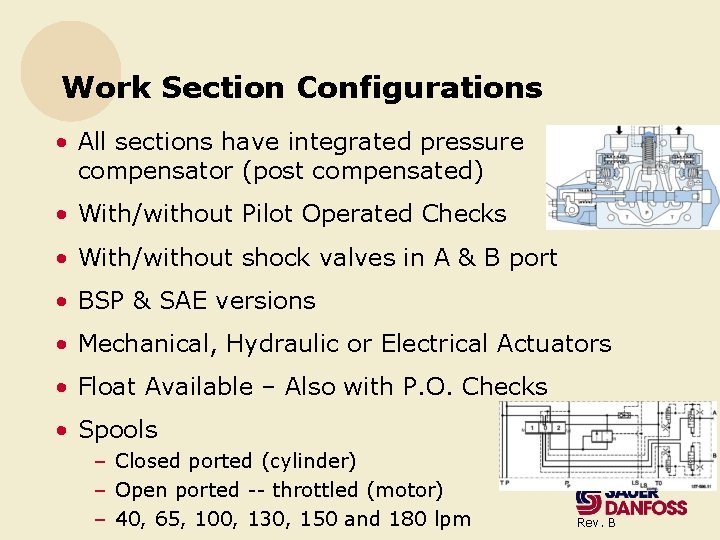

Work Section Configurations • All sections have integrated pressure compensator (post compensated) • With/without Pilot Operated Checks • With/without shock valves in A & B port • BSP & SAE versions • Mechanical, Hydraulic or Electrical Actuators • Float Available – Also with P. O. Checks • Spools – Closed ported (cylinder) – Open ported -- throttled (motor) – 40, 65, 100, 130, 150 and 180 lpm Rev. B

PVG 100/32 Interface Module-PVTI • Interface with Tank port • Shock & anti cavitation valves (PVLP) • BSP • SAE Must use PVG 32 with T 0 T To Ls P Rev. B Pp

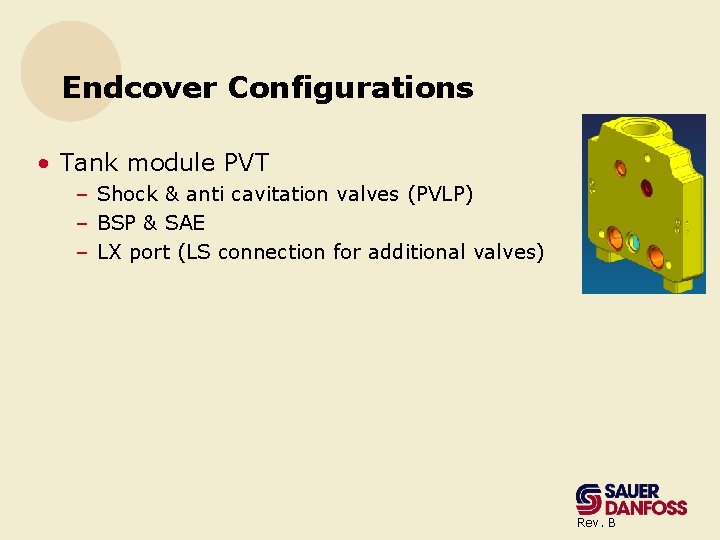

Endcover Configurations • Tank module PVT – Shock & anti cavitation valves (PVLP) – BSP & SAE – LX port (LS connection for additional valves) Rev. B

Actuation modules • Standard is always manual actuator PVM combined with : – PVE, for electrical actuation • • – – PVES – super proportional PVEH – proportional high PVED – Canbus interface PVEA – proportional fine PVEO – ON/OFF Hirschmann – AMP connectors Active – passive fault monitoring PVH, cover for hydraulic actuation PVMD, for mechanical actuation PVMR, for friction detent PVMF, for mechanical detend, float Rev. B

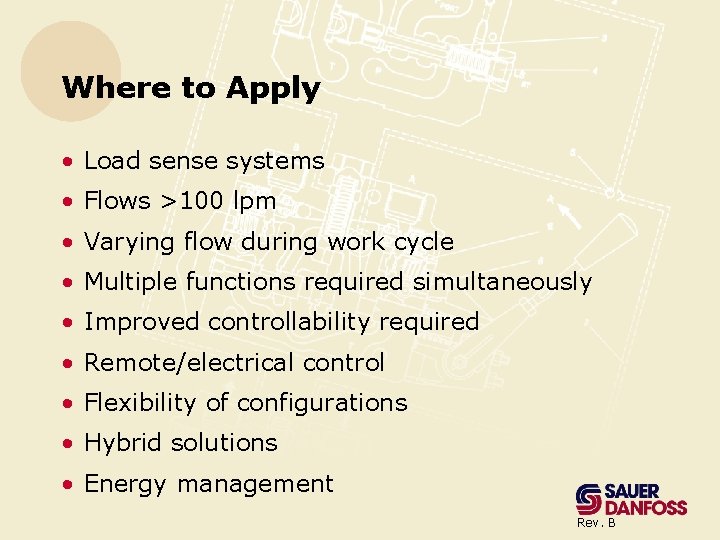

Where to Apply • Load sense systems • Flows >100 lpm • Varying flow during work cycle • Multiple functions required simultaneously • Improved controllability required • Remote/electrical control • Flexibility of configurations • Hybrid solutions • Energy management Rev. B

Technical Support TST Nordborg Poul V. Pedersen SD-VTS Phone: +4587 Ext. : 7328 Tech. Support Assistant Louise Callesen Henrik Thunø Ext. : 3952 Casper Friis Ext. : +5254 Finland PVED PVE / EH Mariann Ebbesen Ext. : +4319 Finn Kaad Ext. : +4182 Steen Larsen Ext. : +2175 Arne Egholm Ext. : +5327 Portugal Holland Spain Belgium Norway Sweden Denmark Eastern Europe Overseas USA / Canada Schwitzerland Germany / Austria France Spirit Australia/New Zealand Japan/China Italy Korea ASEAN UK / India Hybrid solutions Customer order database Joystick PVG 100 PVG 32/120 PVG Variant Configuration PVE Direct telefax: Internal address: +45 7488 3632 L 32 -S 141 E-mail: Casper Friis Mariann Ebbesen Arne Egholm Finn Kaad Steen Larsen Poul V. Pedersen Louise Callesen Henrik Thunoe cfriis@sauer-danfoss. com mebbesen@sauer-danfoss. com aegholm@sauer-danfoss. com fkaad@sauer-danfoss. com slarsen@sauer-danfoss. com pvpedersen@sauer-danfoss. com lwendelbo-nielsen@sauer-danfoss. com Hthunoe@sauer-danfoss. com Updated June 2005 Rev. B
